Page 2697 of 4449
EI-18
REAR BUMPER
Revision: 2004 November 2004 FX35/FX45
REAR BUMPERPFP:H5022
Removal and InstallationAIS0037A
CAUTION:
Bumper fascia is made of resin. Do not apply strong force to it, and be careful to prevent contact with
oil.
Page 2698 of 4449
REAR BUMPER
EI-19
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2004 November 2004 FX35/FX45

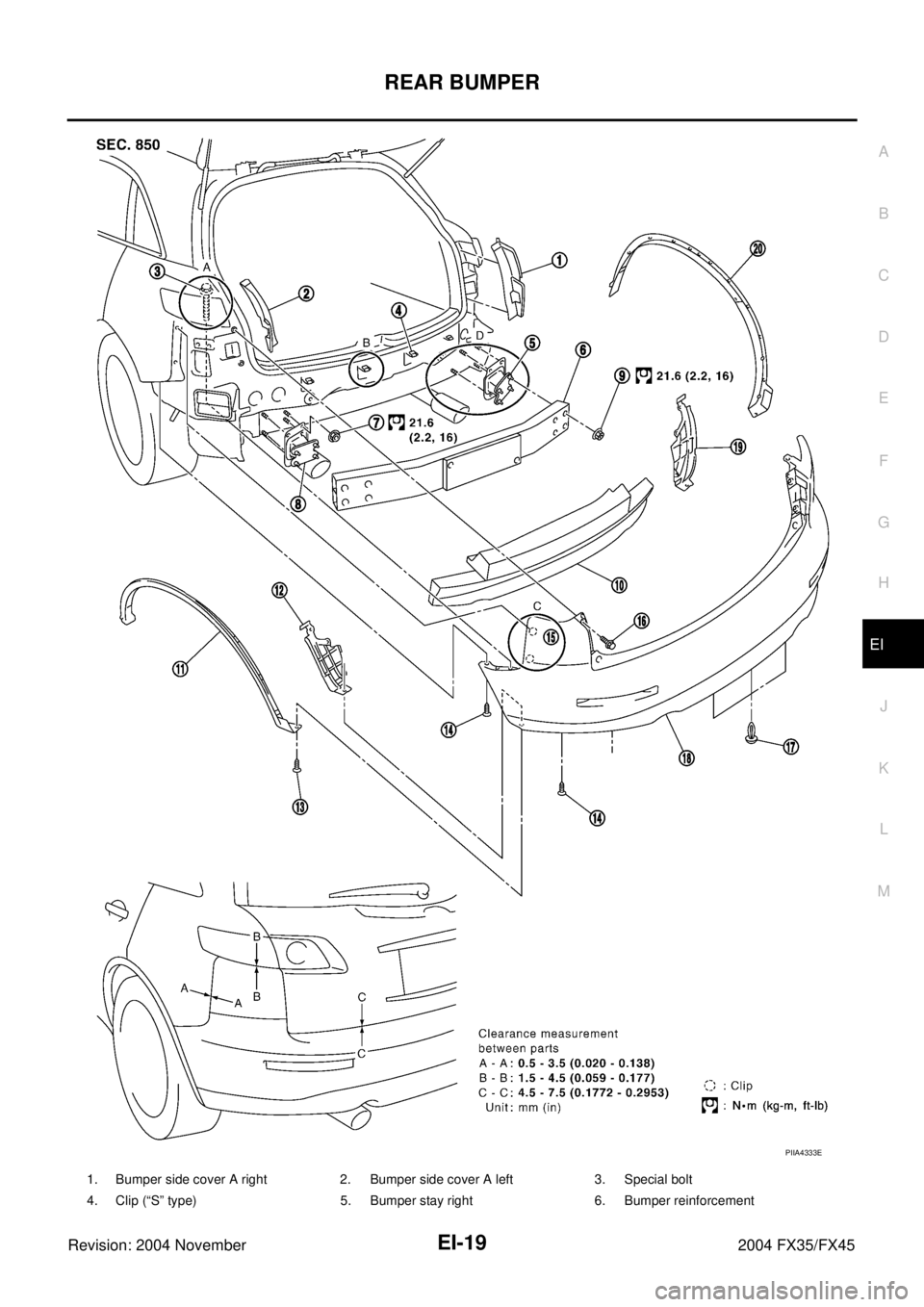

PIIA4333E
1. Bumper side cover A right 2. Bumper side cover A left 3. Special bolt
4. Clip (“S” type) 5. Bumper stay right 6. Bumper reinforcement
Page 2699 of 4449
EI-20
REAR BUMPER
Revision: 2004 November 2004 FX35/FX45
REMOVAL
1. Remove bumper side cover A.
2. Remove fillet molding assembly. Only the place connected with
a rear bumper fascia is removed.
3. Remove luggage side inspection cover.
4. Remove bumper fascia special bolts from right/left rear fender.
5. Remove bumper fascia bolts from right/left rear fender.
6. Remove lower portion of bumper fascia bolts.
7. Insert driver rolled with cloth between bumper fascia and “S”
type clips, and remove bumper fascia.
8. Remove bumper fascia assembly.
9. Remove bumper energy absorber.
10. Remove bumper reinforcement nuts and remove bumper rein-
force assembly. Remove nuts with power tool.
7. Nut 8. Bumper stay left 9. Nut
10. Energy absorber 11. Fillet molding left 12. Bumper closing left
13. Bolt 14. Bolt 15. Clip (C101)
16. Bolt 17. Clip (C205) 18. Bumper fascia assembly
19. Bumper closing right 20. Fillet molding right
PIIA4347E
PIIA4334E
PIIA4335E
PIIA4336E
Page 2700 of 4449
REAR BUMPER
EI-21
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2004 November 2004 FX35/FX45
11. Remove bumper nuts and remove bumper stay. Remove nuts
with power tool.
INSTALLATION
Install in the reverse order of removal.
REAR BUMPER FASCIA
Removal
1. Remove rear fender cover bolt and remove rear fender.
2. Remove bracket clips and remove bracket.
3. Remove rear reflex reflector assembly screw and remove rear
reflex reflector assembly.
Installation
Install in the reverse order of removal.
PIIA4337E
PIIA4960E
PIIA6416E
PIIA6417E
Page 2701 of 4449
EI-22
REAR BUMPER
Revision: 2004 November 2004 FX35/FX45
REAR BUMPER CLOSING
Removal
Remove clips of bumper closing and remove rear bumper closing.
Installation
Install in the reverse order of removal.
DRAFTER GUARD
Removal
Remove clips and bolt of drafter guard and remove drafter guard.
Installation
Install in the reverse order of removal.
REAR FILLET MOLDING ASSEMBLY
Removal
1. Remove bolts of fillet molding assembly.
2. Remove clips of fillet molding assembly.
3. Remove fillet molding assembly.
Installation
1. Clean adhesive portion of rear fender with white gasoline.
2. Strip pattern from the new double adhesive tape and paste on rear fender.
3. Fillet molding assembly hold with rear fender.
PIIA4954E
PIIA4955E
PIIA4347E
Page 2702 of 4449
FRONT GRILLE
EI-23
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2004 November 2004 FX35/FX45
FRONT GRILLEPFP:62310
Removal and InstallationAIS0037B
REMOVAL
1. Remove turn fastener of grille.
2. Remove clips on upper side of grille.
3. Pull out grille pawls, and remove grille assembly.
INSTALLATION
Install in the reverse order of removal.

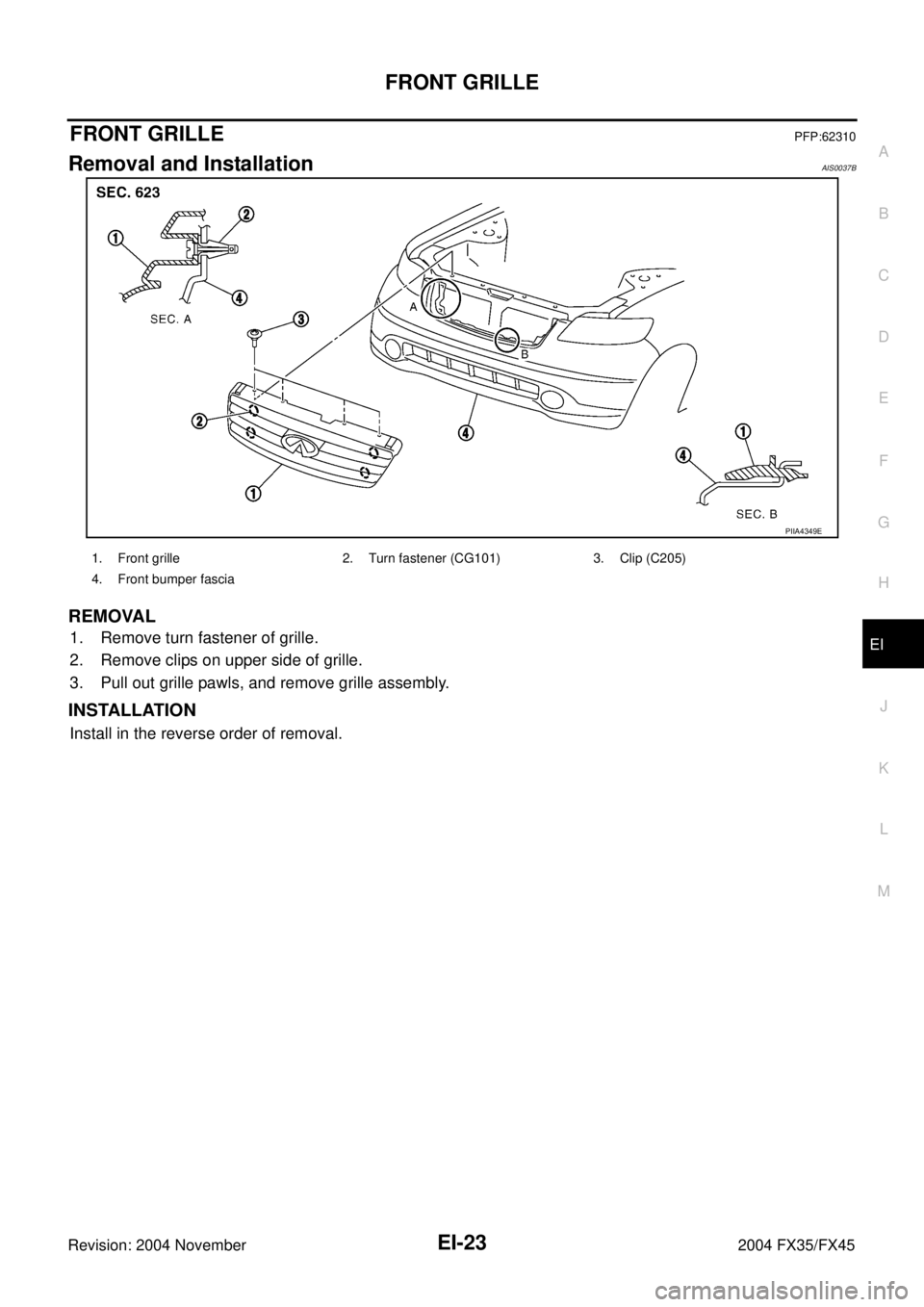

PIIA4349E
1. Front grille 2. Turn fastener (CG101) 3. Clip (C205)
4. Front bumper fascia
Page 2703 of 4449
EI-24
COWL TOP
Revision: 2004 November 2004 FX35/FX45
COWL TOPPFP:66100
Removal and InstallationAIS0037C
REMOVAL
1. Remove clips of hood ledge cover and remove hood ledge cover.
2. Remove right/left wiper arms. Refer to WW-28, "
Removal and Installation of Front Wiper Arms, Adjust-
ment of Wiper Arms Stop Location" .
3. Remove cowl top seal rubber.
4. Remove clips of cowl top cover (right) and remove cowl top cover (right).
5. Remove clips, cap and bolts and remove cowl top cover (left).
6. Remove washer hose from cowl top cover.
INSTALLATION
Install in the reverse order of removal.

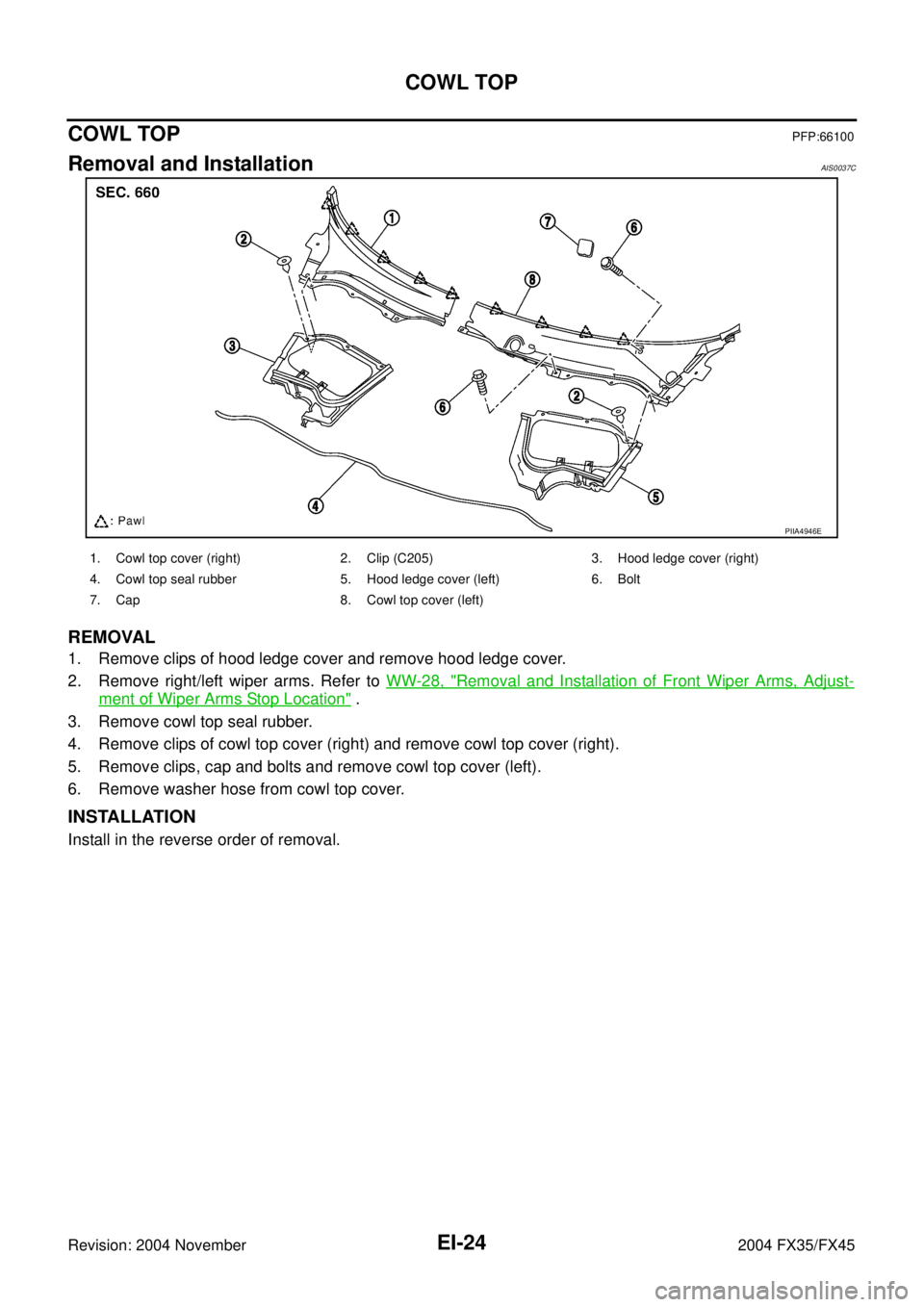

PIIA4946E
1. Cowl top cover (right) 2. Clip (C205) 3. Hood ledge cover (right)
4. Cowl top seal rubber 5. Hood ledge cover (left) 6. Bolt
7. Cap 8. Cowl top cover (left)
Page 2704 of 4449
FENDER PROTECTOR
EI-25
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2004 November 2004 FX35/FX45
FENDER PROTECTORPFP:63840
Removal and InstallationAIS0037D
REMOVAL
1. Remove bolts of fender protector front.
2. Remove clips of fender protector front.
3. Remove fender protector front.
4. Remove bolt of fender protector rear.
5. Remove clips of fender protector rear.
6. Remove fender protector rear.
INSTALLATION
Install in the reverse order of removal.
PIIA4326E
1. Fender protector front 2. Clip (C103) 3. Screw
4. Bolt 5. Fender protector rear 6. Clip
