Page 3777 of 4449

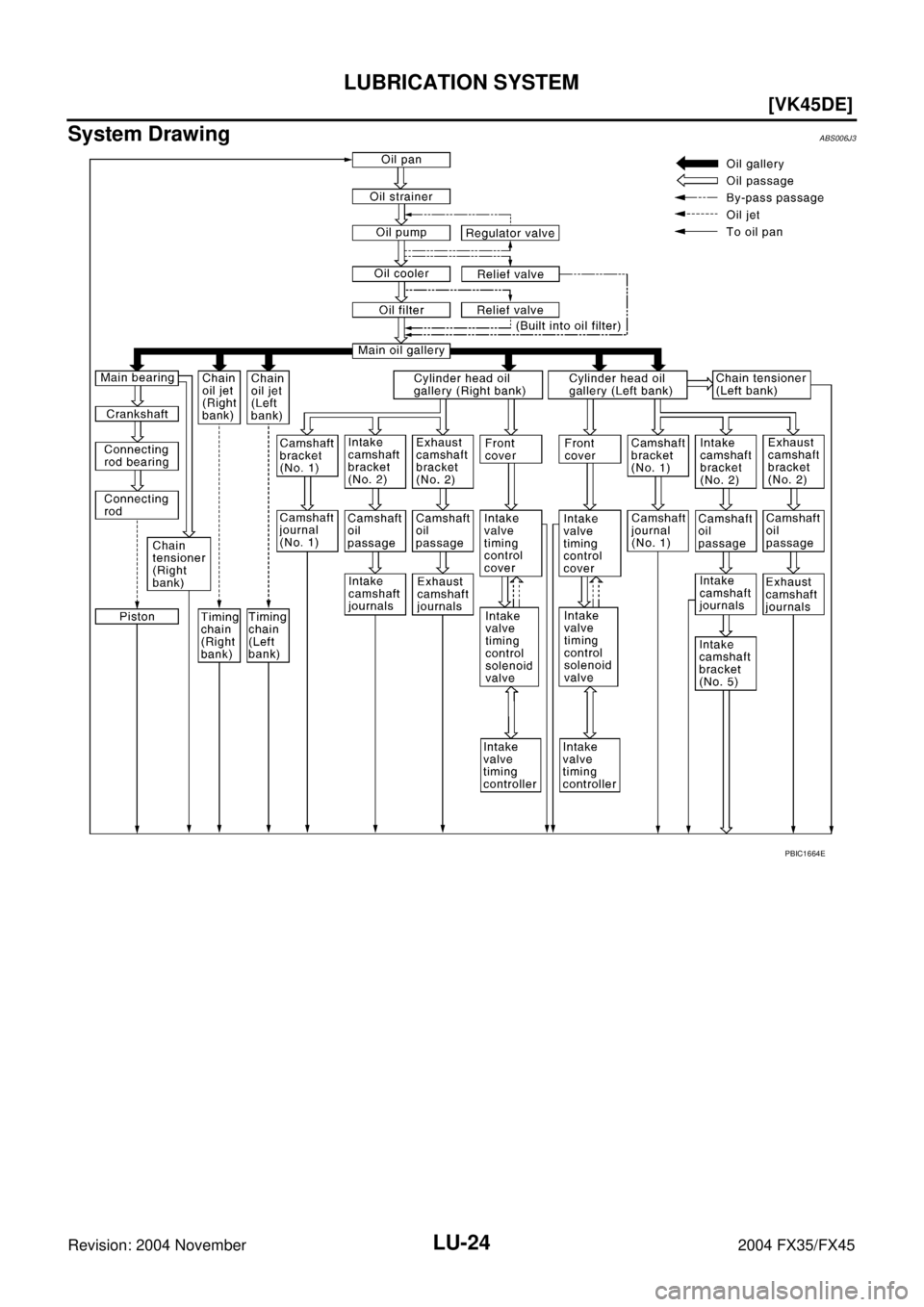

INFINITI FX35 2004 Service Manual LU-24 [VK45DE] LUBRICATION SYSTEM Revision: 2004 November 2004 FX35/FX45 System DrawingABS006J3 PBIC1664E

Page 3778 of 4449

INFINITI FX35 2004 Service Manual ENGINE OIL LU-25 [VK45DE] C D E F G H I J K L MA LU Revision: 2004 November 2004 FX35/FX45 ENGINE OILPFP:KLA92 InspectionABS006J4 ENGINE OIL LEVEL NOTE: Before starting engine, put vehicle horizontall

Page 3779 of 4449

INFINITI FX35 2004 Service Manual LU-26 [VK45DE] ENGINE OIL Revision: 2004 November 2004 FX35/FX45 3. Disconnect oil pressure switch harness connector. 4. Remove oil pressure switch. 5. Install oil pressure gauge and hose (SST). 6. St

Page 3780 of 4449

INFINITI FX35 2004 Service Manual ENGINE OIL LU-27 [VK45DE] C D E F G H I J K L MA LU Revision: 2004 November 2004 FX35/FX45 5. Drain engine oil. 6. Install drain plug with new washer. Refer to EM-181, " OIL PAN AND OIL STRAINER" . CA

Page 3781 of 4449

INFINITI FX35 2004 Service Manual LU-28 [VK45DE] OIL FILTER Revision: 2004 November 2004 FX35/FX45 OIL FILTERPFP:15208 Removal and InstallationABS006J6 REMOVAL 1. Remove front engine undercover with power tool. 2. Using the oil filter

Page 3782 of 4449

INFINITI FX35 2004 Service Manual OIL COOLER LU-29 [VK45DE] C D E F G H I J K L MA LU Revision: 2004 November 2004 FX35/FX45 OIL COOLERPFP:21305 Removal and InstallationABS007ZK WARNING: Be careful not to get burn yourself, as engine

Page 3783 of 4449

INFINITI FX35 2004 Service Manual LU-30 [VK45DE] OIL COOLER Revision: 2004 November 2004 FX35/FX45 INSTALLATION Note to the following, and install in the reverse order of removal. Make sure that no foreign objects are adhering to the

Page 3784 of 4449

INFINITI FX35 2004 Service Manual OIL PUMP LU-31 [VK45DE] C D E F G H I J K L MA LU Revision: 2004 November 2004 FX35/FX45 OIL PUMPPFP:15010 Removal and InstallationABS006J7 REMOVAL 1. Remove front cover. Refer to EM-196, "TIMING CHAI
