Page 377 of 4449

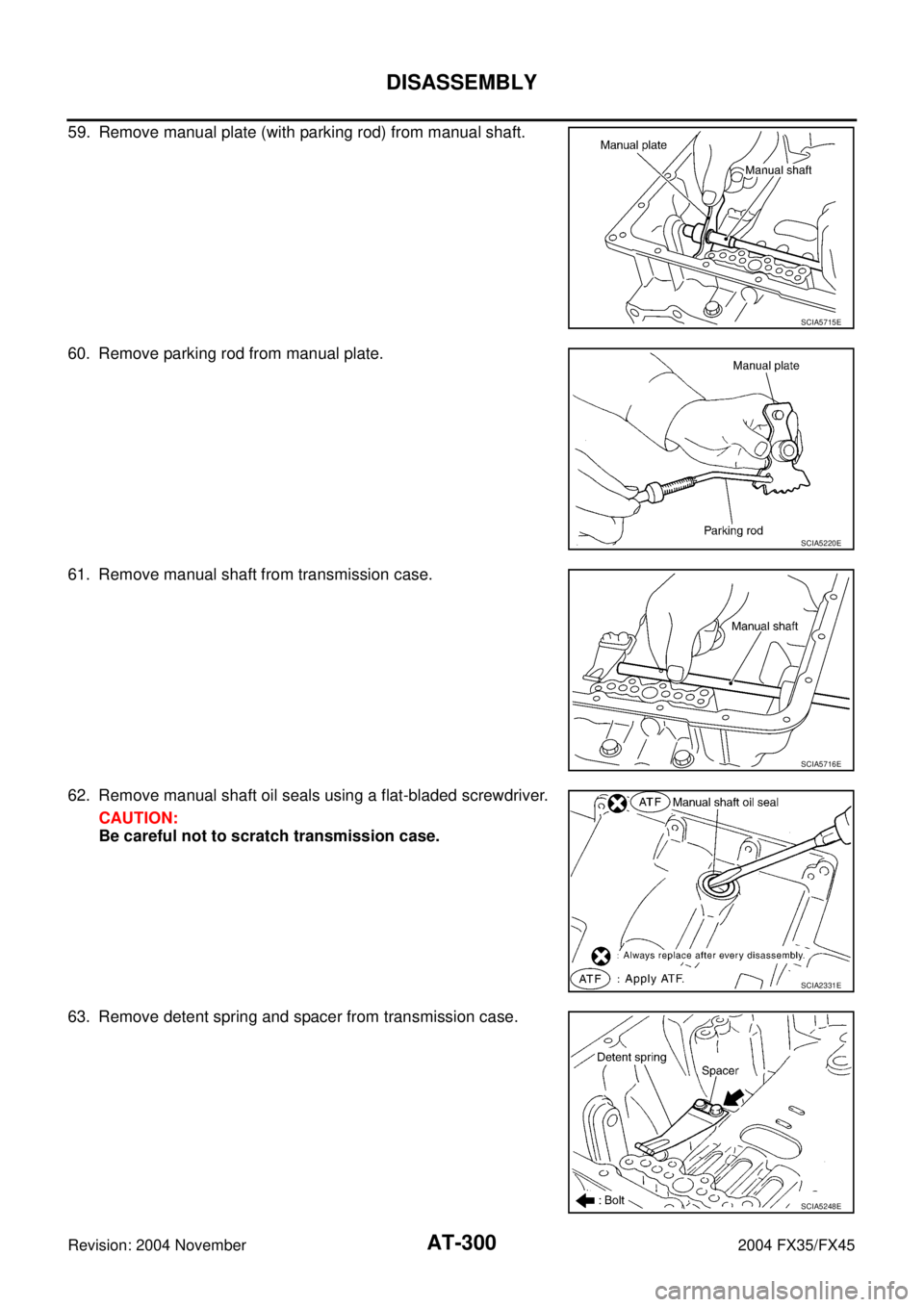

INFINITI FX35 2004 Service Manual AT-300 DISASSEMBLY Revision: 2004 November 2004 FX35/FX45 59. Remove manual plate (with parking rod) from manual shaft. 60. Remove parking rod from manual plate. 61. Remove manual shaft from transmiss

Page 378 of 4449

INFINITI FX35 2004 Service Manual DISASSEMBLY AT-301 D E F G H I J K L MA B AT Revision: 2004 November 2004 FX35/FX45 64. Using snap ring pliers, remove snap ring from transmission case. 65. Remove servo assembly (with return spring)

Page 379 of 4449

INFINITI FX35 2004 Service Manual AT-302 DISASSEMBLY Revision: 2004 November 2004 FX35/FX45 69. Remove parking pawl (with return spring) and pawl shaft from rear extension (2WD models) or adapter case (AWD models). 70. Remove return s

Page 380 of 4449

INFINITI FX35 2004 Service Manual REPAIR FOR COMPONENT PARTS AT-303 D E F G H I J K L MA B AT Revision: 2004 November 2004 FX35/FX45 REPAIR FOR COMPONENT PARTSPFP:00000 Oil PumpACS007H7 COMPONENTS DISASSEMBLY 1. Remove oil pump housin

Page 381 of 4449

INFINITI FX35 2004 Service Manual AT-304 REPAIR FOR COMPONENT PARTS Revision: 2004 November 2004 FX35/FX45 3. Remove O-ring from oil pump housing. 4. Remove O-ring from oil pump cover. ASSEMBLY 1. Install O-ring to oil pump cover. CAU

Page 382 of 4449

INFINITI FX35 2004 Service Manual REPAIR FOR COMPONENT PARTS AT-305 D E F G H I J K L MA B AT Revision: 2004 November 2004 FX35/FX45 3. Using the drift, install oil pump housing oil seal to the oil pump housing until it is flush. CAUT

Page 383 of 4449

INFINITI FX35 2004 Service Manual AT-306 REPAIR FOR COMPONENT PARTS Revision: 2004 November 2004 FX35/FX45 Front Sun Gear, 3rd One-Way ClutchACS007H8 COMPONENTS DISASSEMBLY 1. Using a flat-bladed screwdriver, remove snap ring from fro

Page 384 of 4449

INFINITI FX35 2004 Service Manual REPAIR FOR COMPONENT PARTS AT-307 D E F G H I J K L MA B AT Revision: 2004 November 2004 FX35/FX45 CAUTION: If necessary, replace the snap ring. Front Sun Gear Check for deformation, fatigue or damag
