Page 2521 of 4449
EC-1180
[VK45DE]
DTC P1564 ICC STEERING SWITCH
Revision: 2004 November 2004 FX35/FX45
Component InspectionABS00CBX
ICC STEERING SWITCH
1. Disconnect combination switch (spiral cable).
2. Check continuity between combination switch (spiral cable) ter-
minals 14 and 15 with pushing each switch.
If NG, replace ICC steering switch.
Switch Condition Resistance [Ω]
ON/OFF (MAIN) switchPressed Approx. 0
Released Approx. 5,500
ACCEL/RESUME switchPressed Approx. 2,600
Released Approx. 5,500
COAST/SET switchPressed Approx. 1,400
Released Approx. 5,500
DISTANCE switchPressed Approx. 740
Released Approx. 5,500
CANCEL switchPressed Approx. 310
Released Approx. 5,500
PBIB0967E
Page 2522 of 4449
![INFINITI FX35 2004 Service Manual DTC P1564 ASCD STEERING SWITCH
EC-1181
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
DTC P1564 ASCD STEERING SWITCHPFP:25551
Component DescriptionABS00CBY
ASCD steering swi INFINITI FX35 2004 Service Manual DTC P1564 ASCD STEERING SWITCH
EC-1181
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
DTC P1564 ASCD STEERING SWITCHPFP:25551
Component DescriptionABS00CBY
ASCD steering swi](/manual-img/42/57021/w960_57021-2521.png)
DTC P1564 ASCD STEERING SWITCH
EC-1181
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
DTC P1564 ASCD STEERING SWITCHPFP:25551
Component DescriptionABS00CBY
ASCD steering switch has variant values of electrical resistance for
each button. ECM reads voltage variation of switch, and determines
which button is operated.
Refer to EC-1334, "
AUTOMATIC SPEED CONTROL DEVICE
(ASCD)" for the ASCD function.
CONSULT-II Reference Value in Data Monitor ModeABS00CBZ
Specification data are reference values.
On Board Diagnosis LogicABS00CC0
This self-diagnosis has the one trip detection logic.
The MIL will not light up for this diagnosis.
NOTE:
If DTC P1564 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605. Refer to
EC-1057
.
PBIB1513E
MONITOR ITEM CONDITION SPECIFICATION
MAIN SW
Ignition switch: ONON/OFF (MAIN) switch: Pressed ON
ON/OFF (MAIN) switch: Released OFF
CANCEL SW
Ignition switch: ONCANCEL switch: Pressed ON
CANCEL switch: Released OFF
RESUME/ACC SW
Ignition switch: ONACCEL/RESUME switch: Pressed ON
ACCEL/RESUME switch: Released OFF
SET SW
Ignition switch: ONCOAST/SET switch: Pressed ON
COAST/SET switch: Released OFF
DTC No.Trouble diagnosis
nameDTC detecting condition Possible cause
P1564
1564ASCD steering
switch
An excessively high voltage signal from the ASCD
steering switch is sent to ECM.
ECM detects that input signal from the ASCD
steering switch is out of the specified range.
ECM detects that the ASCD steering switch is
stuck ON.
Harness or connectors
(The switch circuit is open or shorted.)
ASCD steering switch
ECM
Page 2523 of 4449
EC-1182
[VK45DE]
DTC P1564 ASCD STEERING SWITCH
Revision: 2004 November 2004 FX35/FX45
DTC Confirmation ProcedureABS00CC1
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Wait at least 10 seconds.
4. Press ON/OFF (MAIN) switch for at least 10 seconds, then release it and wait at least 10 seconds.
5. Press ACCEL/RESUME switch for at least 10 seconds, then release it and wait at least 10 seconds.
6. Press COAST/SET switch for at least 10 seconds, then release it and wait at least 10 seconds.
7. Press CANCEL switch for at least 10 seconds, then release it and wait at least 10 seconds.
8. If DTC is detected, go to EC-1184, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
Page 2524 of 4449
DTC P1564 ASCD STEERING SWITCH
EC-1183
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45

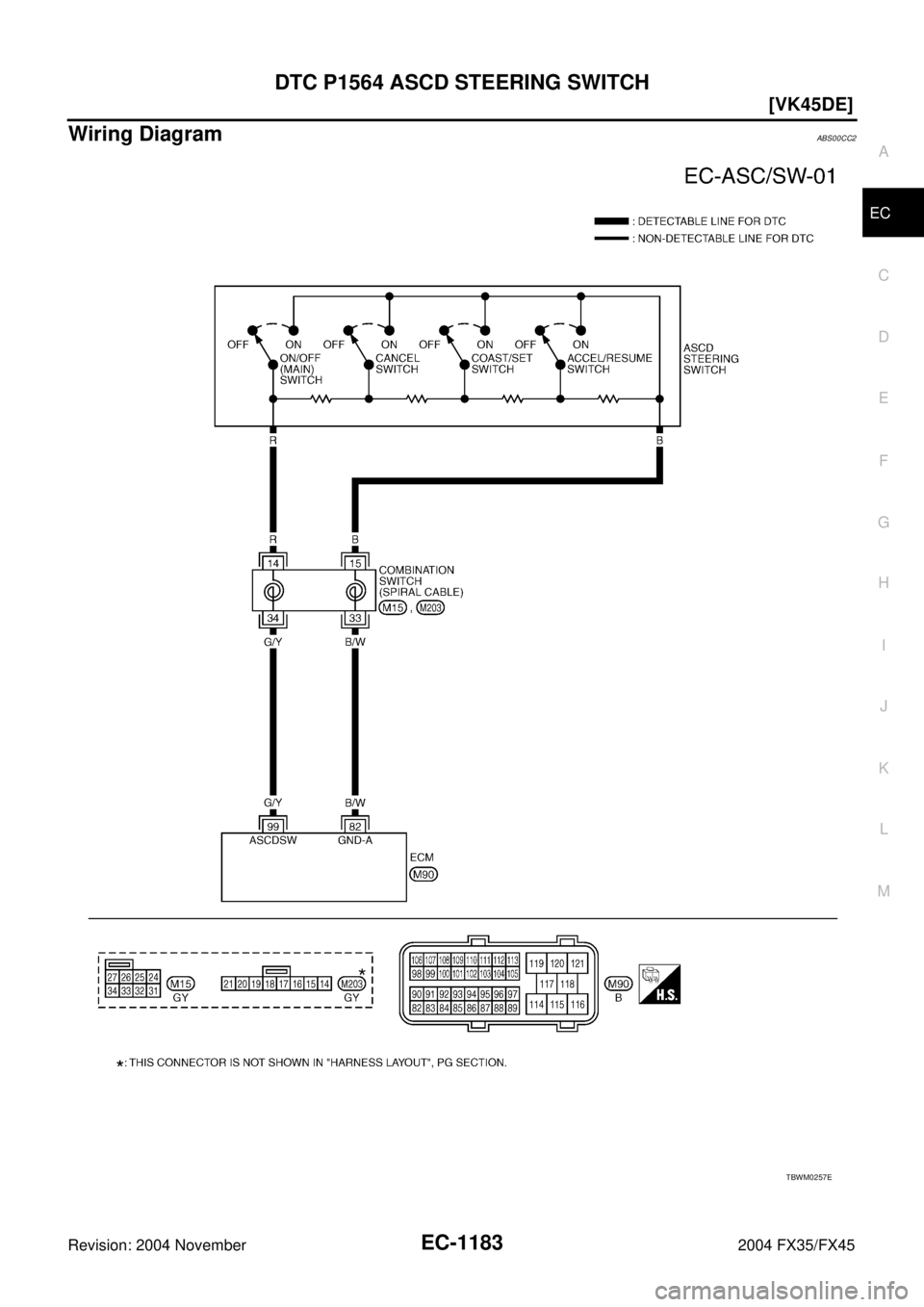

Wiring DiagramABS00CC2
TBWM0257E
Page 2525 of 4449
![INFINITI FX35 2004 Service Manual EC-1184
[VK45DE]
DTC P1564 ASCD STEERING SWITCH
Revision: 2004 November 2004 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use EC INFINITI FX35 2004 Service Manual EC-1184
[VK45DE]
DTC P1564 ASCD STEERING SWITCH
Revision: 2004 November 2004 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use EC](/manual-img/42/57021/w960_57021-2524.png)
EC-1184
[VK45DE]
DTC P1564 ASCD STEERING SWITCH
Revision: 2004 November 2004 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureABS00CC3
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body.
Refer to EC-791, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
82 B/WSensor ground
(APP sensor 1 / ASCD
steering switch)[Engine is running]
Warm-up condition
Idle speedApproximately 0V
99 G/Y ASCD steering switch[Ignition switch: ON]
ASCD steering switch: OFFApproximately 4V
[Ignition switch “ON”]
ON/OFF (MAIN) switch: PressedApproximately 0V
[Ignition switch: ON]
CANCEL switch: PressedApproximately 1V
[Ignition switch: ON]
COAST/SET switch: PressedApproximately 2V
[Ignition switch: ON]
ACCEL/RESUME switch: PressedApproximately 3V
PBIB2195E
Page 2526 of 4449
![INFINITI FX35 2004 Service Manual DTC P1564 ASCD STEERING SWITCH
EC-1185
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
2. CHECK ASCD STEERING SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch ON.
2. S INFINITI FX35 2004 Service Manual DTC P1564 ASCD STEERING SWITCH
EC-1185
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
2. CHECK ASCD STEERING SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch ON.
2. S](/manual-img/42/57021/w960_57021-2525.png)
DTC P1564 ASCD STEERING SWITCH
EC-1185
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
2. CHECK ASCD STEERING SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch ON.
2. Select “MAIN SW”, “RESUME/ACC SW”, “SET SW” and “CANCEL SW” in “DATA MONITOR” mode with
CONSULT-II.
3. Check each item indication under the following conditions.
Without CONSULT-II
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 99 and ground with press-
ing each button.
OK or NG
OK >> GO TO 8.
NG >> GO TO 3.
3. CHECK ASCD STEERING SWITCH GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Disconnect combination switch harness connector.
4. Check harness continuity between combination switch terminal
15 and ECM terminal 82. Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
Switch Monitor item Condition Indication
ON/OFF (MAIN)
switchMAIN SWPressed ON
Released OFF
ACCEL/RESUME
switchRESUME/ACC SWPressed ON
Released OFF
COAST/SET switch SET SWPressed ON
Released OFF
CANCEL switch CANCEL SWPressed ON
Released OFF
SEC006D
Switch Condition Voltage [V]
ON/OFF (MAIN) switchPressed Approx. 0
Released Approx. 4
ACCEL/RESUME switchPressed Approx. 3
Released Approx. 4
COAST/SET switchPressed Approx. 2
Released Approx. 4
CANCEL switchPressed Approx. 1
Released Approx. 4
PBIB0311E
Continuity should exist.
PBIB1513E
Page 2527 of 4449
![INFINITI FX35 2004 Service Manual EC-1186
[VK45DE]
DTC P1564 ASCD STEERING SWITCH
Revision: 2004 November 2004 FX35/FX45
4. DETECT MALFUNCTIONING PART
Check the following.
Combination switch (spiral cable)
Harness for open and short INFINITI FX35 2004 Service Manual EC-1186
[VK45DE]
DTC P1564 ASCD STEERING SWITCH
Revision: 2004 November 2004 FX35/FX45
4. DETECT MALFUNCTIONING PART
Check the following.
Combination switch (spiral cable)
Harness for open and short](/manual-img/42/57021/w960_57021-2526.png)
EC-1186
[VK45DE]
DTC P1564 ASCD STEERING SWITCH
Revision: 2004 November 2004 FX35/FX45
4. DETECT MALFUNCTIONING PART
Check the following.
Combination switch (spiral cable)
Harness for open and short between ECM and combination switch
>> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK ASCD STEERING SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 99 and combination switch terminal 14.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. DETECT MALFUNCTIONING PART
Check the following.
Combination switch (spiral cable)
Harness for open and short between ECM and combination switch
>> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK ASCD STEERING SWITCH
Refer to EC-1187, "
Component Inspection" .
OK or NG
OK >> GO TO 8.
NG >> Replace ASCD steering switch.
8. CHECK INTERMITTENT INCIDENT
Refer to EC-784, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END Continuity should exist.
Page 2528 of 4449
DTC P1564 ASCD STEERING SWITCH
EC-1187
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
Component InspectionABS00CC4
ASCD STEERING SWITCH
1. Disconnect combination switch (spiral cable).
2. Check continuity between combination switch (spiral cable) ter-
minals 14 and 15 with pushing each switch.
Switch Condition Resistance [Ω]
ON/OFF (MAIN) switchPressed Approx. 0
Released Approx. 4,000
COAST/SET switchPressed Approx. 660
Released Approx. 4,000
ACCEL/RESUME switchPressed Approx. 1,480
Released Approx. 4,000
CANCEL switchPressed Approx. 250
Released Approx. 4,000
PBIB0967E
