INFINITI FX35 2004 Service Manual EC-956
[VK45DE]
DTC P0327, P0328, P0332, P0333 KS
Revision: 2004 November 2004 FX35/FX45

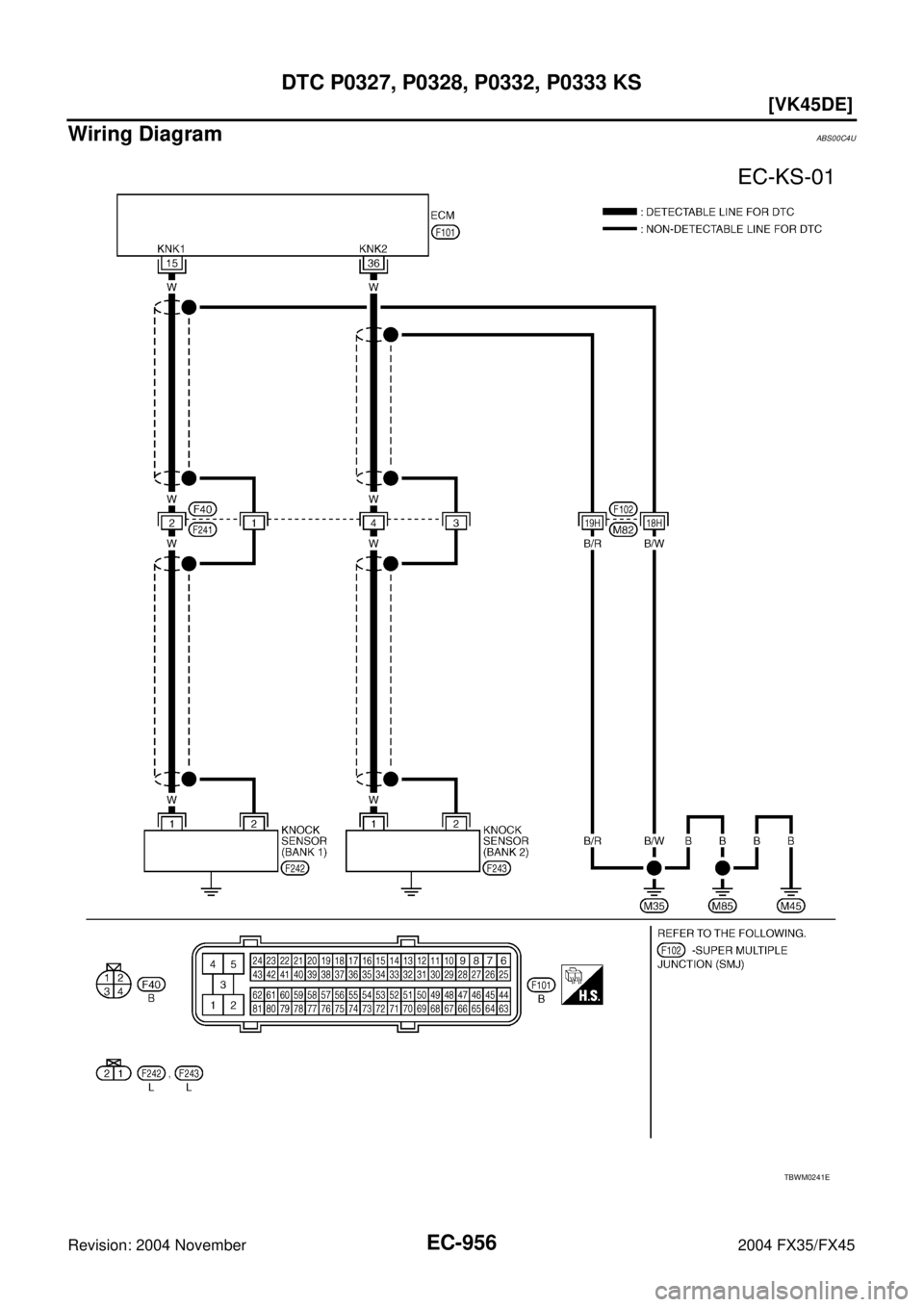

Wiring DiagramABS00C4U
TBWM0241E

Page 2298 of 4449

INFINITI FX35 2004 Service Manual DTC P0327, P0328, P0332, P0333 KS
EC-957
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
Specification data are reference values and are measured between each terminal and gr

Page 2299 of 4449

INFINITI FX35 2004 Service Manual EC-958
[VK45DE]
DTC P0327, P0328, P0332, P0333 KS
Revision: 2004 November 2004 FX35/FX45
5. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the bod

Page 2300 of 4449

INFINITI FX35 2004 Service Manual DTC P0327, P0328, P0332, P0333 KS
EC-959
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
Component InspectionABS00C4W
KNOCK SENSOR
Check resistance between knock sensor termi

Page 2301 of 4449

INFINITI FX35 2004 Service Manual EC-960
[VK45DE]
DTC P0335 CKP SENSOR (POS)
Revision: 2004 November 2004 FX35/FX45
DTC P0335 CKP SENSOR (POS)PFP:23731
Component DescriptionABS00C4Y
The crankshaft position sensor (POS) is located on t

EC-960
[VK45DE]
DTC P0335 CKP SENSOR (POS)
Revision: 2004 November 2004 FX35/FX45
DTC P0335 CKP SENSOR (POS)PFP:23731
Component DescriptionABS00C4Y
The crankshaft position sensor (POS) is located on the A/T assem-
bly facing the gear teeth (cogs) of the signal plate. It detects the fluc-
tuation of the engine revolution.
The sensor consists of a permanent magnet and Hall IC.
When the engine is running, the high and low parts of the teeth
cause the gap with the sensor to change.
The changing gap causes the magnetic field near the sensor to
change.
Due to the changing magnetic field, the voltage from the sensor
changes.
The ECM receives the voltage signal and detects the fluctuation of
the engine revolution.
CONSULT-II Reference Value in Data Monitor ModeABS00C4Z
Specification data are reference values.
On Board Diagnosis LogicABS00C50
DTC Confirmation ProcedureABS00C51
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10.5V with igni-
tion switch ON.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode with
CONSULT-II.
2. Crank engine for at least 2 seconds and run it for at least 5 sec-
onds at idle speed.
3. If 1st trip DTC is detected, go to EC-962, "
Diagnostic Procedure"
.
WITH GST
Follow the procedure “WITH CONSULT-II” above.
PBIB0562E
MONITOR ITEM CONDITION SPECIFICATION
ENG SPEED
Run engine and compare CONSULT-II value with the tachometer indicationAlmost the same speed as the
tachometer indication
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0335
0335Crankshaft position
sensor (POS) circuit
The crankshaft position sensor (POS) signal
is not detected by the ECM during the first
few seconds of engine cranking.
The proper pulse signal from the crankshaft
position sensor (POS) is not sent to ECM
while the engine is running.
The crankshaft position sensor (POS) signal
is not in the normal pattern during engine
running.
Harness or connectors
(The sensor circuit is open or shorted)
Crankshaft position sensor (POS)
Signal plate
SEF058Y

Page 2302 of 4449

INFINITI FX35 2004 Service Manual DTC P0335 CKP SENSOR (POS)
EC-961
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
Wiring DiagramABS00D0Y
TBWM0242E

Page 2303 of 4449

INFINITI FX35 2004 Service Manual EC-962
[VK45DE]
DTC P0335 CKP SENSOR (POS)
Revision: 2004 November 2004 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by

Page 2304 of 4449

INFINITI FX35 2004 Service Manual DTC P0335 CKP SENSOR (POS)
EC-963
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
2. CHECK CRANKSHAFT POSITION (CKP) SENSOR (POS) POWER SUPPLY CIRCUIT
1. Disconnect crankshaf
