Page 4009 of 4449

RF-12
SUNROOF
Revision: 2004 November 2004 FX35/FX45
ANTI-PINCH FUNCTION
The CPU of sunroof motor monitors the sunroof motor operation and the sunroof position (fully-closed or
other) by the signals from sunroof motor.
When sunroof motor detects an interruption during the following slide close and tilt down operation, sunroof
switch controls the motor for open and the sunroof will operate until full up position (when tilt down operate) or
125 mm (4.92 in) or more in an open direction (when slide close operate).
close operation and tilt down when ignition switch is in the ON position.
close operation and tilt down during retained power operation.
MEMORY RESET PROCEDURE
1. Please observe the following instructions while confirming the sunroof operation.
NOTE:
Do not disconnect the electronic power while the sunroof is operating or within 5 seconds after the sunroof
stops. (to wipe-out the memory of lid position and operating friction.)
2. Initialization of system should be conducted after the following conditions.
When the battery is out or connector is disconnected while sunroof is operating or within 5 seconds
after sunroof stops.
When the sunroof motor is changed.
When an emergency handle is used.
When the sunroof does not operate normally. (Incomplete initialization conditions)
INITIALIZATION PROCEDURE
If the sunroof does not close or open automatically, use the following procedure to return sunroof operation to
normal.
1. Close the sunroof if it is not in the closed position. It may be necessary to repeatedly push the switch to
close the sunroof.
2. Press and hold the TILT UP switch. Do not release the switch, keep pressure on it. After 10 seconds of
depressing, the sunroof will tilt up, then tilt down. Release the button.
3. Press and hold the TILT UP switch again. Do not release the switch, keep pressure on it. While depress-
ing the switch, the sunroof will “Slide open” “Slide close” “Tilt up” “Tilt down”. Release the button after the
sunroof “Tilts down” and stops.
4. Initializing procedure is complete. Confirm proper operation of the sunroof (slide open, slide close, tilt up,
tilt down.)
Page 4010 of 4449
SUNROOF
RF-13
C
D
E
F
G
H
J
K
L
MA
B
RF
Revision: 2004 November 2004 FX35/FX45
CAN Communication System DescriptionAIS003LO
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitAIS003LP
Refer to LAN-6, "CAN COMMUNICATION" .
Page 4011 of 4449
RF-14
SUNROOF
Revision: 2004 November 2004 FX35/FX45

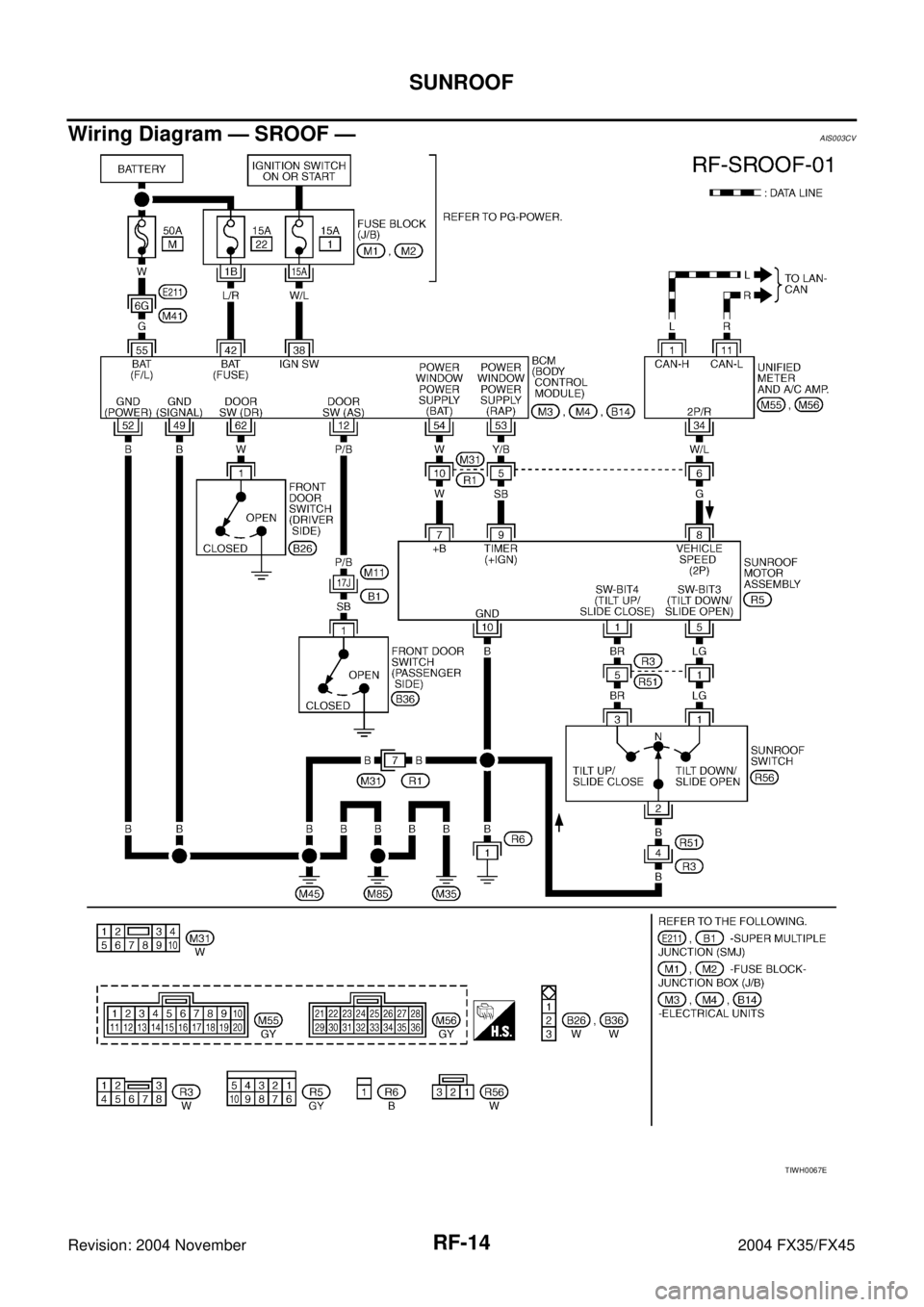

Wiring Diagram — SROOF —AIS003CV
TIWH0067E
Page 4012 of 4449

SUNROOF
RF-15
C
D
E
F
G
H
J
K
L
MA
B
RF
Revision: 2004 November 2004 FX35/FX45
Terminals and Reference Value for BCMAIS003CW
Terminals and Reference Value for Sunroof Motor AssemblyAIS003CX
Terminal Wire color Item ConditionVoltage (V)
(Approx.)
12 P/BFront door switch (passenger
side)OPEN (ON) 0
CLOSE (OFF) Battery voltage
38 W/L Ignition switch (ON) Ignition switch (ON or START) Battery voltage
42 L/R Power source (Fuse) — Battery voltage
49 B Ground (signal) — 0
52 B Ground (power) — 0
53 Y/B RAP signalIgnition switch ON Battery voltage
Within 45 seconds after ignition switch is turned to
OFF positionBattery voltage
When driver side or passenger side door open in
power window timer is operates.0
54 W Power window power supply — Battery voltage
55 G Power source (Fusible link) — Battery voltage
62 WFront door switch
driver side signalOPEN (ON) 0
CLOSE (OFF) Battery voltage
Te r m i -
nalWire
colorItem ConditionVoltage (V)
(Approx.)
1BRSunroof (Tilt up/Slide close)
switch signalIgnition switch ON and sunroof switch in
TILT UP / SLIDE CLOSE position0
Other than above Battery voltage
5LGSunroof (Tilt down/Slide open)
switch signalIgnition switch ON and sunroof switch in
TILT DOWN / SLIDE OPEN position0
Other than above Battery voltage
7 W Power window power supply — Battery voltage
8 G Vehicle speed signalSpeedometer operated [When vehicle
speed is approx.40 km/h (25 MPH)]
9 SB RAP signalIgnition switch ON Battery voltage
Within 45 seconds after ignition switch is
turned to OFF positionBattery voltage
When driver side or passenger side door
open in power window timer is operates.0
10 B Ground — 0
ELF1080D
Page 4013 of 4449
RF-16
SUNROOF
Revision: 2004 November 2004 FX35/FX45
Work FlowAIS003CY
1. Check the symptom and customer's requests.
2. Understand the outline of system. Refer to RF-11, "
System Description" .
3. According to the trouble diagnosis chart, repair or replace the cause of the malfunction. Refer to RF-18,
"Trouble Diagnosis Chart by Symptom" .
4. Does sunroof system operate normally? If Yes, GO TO 5. If No, GO TO 3.
5. INSPECTION END.
CONSULT-II Inspection ProcedureAIS003LD
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
1. Turn ignition switch ON.
2. Connect “CONSULT-II and CONSULT-II CONVERTER” to the
data link connector.
3. Turn ignition switch ON.
4. Touch “START (NISSAN BASED VHCL)”.
5. Touch “BCM”.
If “BCM” is not indicated, go to GI-40, "
CONSULT-II Data Link
Connector (DLC) Circuit" .
PBIB1503E
MBIB0233E
LIIA0033E
Page 4014 of 4449

SUNROOF
RF-17
C
D
E
F
G
H
J
K
L
MA
B
RF
Revision: 2004 November 2004 FX35/FX45
6. Touch “RETAINED PWR”.
7. Select diagnosis mode.
“ACTIVE TEST”, “WORK SUPPORT” and “DATA MONITOR”
are available.
ACTIVE TEST
WORK SUPPORT
DATE MONITOR
LIIA0163E
SEL274W
Test Item Description
RETAINED PWRThis test is able to supply RAP signal (power) from BCM (body control module) to power window
system and power sunroof system (if equipped). Those systems can be operated when turning on
“RETAINED PWR” on CONSULT-II screen even if the ignition switch is turned OFF.
NOTE:
During this test, CONSULT-II can be operated with ignition switch in OFF position. “RETAINED
PWR” should be turned ON or OFF on CONSULT-II screen when ignition switch is ON. Then turn
ignition switch OFF to check retained power operation. CONSULT-II might be stuck if “RETAINED
PWR” is turned to ON or OFF on CONSULT-II screen when ignition switch is OFF.
Work item Description
RETAINED PWRRap signal’s power supply period can be changed by mode setting. Selects rap signal’s power
supply period between three steps
MODE1 (45 sec.) / MODE2 (OFF) / MODE 3 (2 min.).
Monitor item Description
IGN ON SW Indicates [ON / OFF] condition of ignition switch
DOOR SW–DR Indicates [ON / OFF] condition of front door switch driver side
DOOR SW–AS Indicates [ON / OFF] condition of front door switch passenger side
Page 4015 of 4449

RF-18
SUNROOF
Revision: 2004 November 2004 FX35/FX45
Trouble Diagnosis Chart by SymptomAIS003D0
Power Supply and Ground Circuit Check of BCMAIS003D1
1. CHECK FUSE
Check 15A fuse [No.1, located in fuse block (J/B)]
Check 15A fuse [No.22, located in fuse block (J/B)]
Check 50A fusible link (letter M located in the fuse and fusible link box).
NOTE:
Refer to RF-10, "
Component Parts and Harness Connector Location" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown out, be sure to eliminate cause of malfunction before installing new fuse. Refer to
PG-3, "
POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch ON.
2. Check voltage between BCM connector M3, M4 terminal 38, 42, 55 and ground.
OK or NG
OK >> GO TO 3.
NG >> Check BCM power supply circuit for open or short.
Symptom Diagnostic procedure and repair order Refer to page
Sunroof does not operate.1. Power supply and ground circuit check of BCMRF-18
2. Sunroof motor assembly power supply and ground
circuit checkRF-19
3. Sunroof switch system checkRF-20
4. Replace sunroof motor assembly.RF-29
Motor does not stop at the sunroof fully -open or fully-
closed position.1. Initialization procedure check.RF-12
2. Replace sunroof motor assembly.RF-29
Retained power operation does not operate properly.1. Check the retained power operation mode setting.RF-172. Door switch check.RF-22
3. Replace sunroof motor assembly.RF-29
Sunroof does not operate the interruption detection
function.1. Replace sunroof motor assembly.RF-29
38 (W/L) – Ground : Battery voltage
42 (L/R) – Ground : Battery voltage
55 (G) – Ground : Battery voltage
PIIA6160E
Page 4016 of 4449

SUNROOF
RF-19
C
D
E
F
G
H
J
K
L
MA
B
RF
Revision: 2004 November 2004 FX35/FX45
3. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector.
3. Check continuity between BCM connector M4 terminal 49, 52 and ground.
OK or NG
OK >> Power supply and ground circuit are OK.
NG >> Check BCM ground circuit for open or short.
Sunroof Motor Assembly Power Supply and Ground Circuit CheckAIS003D2
1. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch ON.
2. Check voltage between sunroof motor assembly connector R5 terminal 7, 9 and ground.
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
2. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect sunroof motor assembly connector.
3. Check continuity between sunroof motor assembly connector R5 terminal 10 and ground.
OK or NG
OK >> Sunroof motor assembly power supply and ground cir-
cuit are OK. Further inspection is necessary. Refer to
RF-18, "
Trouble Diagnosis Chart by Symptom" .
NG >> Repair or replace harness.49 (B) – Ground : Continuity should exist.
52 (B) – Ground : Continuity should exist.
PIIA6161E
7 (W) – Ground : Battery voltage
9 (SB) – Ground : Battery voltage
PIIA6151E
10 (B) – Ground : Continuity should exist.
PIIA6152E
