Page 1049 of 4449

INFINITI FX35 2004 Service Manual BL-242 BODY REPAIR Revision: 2004 November2004 FX35/FX45 SIIA2256E

Page 1050 of 4449

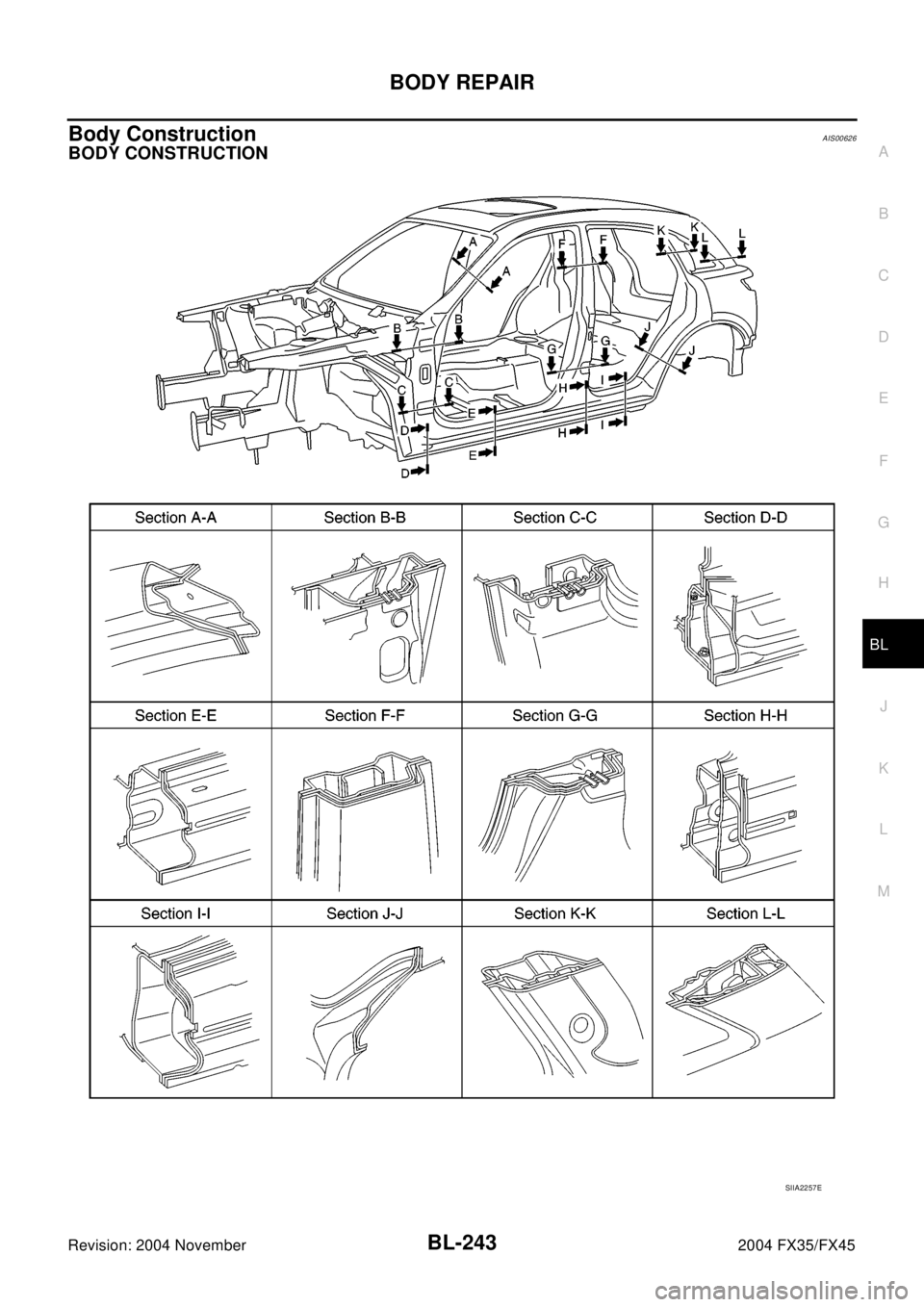

INFINITI FX35 2004 Service Manual BODY REPAIR BL-243 C D E F G H J K L MA B BL Revision: 2004 November2004 FX35/FX45 Body ConstructionAIS00626 BODY CONSTRUCTION SIIA2257E

Page 1051 of 4449

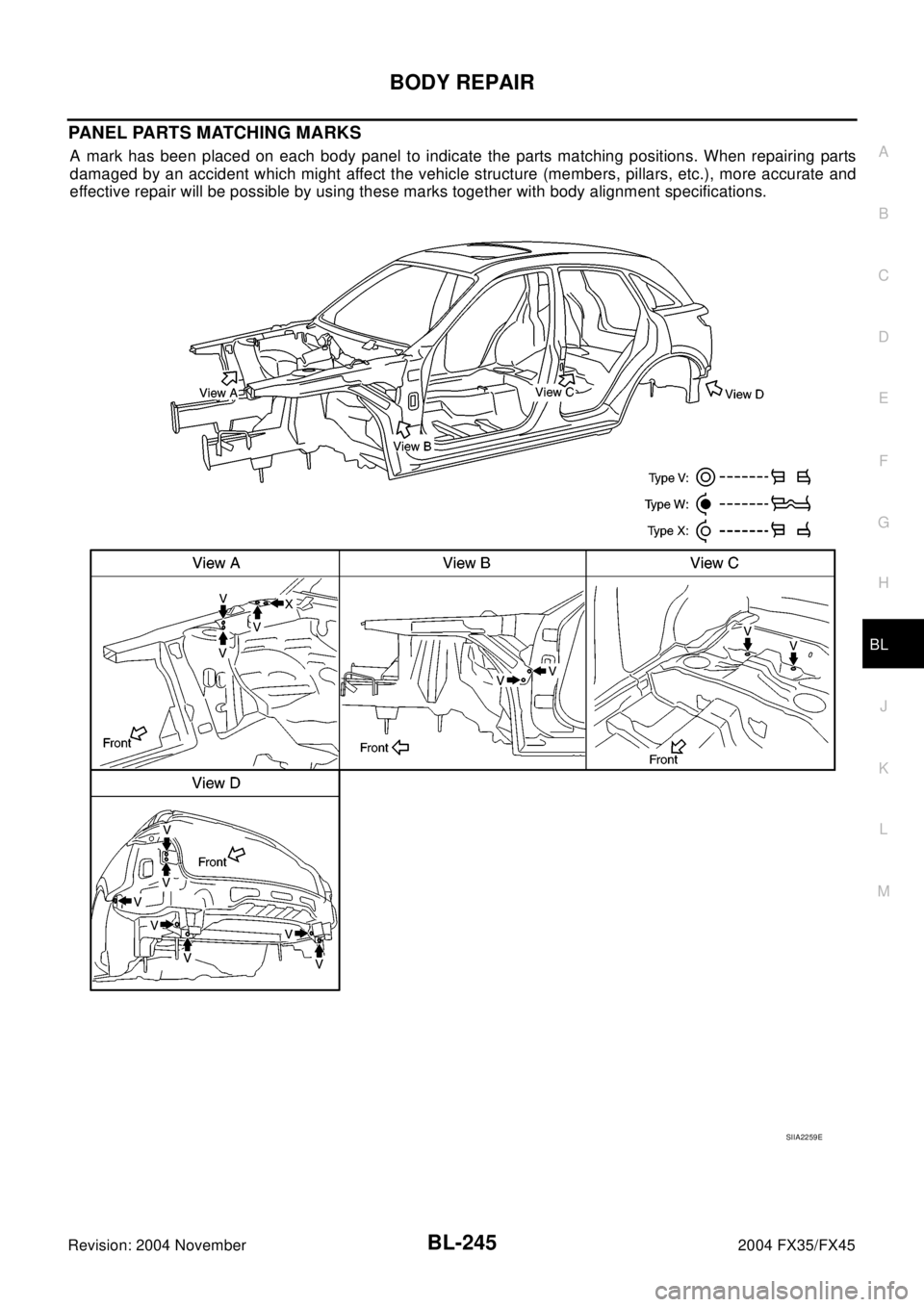

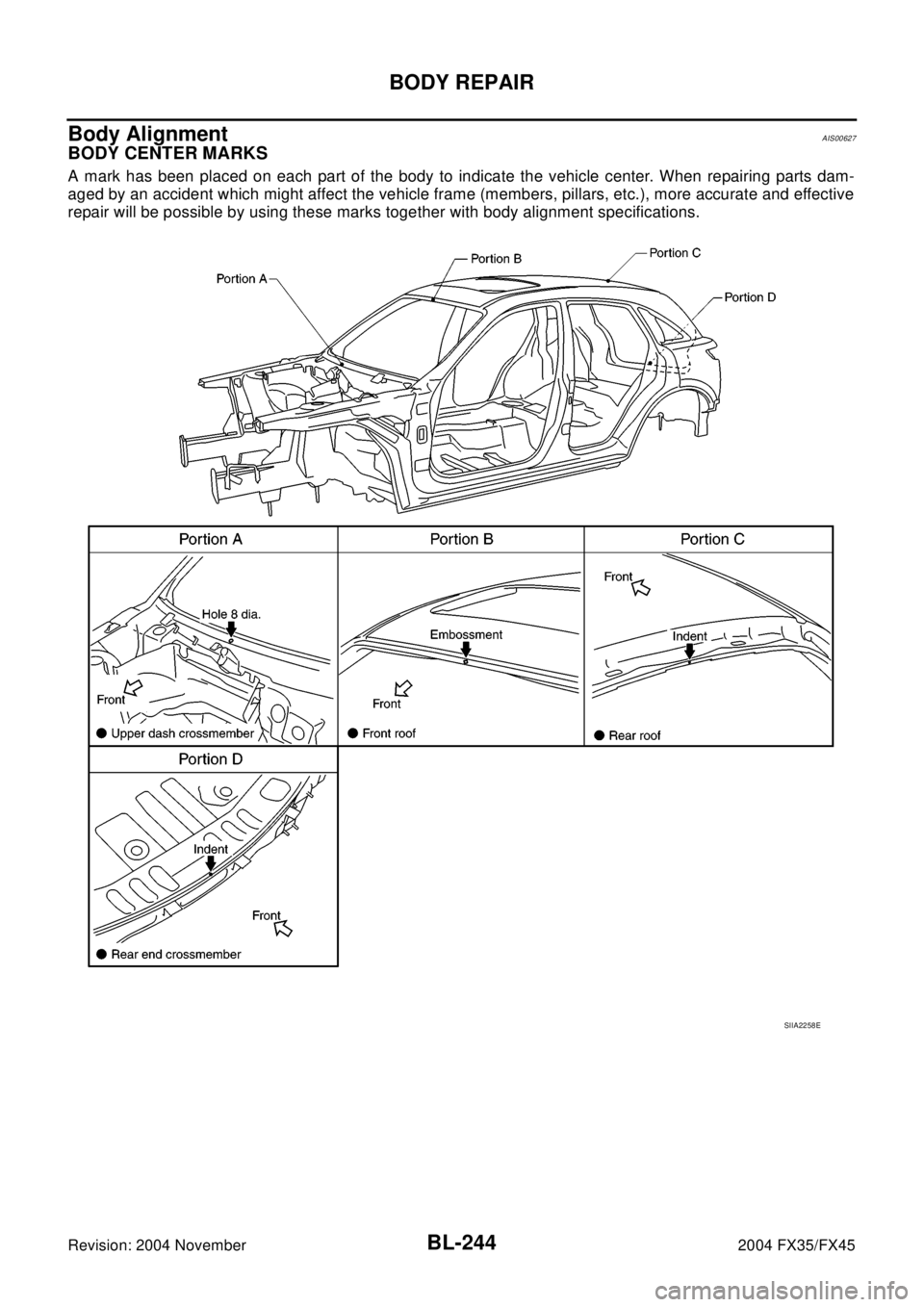

INFINITI FX35 2004 Service Manual BL-244 BODY REPAIR Revision: 2004 November2004 FX35/FX45 Body AlignmentAIS00627 BODY CENTER MARKS A mark has been placed on each part of the body to indicate the vehicle center. When repairing parts d

Page 1052 of 4449

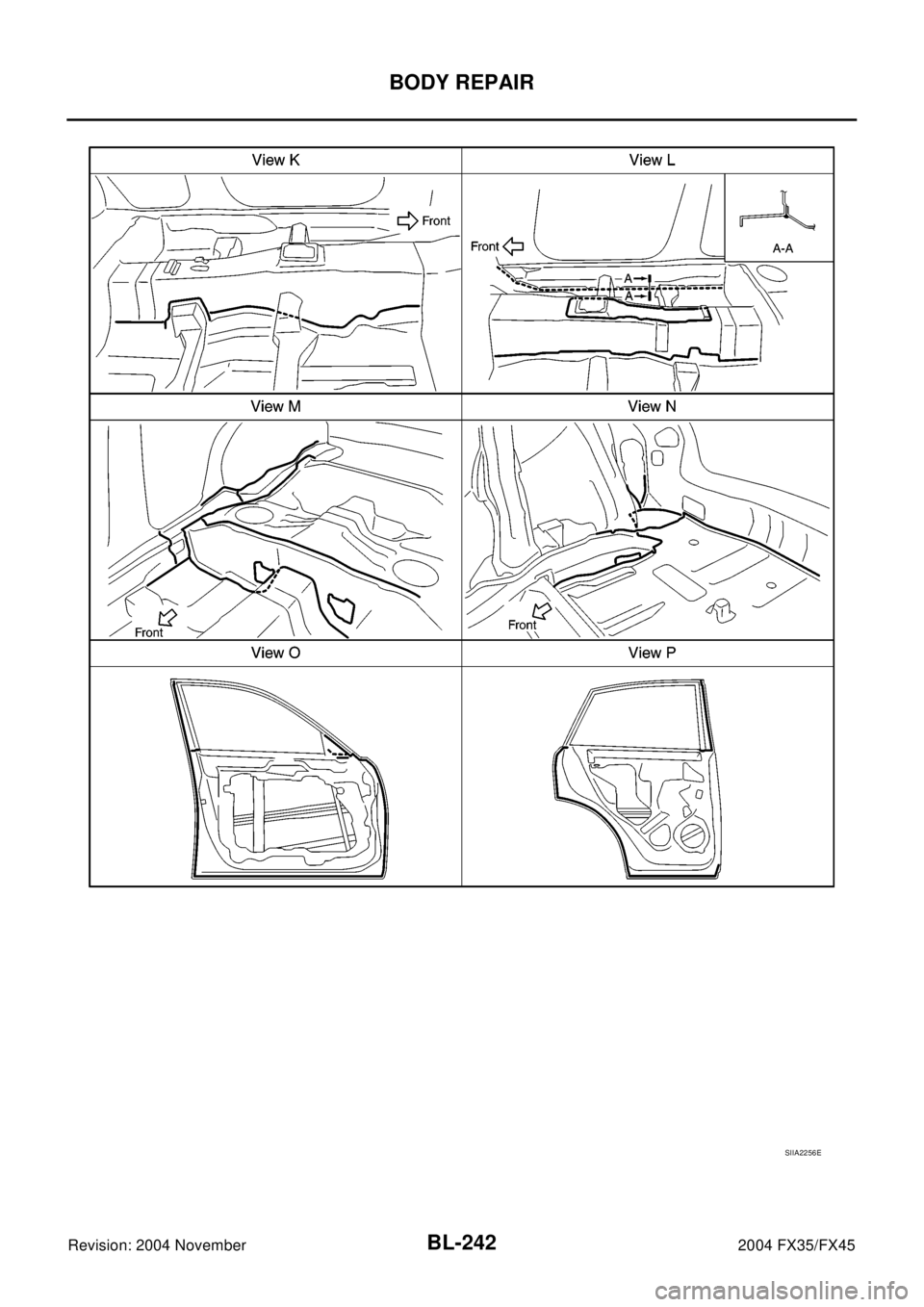

INFINITI FX35 2004 Service Manual BODY REPAIR BL-245 C D E F G H J K L MA B BL Revision: 2004 November2004 FX35/FX45 PANEL PARTS MATCHING MARKS A mark has been placed on each body panel to indicate the parts matching positions. When r

Page 1053 of 4449

INFINITI FX35 2004 Service Manual BL-246 BODY REPAIR Revision: 2004 November2004 FX35/FX45 DESCRIPTION lAll dimensions indicated in the figures are actual. lWhen using a tracking gauge, adjust both pointers to equal length. Then check

Page 1054 of 4449

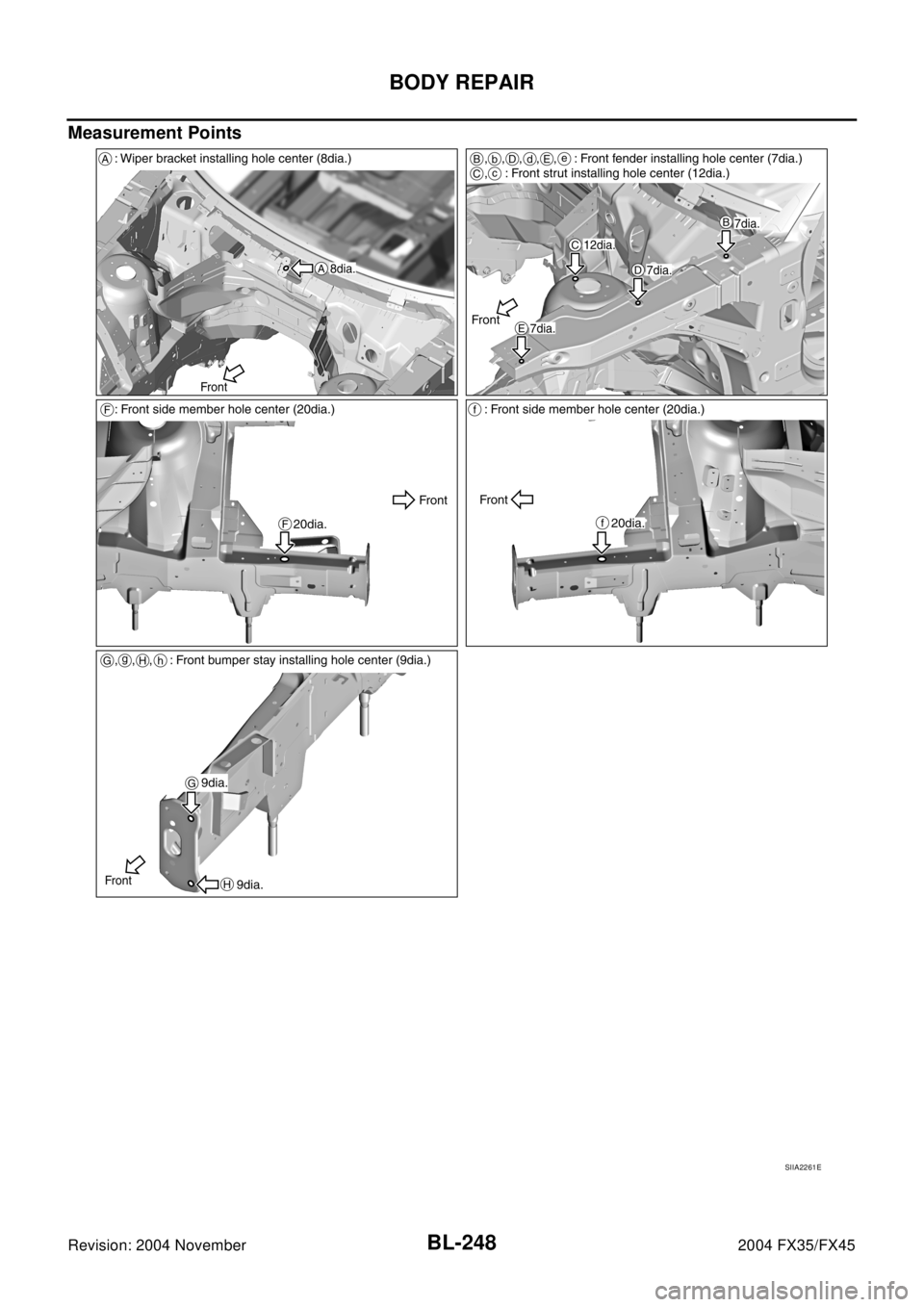

INFINITI FX35 2004 Service Manual BODY REPAIR BL-247 C D E F G H J K L MA B BL Revision: 2004 November2004 FX35/FX45 ENGINE COMPARTMENT Measurement SIIA2260E

Page 1055 of 4449

INFINITI FX35 2004 Service Manual BL-248 BODY REPAIR Revision: 2004 November2004 FX35/FX45 Measurement Points SIIA2261E

Page 1056 of 4449

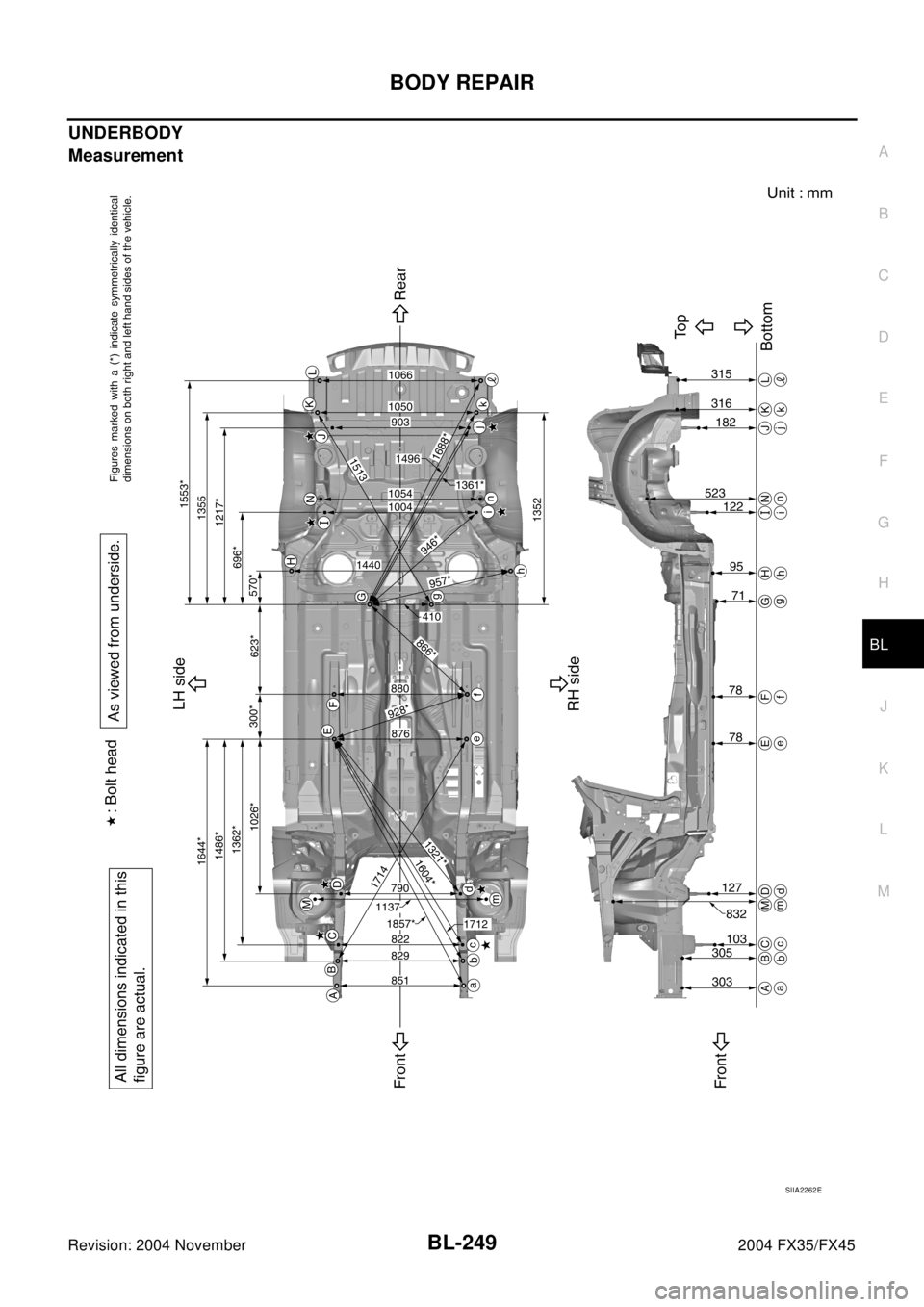

INFINITI FX35 2004 Service Manual BODY REPAIR BL-249 C D E F G H J K L MA B BL Revision: 2004 November2004 FX35/FX45 UNDERBODY Measurement SIIA2262E
