TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: 2004 November 2004 FX35/FX45
3. CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> Replace electric controlled coupling for mechanical malfunction (mechanical engagement of
clutch is not possible.). Refer to TF-45, "
Disassembly and Assembly" .
While Driving, AWD Warning Lamp Flashes Rapidly (When Flashing In Approx.
1 Minute And Then Turning OFF)
ADS000U1
NOTE:
Rapid flashing: 2 times/second
This symptom protects drivetrain parts when a heavy load is applied to the electric controlled coupling and
multiple disc clutch temperature increases. Also, optional distribution of torque sometimes becomes rigid
before lamp flashes rapidly. Both cases are not malfunction.
When this symptom occurs, stop vehicle and allow it to idle for some times. Flashing will stop and system will
be restored.
While Driving, AWD Warning Lamp Flashes Slowly (When Continuing To Flash
Until Turning Ignition Switch OFF)
ADS000U2
NOTE:
Slow flashing: 1 time/2 seconds
DIAGNOSTIC PROCEDURE
1. CHECK TIRE
Check the following.
Tire pressure
Wear condition
Longitudinal tire size (There is no difference between longitudinal tires.)
OK or NG
OK >> GO TO 2.
NG >> Drive at vehicle speed of 20 km/h (20 MPH) or more for 5 seconds or more after repairing or
replacing damaged parts. (Initialize improper size tire information.)
2. CHECK INPUT SIGNAL OF TIRE DIAMETER
With CONSULT-II
1. Start engine.
2. Drive at 20 km/h (12 MPH) or more for approx. 200 seconds.
3. Select “DATA MONITOR” mode for “ALL MODE AWD/4WD” with CONSULT-II.
4. Check monitor “DIS-TIRE MONI”.
Display of
“DIS-TIRE MONI”
“0-4mm”>>INSPECTION END
Except for “0-4mm”>>GO TO 3.
SDIA1900E
Page 4338 of 4449
TROUBLE DIAGNOSIS FOR SYMPTOMS
TF-37
C
E
F
G
H
I
J
K
L
MA
B
TF
Revision: 2004 November 2004 FX35/FX45
3. CHECK AWD CONTROL UNIT
Check AWD control unit input/output signal. Refer to TF-19, "
AWD Control Unit Input/Output Signal Reference
Va l u e s" .
OK or NG
OK >> GO TO 4.
NG >> Check AWD control unit pin terminals for damage or loose connection with harness connector. If
any items are damaged, repair or replace damaged parts.
4. CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> Replace AWD control unit.
Page 4339 of 4449
TF-38
AWD CONTROL UNIT
Revision: 2004 November 2004 FX35/FX45
AWD CONTROL UNITPFP:41650
Removal and InstallationADS000U3
REMOVAL
1. Remove the dash side finisher. Refer to EI-38, "DASH SIDE FINISHER" .
2. Disconnect AWD control unit connector.
3. Remove the AWD control unit.
INSTALLATION
Install in the reverse order of removal.
SDIA2274E
Page 4340 of 4449
FRONT OIL SEAL
TF-39
C
E
F
G
H
I
J
K
L
MA
B
TF
Revision: 2004 November 2004 FX35/FX45
FRONT OIL SEALPFP:38189
Removal and InstallationADS000RP
REMOVAL
1. Remove the drain plug to drain the transfer fluid. Refer to TF-8, "Replacement" .
2. Remove the front propeller shaft. Refer to PR-4, "
FRONT PROPELLER SHAFT" .
3. Remove front oil seal using a flat-bladed screwdriver.
CAUTION:
Be careful not to damage the center case.
INSTALLATION
1. Apply multi-purpose grease to oil seal lips. Install the front oil
seal with a drift until the end face of front case.
CAUTION:
Do not reuse front oil seal.
When installing, do not incline the oil seal.
2. Install front propeller shaft. Refer to PR-4, "
FRONT PROPEL-
LER SHAFT" .
3. Install transfer fluid, check fluid level and for fluid leakage. Refer
to TF-8, "
Inspection" .
SDIA1782E
Tool number : ST27862000 ( — )
SDIA1783E
Page 4341 of 4449
TF-40
REAR OIL SEAL
Revision: 2004 November 2004 FX35/FX45
REAR OIL SEALPFP:33140
Removal and InstallationADS000RQ
REMOVAL
1. Remove the rear propeller shaft. Refer to PR-6, "REAR PROPELLER SHAFT" .
2. Remove companion flange lock nut using the flange wrench.
3. Put matching mark on the end of the main shaft corresponding
to the B position matching mark on the companion flange.
CAUTION:
For matching mark, use paint. Do not damage main shaft.
The mark on the transfer companion flange indicates the
maximum vertical runout position.
4. Remove the companion flange using a puller.
5. Remove the rear oil seal using a tool.
CAUTION:
Be careful not to damage the rear case.Tool number : KV38108300 (J44195)
SDIA1784E
SDIA1798E
SDIA1785E
Tool number : KV381054S0 (J34286)
SDIA1786E
Page 4342 of 4449
REAR OIL SEAL
TF-41
C
E
F
G
H
I
J
K
L
MA
B
TF
Revision: 2004 November 2004 FX35/FX45
INSTALLATION
1. Apply multi-purpose grease to oil seal lips. Install the rear oil
seal with a drift.
CAUTION:
Do not reuse oil seal.
When installing, do not incline the oil seal.
2. Align the matching mark of main shaft with the matching mark B
of companion flange, then install the companion flange.
3. Using flange wrench, install the companion flange lock nut and
tighten to the specified torque. Refer to TF-44, "
Components" .
CAUTION:
Do not reuse lock nut.
4. Install the rear propeller shaft. Refer to PR-6, "
REAR PROPEL-
LER SHAFT" .
5. Check fluid level. Refer to TF-8, "
Inspection" . Tool number A: ST30720000 (J25405)
B: KV40104830 ( — )
SDIA1688E
Tool number : KV38108300 (J44195)
SDIA1798E
Page 4343 of 4449
TF-42
AIR BREATHER HOSE
Revision: 2004 November 2004 FX35/FX45
AIR BREATHER HOSEPFP:31098
Removal and InstallationADS000RR

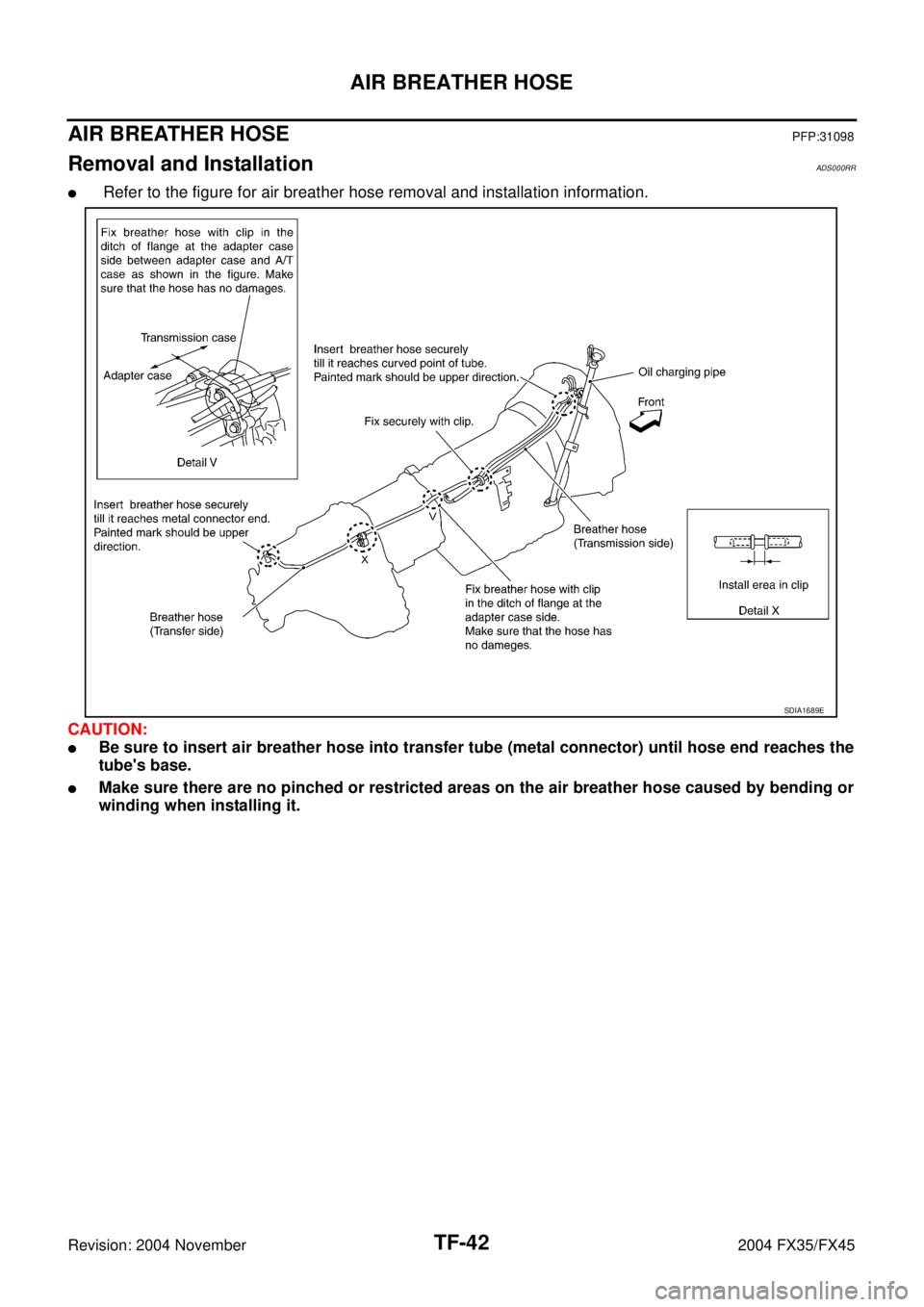

Refer to the figure for air breather hose removal and installation information.
