Page 3481 of 4449

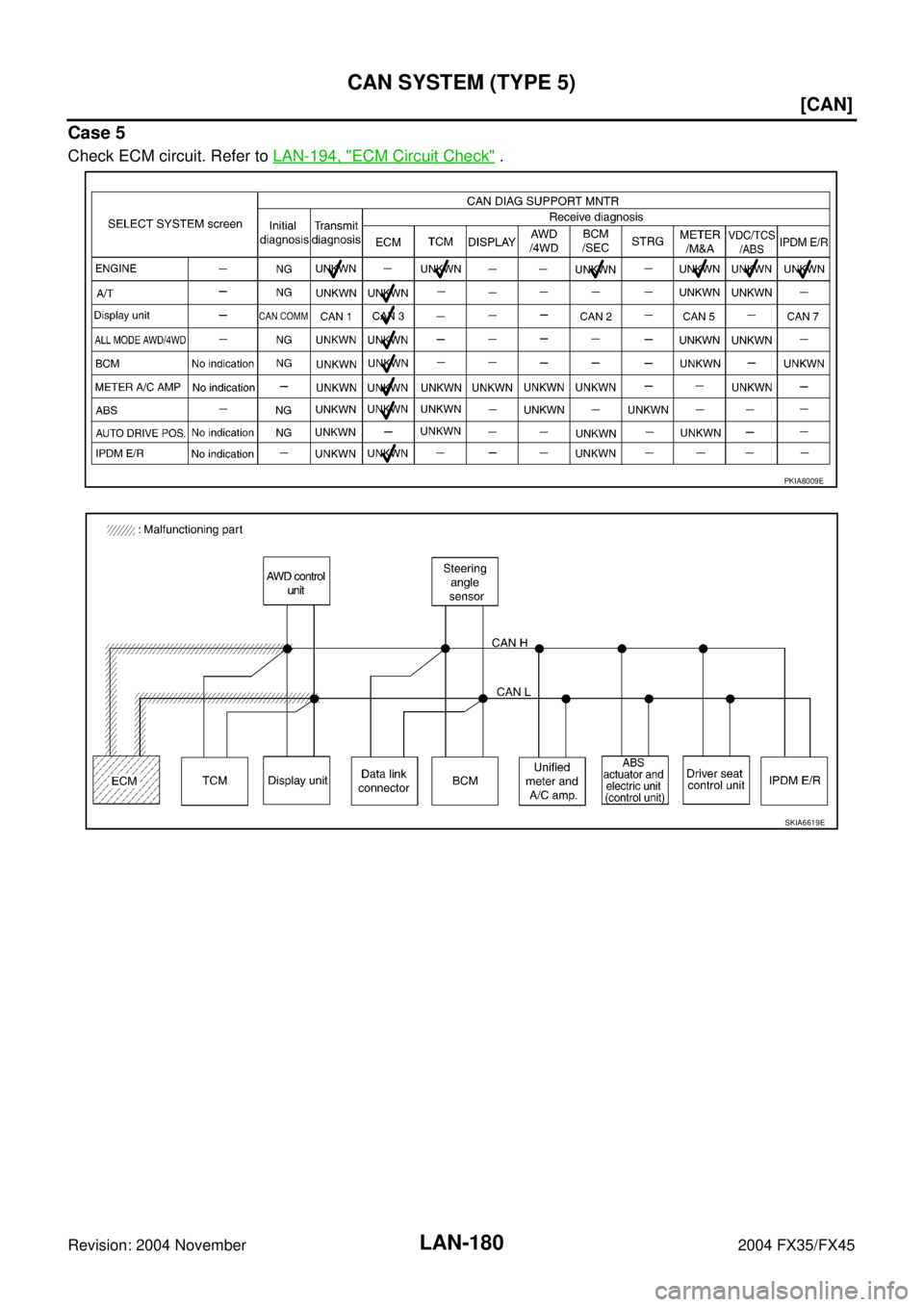

INFINITI FX35 2004 Service Manual LAN-180 [CAN] CAN SYSTEM (TYPE 5) Revision: 2004 November 2004 FX35/FX45 Case 5 Check ECM circuit. Refer to LAN-194, "ECM Circuit Check" . PKIA8009E SKIA6619E

Page 3482 of 4449

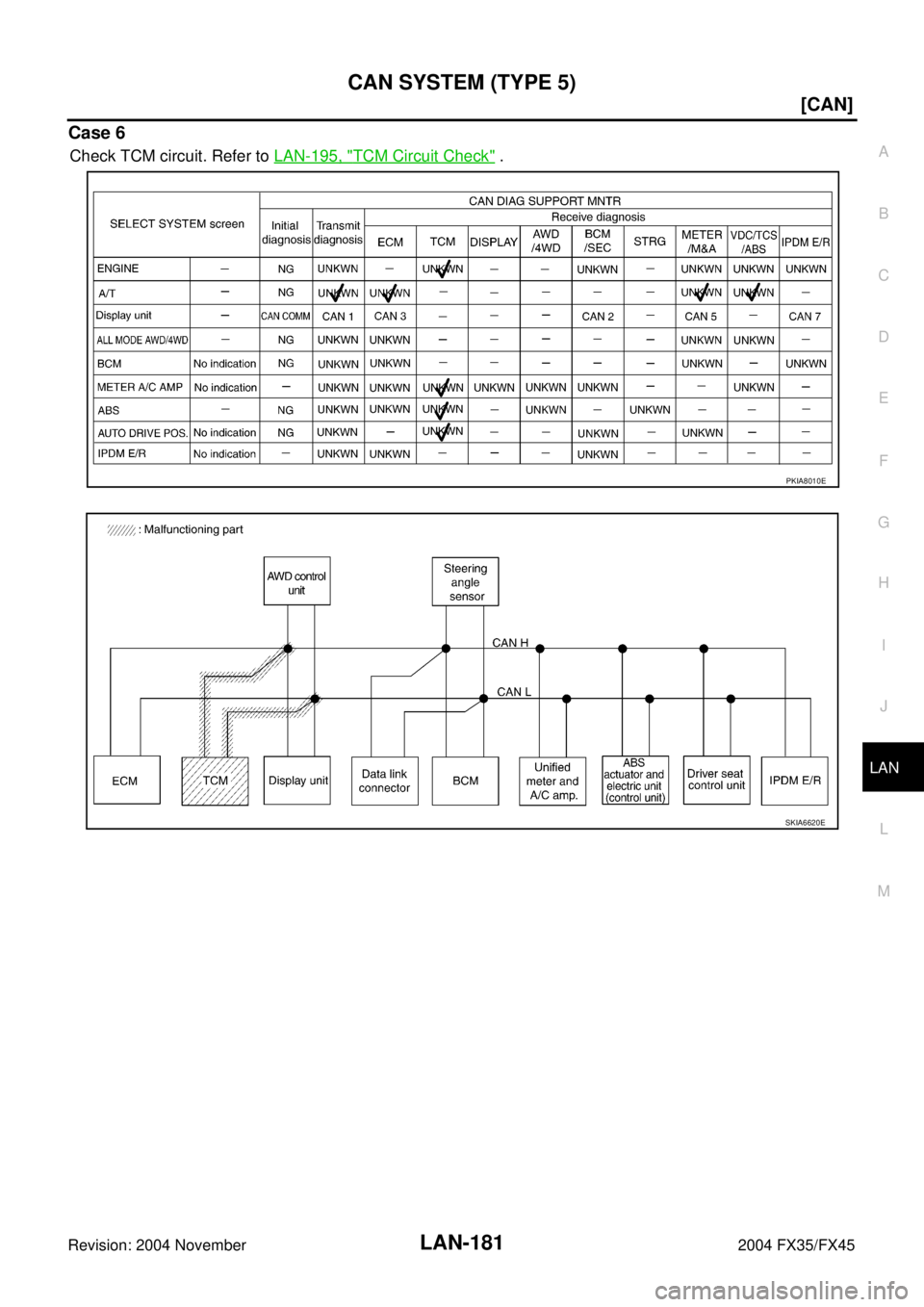

INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 5) LAN-181 [CAN] C D E F G H I J L MA B LAN Revision: 2004 November 2004 FX35/FX45 Case 6 Check TCM circuit. Refer to LAN-195, "TCM Circuit Check" . PKIA8010E SKIA6620E

Page 3483 of 4449

INFINITI FX35 2004 Service Manual LAN-182 [CAN] CAN SYSTEM (TYPE 5) Revision: 2004 November 2004 FX35/FX45 Case 7 Check display unit circuit. Refer to LAN-195, "Display Unit Circuit Check" . PKIA8011E SKIA6621E

Page 3484 of 4449

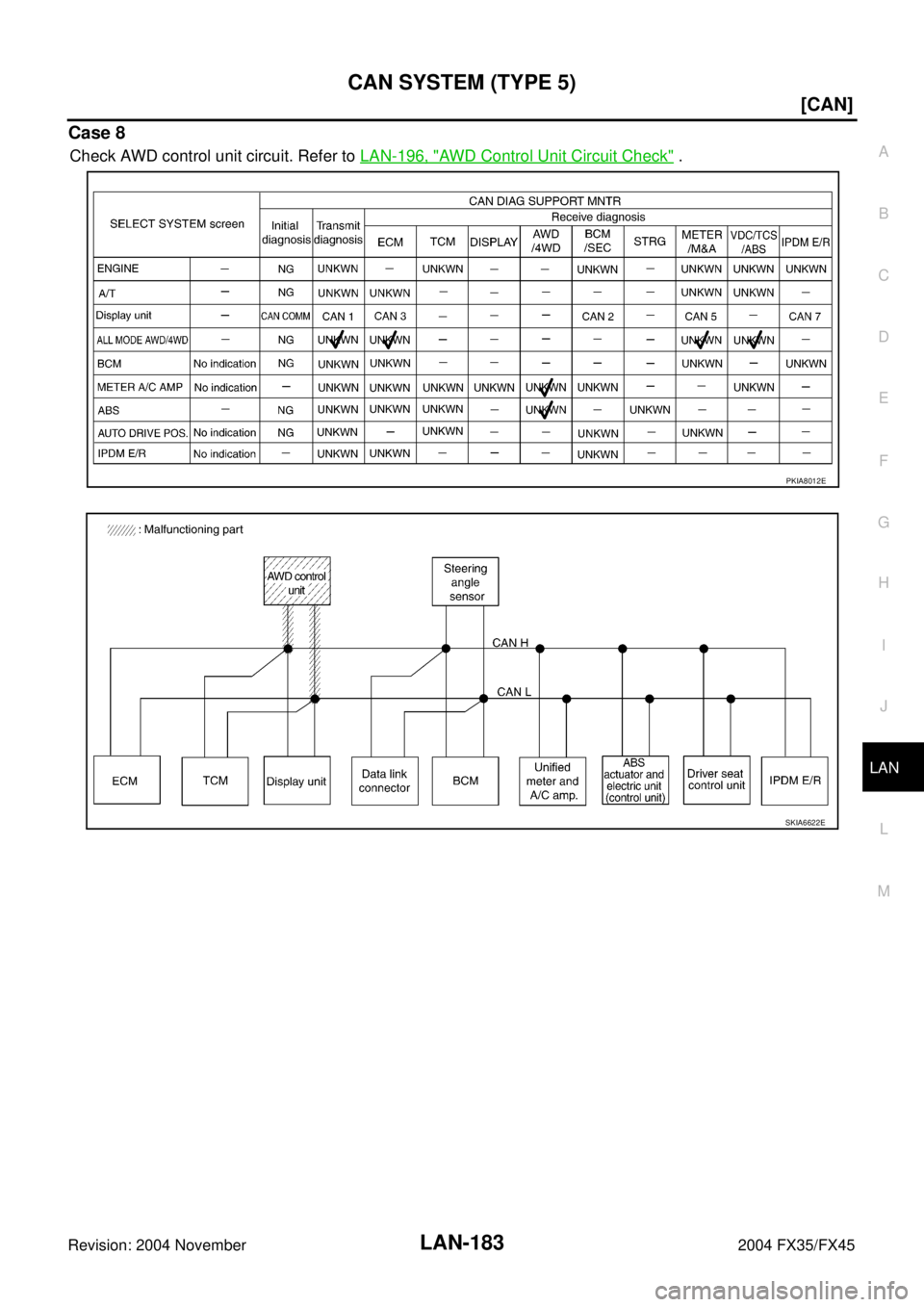

INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 5) LAN-183 [CAN] C D E F G H I J L MA B LAN Revision: 2004 November 2004 FX35/FX45 Case 8 Check AWD control unit circuit. Refer to LAN-196, "AWD Control Unit Circuit Check" . PKIA8012

Page 3485 of 4449

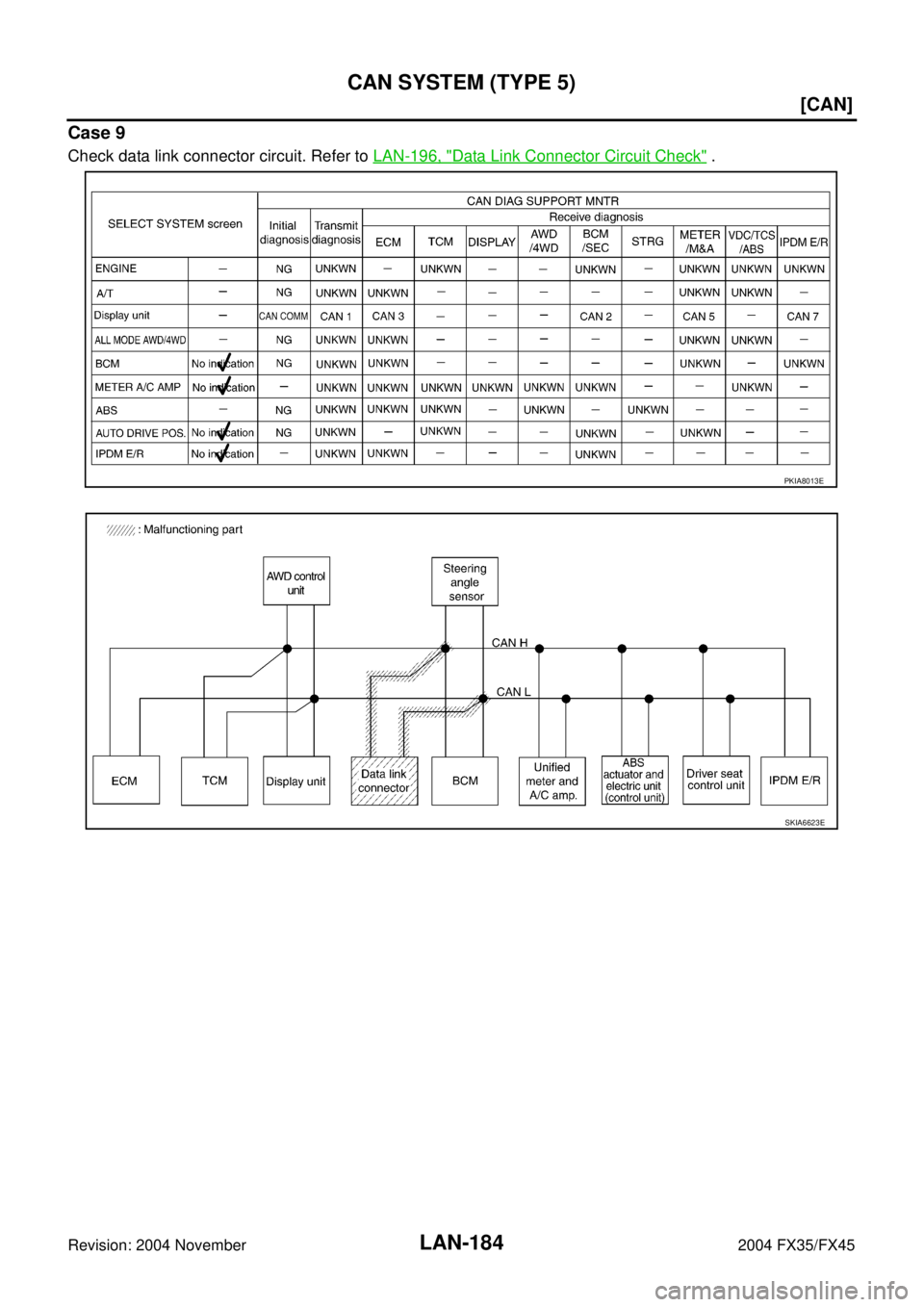

INFINITI FX35 2004 Service Manual LAN-184 [CAN] CAN SYSTEM (TYPE 5) Revision: 2004 November 2004 FX35/FX45 Case 9 Check data link connector circuit. Refer to LAN-196, "Data Link Connector Circuit Check" . PKIA8013E SKIA6623E

Page 3486 of 4449

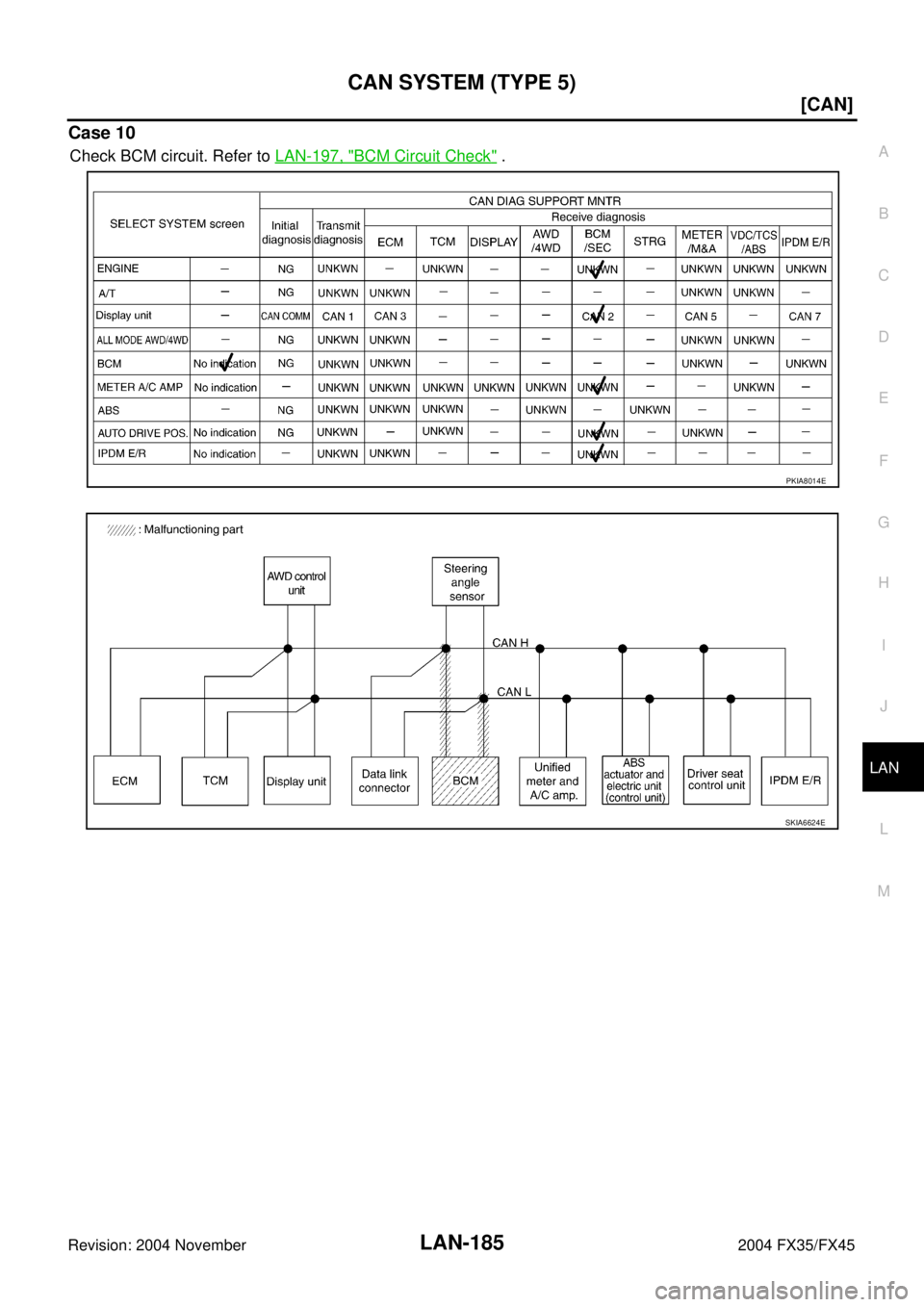

INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 5) LAN-185 [CAN] C D E F G H I J L MA B LAN Revision: 2004 November 2004 FX35/FX45 Case 10 Check BCM circuit. Refer to LAN-197, "BCM Circuit Check" . PKIA8014E SKIA6624E

Page 3487 of 4449

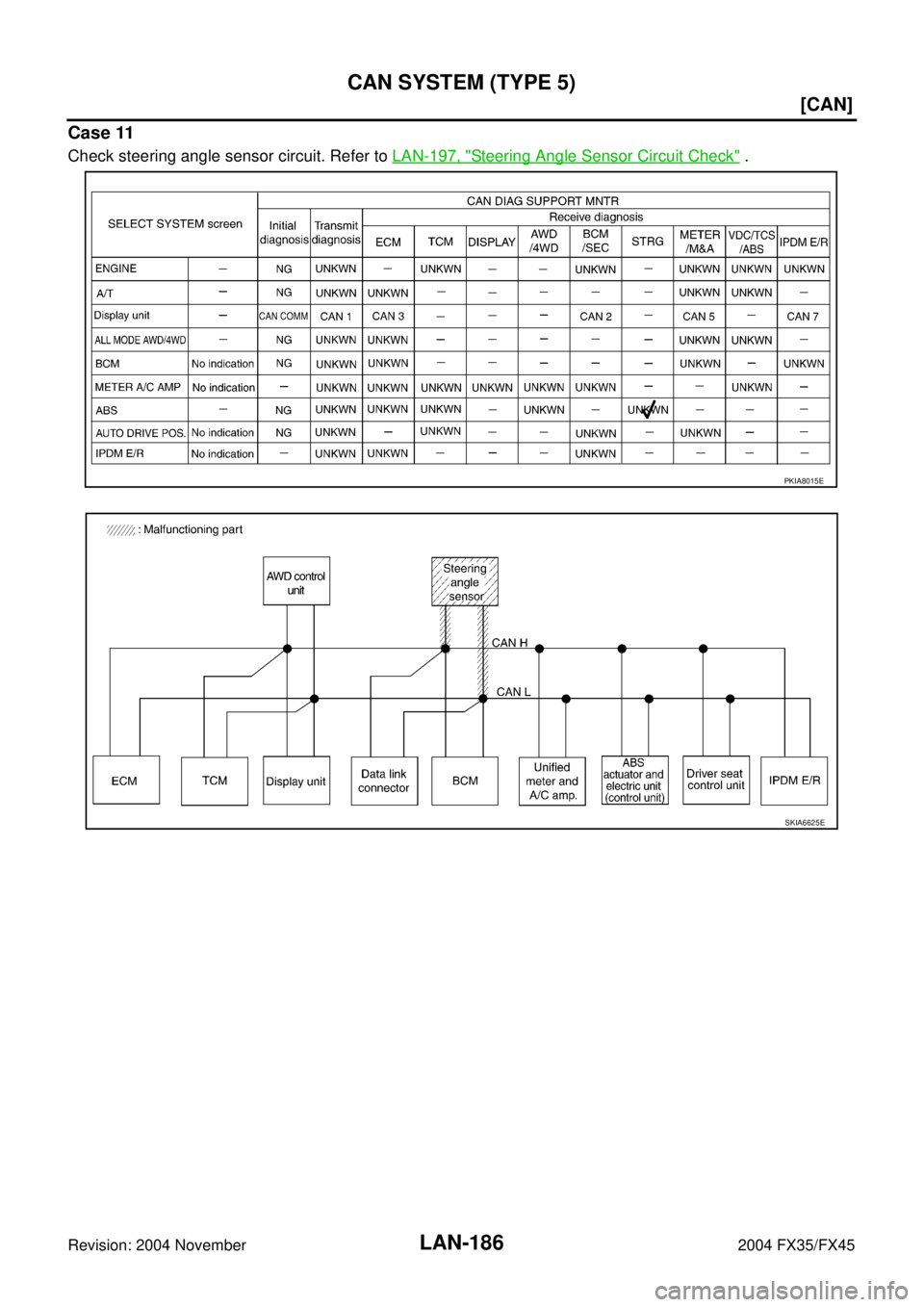

INFINITI FX35 2004 Service Manual LAN-186 [CAN] CAN SYSTEM (TYPE 5) Revision: 2004 November 2004 FX35/FX45 Case 11 Check steering angle sensor circuit. Refer to LAN-197, "Steering Angle Sensor Circuit Check" . PKIA8015E SKIA6625E

Page 3488 of 4449

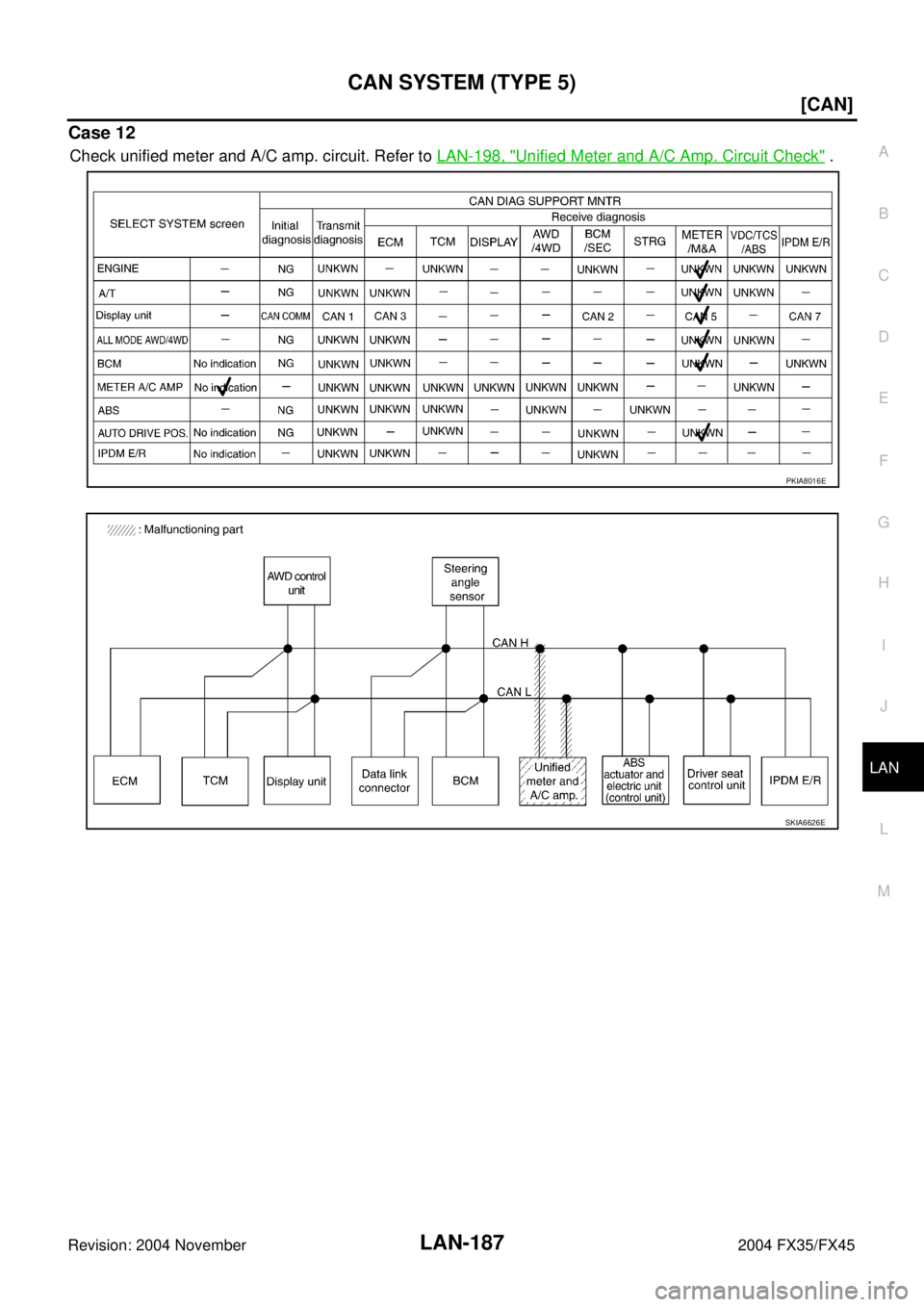

INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 5) LAN-187 [CAN] C D E F G H I J L MA B LAN Revision: 2004 November 2004 FX35/FX45 Case 12 Check unified meter and A/C amp. circuit. Refer to LAN-198, "Unified Meter and A/C Amp. Circ
