OIL PUMP
Revision: 2004 November 2004 FX35/FX45
INSPECTION AFTER INSTALLATION
After warming up engine, check for engine oil leakage.
Check the engine oil level, and add engine oil. Re INFINITI FX35 2004 Service Manual LU-32
[VK45DE]
OIL PUMP
Revision: 2004 November 2004 FX35/FX45
INSPECTION AFTER INSTALLATION
After warming up engine, check for engine oil leakage.
Check the engine oil level, and add engine oil. Re](/manual-img/42/57021/w960_57021-3784.png)
LU-32
[VK45DE]
OIL PUMP
Revision: 2004 November 2004 FX35/FX45
INSPECTION AFTER INSTALLATION
After warming up engine, check for engine oil leakage.
Check the engine oil level, and add engine oil. Refer to LU-25, "ENGINE OIL" .
Disassembly and AssemblyABS006J8
DISASSEMBLY
1. Remove oil pump cover.
2. Remove oil pump inner rotor and oil pump outer rotor from oil pump body.
3. After removing regulator valve plug, remove regulator valve spring and regulator valve.
INSPECTION AFTER DISASSEMBLY
Oil Pump Clearance
Measure clearance with feeler gauge.
–Clearance between oil pump outer rotor and oil pump body
(Position 1)
–Tip clearance between oil pump inner rotor and oil pump outer
rotor (Position 2)
Measure clearance with feeler gauge and straightedge.
–Side clearance between oil pump inner rotor and oil pump body
(Position 3)
–Side clearance between oil pump outer rotor and oil pump body
(Position 4)
Calculate the clearance between oil pump inner rotor and oil pump body as follows:
OIL PUMP INNER ROTOR OUTER DIAMETER
–Measure the outer diameter of protruded portion of oil pump
inner rotor. (Position 5)Standard : 0.114 - 0.200 mm (0.0045 - 0.0079 in)
Standard : Below 0.180 mm (0.0071 in)
PBIC0139E
Standard : 0.030 - 0.070 mm (0.0012 - 0.0028 in)
Standard : 0.030 - 0.090 mm (0.0012 - 0.0035 in)
PBIC0140E
PBIC0141E
Page 3786 of 4449
![INFINITI FX35 2004 Service Manual OIL PUMP
LU-33
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: 2004 November 2004 FX35/FX45

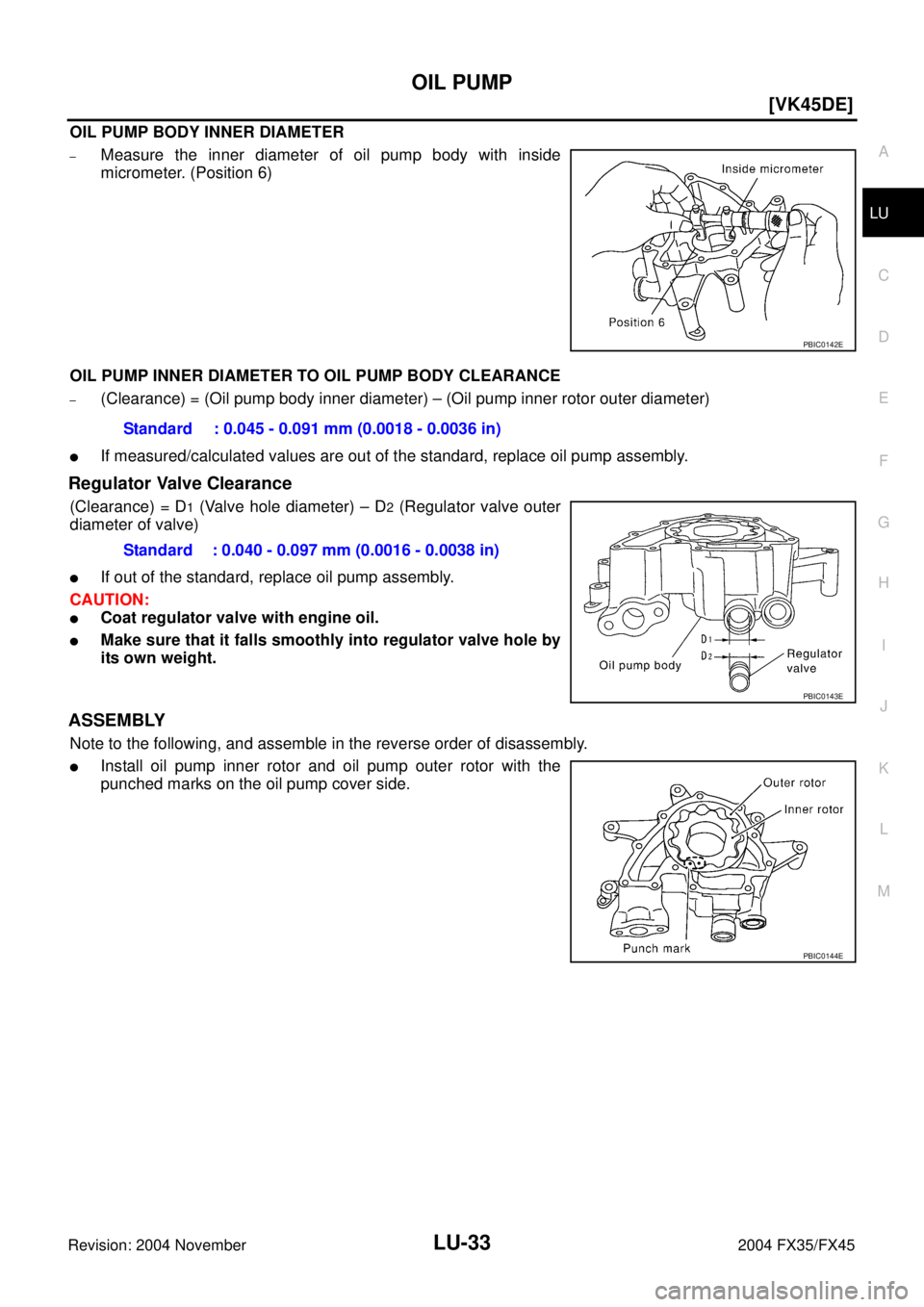

OIL PUMP BODY INNER DIAMETER
–Measure the inner diameter of oil pump body with inside
micrometer. (Position 6 INFINITI FX35 2004 Service Manual OIL PUMP
LU-33
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: 2004 November 2004 FX35/FX45
OIL PUMP BODY INNER DIAMETER
–Measure the inner diameter of oil pump body with inside
micrometer. (Position 6](/manual-img/42/57021/w960_57021-3785.png)
OIL PUMP
LU-33
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: 2004 November 2004 FX35/FX45
OIL PUMP BODY INNER DIAMETER
–Measure the inner diameter of oil pump body with inside
micrometer. (Position 6)
OIL PUMP INNER DIAMETER TO OIL PUMP BODY CLEARANCE
–(Clearance) = (Oil pump body inner diameter) – (Oil pump inner rotor outer diameter)
If measured/calculated values are out of the standard, replace oil pump assembly.
Regulator Valve Clearance
(Clearance) = D1 (Valve hole diameter) – D2 (Regulator valve outer
diameter of valve)
If out of the standard, replace oil pump assembly.
CAUTION:
Coat regulator valve with engine oil.
Make sure that it falls smoothly into regulator valve hole by
its own weight.
ASSEMBLY
Note to the following, and assemble in the reverse order of disassembly.
Install oil pump inner rotor and oil pump outer rotor with the
punched marks on the oil pump cover side.
PBIC0142E
Standard : 0.045 - 0.091 mm (0.0018 - 0.0036 in)
Standard : 0.040 - 0.097 mm (0.0016 - 0.0038 in)
PBIC0143E
PBIC0144E
Page 3787 of 4449
![INFINITI FX35 2004 Service Manual LU-34
[VK45DE]
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2004 November 2004 FX35/FX45
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Standard and LimitABS006J9
OIL PRESSURE
*: Engine oil tempera INFINITI FX35 2004 Service Manual LU-34
[VK45DE]
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2004 November 2004 FX35/FX45
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Standard and LimitABS006J9
OIL PRESSURE
*: Engine oil tempera](/manual-img/42/57021/w960_57021-3786.png)
LU-34
[VK45DE]
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2004 November 2004 FX35/FX45
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Standard and LimitABS006J9
OIL PRESSURE
*: Engine oil temperature at 80°C (176°F)
ENGINE OIL CAPACITY (APPROXIMATE)
Unit: (US qt, Imp qt)
OIL PUMP
Unit: mm (in)
REGULATOR VALVE
Unit: mm (in) Engine speed
rpm Approximate discharge oil pressure*
kPa (kg/cm
2 , psi)
Idle speed
2,000More than 98 (1.0, 14)
More than 294 (3.0, 43)
Drain and refillWith oil filter change 6.4 (6-3/4, 5-5/8)
Without oil filter change 5.8 (6-1/8, 5-1/8)
Dry engine (engine overhaul) 7.2 (7-5/8, 6-3/8)
Oil pump body to oil pump outer rotor radial clearance 0.114 - 0.200 (0.0045 - 0.0079)
Oil pump inner rotor to oil pump outer rotor tip clearance Below 0.180 (0.0071)
Oil pump body to oil pump inner rotor axial clearance 0.030 - 0.070 (0.0012 - 0.0028)
Oil pump body to oil pump outer rotor axial clearance 0.030 - 0.090 (0.0012 - 0.0035)
Oil pump inner rotor to oil pump body clearance 0.045 - 0.091 (0.0018 - 0.0036)
Regulator valve to oil pump body clearance 0.040 - 0.097 (0.0016 - 0.0038)
Page 3788 of 4449

MA-1
MAINTENANCE
L MAINTENANCE
CONTENTS
C
D
E
F
G
H
I
J
K
M
SECTION MA
A
B
MA
Revision: 2004 November 2004 FX35/FX45
MAINTENANCE
PREPARATION ........................................................... 3
Special Service Tools ............................................... 3
Commercial Service Tools ........................................ 3
GENERAL MAINTENANCE ....................................... 4
Explanation of General Maintenance ....................... 4
PERIODIC MAINTENANCE ....................................... 7
Introduction of Periodic Maintenance ....................... 7
Schedule 1 ............................................................... 8
EMISSION CONTROL SYSTEM MAINTE-
NANCE .................................................................. 8
CHASSIS AND BODY MAINTENANCE ............... 9
Schedule 2 ............................................................. 10
EMISSION CONTROL SYSTEM MAINTE-
NANCE ................................................................ 10
CHASSIS AND BODY MAINTENANCE .............. 11
RECOMMENDED FLUIDS AND LUBRICANTS ...... 12
Fluids and Lubricants ............................................. 12
SAE Viscosity Number ........................................... 13
GASOLINE ENGINE OIL .................................... 13
Anti-Freeze Coolant Mixture Ratio ......................... 13
ENGINE MAINTENANCE (VQ35DE ENGINE) ......... 14
Checking Drive Belts .............................................. 14
Tension Adjustment ................................................ 14
ALTERNATOR AND POWER STEERING OIL
PUMP BELT ........................................................ 15
AIR CONDITIONER COMPRESSOR BELT ....... 15
Changing Engine Coolant ...................................... 15
DRAINING ENGINE COOLANT ......................... 15
REFILLING ENGINE COOLANT ........................ 16
FLUSHING COOLING SYSTEM ......................... 17
Checking Fuel Lines ............................................... 17
Changing Air Cleaner Filter .................................... 17
VISCOUS PAPER TYPE ..................................... 17
Changing Engine Oil .............................................. 17
Changing Oil Filter ................................................. 18
REMOVAL ........................................................... 18
INSTALLATION ................................................... 19
INSPECTION AFTER INSTALLATION ............... 19
Changing Spark Plugs (Platinum-Tipped Type) ..... 19
REMOVAL ........................................................... 19INSPECTION AFTER REMOVAL ....................... 20
INSTALLATION ................................................... 20
Checking EVAP Vapor Lines .................................. 20
ENGINE MAINTENANCE (VK45DE ENGINE) ......... 21
Checking Drive Belts .............................................. 21
Tension Adjustment ................................................ 21
Changing Engine Coolant ....................................... 21
DRAINING ENGINE COOLANT .......................... 22
REFILLING ENGINE COOLANT ......................... 22
FLUSHING COOLING SYSTEM ......................... 23
Checking Fuel Lines ............................................... 24
Changing Air Cleaner Filter .................................... 24
VISCOUS PAPER TYPE ..................................... 24
Changing Engine Oil ............................................... 24
Changing Oil Filter .................................................. 25
REMOVAL ........................................................... 25
INSTALLATION ................................................... 25
INSPECTION AFTER INSTALLATION ................ 25
Changing Spark Plugs (Platinum-Tipped Type) ...... 26
REMOVAL ........................................................... 26
INSPECTION AFTER REMOVAL ....................... 26
INSTALLATION ................................................... 27
Checking EVAP Vapor Lines .................................. 27
CHASSIS AND BODY MAINTENANCE ................... 28
Checking Exhaust System ...................................... 28
Checking A/T Fluid ................................................. 28
Changing A/T Fluid ................................................. 30
Checking Transfer Fluid ......................................... 30
Changing Transfer Fluid ......................................... 31
Checking Propeller Shaft ........................................ 31
Checking Differential Gear Oil ................................ 31
Changing Differential Gear Oil ................................ 32
Balancing Wheels (Bonding Weight Type) ............. 32
REMOVAL ........................................................... 32
WHEEL BALANCE ADJUSTMENT ..................... 32
Tire Rotation ........................................................... 34
Checking Brake Fluid Level and Leaks .................. 34
Checking Brake Lines and Cables ......................... 34
Changing Brake Fluid ............................................. 34
Checking Disc Brake .............................................. 35
Page 3789 of 4449

MA-2Revision: 2004 November 2004 FX35/FX45ROTOR ................................................................ 35
CALIPER ............................................................. 35
PAD ..................................................................... 35
Checking Steering Gear and Linkage ..................... 35
STEERING GEAR ............................................... 35
STEERING LINKAGE .......................................... 35
Checking Power Steering Fluid and Lines .............. 36
Axle and Suspension Parts ..................................... 36
Drive Shaft .............................................................. 37
Lubricating Locks, Hinges and Hood Latch ............ 37
Checking Seat Belt, Buckles, Retractors, Anchors
and Adjusters .......................................................... 38
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 39
Standard and Limit .................................................. 39
BELT DEFLECTION AND TENSION (VQ35DE) ... 39
BELT DEFLECTION AND TENSION (VK45DE) ... 39
ENGINE COOLANT CAPACITY (APPROXI-MATE) (VQ35DE) ................................................ 39
ENGINE COOLANT CAPACITY (APPROXI-
MATE) (VK45DE) ................................................. 39
RADIATOR ........................................................... 39
ENGINE OIL CAPACITY (APPROXIMATE)
(VQ35DE) ............................................................ 39
ENGINE OIL CAPACITY (APPROXIMATE)
(VK45DE) ............................................................. 40
SPARK PLUG (PLATINUM-TIPPED TYPE)
(VQ35DE) ............................................................ 40
SPARK PLUG (PLATINUM-TIPPED TYPE)
(VK45DE) ............................................................. 40
WHEEL BALANCE .............................................. 40
Page 3790 of 4449
PREPARATION
MA-3
C
D
E
F
G
H
I
J
K
MA
B
MA
Revision: 2004 November 2004 FX35/FX45
PREPARATIONPFP:00002
Special Service ToolsALS000G2
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
Commercial Service ToolsALS000G3

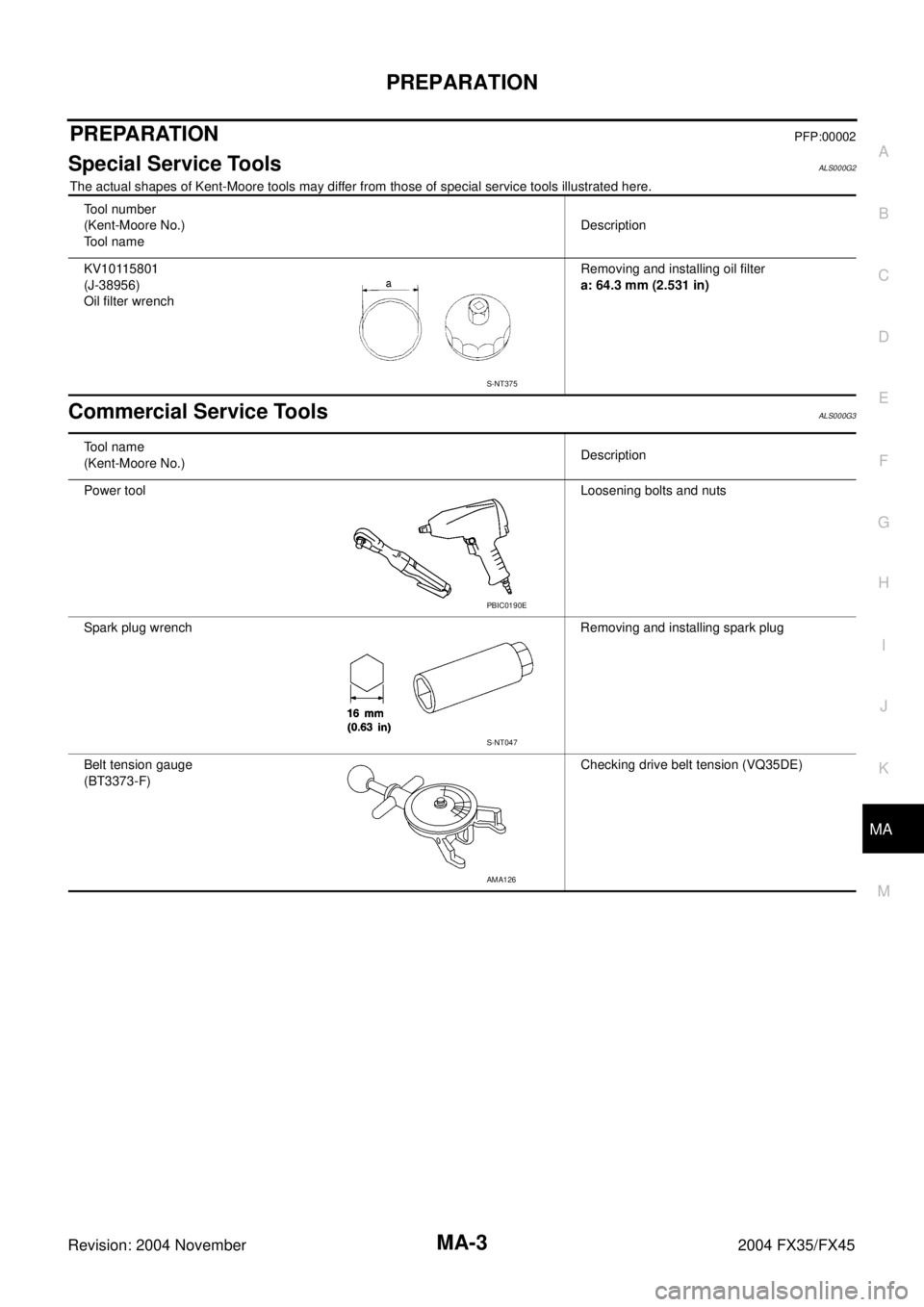

Tool number
(Kent-Moore No.)
Tool nameDescription
KV10115801
(J-38956)
Oil filter wrenchRemoving and installing oil filter
a: 64.3 mm (2.531 in)
S-NT375
Tool name
(Kent-Moore No.)Description
Power toolLoosening bolts and nuts
Spark plug wrench Removing and installing spark plug
Belt tension gauge
(BT3373-F)Checking drive belt tension (VQ35DE)
PBIC0190E
S-NT047
AMA126
Page 3791 of 4449
MA-4
GENERAL MAINTENANCE
Revision: 2004 November 2004 FX35/FX45
GENERAL MAINTENANCEPFP:00000
Explanation of General MaintenanceALS000G4
General maintenance includes those items which should be checked during the normal day-to-day operation
of the vehicle. They are essential if the vehicle is to continue operating properly. The owners can perform
checks and inspections themselves or have their INFINITI dealers do them.
Page 3792 of 4449

GENERAL MAINTENANCE
MA-5
C
D
E
F
G
H
I
J
K
MA
B
MA
Revision: 2004 November 2004 FX35/FX45
OUTSIDE THE VEHICLE
The maintenance items listed here should be performed from time to time, unless otherwise specified.
INSIDE THE VEHICLE
The maintenance items listed here should be checked on a regular basis, such as when performing periodic maintenance, cleaning the
vehicle, etc.ItemReference page
TiresCheck the pressure with a gauge, including the spare, at least once a month
and always prior to a long distance trips. Adjust to the specified pressure if
necessary. Check carefully for damage, cuts or excessive wear.—
Wheel nutsWhen checking the tires, make sure no nuts are missing, and check for any
loose nuts. Tighten if necessary.—
WindshieldClean the windshield on a regular basis. Check the windshield at least every
six months for cracks or other damage. Repair as necessary.—
Tire rotationTires should be rotated every 12,000 km (7,500 miles).MA-34
Wheel alignment and
balanceIf the vehicle pulls to either side while driving on a straight and level road, or if
you detect uneven or abnormal tire wear, there may be a need for wheel align-
ment. If the steering wheel or seat vibrates at normal highway speeds, wheel
balancing may be needed.MA-32
, FSU-6
Windshield wiper
bladesCheck for cracks or wear if they do not wipe properly. —
Doors and engine
hoodCheck that all doors and the engine hood operate smoothly as well as the
trunk lid and back hatch. Also make sure that all latches lock securely. Lubri-
cate if necessary. Make sure that the secondary latch keeps the hood from
opening when the primary latch is released.
When driving in areas using road salt or other corrosive materials, check lubri-
cation frequently.MA-37
LampsMake sure that the headlamps, stop lamps, tail lamps, turn signal lamps, and
other lamps are all operating properly and installed securely. Also check head-
lamp aim. Clean the headlamps on a regular basis. —
ItemReference page
Warning lamps and
chimesMake sure that all warning lamps and chimes are operating properly. —
Windshield wiper and
washerCheck that the wipers and washer operate properly and that the wipers do not
streak.—
Windshield defrosterCheck that the air comes out of the defroster outlets properly and in sufficient
quantity when operating the heater or air conditioner.—
Steering wheelCheck that it has the specified play. Be sure to check for changes in the steer-
ing condition, such as excessive play, hard steering or strange noises.
Free play: Less than 35 mm (1.38 in)—
SeatsCheck seat position controls such as seat adjusters, seatback recliner, etc. to
make sure they operate smoothly and that all latches lock securely in every
position. Check that the head restrains move up and down smoothly and that
the locks (if equipped) hold securely in all latched positions. Check that the
latches lock securely for folding-down rear seatbacks.—
Seat beltsCheck that all parts of the seat belt system (e.g. buckles, anchors, adjusters
and retractors) operate properly and smoothly, and are installed securely.
Check the belt webbing for cuts, fraying, wear or damage.MA-38
Accelerator pedalCheck the pedal for smooth operation and make sure the pedal does not catch
or require uneven effort. Keep the floor mats away from the pedal.—
BrakesCheck that the brake does not pull the vehicle to one side when applied. —
Brake pedal and
boosterCheck the pedal for smooth operation and make sure it has the proper dis-
tance under it when depressed fully. Check the brake booster function. Be
sure to keep the floor mats away from the pedal.BR-6
, BR-15
