INFINITI FX35 2004 Service Manual LAN-92 [CAN] CAN SYSTEM (TYPE 3) Revision: 2004 November 2004 FX35/FX45 Work FlowAKS00C0F 1. When there are no indications of “AIR PRESSURE MONITOR”, “INTELLIGENT KEY”, “BCM”, “METER A/

Page 3394 of 4449

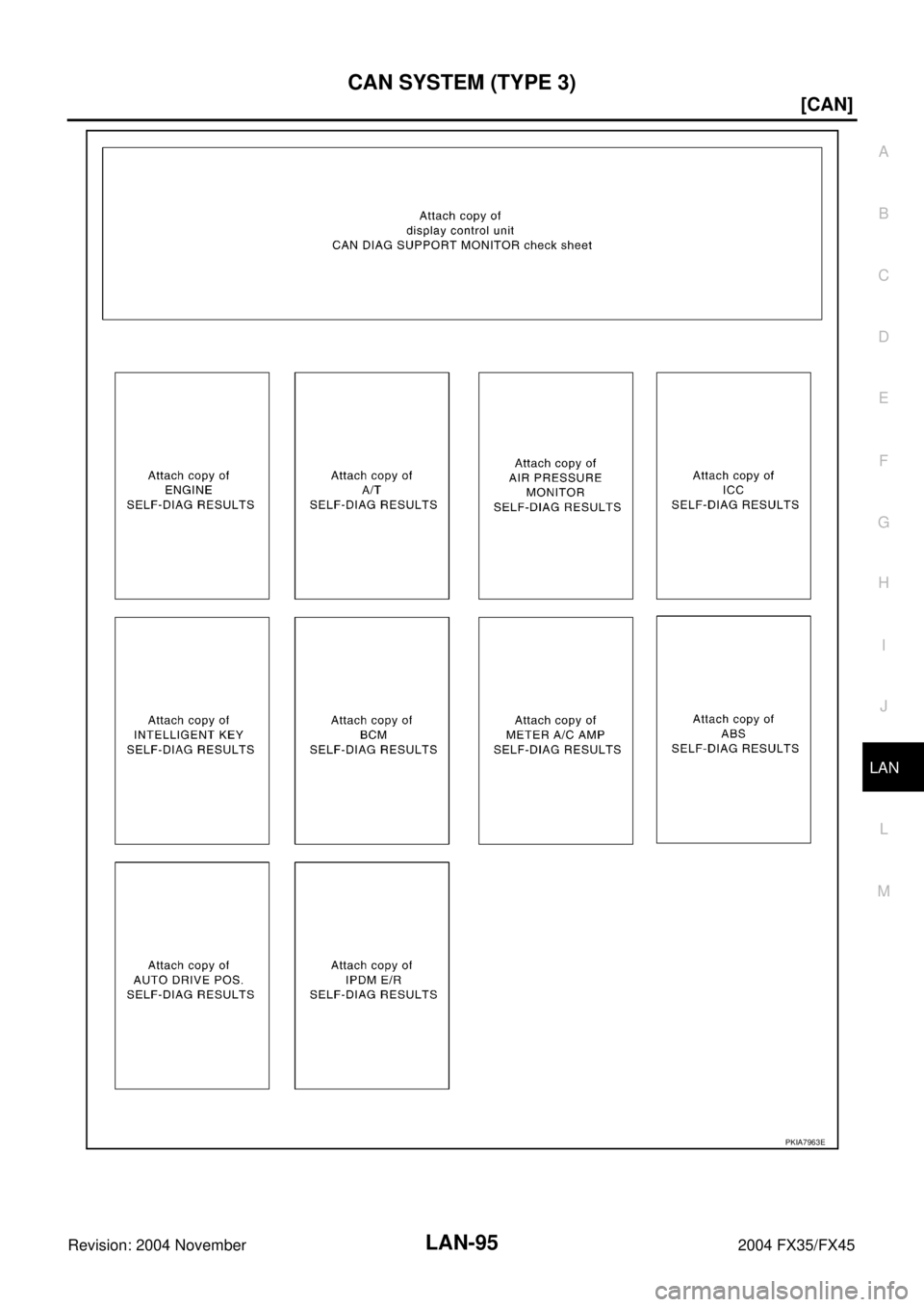

INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 3) LAN-93 [CAN] C D E F G H I J L MA B LAN Revision: 2004 November 2004 FX35/FX45 7. Attach the CAN DIAG SUPPORT MONITOR check sheet onto the check sheet. Refer to LAN-94, "CHECK SHEE

Page 3395 of 4449

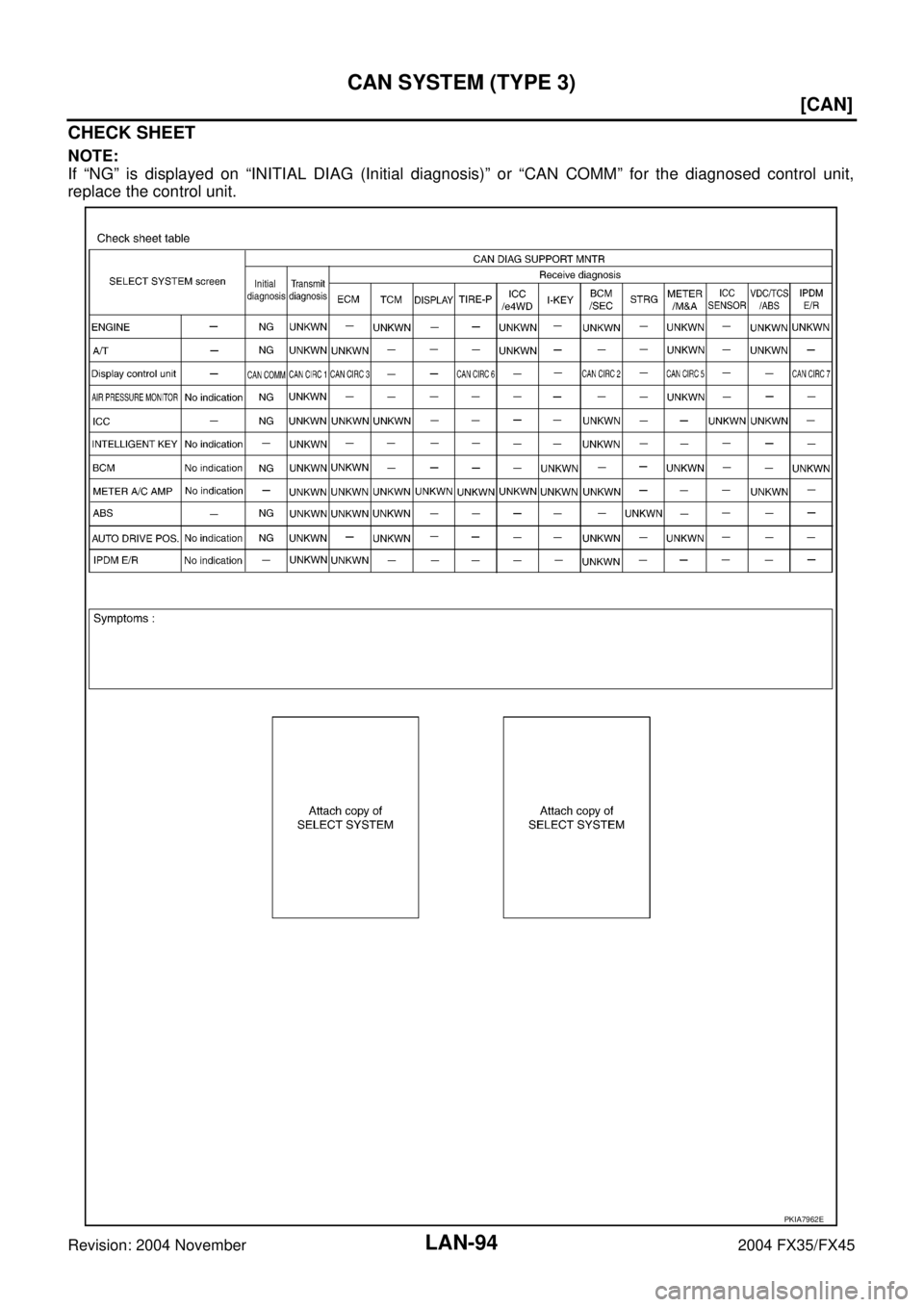

INFINITI FX35 2004 Service Manual LAN-94 [CAN] CAN SYSTEM (TYPE 3) Revision: 2004 November 2004 FX35/FX45 CHECK SHEET NOTE: If “NG” is displayed on “INITIAL DIAG (Initial diagnosis)” or “CAN COMM” for the diagnosed control

Page 3396 of 4449

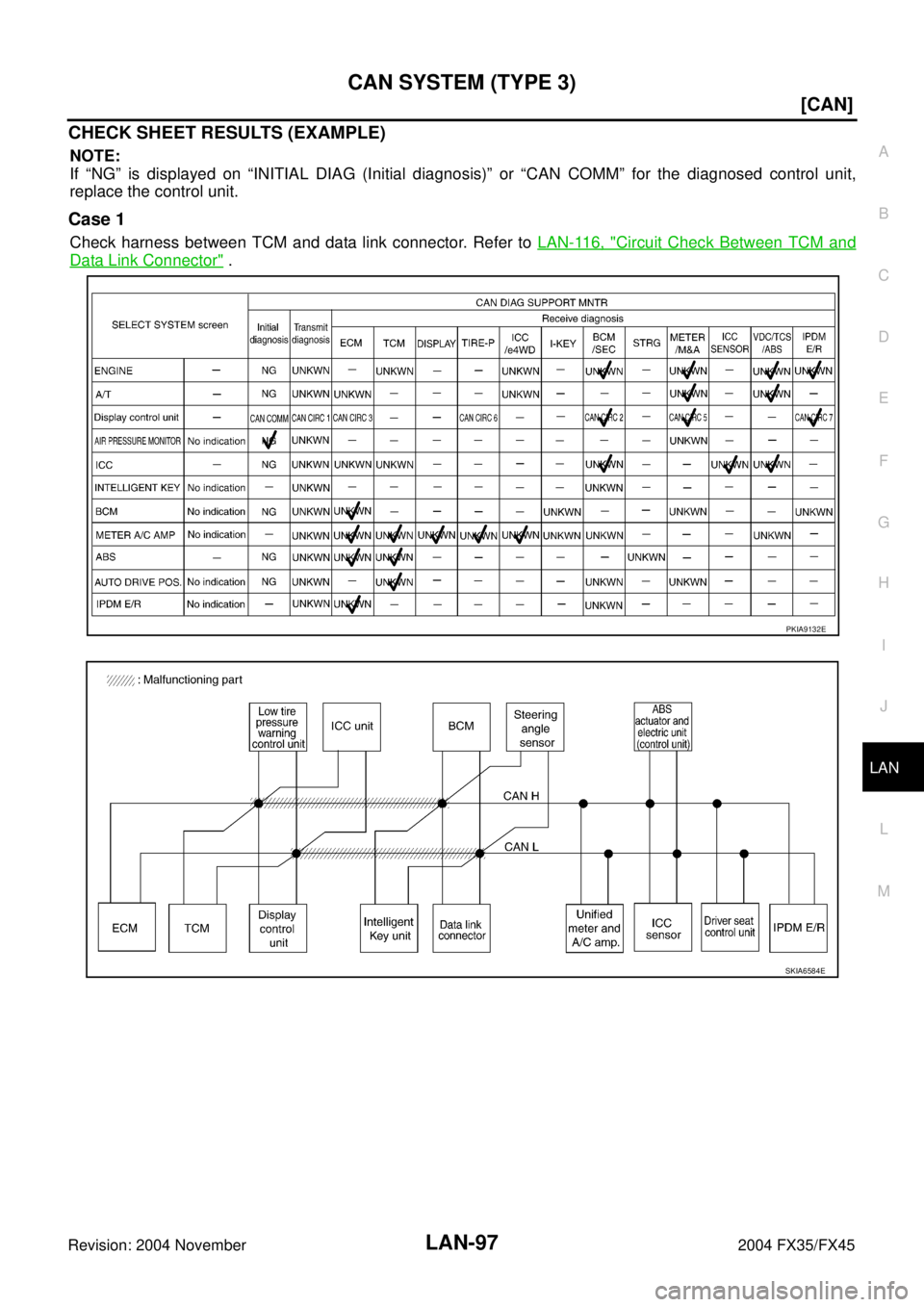

INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 3) LAN-95 [CAN] C D E F G H I J L MA B LAN Revision: 2004 November 2004 FX35/FX45 PKIA7963E

Page 3397 of 4449

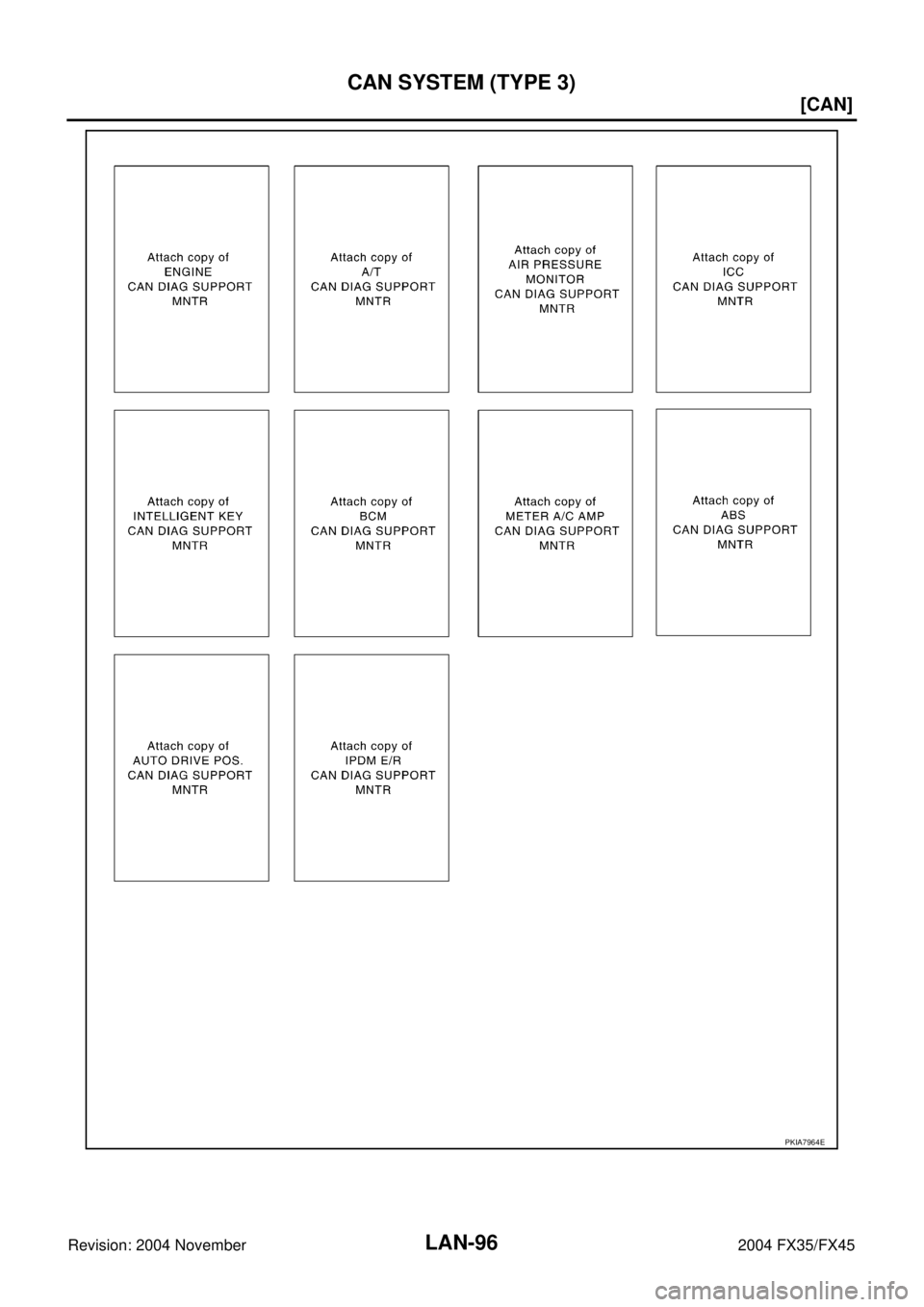

INFINITI FX35 2004 Service Manual LAN-96 [CAN] CAN SYSTEM (TYPE 3) Revision: 2004 November 2004 FX35/FX45 PKIA7964E

Page 3398 of 4449

INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 3) LAN-97 [CAN] C D E F G H I J L MA B LAN Revision: 2004 November 2004 FX35/FX45 CHECK SHEET RESULTS (EXAMPLE) NOTE: If “NG” is displayed on “INITIAL DIAG (Initial diagnosis)

Page 3399 of 4449

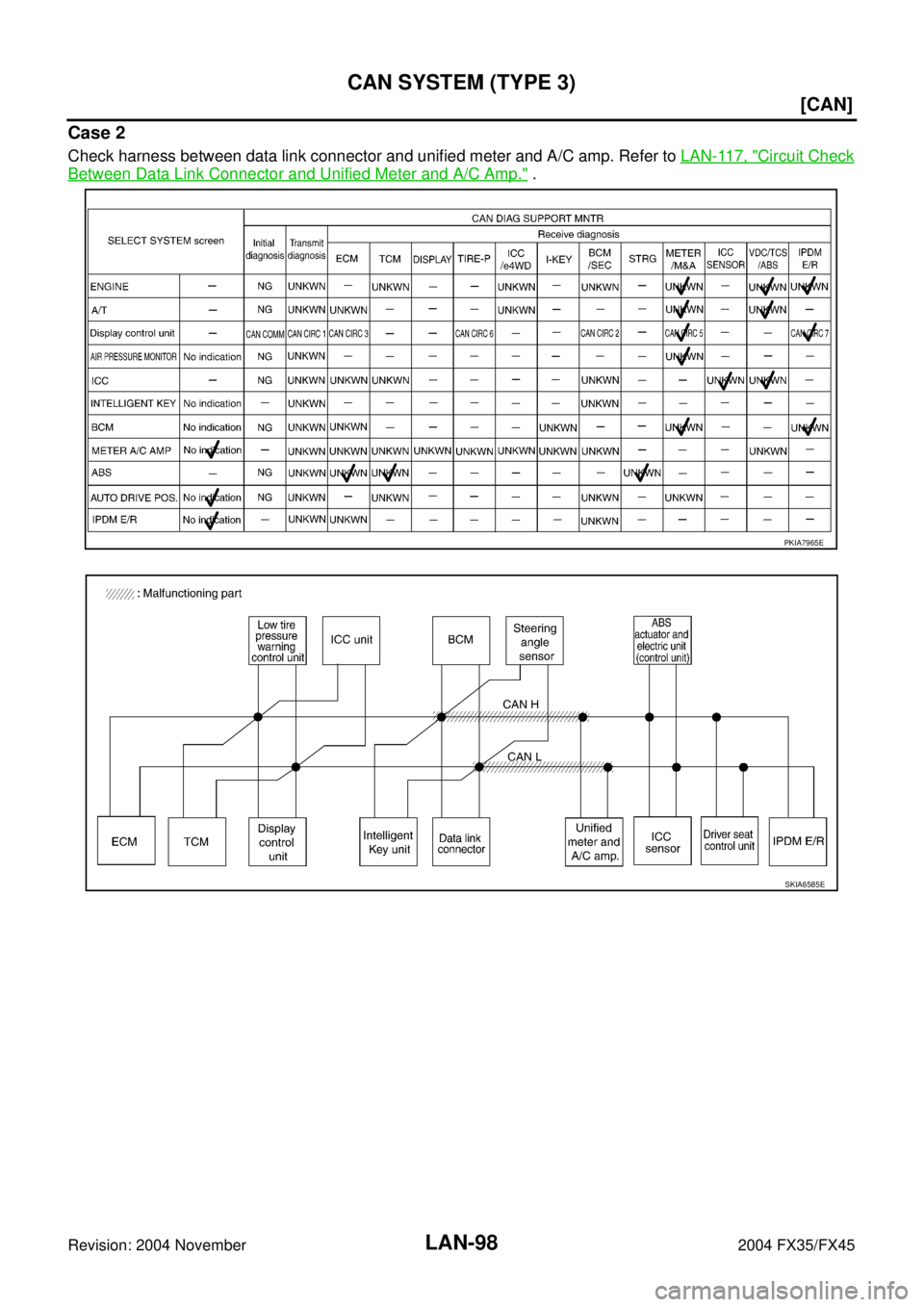

INFINITI FX35 2004 Service Manual LAN-98 [CAN] CAN SYSTEM (TYPE 3) Revision: 2004 November 2004 FX35/FX45 Case 2 Check harness between data link connector and unified meter and A/C amp. Refer to LAN-117, "Circuit Check Between Data Li

Page 3400 of 4449

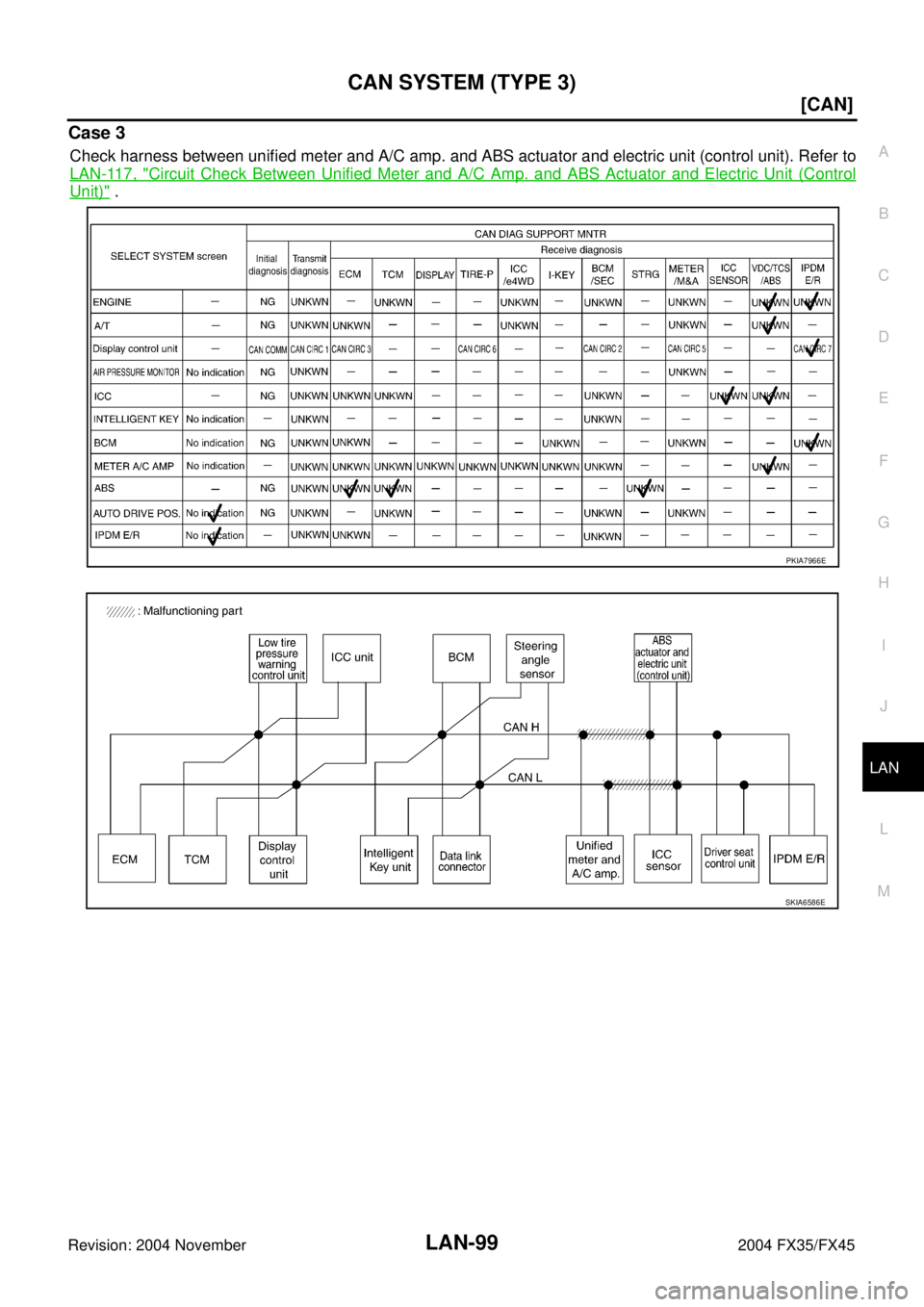

INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 3) LAN-99 [CAN] C D E F G H I J L MA B LAN Revision: 2004 November 2004 FX35/FX45 Case 3 Check harness between unified meter and A/C amp. and ABS actuator and electric unit (control u
