Page 3545 of 4449

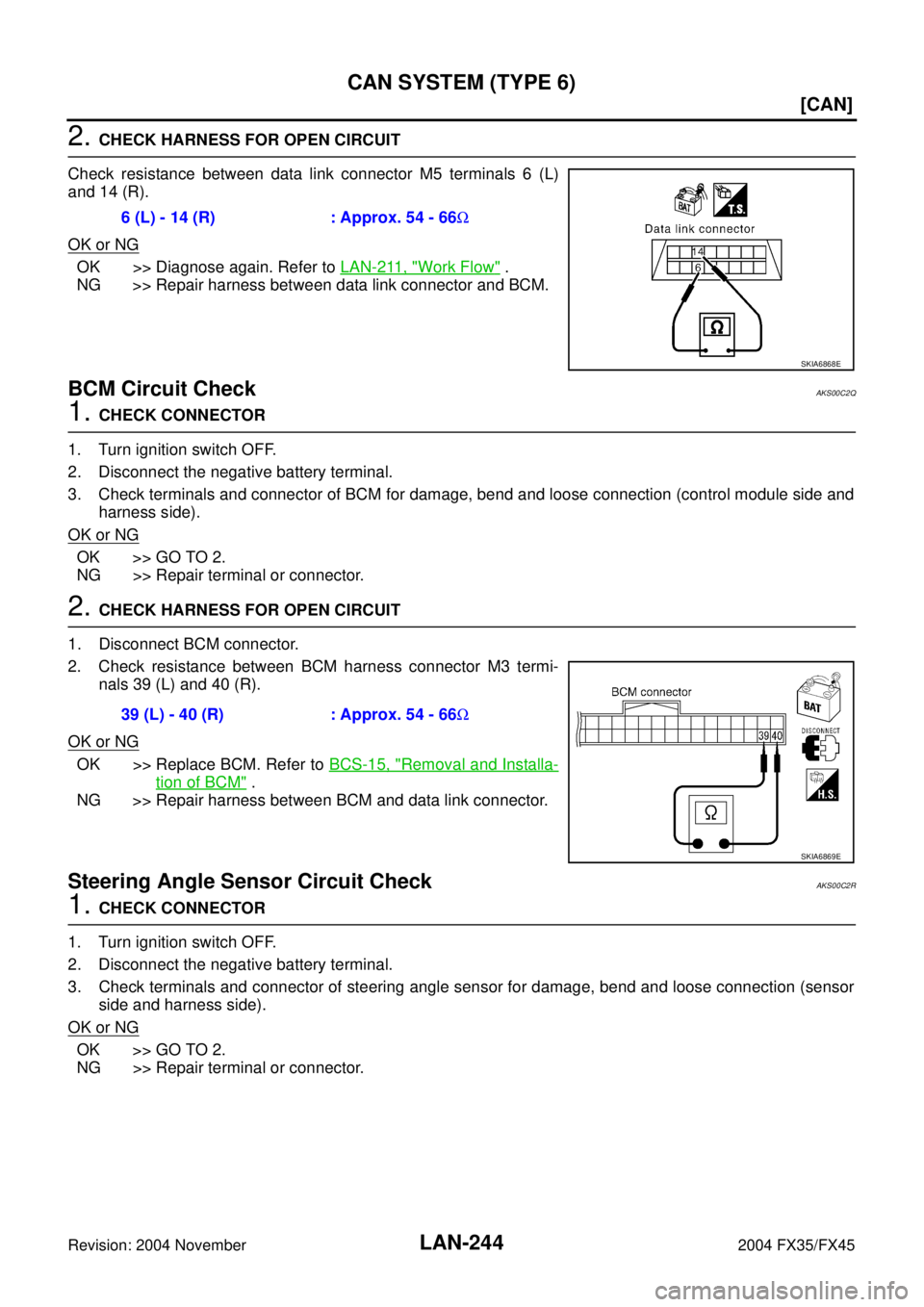

INFINITI FX35 2004 Service Manual LAN-244 [CAN] CAN SYSTEM (TYPE 6) Revision: 2004 November 2004 FX35/FX45 2. CHECK HARNESS FOR OPEN CIRCUIT Check resistance between data link connector M5 terminals 6 (L) and 14 (R). OK or NG OK >> Di

Page 3546 of 4449

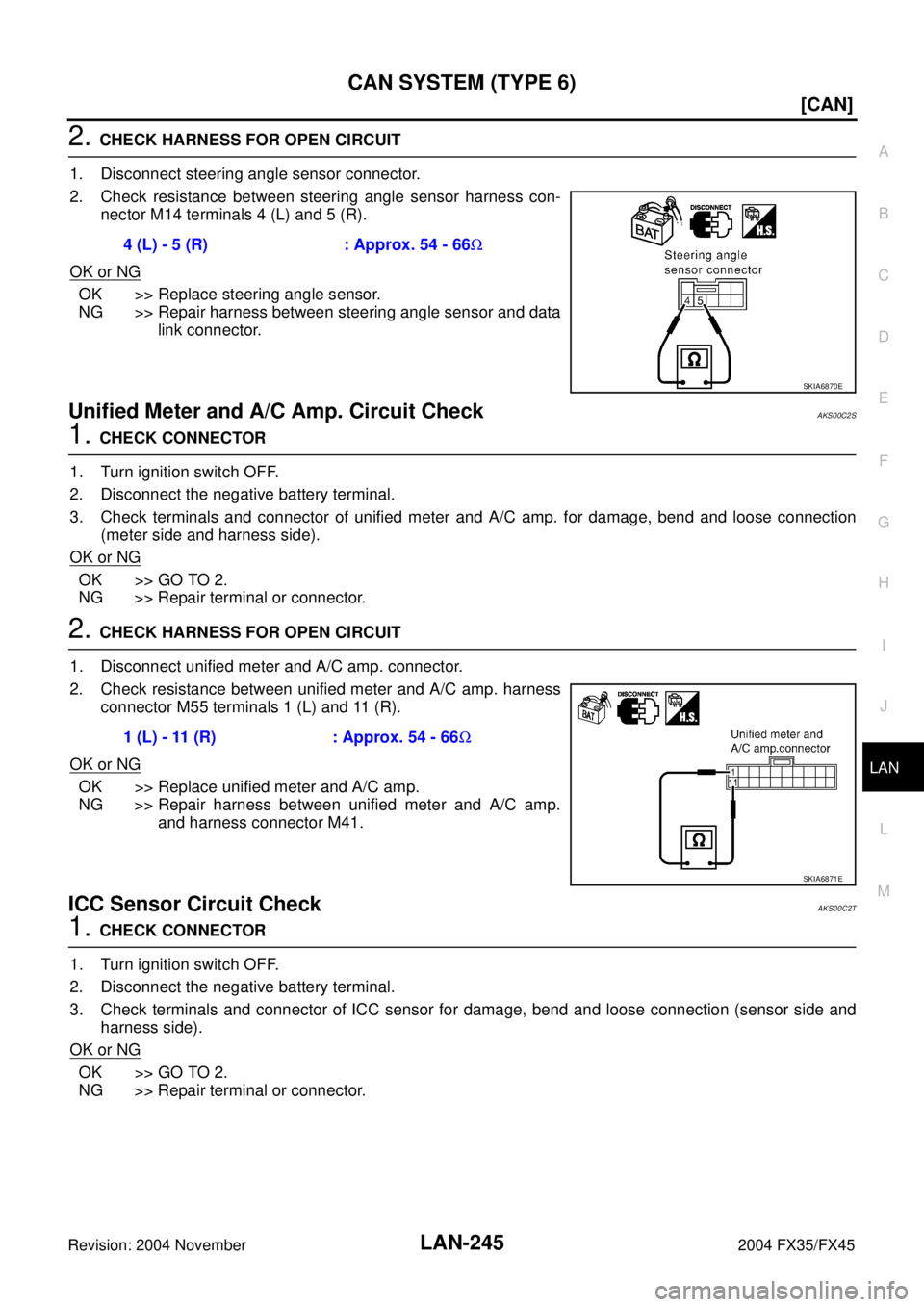

INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 6) LAN-245 [CAN] C D E F G H I J L MA B LAN Revision: 2004 November 2004 FX35/FX45 2. CHECK HARNESS FOR OPEN CIRCUIT 1. Disconnect steering angle sensor connector. 2. Check resistance

Page 3547 of 4449

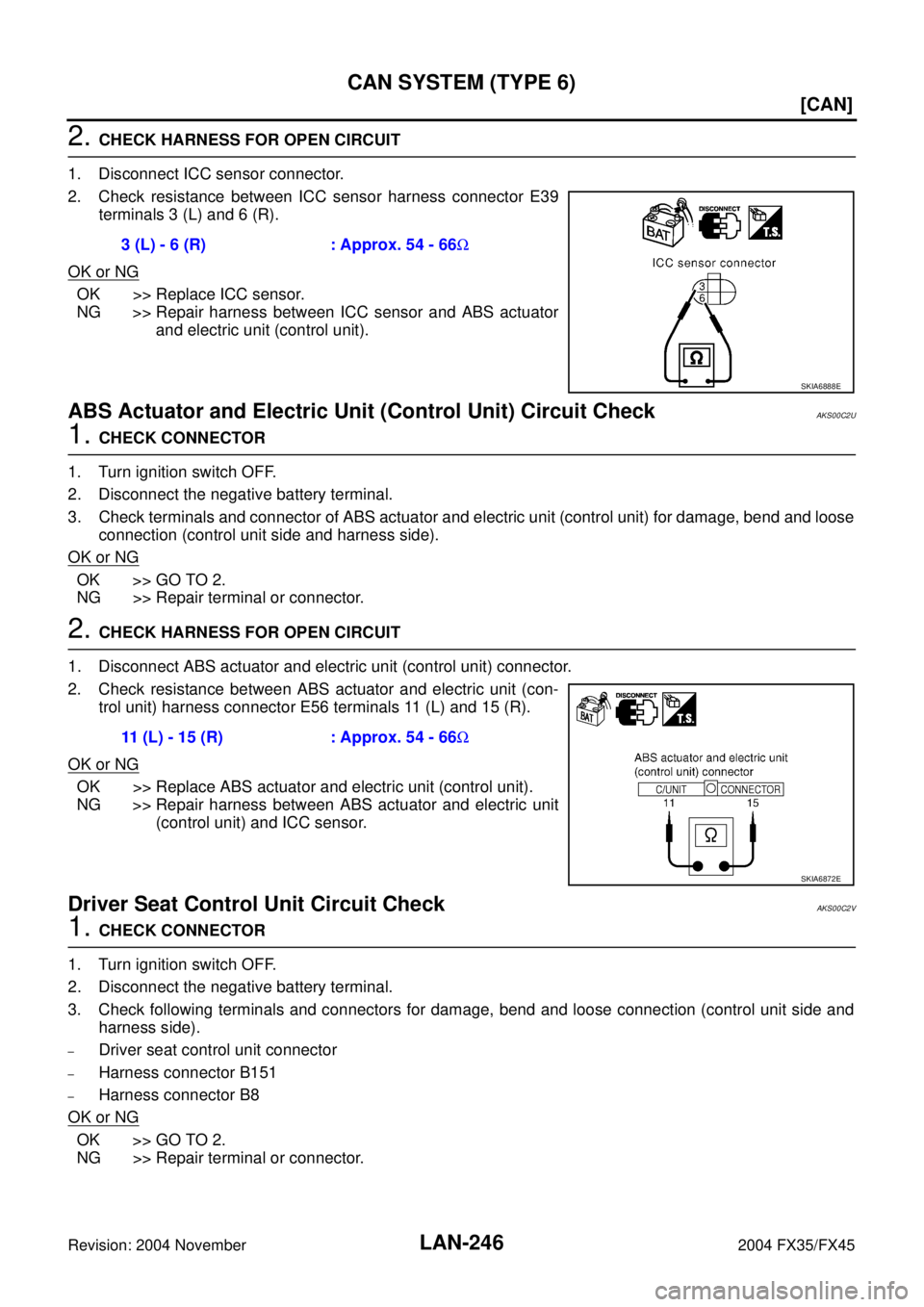

INFINITI FX35 2004 Service Manual LAN-246 [CAN] CAN SYSTEM (TYPE 6) Revision: 2004 November 2004 FX35/FX45 2. CHECK HARNESS FOR OPEN CIRCUIT 1. Disconnect ICC sensor connector. 2. Check resistance between ICC sensor harness connector

Page 3548 of 4449

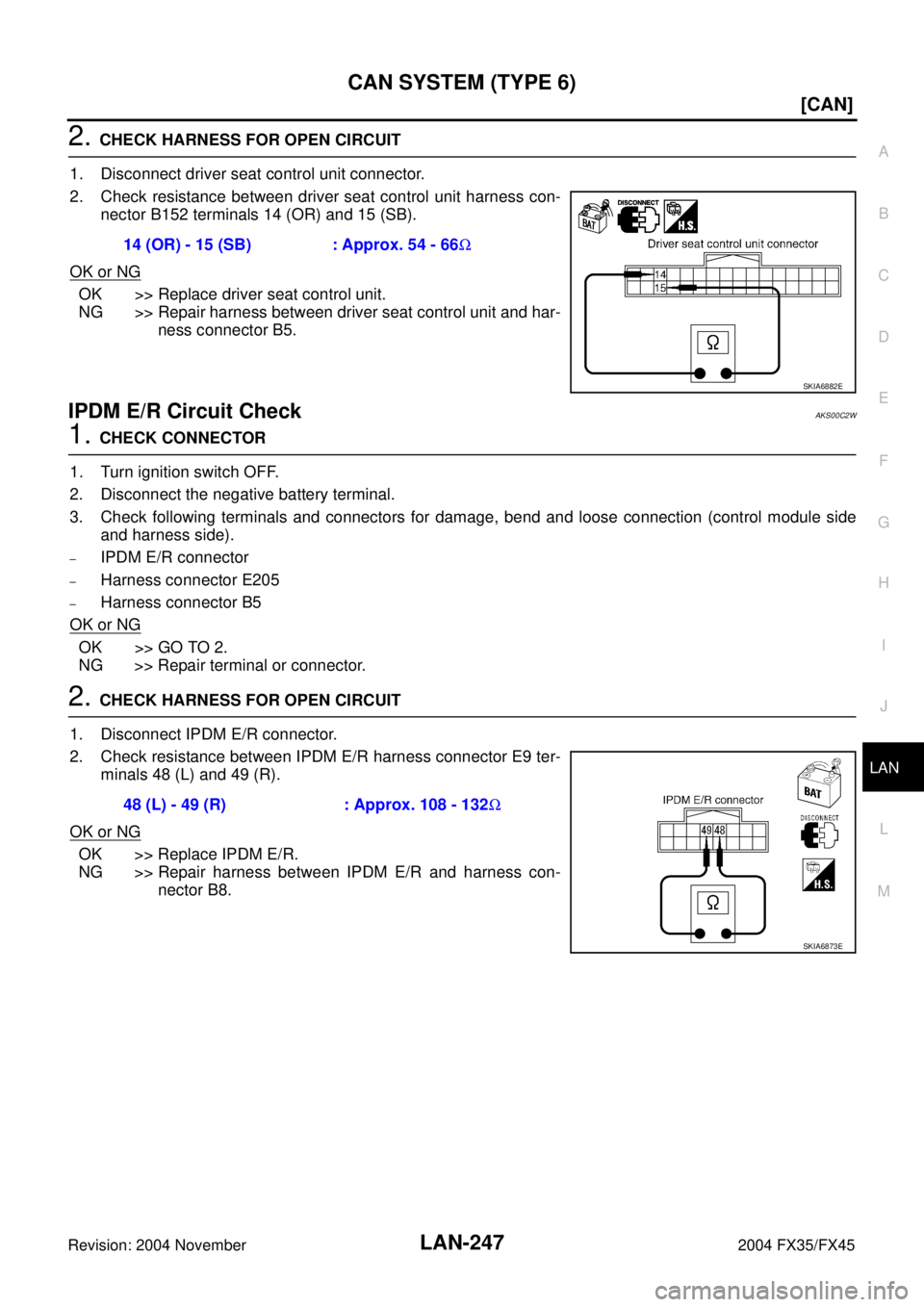

INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 6) LAN-247 [CAN] C D E F G H I J L MA B LAN Revision: 2004 November 2004 FX35/FX45 2. CHECK HARNESS FOR OPEN CIRCUIT 1. Disconnect driver seat control unit connector. 2. Check resista

Page 3549 of 4449

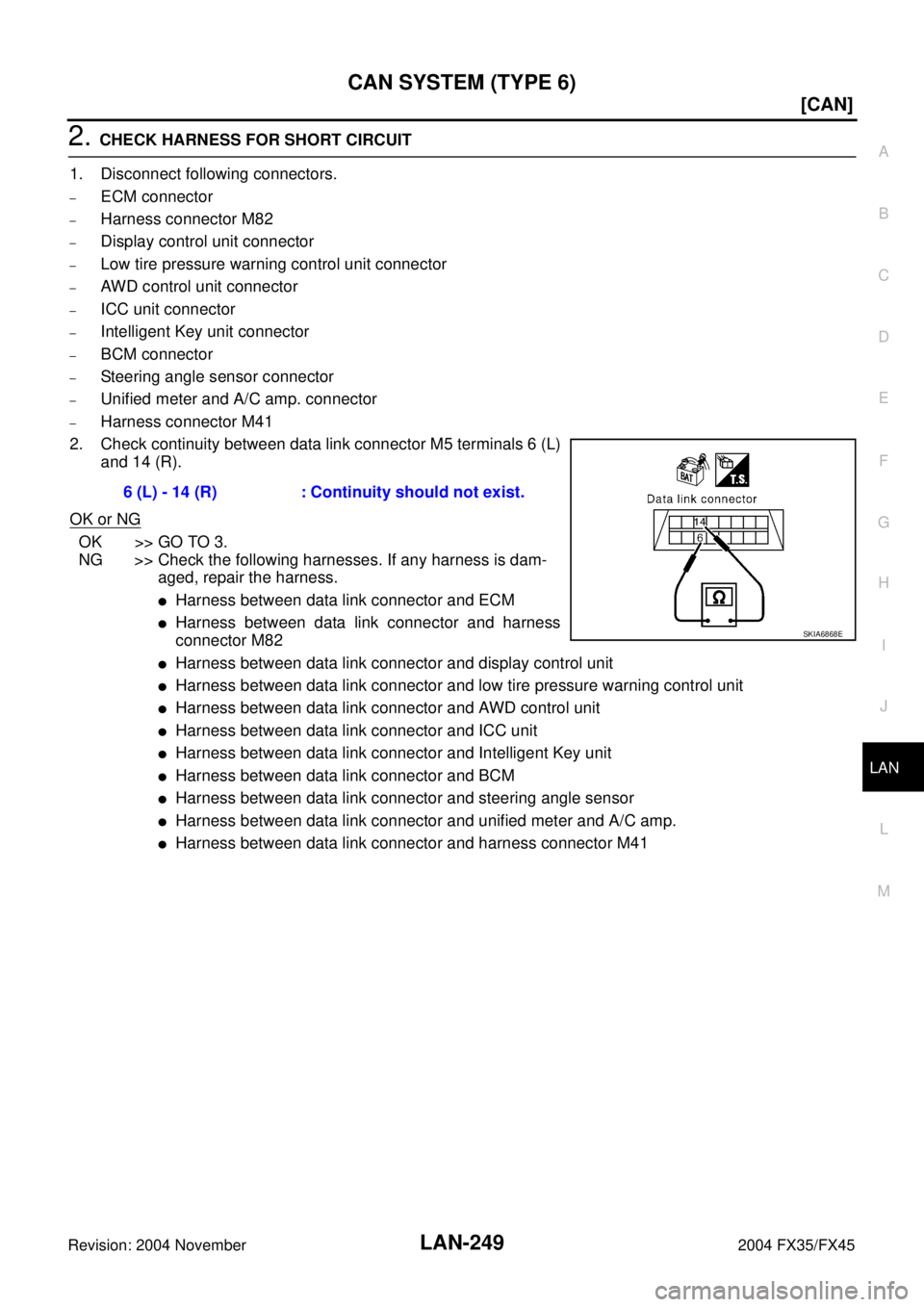

INFINITI FX35 2004 Service Manual LAN-248 [CAN] CAN SYSTEM (TYPE 6) Revision: 2004 November 2004 FX35/FX45 CAN Communication Circuit CheckAKS00C2X 1. CHECK CONNECTOR 1. Turn ignition switch OFF. 2. Disconnect the negative battery term

Page 3550 of 4449

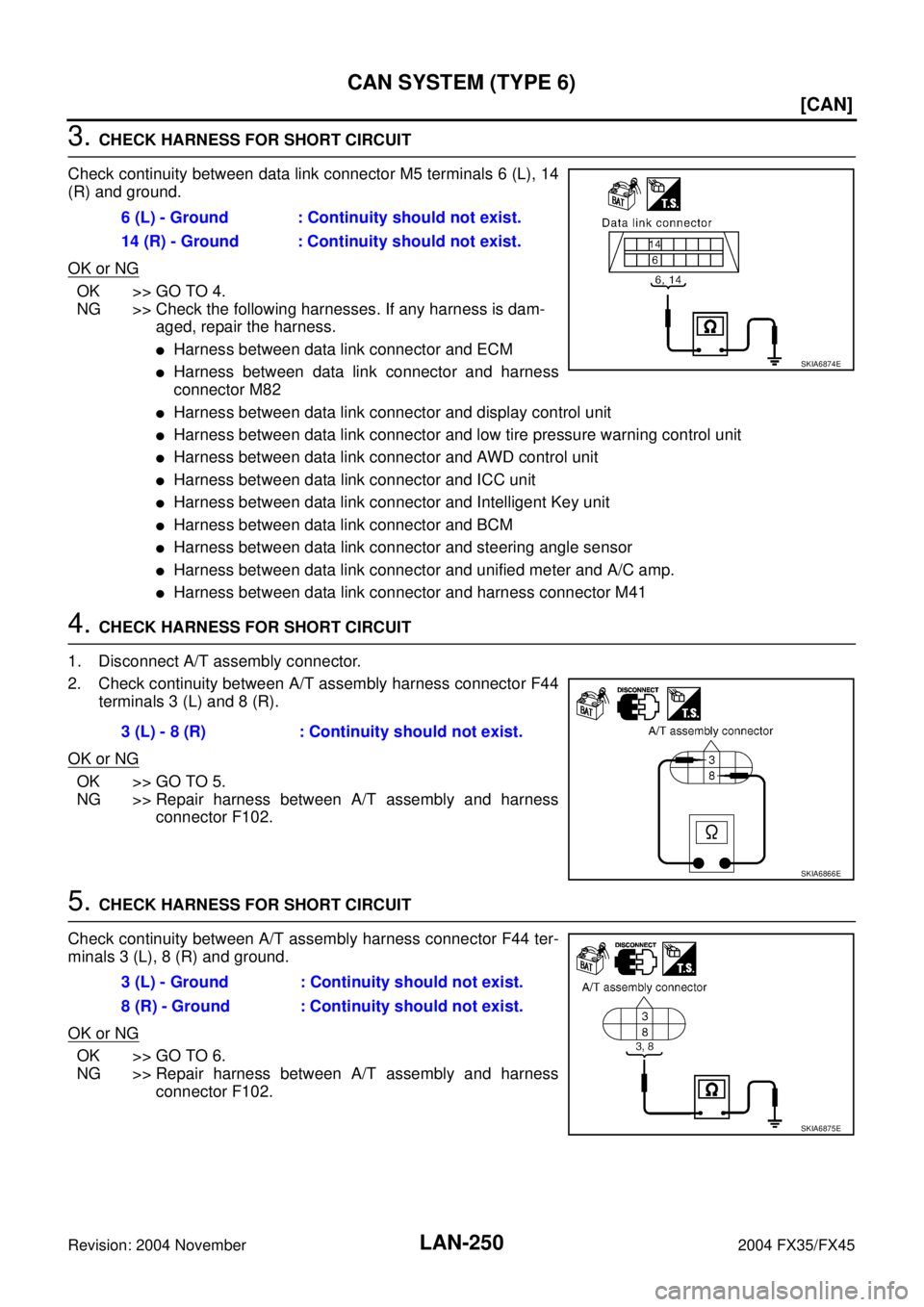

INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 6) LAN-249 [CAN] C D E F G H I J L MA B LAN Revision: 2004 November 2004 FX35/FX45 2. CHECK HARNESS FOR SHORT CIRCUIT 1. Disconnect following connectors. –ECM connector –Harness c

Page 3551 of 4449

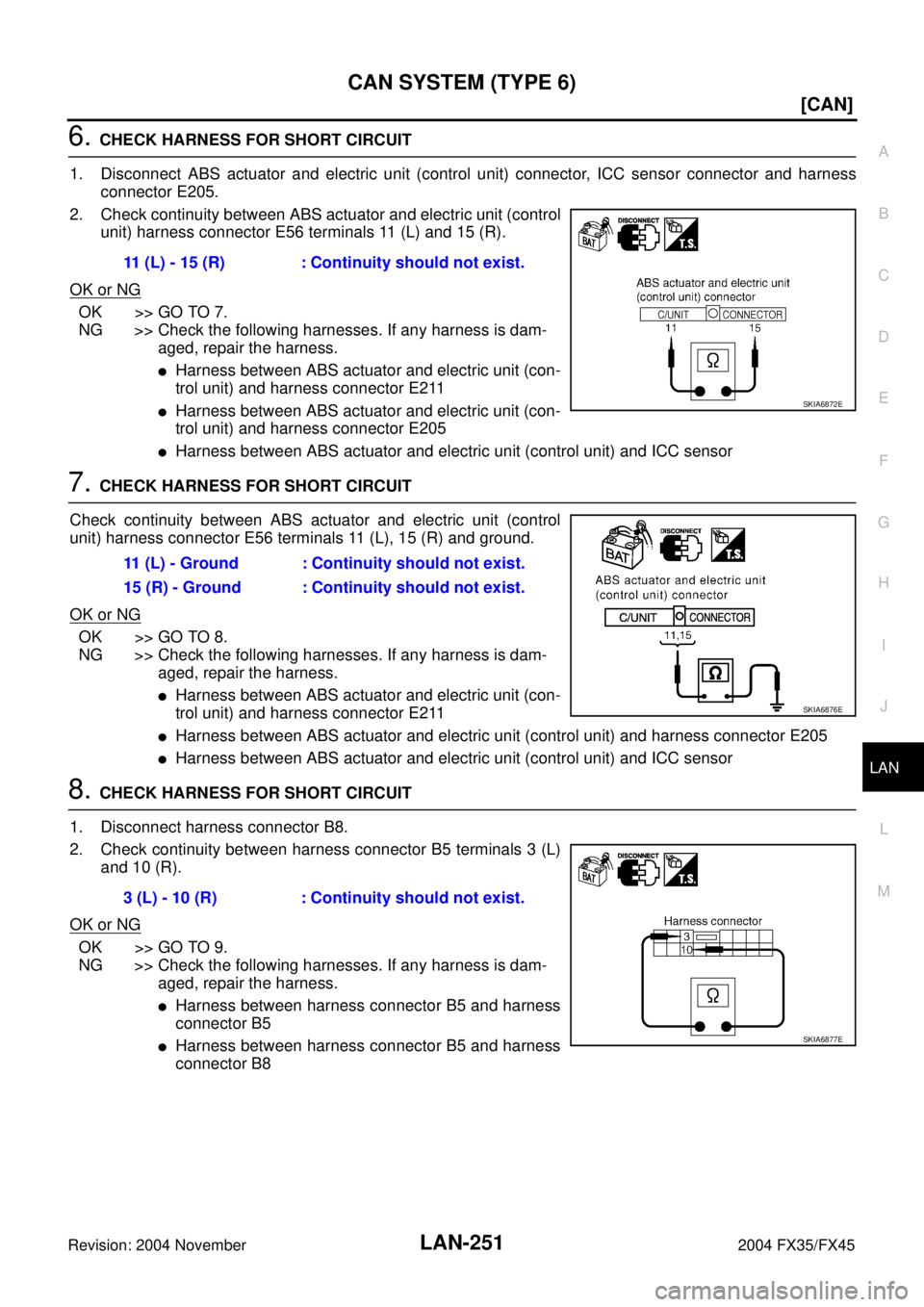

INFINITI FX35 2004 Service Manual LAN-250 [CAN] CAN SYSTEM (TYPE 6) Revision: 2004 November 2004 FX35/FX45 3. CHECK HARNESS FOR SHORT CIRCUIT Check continuity between data link connector M5 terminals 6 (L), 14 (R) and ground. OK or NG

Page 3552 of 4449

INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 6) LAN-251 [CAN] C D E F G H I J L MA B LAN Revision: 2004 November 2004 FX35/FX45 6. CHECK HARNESS FOR SHORT CIRCUIT 1. Disconnect ABS actuator and electric unit (control unit) conne
