Page 1233 of 4449
CO-44
[VK45DE]
RADIATOR (ALUMINUM TYPE)
Revision: 2004 November 2004 FX35/FX45
Grip the crimped edge and bend it upwards so that radiator
plate pliers B [SST: KV99103520 ( — )] slips off.
CAUTION:
Do not bend excessively.
In areas where radiator plate pliers B cannot be used, use
flat-blade screwdriver to bend the edge up.
CAUTION:
Be careful not to damage tank.
2. Remove sealing rubber.
3. Make sure the edge stands straight up.
4. Remove A/T fluid cooler from tank.
ASSEMBLY
1. Install A/T fluid cooler.
CAUTION:
Pay attention to direction of conical washer.
SLC893
SLC930
SLC931
SBIA0577E
Page 1234 of 4449
RADIATOR (ALUMINUM TYPE)
CO-45
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2004 November 2004 FX35/FX45

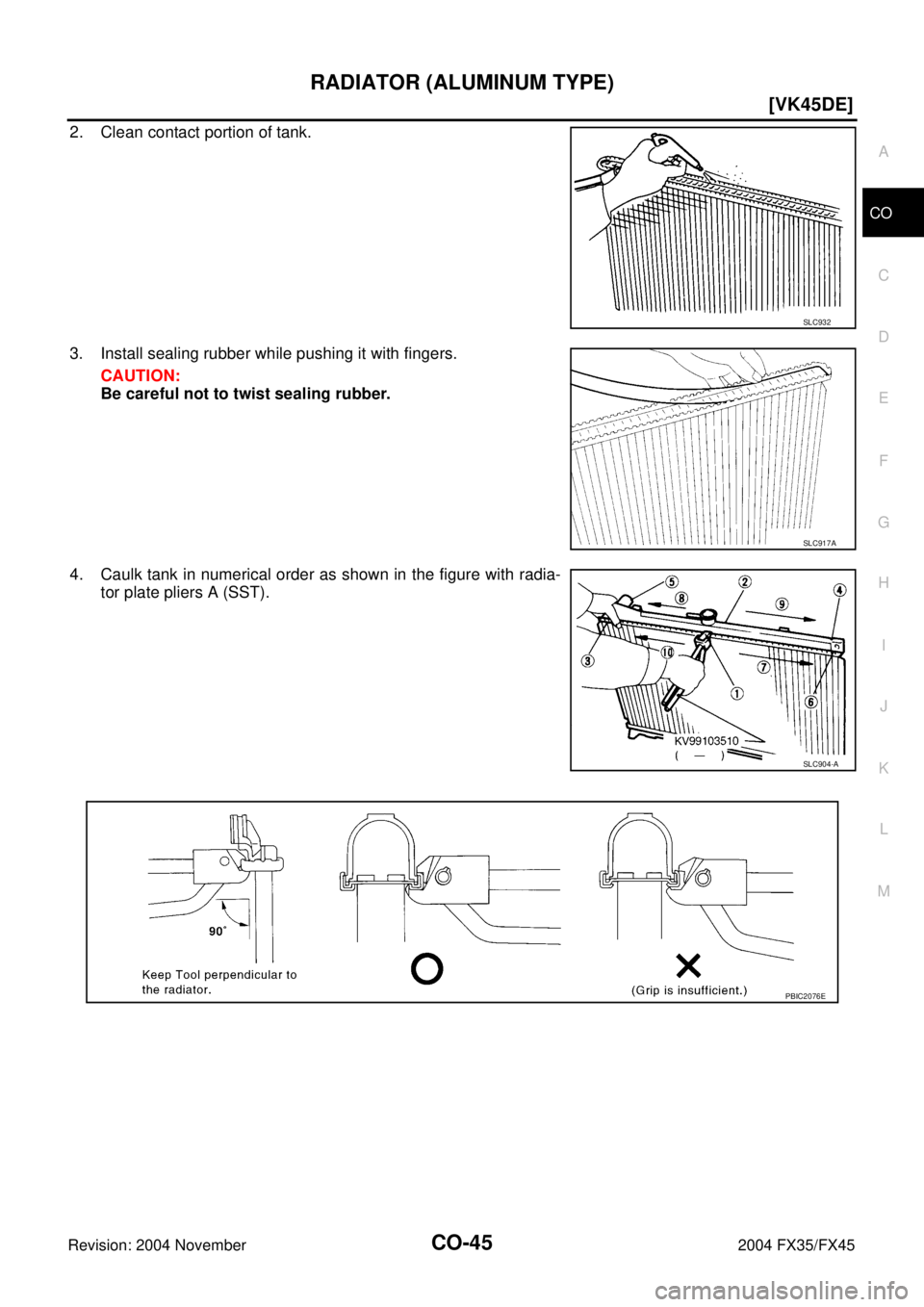

2. Clean contact portion of tank.
3. Install sealing rubber while pushing it with fingers.
CAUTION:
Be careful not to twist sealing rubber.
4. Caulk tank in numerical order as shown in the figure with radia-
tor plate pliers A (SST).
SLC932
SLC917A
SLC904-A
PBIC2076E
Page 1235 of 4449
![INFINITI FX35 2004 Service Manual CO-46
[VK45DE]
RADIATOR (ALUMINUM TYPE)
Revision: 2004 November 2004 FX35/FX45

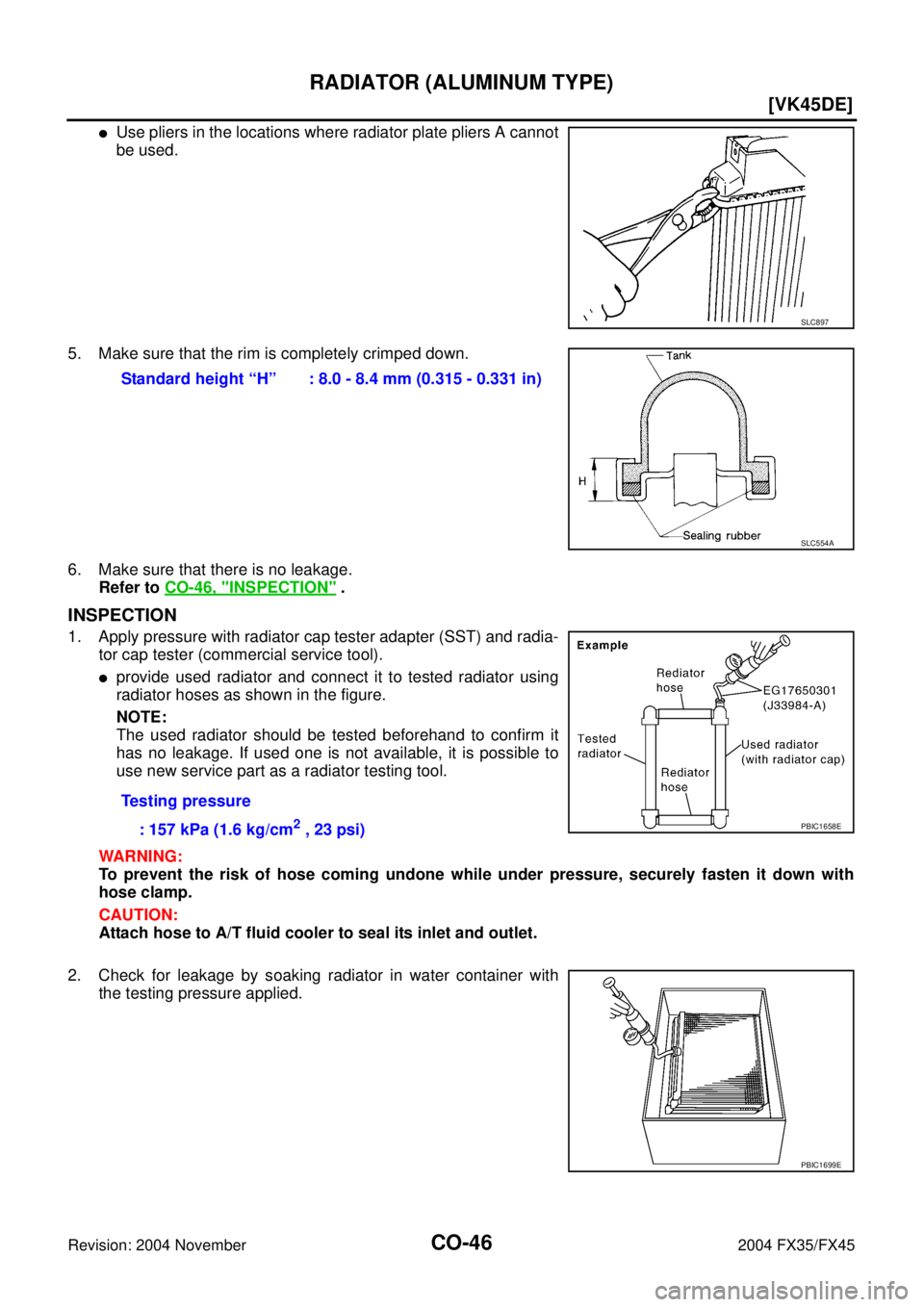

Use pliers in the locations where radiator plate pliers A cannot
be used.
5. Make sure that the rim is completely crimpe INFINITI FX35 2004 Service Manual CO-46
[VK45DE]
RADIATOR (ALUMINUM TYPE)
Revision: 2004 November 2004 FX35/FX45
Use pliers in the locations where radiator plate pliers A cannot
be used.
5. Make sure that the rim is completely crimpe](/manual-img/42/57021/w960_57021-1234.png)
CO-46
[VK45DE]
RADIATOR (ALUMINUM TYPE)
Revision: 2004 November 2004 FX35/FX45
Use pliers in the locations where radiator plate pliers A cannot
be used.
5. Make sure that the rim is completely crimped down.
6. Make sure that there is no leakage.
Refer to CO-46, "
INSPECTION" .
INSPECTION
1. Apply pressure with radiator cap tester adapter (SST) and radia-
tor cap tester (commercial service tool).
provide used radiator and connect it to tested radiator using
radiator hoses as shown in the figure.
NOTE:
The used radiator should be tested beforehand to confirm it
has no leakage. If used one is not available, it is possible to
use new service part as a radiator testing tool.
WARNING:
To prevent the risk of hose coming undone while under pressure, securely fasten it down with
hose clamp.
CAUTION:
Attach hose to A/T fluid cooler to seal its inlet and outlet.
2. Check for leakage by soaking radiator in water container with
the testing pressure applied.
SLC897
Standard height “H” : 8.0 - 8.4 mm (0.315 - 0.331 in)
SLC554A
Testing pressure
: 157 kPa (1.6 kg/cm
2 , 23 psi)PBIC1658E
PBIC1699E
Page 1236 of 4449
![INFINITI FX35 2004 Service Manual COOLING FAN
CO-47
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2004 November 2004 FX35/FX45
COOLING FANPFP:21140
Removal and Installation (Crankshaft Driven Type)ABS006JT
REMOVAL
1. Remove air duct (i INFINITI FX35 2004 Service Manual COOLING FAN
CO-47
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2004 November 2004 FX35/FX45
COOLING FANPFP:21140
Removal and Installation (Crankshaft Driven Type)ABS006JT
REMOVAL
1. Remove air duct (i](/manual-img/42/57021/w960_57021-1235.png)
COOLING FAN
CO-47
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2004 November 2004 FX35/FX45
COOLING FANPFP:21140
Removal and Installation (Crankshaft Driven Type)ABS006JT
REMOVAL
1. Remove air duct (inlet). Refer to EM-172, "AIR CLEANER AND AIR DUCT" .
2. Remove engine front undercover with power tool.
3. Remove radiator shroud (lower). Refer to CO-39, "
Removal and Installation" .
4. Remove drive belts. Refer to EM-169, "
DRIVE BELTS" .
5. Remove cooling fan.
CAUTION:
Do not damage or scratch radiator core when removing.
INSPECTION AFTER REMOVAL
Fan Coupling
Inspect fan coupling for oil leakage and bimetal conditions.
If anything is found, replace fan coupling.
Cooling Fan
Inspect cooling fan for crack or unusual bend.
If anything is found, replace cooling fan.
INSTALLATION
Note to the following, install in the reverse order of removal.
Install cooling fan with its front mark “F” facing front of vehicle. Refer to CO-47, "Removal and Installation
(Crankshaft Driven Type)" .
1. Cooling fan 2. Fan coupling 3. Fan pulley
4. Water pump
PBIC1537E
SLC072
Page 1237 of 4449
CO-48
[VK45DE]
COOLING FAN
Revision: 2004 November 2004 FX35/FX45
Removal and Installation (Motor Driven Type)ABS006JU
REMOVAL
1. Remove front grille. Refer to EI-23, "FRONT GRILLE" .
2. Disconnect harness connector from fan motor.
3. Remove cooling fan assembly.
CAUTION:
Do not damage or scratch A/C condenser when removed.
INSTALLATION
Install in the reverse order of removal.
Cooling fan is controlled by ECM. For details. Refer to EC-1142, "DTC P1217 ENGINE OVER TEMPER-
ATURE" .
Disassembly and Assembly (Motor Driven Type)ABS00A3O
DISASSEMBLY
1. Remove cooling fan from fan motor.
2. Remove fan motor from fan grille.
INSPECTION AFTER DISASSEMBLY
Cooling Fan
Inspect cooling fan for crack or unusual bend.
If anything is found, replace cooling fan.
ASSEMBLY
Assemble in the reverse order of disassembly.
1. Cooling fan 2. Fan grille 3. Fan motor
PBIC1666E
Page 1238 of 4449
![INFINITI FX35 2004 Service Manual WATER PUMP
CO-49
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2004 November 2004 FX35/FX45
WAT E R P U MPPFP:21020
Removal and InstallationABS006JO
CAUTION:
When removing water pump, be careful not INFINITI FX35 2004 Service Manual WATER PUMP
CO-49
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2004 November 2004 FX35/FX45
WAT E R P U MPPFP:21020
Removal and InstallationABS006JO
CAUTION:
When removing water pump, be careful not](/manual-img/42/57021/w960_57021-1237.png)
WATER PUMP
CO-49
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2004 November 2004 FX35/FX45
WAT E R P U MPPFP:21020
Removal and InstallationABS006JO
CAUTION:
When removing water pump, be careful not to get engine coolant on drive belt.
Water pump can not be disassembled and should be replaced as a unit.
REMOVAL
1. Drain engine coolant from drain plugs on radiator and both side of cylinder block. Refer to CO-36, "Chang-
ing Engine Coolant" and EM-241, "DISASSEMBLY" .
CAUTION:
Perform this step when engine is cold.
Do not spill engine coolant on drive belts.
2. Remove following parts:
Engine front undercover
Air duct (inlet); Refer to EM-172, "AIR CLEANER AND AIR DUCT" .
Alternator, water pump and A/C compressor belt; Refer to EM-169, "DRIVE BELTS" .
3. Remove fan coupling with cooling fan, and then water pump pulley.
4. Remove water pump.
Engine coolant will leak from the cylinder block, so have a receptacle ready under vehicle.
CAUTION:
Handle the water pump vane so that it does not contact any other parts.
Do not disassemble water pump.
INSPECTION AFTER REMOVAL
Visually check that there is no significant dirt or rusting on water
pump body and vane.
Make sure there is no looseness in vane shaft, and that it turns
smoothly when rotated by hand.
If anything is found, replace water pump.
1. Water pump pulley 2. Water pump 3. Gasket
PBIC1538E
PBIC1539E
Page 1239 of 4449
CO-50
[VK45DE]
WATER PUMP
Revision: 2004 November 2004 FX35/FX45
INSTALLATION
Install in the reverse order of removal.
INSPECTION AFTER INSTALLATION
Check for leaks of engine coolant using radiator cap tester adapter [SST: EG17650301 (J33984-A)] and
radiator cap tester (commercial service tool). Refer to CO-36, "
LEAK CHECK" .
Start and warm up engine. Visually make sure that there is no leaks of engine coolant.
Page 1240 of 4449
![INFINITI FX35 2004 Service Manual THERMOSTAT AND WATER CONTROL VALVE
CO-51
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2004 November 2004 FX35/FX45
THERMOSTAT AND WATER CONTROL VALVEPFP:21200
Removal and InstallationABS006JP
REMOVAL
INFINITI FX35 2004 Service Manual THERMOSTAT AND WATER CONTROL VALVE
CO-51
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2004 November 2004 FX35/FX45
THERMOSTAT AND WATER CONTROL VALVEPFP:21200
Removal and InstallationABS006JP
REMOVAL](/manual-img/42/57021/w960_57021-1239.png)
THERMOSTAT AND WATER CONTROL VALVE
CO-51
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2004 November 2004 FX35/FX45
THERMOSTAT AND WATER CONTROL VALVEPFP:21200
Removal and InstallationABS006JP
REMOVAL
1. Drain engine coolant from drain plugs on radiator and both side of cylinder block. Refer to CO-36, "Chang-
ing Engine Coolant" and EM-241, "DISASSEMBLY" .
CAUTION:
Perform this step when engine is cold.
Do not spill engine coolant on drive belts.
2. Remove engine cover with power tool. Refer to EM-168, "
ENGINE ROOM COVER" .
3. Remove air duct (inlet). Refer to EM-172, "
AIR CLEANER AND AIR DUCT" .
4. Disconnect water suction hose from water inlet.
5. Remove water inlet and thermostat.
CAUTION:
Do not disassemble thermostat.
6. Remove intake manifolds (upper and lower). Refer to EM-174, "
INTAKE MANIFOLD" .
1. Water connector 2. O-ring 3. Rubber ring
4. Heater hose 5. Water control valve 6. Water outlet
7. Gasket 8. O-ring 9. Water outlet pipe
10. Thermostat housing 11. Radiator cap 12. Radiator hose (upper)
13. Thermostat 14. Rubber ring 15. Water inlet
16. Water suction hose 17. Water suction pipe 18. Radiator hose (lower)
19. Gasket 20. O-ring 21. Heater pipe
22. Heater hose 23. Water hose 24. Water hose
PBIC1561E
