LAN-124
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2004 November 2004 FX35/FX45
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect unified meter and A/C amp. connector.
2. Check resistance between unified meter and A/C amp. harness
connector M55 terminals 1 (L) and 11 (R).
OK or NG
OK >> Replace unified meter and A/C amp.
NG >> Repair harness between unified meter and A/C amp.
and harness connector M41.
ICC Sensor Circuit CheckAKS00C0U
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of ICC sensor for damage, bend and loose connection (sensor side and
harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ICC sensor connector.
2. Check resistance between ICC sensor harness connector E39
terminals 3 (L) and 6 (R).
OK or NG
OK >> Replace ICC sensor.
NG >> Repair harness between ICC sensor and ABS actuator
and electric unit (control unit).
ABS Actuator and Electric Unit (Control Unit) Circuit CheckAKS00C0V
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of ABS actuator and electric unit (control unit) for damage, bend and loose
connection (control unit side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.1 (L) - 11 (R) : Approx. 54 - 66Ω
SKIA6871E
3 (L) - 6 (R) : Approx. 54 - 66Ω
SKIA6888E
Page 3426 of 4449
![INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 3)
LAN-125
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ABS actuator and electric unit (control unit) connec INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 3)
LAN-125
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ABS actuator and electric unit (control unit) connec](/manual-img/42/57021/w960_57021-3425.png)
CAN SYSTEM (TYPE 3)
LAN-125
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ABS actuator and electric unit (control unit) connector.
2. Check resistance between ABS actuator and electric unit (con-
trol unit) harness connector E56 terminals 11 (L) and 15 (R).
OK or NG
OK >> Replace ABS actuator and electric unit (control unit).
NG >> Repair harness between ABS actuator and electric unit
(control unit) and ICC sensor.
Driver Seat Control Unit Circuit CheckAKS00C0W
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check following terminals and connectors for damage, bend and loose connection (control unit side and
harness side).
–Driver seat control unit connector
–Harness connector B151
–Harness connector B8
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect driver seat control unit connector.
2. Check resistance between driver seat control unit harness con-
nector B152 terminals 14 (OR) and 15 (SB).
OK or NG
OK >> Replace driver seat control unit.
NG >> Repair harness between driver seat control unit and har-
ness connector B5. 11 (L) - 15 (R) : Approx. 54 - 66Ω
SKIA6872E
14 (OR) - 15 (SB) : Approx. 54 - 66Ω
SKIA6882E
Page 3427 of 4449
LAN-126
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2004 November 2004 FX35/FX45

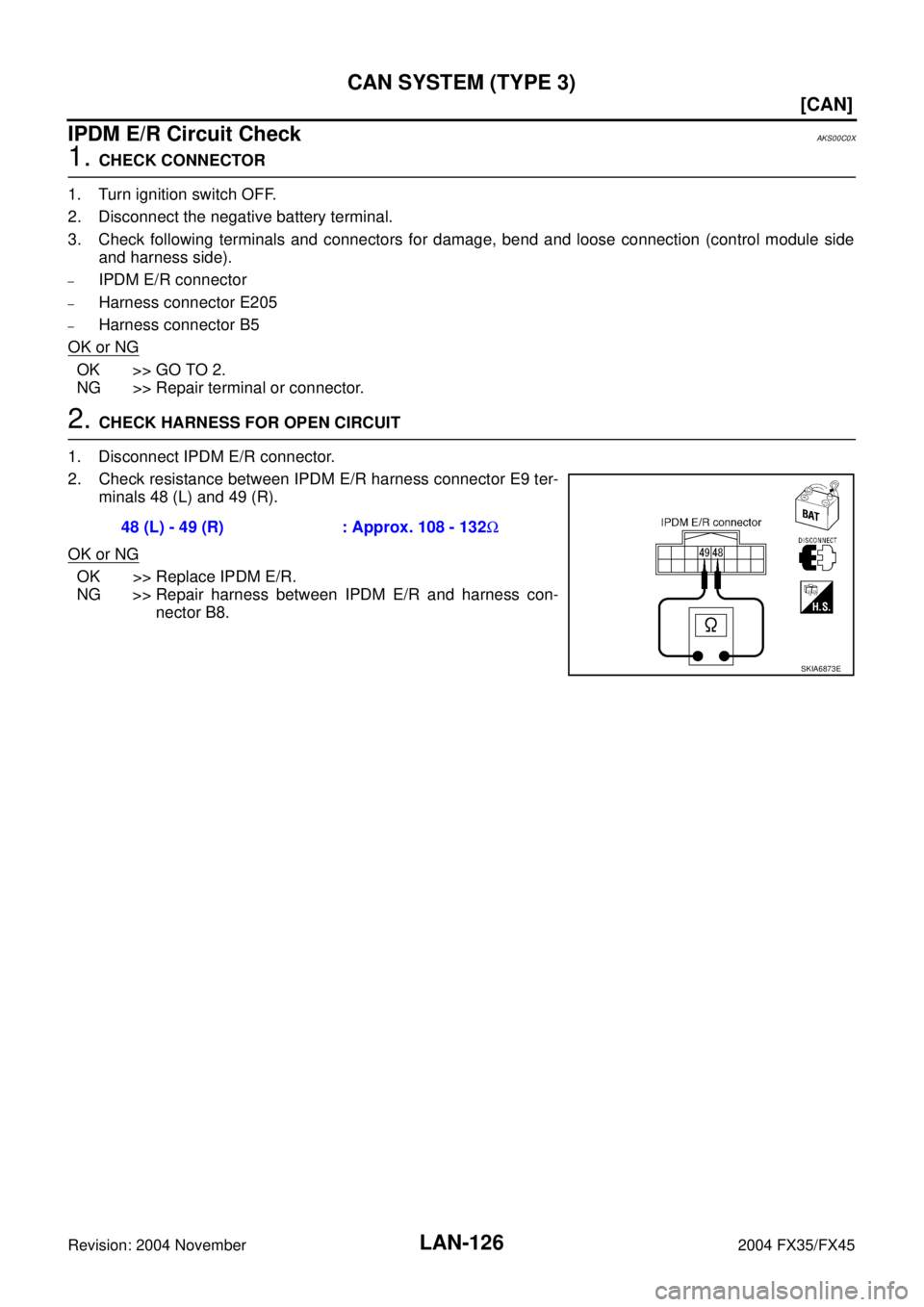

IPDM E/R Circuit CheckAKS00C0X
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check following terminals and connectors for damage, bend and loose connection (control module side
and harness side).
–IPDM E/R connector
–Harness connector E205
–Harness connector B5
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect IPDM E/R connector.
2. Check resistance between IPDM E/R harness connector E9 ter-
minals 48 (L) and 49 (R).
OK or NG
OK >> Replace IPDM E/R.
NG >> Repair harness between IPDM E/R and harness con-
nector B8. 48 (L) - 49 (R) : Approx. 108 - 132Ω
SKIA6873E
Page 3428 of 4449
CAN SYSTEM (TYPE 3)
LAN-127
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
CAN Communication Circuit CheckAKS00C0Y
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check following terminals and connectors for damage, bend and loose connection (control module side,
control unit side, unit side, sensor side, meter side and harness side).
–ECM
–A/T assembly
–Display control unit
–Low tire pressure warning control unit
–ICC unit
–Intelligent Key unit
–BCM
–Steering angle sensor
–Unified meter and A/C amp.
–ICC sensor
–ABS actuator and electric unit (control unit)
–Driver seat control unit
–IPDM E/R
–Between ECM and IPDM E/R
–Between ECM and A/T assembly
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
Page 3429 of 4449
![INFINITI FX35 2004 Service Manual LAN-128
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2004 November 2004 FX35/FX45
2. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect following connectors.
–ECM connector
–Harness connector M82
–Display con INFINITI FX35 2004 Service Manual LAN-128
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2004 November 2004 FX35/FX45
2. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect following connectors.
–ECM connector
–Harness connector M82
–Display con](/manual-img/42/57021/w960_57021-3428.png)
LAN-128
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2004 November 2004 FX35/FX45
2. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect following connectors.
–ECM connector
–Harness connector M82
–Display control unit connector
–Low tire pressure warning control unit connector
–ICC unit connector
–Intelligent Key unit connector
–BCM connector
–Steering angle sensor connector
–Unified meter and A/C amp. connector
–Harness connector M41
2. Check continuity between data link connector M5 terminals 6 (L)
and 14 (R).
OK or NG
OK >> GO TO 3.
NG >> Check the following harnesses. If any harness is dam-
aged, repair the harness.
Harness between data link connector and ECM
Harness between data link connector and harness
connector M82
Harness between data link connector and display control unit
Harness between data link connector and low tire pressure warning control unit
Harness between data link connector and ICC unit
Harness between data link connector and Intelligent Key unit
Harness between data link connector and BCM
Harness between data link connector and steering angle sensor
Harness between data link connector and unified meter and A/C amp.
Harness between data link connector and harness connector M41 6 (L) - 14 (R) : Continuity should not exist.
SKIA6868E
Page 3430 of 4449
![INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 3)
LAN-129
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
3. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between data link connector M5 terminals 6 (L), INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 3)
LAN-129
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
3. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between data link connector M5 terminals 6 (L),](/manual-img/42/57021/w960_57021-3429.png)
CAN SYSTEM (TYPE 3)
LAN-129
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
3. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between data link connector M5 terminals 6 (L), 14
(R) and ground.
OK or NG
OK >> GO TO 4.
NG >> Check the following harnesses. If any harness is dam-
aged, repair the harness.
Harness between data link connector and ECM
Harness between data link connector and harness
connector M82
Harness between data link connector and display control unit
Harness between data link connector and low tire pressure warning control unit
Harness between data link connector and ICC unit
Harness between data link connector and Intelligent Key unit
Harness between data link connector and BCM
Harness between data link connector and steering angle sensor
Harness between data link connector and unified meter and A/C amp.
Harness between data link connector and harness connector M41
4. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect A/T assembly connector.
2. Check continuity between A/T assembly harness connector F44
terminals 3 (L) and 8 (R).
OK or NG
OK >> GO TO 5.
NG >> Repair harness between A/T assembly and harness
connector F102.
5. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between A/T assembly harness connector F44 ter-
minals 3 (L), 8 (R) and ground.
OK or NG
OK >> GO TO 6.
NG >> Repair harness between A/T assembly and harness
connector F102. 6 (L) - Ground : Continuity should not exist.
14 (R) - Ground : Continuity should not exist.
SKIA6874E
3 (L) - 8 (R) : Continuity should not exist.
SKIA6866E
3 (L) - Ground : Continuity should not exist.
8 (R) - Ground : Continuity should not exist.
SKIA6875E
Page 3431 of 4449
![INFINITI FX35 2004 Service Manual LAN-130
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2004 November 2004 FX35/FX45
6. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect ABS actuator and electric unit (control unit) connector, ICC sensor connector INFINITI FX35 2004 Service Manual LAN-130
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2004 November 2004 FX35/FX45
6. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect ABS actuator and electric unit (control unit) connector, ICC sensor connector](/manual-img/42/57021/w960_57021-3430.png)
LAN-130
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2004 November 2004 FX35/FX45
6. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect ABS actuator and electric unit (control unit) connector, ICC sensor connector and harness
connector E205.
2. Check continuity between ABS actuator and electric unit (control
unit) harness connector E56 terminals 11 (L) and 15 (R).
OK or NG
OK >> GO TO 7.
NG >> Check the following harnesses. If any harness is dam-
aged, repair the harness.
Harness between ABS actuator and electric unit (con-
trol unit) and harness connector E211
Harness between ABS actuator and electric unit (con-
trol unit) and harness connector E205
Harness between ABS actuator and electric unit (control unit) and ICC sensor
7. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between ABS actuator and electric unit (control
unit) harness connector E56 terminals 11 (L), 15 (R) and ground.
OK or NG
OK >> GO TO 8.
NG >> Check the following harnesses. If any harness is dam-
aged, repair the harness.
Harness between ABS actuator and electric unit (con-
trol unit) and harness connector E211
Harness between ABS actuator and electric unit (control unit) and harness connector E205
Harness between ABS actuator and electric unit (control unit) and ICC sensor
8. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect harness connector B8.
2. Check continuity between harness connector B5 terminals 3 (L)
and 10 (R).
OK or NG
OK >> GO TO 9.
NG >> Check the following harnesses. If any harness is dam-
aged, repair the harness.
Harness between harness connector B5 and harness
connector B5
Harness between harness connector B5 and harness
connector B8 11 (L) - 15 (R) : Continuity should not exist.
SKIA6872E
11 (L) - Ground : Continuity should not exist.
15 (R) - Ground : Continuity should not exist.
SKIA6876E
3 (L) - 10 (R) : Continuity should not exist.
SKIA6877E
Page 3432 of 4449
![INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 3)
LAN-131
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
9. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between harness connector B5 terminals 3 (L), 10 INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 3)
LAN-131
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
9. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between harness connector B5 terminals 3 (L), 10](/manual-img/42/57021/w960_57021-3431.png)
CAN SYSTEM (TYPE 3)
LAN-131
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
9. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between harness connector B5 terminals 3 (L), 10
(R) and ground.
OK or NG
OK >> GO TO 10.
NG >> Check the following harnesses. If any harness is dam-
aged, repair the harness.
Harness between harness connector B5 and harness
connector B5
Harness between harness connector B5 and harness connector B8
10. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect driver seat control unit connector.
2. Check continuity between driver seat control unit harness con-
nector B152 terminals 14 (OR) and 15 (SB).
OK or NG
OK >> GO TO 11.
NG >> Repair harness between driver seat control unit and har-
ness connector B151.
11 . CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between driver seat control unit harness connector
B152 terminals 14 (OR), 15 (SB) and ground.
OK or NG
OK >> GO TO 12.
NG >> Repair harness between driver seat control unit and har-
ness connector B151.
12. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect IPDM E/R connector.
2. Check continuity between IPDM E/R harness connector E9 ter-
minals 48 (L) and 49 (R).
OK or NG
OK >> GO TO 13.
NG >> Repair harness between IPDM E/R and harness con-

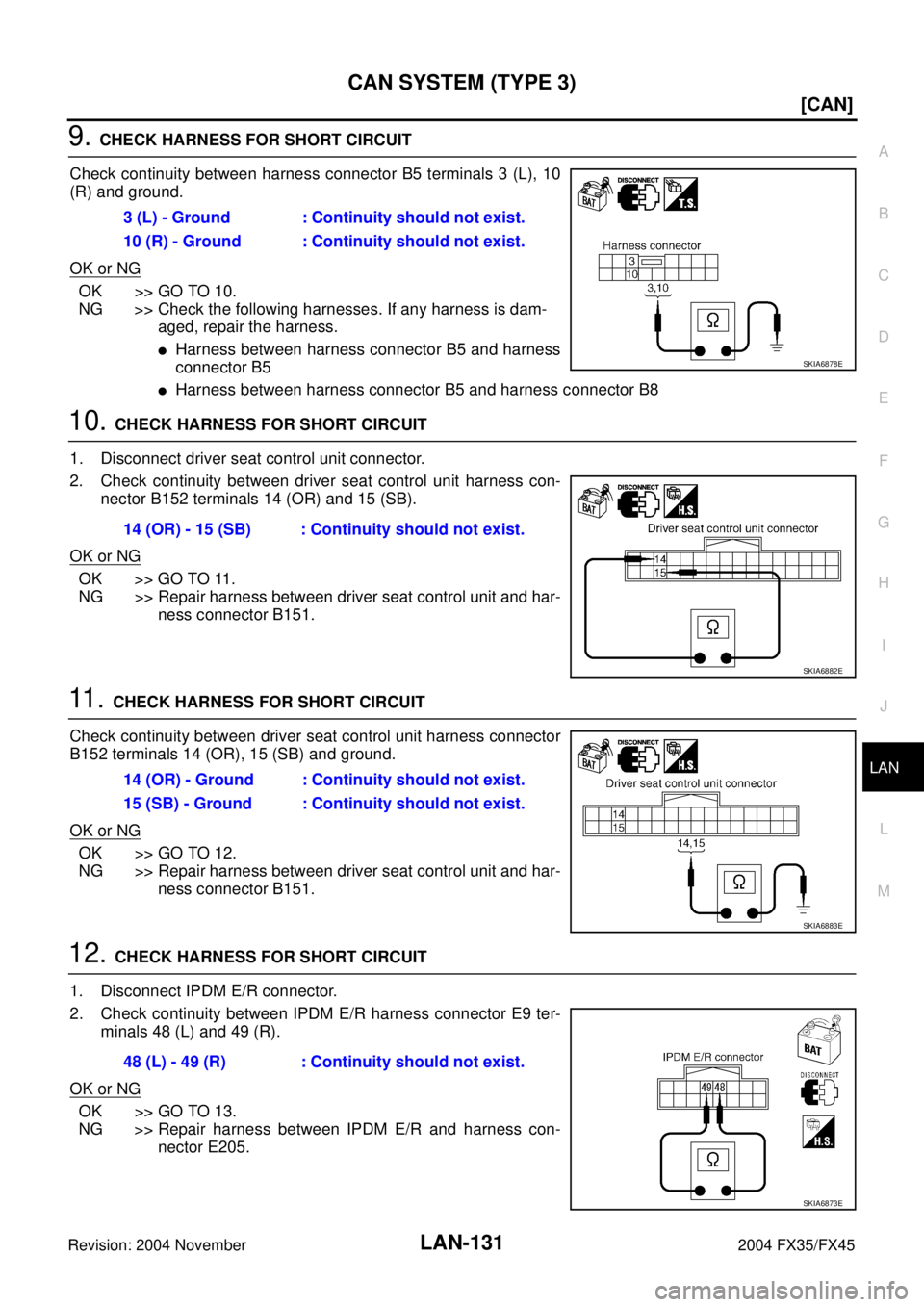

nector E205. 3 (L) - Ground : Continuity should not exist.
10 (R) - Ground : Continuity should not exist.
SKIA6878E
14 (OR) - 15 (SB) : Continuity should not exist.
SKIA6882E
14 (OR) - Ground : Continuity should not exist.
15 (SB) - Ground : Continuity should not exist.
SKIA6883E
48 (L) - 49 (R) : Continuity should not exist.
SKIA6873E
