EM-140
[VQ35DE]
CYLINDER BLOCK
Revision: 2004 November 2004 FX35/FX45
Measure the distortion on the block upper face at some different
points in 6 directions.
If out of the distortion limit, replace cylinder block.
MAIN BEARING HOUSING INNER DIAMETER
Install main bearing caps and main bearing beam with main
bearings removed, and tighten mounting bolts to the specified
torque. Refer to EM-126, "
ASSEMBLY" for the tightening proce-
dure.
Using a bore gauge, measure the inner diameter of the main
bearing housing.
If out of the standard, replace cylinder block and main bearing
caps as assembly.
NOTE:
Cylinder block cannot be replaced as single part, because it is
machined together with main bearing caps.
PISTON TO CYLINDER BORE CLEARANCE
Cylinder Bore Inner Diameter
Using a bore gauge, measure cylinder bore for wear, out-of-
round and taper at 6 different points on each cylinder. (“X” and
“Y” directions at “A”, “B” and “C”) (“Y” is in longitudinal direction
of engine)
If the measured value exceeds the limit, or if there are scratches
and/or seizure on the cylinder inner wall, hone or re-bore the
inner wall.
An oversize piston is provided. When using an oversize piston,
re-bore cylinder so that the clearance of the piston-to-cylinder
bore satisfies the standard.
CAUTION:
When using oversize piston, use it for all cylinders with
oversize piston rings.
When using an oversize piston, use it for all cylinders with over-
size piston rings.Limit : 0.10 mm (0.0039 in)
SEM123C
Standard : 63.993 - 64.017 mm (2.5194 - 2.5203 in)
PBIC1643E
Standard inner diameter:
95.500 - 95.530 mm (3.7598 - 3.7610 in)
Wear limit:
0.20 mm (0.0079 in)
Out-of-round (Difference between “X” and “Y”):
Limit: 0.015 mm (0.0006 in)
Taper (Difference between “A” and “C”):
Limit: 0.010 mm (0.0004 in)
Oversize (Service) : 0.20 mm (0.0079 in)
PBIC0923E
SEM843E
Page 2866 of 4449
![INFINITI FX35 2004 Service Manual CYLINDER BLOCK
EM-141
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45
Piston Skirt Diameter
Measure piston skirt diameter using micrometer.
Piston-to-Cylinder Bore Clearance
INFINITI FX35 2004 Service Manual CYLINDER BLOCK
EM-141
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45
Piston Skirt Diameter
Measure piston skirt diameter using micrometer.
Piston-to-Cylinder Bore Clearance](/manual-img/42/57021/w960_57021-2865.png)
CYLINDER BLOCK
EM-141
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45
Piston Skirt Diameter
Measure piston skirt diameter using micrometer.
Piston-to-Cylinder Bore Clearance
Calculate by piston skirt diameter and cylinder bore inner diameter (direction “X”, position “B”).
(Clearance) = (Cylinder bore inner diameter) – (Piston skirt diameter).
If it exceeds the limit, replace piston/piston pin assembly. Refer to EM-131, "HOW TO SELECT PISTON" .
Re-Boring Cylinder Bore
1. Cylinder bore size is determined by adding piston-to-cylinder bore clearance to piston diameter “A”.
2. Install main bearing caps and main bearing beam, and tighten to the specified torque. Otherwise, cylinder
bores may be distorted in final assembly.
3. Cut cylinder bores.
NOTE:
When any cylinder needs boring, all other cylinders must also be bored.
Do not cut too much out of cylinder bore at a time. Cut only 0.05 mm (0.0020 in) or so in diameter at a
time.
4. Hone cylinders to obtain specified piston-to-cylinder bore clearance.
5. Measure finished cylinder bore for out-of-round and taper.
NOTE:
Measurement should be done after cylinder bore cools down.
CRANKSHAFT MAIN JOURNAL DIAMETER
Measure outer diameter of crankshaft main journals with micrometer.
If out of the standard, measure the main bearing oil clearance. Then use undersize bearing. Refer to EM-
143, "MAIN BEARING OIL CLEARANCE" . Measure point
: Distance from the top 41.0 mm (1.614 in)
Standard
: 95.480 - 95.510 mm (3.7590 - 3.7602 in)
PBIC0125E
Standard : 0.010 - 0.030 mm (0.0004 - 0.0012 in)
Limit : 0.08 mm (0.0031 in)
Re-bored size calculation: “D” = “A” + “B” - “C”
where,
“D”: Bored diameter
“A”: Piston diameter as measured
“B”: Piston - to - cylinder bore clearance (standard value)
“C”: Honing allowance 0.02 mm (0.0008 in)
Standard : 59.951 - 59.975 mm (2.3603 - 2.3612 in) dia.
Page 2867 of 4449
![INFINITI FX35 2004 Service Manual EM-142
[VQ35DE]
CYLINDER BLOCK
Revision: 2004 November 2004 FX35/FX45
CRANKSHAFT PIN JOURNAL DIAMETER
Measure outer diameter of crankshaft pin journal with microme-
ter.
If out of the standard, meas INFINITI FX35 2004 Service Manual EM-142
[VQ35DE]
CYLINDER BLOCK
Revision: 2004 November 2004 FX35/FX45
CRANKSHAFT PIN JOURNAL DIAMETER
Measure outer diameter of crankshaft pin journal with microme-
ter.
If out of the standard, meas](/manual-img/42/57021/w960_57021-2866.png)
EM-142
[VQ35DE]
CYLINDER BLOCK
Revision: 2004 November 2004 FX35/FX45
CRANKSHAFT PIN JOURNAL DIAMETER
Measure outer diameter of crankshaft pin journal with microme-
ter.
If out of the standard, measure the connecting rod bearing oil
clearance. Then use undersize bearing. Refer to EM-142,
"CONNECTING ROD BEARING OIL CLEARANCE" .
CRANKSHAFT OUT-OF-ROUND AND TAPER
Using a micrometer, measure the dimensions at “4” different
points shown in the figure on each journal and pin.
Out-of-round is indicated by the difference in dimensions
between “X” and “Y” at “A” and “B”.
Taper is indicated by the difference in dimension between “A”
and “B” at “X” and “Y”.
If the measured value exceeds the limit, correct or replace crankshaft.
If corrected, measure the bearing oil clearance of the corrected main journal and/or pin journal. Then
select the main bearing and/or connecting rod bearing. Refer to EM-143, "
MAIN BEARING OIL CLEAR-
ANCE" and/or EM-142, "CONNECTING ROD BEARING OIL CLEARANCE" .
CRANKSHAFT RUNOUT
Place a V-block on a precise flat table to support journals on the
both end of crankshaft.
Place a dial gauge straight up on No. 3 journal.
While rotating crankshaft, read the movement of the pointer on
the dial gauge. (Total indicator reading)
If it exceeds the limit, replace crankshaft.
CONNECTING ROD BEARING OIL CLEARANCE
Method by Calculation
Install connecting rod bearings to connecting rod and connect-
ing rod bearing cap, and tighten connecting rod bolts to the
specified torque. Using a inside micrometer measure the inner
diameter of connecting rod bearing. Refer to EM-126, "
ASSEM-
BLY" for the tightening procedure.
(Oil clearance) = (Connecting rod bearing inner diameter) – (Crank-
shaft pin diameter)Standard : 51.956 - 51.974 mm (2.0455 - 2.0462 in) dia.
PBIC0127E
Standard
Taper (Difference between “A” and “B”)
: Less than 0.002 mm (0.0001 in)
Out-of-round (Difference between “X” and “Y”)
: Less than 0.002 mm (0.0001 in)
SBIA0535E
Standard : Less than 0.025 mm (0.0010 in)
Limit : Less than 0.10 mm (0.0039 in)
SEM346D
Standard : 0.034 - 0.059 mm (0.0013 - 0.0023 in)
(actual clearance)
Limit : 0.070 mm (0.0028 in)
PBIC1642E
Page 2868 of 4449
![INFINITI FX35 2004 Service Manual CYLINDER BLOCK
EM-143
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45
If clearance cannot be adjusted within the standard, grind crankshaft pin and use undersized bearing.
R INFINITI FX35 2004 Service Manual CYLINDER BLOCK
EM-143
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45
If clearance cannot be adjusted within the standard, grind crankshaft pin and use undersized bearing.
R](/manual-img/42/57021/w960_57021-2867.png)
CYLINDER BLOCK
EM-143
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45
If clearance cannot be adjusted within the standard, grind crankshaft pin and use undersized bearing.
Refer to EM-132, "
HOW TO SELECT CONNECTING ROD BEARING" .
Method of Using Plastigage
Remove engine oil and dust on crankshaft pin and the surfaces
of each bearing completely.
Cut a plastigage slightly shorter than bearing width, and place it
in crankshaft axial direction, avoiding oil holes.
Install connecting rod bearings to connecting rod and connect-
ing rod bearing cap, and tighten connecting rod bolts to the
specified torque. Refer to EM-126, "
ASSEMBLY" for the tighten-
ing procedure.
CAUTION:
Never rotate crankshaft.
Remove connecting rod cap and bearings, and using the scale
on the plastigage bag, measure the plastigage width.
NOTE:
The procedure when the measured value exceeds the limit is same as that described in the “Method by
Calculation”.
MAIN BEARING OIL CLEARANCE
Method by Calculation
Install main bearings to cylinder block and main bearing cap.
Measure the main bearing inner diameter with bearing cap bolt
tightened with main bearing beam to the specified torque. Refer
to EM-126, "
ASSEMBLY" for the tightening procedure.
(Oil clearance) = (Main bearing inner diameter) – (Crankshaft main
journal diameter)
If the measured value exceeds the limit, select main bearings
referring to the main bearing inner diameter and crankshaft jour-
nal outer diameter, so that the oil clearance satisfies the standard. Refer to EM-133, "
HOW TO SELECT
MAIN BEARING" .
Method of Using Plastigage
Remove engine oil and dust on crankshaft journal and the sur-
faces of each bearing completely.
Cut a plastigage slightly shorter than bearing width, and place it
in crankshaft axial direction, avoiding oil holes.
Install main bearing to cylinder block and main bearing cap, and
tighten main bearing bolts with main bearing beam to the speci-
fied torque. Refer to EM-126, "
ASSEMBLY" for the tightening
procedure.
CAUTION:
Never rotate crankshaft.
Remove bearing cap and bearings, and using the scale on the
plastigage bag, measure the plastigage width.
NOTE:
The procedure when the measured value exceeds the limit is same as that described in the “Method by
Calculation”.
PBIC1149E
Standard : 0.035 - 0.045 mm (0.0014 - 0.0018 in)
(actual clearance)
Limit : 0.065 mm (0.0026 in)
PBIC1644E
PBIC1149E
Page 2869 of 4449
![INFINITI FX35 2004 Service Manual EM-144
[VQ35DE]
CYLINDER BLOCK
Revision: 2004 November 2004 FX35/FX45
MAIN BEARING CRUSH HEIGHT
When main bearing cap is removed after being tightened to the
specified torque with main bearings insta INFINITI FX35 2004 Service Manual EM-144
[VQ35DE]
CYLINDER BLOCK
Revision: 2004 November 2004 FX35/FX45
MAIN BEARING CRUSH HEIGHT
When main bearing cap is removed after being tightened to the
specified torque with main bearings insta](/manual-img/42/57021/w960_57021-2868.png)
EM-144
[VQ35DE]
CYLINDER BLOCK
Revision: 2004 November 2004 FX35/FX45
MAIN BEARING CRUSH HEIGHT
When main bearing cap is removed after being tightened to the
specified torque with main bearings installed, the tip end of bear-
ing must protrude. Refer to EM-126, "
ASSEMBLY" for the tight-
ening procedure.
If the standard is not met, replace main bearings.
CONNECTING ROD BEARING CRUSH HEIGHT
When connecting rod bearing cap is removed after being tight-
ened to the specified torque with connecting rod bearings
installed, the tip end of bearing must protrude. Refer to EM-126,
"ASSEMBLY" for the tightening procedure.
If the standard is not met, replace connecting rod bearings.
MAIN BEARING CAP BOLT OUTER DIAMETER
Measure outer diameters (“d1”, “d2”) at two positions shown in
the figure.
Measure “d2” at a point within block “A”.
When the value of “d1” - “d2” exceeds the limit (a large differ-
ence in dimensions), replace bolt with a new one.
CONNECTING ROD BOLT OUTER DIAMETER
Measure outer diameter “d” at position shown in the figure.
If reduction appears in a position other than “d”, regard it as “d”.
When “d” exceeds the limit (when it becomes thinner), replace
bolt with a new one.Standard : There must be crush height.
SEM502G
Standard : There must be crush height.
PBIC1646E
Limit : 0.11 mm (0.0051 in)
PBIC0911E
Standard : 7.90 - 8.00 mm (0.3110 - 0.3150 in)
Limit : 7.75 mm (0.3051 in)
PBIC0912E
Page 2870 of 4449
CYLINDER BLOCK
EM-145
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45
DRIVE PLATE
Check drive plate and signal plate for deformation or damage.
CAUTION:
Do not disassemble drive plate.
Never place drive plate with signal plate facing down.
When handling signal plate, take care not to damage or
scratch it.
Handle signal plate in a manner that prevents it from
becoming magnetized.
If anything is found, replace drive plate.
OIL JET
Check nozzle for deformation and damage.
Blow compressed air from nozzle, and check for clogs.
If it is not satisfied, clean or replace oil jet.
OIL JET RELIEF VALVE
Using a clean plastic stick, press check valve in oil jet relief
valve. Make sure that valve moves smoothly with proper reac-
tion force.
If it is not satisfied, replace oil jet relief valve.
SEM760G
EMU0468D
Page 2871 of 4449
EM-146
[VQ35DE]
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2004 November 2004 FX35/FX45
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00100
Standard and LimitABS004XK
GENERAL SPECIFICATIONS
Cylinder arrangementV-6
Displacement cm
3 (cu in)3,498 (213.45)
Bore and stroke mm (in)95.5 x 81.4 (3.76 x 3.205)
Valve arrangementDOHC
Firing order1-2-3-4-5-6
Number of piston ringsCompression 2
Oil 1
Number of main bearings4
Compression ratio10.3
Compression pressure
kPa (kg/cm
2 , psi)/300 rpmStandard 1,275 (13.0, 185)
Minimum 981 (10.0, 142)
Differential limit between cylinders 98 (1.0, 14)

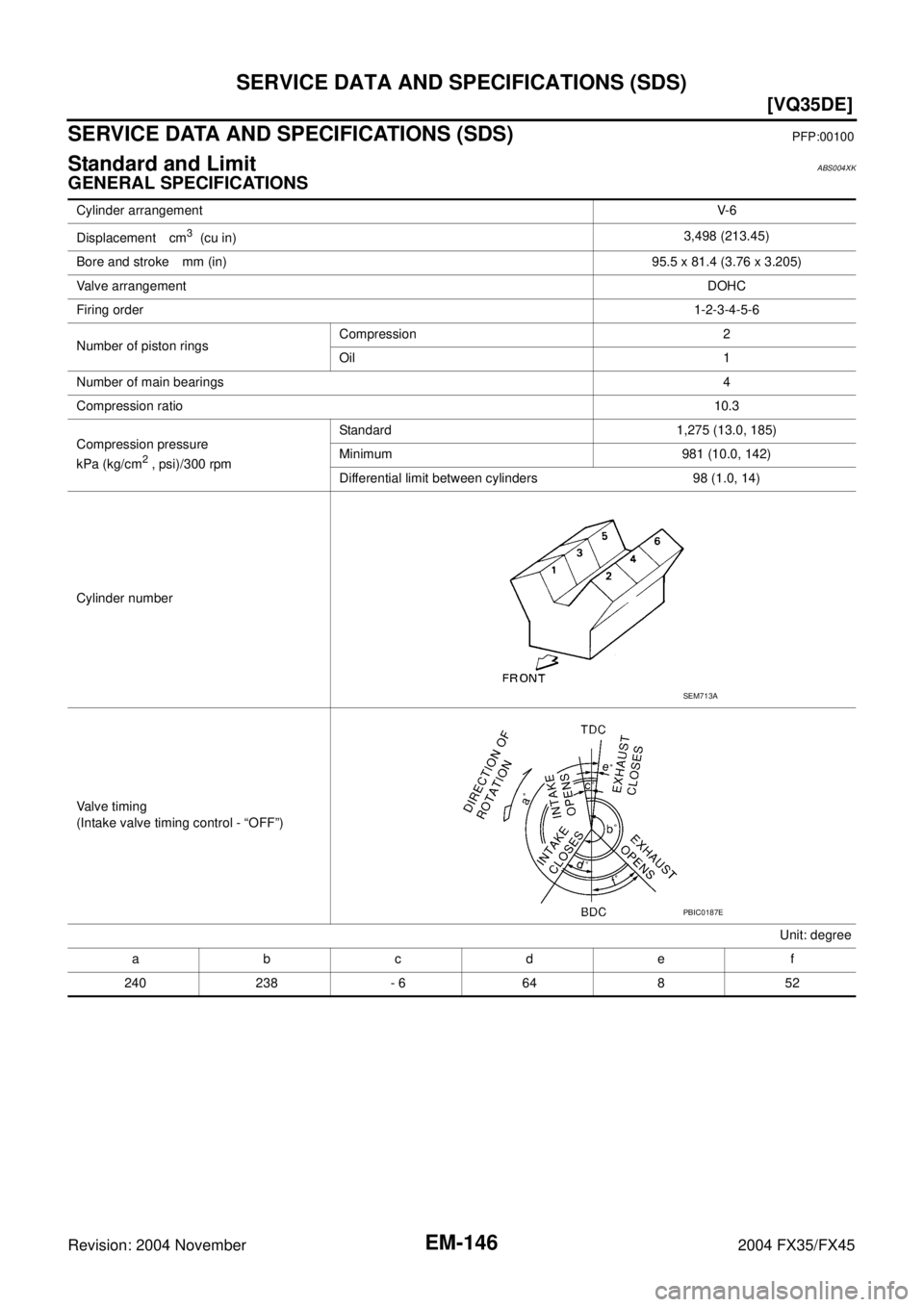

Cylinder number
Va l v e t i m i n g
(Intake valve timing control - “OFF”)
Unit: degree
abcde f
240 238 - 6 64 8 52
SEM713A
PBIC0187E
Page 2872 of 4449
![INFINITI FX35 2004 Service Manual SERVICE DATA AND SPECIFICATIONS (SDS)
EM-147
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45
DRIVE BELT
*: If belt tension gauge cannot be installed at check points shown, ch INFINITI FX35 2004 Service Manual SERVICE DATA AND SPECIFICATIONS (SDS)
EM-147
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45
DRIVE BELT
*: If belt tension gauge cannot be installed at check points shown, ch](/manual-img/42/57021/w960_57021-2871.png)
SERVICE DATA AND SPECIFICATIONS (SDS)
EM-147
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45

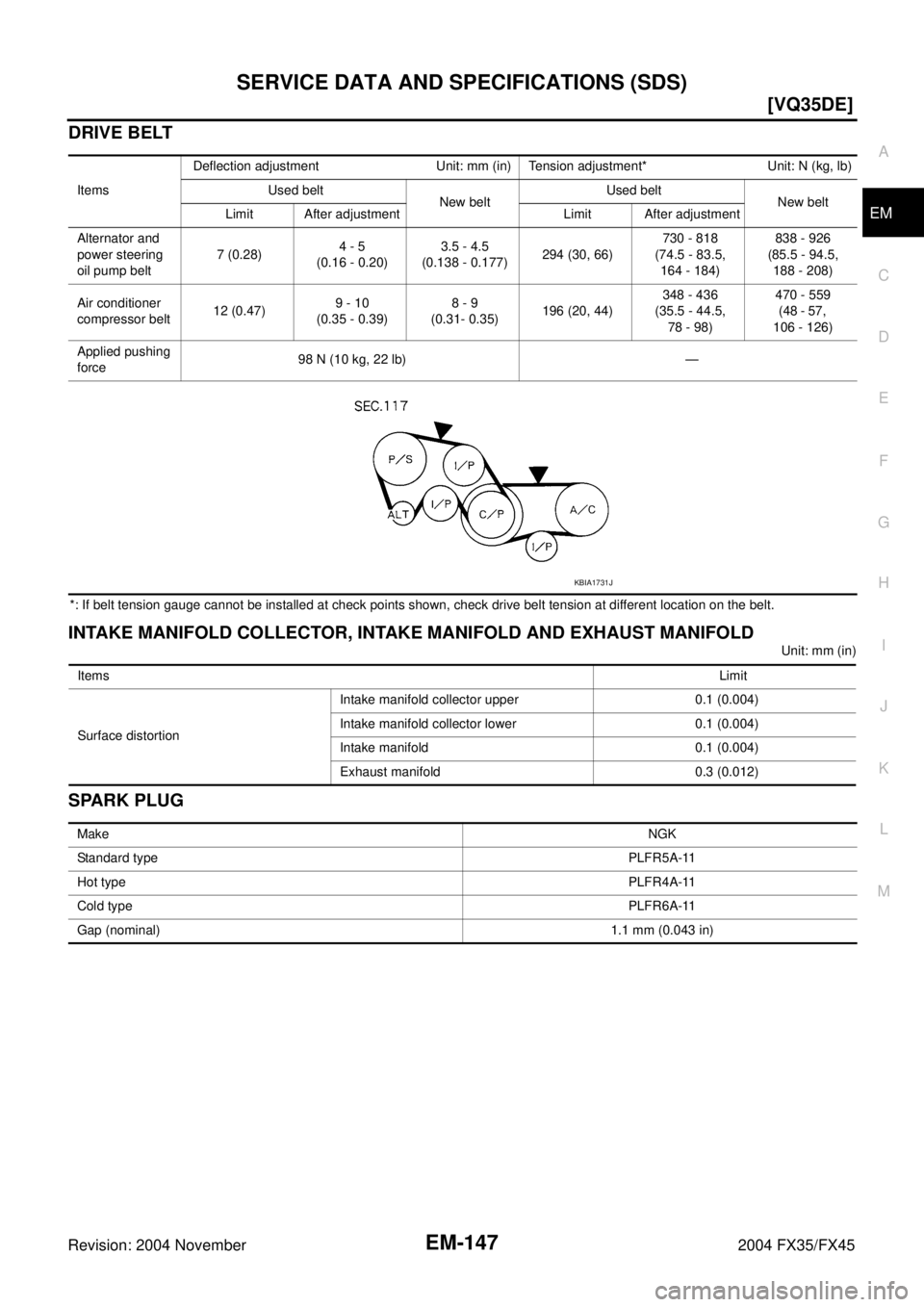

DRIVE BELT
*: If belt tension gauge cannot be installed at check points shown, check drive belt tension at different location on the belt.
INTAKE MANIFOLD COLLECTOR, INTAKE MANIFOLD AND EXHAUST MANIFOLD
Unit: mm (in)
SPARK PLUG
ItemsDeflection adjustment Unit: mm (in) Tension adjustment* Unit: N (kg, lb)
Used belt
New beltUsed belt
New belt
Limit After adjustment Limit After adjustment
Alternator and
power steering
oil pump belt7 (0.28)4 - 5
(0.16 - 0.20)3.5 - 4.5
(0.138 - 0.177)294 (30, 66)730 - 818
(74.5 - 83.5,
164 - 184)838 - 926
(85.5 - 94.5,
188 - 208)
Air conditioner
compressor belt12 (0.47)9 - 10
(0.35 - 0.39)8 - 9
(0.31- 0.35)196 (20, 44)348 - 436
(35.5 - 44.5,
78 - 98)470 - 559
(4 8 - 5 7 ,
106 - 126)
Applied pushing
force98 N (10 kg, 22 lb) —
KBIA1731J
Items Limit
Surface distortionIntake manifold collector upper 0.1 (0.004)
Intake manifold collector lower 0.1 (0.004)
Intake manifold 0.1 (0.004)
Exhaust manifold 0.3 (0.012)
MakeNGK
Standard typePLFR5A-11
Hot typePLFR4A-11
Cold typePLFR6A-11
Gap (nominal)1.1 mm (0.043 in)
