INFINITI FX35 2004 Service Manual EC-124
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2004 November 2004 FX35/FX45
3. Turn ignition switch ON.
4. Enter the program according to instruction on the screen or in
the operation manual.
(*: Regardi

Page 1466 of 4449

INFINITI FX35 2004 Service Manual TROUBLE DIAGNOSIS
EC-125
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
CONSULT-II Reference Value in Data MonitorABS006KZ
Remarks:
Specification data are reference values

TROUBLE DIAGNOSIS
EC-125
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
CONSULT-II Reference Value in Data MonitorABS006KZ
Remarks:
Specification data are reference values.
Specification data are output/input values which are detected or supplied by the ECM at the connector.
* Specification data may not be directly related to their components signals/values/operations.
i.e. Adjust ignition timing with a timing light before monitoring IGN TIMING, because the monitor may show the specification data in
spite of the ignition timing not being adjusted to the specification data. This IGN TIMING monitors the data calculated by the ECM
according to the signals input from the camshaft position sensor and other ignition timing related sensors.
MONITOR ITEM CONDITION SPECIFICATION
ENG SPEED
Run engine and compare CONSULT-II value with the tachometer indica-
tion.Almost the same speed as the
tachometer indication.
MAS A/F SE-B1 See EC-131, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
B/FUEL SCHDL See EC-131, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
A/F ALPHA-B1
A/F ALPHA-B2See EC-131, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
COOLAN TEMP/S
Engine: After warming up More than 70°C (158°F)
HO2S1 (B1)
HO2S1 (B2)
Engine: After warming upMaintaining engine speed at 2,000
rpm0 - 0.3V ←→ Approx. 0.6 -
1.0V
HO2S2 (B1)
HO2S2 (B2)
Warm-up condition
After keeping engine speed
between 3,500 and 4,000 rpm for
1 minute and at idle for 1 minute
under no load.Revving engine from idle to 3,000 rpm
quickly0 - 0.3V ←→ Approx. 0.6 -
1.0V
HO2S1 MNTR (B1)
HO2S1 MNTR (B2)
Engine: After warming upMaintaining engine speed at 2,000
rpmLEAN ←→ RICH
Changes more than 5 times
during 10 seconds.
HO2S2 MNTR (B1)
HO2S2 MNTR (B2)
Warm-up condition
After keeping engine speed
between 3,500 and 4,000 rpm for
1 minute and at idle for 1 minute
under no load.Revving engine from idle to 3,000 rpm
quicklyLEAN ←→ RICH
VEH SPEED SE
Turn drive wheels and compare CONSULT-II value with the speedometer
indication.Almost the same speed as the
speedometer indication
BATTERY VOLT
Ignition switch: ON (Engine stopped) 11 - 14V
ACCEL SEN1
Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.5 - 1.0V
Accelerator pedal: Fully depressed 4.0 - 4.8V
ACCEL SEN2*
Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.3 - 1.2V
Accelerator pedal: Fully depressed 3.9 - 4.8V
THRTL SEN1
THRTL SEN2*
Ignition switch: ON
(Engine stopped)
Shift lever: DAccelerator pedal: Fully released More than 0.36V
Accelerator pedal: Fully depressed Less than 4.75V
EVAP SYS PRES
Ignition switch: ON Approx. 1.8 - 4.8V
START SIGNAL
Ignition switch: ON → START → ON OFF → ON → OFF
CLSD THL POS
Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released ON
Accelerator pedal: Slightly depressed OFF
AIR COND SIG
Engine: After warming up, idle
the engineAir conditioner switch: OFF OFF
Air conditioner switch: ON
(Compressor operates.)ON
P/N POSI SW
Ignition switch: ONShift lever: P or N ON
Shift lever: Except above OFF
PW/ST SIGNAL
Engine: After warming up, idle
the engineSteering wheel is in neutral position
(Forward direction)OFF
Steering wheel is turned. ON

Page 1467 of 4449

INFINITI FX35 2004 Service Manual EC-126
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2004 November 2004 FX35/FX45
LOAD SIGNALIgnition switch: ONRear window defogger switch is ON
and/or lighting switch is in 2ndON
Rear window defogger switc

EC-126
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2004 November 2004 FX35/FX45
LOAD SIGNALIgnition switch: ONRear window defogger switch is ON
and/or lighting switch is in 2ndON
Rear window defogger switch is OFF
and lighting switch is OFFOFF
SNOW MODE SW
Ignition switch: ONSnow mode switch: ON ON
Snow mode switch: OFF OFF
IGNITION SW
Ignition switch: ON → OFF → ON ON → OFF → ON
HEATER FAN SW
Engine: After warming up, idle
the engineHeater fan is operating. ON
Heater fan is not operating OFF
BRAKE SW
Ignition switch: ONBrake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
INJ PULSE-B1
INJ PULSE-B2
Engine: After warming up
Shift lever: P or N
Air conditioner switch: OFF
No-loadIdle 2.0 - 3.0 msec
2,000 rpm 1.9 - 2.9 msec
IGN TIMING
Engine: After warming up
Shift lever: P or N
Air conditioner switch: OFF
No-loadIdle 13° - 18° BTDC
2,000 rpm 25° - 45° BTDC
CAL/LD VALUE
Engine: After warming up
Shift lever: P or N
Air conditioner switch: OFF
No-loadIdle 5% - 35%
2,500 rpm 5% - 35%
MASS AIRFLOW
Engine: After warming up
Shift lever: P or N
Air conditioner switch: OFF
No-loadIdle 2.0 - 6.0 g·m/s
2,500 rpm 7.0 - 20.0 g·m/s
PURG VOL C/V
Engine: After warming up
Shift lever: P or N
Air conditioner switch: OFF
No-loadIdle 0%
2,000 rpm —
INT/V TIM (B1)
INT/V TIM (B2)
Engine: After warming up
Shift lever: P or N
Air conditioner switch: OFF
No-loadIdle−5° - 5°CA
When revving engine up to 2,000 rpm
quicklyApprox. 0° - 30°CA
INT/V SOL (B1)
INT/V SOL (B2)
Engine: After warming up
Shift lever: P or N
Air conditioner switch: OFF
No-loadIdle 0% - 2%
When revving engine up to 2,000 rpm
quicklyApprox. 0% - 50%
AIR COND RLY
Engine: After warming up, idle
the engineAir conditioner switch: OFF OFF
Air conditioner switch: ON
(Compressor operates)ON
FUEL PUMP RLY
For 1 second after turning ignition switch ON
Engine running or crankingON
Except above conditions OFF
VENT CONT/V
Ignition switch: ON OFF
THRTL RELAY
Ignition switch: ON ON MONITOR ITEM CONDITION SPECIFICATION

Page 1468 of 4449

INFINITI FX35 2004 Service Manual TROUBLE DIAGNOSIS
EC-127
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
COOLING FAN
Engine: After warming up, idle
the engine
Air conditioner switch: OFFEngine coolant te

TROUBLE DIAGNOSIS
EC-127
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
COOLING FAN
Engine: After warming up, idle
the engine
Air conditioner switch: OFFEngine coolant temperature is 94°C
(201°F) or lessOFF
Engine coolant temperature is
between 95°C (203°F) and 99°C
(210°F)LOW
Engine coolant temperature is
between 100°C (212°F) and 104°C
(219°F)MID
Engine coolant temperature is 105°C
(221°F) or moreHI
HO2S1 HTR (B1)
HO2S1 HTR (B2)
Engine: After warming up
Engine speed: Below 3,600 rpmON
Engine speed: Above 3,600 rpm OFF
HO2S2 HTR (B1)
HO2S2 HTR (B2)
Engine speed is below 3,600 rpm after the following conditions are met.
–Engine: After warming up
–Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute and
at idle for 1 minute under no loadON
Engine speed: Above 3,600 rpm OFF
I/P PULLY SPD
Vehicle speed: More than 20 km/h (12 MPH)Almost the same speed as the
speedometer indication
VEHICLE SPEED
Turn drive wheels and compare the CONSULT-II value with speedometer
indication.Almost the same speed as the
speedometer indication
TRVL AFTER MIL
Ignition switch: ONVehicle has traveled after MIL has
turned ON.0 - 65,535 km
(0 - 40,723 mile)
O2SEN HTR DTY
Engine coolant temperature when engine started: More than 80°C (176°F)
Engine speed: Below 3,600 rpmApprox. 40%
AC PRESS SEN
Engine: Idle
Both A/C switch and blower fan switch: ON (Compressor operates)1.0 - 4.0V
VEH SPEED SE
Turn drive wheels and compare speedometer indication with the CON-
SULT-II value.Almost the same speed as the
CONSULT-II value
SET VHCL SPD
Engine: Running ASCD: Operating.The preset vehicle speed is
displayed.
MAIN SW
Ignition switch: ONON/OFF(MAIN) switch: Pressed ON
ON/OFF(MAIN) switch: Released OFF
CANCEL SW
Ignition switch: ONCANCEL switch: Pressed ON
CANCEL switch: Released OFF
RESUME/ACC SW
Ignition switch: ONACCEL/RESUME switch: Pressed ON
ACCEL/RESUME switch: Released OFF
SET SW
Ignition switch: ON COAST/SET switch: Pressed ON
COAST/SET switch: Released OFF
BRAKE SW1
Ignition switch: ONBrake pedal: Fully released ON
Brake pedal: Slightly depressed OFF
BRAKE SW2
Ignition switch: ONBrake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
CRUISE LAMP
Ignition switch: ONON/OFF(MAIN) switch: pressed at the
1st time → at the 2nd timeON → OFF
SET LAMP
ON/OFF(MAIN) switch: ON
When vehicle speed is between
40km/h (25MPH) and 144km/h
(89MPH)ASCD is operating ON
ASCD is not operating OFF MONITOR ITEM CONDITION SPECIFICATION

Page 1469 of 4449

INFINITI FX35 2004 Service Manual EC-128
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2004 November 2004 FX35/FX45
*: Accelerator pedal position sensor 2 signal and throttle position sensor 2 signal are converted by ECM internally. Thus, they

Page 1470 of 4449

INFINITI FX35 2004 Service Manual TROUBLE DIAGNOSIS
EC-129
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
Major Sensor Reference Graph in Data Monitor ModeABS006L0

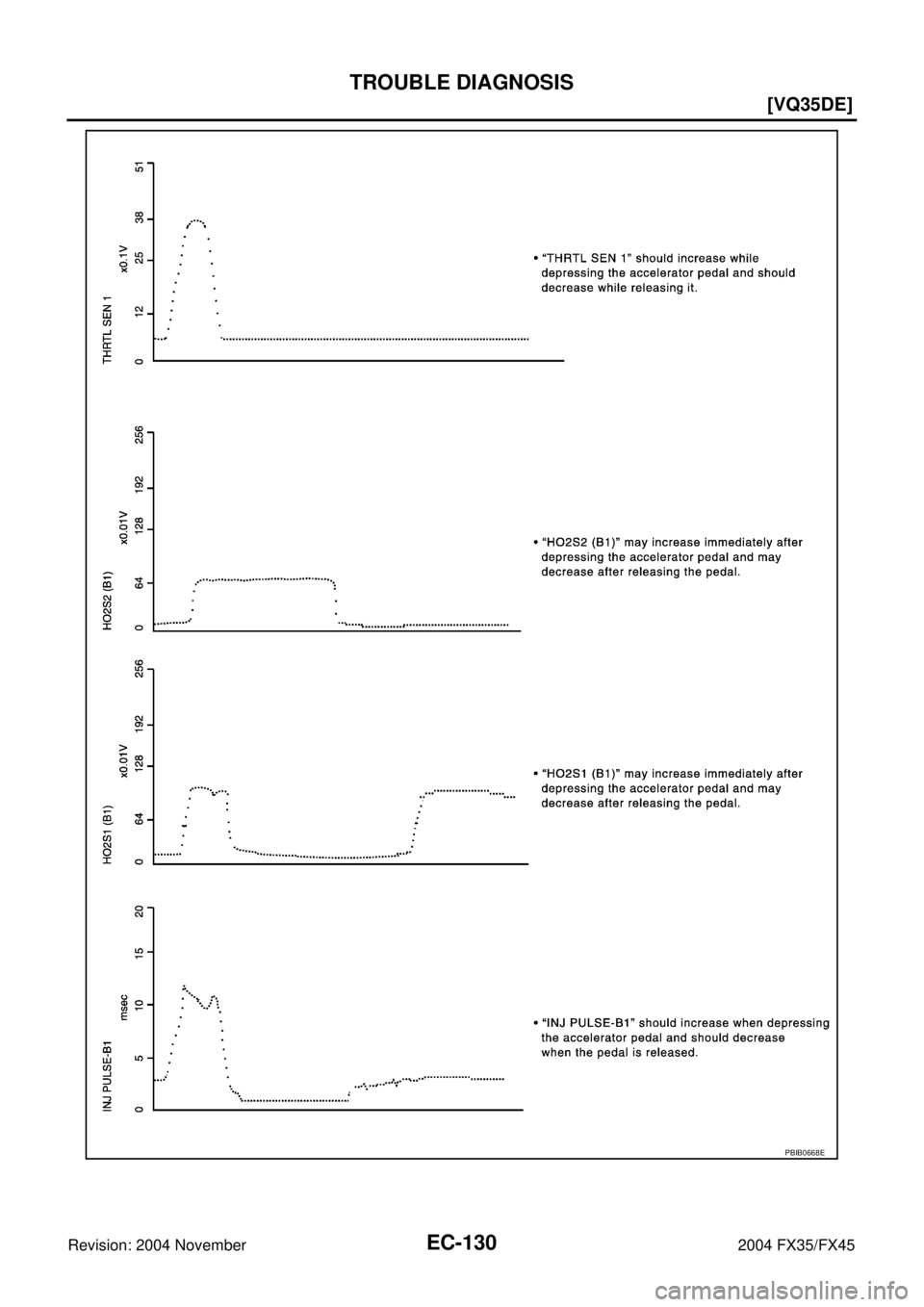

The following are the major sensor referenc

Page 1471 of 4449

INFINITI FX35 2004 Service Manual EC-130
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2004 November 2004 FX35/FX45
PBIB0668E

Page 1472 of 4449

INFINITI FX35 2004 Service Manual TROUBLE DIAGNOSIS - SPECIFICATION VALUE
EC-131
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
TROUBLE DIAGNOSIS - SPECIFICATION VALUEPFP:00031
DescriptionABS006L1
The specif

TROUBLE DIAGNOSIS - SPECIFICATION VALUE
EC-131
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
TROUBLE DIAGNOSIS - SPECIFICATION VALUEPFP:00031
DescriptionABS006L1
The specification (SP) value indicates the tolerance of the value that is displayed in “DATA MONITOR (SPEC)”
mode of CONSULT-II during normal operation of the Engine Control System. When the value in “DATA MONI-
TOR (SPEC)” mode is within the SP value, the Engine Control System is confirmed OK. When the value in
“DATA MONITOR (SPEC)” mode is NOT within the SP value, the Engine Control System may have one or
more malfunctions.
The SP value is used to detect malfunctions that may affect the Engine Control System, but will not light the
MIL.
The SP value will be displayed for the following three items:
B/FUEL SCHDL (The fuel injection pulse width programmed into ECM prior to any learned on board cor-
rection)
A/F ALPHA-B1/B2 (The mean value of air-fuel ratio feedback correction factor per cycle)
MAS A/F SE-B1 (The signal voltage of the mass air flow sensor)
Testing ConditionABS006L2
Vehicle driven distance: More than 5,000 km (3,017 miles)
Barometric pressure: 98.3 - 104.3 kPa (1.003 - 1.064 kg/cm2 , 14.25 - 15.12 psi)
Atmospheric temperature: 20 - 30°C (68 - 86°F)
Engine coolant temperature: 75 - 95°C (167 - 203°F)
Transmission: Warmed-up*1
Electrical load: Not applied*2
Engine speed: Idle
*1: After the engine is warmed up to normal operating temperature, drive vehicle until “FLUID TEMP SE” (A/T
fluid temperature sensor signal) indicates more than 60°C (140°F).
*2: Rear window defogger switch, air conditioner switch, lighting switch are OFF. Steering wheel is straight
ahead.
Inspection ProcedureABS006L3
NOTE:
Perform “DATA MONITOR (SPEC)” mode in maximum scale display.
1. Perform EC-83, "
Basic Inspection" .
2. Confirm that the testing conditions indicated above are met.
3. Select “B/FUEL SCHDL”, “A/F ALPHA-B1”, “A/F ALPHA-B2”
and “MAS A/F SE-B1” in “DATA MONITOR (SPEC)” mode with
CONSULT-II.
4. Make sure that monitor items are within the SP value.
5. If NG, go to EC-132, "
Diagnostic Procedure" .
SEF601Z

Load next 8 pages

Page: < prev 1-10 ... 1433-1440 1441-1448 1449-1456 1457-1464 1465-1472 1473-1480 1481-1488 1489-1496 1497-1504 ... 4456 next >

fuse change key battery ad blue remote control dashboard driver seat adjustment
