COMPANION FLANGE RUNOUT
1. Fit a dial gauge onto the companion flange face (inner side of
the propeller shaft mounting bolt holes).
2. Rotate the companion flange to check for runout.
3. Fit a test indicator to the inner side of the companion flange
(socket diameter).
4. Rotate the companion flange to check for runout.
5. If the runout value is outside the repair limit, follow the procedure
below to adjust.
a. Check for runout while changing the phase between companion flange and drive pinion gear by 90° step,
and search for the point where the runout is the minimum.
b. If the runout value is still outside of the limit after the phase has been changed, replace the companion
flange.
c. If the runout value still outside of the limit after the companion flange has been replaced, check pinion
bearing and drive pinion assembly.
TOOTH CONTACT
Check tooth contact. Refer to RFD-24, "TOOTH CONTACT" .
Disassembly and AssemblyADS000JU
REMOVAL OF DIFFERENTIAL CASE ASSEMBLY
1. Using two 45 mm (1.77 in) spacers, mount carrier on tool.
2. For proper reinstallation, paint matching marks on one side of
the bearing cap.
Bearing caps are line-board during manufacture. Replace them
in their proper positions.Runout limit : 0.13 mm (0.0051 in)
Runout limit : 0.13 mm (0.0051 in)
SDIA0569E
Tool number : KV38100800 (J25604 - 01)
SDIA1008E
SPD889
Page 4042 of 4449
REAR FINAL DRIVE ASSEMBLY
RFD-15
C
E
F
G
H
I
J
K
L
MA
B
RFD
Revision: 2004 November 2004 FX35/FX45
3. Remove bearing caps.
4. Lift differential case assembly out with tool.
Keep the side bearing outer races together with inner race.
Do not mix them up.
Also, keep side bearing adjusting washers together with bear-
ings.

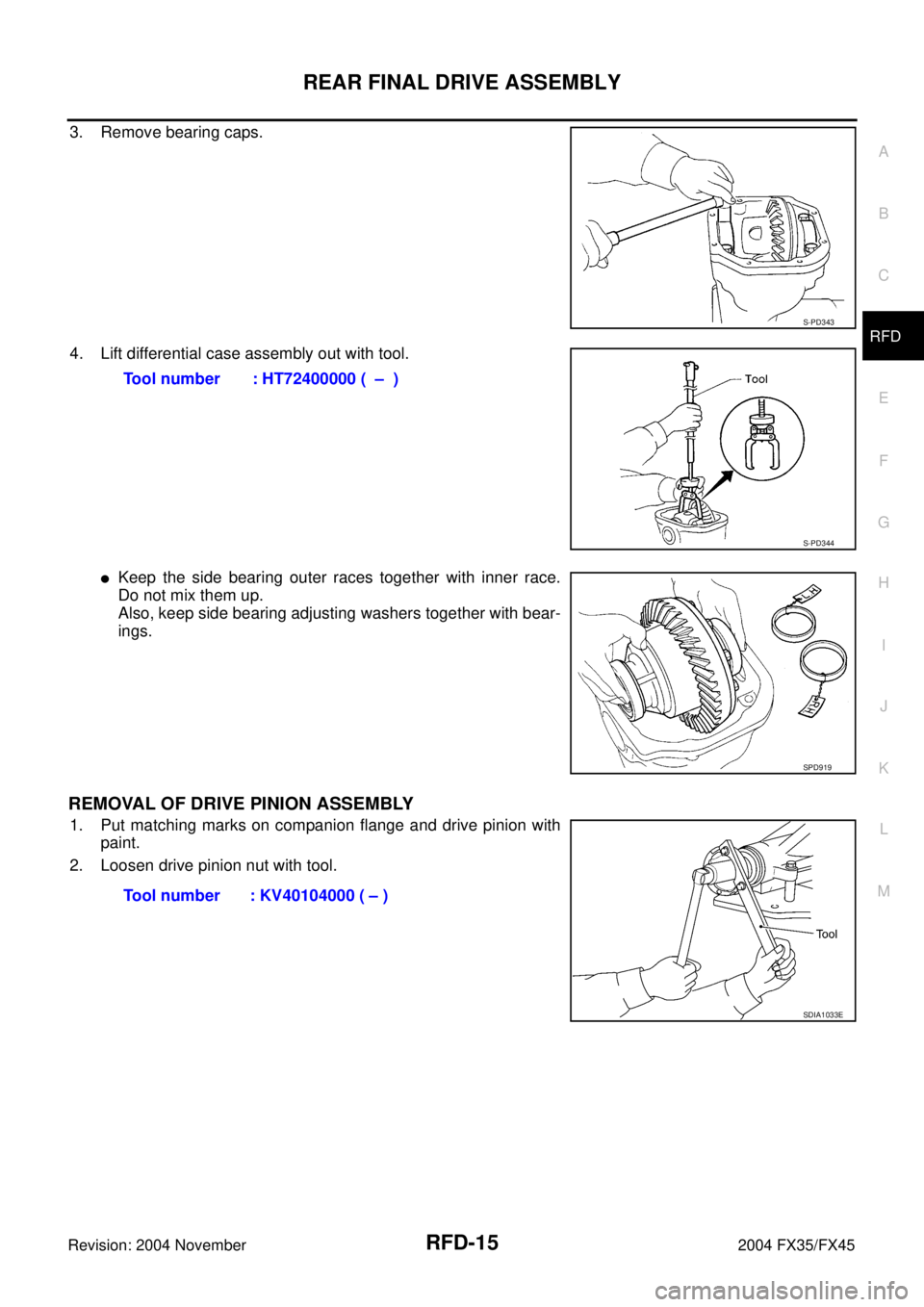

REMOVAL OF DRIVE PINION ASSEMBLY
1. Put matching marks on companion flange and drive pinion with
paint.
2. Loosen drive pinion nut with tool.
S-PD343
Tool number : HT72400000 ( – )
S-PD344
SPD919
Tool number : KV40104000 ( – )
SDIA1033E
Page 4043 of 4449
RFD-16
REAR FINAL DRIVE ASSEMBLY
Revision: 2004 November 2004 FX35/FX45

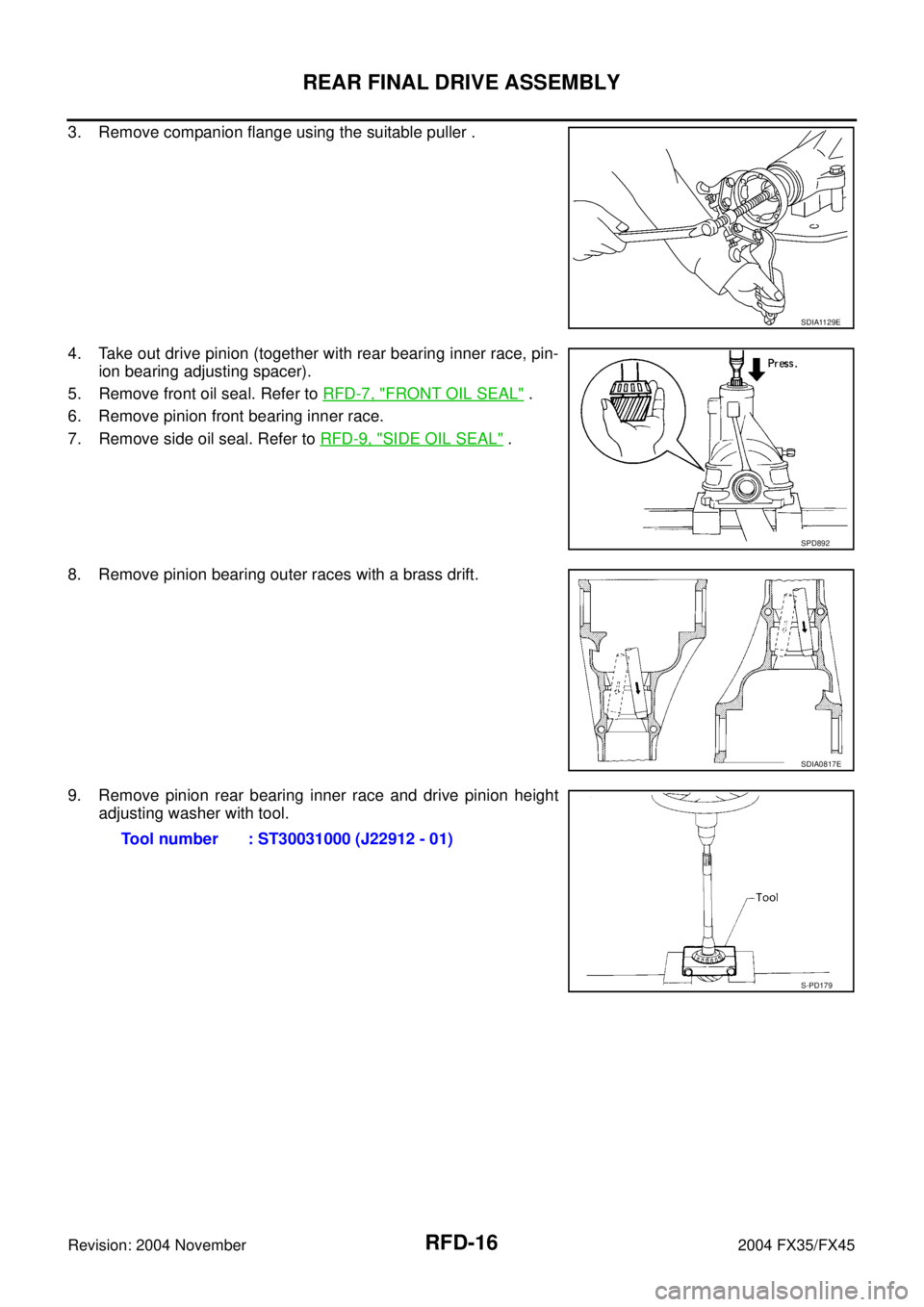

3. Remove companion flange using the suitable puller .
4. Take out drive pinion (together with rear bearing inner race, pin-
ion bearing adjusting spacer).
5. Remove front oil seal. Refer to RFD-7, "
FRONT OIL SEAL" .
6. Remove pinion front bearing inner race.
7. Remove side oil seal. Refer to RFD-9, "
SIDE OIL SEAL" .
8. Remove pinion bearing outer races with a brass drift.
9. Remove pinion rear bearing inner race and drive pinion height
adjusting washer with tool.
SDIA1129E
SPD892
SDIA0817E
Tool number : ST30031000 (J22912 - 01)
S-PD179
Page 4044 of 4449
REAR FINAL DRIVE ASSEMBLY
RFD-17
C
E
F
G
H
I
J
K
L
MA
B
RFD
Revision: 2004 November 2004 FX35/FX45

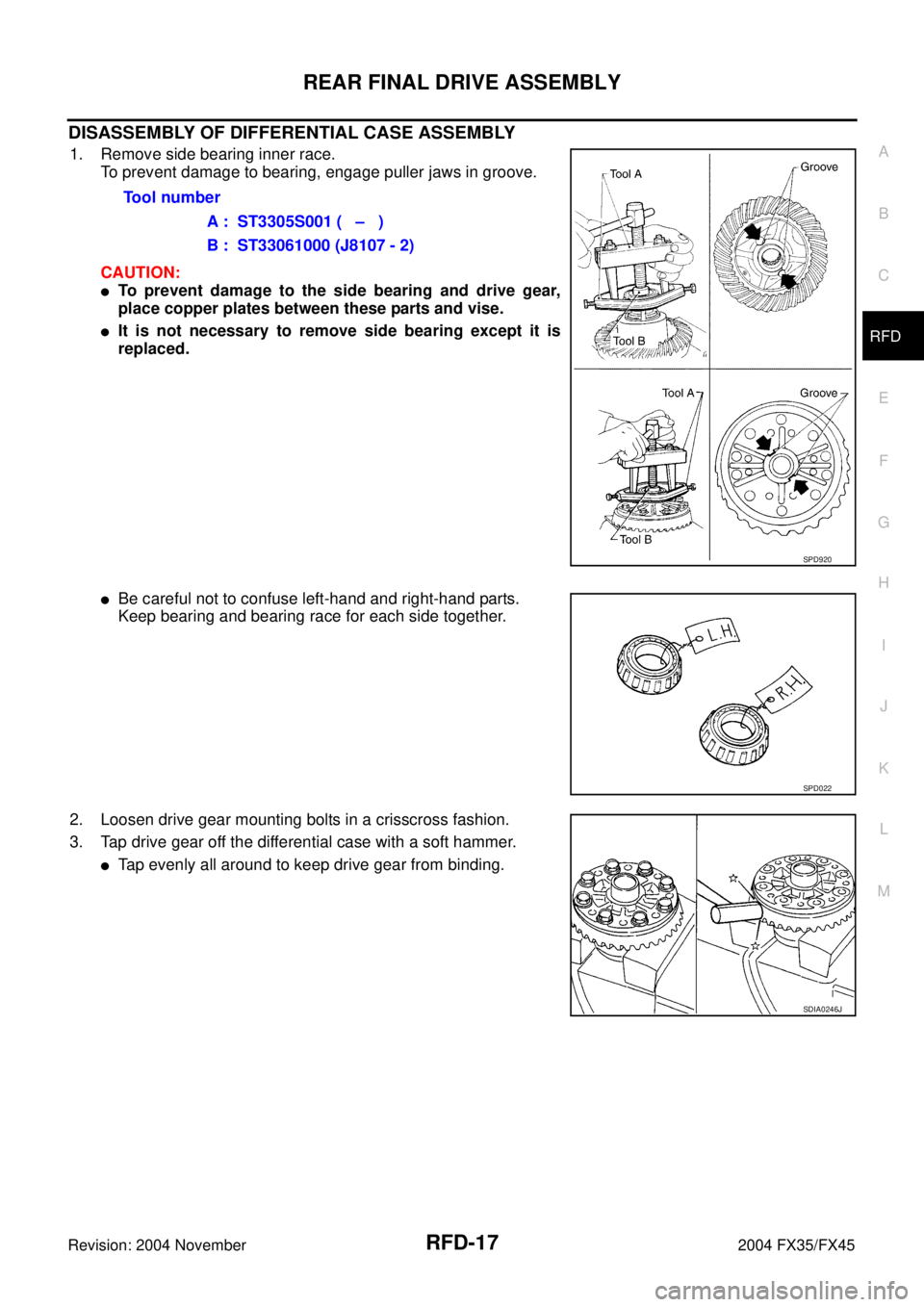

DISASSEMBLY OF DIFFERENTIAL CASE ASSEMBLY
1. Remove side bearing inner race.
To prevent damage to bearing, engage puller jaws in groove.
CAUTION:
To prevent damage to the side bearing and drive gear,
place copper plates between these parts and vise.
It is not necessary to remove side bearing except it is
replaced.
Be careful not to confuse left-hand and right-hand parts.
Keep bearing and bearing race for each side together.
2. Loosen drive gear mounting bolts in a crisscross fashion.
3. Tap drive gear off the differential case with a soft hammer.
Tap evenly all around to keep drive gear from binding.Tool number
A : ST3305S001 ( – )
B : ST33061000 (J8107 - 2)
SPD920
SPD022
SDIA0246J
Page 4045 of 4449

RFD-18
REAR FINAL DRIVE ASSEMBLY
Revision: 2004 November 2004 FX35/FX45
4. Drive out pinion mate shaft lock pin with punch from drive gear
side.
5. Remove the pinion mate shaft.
6. Turn the pinion mate gear, then remove the pinion mate gear,
pinion mate thrust washer, side gear and side gear thrust
washer from the differential case.
7. Check mating surfaces of differential case, side gears, pinion
mate gears, pinion mate shaft and thrust washers.
INSPECTION
Clean up the disassembled parts. Then, inspect if the parts are wear or damaged. If so, follow the mea-
sures below.
SPD025
SDIA0031J
SDIA0032J
SDIA0187J
Content Measures
Drive gear and drive pinion
If the gear teeth do not mesh or line-up correctly, determine the cause and adjust, repair, or
replace as necessary.
if the gear are worn, cracked, damaged, pitted or chipped (by friction) noticeably, replace with a
new gears.
Bearing
If found any chipped (by friction), pitted, worn, rusted, scratched mark, or unusual noise from the
bearing, replace with a new bearing assembly (as a new set).
Page 4046 of 4449

REAR FINAL DRIVE ASSEMBLY
RFD-19
C
E
F
G
H
I
J
K
L
MA
B
RFD
Revision: 2004 November 2004 FX35/FX45
ADJUSTMENT OF DIFFERENTIAL CASE
Thrust Washer Selection
1. Apply gear oil to contact surfaces of each gear, thrust washers
and differential case.
2. Install the removed thrust washer or same thickness washer to
side gear.
3. Install the side gears, thrust washers, pinion mate gears, thrust
washers into differential case.
CAUTION:
Install the circlip equipped side gear to the side retainer
side.
4. Fit pinion mate shaft to differential case so that it meets lock pin
holes.
Side gear thrust washer and
pinion mate thrust washerReplace with a new one if found any cracks or damage on the surface of the tooth.
Replace with a new one if found any worn or chipped mark on the contact sides of the thrust
washer.
Side gear and pinion mate
thrust washer
Replace with a new one if found that it is chipped (by friction), damaged, or unusual worn.
Oil seal
Oil seals must be replaced with a new one whenever disassembled.
Differential case
Replace with a new one if found any wear or cracks on the contact sides of the differential case.
Companion flange
Replace with a new one if found any chipped marks (about 0.10mm, 0.0039in) or other damage
on the contact sides of the lips of the companion flange. Content Measures
SDIA0193J
SPD552
SDIA0195J
Page 4047 of 4449

RFD-20
REAR FINAL DRIVE ASSEMBLY
Revision: 2004 November 2004 FX35/FX45
5. Adjust clearance between rear face of side gear and thrust
washer by selecting side gear thrust washer. Refer to RFD-31,
"AVAILABLE PINION HEIGHT ADJUSTING WASHERS" .
Use two feeler gauges to prevent leaning of side gear as show-
ing figure.
SIDE BEARING PRELOAD
A selection of carrier side bearing adjusting washers is required for successful completion of this procedure.
1. Make sure all parts are clean. Also, make sure the bearings are
well lubricated with gear oil.
2. Place the differential case, with side bearings and bearing races
installed, into gear carrier.
3. Insert left and right original side bearing adjusting washers in
place between side bearings and carrier.
4. Install the side bearing caps in their correct locations and torque
the bearing cap retaining bolts.
5. Turn the carrier several times to seat the bearings.Clearance between side gear thrust washer and dif-
ferential case
: 0.20 mm (0.0079 in) or less
SPD828
SPD527
SPD924
SDIA1795E
Page 4048 of 4449

REAR FINAL DRIVE ASSEMBLY
RFD-21
C
E
F
G
H
I
J
K
L
MA
B
RFD
Revision: 2004 November 2004 FX35/FX45
6. Measure the turning torque of the carrier at the drive gear retain-
ing bolts with a spring gauge, J-8129.
7. If the turning torque is not within the specifications, correct the
torque as follows:
If the turning torque is less than the specified range, install
washers of greater thickness.
If the turning torque is greater than the specification, install
thinner washers.
See the SDS section for washer dimensions and part num-
bers.
8. Record the total amount of washer thickness required for the
correct carrier side bearing preload.
9. Remove the carrier from the final drive housing. Save the
selected washers for later use during the assembly of the final
drive unit.
PINION GEAR HEIGHT
1. Make sure all parts are clean and that the bearings are well
lubricated.
2. Assemble the pinion gear bearings into the differential shim
selector tool, J34309.
Pinion front bearing; make sure the J34309-3 pinion front bear-
ing seat is secured tightly against the J34309-2 gauge anvil.
Then turn the pinion front bearing pilot, J34309-5, to secure the
bearing in its proper position.
Pinion rear bearing; the pinion rear bearing pilot, J34309-8, is
used to center the pinion rear bearing only. The pinion rear bear-
ing locking seat, J34309-4, is used to lock the bearing to the
assembly.Specification
: 34.2 - 39.2 N (3.5 - 4.0 kg, 7.7 - 8.8 lb)
of pulling force at the drive gear bolt
SPD194A
SPD772
Tool number : HT72400000 ( – )
S-PD344
SPD769
SPD197A
