EC-620
[VQ35DE]
ICC BRAKE SWITCH
Revision: 2004 November 2004 FX35/FX45
6. DETECT MALFUNCTIONING PART
Check the following.
Fuse block (J/B) connector E201
10A fuse
Harness for open or short between ICC brake switch and fuse
>> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK ICC BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-I
1. Turn ignition switch “OFF”.
2. Check harness continuity between ICC brake hold relay terminal 3 and ICC brake switch terminal 2.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
8. CHECK ICC BRAKE SWITCH
Refer to EC-1301, "
Component Inspection" .
OK or NG
OK >> GO TO 17.
NG >> Replace ICC brake switch.
9. CHECK ICC BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-II
1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector.
3. Check harness continuity between ICC brake hold relay terminal 4 and ECM terminal 108.
Refer Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 11.
NG >> GO TO 10.
10. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E211, M41
Harness for open or short between ICC brake hold relay and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
11 . CHECK ICC BRAKE HOLD RELAY
Refer to EC-1301, "
Component Inspection" .
OK >> GO TO 17.
NG >> Replace ICC brake fold relay.Continuity should exist.
Continuity should exist.
Page 1962 of 4449
![INFINITI FX35 2004 Service Manual ICC BRAKE SWITCH
EC-621
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
12. CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect stop INFINITI FX35 2004 Service Manual ICC BRAKE SWITCH
EC-621
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
12. CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect stop](/manual-img/42/57021/w960_57021-1961.png)
ICC BRAKE SWITCH
EC-621
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
12. CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect stop lamp switch harness connector.
3. Check voltage between stop lamp switch terminal 1 and ground
with CONSULT -II or tester.
OK or NG
OK >> GO TO 14.
NG >> GO TO 13.
13. DETECT MALFUNCTIONING PART
Check the following.
Joint connector-2
Fuse block (J/B) connector E201
10A fuse
Harness for open or short between stop lamp switch and fuse
>> Repair open circuit or short to ground or short to power in harness or connectors.
14. CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 101 and stop lamp switch terminal 2.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 16.
NG >> GO TO 15.
PBIB1539E
Voltage: Battery voltage
PBIB1184E
Continuity should exist.
Page 1963 of 4449
![INFINITI FX35 2004 Service Manual EC-622
[VQ35DE]
ICC BRAKE SWITCH
Revision: 2004 November 2004 FX35/FX45
15. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E211, M41
Joint connector-2
Harness for open or short INFINITI FX35 2004 Service Manual EC-622
[VQ35DE]
ICC BRAKE SWITCH
Revision: 2004 November 2004 FX35/FX45
15. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E211, M41
Joint connector-2
Harness for open or short](/manual-img/42/57021/w960_57021-1962.png)
EC-622
[VQ35DE]
ICC BRAKE SWITCH
Revision: 2004 November 2004 FX35/FX45
15. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E211, M41
Joint connector-2
Harness for open or short between ECM and stop lamp switch
>> Repair open circuit or short to ground or short to power in harness or connectors.
16. CHECK STOP LAMP SWITCH
Refer to EC-1301, "
Component Inspection"
OK or NG
OK >> GO TO 17.
NG >> Replace stop lamp switch.
17. CHECK INTERMITTENT INCIDENT
Refer to EC-784, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionABS006YW
ICC BRAKE SWITCH
1. Turn ignition switch OFF.
2. Disconnect ICC brake switch harness connector.
3. Check continuity between ICC brake switch terminals 1 and 2
under the following conditions.
If NG, adjust ICC brake switch installation, refer to BR-6,
"BRAKE PEDAL" , and perform step 3 again.
STOP LAMP SWITCH
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch harness connector.
3. Check continuity between stop lamp switch terminals 1 and 2
under the following conditions.
If NG, adjust stop lamp switch installation, refer to BR-6,
"BRAKE PEDAL" , and perform step 3 again.
ICC BRAKE HOLD RELAY
1. Apply 12V direct current between ICC brake hold relay terminals 1 and 2.
Condition Continuity
When brake pedal is fully released. Should exist.
When brake pedal is slightly depressed. Should not exist.
SEC023D
Condition Continuity
When brake pedal is fully released. Should not exist.
When brake pedal is slightly depressed. Should exist.
PBIB1185E
Page 1964 of 4449
ICC BRAKE SWITCH
EC-623
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
2. Check continuity between relay terminals 3 and 4, 6 and 7 under
the following conditions.
3. If NG, replace ICC brake hold relay.
Condition Between terminals Continuity
12V direct current supply
between terminals 1 and 23 and 4 Should not exist
6 and 7 Should exist
No current supply3 and 4 Should exist
6 and 7 Should not exist
MBIB0063E
Page 1965 of 4449
EC-624
[VQ35DE]
ASCD BRAKE SWITCH
Revision: 2004 November 2004 FX35/FX45
ASCD BRAKE SWITCHPFP:25320
Component DescriptionABS006YX
When the brake pedal is depressed, ASCD brake switch is turned
OFF and stop lamp switch is turned ON. ECM detects the state of
the brake pedal by this input of two kinds (ON/OFF signal).
Refer to EC-657, "
AUTOMATIC SPEED CONTROL DEVICE
(ASCD)" for the ASCD function.
CONSULT-II Reference Value in Data Monitor ModeABS006YY
Specification data are reference values.
PBIB1089E
MONITOR ITEM CONDITION SPECIFICATION
BRAKE SW 1
(ASCD brake switch)
Ignition switch: ONBrake pedal: Fully released ON
Brake pedal: Slightly depressed OFF
BRAKE SW 2
(stop lamp switch)
Ignition switch: ONBrake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
Page 1966 of 4449
ASCD BRAKE SWITCH
EC-625
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45

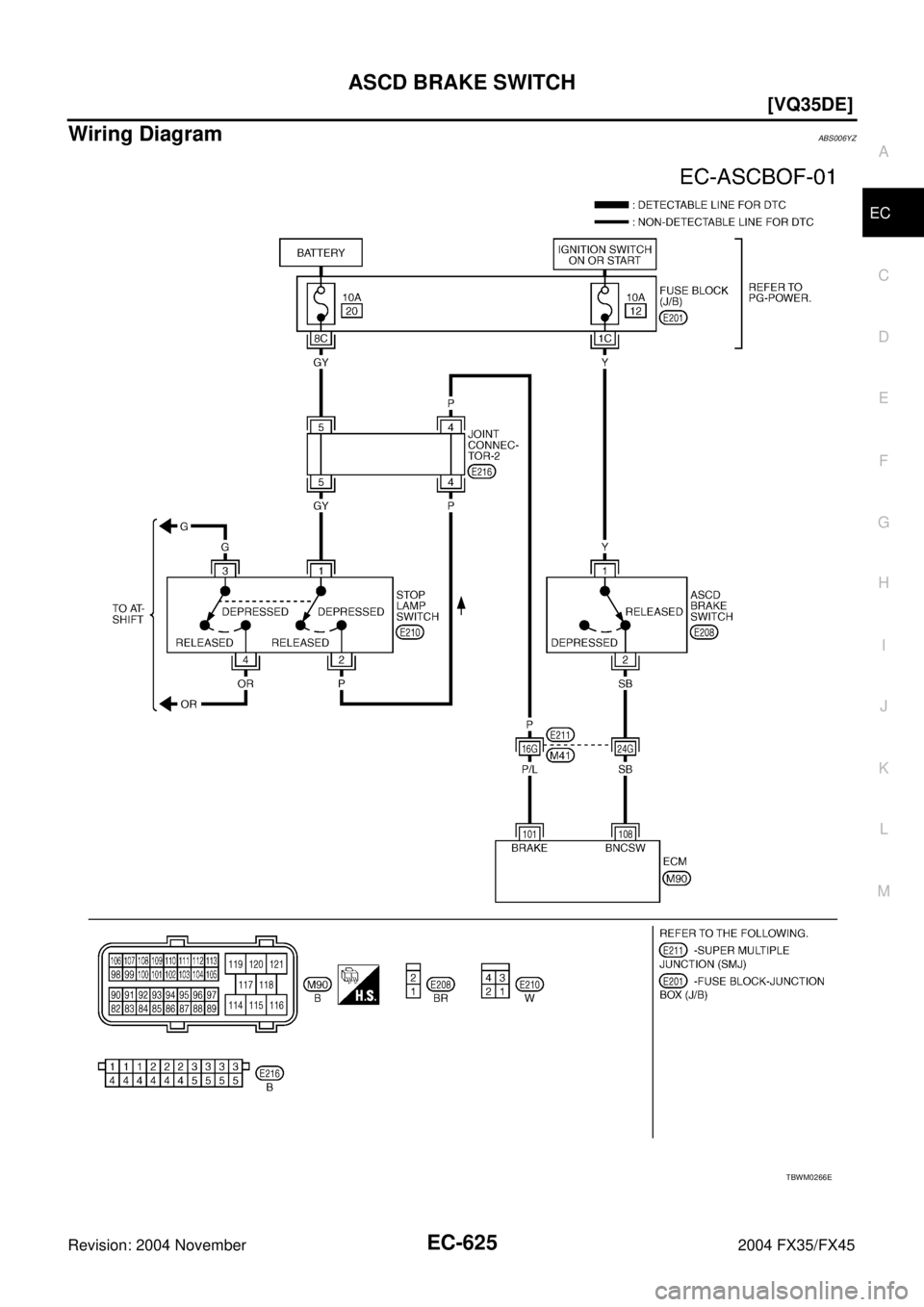

Wiring DiagramABS006YZ
