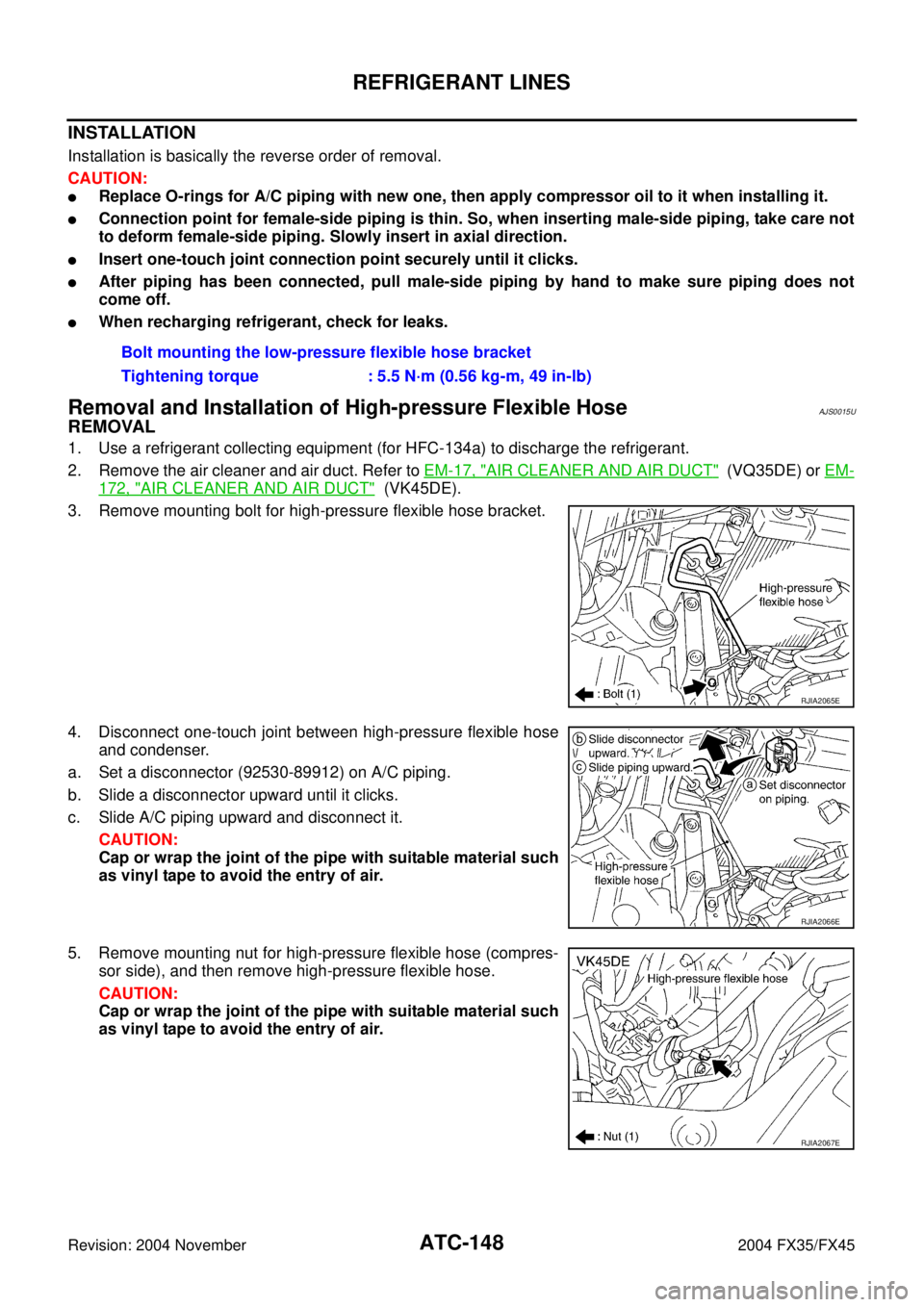

Page 577 of 4449

INFINITI FX35 2004 Service Manual ATC-148
REFRIGERANT LINES
Revision: 2004 November 2004 FX35/FX45
INSTALLATION
Installation is basically the reverse order of removal.
CAUTION:
Replace O-rings for A/C piping with new one, then apply

Page 578 of 4449

INFINITI FX35 2004 Service Manual REFRIGERANT LINES
ATC-149
C
D
E
F
G
H
I
K
L
MA
B
AT C
Revision: 2004 November 2004 FX35/FX45
INSTALLATION
Installation is basically the reverse order of removal.
CAUTION:
Replace the O-ring of the hi

Page 579 of 4449

INFINITI FX35 2004 Service Manual ATC-150
REFRIGERANT LINES
Revision: 2004 November 2004 FX35/FX45
INSTALLATION
Installation is basically the reverse order of removal.
CAUTION:
Replace the O-ring of the low-pressure pipe 1 with a new

Page 580 of 4449

INFINITI FX35 2004 Service Manual REFRIGERANT LINES
ATC-151
C
D
E
F
G
H
I
K
L
MA
B
AT C
Revision: 2004 November 2004 FX35/FX45
6. Disconnect one-touch joint between high-pressure pipe 1 and 2.
a. Set a disconnector (92530-89908) on A/

Page 581 of 4449

INFINITI FX35 2004 Service Manual ATC-152
REFRIGERANT LINES
Revision: 2004 November 2004 FX35/FX45
5. Remove high-pressure pipe 1 from vehicle clips.
6. Disconnect one-touch joints.
a. Set a disconnector (High-pressure side: 92530-899

Page 582 of 4449

INFINITI FX35 2004 Service Manual REFRIGERANT LINES
ATC-153
C
D
E
F
G
H
I
K
L
MA
B
AT C
Revision: 2004 November 2004 FX35/FX45
Removal and Installation of Liquid TankAJS0015Y
REMOVAL
1. Use a refrigerant collecting equipment (for HFC-

Page 583 of 4449

INFINITI FX35 2004 Service Manual ATC-154
REFRIGERANT LINES
Revision: 2004 November 2004 FX35/FX45
Removal and Installation of CondenserAJS0015Z
REMOVAL
1. Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrige

Page 584 of 4449

INFINITI FX35 2004 Service Manual REFRIGERANT LINES
ATC-155
C
D
E
F
G
H
I
K
L
MA
B
AT C
Revision: 2004 November 2004 FX35/FX45
After piping has been connected, pull male-side piping by hand to make sure piping does not
come off.
Whe

REFRIGERANT LINES
ATC-155
C
D
E
F
G
H
I
K
L
MA
B
AT C
Revision: 2004 November 2004 FX35/FX45
After piping has been connected, pull male-side piping by hand to make sure piping does not
come off.
When recharging refrigerant, check for leaks.
Removal and Installation of Refrigerant Pressure SensorAJS00160
REMOVAL
1. Remove condenser. Refer to ATC-154, "Removal and Installa-
tion of Condenser" .
2. Remove refrigerant pressure sensor from condenser.
CAUTION:
When working, be careful not to damage the condenser
fins.
INSTALLATION
Installation is basically the reverse order of removal.
CAUTION:
Apply compressor oil to the O-ring of the refrigerant pressure sensor when installing it.
Removal and Installation of EvaporatorAJS001BJ
REMOVAL
1. Set the temperature at 18°C (60°F), and then disconnect the battery negative cable.
2. Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.
3. Remove low-pressure pipe 2 and high-pressure pipe 3. Refer to ATC-151, "
Removal and Installation of
Low-pressure Pipe 2 and High-pressure Pipe 3" .
CAUTION:
Cap or wrap the joint of the pipe with suitable material such as vinyl tape to avoid the entry of air.
4. Slide evaporator, and then remove it from heater & cooling unit.
5. Remove intake sensor from evaporator, and then remove evap-
orator.
INSTALLATION
Installation is basically the reverse order of removal.
CAUTION:
Replace O-rings for A/C piping with new ones, then apply compressor oil to it when installing it.
Connection point for female-side piping is thin. So, when inserting male-side piping, take care not
to deform female-side piping. Slowly insert in axial direction.
Insert one-touch joint connection point securely until it clicks.
After piping has been connected, pull male-side piping by hand to make sure piping does not
come off.
The O-rings are different from low-pressure pipe 1 (high-pressure pipe 2) and low-pressure pipe 2
(high-pressure pipe 3).
Mark the mounting position of the intake sensor bracket. Bolt mounting the high-pressure flexible hose bracket
Tightening torque : 5.5 N·m (0.56 kg-m, 49 in-lb)
RJIA2076E
RJIA0928E
