DI-62
WARNING CHIME
Revision: 2004 November 2004 FX35/FX45
Terminals and Reference Value for BCMAKS005NO
Te r m i n a l
No.Wire
colorItemMeasuring condition
Reference value
Ignition
switchOperation or condition
2 GY Combination switch input 5 ONLighting, turn, wiper OFF
Wiper dial position 4
3 L/B Combination switch input 4 ONLighting, turn, wiper OFF
Wiper dial position 4
4 PU/W Combination switch input 3 ONLighting, turn, wiper OFF
Wiper dial position 4
5 Y/R Combination switch input 2
ONLighting, turn, wiper OFF
Wiper dial position 4
6 SB Combination switch input 1
32 GY/R Combination switch output 5 ONLighting, turn, wiper OFF
Wiper dial position 4
33 G Combination switch output 4 ONLighting, turn, wiper OFF
Wiper dial position 4
34 W/B Combination switch output 3 ONLighting, turn, wiper OFF
Wiper dial position 4
SKIA5291E
SKIA5292E
SKIA5291E
SKIA5292E
SKIA5291E
SKIA5292E
SKIA5291E
Page 1306 of 4449

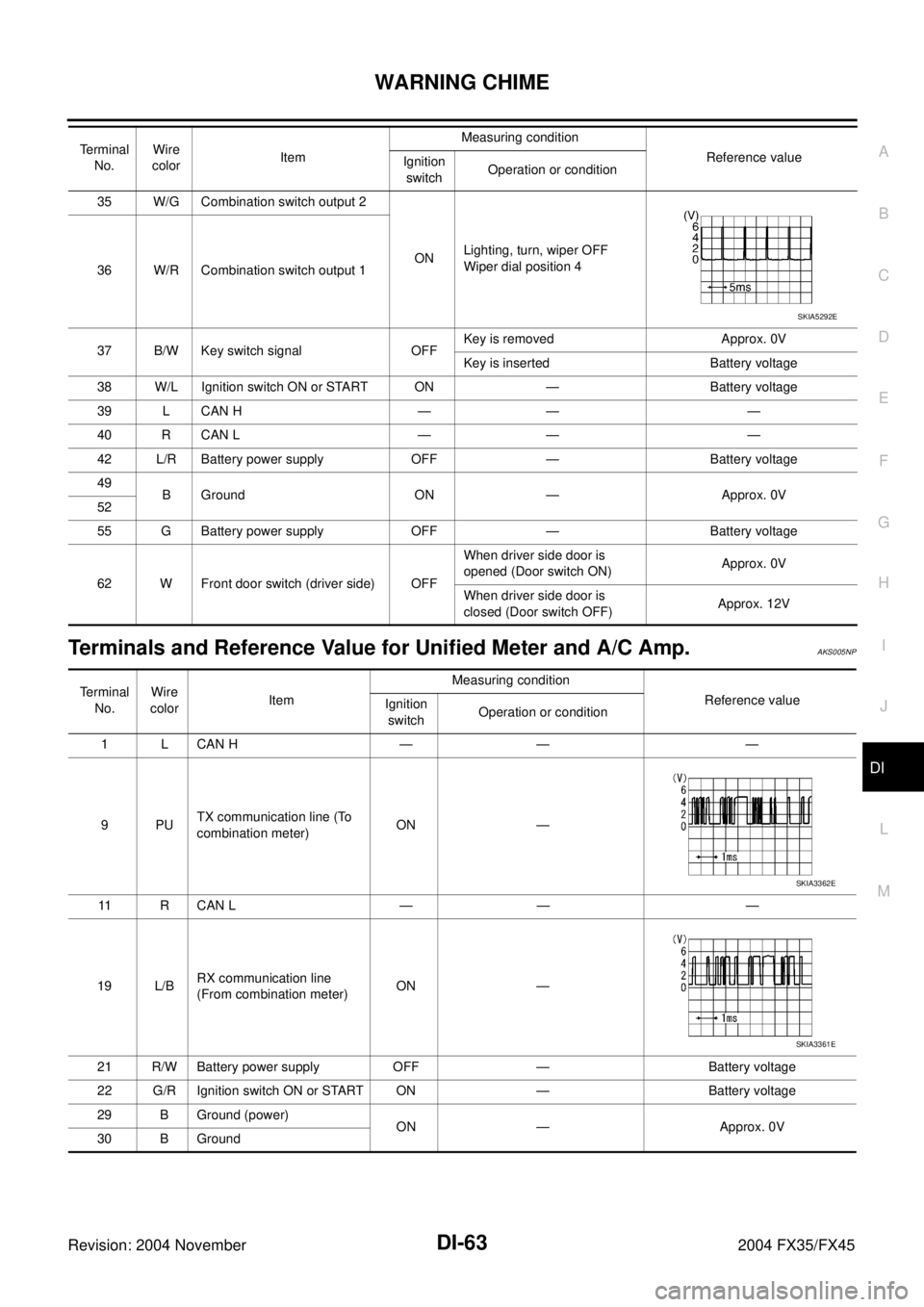

WARNING CHIME
DI-63
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2004 November 2004 FX35/FX45
Terminals and Reference Value for Unified Meter and A/C Amp. AKS005NP
35 W/G Combination switch output 2
ONLighting, turn, wiper OFF
Wiper dial position 4
36 W/R Combination switch output 1
37 B/W Key switch signal OFFKey is removed Approx. 0V
Key is inserted Battery voltage
38 W/L Ignition switch ON or START ON — Battery voltage
39 L CAN H — — —
40 R CAN L — — —
42 L/R Battery power supply OFF — Battery voltage
49
B Ground ON — Approx. 0V
52
55 G Battery power supply OFF — Battery voltage
62 W Front door switch (driver side) OFFWhen driver side door is
opened (Door switch ON)Approx. 0V
When driver side door is
closed (Door switch OFF)Approx. 12V Terminal
No.Wire
colorItemMeasuring condition
Reference value
Ignition
switchOperation or condition
SKIA5292E
Terminal
No.Wire
colorItem Measuring condition
Reference value
Ignition
switchOperation or condition
1 L CAN H — — —
9PUTX communication line (To
combination meter)ON —
11 R C A N L — — —
19 L/BRX communication line
(From combination meter)ON —
21 R/W Battery power supply OFF — Battery voltage
22 G/R Ignition switch ON or START ON — Battery voltage
29 B Ground (power)
ON — Approx. 0V
30 B Ground
SKIA3362E
SKIA3361E
Page 1307 of 4449

DI-64
WARNING CHIME
Revision: 2004 November 2004 FX35/FX45
Terminals and Reference Value for Combination MeterAKS005NQ
How to Proceed With Trouble DiagnosisAKS005NR
1. Confirm the malfunction symptom or customer complaint.
2. Understand operation description and function description. Refer to DI-55, "
System Description" .
3. Perform the Preliminary Check. Refer to DI-65, "
Preliminary Check" .
4. Start engine.
5. Select “METER A/C AMP” on CONSULT-II, and perform self-diagnosis of unified meter and A/C amp.
Refer to DI-31, "
CONSULT-II Function" .
6. After erasing the self-diagnostic results, perform self-diagnosis again. When no malfunction detected, go
to next step 7. When malfunction detected, go to DI-16, "
Symptom Chart 2" in “COMBINATION METER”.
7. Check symptom and repair or replace the cause of malfunction.
8. Does the warning chime operate normally? If so, go to 9. If not, go to 7.
9. INSPECTION END
Terminal
No.Wire
colorItem Measuring condition
Reference value
Ignition
switchOperation or condition
5
B Ground ON — Approx. 0V
6
7 G/Y Ignition switch ON or START ON — Battery voltage
8 R/W Battery power supply OFF — Battery voltage
9LG/RSeat belt buckle switch
(driver side) ONUnfastened (ON) Approx. 0V
Fastened (OFF) Approx. 12V
13 L/BTX communication line (To
unified meter and A/C amp.)ON —
14 PURX communication line
(From unified meter and A/C
amp.)ON —
15 B Ground ON — Approx. 0V
SKIA3361E
SKIA3362E
Page 1308 of 4449

WARNING CHIME
DI-65
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2004 November 2004 FX35/FX45
Preliminary CheckAKS005NS
CHECK POWER SUPPLY AND GROUND CIRCUIT
1. CHECK FUSE AND FUSIBLE LINK
Check BCM fuses and fusible link for blown-out.
Refer to DI-59, "Wiring Diagram — CHIME —" .
OK or NG
OK >> GO TO 2.
NG >> If fuse or fusible link is blown, be sure to eliminate cause of malfunction before installing new fuse
or fusible link. Refer to PG-3, "
POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT
1. Disconnect BCM connector.

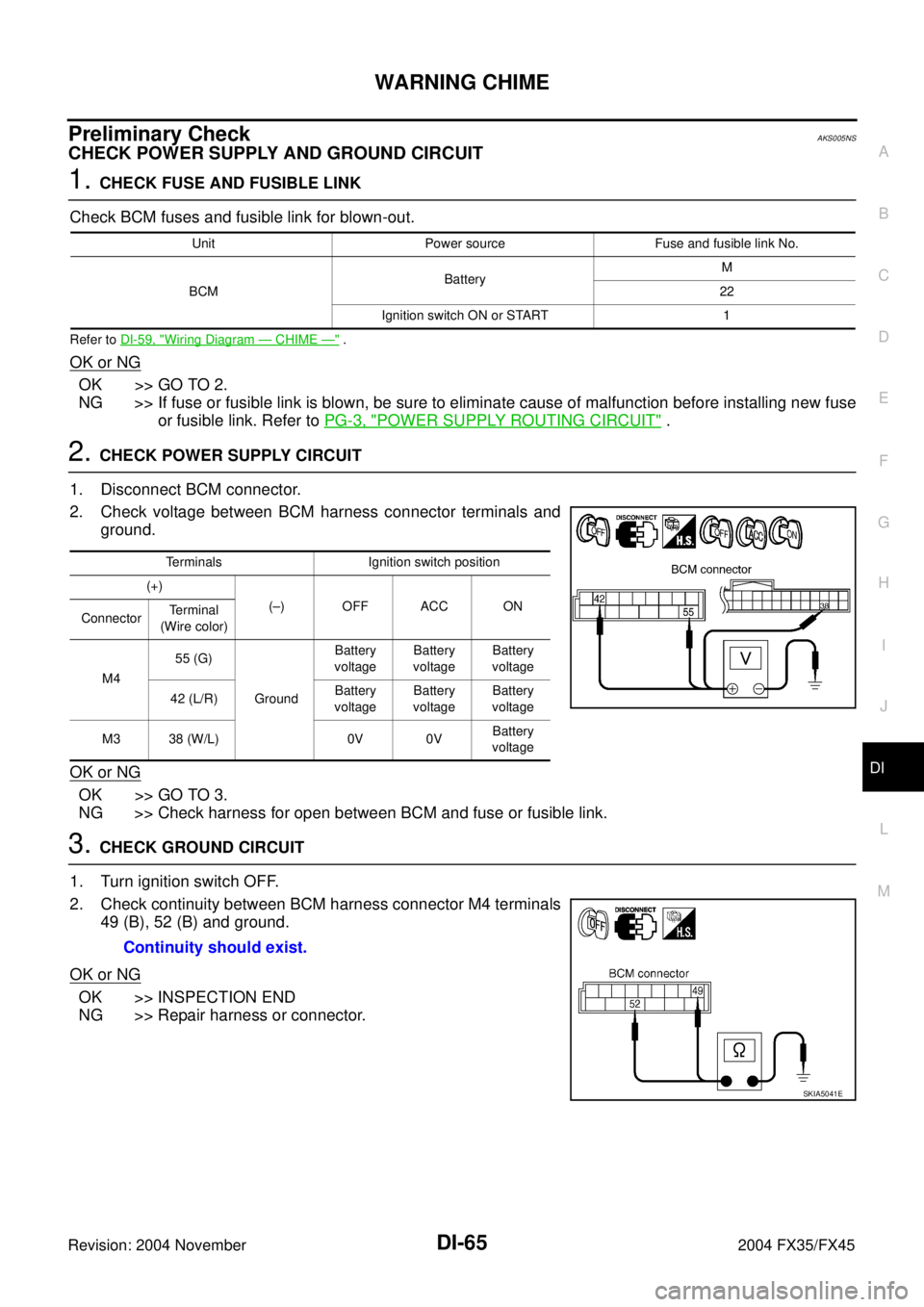

2. Check voltage between BCM harness connector terminals and
ground.
OK or NG
OK >> GO TO 3.
NG >> Check harness for open between BCM and fuse or fusible link.
3. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Check continuity between BCM harness connector M4 terminals
49 (B), 52 (B) and ground.
OK or NG
OK >> INSPECTION END
NG >> Repair harness or connector.
Unit Power source Fuse and fusible link No.
BCMBatteryM
22
Ignition switch ON or START 1
Terminals Ignition switch position
(+)
(–) OFF ACC ON
ConnectorTerminal
(Wire color)
M455 (G)
GroundBattery
voltageBattery
voltageBattery
voltage
42 (L/R)Battery
voltageBattery
voltageBattery
voltage
M3 38 (W/L) 0V 0VBattery
voltage
Continuity should exist.
SKIA5041E
Page 1309 of 4449

DI-66
WARNING CHIME
Revision: 2004 November 2004 FX35/FX45
CONSULT-II FunctionAKS005NT
CONSULT-II performs the following functions communicating with the BCM.
DIAGNOSTIC ITEMS DESCRIPTION
CONSULT-II BASIC OPERATION PROCEDURE
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.

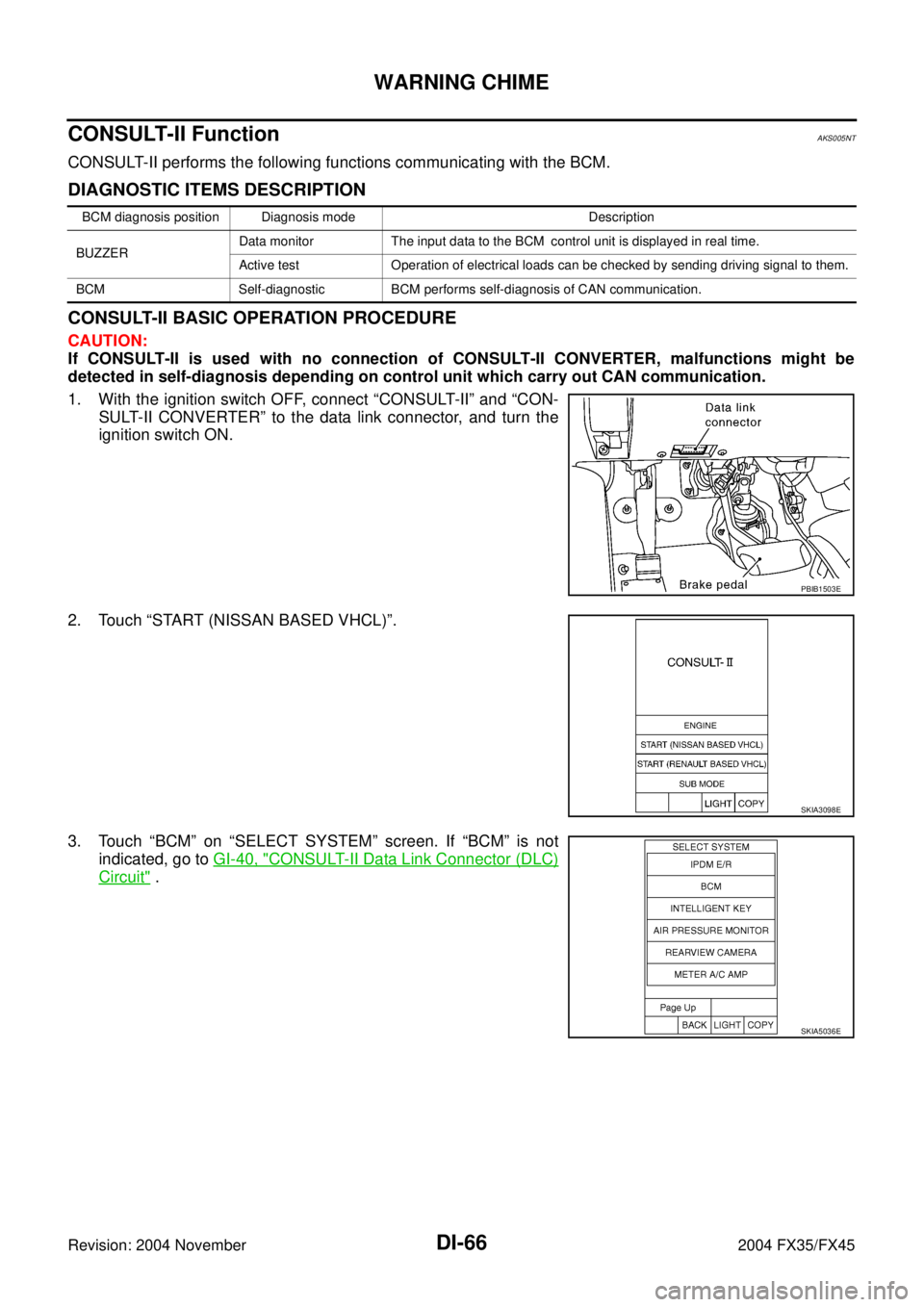

1. With the ignition switch OFF, connect “CONSULT-II” and “CON-
SULT-II CONVERTER” to the data link connector, and turn the
ignition switch ON.
2. Touch “START (NISSAN BASED VHCL)”.
3. Touch “BCM” on “SELECT SYSTEM” screen. If “BCM” is not
indicated, go to GI-40, "
CONSULT-II Data Link Connector (DLC)
Circuit" .
BCM diagnosis position Diagnosis mode Description
BUZZERData monitor The input data to the BCM control unit is displayed in real time.
Active test Operation of electrical loads can be checked by sending driving signal to them.
BCM Self-diagnostic BCM performs self-diagnosis of CAN communication.
PBIB1503E
SKIA3098E
SKIA5036E
Page 1310 of 4449

WARNING CHIME
DI-67
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2004 November 2004 FX35/FX45
4. Touch “BUZZER” or “BCM”.
5. Select “DATA MONITOR”, “ACTIVE TEST” or “SELF-DIAG
RESULTS”.
DATA MONITOR
Operation Procedure
1. Touch “BUZZER” on “SELECT TEST ITEM” screen.
2. Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.
3. Touch “ALL SIGNALS” or “SELECTION FROM MENU” on “DATA MONITOR” screen.
4. If “SELECTION FROM MENU” is selected, touch the desired monitor item. If “ALL SIGNALS” is selected,
all items required to control are monitored.
5. Touch “START”.
6. During monitoring, touching “RECORD” can start recording the monitored item status.
Data Monitor Item
ACTIVE TEST
Operation Procedure
1. Touch “BUZZER” on “SELECT TEST ITEM” screen.
2. Touch “ACTIVE TEST” on “SELECT DIAG MODE” screen.
3. Touch the item to be tested, and check the operation.
4. During the operation check, touching “OFF” deactivates the operation.
Active Test Item
SELF-DIAGNOSTIC RESULTS
Operation Procedure
1. Touch “BCM” on “SELECT TEST ITEM” screen.
2. Touch “SELF-DIAG RESULTS” on “SELECT DIAG MODE” screen.
3. Self-diagnostic results are displayed.
SKIA5788E
ALL SIGNALS Monitors main items.
SELECTION FROM MENU Selects and monitors items.
Monitored item [Unit] ALL SIGNALSSELECTION
FROM MENUContents
IGN ON SW [ON/OFF] X X Indicates [ON/OFF] condition of ignition switch.
KEY ON SW [ON/OFF] X X Indicates [ON/OFF] condition of key switch.
DOOR SW-DR [ON/OFF] X X Indicates [ON/OFF] condition of front door switch (driver side).
TAIL LAMP SW [ON/OFF] X X Indicates [ON/OFF] condition of lighting switch.
Test item Malfunction is detected when···
LIGHT WARN ALMThis test is able to check light warning chime operation. Light warning chime sounds for 2 seconds
after touching “ON” on CONSULT-ll screen.
IGN KEY WARN ALMThis test is able to check key warning chime operation. Key warning chime sounds for 2 seconds
after touching “ON” on CONSULT-ll screen.
SEAT BELT WARN TESTThis test is able to check seat belt warning chime operation. Seat belt warning chime sounds for 2
seconds after touching “ON” on CONSULT-ll screen.
Page 1311 of 4449
![INFINITI FX35 2004 Service Manual DI-68
WARNING CHIME
Revision: 2004 November 2004 FX35/FX45
Display Item List
NOTE:
If “CAN communication [U1000]” is indicated, after printing the monitor item, go to “CAN system”. Refer to
LA INFINITI FX35 2004 Service Manual DI-68
WARNING CHIME
Revision: 2004 November 2004 FX35/FX45
Display Item List
NOTE:
If “CAN communication [U1000]” is indicated, after printing the monitor item, go to “CAN system”. Refer to
LA](/manual-img/42/57021/w960_57021-1310.png)
DI-68
WARNING CHIME
Revision: 2004 November 2004 FX35/FX45
Display Item List
NOTE:
If “CAN communication [U1000]” is indicated, after printing the monitor item, go to “CAN system”. Refer to
LAN-4, "
Precautions When Using CONSULT-II" .
All Warnings Are Not OperatedAKS005NU
1. CHECK CHIME OPERATION

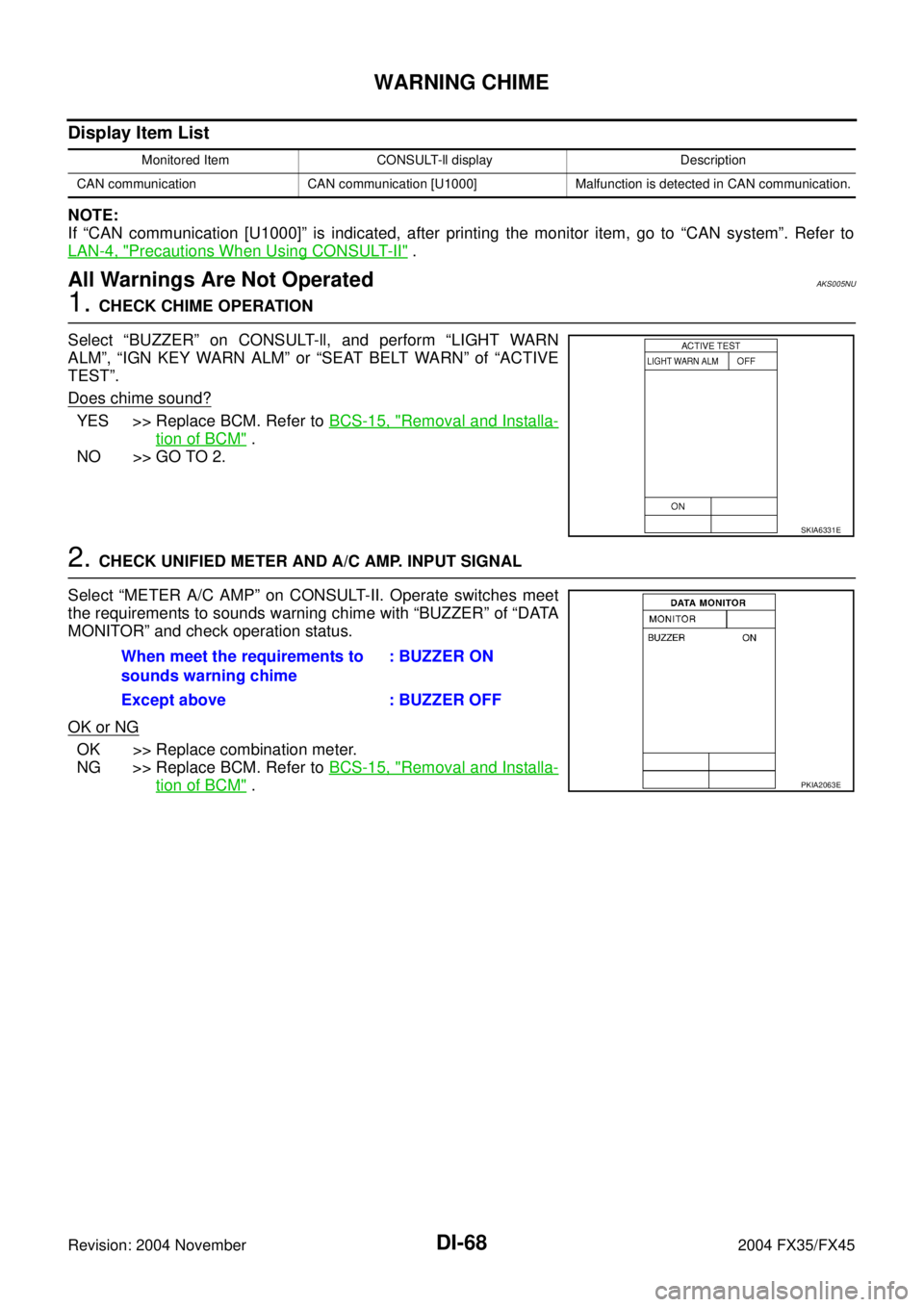

Select “BUZZER” on CONSULT-ll, and perform “LIGHT WARN
ALM”, “IGN KEY WARN ALM” or “SEAT BELT WARN” of “ACTIVE
TEST”.
Does chime sound?
YES >> Replace BCM. Refer to BCS-15, "Removal and Installa-
tion of BCM" .
NO >> GO TO 2.
2. CHECK UNIFIED METER AND A/C AMP. INPUT SIGNAL
Select “METER A/C AMP” on CONSULT-II. Operate switches meet
the requirements to sounds warning chime with “BUZZER” of “DATA
MONITOR” and check operation status.
OK or NG
OK >> Replace combination meter.
NG >> Replace BCM. Refer to BCS-15, "
Removal and Installa-
tion of BCM" .
Monitored Item CONSULT-ll display Description
CAN communication CAN communication [U1000] Malfunction is detected in CAN communication.
SKIA6331E
When meet the requirements to
sounds warning chime: BUZZER ON
Except above : BUZZER OFF
PKIA2063E
Page 1312 of 4449

WARNING CHIME
DI-69
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2004 November 2004 FX35/FX45
Key Warning Chime and Light Warning Chime Does Not Operate (Seat Belt
Warning Chime Does Operate)
AKS005NV
1. CHECK BCM INPUT SIGNAL
With CONSULT-ll
1. Select “BCM”.

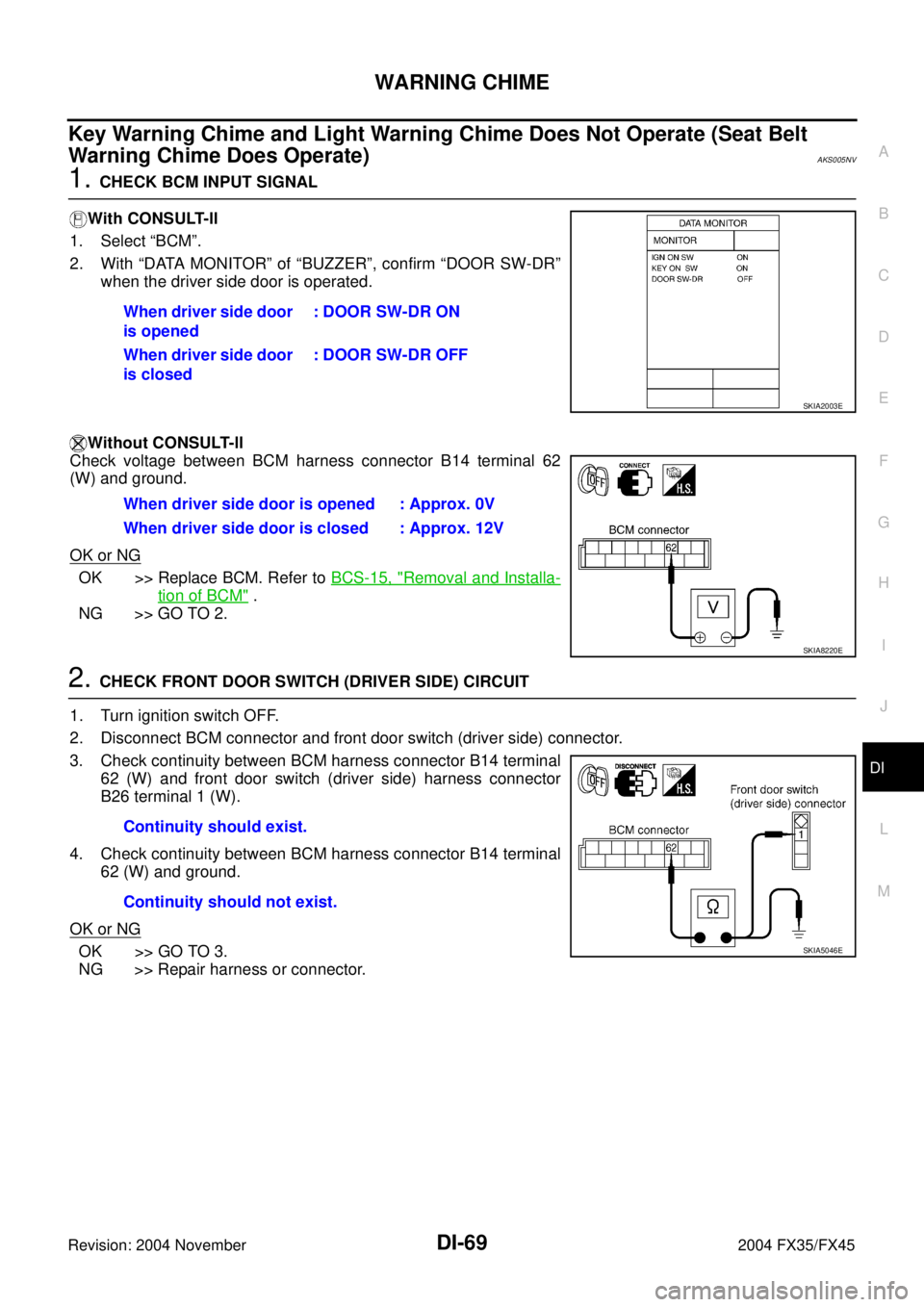

2. With “DATA MONITOR” of “BUZZER”, confirm “DOOR SW-DR”
when the driver side door is operated.
Without CONSULT-ll
Check voltage between BCM harness connector B14 terminal 62
(W) and ground.
OK or NG
OK >> Replace BCM. Refer to BCS-15, "Removal and Installa-
tion of BCM" .
NG >> GO TO 2.
2. CHECK FRONT DOOR SWITCH (DRIVER SIDE) CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector and front door switch (driver side) connector.
3. Check continuity between BCM harness connector B14 terminal
62 (W) and front door switch (driver side) harness connector
B26 terminal 1 (W).
4. Check continuity between BCM harness connector B14 terminal
62 (W) and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.When driver side door
is opened: DOOR SW-DR ON
When driver side door
is closed: DOOR SW-DR OFF
SKIA2003E
When driver side door is opened : Approx. 0V
When driver side door is closed : Approx. 12V
SKIA8220E
Continuity should exist.
Continuity should not exist.
SKIA5046E
