Page 4057 of 4449
RFD-30
REAR FINAL DRIVE ASSEMBLY
Revision: 2004 November 2004 FX35/FX45
12. Install rear cover. Apply liquid sealant to rear cover side and
install gear carrier.
SDIA0970E
Page 4058 of 4449

SERVICE DATA AND SPECIFICATIONS (SDS)
RFD-31
C
E
F
G
H
I
J
K
L
MA
B
RFD
Revision: 2004 November 2004 FX35/FX45
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
General SpecificationsADS000JV
Drive Gear RunoutADS000JW
Unit: mm (in)
Side Gear Adjustment ADS000JX
Unit: mm (in)
AVAILABLE SIDE GEAR THRUST WASHERS
Unit: mm (in)
*: Always check with the Parts Department for the latest parts information.
Drive Pinion Height AdjustmentADS000JY
AVAILABLE PINION HEIGHT ADJUSTING WASHERS
Unit: mm (in)
*: Always check with the Parts Department for the latest parts information.
Drive Pinion Preload AdjustmentADS000JZ
Applied modelVQ35DE engine VK45DE engine
5A/T
Final drive model R200 (2-pinion)
Gear ratio 3.357 (2WD), 3.692 (AWD) 3.692
Number of teeth (Drive gear/drive pinion) 47/14 (2WD), 48/13 (AWD) 48/13
Oil capacity (Approx.) (US qt, lmp qt)1.4 (3, 2-1/2) 1.4 (3, 2-1/2)
Type R200
Drive gear runout limit 0.05 (0.0020) or less
Type R200
Clearance limit between side gear thrust washer and differential
case mm (in)0.20 (0.0079) less
Type R20 0
Thrust washerThickness Part number*
0.75 (0.0295) 38424 0C000
0.78 (0.0307) 38424 0C001
0.81 (0.0319) 38424 0C002
0.84 (0.0331) 38424 0C003
0.87 (0.0343) 38424 0C004
0.90 (0.0350) 38424 0C005
0.93 (0.0366) 38424 0C006
Type R200
Adjusting washerThickness Part number* Thickness Part number*
3.05 (0.1201) 38154 0C000 3.17 (0.1248) 38154 0C004
3.08 (0.1213) 38154 0C001 3.20 (0.1260) 38154 0C005
3.11 (0.1224) 38154 0C002 3.23 (0.1272) 38154 0C006
3.14 (0.1236) 38154 0C003 3.26 (0.1283) 38154 0C007
Type R200
Drive pinion preload 2.65 − 3.23 N·m (0.27 − 0.32 kg−m, 24 − 28 in-lb)
Page 4059 of 4449

RFD-32
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2004 November 2004 FX35/FX45
Side Bearing Preload Adjustment ADS000K0
SIDE BEARING ADJUSTING WASHERS
Unit: mm (in)
*: Always check with the Parts Department for the latest parts information.
Total Preload AdjustmentADS000K1
Companion FlangeADS000OC
Type R200
Side bearing preload 0.20 − 0.52 N·m (0.02 − 0.05 kg−m, 2 − 4 in-lb)
Torque by spring gauge 34.2 − 39.2 N (3.5 − 4.0 kg, 7.7 − 8.8 lb)
Type R200
Adjusting washerThickness Part number* Thickness Part number*
2.00 (0.0787) 38453 N3100 2.35 (0.0925) 38453 N3107
2.05 (0.0807) 38453 N3101 2.40 (0.0945) 38453 N3108
2.10 (0.0827) 38453 N3102 2.45 (0.0965) 38453 N3109
2.15 (0.0846) 38453 N3103 2.50 (0.0984) 38453 N3110
2.20 (0.0866) 38453 N3104 2.55 (0.1004) 38453 N3111
2.25 (0.0886) 38453 N3105 2.60 (0.1024) 38453 N3112
2.30 (0.0906) 38453 N3106 2.65 (0.1043) 38453 N3113
Type R200
Total preload (with oil seal) 2.84 − 3.75 N·m (0.29 − 0.38 kg−m, 26 − 33 in-lb)
Drive gear to drive pinion backlash 0.10 − 0.15 mm (0.0039 − 0.0059 in)
Type R200
Runout limit0.13 mm (0.0051 in)
Page 4060 of 4449

RSU-1
REAR SUSPENSION
E SUSPENSION
CONTENTS
C
D
F
G
H
I
J
K
L
M
SECTION RSU
A
B
RSU
Revision: 2004 November 2004 FX35/FX45
REAR SUSPENSION
PRECAUTIONS .......................................................... 2
Cautions ................................................................... 2
PREPARATION ........................................................... 3
Special Service Tools (SST) ..................................... 3
Commercial Service Tools ........................................ 3
NOISE, VIBRATION AND HARSHNESS (NVH)
TROUBLESHOOTING ................................................ 4
NVH Troubleshooting Chart ..................................... 4
REAR SUSPENSION ASSEMBLY ............................. 5
On-Vehicle Inspection and Service .......................... 5
INSPECTION OF SUSPENSION ARM BALL
JOINT END PLAY ................................................. 5
SHOCK ABSORBER INSPECTION ..................... 5
Wheel Alignment Inspection ..................................... 5
DESCRIPTION ...................................................... 5
PRELIMINARY CHECK ........................................ 5
CAMBER INSPECTION ........................................ 5
TOE-IN .................................................................. 6
Components ............................................................. 7
Removal and Installation .......................................... 8
REMOVAL ............................................................. 8
INSTALLATION ..................................................... 8
SHOCK ABSORBER .................................................. 9
Removal and Installation .......................................... 9
REMOVAL ............................................................. 9
INSPECTION AFTER REMOVAL ......................... 9
INSTALLATION ..................................................... 9
Disassembly and Assembly ..................................... 9
DISASSEMBLY ..................................................... 9
INSPECTION AFTER DISASSEMBLY ............... 10
ASSEMBLY ......................................................... 10SUSPENSION ARM .................................................. 11
Removal and Installation ........................................ 11
REMOVAL ........................................................... 11
INSPECTION AFTER REMOVAL ....................... 11
INSTALLATION ................................................... 12
RADIUS ROD ............................................................ 13
Removal and Installation ........................................ 13
REMOVAL ........................................................... 13
INSPECTION AFTER REMOVAL ....................... 13
INSTALLATION ................................................... 13
FRONT LOWER LINK .............................................. 14
Removal and Installation ........................................ 14
REMOVAL ........................................................... 14
INSPECTION AFTER REMOVAL ....................... 14
INSTALLATION ................................................... 14
REAR LOWER LINK & COIL SPRING ..................... 15
Removal and Installation ........................................ 15
REMOVAL ........................................................... 15
INSPECTION AFTER REMOVAL ....................... 15
INSTALLATION ................................................... 15
STABILIZER BAR ..................................................... 16
Removal and Installation ........................................ 16
REMOVAL ........................................................... 16
INSPECTION AFTER REMOVAL ....................... 16
INSTALLATION ................................................... 16
REAR SUSPENSION MEMBER ............................... 17
Removal and Installation ........................................ 17
REMOVAL ........................................................... 17
INSPECTION AFTER REMOVAL ....................... 17
INSTALLATION ................................................... 17
SERVICE DATA ........................................................ 18
Wheel Alignment .................................................... 18
Ball Joint ................................................................. 18
Wheelarch Height (Unladen*) ................................. 18
Page 4061 of 4449
RSU-2
PRECAUTIONS
Revision: 2004 November 2004 FX35/FX45
PRECAUTIONSPFP:00001
CautionsAES000MF
When installing rubber bushings, final tightening must be carried out under unladen conditions with tires
on level ground. Oil will shorten the life of rubber bushings. Be sure to wipe off any spilled oil.
Unladen conditions means that fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and
mats are in designated positions.
After servicing suspension parts, be sure to check wheel alignment.
Caulking nuts are not reusable. Always use new ones when installing. Since new caulking nuts are pre-
oiled, tighten as they are.
Page 4062 of 4449
PREPARATION
RSU-3
C
D
F
G
H
I
J
K
L
MA
B
RSU
Revision: 2004 November 2004 FX35/FX45

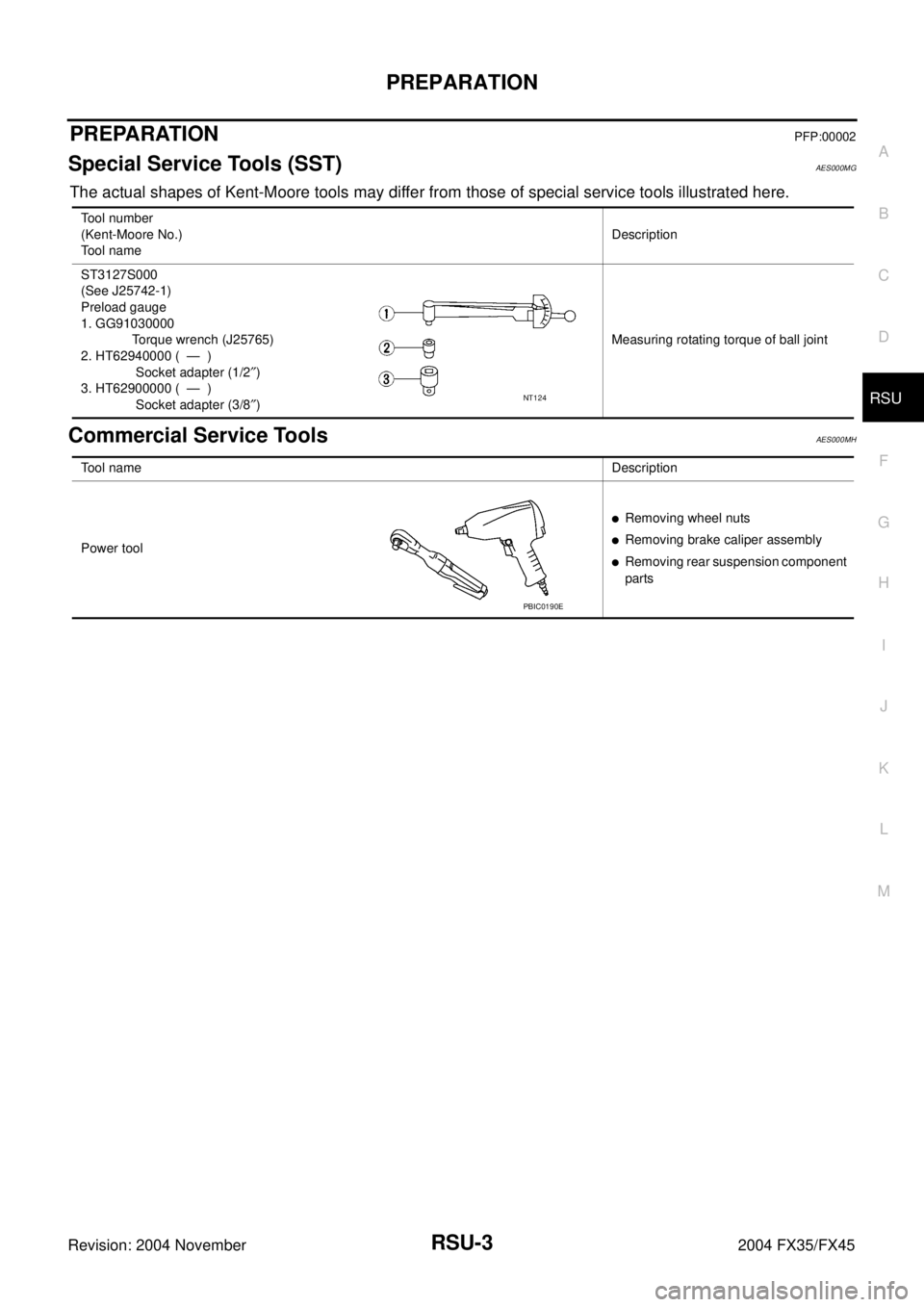

PREPARATIONPFP:00002
Special Service Tools (SST)AES000MG
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
Commercial Service ToolsAES000MH
Tool number
(Kent-Moore No.)
Tool nameDescription
ST3127S000
(See J25742-1)
Preload gauge
1. GG91030000
Torque wrench (J25765)
2. HT62940000 ( — )
Socket adapter (1/2″)
3. HT62900000 ( — )
Socket adapter (3/8″)Measuring rotating torque of ball joint
NT124
Tool nameDescription
Power tool
Removing wheel nuts
Removing brake caliper assembly
Removing rear suspension component
parts
PBIC0190E
Page 4063 of 4449

RSU-4
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING
Revision: 2004 November 2004 FX35/FX45
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTINGPFP:00003
NVH Troubleshooting ChartAES000MI
Use chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.
×: ApplicableReference page
RSU-7RSU-9—
—
—
RSU-7RSU-5RSU-16
NVH in PR section
NVH in RFD section
NVH in FAX and FSU section
NVH in WT section
NVH in WT section
NVH in RAX section
NVH in BR section
NVH in PS section
Possible cause and SUSPECTED PARTS
Improper installation, looseness
Shock absorber deformation, damage or deflection
Bushing or mounting deterioration
Parts interference
Spring fatigue
Suspension looseness
Incorrect wheel alignment
Stabilizer bar fatigue
PROPELLER SHAFT
DIFFERENTIAL
FRONT AXLE AND FRONT SUSPENSION
TIRES
ROAD WHEEL
DRIVE SHAFT
BRAKES
STEERING
Symptom REAR SUSPENSIONNoise×××××× ××××××××
Shake×××× × × ××××××
Vibration××××× × ×× × ×
Shimmy×××× × ××× ××
Judder ××× ××× ××
Poor quality ride or
handling××××× ×× ×××
Page 4064 of 4449

REAR SUSPENSION ASSEMBLY
RSU-5
C
D
F
G
H
I
J
K
L
MA
B
RSU
Revision: 2004 November 2004 FX35/FX45
REAR SUSPENSION ASSEMBLYPFP:55020
On-Vehicle Inspection and ServiceAES000MJ
Make sure the mounting conditions (looseness, back lash) of each component and component status (wear,
damage) are normal.
INSPECTION OF SUSPENSION ARM BALL JOINT END PLAY
Measure axial end play by installing and moving up/down between suspension arm and axle with an iron pry
bar or something similar.
CAUTION:
Be careful not to damage ball joint boot.
SHOCK ABSORBER INSPECTION
Check shock absorber for oil leakage, damage and replace if necessary.
Wheel Alignment InspectionAES000MK
DESCRIPTION
Measure wheel alignment under unladen conditions. “Unladen conditions” mean that fuel, engine coolant, and
lubricant are full. Spare tire, jack, hand tools and mats are in designated positions.
PRELIMINARY CHECK
1. Check tires for improper air pressure and wear.
2. Check road wheels for runout.
3. Check wheel bearing axial end play.
4. Check suspension arm ball joint axial end play.
5. Check shock absorber operation.
6. Check each mounting part of axle and suspension for looseness and deformation.
7. Check each link, arm and member for cracks, deformation, and other damage.
8. Check vehicle posture.
CAMBER INSPECTION
Measure camber of both right and left wheels with a suitable align-
ment gauge and adjust in accordance with the following procedures.
If outside the standard value, adjust with adjusting bolt in front lower
link.
NOTE:
After adjusting camber, be sure to check toe-in.Axial end play : 0 mm (0 in)
Camber : Refer to RSU-18, "
Wheel Alignment" .
SRA096A
SEIA0318E
