31. Install parking gear to output shaft.
32. Install output shaft in transmission case.
CAUTION:
Be careful not to mistake front for rear because both sides
looks similar. (Thinner end is front side.)
33. Install bearing race to output shaft.
34. Install rear extension assembly (2WD models) or adapter case assembly (AWD models) according to the
following procedures.
a.2WD models
i. Apply recommended sealant (Genuine Anaerobic Liquid Gasket
or equivalent. Refer to GI-48, "
Recommended Chemical Prod-
ucts and Sealants" .) to rear extension assembly as shown in
illustration.
CAUTION:
Completely remove all moisture, oil and old sealant, etc.
from the transmission case and rear extension assembly
mounting surfaces.
SCIA5247E
SCIA5030E
SCIA5245E
SCIA5212E
Page 410 of 4449
ASSEMBLY
AT-333
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2004 November 2004 FX35/FX45
ii. Install rear extension assembly to transmission case.
CAUTION:
Insert the tip of parking rod between the parking pawl and
the parking actuator support when assembling the rear
extension assembly.
iii. Tighten rear extension assembly mounting bolts to specified
torque.
CAUTION:
Do not reuse self-sealing bolt.
b.AWD models
i. Install gasket onto transmission case.
CAUTION:
Completely remove all moisture, oil and old gasket, etc.
from the transmission case and adapter case assembly
mounting surfaces.
Do not reuse gasket.
ii. Install adapter case assembly to transmission case.
CAUTION:
Insert the tip of parking rod between the parking pawl and
the parking actuator support when assembling the adapter
case assembly.
SCIA5029E
Rear extension assembly mounting bolt:
: 52 N·m (5.3 kg-m, 38 ft-lb)
Self-sealing bolt:
: 61 N·m (6.2 kg-m, 45 ft-lb)
SCIA3426E
SCIA5231E
SCIA5186E
Page 411 of 4449
AT-334
ASSEMBLY
Revision: 2004 November 2004 FX35/FX45
iii. Tighten adapter case assembly mounting bolts to specified
torque. (With bracket.)
CAUTION:
Do not reuse self-sealing bolt.
35. Install needle bearing in drum support.
CAUTION:
Apply petroleum jelly to needle bearing.
36. Install direct clutch assembly in reverse brake.
CAUTION:
Make sure that drum support edge surface and direct clutch
inner boss edge surface come to almost same place.
37. Install high and low reverse clutch assembly in direct clutch.Adapter case assembly mounting bolt:
: 52 N·m (5.3 kg-m, 38 ft-lb)
Self-sealing bolt:
: 61 N·m (6.2 kg-m, 45 ft-lb)
SCIA5182E
SCIA5198E
SCIA5019E
SCIA2306E
Page 412 of 4449
ASSEMBLY
AT-335
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2004 November 2004 FX35/FX45
38. Using a flat-bladed screwdriver, adjust the drive plate.
39. Install high and low reverse clutch hub, mid sun gear assembly
and rear sun gear assembly in high and low reverse clutch.
CAUTION:
Check that portion A of high and low reverse clutch drum
protrudes approximately 2 mm (0.08 in) beyond portion B of
rear sun gear.
40. Install needle bearing in rear carrier assembly.
CAUTION:
Apply petroleum jelly to needle bearing.
SCIA3169E
SCIA5018E
SCIA3130E
SCIA2803E
Page 413 of 4449
AT-336
ASSEMBLY
Revision: 2004 November 2004 FX35/FX45

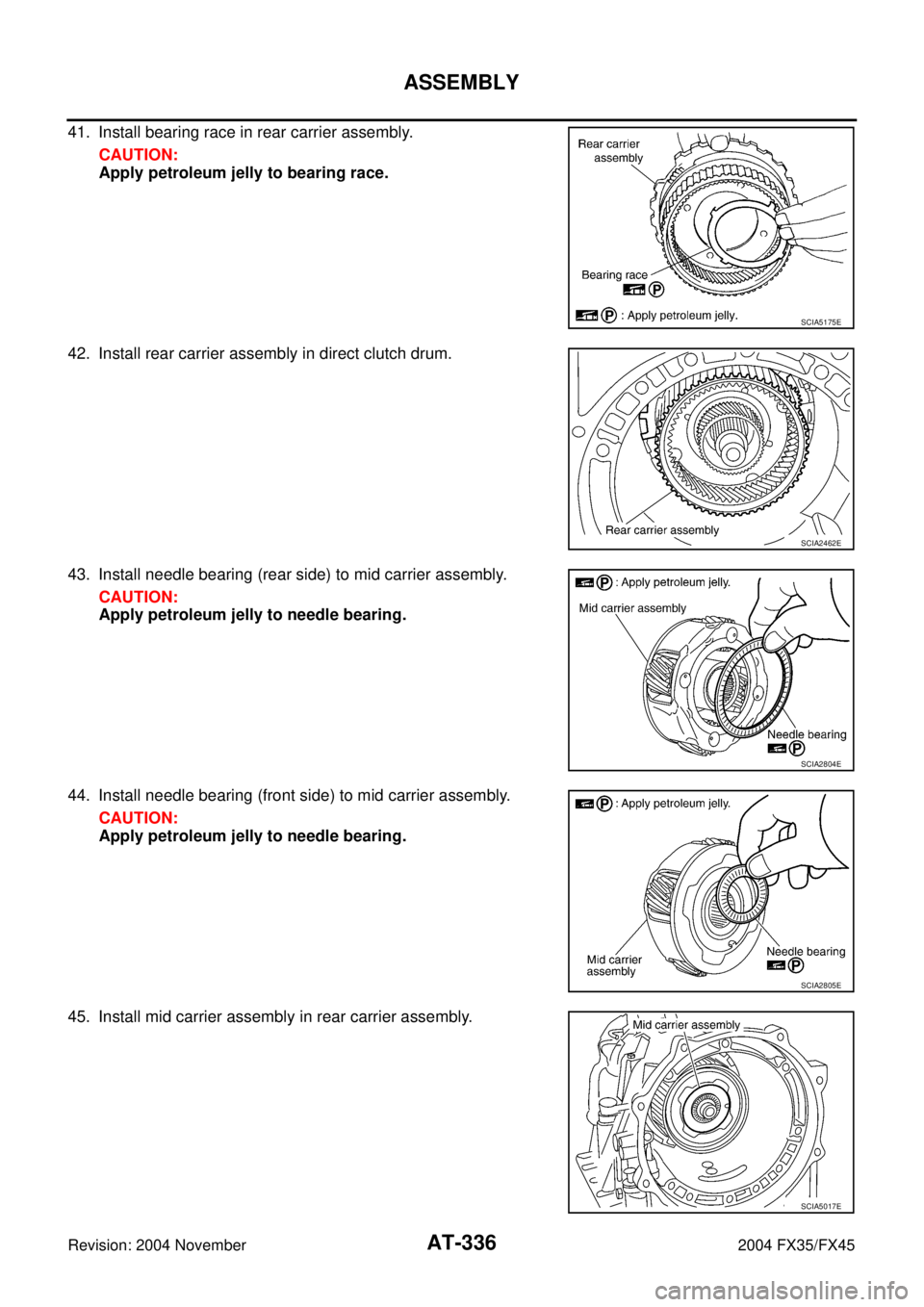

41. Install bearing race in rear carrier assembly.
CAUTION:
Apply petroleum jelly to bearing race.
42. Install rear carrier assembly in direct clutch drum.
43. Install needle bearing (rear side) to mid carrier assembly.
CAUTION:
Apply petroleum jelly to needle bearing.
44. Install needle bearing (front side) to mid carrier assembly.
CAUTION:
Apply petroleum jelly to needle bearing.
45. Install mid carrier assembly in rear carrier assembly.
SCIA5175E
SCIA2462E
SCIA2804E
SCIA2805E
SCIA5017E
Page 414 of 4449
ASSEMBLY
AT-337
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2004 November 2004 FX35/FX45
46. Install front carrier assembly (With input clutch assembly and
rear internal gear.) to rear carrier assembly.
47. Install seal rings in input clutch assembly.
CAUTION:
Do not reuse seal rings.
Apply petroleum jelly to seal rings.
48. Install band servo anchor end pin and lock nut in transmission
case.
CAUTION:
Do not reuse band servo anchor end pin.
49. Install brake band in transmission case.
CAUTION:
Assemble it so that identification to avoid incorrect installa-
tion faces servo side.
50. Install front sun gear to front carrier assembly.
CAUTION:
Apply ATF to front sun gear bearing and 3rd one-way clutch
end bearing.
SCIA5015E
SCIA2470E
SCIA5016E
SCIA5498E
SCIA5014E
Page 415 of 4449
AT-338
ASSEMBLY
Revision: 2004 November 2004 FX35/FX45
51. Install needle bearing to front sun gear.
CAUTION:
Apply petroleum jelly to needle bearing.
52. Adjust brake band tilting using clips so that brake band contacts
front sun gear drum evenly.
53. Adjust brake band.
a. Loosen lock nut.
b. Tighten band servo anchor end pin to specified torque.
c. Back of band servo anchor end pin three turns.
d. Holding band servo anchor end pin, tighten lock nut to specified
torque.
AdjustmentACS007HE
TOTAL END PLAY
Measure clearance between front sun gear and bearing race for
oil pump cover.
Select proper thickness of bearing race so that end play is within
specifications.
SCIA2808E
SCIA5033E
: 5.0 N·m (0.51 kg-m, 44 in-lb)
: 46 N·m (4.7 kg-m, 34 ft-lb)
SCIA5498E
SCIA2810E
Page 416 of 4449
ASSEMBLY
AT-339
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2004 November 2004 FX35/FX45
1. Measure dimensions “K” and “L” and then calculate dimension
“J”.
a. Measure dimension “K”.
b. Measure dimension “L”.
c. Calculate dimension “J”.
2. Measure dimensions “M
1 ” and “M2 ” and then calculate dimen-
sion “M”.
a. Place bearing race and needle bearing on oil pump assembly.
SCIA5350E
SCIA5351E
“J”: Distance between oil pump fitting surface of
transmission case and needle bearing mating surface
of front sun gear.
J = K – L
SCIA5352E
SCIA3125E
SCIA3124E
