EC-1308
[VK45DE]
ASCD BRAKE SWITCH
Revision: 2004 November 2004 FX35/FX45
11 . DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E211, M41
Joint connector-2
Harness for open or short between ECM and stop lamp switch
>> Repair open circuit or short to ground or short to power in harness or connectors.
12. CHECK STOP LAMP SWITCH
Refer to EC-1206, "
Component Inspection"
OK or NG
OK >> GO TO 13.
NG >> Replace stop lamp switch.
13. CHECK INTERMITTENT INCIDENT
Refer to EC-784, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionABS00CFG
ASCD BRAKE SWITCH
1. Turn ignition switch OFF.
2. Disconnect ASCD brake switch harness connector.
3. Check harness continuity between ASCD brake switch terminals
1 and 2 under the following conditions.
If NG, adjust ASCD brake switch installation, refer to BR-6,
"BRAKE PEDAL" , and perform step 3 again.
STOP LAMP SWITCH
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch harness connector.
3. Check harness continuity between stop lamp switch terminals 1
and 2 under the following conditions.
If NG, adjust stop lamp switch installation, refer to BR-6,
"BRAKE PEDAL" , and perform step 3 again.
Condition Continuity
When brake pedal is fully released. Should exist.
When brake pedal is slightly depressed. Should not exist.
PBIB1536E
Condition Continuity
When brake pedal is fully released. Should not exist.
When brake pedal is slightly depressed. Should exist.
PBIB1535E
Page 2650 of 4449
![INFINITI FX35 2004 Service Manual ASCD INDICATOR
EC-1309
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
ASCD INDICATORPFP:24814
Component DescriptionABS00CFH
ASCD indicator lamp illuminates to indicate ASCD INFINITI FX35 2004 Service Manual ASCD INDICATOR
EC-1309
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
ASCD INDICATORPFP:24814
Component DescriptionABS00CFH
ASCD indicator lamp illuminates to indicate ASCD](/manual-img/42/57021/w960_57021-2649.png)
ASCD INDICATOR
EC-1309
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
ASCD INDICATORPFP:24814
Component DescriptionABS00CFH
ASCD indicator lamp illuminates to indicate ASCD operation status. Lamp has two indicators, CRUISE and
SET, and is integrated in combination meter.
CRUISE indicator illuminates when ON/OFF (MAIN) switch on ASCD steering switch is turned ON to indicated
that ASCD system is ready for operation.
SET indicator illuminates when following conditions are met.
CRUISE indicator is illuminated.
COAST/SET switch on ASCD steering switch is turned ON while vehicle speed is within the range of
ASCD setting.
SET indicator remains lit during ASCD control.
Refer to EC-1334, "
AUTOMATIC SPEED CONTROL DEVICE (ASCD)" for the ASCD function.
CONSULT-II Reference Value in Data Monitor ModeABS00CFI
Specification data are reference value.
MONITOR ITEM CONDITION SPECIFICATION
CRUISE LAMP
Ignition switch: ON
ON/OFF (MAIN) switch:
Pressed at the 1st time → at the
2nd timeON → OFF
SET LAMP
ON/OFF (MAIN) switch: ON
When vehicle speed is
between 40 km/h (25 MPH)
and 144 km/h (89 MPH)
ASCD is operating ON
ASCD is not operating OFF
Page 2651 of 4449
EC-1310
[VK45DE]
ASCD INDICATOR
Revision: 2004 November 2004 FX35/FX45

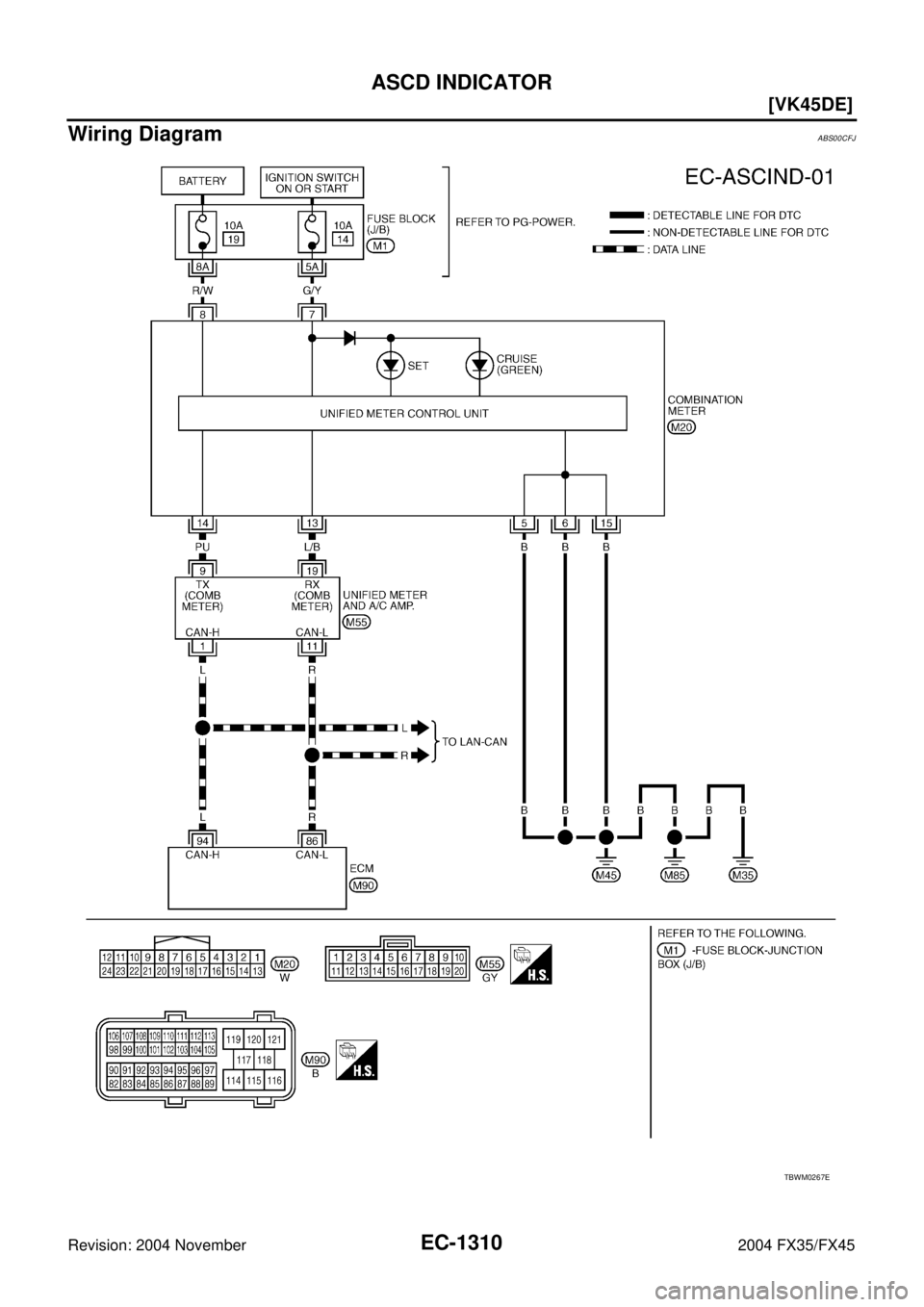

Wiring DiagramABS00CFJ
TBWM0267E
Page 2652 of 4449
![INFINITI FX35 2004 Service Manual ASCD INDICATOR
EC-1311
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
Diagnostic ProcedureABS00CFK
1. CHECK OVERALL FUNCTION
Check ASCD indicator under the following conditi INFINITI FX35 2004 Service Manual ASCD INDICATOR
EC-1311
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
Diagnostic ProcedureABS00CFK
1. CHECK OVERALL FUNCTION
Check ASCD indicator under the following conditi](/manual-img/42/57021/w960_57021-2651.png)
ASCD INDICATOR
EC-1311
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
Diagnostic ProcedureABS00CFK
1. CHECK OVERALL FUNCTION
Check ASCD indicator under the following conditions.
OK or NG
OK >>INSPECTION END
NG >> GO TO 2.
2. CHECK DTC
Check that DTC U1000 or U1001 is not displayed.
OK or NG
OK >> GO TO 3.
NG >> Perform trouble diagnosis for DTC U1000, U1001. Refer to EC-792, "
DTC U1000, U1001 CAN
COMMUNICATION LINE" .
3. CHECK DTC WITH “UNIFIED METER AND A/C AMP.”
Refer to DI-32, "
SELF-DIAGNOSTIC RESULTS" .
OK or NG
OK >> GO TO 4.
NG >> Go to DI-22, "
Communication Line Inspection" .
4. CHECK INTERMITTENT INCIDENT
Refer to EC-784, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
ASCD INDICATOR CONDITION SPECIFICATION
CRUISE LAMP
Ignition switch: ON
ON/OFF (MAIN) switch:
Pressed at the 1st time →
at the 2nd timeON → OFF
SET LAMP
ON/OFF (MAIN) switch: ON
When vehicle speed is
between 40 km/h (25 MPH)
and 144 km/h (89 MPH)
ASCD is operating ON
ASCD is not operating OFF
Page 2653 of 4449
![INFINITI FX35 2004 Service Manual EC-1312
[VK45DE]
SNOW MODE SWITCH
Revision: 2004 November 2004 FX35/FX45
SNOW MODE SWITCHPFP:25130
DescriptionABS00CFL
NOTE:
If DTC U1000 or U1001 are displayed, first perform the trouble diagnosis fo INFINITI FX35 2004 Service Manual EC-1312
[VK45DE]
SNOW MODE SWITCH
Revision: 2004 November 2004 FX35/FX45
SNOW MODE SWITCHPFP:25130
DescriptionABS00CFL
NOTE:
If DTC U1000 or U1001 are displayed, first perform the trouble diagnosis fo](/manual-img/42/57021/w960_57021-2652.png)
EC-1312
[VK45DE]
SNOW MODE SWITCH
Revision: 2004 November 2004 FX35/FX45
SNOW MODE SWITCHPFP:25130
DescriptionABS00CFL
NOTE:
If DTC U1000 or U1001 are displayed, first perform the trouble diagnosis for DTC U1000, U1001.
Refer to EC-792, "
DTC U1000, U1001 CAN COMMUNICATION LINE" .
The snow mode switch signal is sent to the “unified meter and A/C amp.” from the snow mode switch. The
“unified meter and A/C amp.” then sends the signal to the ECM by CAN communication line.
The snow mode is used for driving or starting the vehicle on snowy roads or slippery areas. If the snow mode
is activated, the vehicle speed will not be accelerated immediately than your original pedal in due to avoid the
vehicle slip. In other words, ECM controls the rapid engine torque change by controlling the electric throttle
control actuator operating speed.
CONSULT-II Reference Value in the Data Monitor ModeABS00CFM
MONITOR ITEM CONDITION SPECIFICATION
SNOW MODE SW
Ignition switch: ONSnow mode switch: ON ON
Snow mode switch: OFF OFF
Page 2654 of 4449
SNOW MODE SWITCH
EC-1313
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45

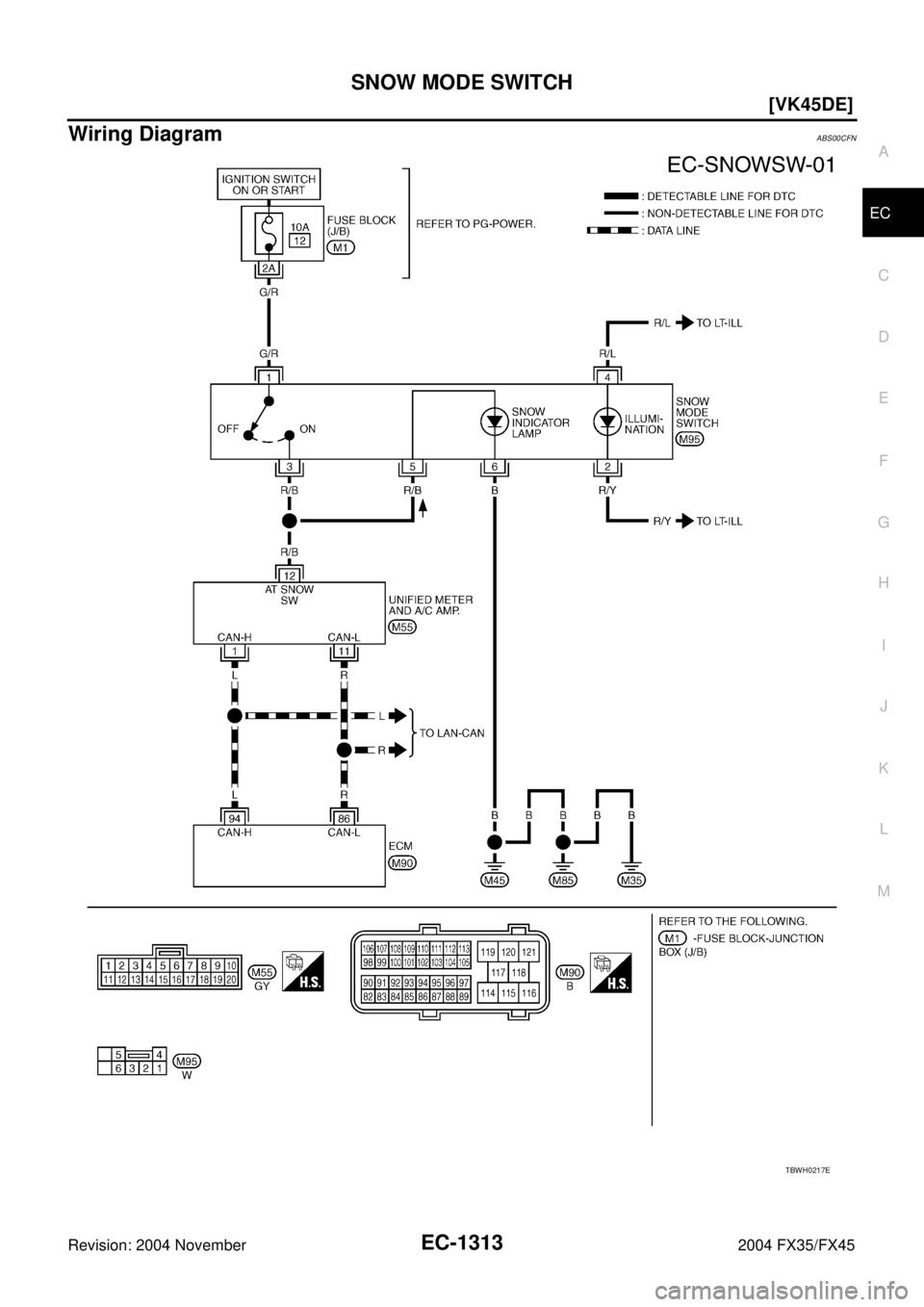

Wiring DiagramABS00CFN
TBWH0217E
Page 2655 of 4449
EC-1314
[VK45DE]
SNOW MODE SWITCH
Revision: 2004 November 2004 FX35/FX45
Diagnostic ProcedureABS00CFO
1. CHECK SNOW MODE SWITICH OVERALL FUNCTION-I
1. Turn ignition switch ON.
2. Select “SNOW MODE SW” in “DATA MONITOR” mode with
CONSULT-II.
3. Check “SNOW MODE SW” indication under the following condi-
tions.
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
2. CHECK SNOW MODE SWITICH OVERALL FUNCTION-II
1. Start engine.
2. Check the snow mode indicator in the snow mode switch under the following condition.
OK or NG
OK >>INSPECTION END
NG >> GO TO 3.
3. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body.
Refer to EC-791, "
Ground Inspection" .
OK or NG
OK >> GO TO 4.
NG >> Repair or replace ground connections.
CONDITION INDICATION
Snow mode switch: ON ON
Snow mode switch: OFF OFF
PBIB2009E
CONDITION INDICATION
Snow mode switch: ON ON
Snow mode switch: OFF OFF
PBIB2195E
Page 2656 of 4449
![INFINITI FX35 2004 Service Manual SNOW MODE SWITCH
EC-1315
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45

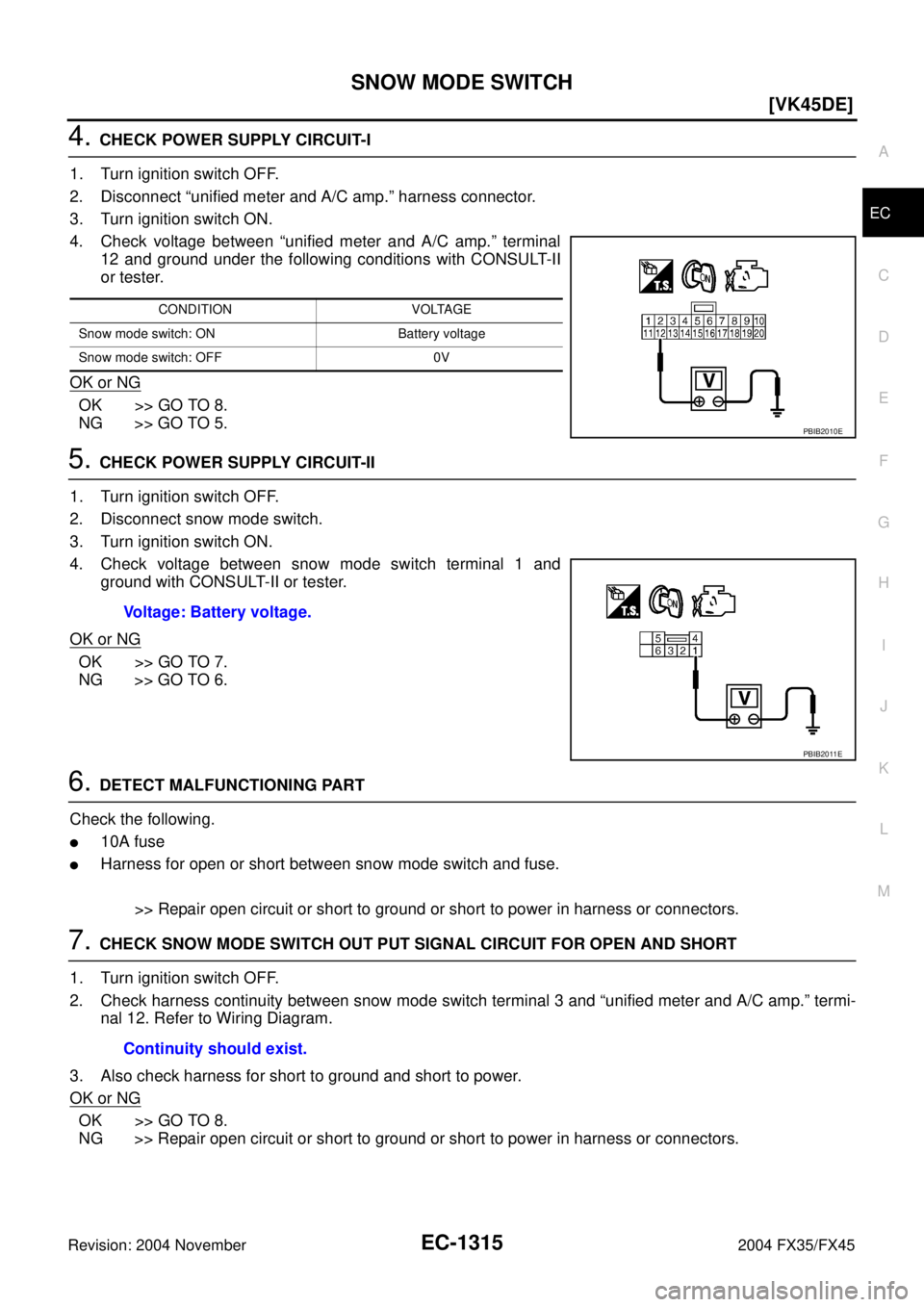

4. CHECK POWER SUPPLY CIRCUIT-I
1. Turn ignition switch OFF.
2. Disconnect “unified meter and A/C a INFINITI FX35 2004 Service Manual SNOW MODE SWITCH
EC-1315
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
4. CHECK POWER SUPPLY CIRCUIT-I
1. Turn ignition switch OFF.
2. Disconnect “unified meter and A/C a](/manual-img/42/57021/w960_57021-2655.png)
SNOW MODE SWITCH
EC-1315
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
4. CHECK POWER SUPPLY CIRCUIT-I
1. Turn ignition switch OFF.
2. Disconnect “unified meter and A/C amp.” harness connector.
3. Turn ignition switch ON.
4. Check voltage between “unified meter and A/C amp.” terminal
12 and ground under the following conditions with CONSULT-II
or tester.
OK or NG
OK >> GO TO 8.
NG >> GO TO 5.
5. CHECK POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect snow mode switch.
3. Turn ignition switch ON.
4. Check voltage between snow mode switch terminal 1 and
ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. DETECT MALFUNCTIONING PART
Check the following.
10A fuse
Harness for open or short between snow mode switch and fuse.
>> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK SNOW MODE SWITCH OUT PUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Check harness continuity between snow mode switch terminal 3 and “unified meter and A/C amp.” termi-
nal 12. Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
CONDITION VOLTAGE
Snow mode switch: ON Battery voltage
Snow mode switch: OFF 0V
PBIB2010E
Voltage: Battery voltage.
PBIB2011E
Continuity should exist.
