Page 3441 of 4449

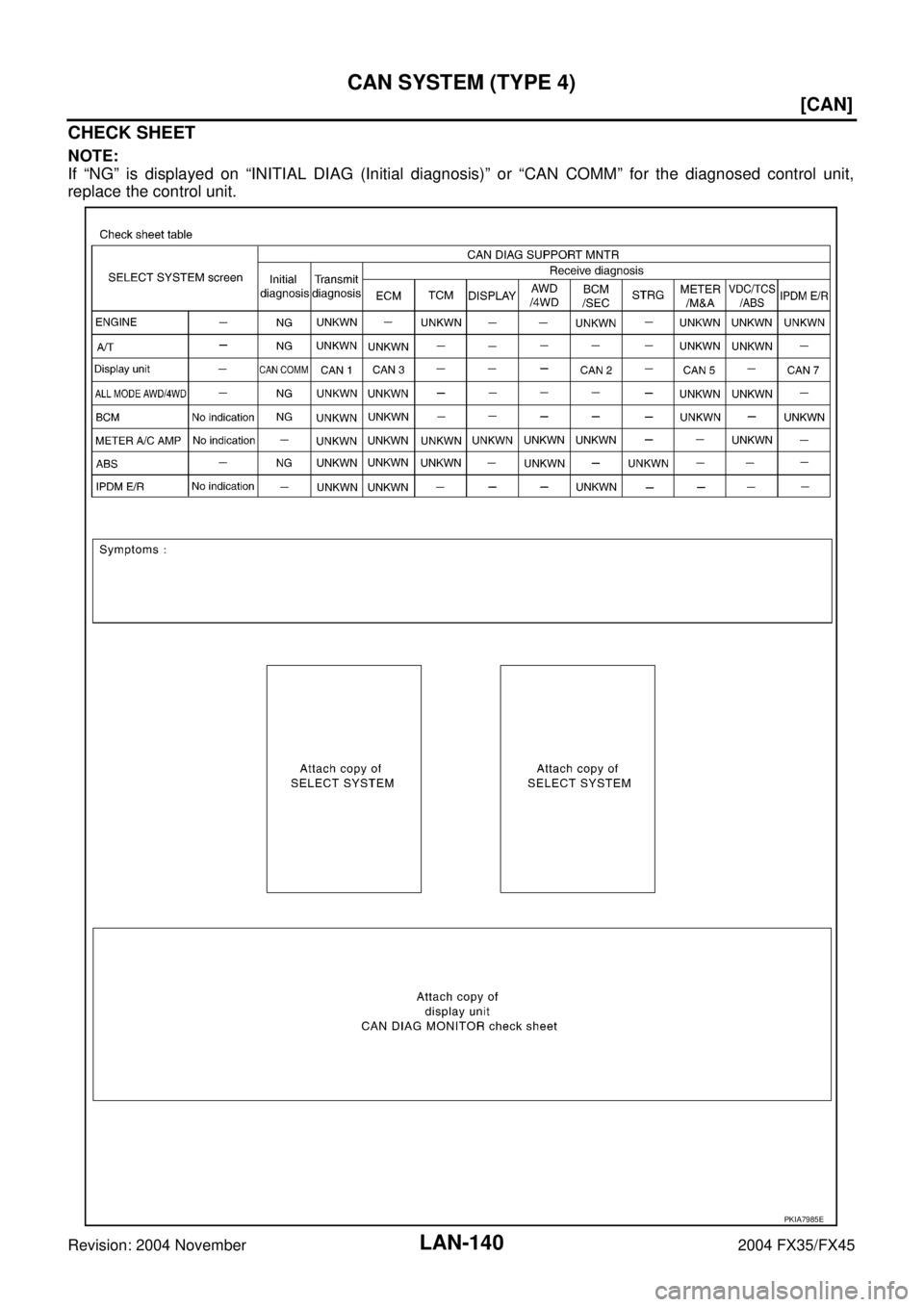

INFINITI FX35 2004 Service Manual LAN-140 [CAN] CAN SYSTEM (TYPE 4) Revision: 2004 November 2004 FX35/FX45 CHECK SHEET NOTE: If “NG” is displayed on “INITIAL DIAG (Initial diagnosis)” or “CAN COMM” for the diagnosed contro

Page 3442 of 4449

INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 4) LAN-141 [CAN] C D E F G H I J L MA B LAN Revision: 2004 November 2004 FX35/FX45 PKIA7986E

Page 3443 of 4449

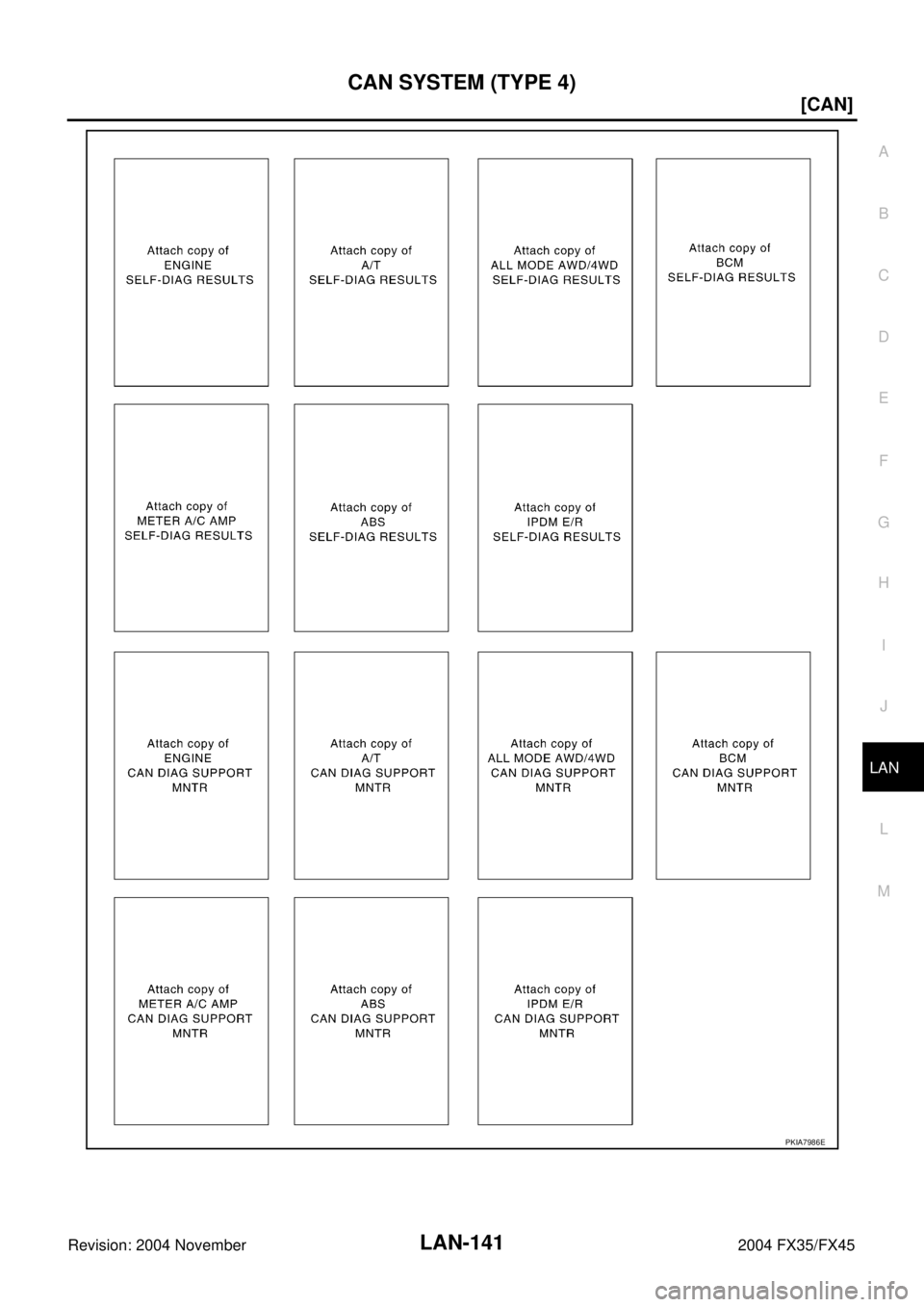

INFINITI FX35 2004 Service Manual LAN-142 [CAN] CAN SYSTEM (TYPE 4) Revision: 2004 November 2004 FX35/FX45 CHECK SHEET RESULTS (EXAMPLE) NOTE: If “NG” is displayed on “INITIAL DIAG (Initial diagnosis)” or “CAN COMM” for th

Page 3444 of 4449

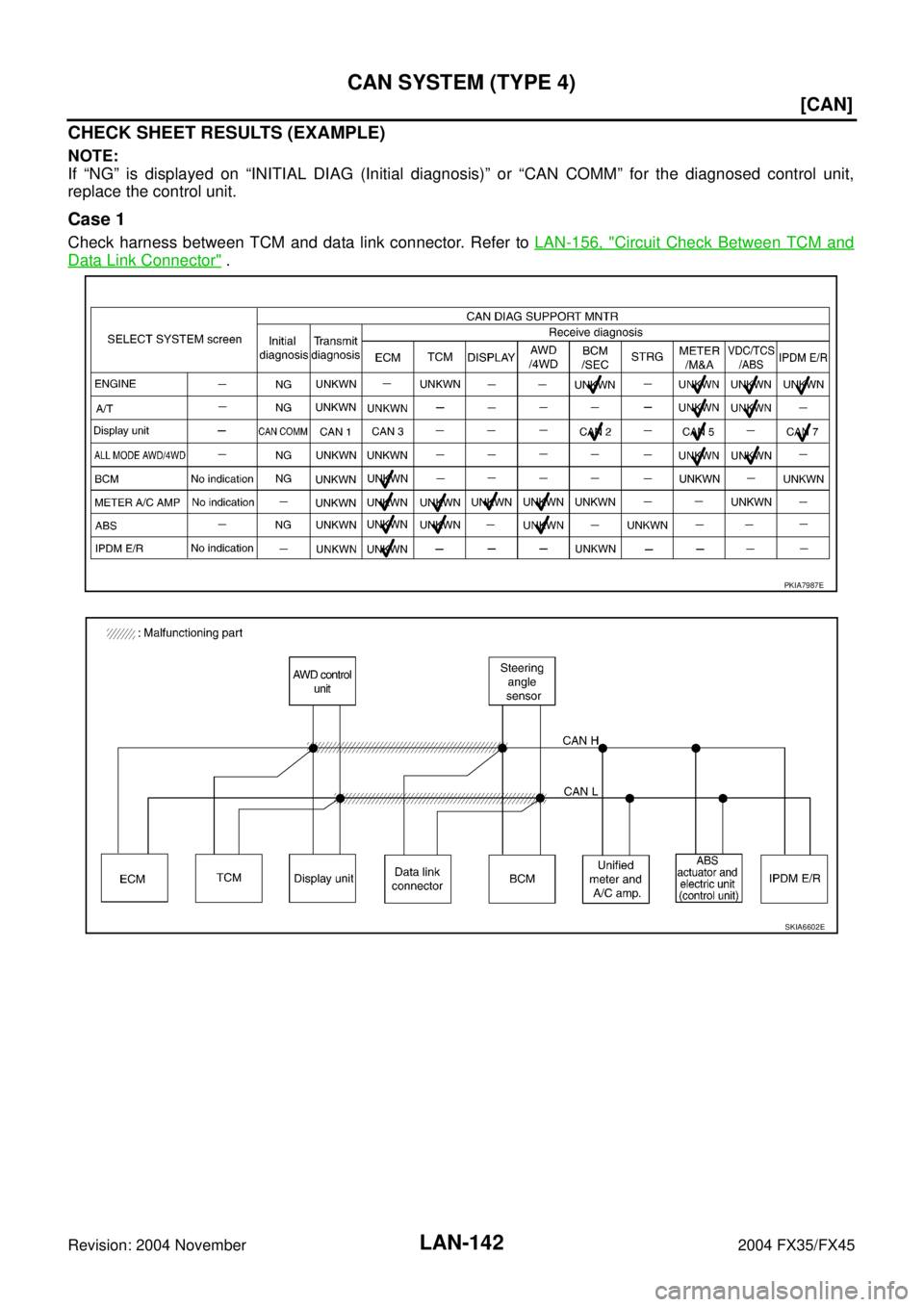

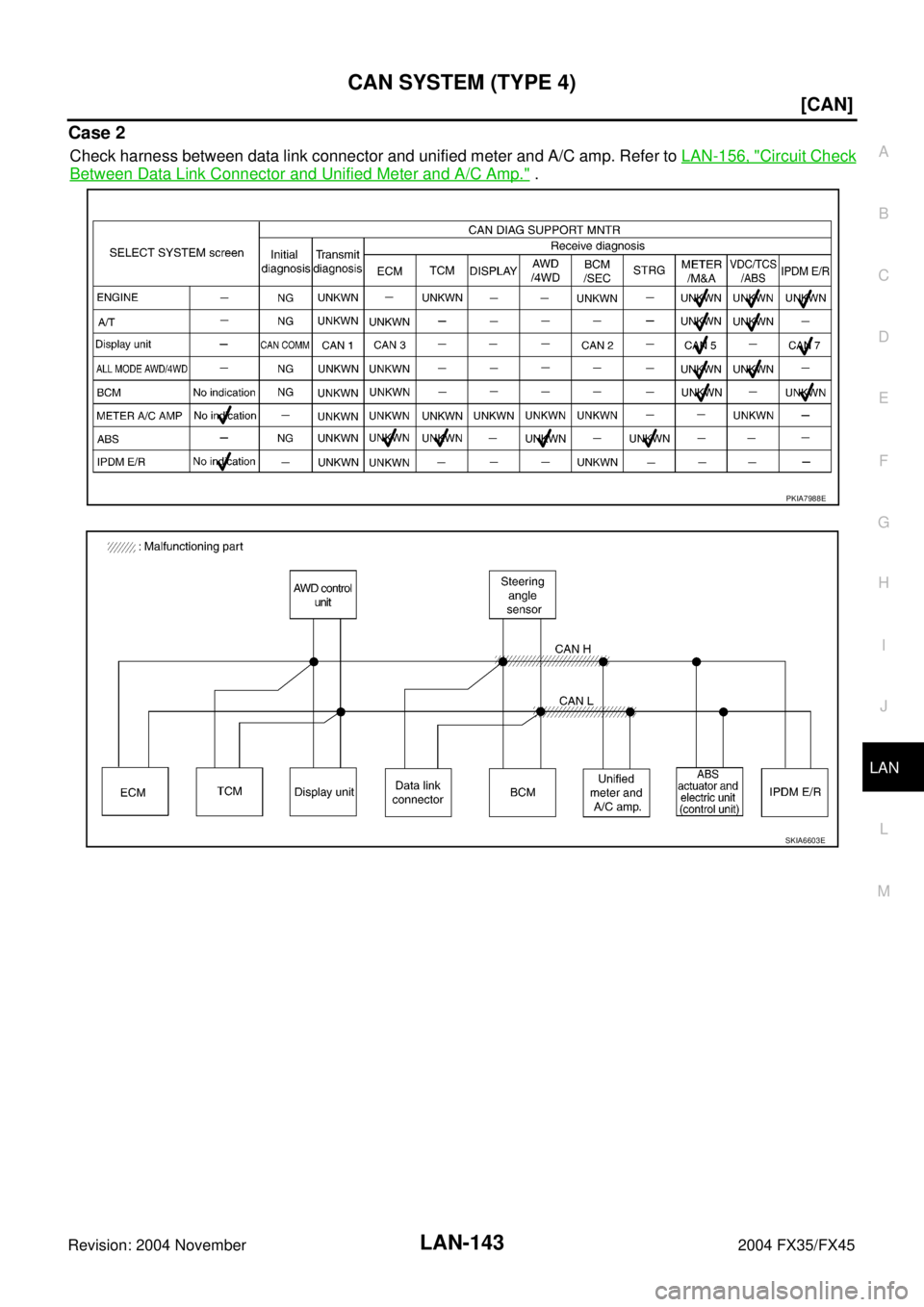

INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 4) LAN-143 [CAN] C D E F G H I J L MA B LAN Revision: 2004 November 2004 FX35/FX45 Case 2 Check harness between data link connector and unified meter and A/C amp. Refer to LAN-156, "C

Page 3445 of 4449

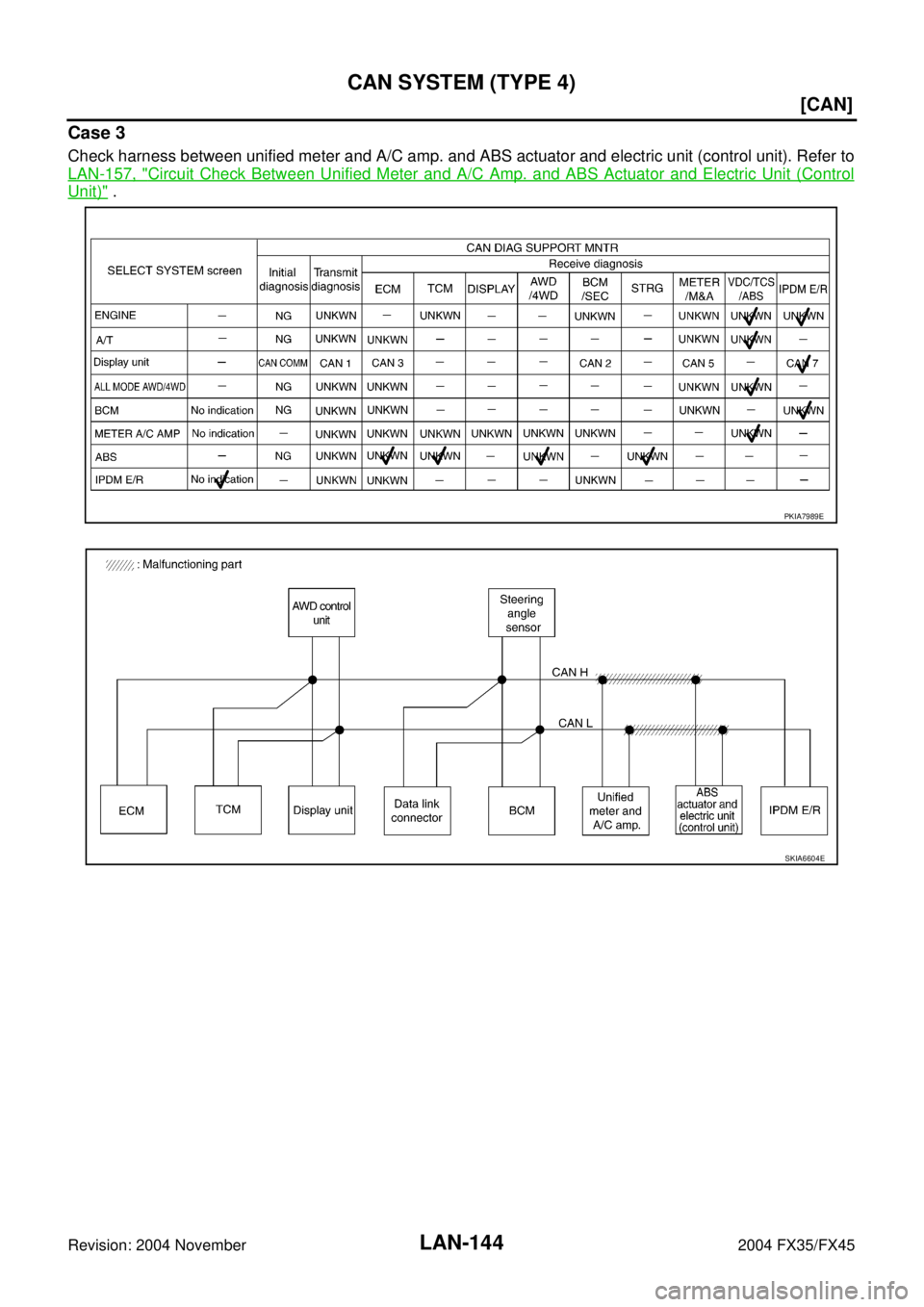

INFINITI FX35 2004 Service Manual LAN-144 [CAN] CAN SYSTEM (TYPE 4) Revision: 2004 November 2004 FX35/FX45 Case 3 Check harness between unified meter and A/C amp. and ABS actuator and electric unit (control unit). Refer to LAN-157, "

Page 3446 of 4449

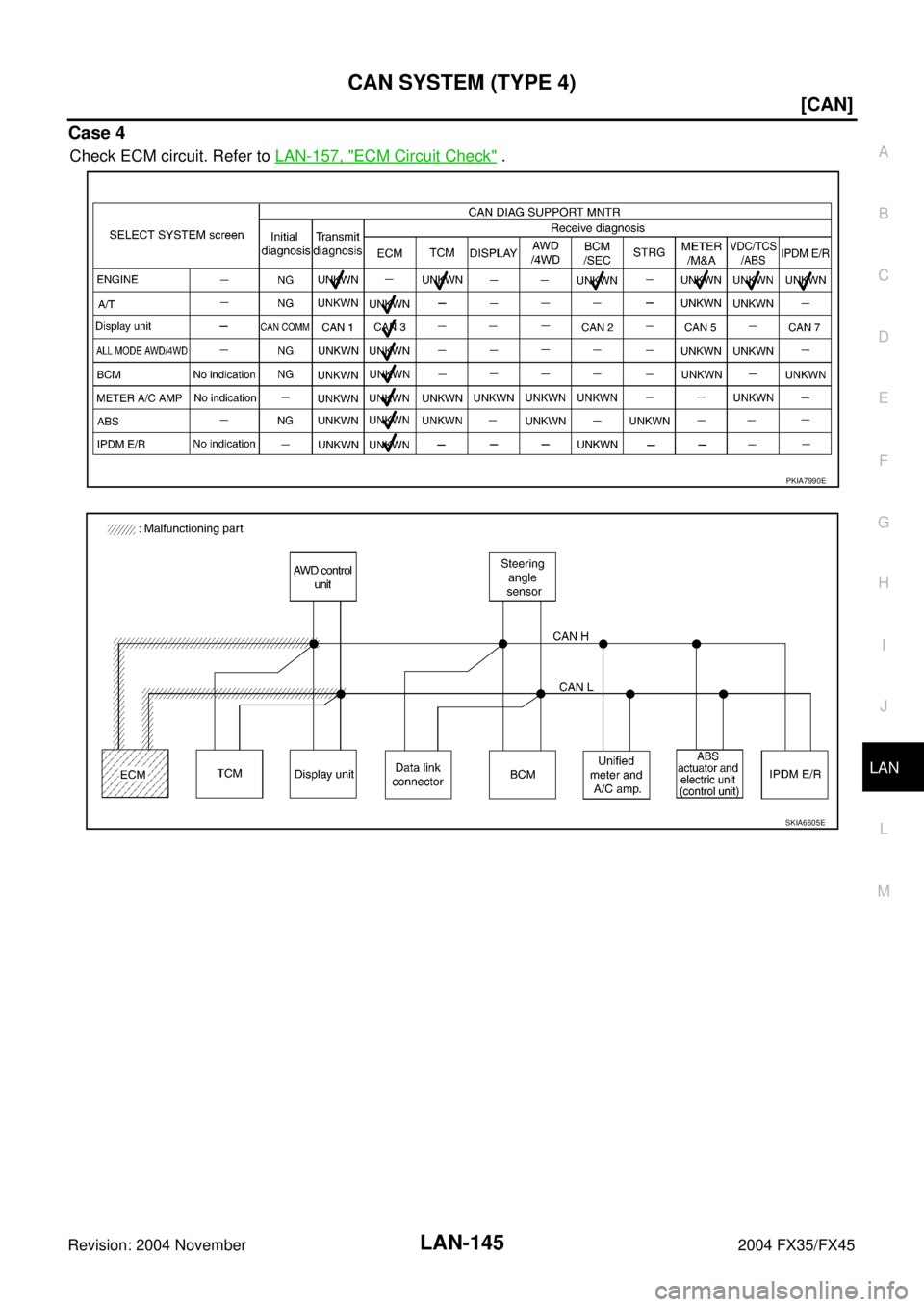

INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 4) LAN-145 [CAN] C D E F G H I J L MA B LAN Revision: 2004 November 2004 FX35/FX45 Case 4 Check ECM circuit. Refer to LAN-157, "ECM Circuit Check" . PKIA7990E SKIA6605E

Page 3447 of 4449

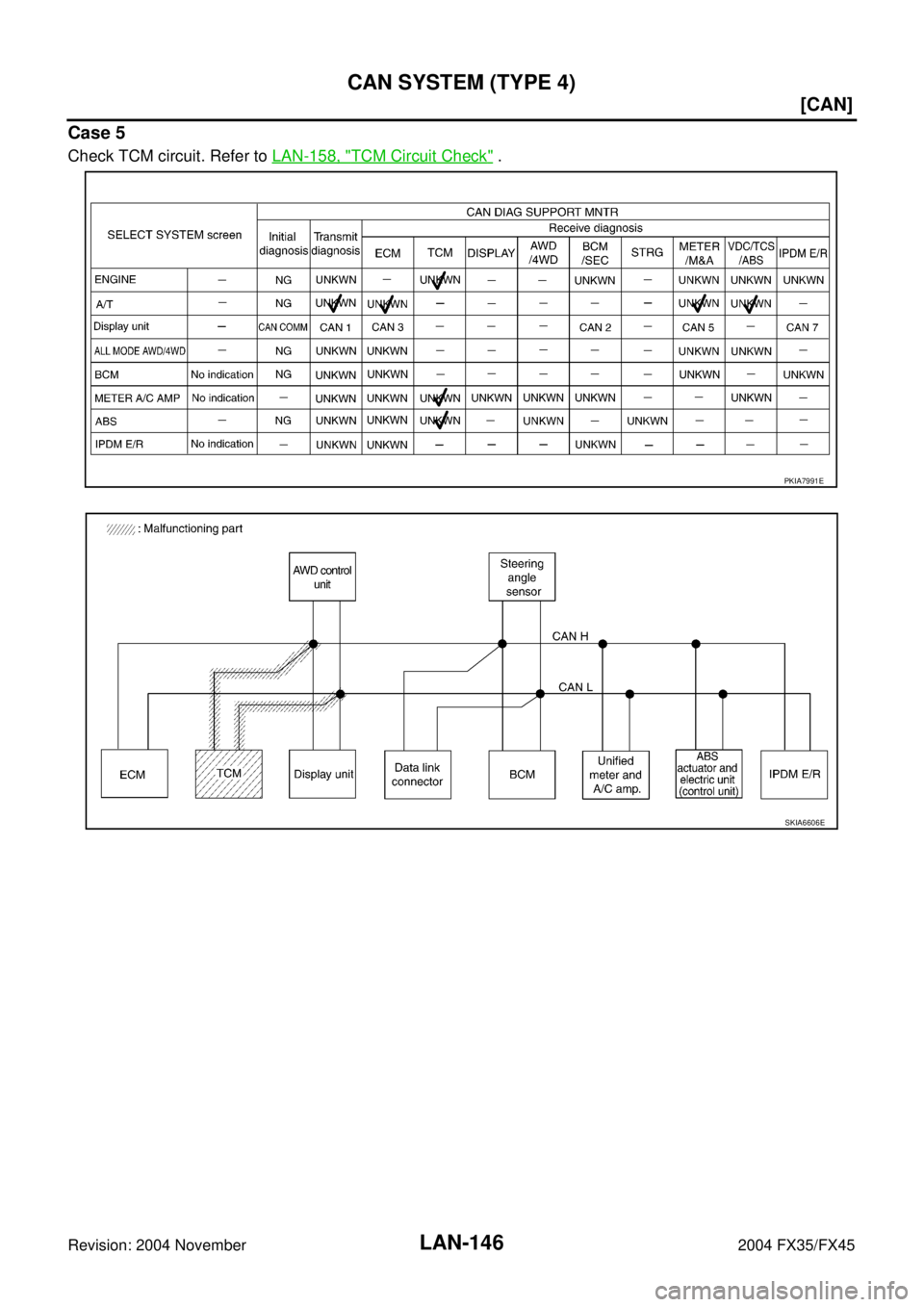

INFINITI FX35 2004 Service Manual LAN-146 [CAN] CAN SYSTEM (TYPE 4) Revision: 2004 November 2004 FX35/FX45 Case 5 Check TCM circuit. Refer to LAN-158, "TCM Circuit Check" . PKIA7991E SKIA6606E

Page 3448 of 4449

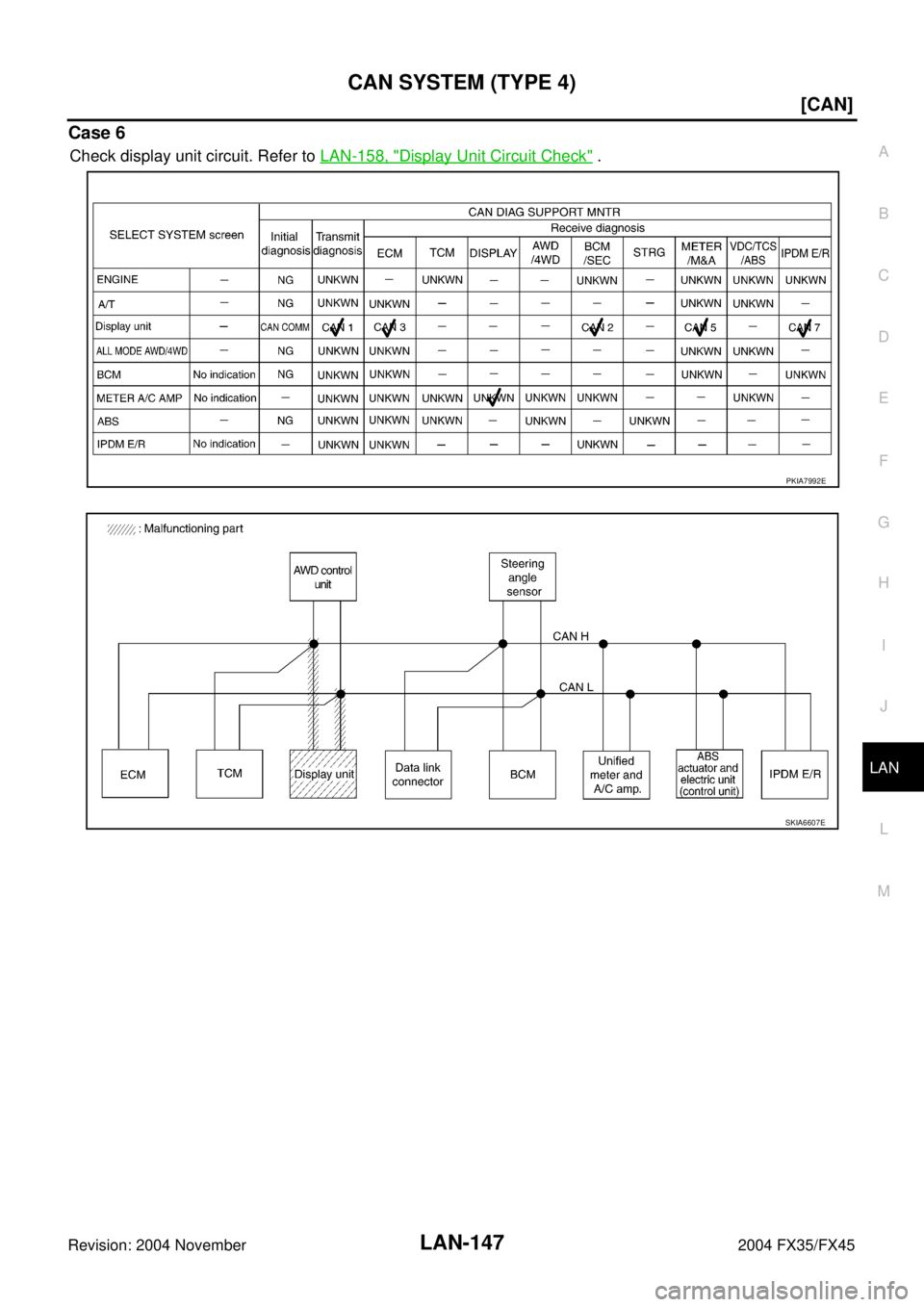

INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 4) LAN-147 [CAN] C D E F G H I J L MA B LAN Revision: 2004 November 2004 FX35/FX45 Case 6 Check display unit circuit. Refer to LAN-158, "Display Unit Circuit Check" . PKIA7992E SKIA66
