Page 3153 of 4449

INFINITI FX35 2004 Service Manual GI-50

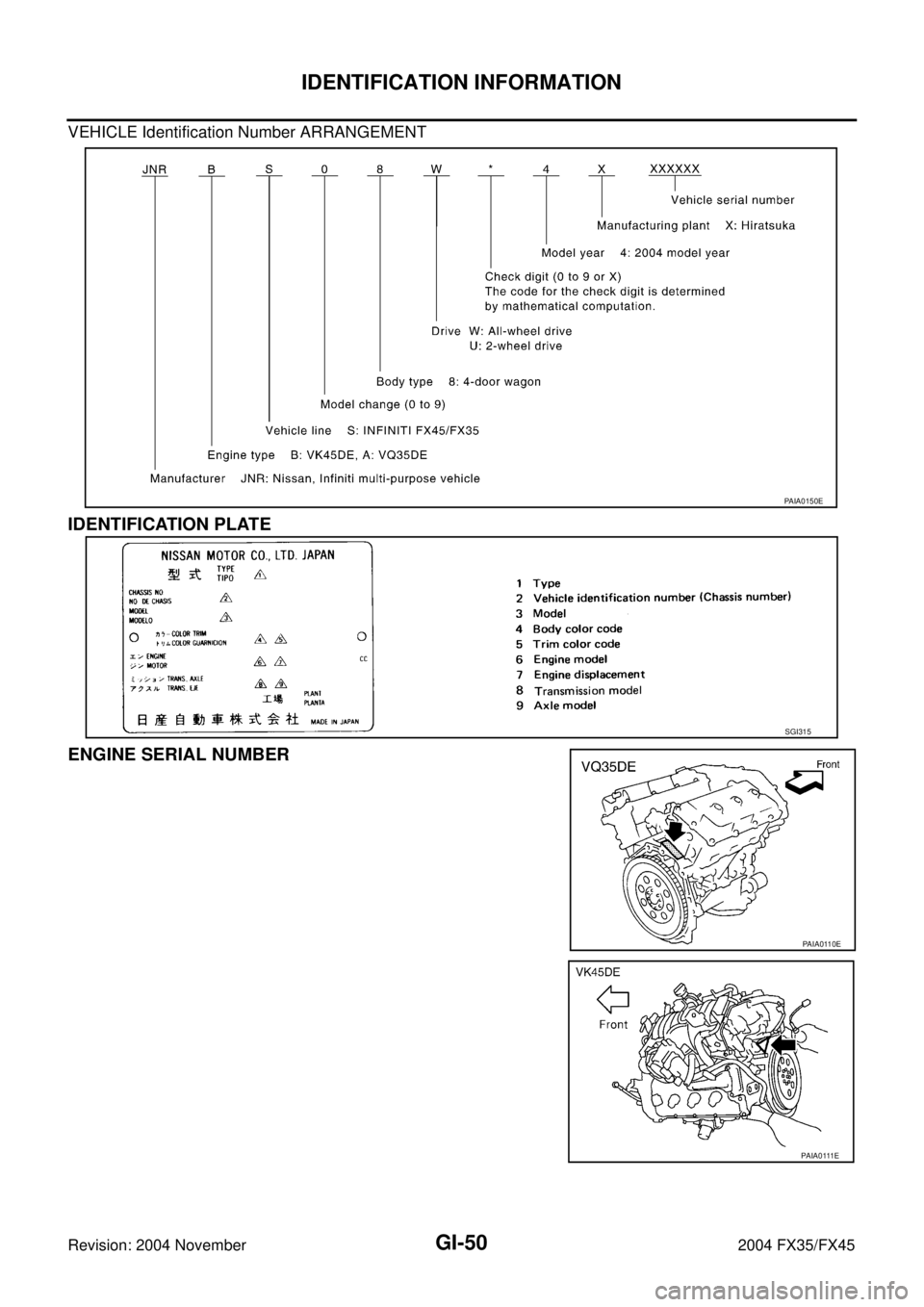

IDENTIFICATION INFORMATION
Revision: 2004 November 2004 FX35/FX45
VEHICLE Identification Number ARRANGEMENT
IDENTIFICATION PLATE
ENGINE SERIAL NUMBER
PAIA0150E
SGI315
PAIA0110E
PA I A 0 111 E

Page 3154 of 4449

INFINITI FX35 2004 Service Manual IDENTIFICATION INFORMATION
GI-51
C
D
E
F
G
H
I
J
K
L
MB
GI
Revision: 2004 November 2004 FX35/FX45
AUTOMATIC TRANSMISSION NUMBER
Dimensions AAS000EM
Unit: mm (in)
Wheels & Tires AAS000EN
PAIA0054E
Ove

Page 3155 of 4449

INFINITI FX35 2004 Service Manual GI-52
TERMINOLOGY
Revision: 2004 November 2004 FX35/FX45
TERMINOLOGYPFP:00011
SAE J1930 Terminology List AAS000EO
All emission related terms used in this publication in accordance with SAE J1930 are l

GI-52
TERMINOLOGY
Revision: 2004 November 2004 FX35/FX45
TERMINOLOGYPFP:00011
SAE J1930 Terminology List AAS000EO
All emission related terms used in this publication in accordance with SAE J1930 are listed. Accordingly, new
terms, new acronyms/abbreviations and old terms are listed in the following chart.
NEW TERMNEW ACRONYM /
ABBREVIATIONOLD TERM
Air cleaner ACL Air cleaner
Barometric pressure BARO ***
Barometric pressure sensor-BCDD BAROS-BCDD BCDD
Camshaft position CMP ***
Camshaft position sensor CMPS Crank angle sensor
Canister *** Canister
Carburetor CARB Carburetor
Charge air cooler CAC Intercooler
Closed loop CL Closed loop
Closed throttle position switch CTP switch Idle switch
Clutch pedal position switch CPP switch Clutch switch
Continuous fuel injection system CFI system ***
Continuous trap oxidizer system CTOX system ***
Crankshaft position CKP ***
Crankshaft position sensor CKPS ***
Data link connector DLC ***
Data link connector for CONSULT-II DLC for CONSULT-II Diagnostic connector for CONSULT-II
Diagnostic test mode DTM Diagnostic mode
Diagnostic test mode selector DTM selector Diagnostic mode selector
Diagnostic test mode I DTM I Mode I
Diagnostic test mode II DTM II Mode II
Diagnostic trouble code DTC Malfunction code
Direct fuel injection system DFI system ***
Distributor ignition system DI system Ignition timing control
Early fuel evaporation-mixture heater EFE-mixture heater Mixture heater
Early fuel evaporation system EFE system Mixture heater control
Electrically erasable programmable read
only memoryEEPROM ***
Electronic ignition system EI system Ignition timing control
Engine control EC ***
Engine control module ECM ECCS control unit
Engine coolant temperature ECT Engine temperature
Engine coolant temperature sensor ECTS Engine temperature sensor
Engine modification EM ***
Engine speed RPM Engine speed
Erasable programmable read only memory EPROM ***
Evaporative emission canister EVAP canister Canister
Evaporative emission system EVAP system Canister control solenoid valve
Exhaust gas recirculation valve EGR valve EGR valve

Page 3156 of 4449

INFINITI FX35 2004 Service Manual TERMINOLOGY
GI-53
C
D
E
F
G
H
I
J
K
L
MB
GI
Revision: 2004 November 2004 FX35/FX45
Exhaust gas recirculation control-BPT
valveEGRC-BPT valve BPT valve
Exhaust gas recirculation control-solenoid
valv

TERMINOLOGY
GI-53
C
D
E
F
G
H
I
J
K
L
MB
GI
Revision: 2004 November 2004 FX35/FX45
Exhaust gas recirculation control-BPT
valveEGRC-BPT valve BPT valve
Exhaust gas recirculation control-solenoid
valveEGRC-solenoid valve EGR control solenoid valve
Exhaust gas recirculation temperature sen-
sor
EGRT sensor Exhaust gas temperature sensor
EGR temperature sensor
Flash electrically erasable programmable
read only memoryFEEPROM ***
Flash erasable programmable read only
memoryFEPROM ***
Flexible fuel sensor FFS ***
Flexible fuel system FF system ***
Fuel pressure regulator *** Pressure regulator
Fuel pressure regulator control solenoid
valve*** PRVR control solenoid valve
Fuel trim FT ***
Heated Oxygen sensor HO2S Exhaust gas sensor
Idle air control system IAC system Idle speed control
Idle air control valve-air regulator IACV-air regulator Air regulator
Idle air control valve-auxiliary air control
valveIACV-AAC valve Auxiliary air control (AAC) valve
Idle air control valve-FICD solenoid valve IACV-FICD solenoid valve FICD solenoid valve
Idle air control valve-idle up control sole-
noid valveIACV-idle up control solenoid valve Idle up control solenoid valve
Idle speed control-FI pot ISC-FI pot FI pot
Idle speed control system ISC system ***
Ignition control IC ***
Ignition control module ICM ***
Indirect fuel injection system IFI system ***
Intake air IA Air
Intake air temperature sensor IAT sensor Air temperature sensor
Knock *** Detonation
Knock sensor KS Detonation sensor
Malfunction indicator lamp MIL Check engine light
Manifold absolute pressure MAP ***
Manifold absolute pressure sensor MAPS ***
Manifold differential pressure MDP ***
Manifold differential pressure sensor MDPS ***
Manifold surface temperature MST ***
Manifold surface temperature sensor MSTS ***
Manifold vacuum zone MVZ ***
Manifold vacuum zone sensor MVZS ***
Mass air flow sensor MAFS Air flow meter
Mixture control solenoid valve MC solenoid valve Air-fuel ratio control solenoid valve
Multiport fuel injection System MFI system Fuel injection controlNEW TERMNEW ACRONYM /
ABBREVIATIONOLD TERM

Page 3157 of 4449

INFINITI FX35 2004 Service Manual GI-54
TERMINOLOGY
Revision: 2004 November 2004 FX35/FX45
Nonvolatile random access memory NVRAM ***
On board diagnostic system OBD system Self-diagnosis
Open loop OL Open loop
Oxidation catalyst OC Ca

GI-54
TERMINOLOGY
Revision: 2004 November 2004 FX35/FX45
Nonvolatile random access memory NVRAM ***
On board diagnostic system OBD system Self-diagnosis
Open loop OL Open loop
Oxidation catalyst OC Catalyst
Oxidation catalytic converter system OC system ***
Oxygen sensor O2S Exhaust gas sensor
Park position switch *** Park switch
Park/neutral position switch PNP switchPark/neutral switch
Inhibitor switch
Neutral position switch
Periodic trap oxidizer system PTOX system ***
Positive crankcase ventilation PCV Positive crankcase ventilation
Positive crankcase ventilation valve PCV valve PCV valve
Powertrain control module PCM ***
Programmable read only memory PROM ***
Pulsed secondary air injection control sole-
noid valvePAIRC solenoid valve AIV control solenoid valve
Pulsed secondary air injection system PAIR system Air induction valve (AIV) control
Pulsed secondary air injection valve PAIR valve Air induction valve
Random access memory RAM ***
Read only memory ROM ***
Scan tool ST ***
Secondary air injection pump AIR pump ***
Secondary air injection system AIR system ***
Sequential multiport fuel injection system SFI system Sequential fuel injection
Service reminder indicator SRI ***
Simultaneous multiport fuel injection sys-
tem*** Simultaneous fuel injection
Smoke puff limiter system SPL system ***
Supercharger SC ***
Supercharger bypass SCB ***
System readiness test SRT ***
Thermal vacuum valve TVV Thermal vacuum valve
Three way catalyst TWC Catalyst
Three way catalytic converter system TWC system ***
Three way + oxidation catalyst TWC + OC Catalyst
Three way + oxidation catalytic converter
systemTWC + OC system ***
Throttle body TBThrottle chamber
SPI body
Throttle body fuel injection system TBI system Fuel injection control
Throttle position TP Throttle position
Throttle position sensor TPS Throttle sensor
Throttle position switch TP switch Throttle switch
Torque converter clutch solenoid valve TCC solenoid valveLock-up cancel solenoid
Lock-up solenoid NEW TERMNEW ACRONYM /
ABBREVIATIONOLD TERM

Page 3158 of 4449

INFINITI FX35 2004 Service Manual TERMINOLOGY
GI-55
C
D
E
F
G
H
I
J
K
L
MB
GI
Revision: 2004 November 2004 FX35/FX45
***: Not applicableTransmission control module TCM A/T control unit
Turbocharger TC Turbocharger
Vehicle speed sensor

Page 3159 of 4449

INFINITI FX35 2004 Service Manual GI-56
TERMINOLOGY
Revision: 2004 November 2004 FX35/FX45

Page 3160 of 4449

INFINITI FX35 2004 Service Manual GW-1
GLASSES, WINDOW SYSTEM & MIRRORS
I BODY
CONTENTS
C
D
E
F
G
H
J
K
L
M
SECTION GW
A
B
GW
Revision: 2004 November 2004 FX35/FX45
GLASSES, WINDOW SYSTEM & MIRRORS
PRECAUTIONS .......................

GW-1
GLASSES, WINDOW SYSTEM & MIRRORS
I BODY
CONTENTS
C
D
E
F
G
H
J
K
L
M
SECTION GW
A
B
GW
Revision: 2004 November 2004 FX35/FX45
GLASSES, WINDOW SYSTEM & MIRRORS
PRECAUTIONS .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 3
Handling for Adhesive and Primer ........................... 3
Wiring Diagrams and Trouble Diagnosis .................. 3
PREPARATION ........................................................... 4
Special Service Tools ............................................... 4
Commercial Service Tools ........................................ 4
SQUEAK AND RATTLE TROUBLE DIAGNOSES ..... 5
Work Flow ................................................................ 5
CUSTOMER INTERVIEW ..................................... 5
DUPLICATE THE NOISE AND TEST DRIVE ....... 6
CHECK RELATED SERVICE BULLETINS ........... 6
LOCATE THE NOISE AND IDENTIFY THE
ROOT CAUSE ...................................................... 6
REPAIR THE CAUSE ........................................... 6
CONFIRM THE REPAIR ....................................... 7
Generic Squeak and Rattle Troubleshooting ........... 7
INSTRUMENT PANEL .......................................... 7
CENTER CONSOLE ............................................. 7
DOORS ................................................................. 7
TRUNK .................................................................. 8
SUNROOF/HEADLINING ..................................... 8
SEATS ................................................................... 8
UNDERHOOD ....................................................... 8
Diagnostic Worksheet .............................................. 9
WINDSHIELD GLASS ...............................................11
Removal and Installation ......................................... 11
REMOVAL ............................................................ 11
INSTALLATION ................................................... 12
REAR WINDOW GLASS AND MOLDING ............... 13
Removal and Installation ........................................ 13
REMOVAL ........................................................... 13
INSTALLATION ................................................... 14
POWER WINDOW SYSTEM .................................... 15
Component Parts and Harness Connector Location ... 15
System Description ................................................ 16
WITH FRONT POWER WINDOW ANTI-PINCH
SYSTEM ............................................................. 16WITH FRONT AND REAR WINDOW ANTI-
PINCH SYSTEM ................................................. 16
MANUAL OPERATION ........................................ 17
AUTO OPERATION ............................................. 19
POWER WINDOW SERIAL LINK ....................... 20
POWER WINDOW LOCK ................................... 20
RETAINED POWER OPERATION ...................... 21
ANTI-PINCH SYSTEM ........................................ 21
POWER WINDOW CONTROL BY THE KEY
CYLINDER SWITCH ........................................... 21
CAN Communication System Description .............. 22
CAN Communication Unit ....................................... 22
Schematic (With Front Power Window Anti-pinch
System) .................................................................. 23
Wiring Diagram —WINDOW— (With Front Power
Window Anti-pinch System) .................................... 24
Terminal and Reference Value for BCM / With Front
Power Window Anti-pinch System .......................... 28
Terminal and Reference Value for Power Window
Main Switch / With Front Power Window Anti-pinch
System .................................................................... 29
Terminal and Reference Value for Front Power Win-
dow Switch (Passenger Side) / With Front Power
Window Anti-pinch System ..................................... 30
Schematic (With Front and Rear Power Window
Anti-pinch System) ................................................. 31
Wiring Diagram —WINDOW— (With Front and
Rear Power Window Anti-pinch System) ................ 32
Terminal and Reference Value for BCM / With Front
and Rear Power Window Anti-pinch ....................... 37
Terminal and Reference Value for Power Window
Main Switch / With Front and Rear Power Window
Anti-pinch System ................................................... 38
Terminal and Reference Value for (Front and Rear)
Power Window Switch / With Front and Rear Win-
dow Anti-pinch System ........................................... 39
Work Flow ............................................................... 39
CONSULT-II Inspection Procedure ......................... 40
ACTIVE TEST ..................................................... 41
WORK SUPPORT ............................................... 41

Load next 8 pages

Page: < prev 1-10 ... 3121-3128 3129-3136 3137-3144 3145-3152 3153-3160 3161-3168 3169-3176 3177-3184 3185-3192 ... 4456 next >

radiator cap reset infotainment system roof rack lug pattern lock winter tires
