Page 745 of 4449

AV-154
NAVIGATION SYSTEM
Revision: 2004 November 2004 FX35/FX45
2. CHECK HARNESS
1. Turn ignition switch OFF.
2. Disconnect NAVI control unit connector and display control unit connector.
3. Check continuity between NAVI control unit harness connector
B207 terminals 44 (L), 45(P) and display control unit harness
connector M76 terminals 32 (BR), 34 (Y).
4. Check continuity between NAVI control unit harness connector
B207 terminals 44 (L), 45 (P) and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3. SELF-DIAGNOSIS OF DCU
1. Replace NAVI control unit.
2. Connect NAVI control unit connector and display control unit connector.
3. Turn ignition switch ON.
4. Start self-diagnosis of DCU, and check the self-diagnosis result.
OK or NG
OK >> INSPECTION END.
NG >> Replace display control unit.
When Malfunctioning Connection Between Display Control Unit and Audio UnitAKS00BNK
1. CHECK POWER SUPPLY AND GROUND CIRCUIT
Check audio unit power supply and ground circuit. Refer to AV- 3 9 , "
Power Supply Circuit Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair malfunctioning parts.
2. CHECK HARNESS
1. Turn ignition switch OFF.
2. Disconnect audio unit connector and display control unit connector.
3. Check continuity between display control unit harness connector
M76 terminals 40 (LG), 42 (B/Y) and audio unit harness connec-
tor M60 terminals 23 (LG), 21 (B/Y).
4. Check continuity between display control unit harness connector
M76 terminals 40 (LG), 42 (B/Y) and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.44 – 32 : Continuity should exist.
45 – 34 : Continuity should exist.
44, 45 – Ground : Continuity should not exist.
PKIA2873E
40 – 23 : Continuity should exist.
42 – 21 : Continuity should exist.
40, 42 – Ground : Continuity shold not exist.
PKIA2875E
Page 746 of 4449

NAVIGATION SYSTEM
AV-155
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2004 November 2004 FX35/FX45
3. CHECK AUDIO UNIT
1. Connect audio unit connector.
2. Turn ignition switch ON.
3. Check voltage between audio unit harness connector M60 ter-
minal 23 (LG) and ground.
OK or NG
OK >> GO TO 4.
NG >> Replace audio unit.
4. CHECK DISPLAY CONTORL UNIT
1. Turn ignition switch OFF.
2. Disconnect audio unit connector, and connect display control unit connector.
3. Turn ignition switch ON.
4. Check voltage between display control unit harness connector
M76 terminal 42 (B/Y) and ground.
OK or NG
OK >> GO TO 5.
NG >> Replace display control unit.
5. CHECK COMMUNICATION SIGNAL (DCU–ADU)
1. Turn ignition switch OFF.
2. Connect audio unit connector.
3. Turn ignition switch ON.
4. Check signal between display control unit harness connector
M76 terminal 40 (LG) and ground with CONSULT-ll or oscillo-
scope.
OK or NG
OK >> GO TO 6.
NG >> Replace display control unit.23 – Ground : Approx. 4 V
SKIA9484E
42 – ground : Approx. 4 V
PKIA2877E
40 – Ground : Refer to AV- 1 2 3 , "Te r m i n a l s
and Reference Value for Dis-
play Control Unit" .
PKIA2878E
Page 747 of 4449

AV-156
NAVIGATION SYSTEM
Revision: 2004 November 2004 FX35/FX45
6. CHECK COMMUNICATION SIGNAL (AUD–DCU)
1. Check signal between display control unit harness connector
M76 terminal 42 (B/Y) and ground with CONSULT-ll or oscillo-
scope.
OK or NG
OK >> Replace display control unit.
NG >> Replace audio unit.
When Malfunctioning Connection Between Display Control Unit and Display AKS00BNL
1. CHECK HARNESS
1. Disconnect display connector and display control unit connector.
2. Check continuity between display control unit harness connector
M76 terminals 36 (PU), 38 (LG) and Display harness connector
M63 terminals 11 (PU), 22 (LG).
3. Check continuity between display control unit harness connector
M76 terminals 36 (PU), 38 (LG) and ground.
OK or NG
OK >> GO TO 2.
NG >> Repair harness or connector.
2. CHECK DISPLAY
1. Connect display connector.
2. Turn ignition switch ON.
3. Check voltage between display control unit harness connector
M76 terminal 36 (PU) and ground.
OK or NG
OK >> GO TO 3.
NG >> Replace display.42 – Ground : Refer to AV- 1 2 3 , "
Terminals
and Reference Value for Dis-
play Control Unit" .
PKIA2879E
36 – 11 : Continuity shold exist.
38 – 22 : Continuity shold exist.
36, 38 – Ground : Continuity shold not exist.
PKIA2880E
36 – Ground : Approx. 4V
PKIA2881E
Page 748 of 4449

NAVIGATION SYSTEM
AV-157
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2004 November 2004 FX35/FX45

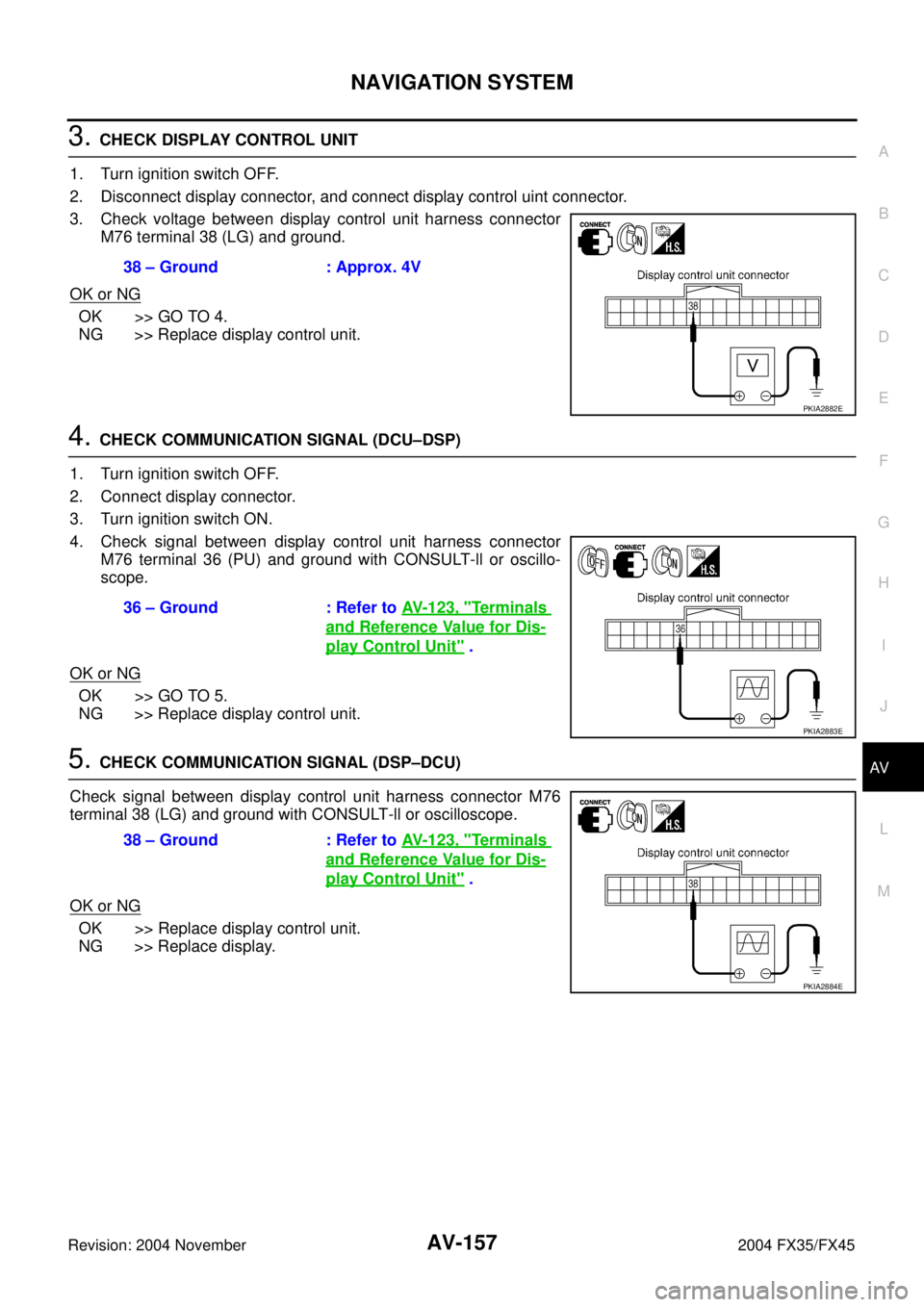

3. CHECK DISPLAY CONTROL UNIT
1. Turn ignition switch OFF.
2. Disconnect display connector, and connect display control uint connector.
3. Check voltage between display control unit harness connector
M76 terminal 38 (LG) and ground.
OK or NG
OK >> GO TO 4.
NG >> Replace display control unit.
4. CHECK COMMUNICATION SIGNAL (DCU–DSP)
1. Turn ignition switch OFF.
2. Connect display connector.
3. Turn ignition switch ON.
4. Check signal between display control unit harness connector
M76 terminal 36 (PU) and ground with CONSULT-ll or oscillo-
scope.
OK or NG
OK >> GO TO 5.
NG >> Replace display control unit.
5. CHECK COMMUNICATION SIGNAL (DSP–DCU)
Check signal between display control unit harness connector M76
terminal 38 (LG) and ground with CONSULT-ll or oscilloscope.
OK or NG
OK >> Replace display control unit.
NG >> Replace display.38 – Ground : Approx. 4V
PKIA2882E
36 – Ground : Refer to AV- 1 2 3 , "Te r m i n a l s
and Reference Value for Dis-
play Control Unit" .
PKIA2883E
38 – Ground : Refer to AV- 1 2 3 , "Te r m i n a l s
and Reference Value for Dis-
play Control Unit" .
PKIA2884E
Page 749 of 4449

AV-158
NAVIGATION SYSTEM
Revision: 2004 November 2004 FX35/FX45
CAN Communication Line CheckAKS007JL
1. CHECK MONITOR DESCRIPTION
1. Start display control unit self-diagnosis. Refer to AV- 1 3 1 , "
Self-Diagnosis Mode (DCU)"
2. Select “CAN DIAG SUPPORT MONITOR”. Refer to AV- 1 4 3 ,
"Can Diag Support Monitor" .
3. Record each item display description (OK/NG/UNKWN) displayed on the following CAN DIAG SUPPORT
MONITOR Check Sheet.
CAN DIAG SUPPORT MONITOR Check Sheet
>> After filling in CAN DIAG SUPPORT MONITOR Check Sheet. Go to LAN-4, "
Precautions When
Using CONSULT-II" .
If NAVI Control Unit Detects That DVD-ROM Map is not InsertedAKS00BNM
1. CHECK DVD-ROM
Make sure identified DVD-ROM map is inserted.
OK or NG
OK >> Replace NAVI control unit.
NG >> Insert identified DVD-ROM map.
If NAVI Control Unit Detects that Inserted DVD-ROM Map Malfunctioning or if it
is Impossible to Load Data from DVD-ROM Map
AKS00BNN
1. CHECK 1: DVD-ROM
Remove inserted DVD-ROM map to make sure it is identified.
OK or NG
OK >> GO TO 2.
NG >> Replace identified DVD-ROM map.
Item content
Error counter
(Reference value)
Normal condition Error (Example)
CANCOMM OK NG 0-50
CAN_CIRC_1 OK UNKWN 0-50
CAN_CIRC_2 OK UNKWN 0-50
CAN_CIRC_3 OK UNKWN 0-50
CAN_CIRC_4 OK UNKWN 0-50
CAN_CIRC_5 OK UNKWN 0-50
CAN_CIRC_6 OK UNKWN 0-50
CAN_CIRC_7 OK UNKWN 0-50
CAN_CIRC_8 OK UNKWN 0-50
CAN_CIRC_9 OK UNKWN 0-50
SKIA4288E
Diagnosis item Screen display Diagnosis item Screen display
CANCOMM OK NG CAN_CIRC_5 OK UNKWN
CAN_CIRC_1 OK UNKWN CAN_CIRC_6 OK UNKWN
CAN_CIRC_2 OK UNKWN CAN_CIRC_7 OK UNKWN
CAN_CIRC_3 OK UNKWN CAN_CIRC_8 OK UNKWN
CAN_CIRC_4 OK UNKWN CAN_CIRC_9 OK UNKWN
Page 750 of 4449

NAVIGATION SYSTEM
AV-159
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2004 November 2004 FX35/FX45
2. CHECK 2: DVD-ROM
Check removed DVD-ROM that there are dirt, scratch and warp.
OK or NG
OK >> GO TO 3.
NG >> Replace DVD-ROM map.
3. CHECK 3: DVD-ROM
Insert same DVD-ROM to make sure same diagnosis result is found as last self-diagnosis.
OK or NG
OK >> Replace NAVI control unit.
NG >> Replace DVD-ROM map.
If Connection Between NAVI Control Unit and GPS Antenna is MalfunctioningAKS00BNO
1. CHECK GPS ANTENNA
Check cable for GPS antenna by watching out to see that cable is malfunctioning.
OK or NG
OK >> GO TO 2.
NG >> Replace GPS antenna.
2. CHECK BY REPLACEMENT OF GPS ANTENNA
Replace other functional GPS antenna to try self-diagnosis again.
Result of self-diagnosis; Found same result?
YES >> Replace NAVI control unit.
NO >> Replace GPS antenna.
Color of RGB Image is Not Proper (NAVI Screen Looks Bluish)AKS00BNP
1. CHECK RGB HARNESS
1. Disconnect NAVI control unit connector and display control unit connector.
2. Check continuity between NAVI control unit harness connector terminals and display control unit harness
connector terminals.
3. Check continuity between NAVI control unit harness connector
terminals and ground.
OK or NG
OK >> GO TO 2.
NG >> Repair harness or connector.
Terminals
Continuity NAVI control unit Display control unit
ConnectorTerminal
(Wire color)ConnectorTerminal
(Wire color)
B20818 (R)
M7644 (R/W)
Ye s
17 45
Terminals
Continuity NAVI control unit
Ground Connector Terminal (Wire color)
B20818 (R)
No
17
PKIA2890E
Page 751 of 4449

AV-160
NAVIGATION SYSTEM
Revision: 2004 November 2004 FX35/FX45
2. CHECK RGB SIGNAL
1. Connect NAVI control unit connector and display control unit connector.
2. Turn ignition switch ON.
3. Display “Color bar” by “CONFIRMATION/ADJUSTMENT” mode.
4. Check signal between NAVI control unit harness connector
B208 terminal 18 (R) and 17 with CONSULT-ll or oscilloscope.
OK or NG
OK >> Replace display control unit.
NG >> Replace NAVI control unit.
Color of RGB Image is Not Proper (NAVI Screen Looks Reddish)AKS00BNQ
1. CHECK RGB HARNESS
1. Disconnect NAVI control unit connector and display control unit connector.
2. Check continuity between NAVI control unit harness connector terminals and display control unit harness
connector terminals.
3.
4. Check continuity between NAVI control unit harness connector
terminals and ground.
OK or NG
OK >> GO TO 2.
NG >> Repair harness or connector.18 – 17 : Refer to AV- 1 2 1 , "
Terminals
and Reference Value for
NAVI Control Unit" .
PKIA2891E
Terminals
Continuity NAVI control unit Display control unit
ConnectorTe r m i n a l
(Wire color)ConnectorTerminal
(Wire color)
B20821 (W)
M7646 (R/L)
Ye s
17 45
Terminals
Continuity NAVI control unit
Ground Connector Terminal (Wire color)
B20821 (W)
No
17
PKIA2892E
Page 752 of 4449

NAVIGATION SYSTEM
AV-161
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2004 November 2004 FX35/FX45
2. CHECK RGB SIGNAL
1. Connect NAVI control unit connector and display control unit connector.
2. Turn ignition switch ON.
3. Display “Color bar” by “CONFIRMATION/ADJUSTMENT” mode.
4. Check signal between NAVI control unit harness connector
M208 terminal 21 (W) and 17 with CONSULT-ll or oscilloscope.
OK or NG
OK >> Replace display control unit.
NG >> Replace NAVI control unit.
Color of RGB Image is Not Proper (NAVI Screen Looks Yellowish)AKS00BNR
1. CHECK RGB HARNESS
1. Disconnect NAVI control unit connector and display control unit connector.
2. Check continuity between NAVI control unit harness connector terminals and display control unit harness
connector terminals.
3. Check continuity between NAVI control unit harness connector
terminals and ground.
OK or NG
OK >> GO TO 2.
NG >> Repair harness or connector.21 – 17 : Refer to AV- 1 2 1 , "
Te r m i n a l s
and Reference Value for
NAVI Control Unit" .
PKIA2893E
Terminals
Continuity NAVI control unit Display control unit
ConnectorTerminal
(Wire color)ConnectorTe r m i n a l
(Wire color)
B20815 (B)
M7648 (B)
Ye s
17 45
Terminals
Continuity NAVI control unit
Ground Connector Termianls (Wire color)
B20815 (B)
No
17
PKIA2894E
