INFINITI FX35 2004 Service Manual RAX-12
REAR DRIVE SHAFT
Revision: 2004 November 2004 FX35/FX45
ASSEMBLY
Final Drive Side

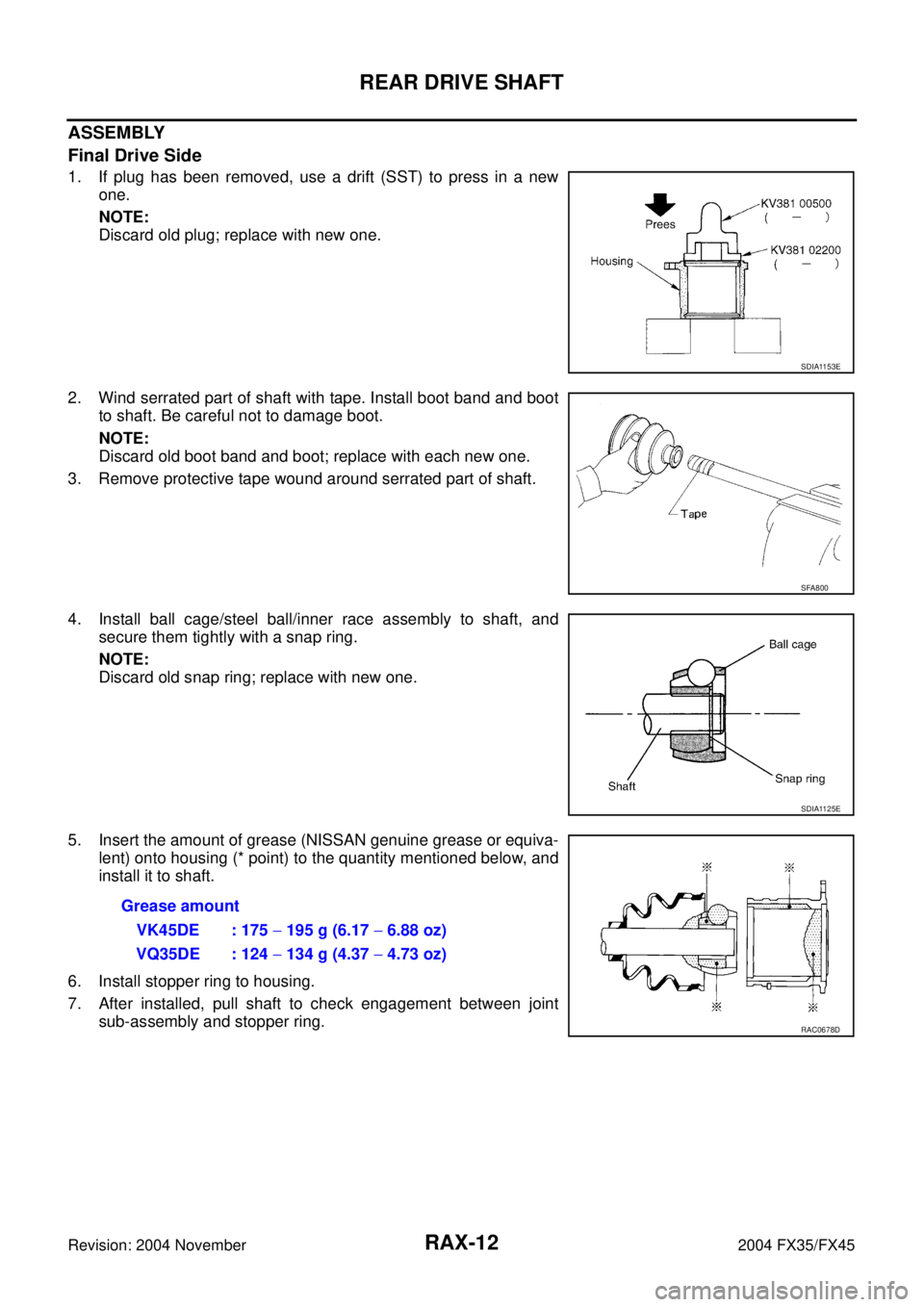

1. If plug has been removed, use a drift (SST) to press in a new
one.
NOTE:
Discard old plug; replace with new

Page 3994 of 4449

INFINITI FX35 2004 Service Manual REAR DRIVE SHAFT
RAX-13
C
E
F
G
H
I
J
K
L
MA
B
RAX
Revision: 2004 November 2004 FX35/FX45

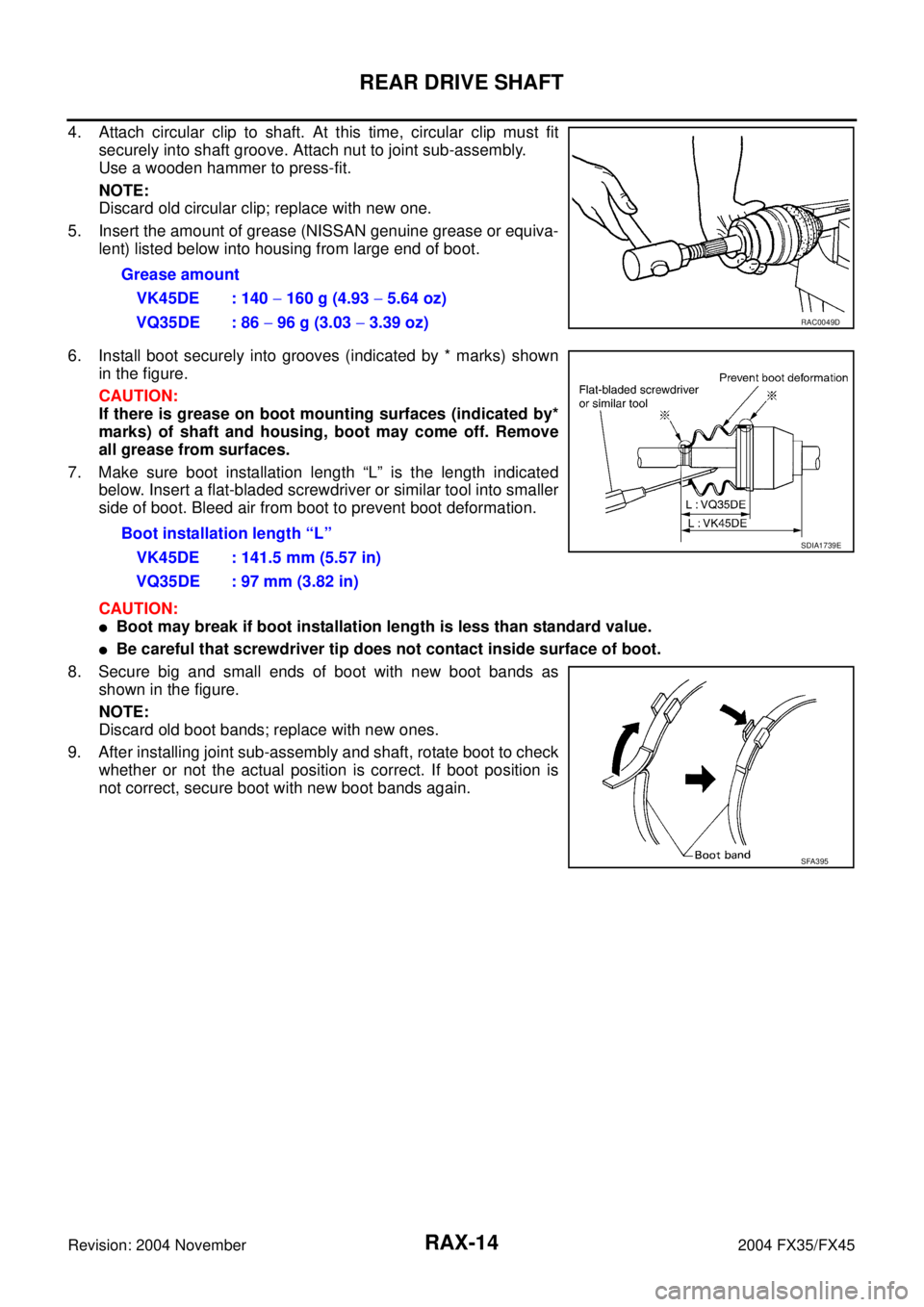

8. Install boot securely into grooves (indicated by * marks) shown
in the figure.
CAUTION:
If there is grease

Page 3995 of 4449

INFINITI FX35 2004 Service Manual RAX-14
REAR DRIVE SHAFT
Revision: 2004 November 2004 FX35/FX45
4. Attach circular clip to shaft. At this time, circular clip must fit
securely into shaft groove. Attach nut to joint sub-assembly.
Use

Page 3996 of 4449

INFINITI FX35 2004 Service Manual SERVICE DATA
RAX-15
C
E
F
G
H
I
J
K
L
MA
B
RAX
Revision: 2004 November 2004 FX35/FX45
SERVICE DATAPFP:00030
Wheel BearingADS000C9
Drive ShaftADS000KS
Axial end play0 mm (0 in)
Rotational torqueAt a lo

Page 3997 of 4449

INFINITI FX35 2004 Service Manual RAX-16
SERVICE DATA
Revision: 2004 November 2004 FX35/FX45

Page 3998 of 4449

INFINITI FX35 2004 Service Manual RF-1
ROOF
I BODY
CONTENTS
C
D
E
F
G
H
J
K
L
M
SECTION RF
A
B
RF
Revision: 2004 November 2004 FX35/FX45
ROOF
PRECAUTIONS .......................................................... 2
Precautions for Su

RF-1
ROOF
I BODY
CONTENTS
C
D
E
F
G
H
J
K
L
M
SECTION RF
A
B
RF
Revision: 2004 November 2004 FX35/FX45
ROOF
PRECAUTIONS .......................................................... 2
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 2
Precautions .............................................................. 2
PREPARATION ........................................................... 3
Special Service Tools ............................................... 3
Commercial Service Tools ........................................ 3
SQUEAK AND RATTLE TROUBLE DIAGNOSES ..... 4
Work Flow ................................................................ 4
CUSTOMER INTERVIEW ..................................... 4
DUPLICATE THE NOISE AND TEST DRIVE ....... 5
CHECK RELATED SERVICE BULLETINS ........... 5
LOCATE THE NOISE AND IDENTIFY THE
ROOT CAUSE ...................................................... 5
REPAIR THE CAUSE ........................................... 5
CONFIRM THE REPAIR ....................................... 6
Generic Squeak and Rattle Troubleshooting ........... 6
INSTRUMENT PANEL .......................................... 6
CENTER CONSOLE ............................................. 6
DOORS ................................................................. 6
TRUNK .................................................................. 7
SUNROOF/HEADLINING ..................................... 7
SEATS ................................................................... 7
UNDERHOOD ....................................................... 7
Diagnostic Worksheet .............................................. 8
SUNROOF ................................................................ 10
Component Parts and Harness Connector Location ... 10
System Description ................................................. 11
TILT UP / SLIDE CLOSE OPERATION ................ 11
TILT DOWN / SLIDE OPEN OPERATION ........... 11
AUTO OPERATION ............................................. 11
RETAINED POWER OPERATION ....................... 11ANTI-PINCH FUNCTION .................................... 12
MEMORY RESET PROCEDURE ....................... 12
INITIALIZATION PROCEDURE .......................... 12
CAN Communication System Description .............. 13
CAN Communication Unit ....................................... 13
Wiring Diagram — SROOF — ................................ 14
Terminals and Reference Value for BCM ............... 15
Terminals and Reference Value for Sunroof Motor
Assembly ................................................................ 15
Work Flow ............................................................... 16
CONSULT-II Inspection Procedure ......................... 16
ACTIVE TEST ..................................................... 17
WORK SUPPORT ............................................... 17
DATE MONITOR ................................................. 17
Trouble Diagnosis Chart by Symptom .................... 18
Power Supply and Ground Circuit Check of BCM ... 18
Sunroof Motor Assembly Power Supply and Ground
Circuit Check .......................................................... 19
Sunroof Switch System Check ............................... 20
Door Switch Check ................................................. 22
Wind Deflector Inspection ....................................... 24
Link and Wire Assembly ......................................... 24
Fitting Adjustment ................................................... 24
LID WEATHERSTRIP OVERLAP ADJUST-
MENT AND SURFACE MISMATCH ADJUST-
MENT .................................................................. 25
Removal and Installation ........................................ 25
SUNROOF UNIT ASSEMBLY ............................. 27
GLASS LID .......................................................... 28
SUNSHADE ........................................................ 29
WIND DEFLECTOR ............................................ 29
SUNROOF MOTOR ASSEMBLY ........................ 29
