2004 INFINITI FX35 Service Manual

air suspension sensor warning engine oil check engine light oil filter

Load previous 8 pages

Page 1089 of 4449

INFINITI FX35 2004 Service Manual BL-282
BODY REPAIR
Revision: 2004 November2004 FX35/FX45

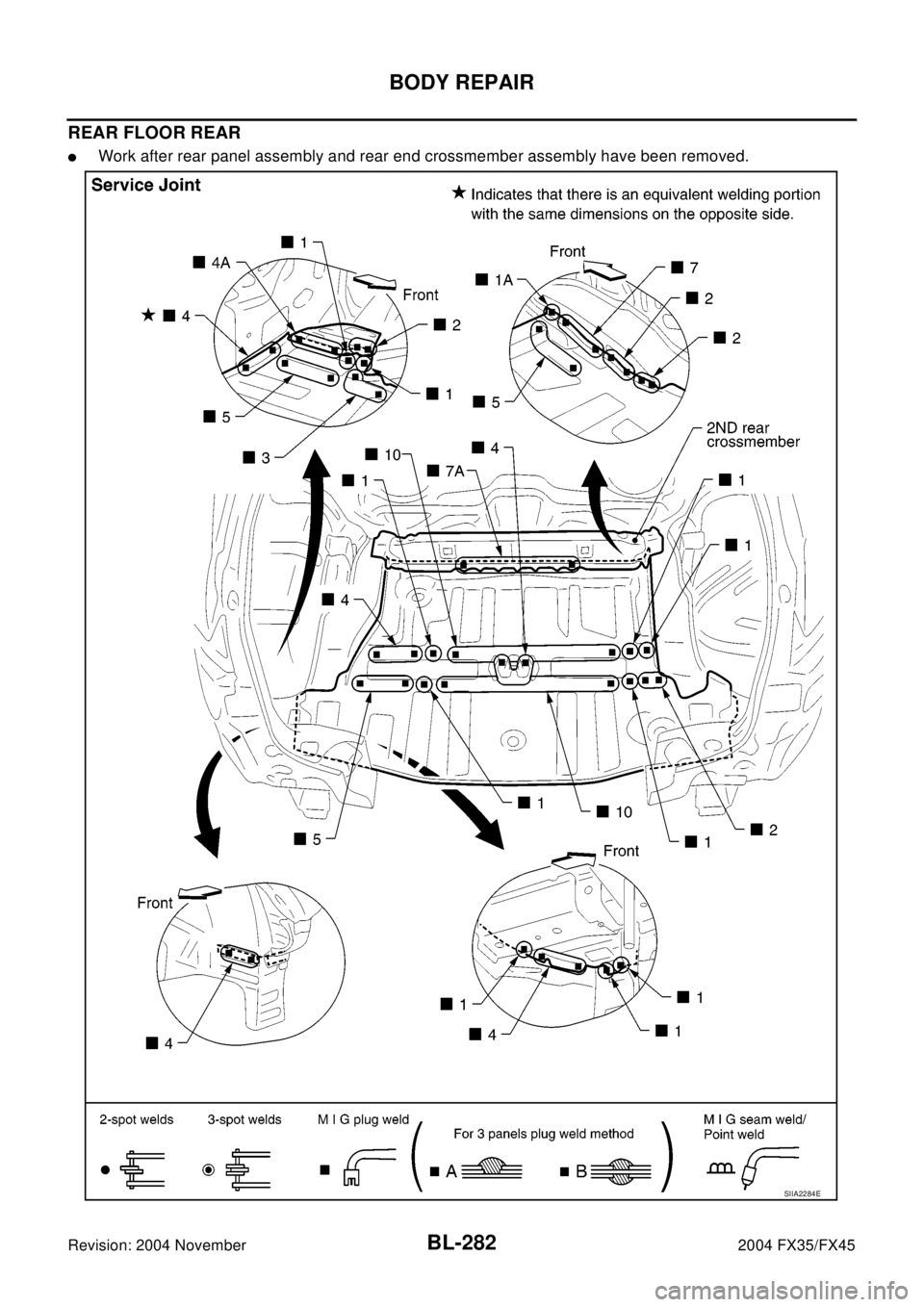

REAR FLOOR REAR
lWork after rear panel assembly and rear end crossmember assembly have been removed.
SIIA2284E

Page 1090 of 4449

INFINITI FX35 2004 Service Manual BODY REPAIR
BL-283
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2004 November2004 FX35/FX45

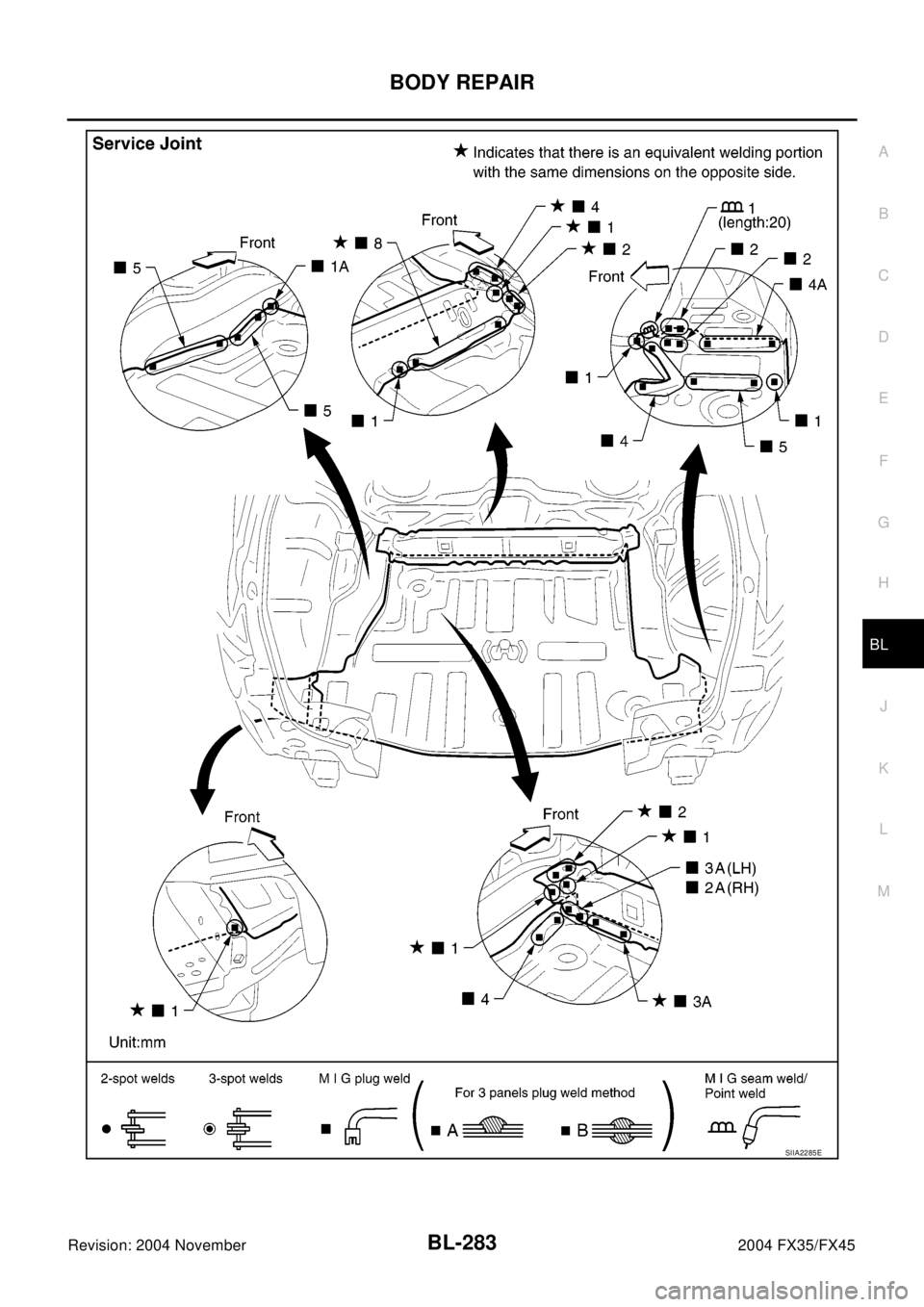

SIIA2285E

Page 1091 of 4449

INFINITI FX35 2004 Service Manual BL-284
BODY REPAIR
Revision: 2004 November2004 FX35/FX45

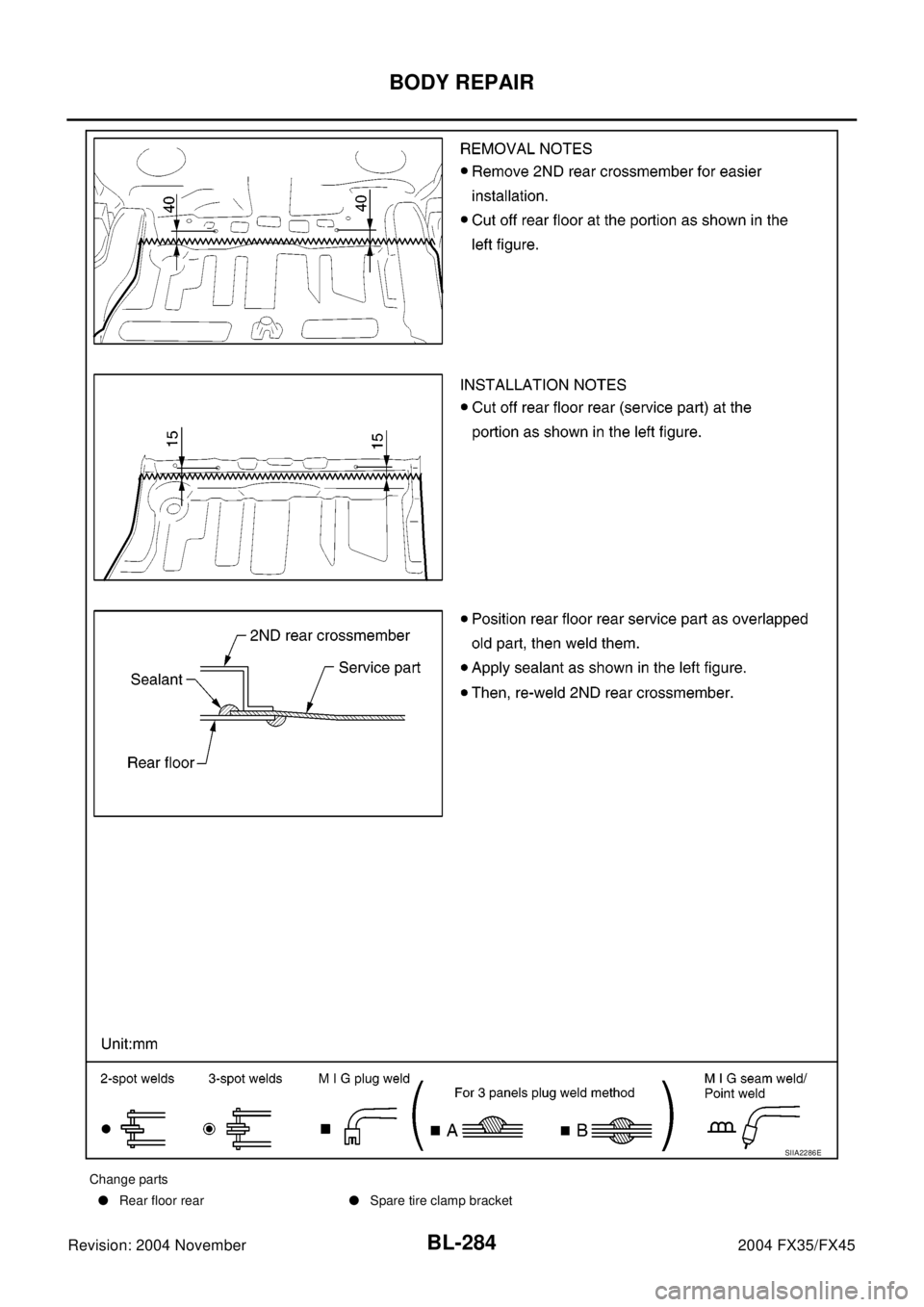

SIIA2286E
Change parts
lRear floor rearlSpare tire clamp bracket

Page 1092 of 4449

INFINITI FX35 2004 Service Manual BODY REPAIR
BL-285
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2004 November2004 FX35/FX45

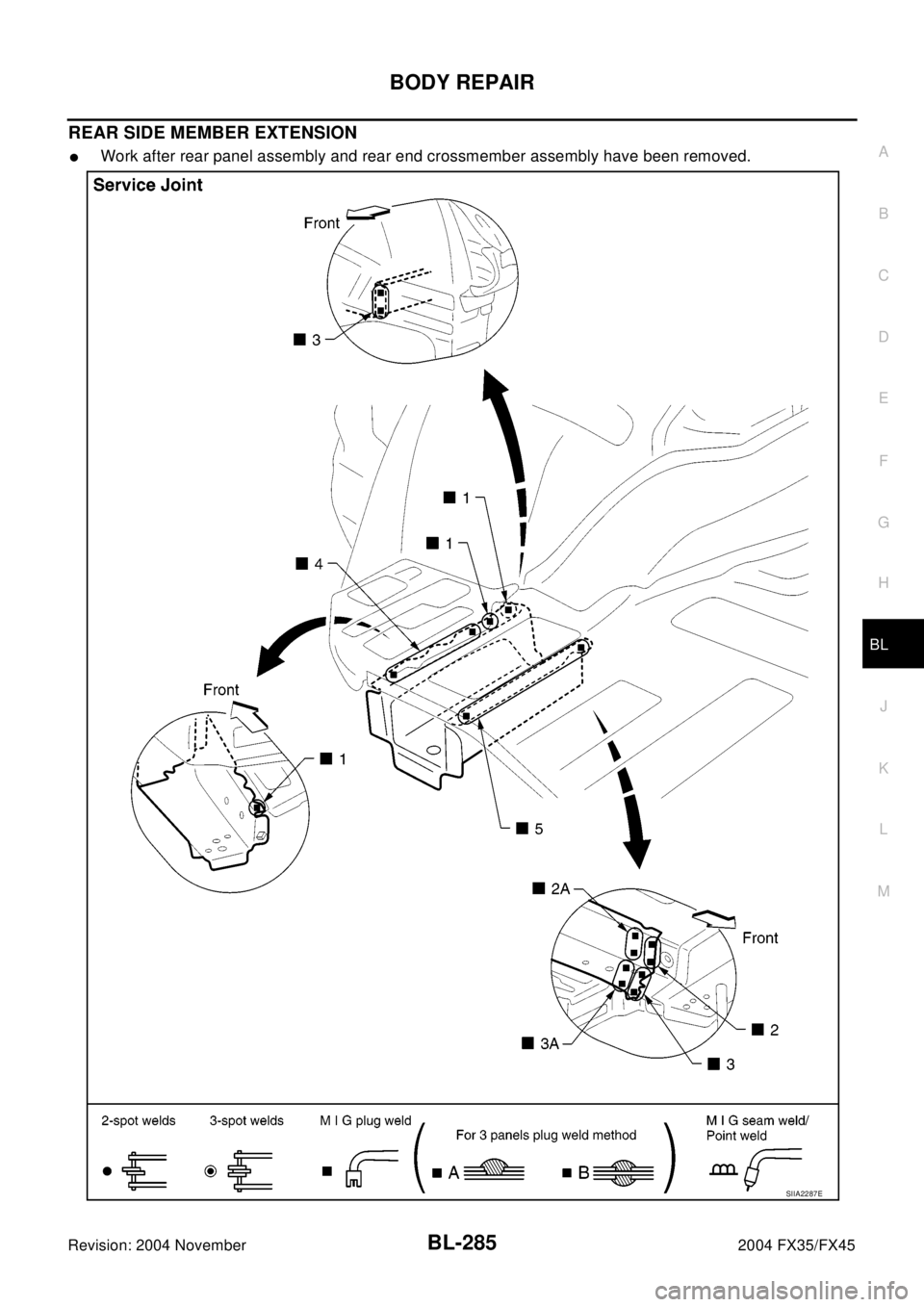

REAR SIDE MEMBER EXTENSION
lWork after rear panel assembly and rear end crossmember assembly have been removed.
SIIA2

Page 1093 of 4449

INFINITI FX35 2004 Service Manual BL-286
BODY REPAIR
Revision: 2004 November2004 FX35/FX45
Change parts
lRear side member extension (LH)

Page 1094 of 4449

INFINITI FX35 2004 Service Manual BR-1
BRAKE SYSTEM
F BRAKES
CONTENTS
C
D
E
G
H
I
J
K
L
M
SECTION BR
A
B
BR
Revision: 2004 November 2004 FX35/FX45
BRAKE SYSTEM
PRECAUTIONS .......................................................... 3

BR-1
BRAKE SYSTEM
F BRAKES
CONTENTS
C
D
E
G
H
I
J
K
L
M
SECTION BR
A
B
BR
Revision: 2004 November 2004 FX35/FX45
BRAKE SYSTEM
PRECAUTIONS .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 3
Precautions for Brake System .................................. 3
PREPARATION ........................................................... 4
Commercial Service Tools ........................................ 4
NOISE, VIBRATION AND HARSHNESS (NVH)
TROUBLESHOOTING ................................................ 5
NVH Troubleshooting Chart ..................................... 5
BRAKE PEDAL .......................................................... 6
Inspection and Adjustment ....................................... 6
PLAY AND CLEARANCE BETWEEN BRAKE
PEDAL AND FLOOR PANEL WITH PEDAL
DEPRESSED ........................................................ 6
ADJUSTMENT ...................................................... 7
Removal and Installation .......................................... 7
COMPONENT PARTS LOCATION ....................... 7
REMOVAL ............................................................. 8
INSPECTION AFTER REMOVAL ......................... 8
INSTALLATION ..................................................... 8
BRAKE FLUID ............................................................ 9
On-board Inspection ................................................. 9
LEVEL CHECK ..................................................... 9
Drain and Refill ......................................................... 9
Bleeding Brake System .......................................... 10
BRAKE PIPING AND HOSE .....................................11
Hydraulic Circuit ...................................................... 11
Removal and Installation of Front Brake Piping and
Brake Hose ............................................................. 11
REMOVAL ............................................................ 11
INSTALLATION .................................................... 11
Removal and Installation of Rear Brake Piping and
Brake Hose ............................................................ 12
REMOVAL ........................................................... 12
INSTALLATION ................................................... 12
Inspection After Installation .................................... 12
BRAKE MASTER CYLINDER .................................. 13
On-board Inspection ............................................... 13
LEAK INSPECTION ............................................ 13Removal and Installation ........................................ 13
REMOVAL ........................................................... 13
INSTALLATION ................................................... 13
Components ........................................................... 13
Disassembly and Assembly .................................... 14
DISASSEMBLY ................................................... 14
ASSEMBLY ......................................................... 14
BRAKE BOOSTER ................................................... 15
On-Vehicle Service ................................................. 15
OPERATING CHECK .......................................... 15
AIRTIGHT CHECK .............................................. 15
Removal and Installation ........................................ 16
REMOVAL ........................................................... 16
INSPECTION AFTER REMOVAL ....................... 16
INSTALLATION ................................................... 17
VACUUM LINES ....................................................... 18
Removal and Installation ........................................ 18
Inspection ............................................................... 18
VISUAL INSPECTION ......................................... 18
CHECK VALVE INSPECTION ............................. 19
FRONT DISC BRAKE ............................................... 20
On-vehicle Inspection ............................................. 20
PAD WEAR INSPECTION ................................... 20
Components ........................................................... 20
Removal and Installation of Brake Pad .................. 21
REMOVAL ........................................................... 21
INSTALLATION ................................................... 21
Removal and Installation of Brake Caliper Assembly
... 21
REMOVAL ........................................................... 21
INSTALLATION ................................................... 21
Disassembly and Assembly of Brake Caliper
Assembly ................................................................ 22
DISASSEMBLY ................................................... 22
CALIPER INSPECTION ...................................... 23
ASSEMBLY ......................................................... 23
DISC ROTOR INSPECTION ............................... 24
BRAKE BURNISHING PROCEDURE ................. 24
REAR DISC BRAKE ................................................. 25
On-vehicle Inspection ............................................. 25

Page 1095 of 4449

INFINITI FX35 2004 Service Manual BR-2Revision: 2004 November 2004 FX35/FX45PAD WEAR INSPECTION ................................... 25
Components ........................................................... 25
Removal and Installation

Page 1096 of 4449

INFINITI FX35 2004 Service Manual PRECAUTIONS
BR-3
C
D
E
G
H
I
J
K
L
MA
B
BR
Revision: 2004 November 2004 FX35/FX45
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER

PRECAUTIONS
BR-3
C
D
E
G
H
I
J
K
L
MA
B
BR
Revision: 2004 November 2004 FX35/FX45
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
AFS0028A
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions for Brake SystemAFS001MQ
Recommended fluid is brake fluid “DOT 3”.
Do not reuse drained brake fluid.
Be careful not to splash brake fluid on painted areas.
To clean or wash all parts of master cylinder, disc brake caliper and wheel cylinder, use clean brake fluid.
Do not use mineral oils such as gasoline or kerosene. They will ruin rubber parts of the hydraulic system.
Use flare nut wrench when removing and installing brake tube.
When installing brake piping, be sure to check torque.
Before working, turn ignition switch OFF and disconnect con-
nectors for ABS actuator and electric unit (control unit) or battery
terminal.
Burnish the brake contact surfaces after refinishing or replacing
drums or rotors, after replacing pads or linings, or if a soft pedal
occurs at very low mileage.
Refer to BR-24, "
BRAKE BURNISHING PROCEDURE" .
WARNING:
Clean brake pads and shoes with a waste cloth, then wipe
with a dust collector.SBR686C
