![INFINITI FX35 2004 Service Manual EC-508
[VQ35DE]
DTC P1564 ICC STEERING SWITCH
Revision: 2004 November 2004 FX35/FX45
DTC P1564 ICC STEERING SWITCHPFP:25551
Component DescriptionABS007YZ
ICC steering switch has variant values of elec INFINITI FX35 2004 Service Manual EC-508
[VQ35DE]
DTC P1564 ICC STEERING SWITCH
Revision: 2004 November 2004 FX35/FX45
DTC P1564 ICC STEERING SWITCHPFP:25551
Component DescriptionABS007YZ
ICC steering switch has variant values of elec](/manual-img/42/57021/w960_57021-1848.png)
EC-508
[VQ35DE]
DTC P1564 ICC STEERING SWITCH
Revision: 2004 November 2004 FX35/FX45
DTC P1564 ICC STEERING SWITCHPFP:25551
Component DescriptionABS007YZ
ICC steering switch has variant values of electrical resistance for
each button. ECM reads voltage variation of switch, and determines
which button is operated.
Refer to ACS-6, "
DESCRIPTION" for the ICC function.
CONSULT-II Reference Value in Data Monitor ModeABS007Z0
Specification data are reference values.
On Board Diagnosis LogicABS007Z1
This self-diagnosis has the one trip detection logic.
The MIL will not light up for this self-diagnosis.
NOTE:
If DTC P1564 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605. Refer to
EC-401
.
DTC Confirmation ProcedureABS007Z2
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
PBIB1540E
MONITOR ITEM CONDITION SPECIFICATION
MAIN SW
Ignition switch: ONON/OFF(MAIN) switch: Pressed ON
ON/OFF(MAIN) switch: Released OFF
CANCEL SW
Ignition switch: ONCANCEL switch: Pressed ON
CANCEL switch: Released OFF
RESUME/ACC SW
Ignition switch: ONACCEL/ RESUME switch: Pressed ON
ACCEL/ RESUME switch: Released OFF
SET SW
Ignition switch: ONCOAST/SET switch: Pressed ON
COAST/SET switch: Released OFF
DIST SW
Ignition switch: ONDISTANCE switch: Pressed ON
DISTANCE switch: Released OFF
DTC No.Trouble Diagnosis
NameDTC Detecting Condition Possible Cause
P1564
1564ICC steering switch
An excessively high voltage signal from the
ICC steering switch is sent to ECM.
ECM detects that input signal from the ICC
steering switch is out of the specified range.
ECM detects that the ICC steering switch is
stuck ON.
Harness or connectors
(The switch circuit is open or shorted.)
ICC steering switch
ECM
Page 1850 of 4449
DTC P1564 ICC STEERING SWITCH
EC-509
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Wait at least 10 seconds.
4. Press ON/OFF(MAIN) switch for at least 10 seconds, then
release it and wait at least 10 seconds.
5. Press ACCEL/RESUME switch for at least 10 seconds, then
release it and wait at least 10 seconds.
6. Press COAST/SET switch for at least 10 seconds, then release
it and wait at least 10 seconds.
7. Press DISTANCE switch for at least 10 seconds, then release it
and wait at least 10 seconds.
8. Press CANCEL switch for at least 10 seconds, then release it
and wait at least 10 seconds.
9. If DTC is detected, go to EC-511, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
SEF058Y
Page 1851 of 4449
EC-510
[VQ35DE]
DTC P1564 ICC STEERING SWITCH
Revision: 2004 November 2004 FX35/FX45

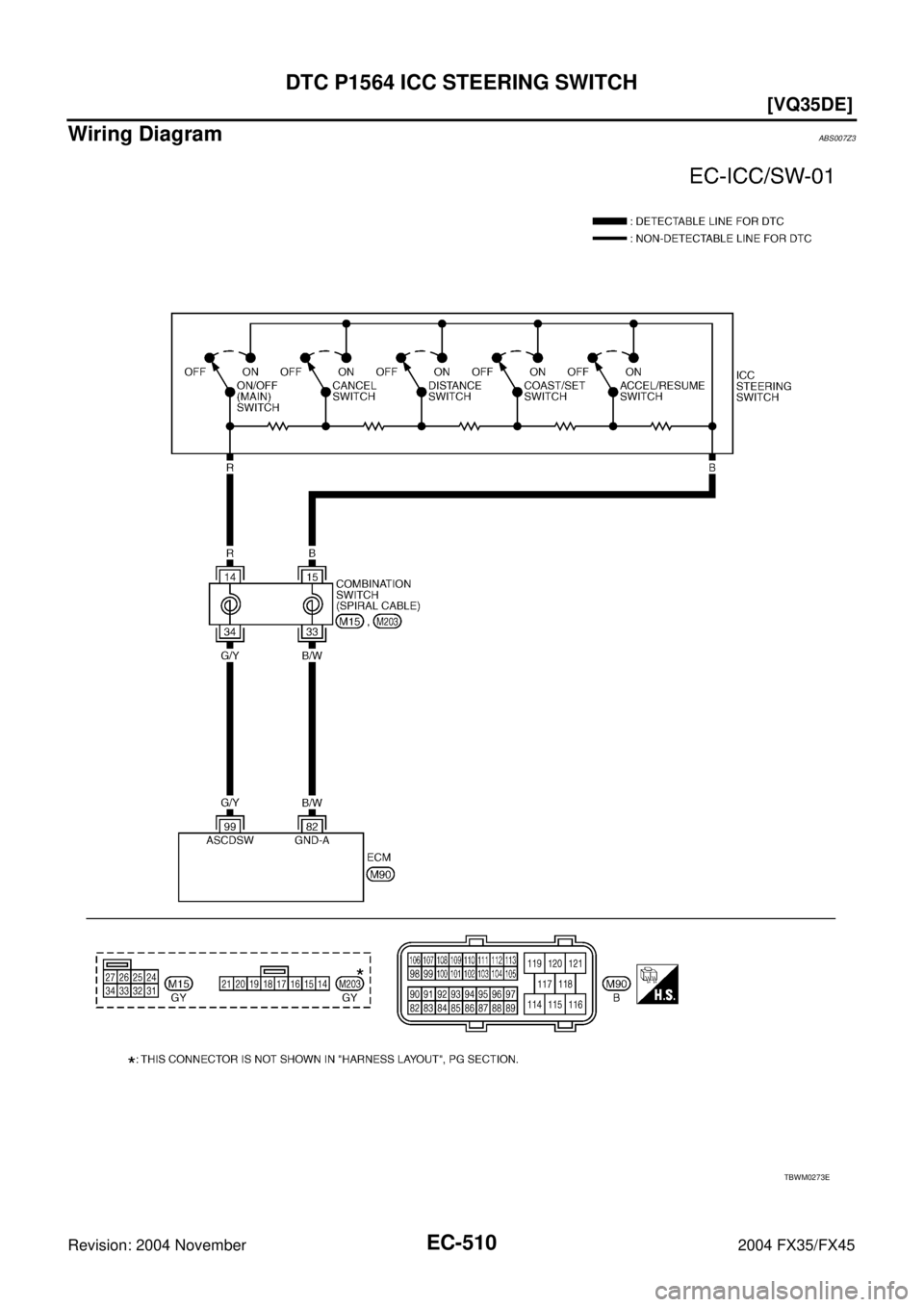

Wiring DiagramABS007Z3
TBWM0273E
Page 1852 of 4449
![INFINITI FX35 2004 Service Manual DTC P1564 ICC STEERING SWITCH
EC-511
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
Specification data are reference values and are measured between each terminal and ground INFINITI FX35 2004 Service Manual DTC P1564 ICC STEERING SWITCH
EC-511
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
Specification data are reference values and are measured between each terminal and ground](/manual-img/42/57021/w960_57021-1851.png)
DTC P1564 ICC STEERING SWITCH
EC-511
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureABS007Z4
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground three screws on the body. Refer to EC-141, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
82 B/WSensor ground
(ICC steering switch)[Engine is running]
Warm-up condition
Idle speedApproximately 0V
99 G/Y ICC steering switch[Ignition switch: ON]
ICC steering switch: OFFApproximately 4.3V
[Ignition switch: ON]
ON/OFF(MAIN) switch: PressedApproximately 0V
[Ignition switch: ON]
CANCEL switch: PressedApproximately 1.3V
[Ignition switch: ON]
DISTANCE switch: PressedApproximately 2.2V
[Ignition switch: ON]
COAST/SET switch: PressedApproximately 3V
[Ignition switch: ON]
ACCEL/RESUME switch: PressedApproximately 3.7V
PBIB2195E
Page 1853 of 4449
![INFINITI FX35 2004 Service Manual EC-512
[VQ35DE]
DTC P1564 ICC STEERING SWITCH
Revision: 2004 November 2004 FX35/FX45
2. CHECK ICC STEERING SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch ON.
2. Select “MAIN SW”, “RESUM INFINITI FX35 2004 Service Manual EC-512
[VQ35DE]
DTC P1564 ICC STEERING SWITCH
Revision: 2004 November 2004 FX35/FX45
2. CHECK ICC STEERING SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch ON.
2. Select “MAIN SW”, “RESUM](/manual-img/42/57021/w960_57021-1852.png)
EC-512
[VQ35DE]
DTC P1564 ICC STEERING SWITCH
Revision: 2004 November 2004 FX35/FX45
2. CHECK ICC STEERING SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch ON.
2. Select “MAIN SW”, “RESUME/ACC SW”, “SET SW”, “DIST SW”
and “CANCEL SW” in “DATA MONITOR” mode with CONSULT-
II.
3. Check each item indication under the following conditions.
Without CONSULT-II
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 99 and ground with press-
ing each button.
OK or NG
OK >> GO TO 8.
NG >> GO TO 3.
Switch Monitor item Condition Indication
ON/OFF(MAIN) switch MAIN SWPressed ON
Released OFF
COAST/SET switch SET SWPressed ON
Released OFF
ACCEL/RESUME switch RESUME/ACC SWPressed ON
Released OFF
DISTANCE switch DIST SWPressed ON
Released OFF
CANCEL switch CANCEL SWPressed ON
Released OFF
MBIB0064E
Switch Condition Voltage [V]
ON/OFF(MAIN) switchPressed Approx. 0
Released Approx. 4.3
COAST/SET switchPressed Approx. 3.0
Released Approx. 4.3
ACCEL/ RESUME switchPressed Approx. 3.7
Released Approx. 4.3
DISTANCE switchPressed Approx. 2.2
Released Approx. 4.3
CANCEL switchPressed Approx. 1.3
Released Approx. 4.3
PBIB0311E
Page 1854 of 4449
![INFINITI FX35 2004 Service Manual DTC P1564 ICC STEERING SWITCH
EC-513
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
3. CHECK ICC STEERING SWITCH GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OF INFINITI FX35 2004 Service Manual DTC P1564 ICC STEERING SWITCH
EC-513
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
3. CHECK ICC STEERING SWITCH GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OF](/manual-img/42/57021/w960_57021-1853.png)
DTC P1564 ICC STEERING SWITCH
EC-513
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
3. CHECK ICC STEERING SWITCH GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect combination switch harness connector.
3. Disconnect ECM harness connector.
4. Check harness continuity between combination switch terminal
15 and ECM terminal 82.
Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the following.
Combination switch (spiral cable)
Harness for open and short between ECM and combination switch
>> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK ICC STEERING SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 99 and combination switch terminal 14.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. DETECT MALFUNCTIONING PART
Check the following.
Combination switch (spiral cable)
Harness for open and short between ECM and combination switch
>> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK ICC STEERING SWITCH
Refer to EC-514, "
Component Inspection" .
OK or NG
OK >> GO TO 8.
NG >> Replace ICC steering switch.
8. CHECK INTERMITTENT INCIDENT
Refer to EC-135, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END Continuity should exist.
PBIB1540E
Continuity should exist.
Page 1855 of 4449
EC-514
[VQ35DE]
DTC P1564 ICC STEERING SWITCH
Revision: 2004 November 2004 FX35/FX45
Component InspectionABS007Z5
ICC STEERING SWITCH
1. Disconnect combination switch (spiral cable).
2. Check continuity between combination switch (spiral cable) ter-
minals 14 and 15 with pushing each switch.
If NG, replace ICC steering switch.
Switch Condition Resistance [Ω]
ON/OFF(MAIN) switchPressed Approx. 0
Released Approx. 5,500
COAST/SET switchPressed Approx. 1,400
Released Approx. 5,500
ACCEL/ RESUME switchPressed Approx. 2,600
Released Approx. 5,500
DISTANCE switchPressed Approx. 740
Released Approx. 5,500
CANCEL switchPressed Approx. 310
Released Approx. 5,500
PBIB1621E
Page 1856 of 4449
![INFINITI FX35 2004 Service Manual DTC P1564 ASCD STEERING SWITCH
EC-515
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
DTC P1564 ASCD STEERING SWITCHPFP:25551
Component DescriptionABS006W9
ASCD steering swit INFINITI FX35 2004 Service Manual DTC P1564 ASCD STEERING SWITCH
EC-515
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
DTC P1564 ASCD STEERING SWITCHPFP:25551
Component DescriptionABS006W9
ASCD steering swit](/manual-img/42/57021/w960_57021-1855.png)
DTC P1564 ASCD STEERING SWITCH
EC-515
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
DTC P1564 ASCD STEERING SWITCHPFP:25551
Component DescriptionABS006W9
ASCD steering switch has variant values of electrical resistance for
each button. ECM reads voltage variation of switch, and determines
which button is operated.
Refer to EC-657, "
AUTOMATIC SPEED CONTROL DEVICE
(ASCD)" for the ASCD function.
CONSULT-II Reference Value in Data Monitor ModeABS006WA
Specification data are reference values.
On Board Diagnosis LogicABS006WB
This self-diagnosis has the one trip detection logic.
The MIL will not light up for this diagnosis.
NOTE:
If DTC P1564 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605. Refer to
EC-401
.
PBIB1513E
MONITOR ITEM CONDITION SPECIFICATION
MAIN SW
Ignition switch: ONON/OFF(MAIN) switch: Pressed ON
ON/OFF(MAIN) switch: Released OFF
CANCEL SW
Ignition switch: ONCANCEL switch: Pressed ON
CANCEL switch: Released OFF
RESUME/ACC SW
Ignition switch: ONACCEL/RESUME switch: Pressed ON
ACCEL/RESUME switch: Released OFF
SET SW
Ignition switch: ON COAST/SET switch: Pressed ON
COAST/SET switch: Released OFF
DTC No.Trouble Diagnosis
NameDTC Detecting Condition Possible Cause
P1564
1564ASCD steering
switch
An excessively high voltage signal from the ASCD
steering switch is sent to ECM.
ECM detects that input signal from the ASCD
steering switch is out of the specified range.
ECM detects that the ASCD steering switch is
stuck ON.
Harness or connectors
(The switch circuit is open or shorted.)
ASCD steering switch
ECM
