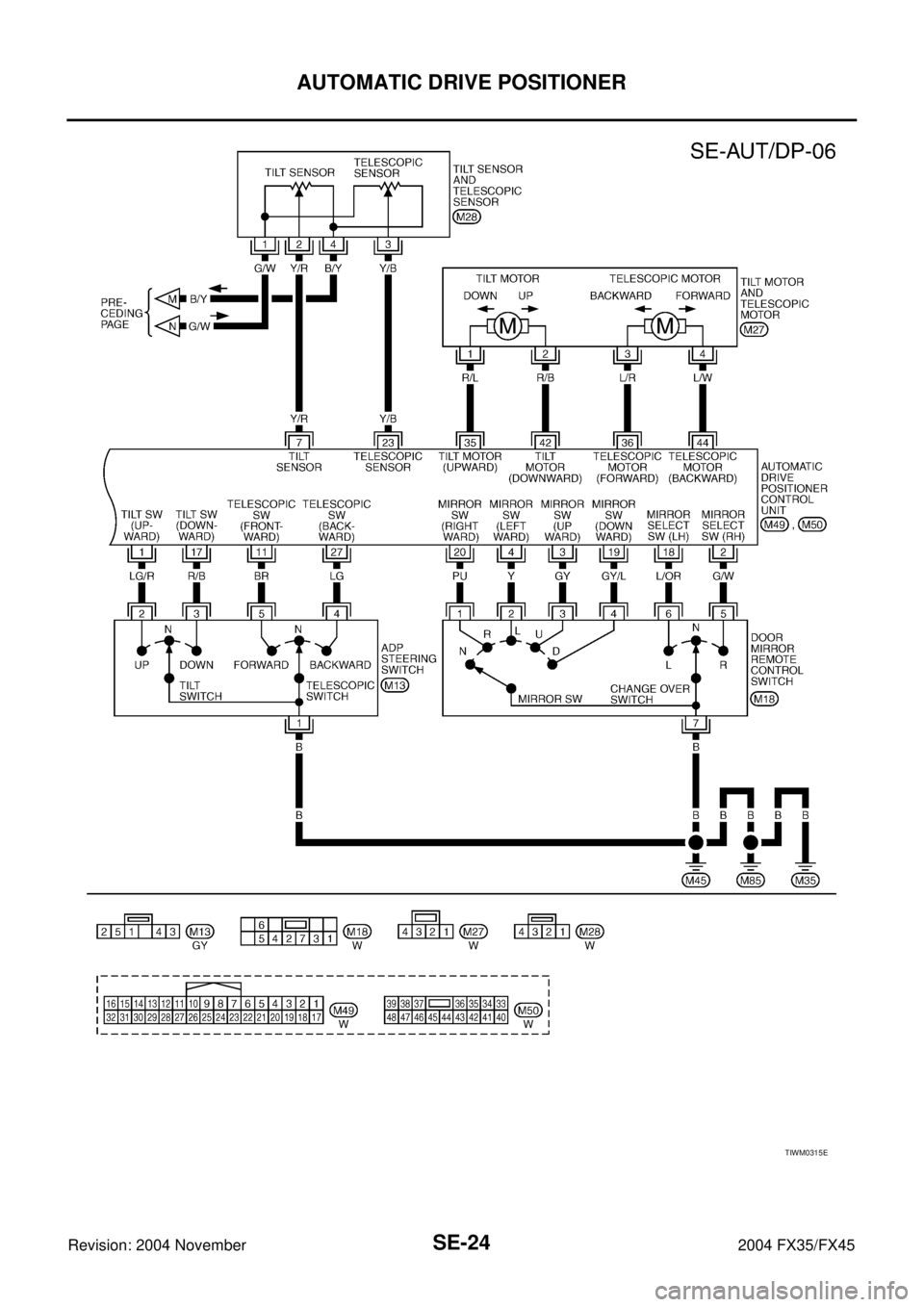

Page 4153 of 4449
SE-24
AUTOMATIC DRIVE POSITIONER
Revision: 2004 November 2004 FX35/FX45
TIWM0315E

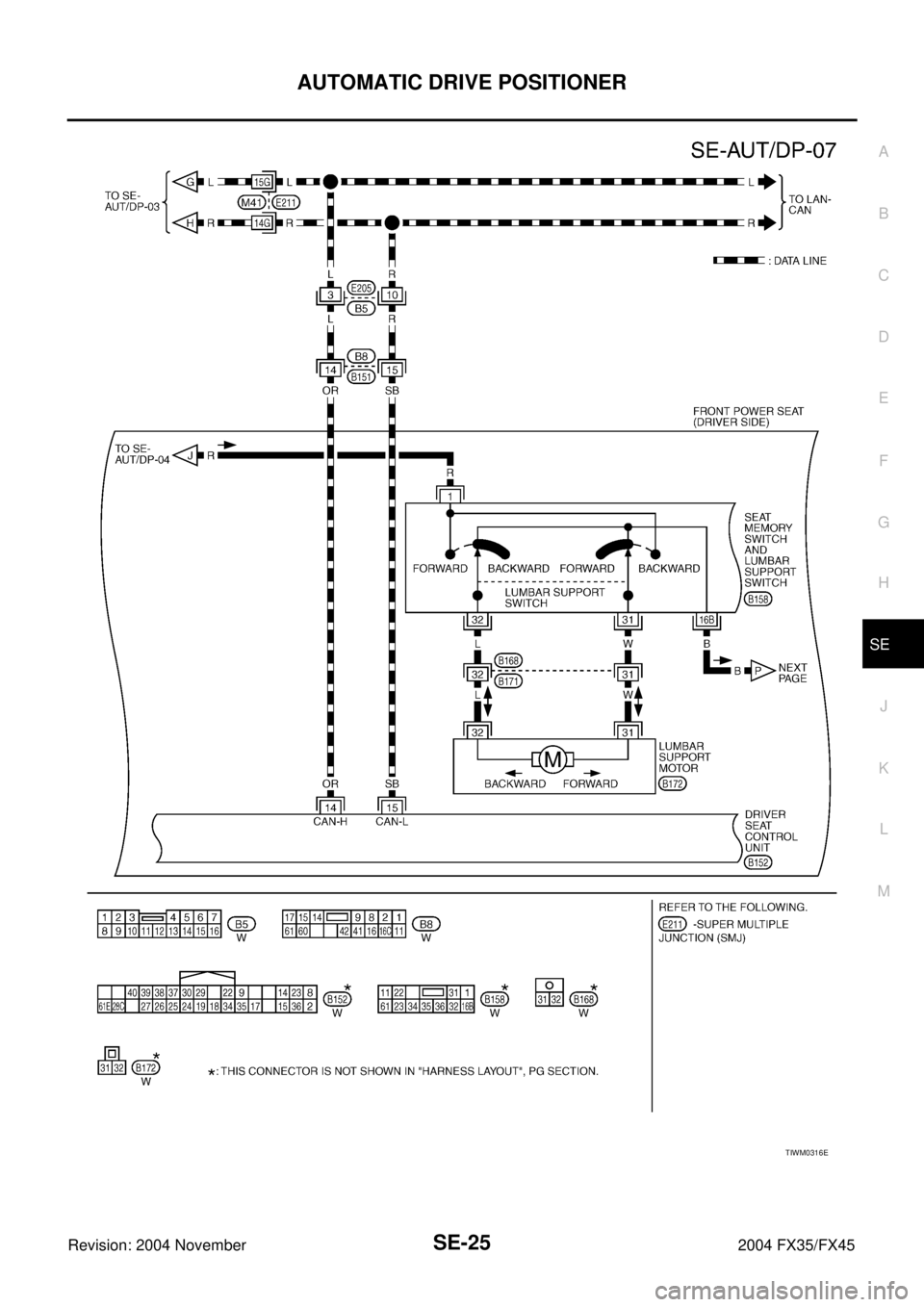

Page 4154 of 4449
AUTOMATIC DRIVE POSITIONER
SE-25
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2004 November 2004 FX35/FX45
TIWM0316E

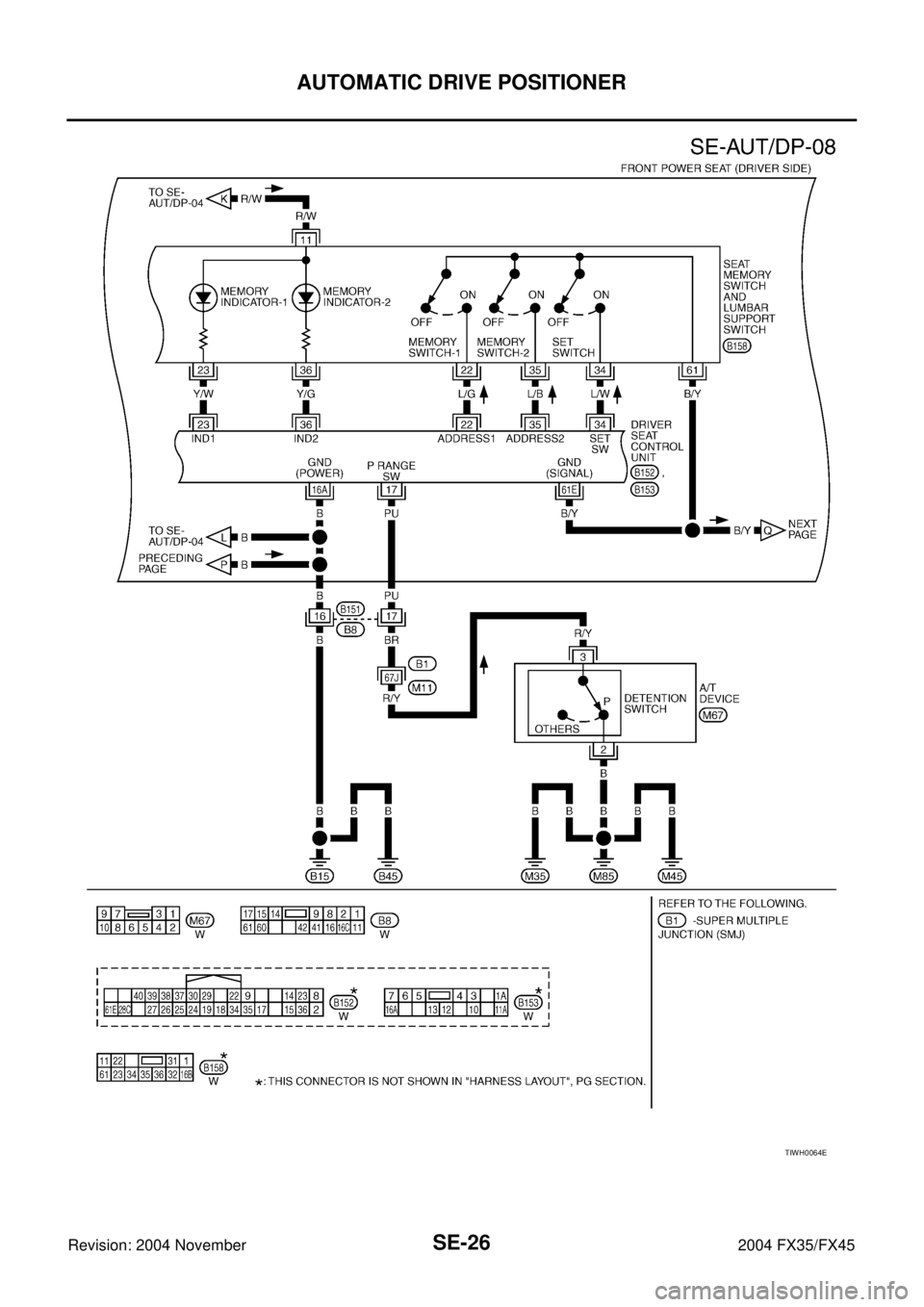

Page 4155 of 4449
SE-26
AUTOMATIC DRIVE POSITIONER
Revision: 2004 November 2004 FX35/FX45
TIWH0064E

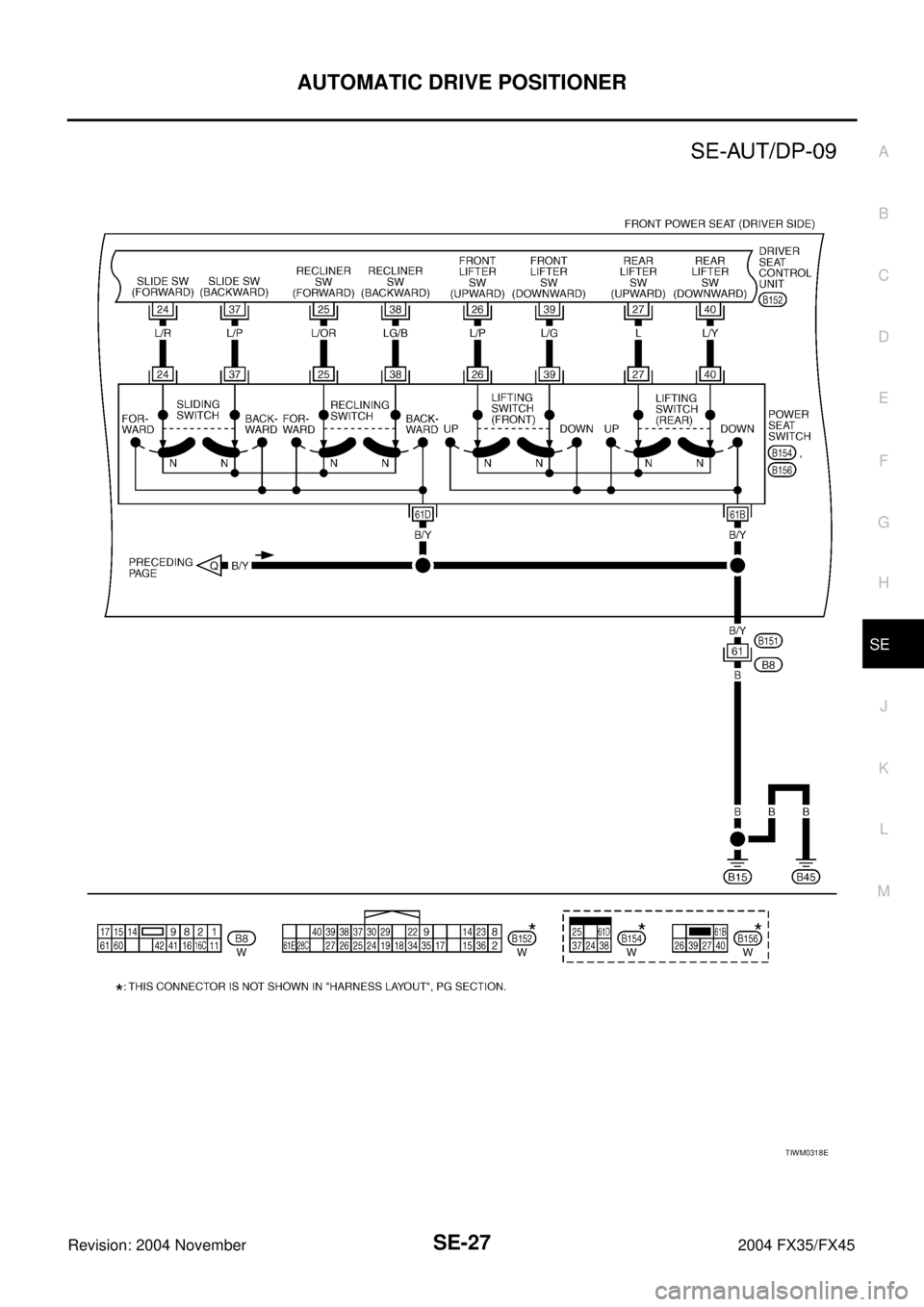

Page 4156 of 4449
AUTOMATIC DRIVE POSITIONER
SE-27
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2004 November 2004 FX35/FX45
TIWM0318E

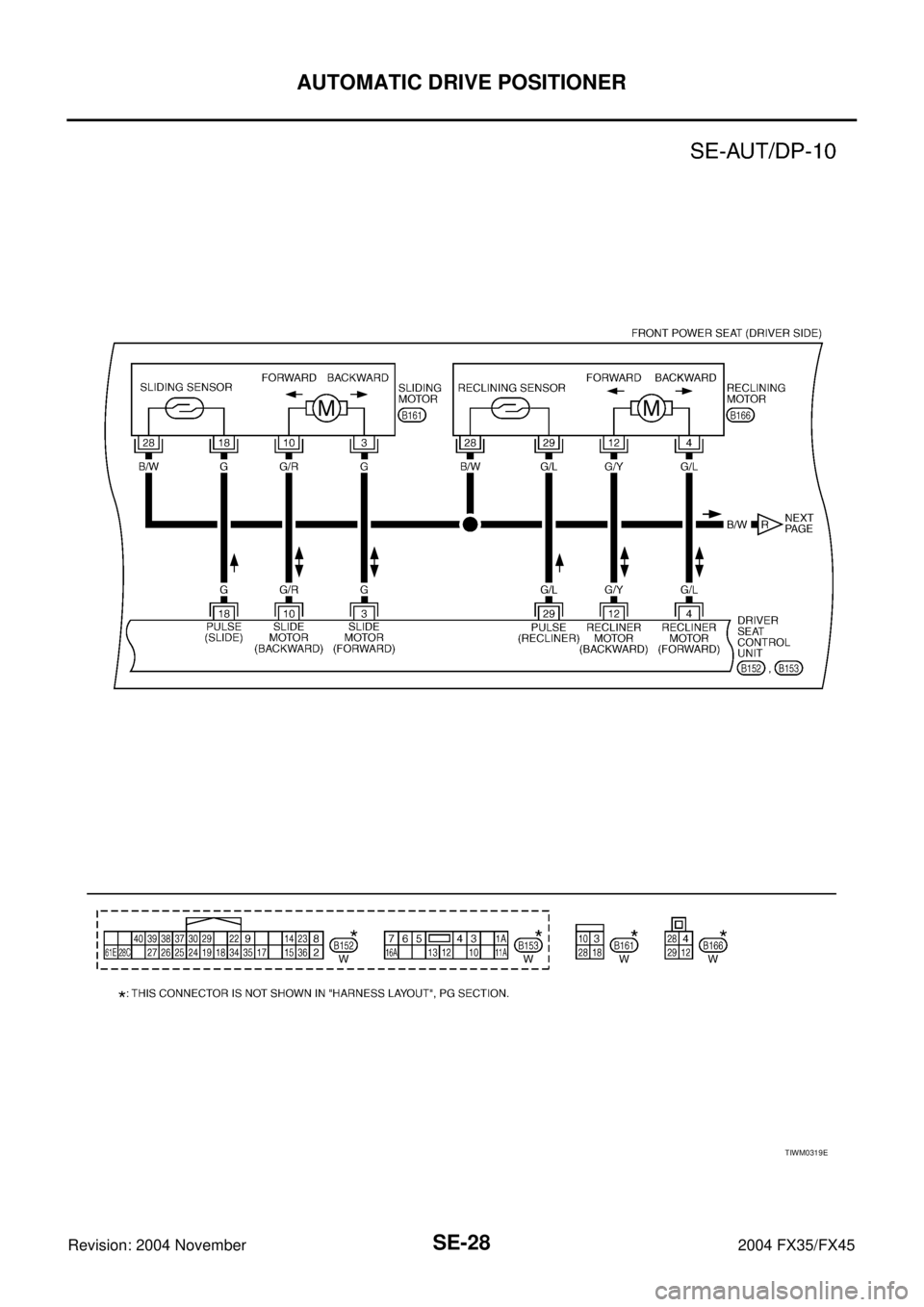

Page 4157 of 4449
SE-28
AUTOMATIC DRIVE POSITIONER
Revision: 2004 November 2004 FX35/FX45
TIWM0319E

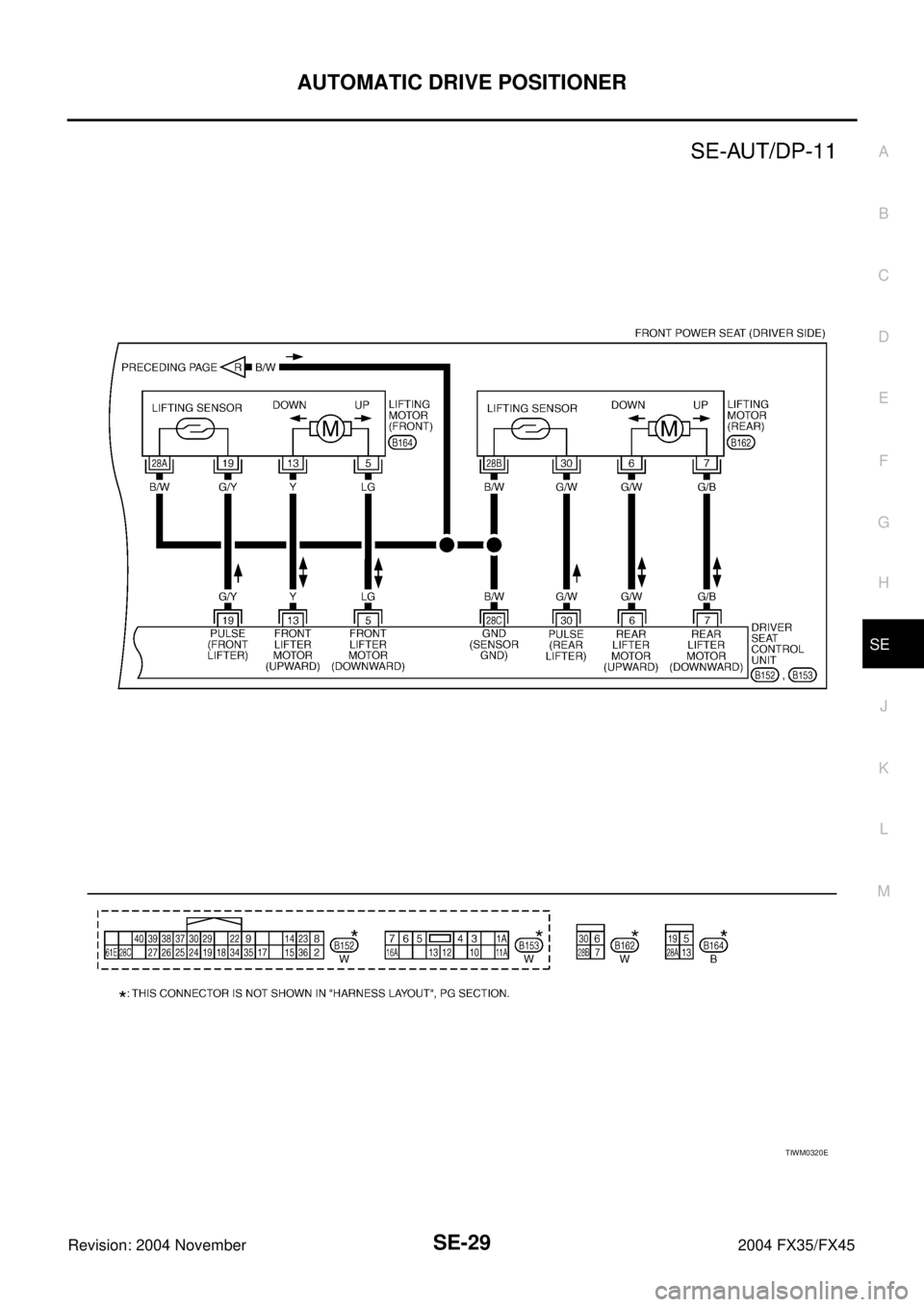

Page 4158 of 4449
AUTOMATIC DRIVE POSITIONER
SE-29
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2004 November 2004 FX35/FX45
TIWM0320E
Page 4159 of 4449

SE-30
AUTOMATIC DRIVE POSITIONER
Revision: 2004 November 2004 FX35/FX45
Terminals and Reference Values for BCMAIS002XG
Terminals and Reference Values for Automatic Drive Positioner Control UnitAIS002XH
TERMINAL WIRE
COLORITEM CONDITIONVOLTAGE (V)
(Approx.)
11 LG/R ACC power supply Ignition switch ACC Battery voltage
37 B/W Key switch signalKey switch ON (key is inserted in
ignition key cylinder)Battery voltage
Key switch OFF (key is removed
from ignition key cylinder)0
38 W/L Ignition power supply Ignition switch ON Battery voltage
39 L CAN-H — —
40 R CAN-L — —
42 L/R Battery power supply (fuse) Ignition switch OFF Battery voltage
49 B Ground (signal) Ignition switch ON 0
52 B Ground (power) Ignition switch ON 0
55 GBattery power supply (Fusible
link)Ignition switch OFF Battery voltage
62 W Front door switch (driver side) ON (Open) → OFF (Closed) 0 → Battery voltage
TERMI-
NALWIRE
COLORITEM CONDITIONVOLTAGE (V)
(Approx.)
1 LG/R Tilt switch UP signalTilt switch turned to upward 0
Tilt switch neutral position 5
2 G/W Changeover switch RH signalWhen changeover switch in RH posi-
tion0
When changeover switch in neutral
position5
3 GY Mirror switch UP signalWhen mirror switch in turned to
upward position0
When mirror switch in neutral position 5
4 Y Mirror switch LEFT signalWhen mirror switch in turned to left-
ward position0
When mirror switch in neutral position 5
5ORPassenger side mirror sensor
(vertical) signalWhen passenger side mirror motor is
UP or DOWN operationChanges between 3 (close to perk)
1 (close to valley)
6P/LDriver side mirror sensor (verti-
cal) signalWhen driver side mirror motor is UP
or DOWN operationChanges between 3 (close to perk)
1 (close to valley)
7 Y/R Tilt sensor inputTilt position, top 1.82
Tilt position, bottom 4.44
10 B UART LINE (TX) Memory switch 1 or 2 operated
11 BR Telescopic switch forward signalTelescoping switch turned to forward 0
Telescoping switch neutral position 5
PIIA4813E
Page 4160 of 4449

AUTOMATIC DRIVE POSITIONER
SE-31
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2004 November 2004 FX35/FX45
14 L/WPassenger side mirror motor UP
signalWhen passenger side mirror motor
UP operation1.5 - Battery voltage
Passenger side mirror motor OFF 0
15 L/BPassenger side mirror motor sig-
nalWhen passenger side mirror motor
LEFT operation1.5 - Battery voltage
Passenger side mirror motor RH OFF 0
16 PDriver side mirror motor DOWN
signalWhen driver side mirror motor DOWN
operation1.5 - Battery voltage
Driver side mirror motor OFF 0
Driver side mirror motor RIGTH
signalWhen driver side mirror motor RIGHT
operation1.5 - Battery voltage
Driver side mirror motor OFF 0
17 R/B Tilt switch DOWN signalTilt switch turned to downward 0
Tilt switch neutral position 5
18 L/OR Changeover switch LH signalWhen changeover switch in LH posi-
tion0
When changeover switch in neutral
position5
19 GY/L Mirror switch DOWN signalWhen mirror switch in turned to down-
ward position0
When mirror switch in neutral position 5
20 PU Mirror switch RIGHT signalWhen mirror switch in turned to right-
ward position0
When mirror switch in neutral position 5
21 G/YPassenger side mirror sensor
(horizontal) signalWhen passenger side mirror motor is
LEFT or RIGHT operationChanges between 1 (close to left
edge) 3 (close to right edge)
22 L/YDriver side mirror sensor (hori-
zontal) signalWhen driver side mirror motor is LEFT
or RIGHT operationChanges between 1 (close to right
edge) 3 (close to left edge)
23 Y/B Telescopic sensor inputTelescoping position, top 0.56
Telescoping position, bottom 4.44
26 W UART LINE (RX) Memory switch 1 or 2 operated
27 LGTelescopic switch backward sig-
nalTelescopic switch turned to backward 0
Telescoping switch neutral position 5
28 SB Ignition START power supply Ignition switch START Battery voltage
30 W/RPassenger side mirror motor
DOWN signalWhen passenger side mirror motor
downward1.5 - Battery voltage
Passenger side mirror motor OFF 0
Passenger side mirror motor
RIGTH signalWhen passenger side mirror motor
RIGHT operation1.5 - Battery voltage
Passenger side mirror motor OFF 0
31 R/WDriver side mirror motor UP sig-
nalWhen driver side mirror motor upward 1.5 - Battery voltage
Driver side mirror motor OFF 0 TERMI-
NALWIRE
COLORITEM CONDITIONVOLTAGE (V)
(Approx.)
PIIA4814E
