Page 2953 of 4449
EM-228
[VK45DE]
CYLINDER HEAD
Revision: 2004 November 2004 FX35/FX45
Disassembly and AssemblyABS006IR
DISASSEMBLY
1. Remove spark plug with spark plug wrench (commercial service tool).
2. Remove adjusting shim and valve lifter.
Identify installation positions, and store them without mixing them up.
3. Remove valve collet.
Compress valve spring with valve spring compressor, attach-
ment and adapter (SST). Remove valve collet with magnetic
hand.
CAUTION:
When working, take care not to damage valve lifter holes.
4. Remove valve spring retainer and valve spring.
CAUTION:
Do not remove valve spring seat from valve spring.
5. Push valve stem to combustion chamber side, and remove valve.
Identify installation positions, and store them without mixing them up.
1. Spark plug 2. Adjusting shim 3. Valve lifter
4. Valve collet 5. Valve spring retainer 6. Valve spring (with valve spring seat)
7. Valve oil seal 8. Valve guide 9. Valve seat
10. Valve (INT) 11. Valve (EXH) 12. Cylinder head (left bank)
13. Spark plug tube 14. Cylinder head (right bank)
PBIC2362E
PBIC2360E
Page 2954 of 4449
CYLINDER HEAD
EM-229
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45
6. Remove valve oil seal with valve oil seal puller (SST).
7. If valve seat must be replaced, refer to EM-233, "
VALVE SEAT REPLACEMENT" .
8. If valve guide must be replaced, refer to EM-231, "
VALVE GUIDE REPLACEMENT" .
9. Remove spark plug tube, as necessary.
Using pair of pliers, pull spark plug tube out of cylinder head.
CAUTION:
Take care not to damage cylinder head.
Once removed, spark plug tube will be deformed and cannot be reused. Do not remove it unless
absolutely necessary.
ASSEMBLY
1. When valve guide is removed, install it. Refer to EM-231, "VALVE GUIDE REPLACEMENT" .
2. When valve seat is removed, install it. Refer to EM-233, "
VALVE SEAT REPLACEMENT" .
3. Install valve oil seal.
Install with valve oil seal drift (SST) to match dimension in the
figure.
4. Install valve.
Install in the original position.
NOTE:
Larger diameter valves are for intake side.
5. Install valve spring.
Install smaller pitch (valve spring seat side) to cylinder head
side.
6. Install valve spring retainer.
PBIC0072E
PBIC0073E
PBIC0074E
Page 2955 of 4449
EM-230
[VK45DE]
CYLINDER HEAD
Revision: 2004 November 2004 FX35/FX45
7. Install valve collet.
Compress valve spring with valve spring compressor, attach-
ment and adapter (SST). Install valve collet with magnetic
hand.
CAUTION:
When working, take care not to damage valve lifter holes.
Tap stem edge lightly with plastic hammer after installation to
check its installed condition.
8. Install valve lifter and adjusting shim.
Install in the original position.
9. Install spark plug tube.
Press-fit spark plug tube following procedure below.
a. Remove old liquid gasket adhering to cylinder-head mounting
hole.
b. Apply liquid gasket to area within approximately 12 mm (0.47 in)
from edge of spark plug tube press-fit side.
Use Genuine RTV Silicone Sealant or equivalent . Refer to
GI-48, "
RECOMMENDED CHEMICAL PRODUCTS AND
SEALANTS" .
c. Using drift, press-fit spark plug tube so that its height “H” is as
specified in the figure.
CAUTION:
When press-fitting, take care not to deform spark plug tube.
After press-fitting, wipe off liquid gasket protruding onto cylinder-head upper face.
10. Install spark plug with spark plug wrench (commercial service tool).
Inspection After DisassemblyABS006IS
VALVE DIMENSIONS
Check dimensions of each valve. For dimensions, refer to .
If dimensions are out of the standard, replace valve.EM-270,
"Valve Dimensions" .
PBIC2360E
Standard press-fit height “H” :
: 38.4 - 39.4 mm (1.512 - 1.551 in)
KBIA1248E
SEM188A
Page 2956 of 4449
CYLINDER HEAD
EM-231
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45

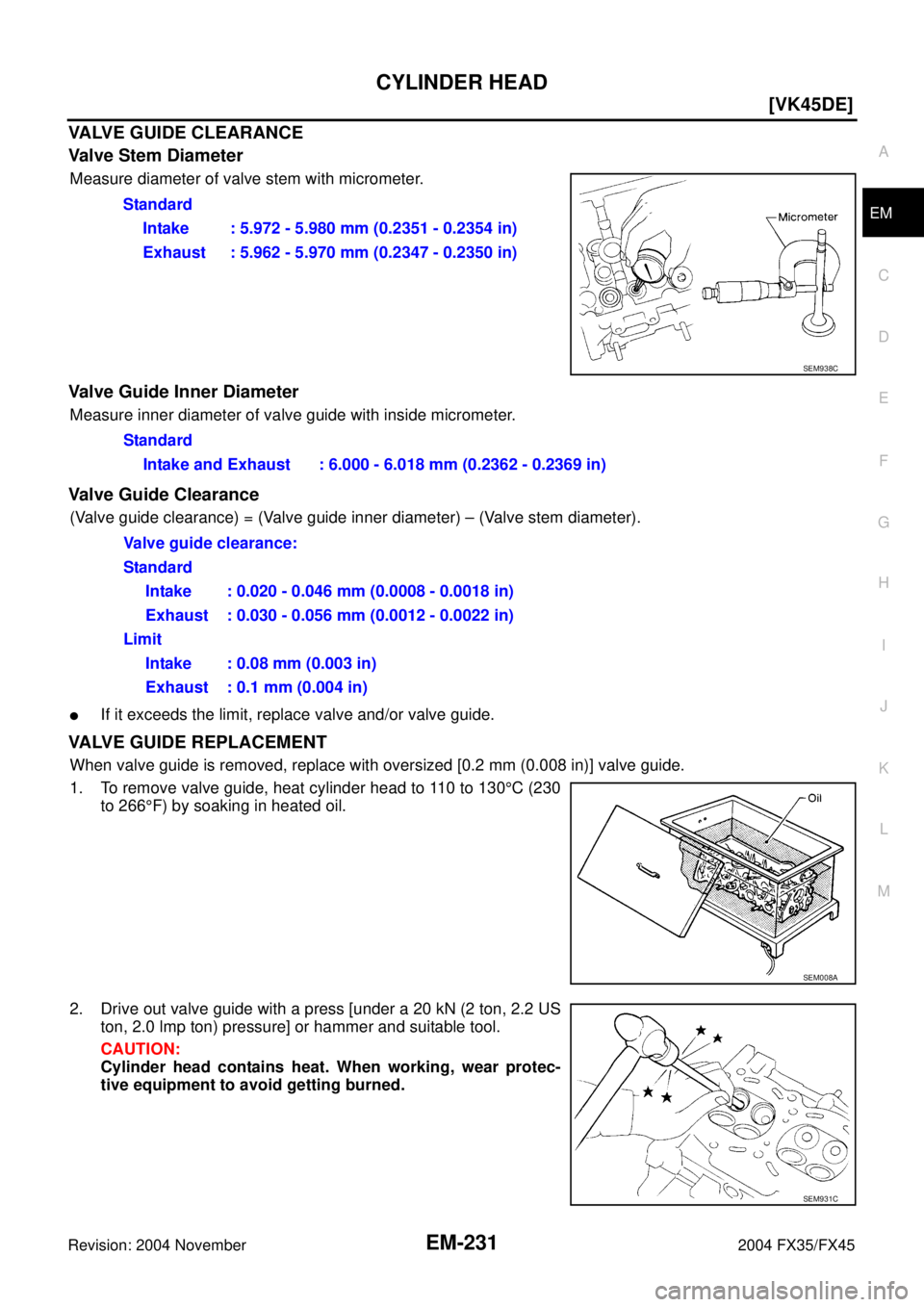

VALVE GUIDE CLEARANCE
Valve Stem Diameter
Measure diameter of valve stem with micrometer.
Valve Guide Inner Diameter
Measure inner diameter of valve guide with inside micrometer.
Valve Guide Clearance
(Valve guide clearance) = (Valve guide inner diameter) – (Valve stem diameter).
If it exceeds the limit, replace valve and/or valve guide.
VALVE GUIDE REPLACEMENT
When valve guide is removed, replace with oversized [0.2 mm (0.008 in)] valve guide.
1. To remove valve guide, heat cylinder head to 110 to 130°C (230
to 266°F) by soaking in heated oil.
2. Drive out valve guide with a press [under a 20 kN (2 ton, 2.2 US
ton, 2.0 lmp ton) pressure] or hammer and suitable tool.
CAUTION:
Cylinder head contains heat. When working, wear protec-
tive equipment to avoid getting burned.Standard
Intake : 5.972 - 5.980 mm (0.2351 - 0.2354 in)
Exhaust : 5.962 - 5.970 mm (0.2347 - 0.2350 in)
SEM938C
Standard
Intake and Exhaust : 6.000 - 6.018 mm (0.2362 - 0.2369 in)
Valve guide clearance:
Standard
Intake : 0.020 - 0.046 mm (0.0008 - 0.0018 in)
Exhaust : 0.030 - 0.056 mm (0.0012 - 0.0022 in)
Limit
Intake : 0.08 mm (0.003 in)
Exhaust : 0.1 mm (0.004 in)
SEM008A
SEM931C
Page 2957 of 4449
EM-232
[VK45DE]
CYLINDER HEAD
Revision: 2004 November 2004 FX35/FX45
3. Using valve guide reamer (commercial service tool), ream cylin-
der head valve guide hole.
4. Heat cylinder head to 110 to 130°C (230 to 266°F) by soaking in
heated oil.
5. Press valve guide from camshaft side to dimensions as in the
figure.
CAUTION:
Cylinder head contains heat. When working, wear protec-
tive equipment to avoid getting burned.
6. Using valve guide reamer (commercial service tool), apply
reamer finish to valve guide.
VALVE SEAT CONTACT
After confirming that the dimensions of valve guides and valves
are within specifications, perform this procedure.
Apply prussian blue (or white lead) onto contacting surface of
valve seat to check the condition of the valve contact on the sur-
face.
Check if the contact area band is continuous all around the cir-
cumference.
If not, grind to adjust valve fitting and check again. If the contact-
ing surface still has NG conditions even after the re-check,
replace valve seat.Valve guide hole diameter (for service parts):
Intake and exhaust
: 10.175 - 10.196 mm (0.4006 - 0.4014 in)
SEM932C
SEM008A
PBIC0078E
Standard:
Intake and exhaust
: 6.000 - 6.018 mm (0.2362 - 0.2369 in)
SEM932C
SBIA0322E
Page 2958 of 4449
CYLINDER HEAD
EM-233
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45
VALVE SEAT REPLACEMENT
When valve seat is removed, replace with oversized [0.5 mm (0.020 in)] valve seat.
1. Bore out old seat until it collapses. Boring should not continue beyond the bottom face of the seat recess
in cylinder head. Set the machine depth stop to ensure this.
CAUTION:
Prevent to scratch cylinder head by excessive boring.
2. Ream cylinder head recess diameter for service valve seat.
Be sure to ream in circles concentric to valve guide center.
This will enable valve to fit correctly.
3. Heat cylinder head to 110 to 130°C (230 to 266°F) by soaking in
heated oil.
4. Provide valve seats cooled well with dry ice. Force fit valve seat into cylinder head.
CAUTION:
Avoid directly touching cold valve seats.
Cylinder head contains heat. When working, wear protective equipment to avoid getting burned.
5. Using valve seat cutter set (commercial service tool) or valve
seat grinder, finish seat to the specified dimensions.
CAUTION:
When using valve seat cutter, firmly grip cutter handle with
both hands. Then, press on the contacting surface all
around the circumference to cut in a single drive. Improper
pressure on with cutter or cutting many different times may
result in stage valve seat. Oversize [0.5 mm (0.020 in)]
Intake : 37.500 - 37.516 mm (1.4764 - 1.4770 in)
Exhaust : 32.700 - 32.716 mm (1.2874 - 1.2880 in)
SEM795A
SEM008A
SEM934C
Page 2959 of 4449
EM-234
[VK45DE]
CYLINDER HEAD
Revision: 2004 November 2004 FX35/FX45
Grind to obtain the dimensions indicated in the figure.
6. Using compound, grind to adjust valve fitting.
7. Check again for normal contact. Refer to EM-232, "
VALVE SEAT CONTACT" .
VALVE SPRING SQUARENESS
Set try square along the side of valve spring and rotate spring.
Measure the maximum clearance between the top face of spring
and try square.
If it exceeds the limit, replace valve spring.
PBIC2363E
Limit : 2.0 mm (0.079 in)
PBIC0080E
Page 2960 of 4449
CYLINDER HEAD
EM-235
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45
VALVE SPRING DIMENSIONS AND VALVE SPRING PRESSURE LOAD
Check valve spring pressure at specified spring height.
If the installation load or load with valve open is out of the standard, replace valve spring.Standard:
Intake and exhaust
Free height
: 46.35 - 46.85 mm (1.8247 - 1.8444 in)
Installation height
: 33.8 mm (1.331 in)
Installation load
: 165 - 189 N (16.8 - 19.3 kg, 37 - 42 lb)
Height during valve open
: 24.4 mm (0.961 in)
Load with valve open
: 290 - 330 N (29.6 - 33.7 kg, 65 - 74 lb)
