LAN-84
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2004 November 2004 FX35/FX45
6. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect ABS actuator and electric unit (control unit) connector and harness connector E205.
2. Check continuity between ABS actuator and electric unit (control
unit) harness connector E56 terminals 11 (L) and 15 (R).
OK or NG
OK >> GO TO 7.
NG >> Check the following harnesses. If any harness is dam-
aged, repair the harness.
Harness between ABS actuator and electric unit (con-
trol unit) and harness connector E211
Harness between ABS actuator and electric unit (con-
trol unit) and harness connector E205
7. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between ABS actuator and electric unit (control
unit) harness connector E56 terminals 11 (L), 15 (R) and ground.
OK or NG
OK >> GO TO 8.
NG >> Check the following harnesses. If any harness is dam-
aged, repair the harness.
Harness between ABS actuator and electric unit (con-
trol unit) and harness connector E211
Harness between ABS actuator and electric unit (control unit) and harness connector E205
8. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect harness connector B8.
2. Check continuity between harness connector B5 terminals 3 (L)
and 10 (R).
OK or NG
OK >> GO TO 9.
NG >> Check the following harnesses. If any harness is dam-
aged, repair the harness.
Harness between harness connector B5 and harness
connector B5
Harness between harness connector B5 and harness
connector B8 11 (L) - 15 (R) : Continuity should not exist.
SKIA6872E
11 (L) - Ground : Continuity should not exist.
15 (R) - Ground : Continuity should not exist.
SKIA6876E
3 (L) - 10 (R) : Continuity should not exist.
SKIA6877E
Page 3386 of 4449
![INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 2)
LAN-85
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
9. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between harness connector B5 terminals 3 (L), 10
INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 2)
LAN-85
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
9. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between harness connector B5 terminals 3 (L), 10](/manual-img/42/57021/w960_57021-3385.png)

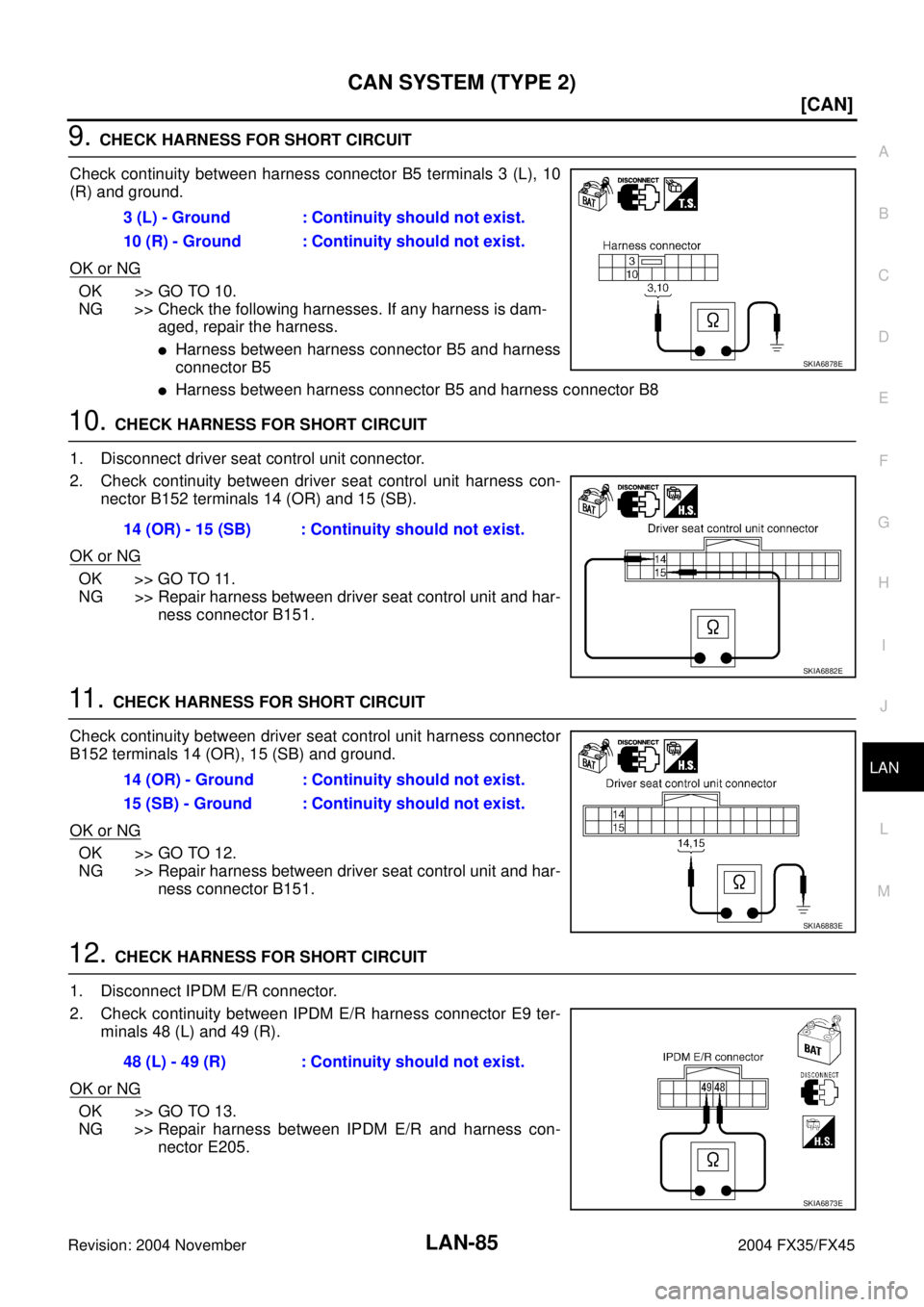

CAN SYSTEM (TYPE 2)
LAN-85
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
9. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between harness connector B5 terminals 3 (L), 10
(R) and ground.
OK or NG
OK >> GO TO 10.
NG >> Check the following harnesses. If any harness is dam-
aged, repair the harness.
Harness between harness connector B5 and harness
connector B5
Harness between harness connector B5 and harness connector B8
10. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect driver seat control unit connector.
2. Check continuity between driver seat control unit harness con-
nector B152 terminals 14 (OR) and 15 (SB).
OK or NG
OK >> GO TO 11.
NG >> Repair harness between driver seat control unit and har-
ness connector B151.
11 . CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between driver seat control unit harness connector
B152 terminals 14 (OR), 15 (SB) and ground.
OK or NG
OK >> GO TO 12.
NG >> Repair harness between driver seat control unit and har-
ness connector B151.
12. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect IPDM E/R connector.
2. Check continuity between IPDM E/R harness connector E9 ter-
minals 48 (L) and 49 (R).
OK or NG
OK >> GO TO 13.
NG >> Repair harness between IPDM E/R and harness con-
nector E205. 3 (L) - Ground : Continuity should not exist.
10 (R) - Ground : Continuity should not exist.
SKIA6878E
14 (OR) - 15 (SB) : Continuity should not exist.
SKIA6882E
14 (OR) - Ground : Continuity should not exist.
15 (SB) - Ground : Continuity should not exist.
SKIA6883E
48 (L) - 49 (R) : Continuity should not exist.
SKIA6873E
Page 3387 of 4449
![INFINITI FX35 2004 Service Manual LAN-86
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2004 November 2004 FX35/FX45
13. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between IPDM E/R harness connector E9 termi-
nals 48 (L), 49 (R) and ground INFINITI FX35 2004 Service Manual LAN-86
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2004 November 2004 FX35/FX45
13. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between IPDM E/R harness connector E9 termi-
nals 48 (L), 49 (R) and ground](/manual-img/42/57021/w960_57021-3386.png)

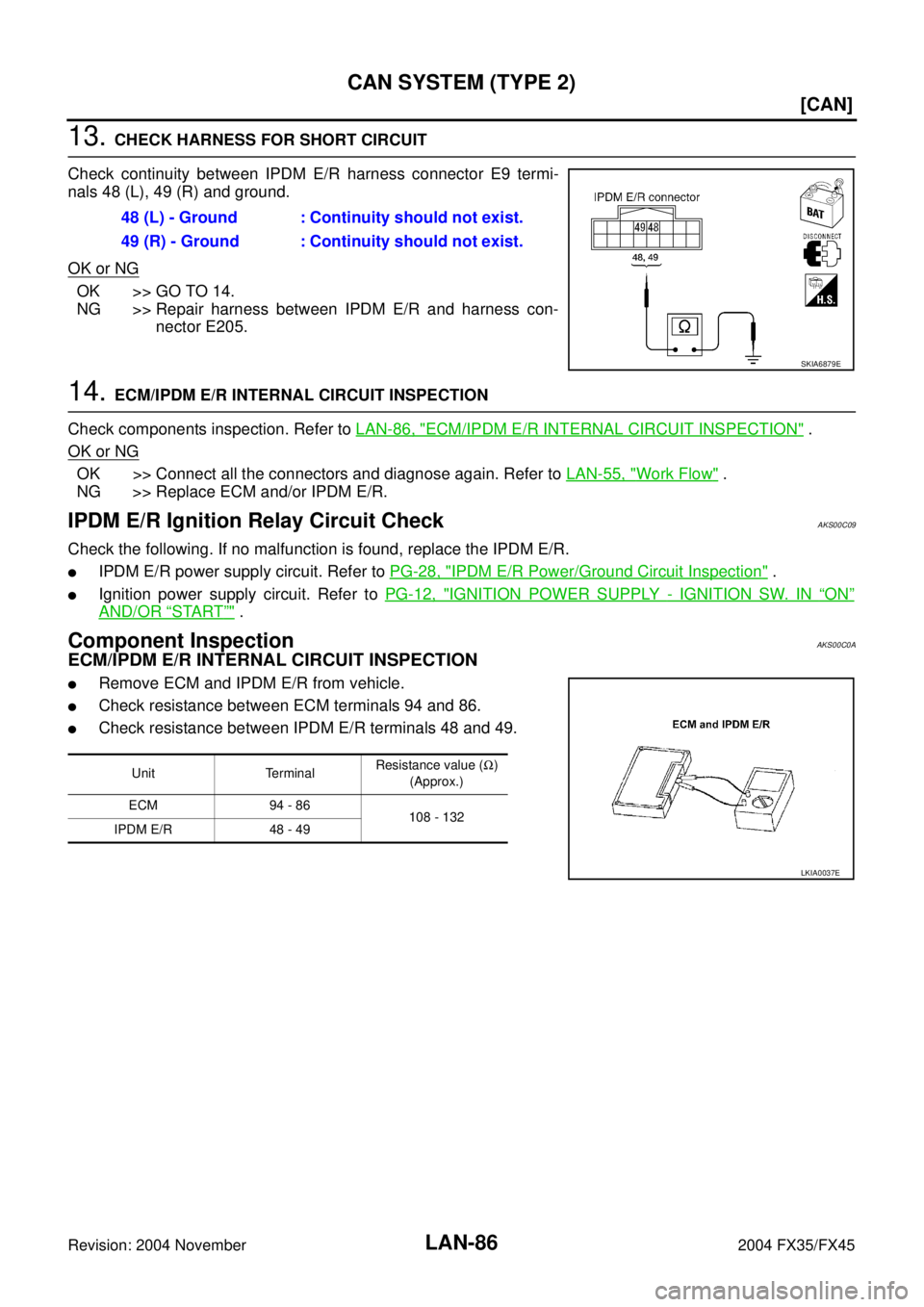

LAN-86
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2004 November 2004 FX35/FX45
13. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between IPDM E/R harness connector E9 termi-
nals 48 (L), 49 (R) and ground.
OK or NG
OK >> GO TO 14.
NG >> Repair harness between IPDM E/R and harness con-
nector E205.
14. ECM/IPDM E/R INTERNAL CIRCUIT INSPECTION
Check components inspection. Refer to LAN-86, "
ECM/IPDM E/R INTERNAL CIRCUIT INSPECTION" .
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to LAN-55, "Work Flow" .
NG >> Replace ECM and/or IPDM E/R.
IPDM E/R Ignition Relay Circuit CheckAKS00C09
Check the following. If no malfunction is found, replace the IPDM E/R.
IPDM E/R power supply circuit. Refer to PG-28, "IPDM E/R Power/Ground Circuit Inspection" .
Ignition power supply circuit. Refer to PG-12, "IGNITION POWER SUPPLY - IGNITION SW. IN “ON”
AND/OR “START”" .
Component InspectionAKS00C0A
ECM/IPDM E/R INTERNAL CIRCUIT INSPECTION
Remove ECM and IPDM E/R from vehicle.
Check resistance between ECM terminals 94 and 86.
Check resistance between IPDM E/R terminals 48 and 49.48 (L) - Ground : Continuity should not exist.
49 (R) - Ground : Continuity should not exist.
SKIA6879E
Unit TerminalResistance value (Ω)
(Approx.)
ECM 94 - 86
108 - 132
IPDM E/R 48 - 49
LKIA0037E
Page 3388 of 4449
CAN SYSTEM (TYPE 3)
LAN-87
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
CAN SYSTEM (TYPE 3)PFP:23710
System DescriptionAKS00C0B
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.

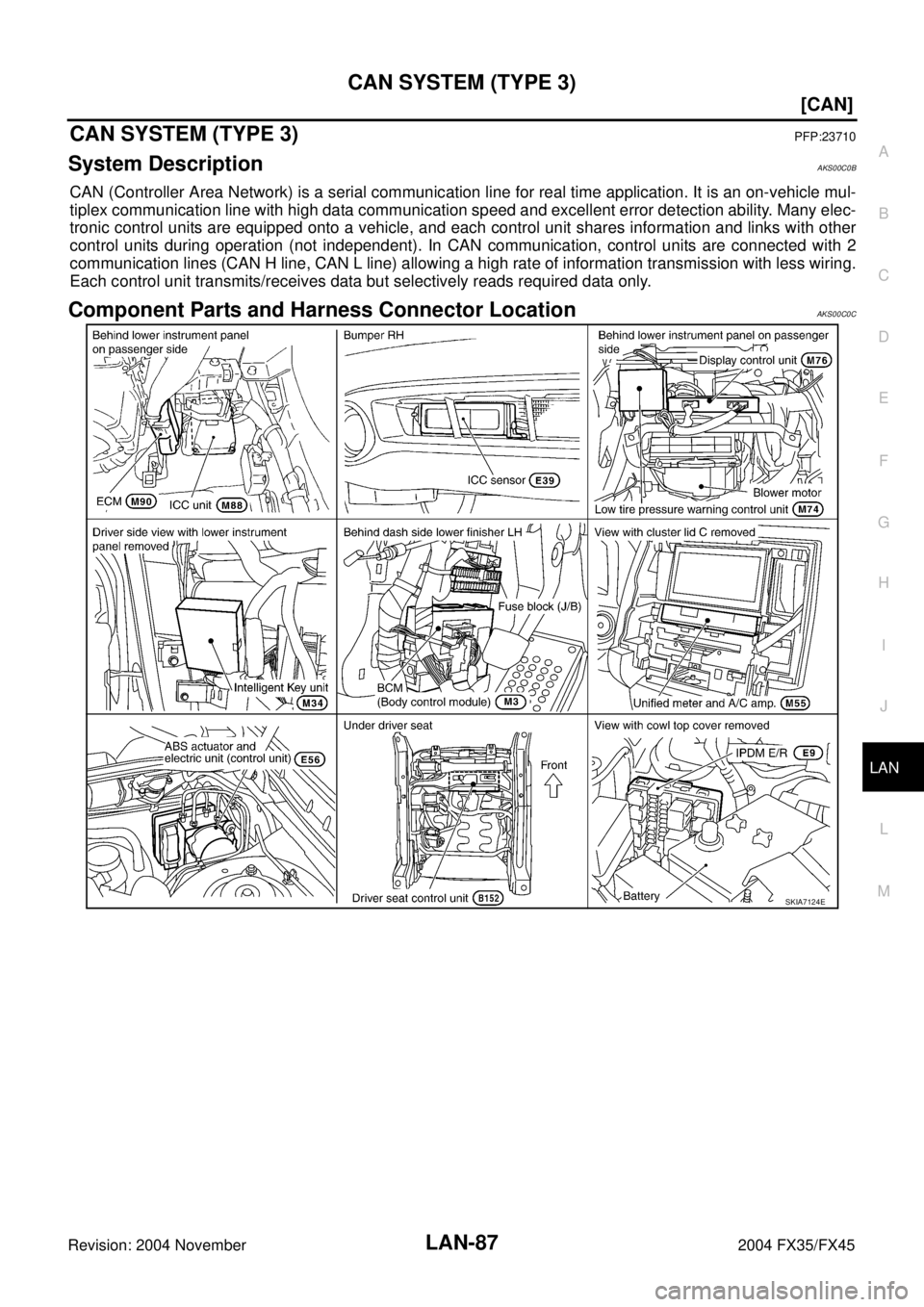

Component Parts and Harness Connector LocationAKS00C0C
SKIA7124E
Page 3389 of 4449
LAN-88
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2004 November 2004 FX35/FX45
SchematicAKS00C0D
TKWM1294E
Page 3390 of 4449
CAN SYSTEM (TYPE 3)
LAN-89
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45

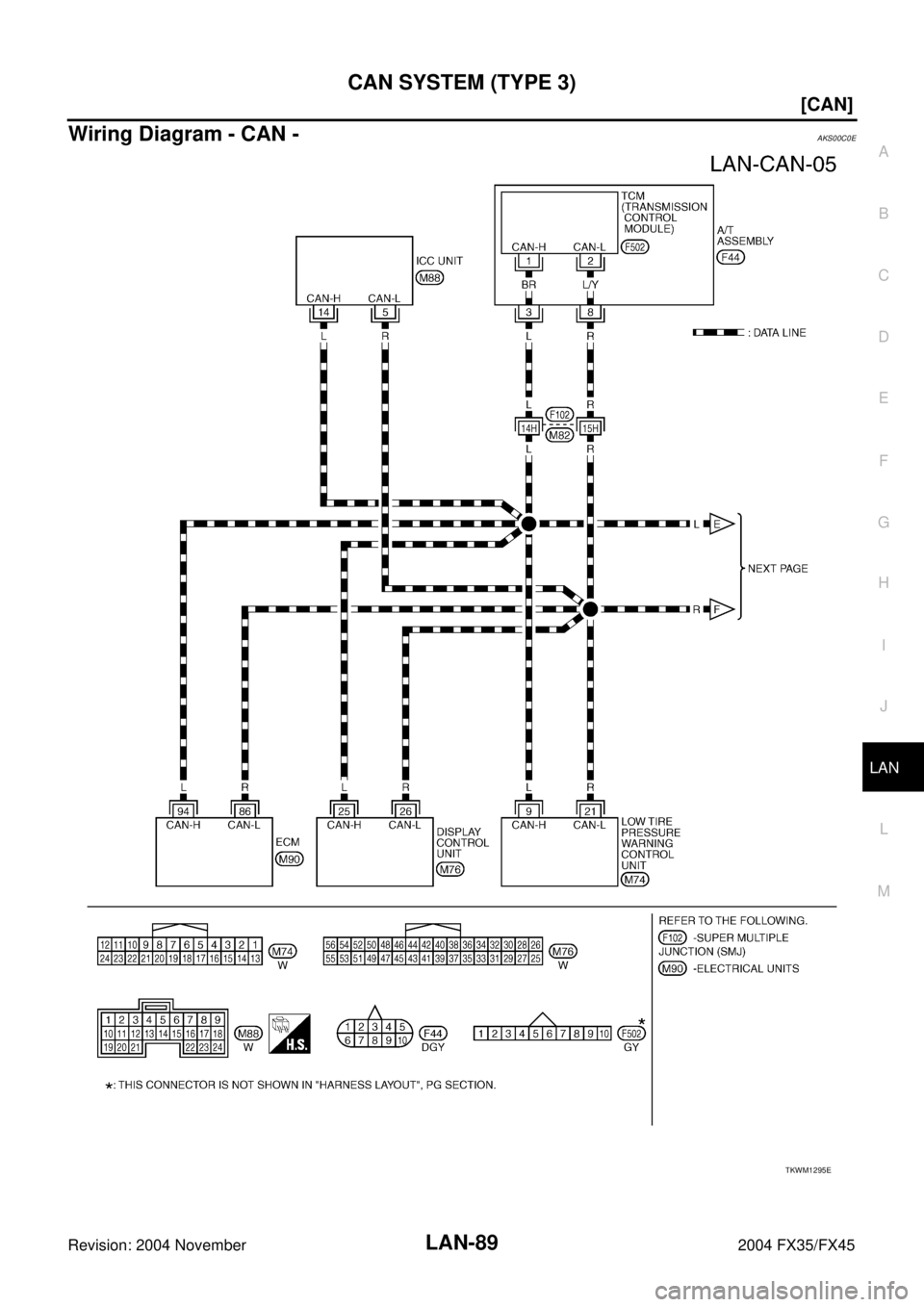

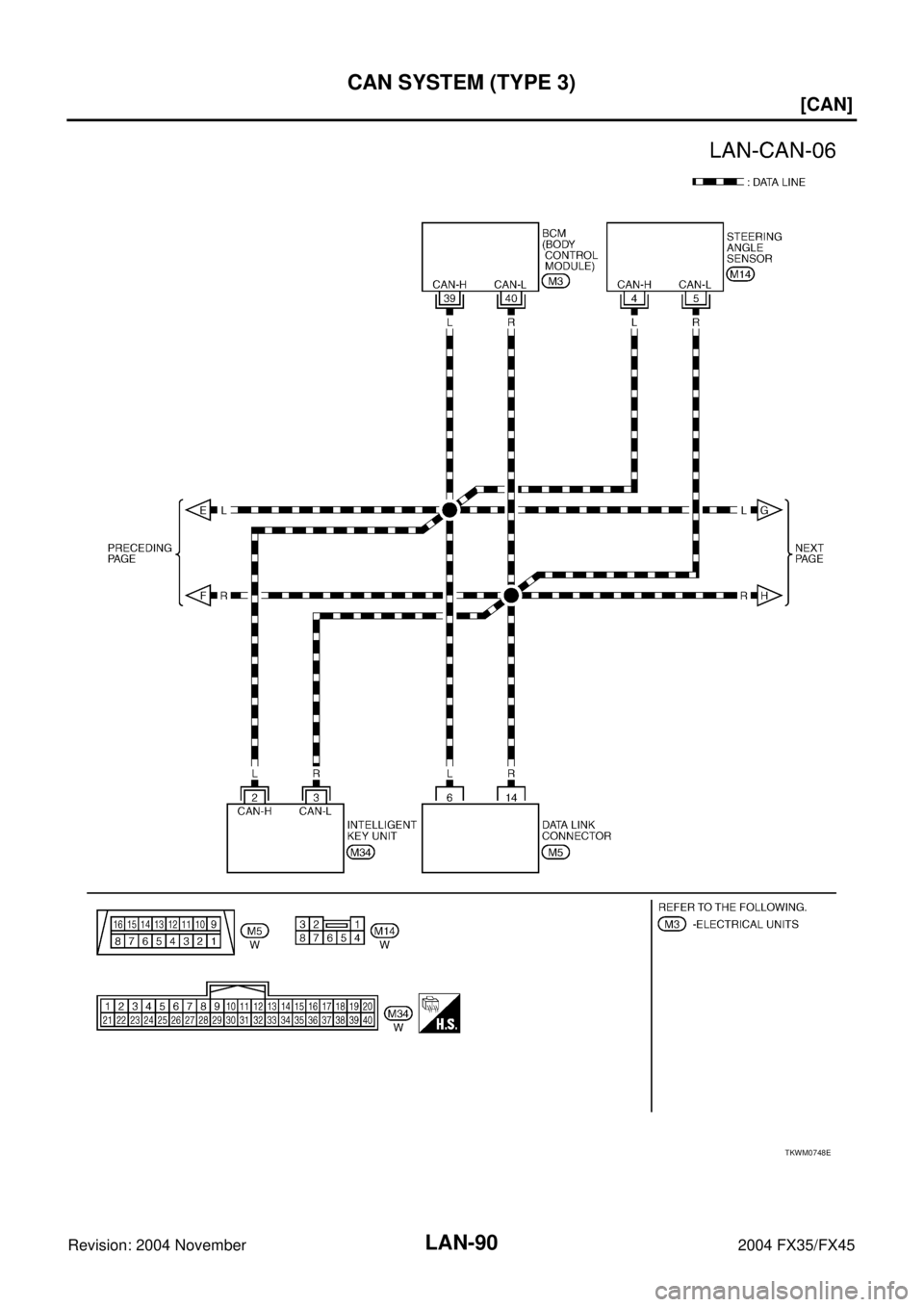

Wiring Diagram - CAN -AKS00C0E
TKWM1295E
Page 3391 of 4449
LAN-90
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2004 November 2004 FX35/FX45

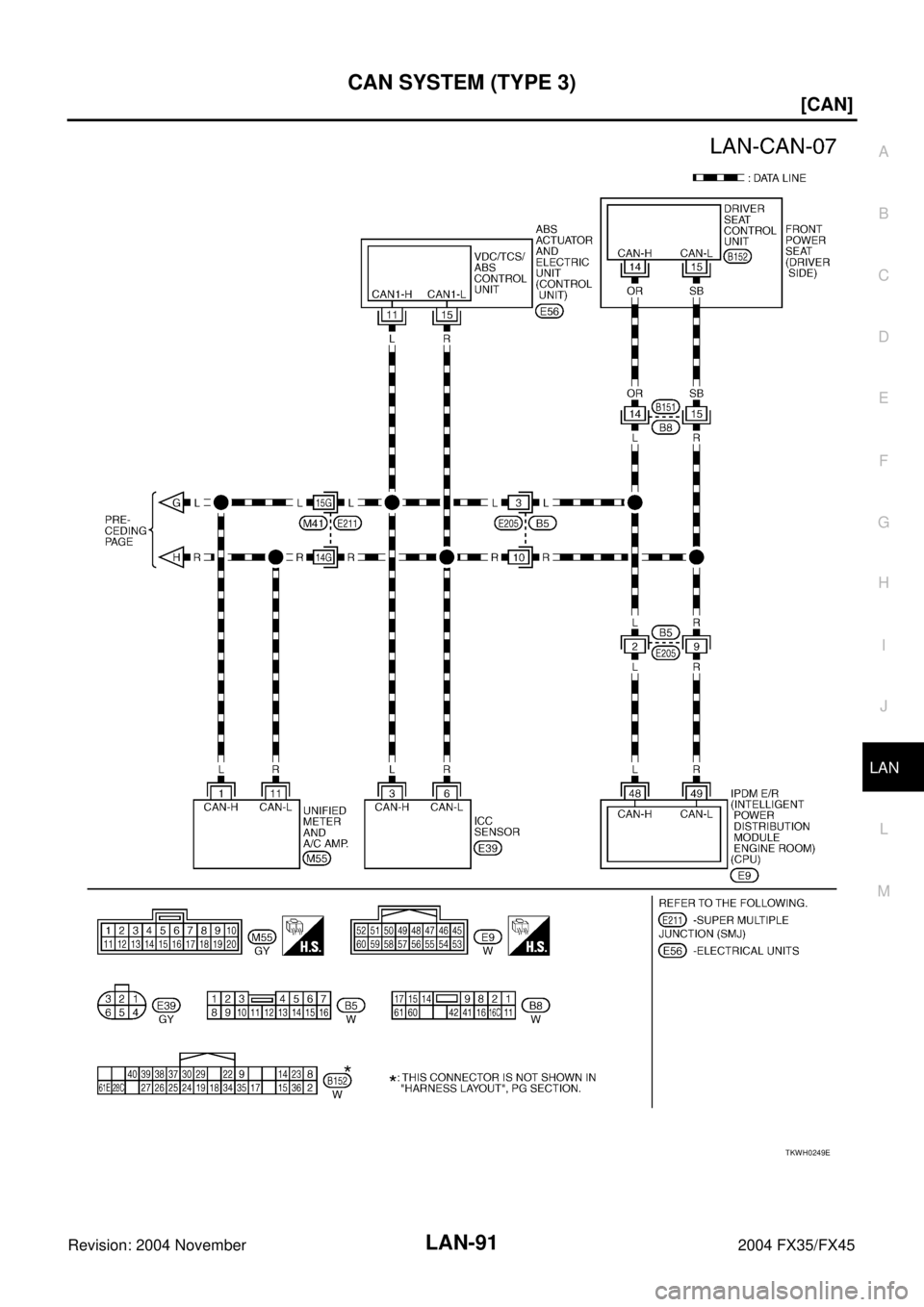

TKWM0748E
Page 3392 of 4449
CAN SYSTEM (TYPE 3)
LAN-91
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
TKWH0249E
