Page 3689 of 4449

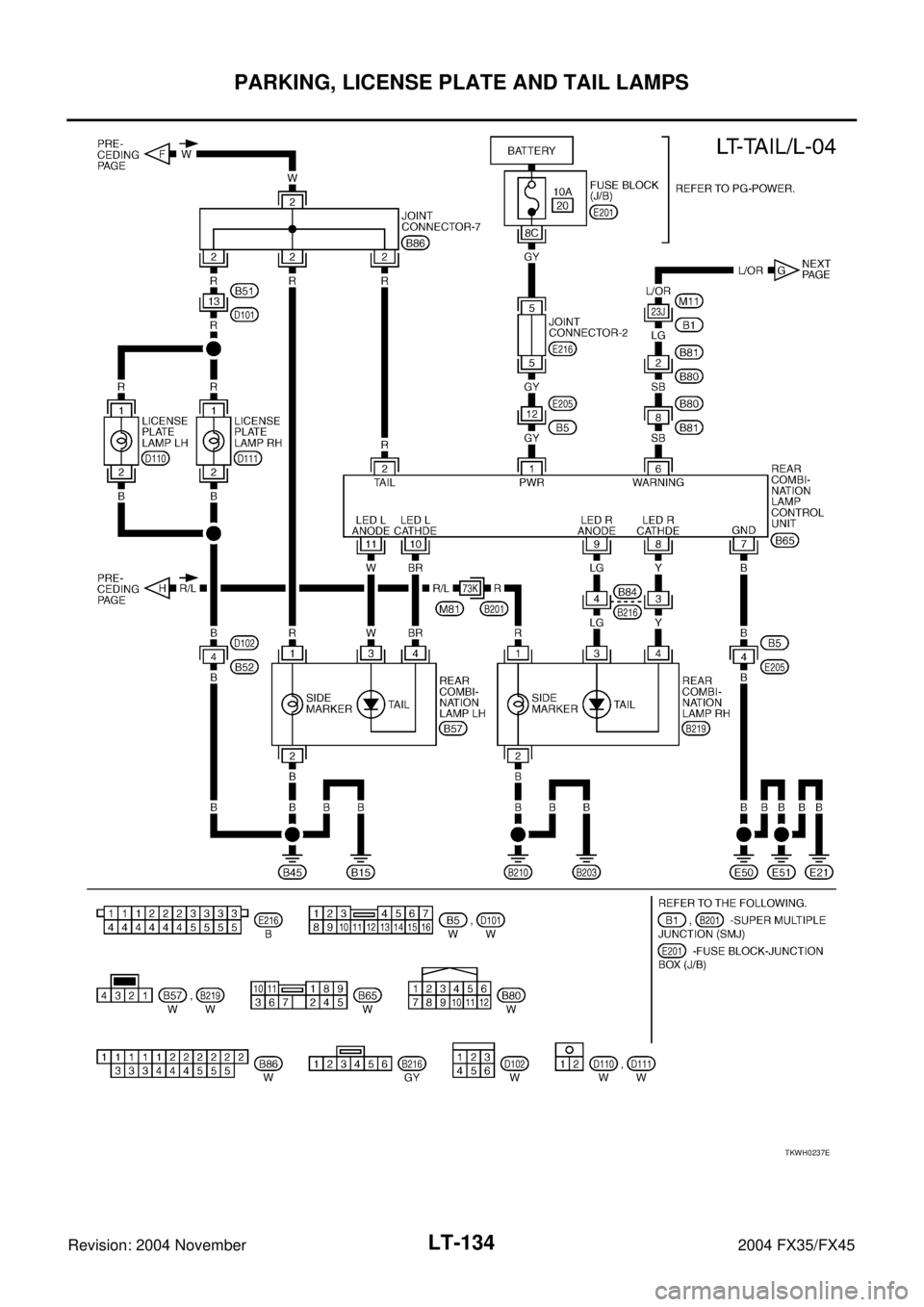

INFINITI FX35 2004 Service Manual LT-134 PARKING, LICENSE PLATE AND TAIL LAMPS Revision: 2004 November 2004 FX35/FX45 TKWH0237E

Page 3690 of 4449

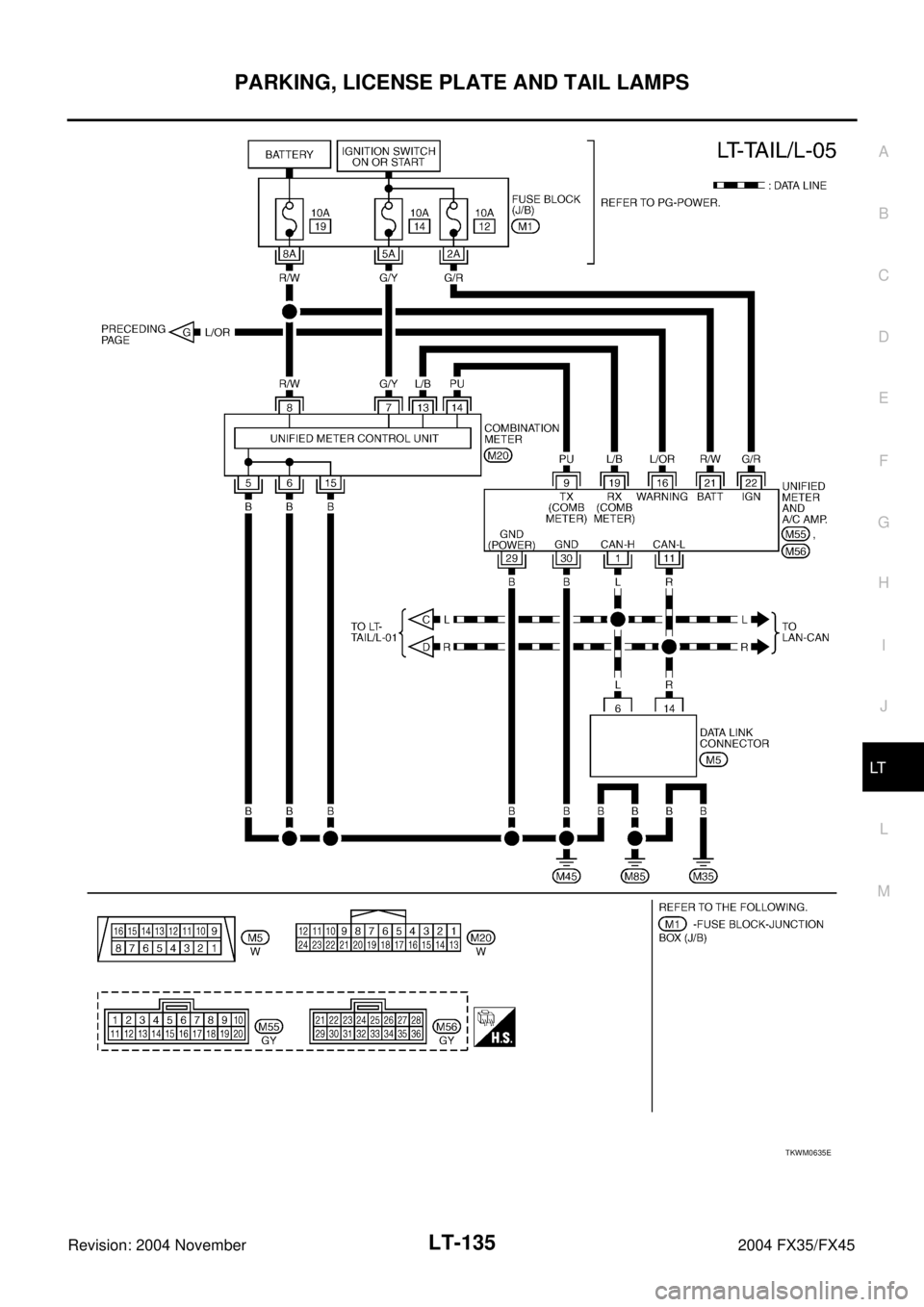

INFINITI FX35 2004 Service Manual PARKING, LICENSE PLATE AND TAIL LAMPS LT-135 C D E F G H I J L MA B LT Revision: 2004 November 2004 FX35/FX45 TKWM0635E

Page 3691 of 4449

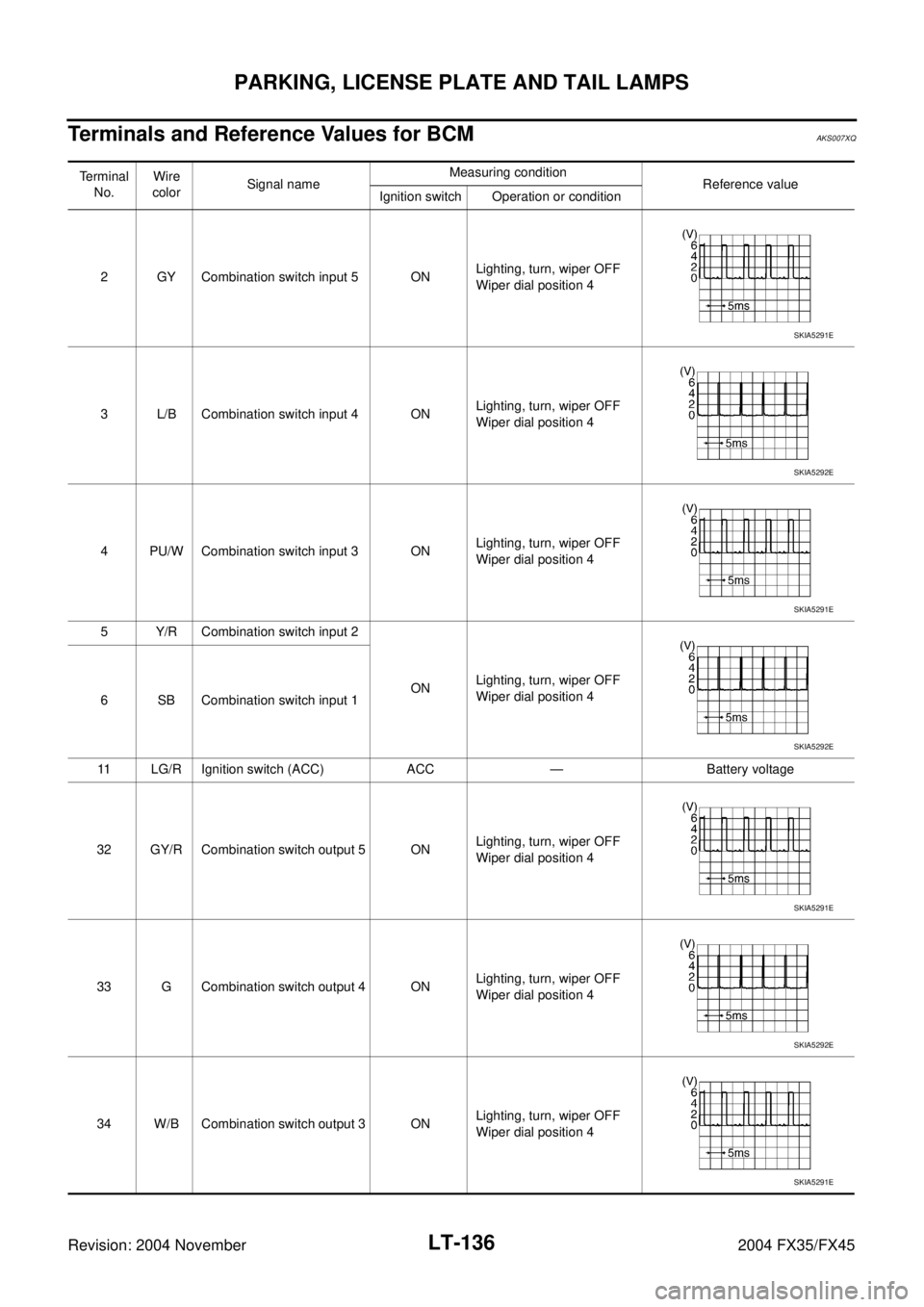

INFINITI FX35 2004 Service Manual LT-136 PARKING, LICENSE PLATE AND TAIL LAMPS Revision: 2004 November 2004 FX35/FX45 Terminals and Reference Values for BCMAKS007XQ Terminal No.Wire colorSignal nameMeasuring condition Reference valu

Page 3692 of 4449

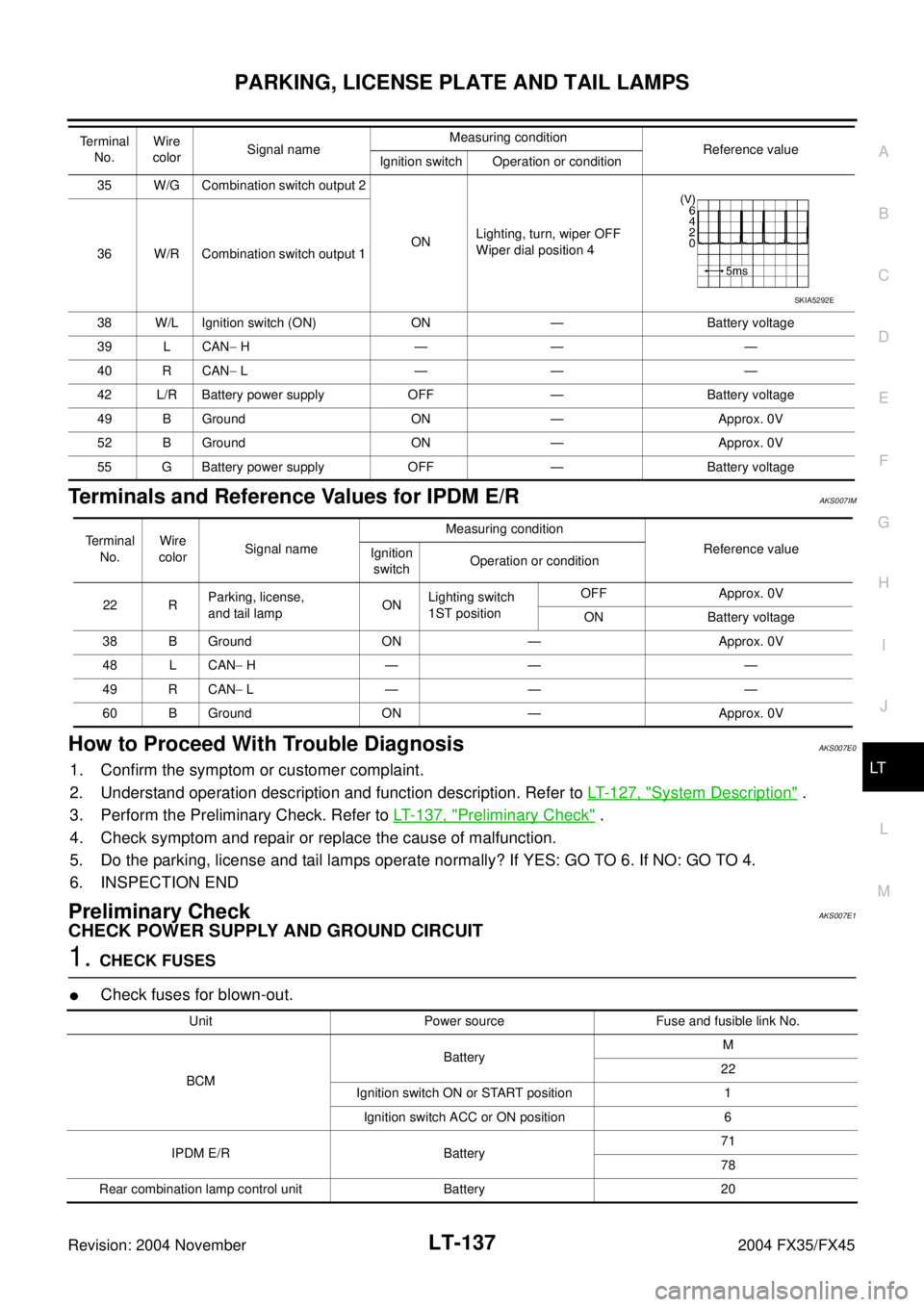

INFINITI FX35 2004 Service Manual PARKING, LICENSE PLATE AND TAIL LAMPS LT-137 C D E F G H I J L MA B LT Revision: 2004 November 2004 FX35/FX45 Terminals and Reference Values for IPDM E/RAKS007IM How to Proceed With Trouble DiagnosisA

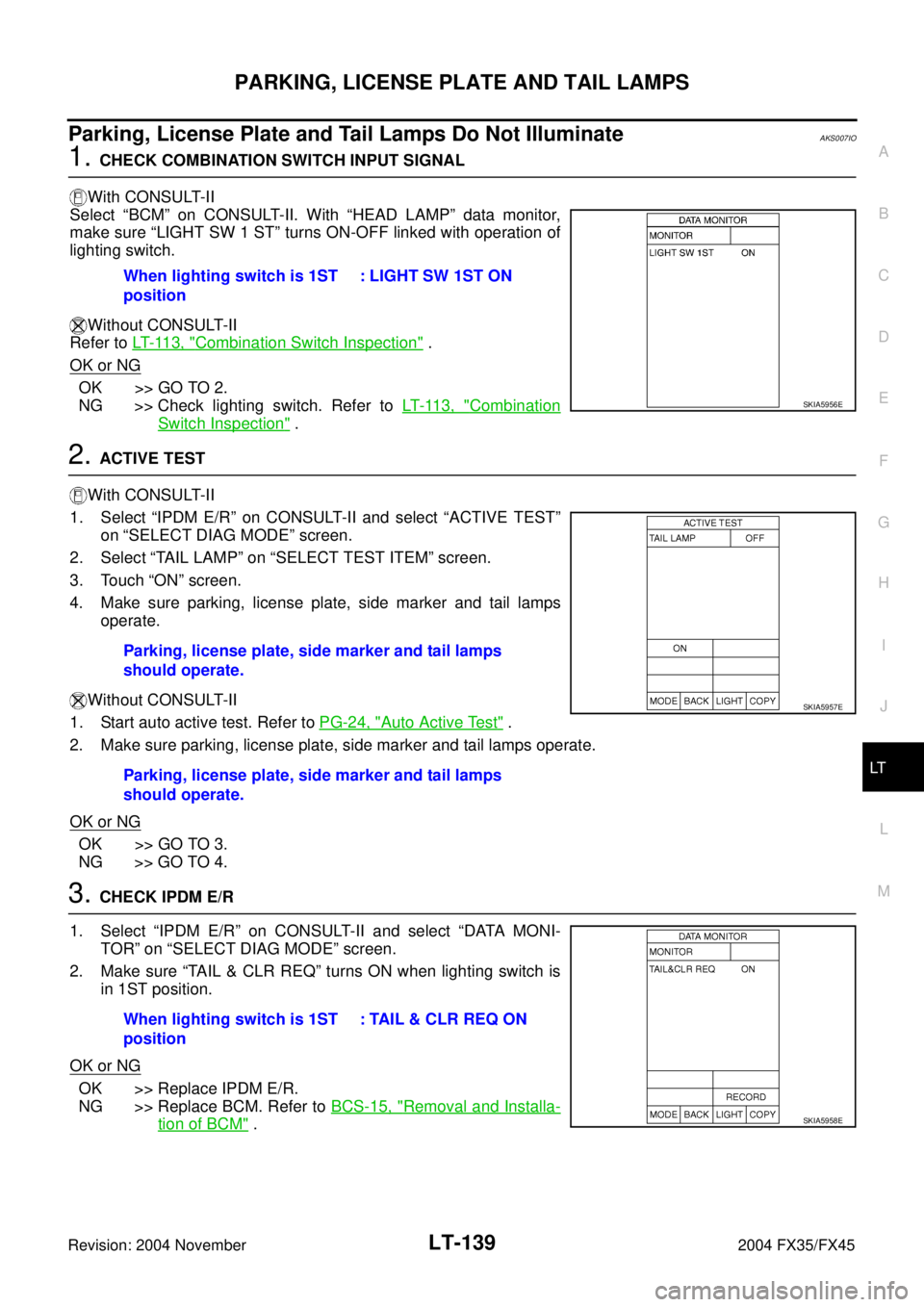

Page 3693 of 4449

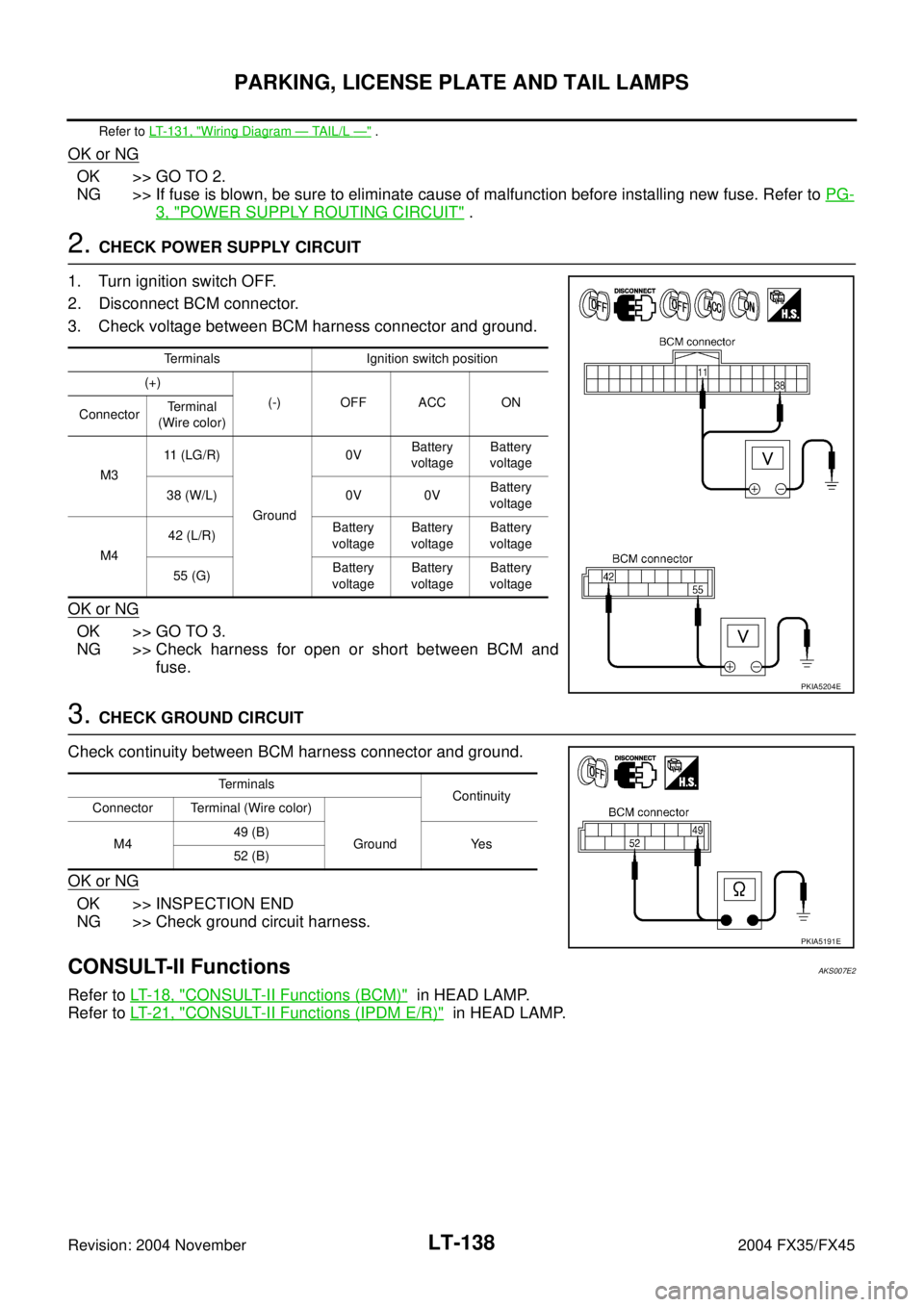

INFINITI FX35 2004 Service Manual LT-138 PARKING, LICENSE PLATE AND TAIL LAMPS Revision: 2004 November 2004 FX35/FX45 Refer to LT- 1 3 1 , "Wiring Diagram — TAIL/L —" . OK or NG OK >> GO TO 2. NG >> If fuse is blown, be sure to e

Page 3694 of 4449

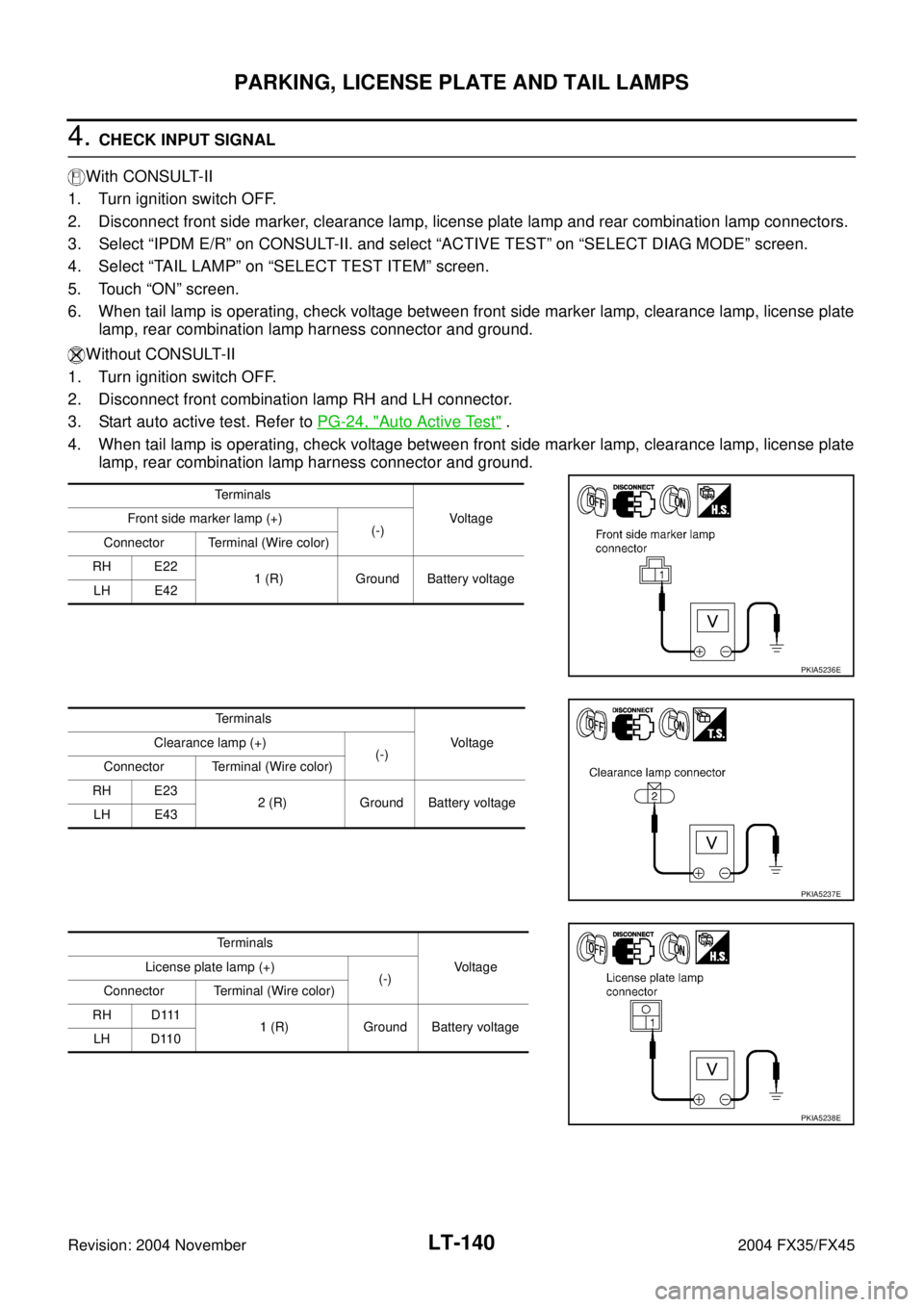

INFINITI FX35 2004 Service Manual PARKING, LICENSE PLATE AND TAIL LAMPS LT-139 C D E F G H I J L MA B LT Revision: 2004 November 2004 FX35/FX45 Parking, License Plate and Tail Lamps Do Not IlluminateAKS007IO 1. CHECK COMBINATION SWITC

Page 3695 of 4449

INFINITI FX35 2004 Service Manual LT-140 PARKING, LICENSE PLATE AND TAIL LAMPS Revision: 2004 November 2004 FX35/FX45 4. CHECK INPUT SIGNAL With CONSULT-II 1. Turn ignition switch OFF. 2. Disconnect front side marker, clearance lamp,

Page 3696 of 4449

INFINITI FX35 2004 Service Manual PARKING, LICENSE PLATE AND TAIL LAMPS LT-141 C D E F G H I J L MA B LT Revision: 2004 November 2004 FX35/FX45 OK or NG OK >> GO TO 6. NG >> GO TO 5. Terminals Voltage Rear combination lamp (+) (Side m
