LT-110
COMBINATION SWITCH
Revision: 2004 November 2004 FX35/FX45
COMBINATION SWITCHPFP:25567

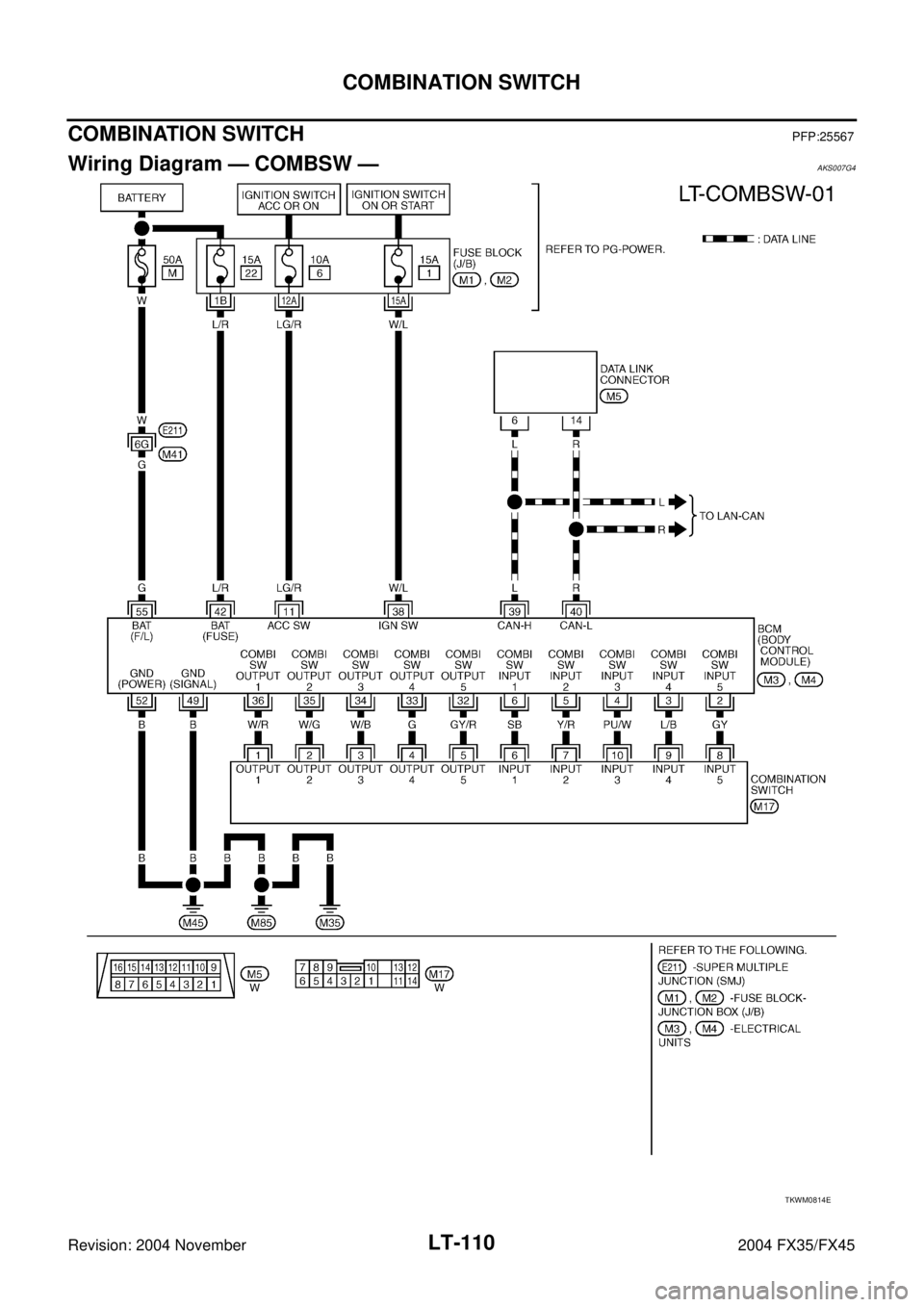

Wiring Diagram — COMBSW —AKS007G4
TKWM0814E
Page 3666 of 4449

COMBINATION SWITCH
LT-111
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2004 November 2004 FX35/FX45
Combination Switch Reading FunctionAKS007G5
For details, refer to BCS-3, "COMBINATION SWITCH READING FUNCTION" in “BCS” section.
CONSULT-II FunctionAKS007G6
CONSULT-II has a display function for work support, self-diagnosis, data monitor, and active test for each part
by combining data receiving and sending via the communication line from BCM.
CONSULT-II BASIC OPERATION
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.

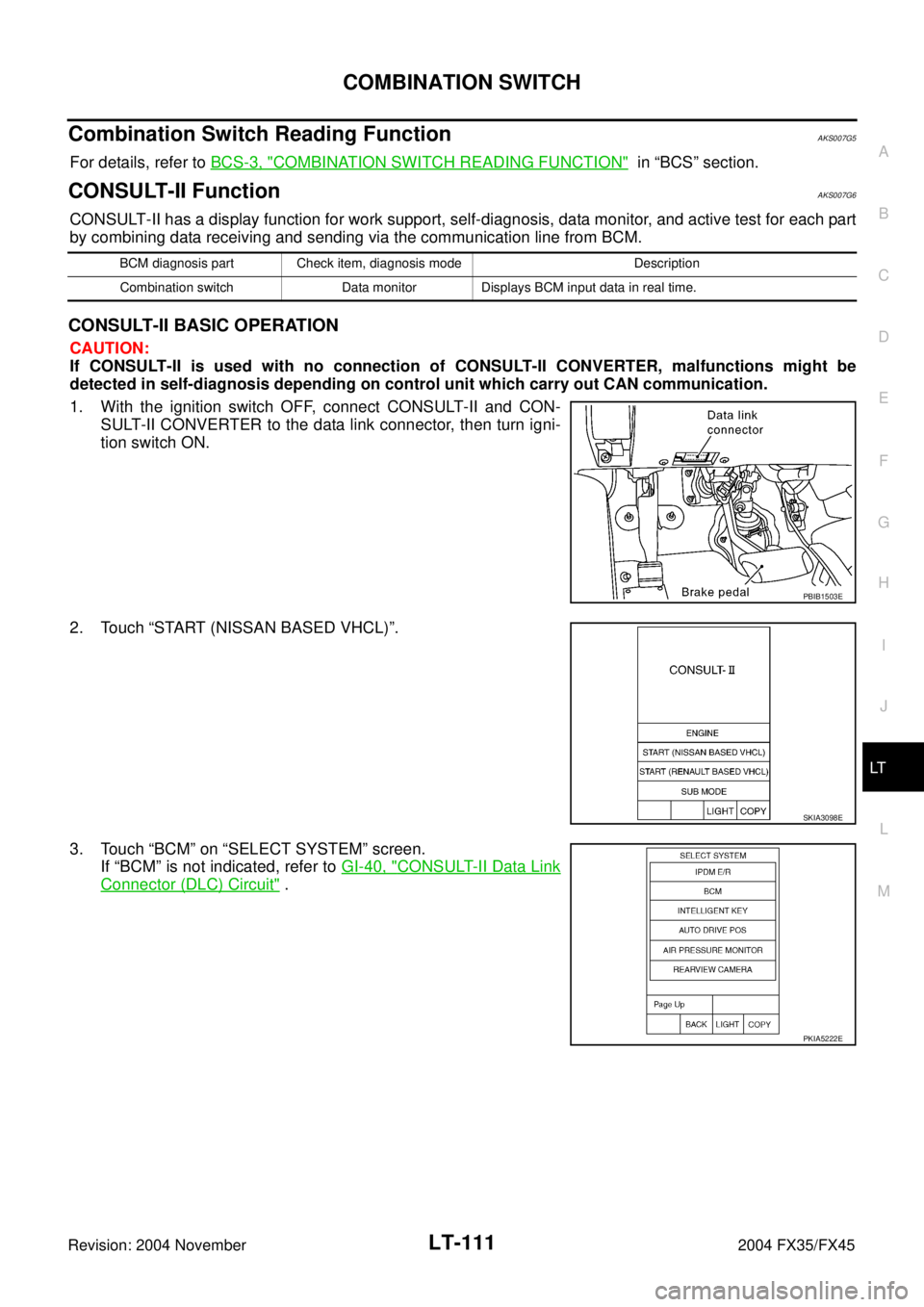

1. With the ignition switch OFF, connect CONSULT-II and CON-
SULT-II CONVERTER to the data link connector, then turn igni-
tion switch ON.
2. Touch “START (NISSAN BASED VHCL)”.
3. Touch “BCM” on “SELECT SYSTEM” screen.
If “BCM” is not indicated, refer to GI-40, "
CONSULT-II Data Link
Connector (DLC) Circuit" .
BCM diagnosis part Check item, diagnosis mode Description
Combination switch Data monitor Displays BCM input data in real time.
PBIB1503E
SKIA3098E
PKIA5222E
Page 3667 of 4449

LT-112
COMBINATION SWITCH
Revision: 2004 November 2004 FX35/FX45
4. Touch “COMB SW”.

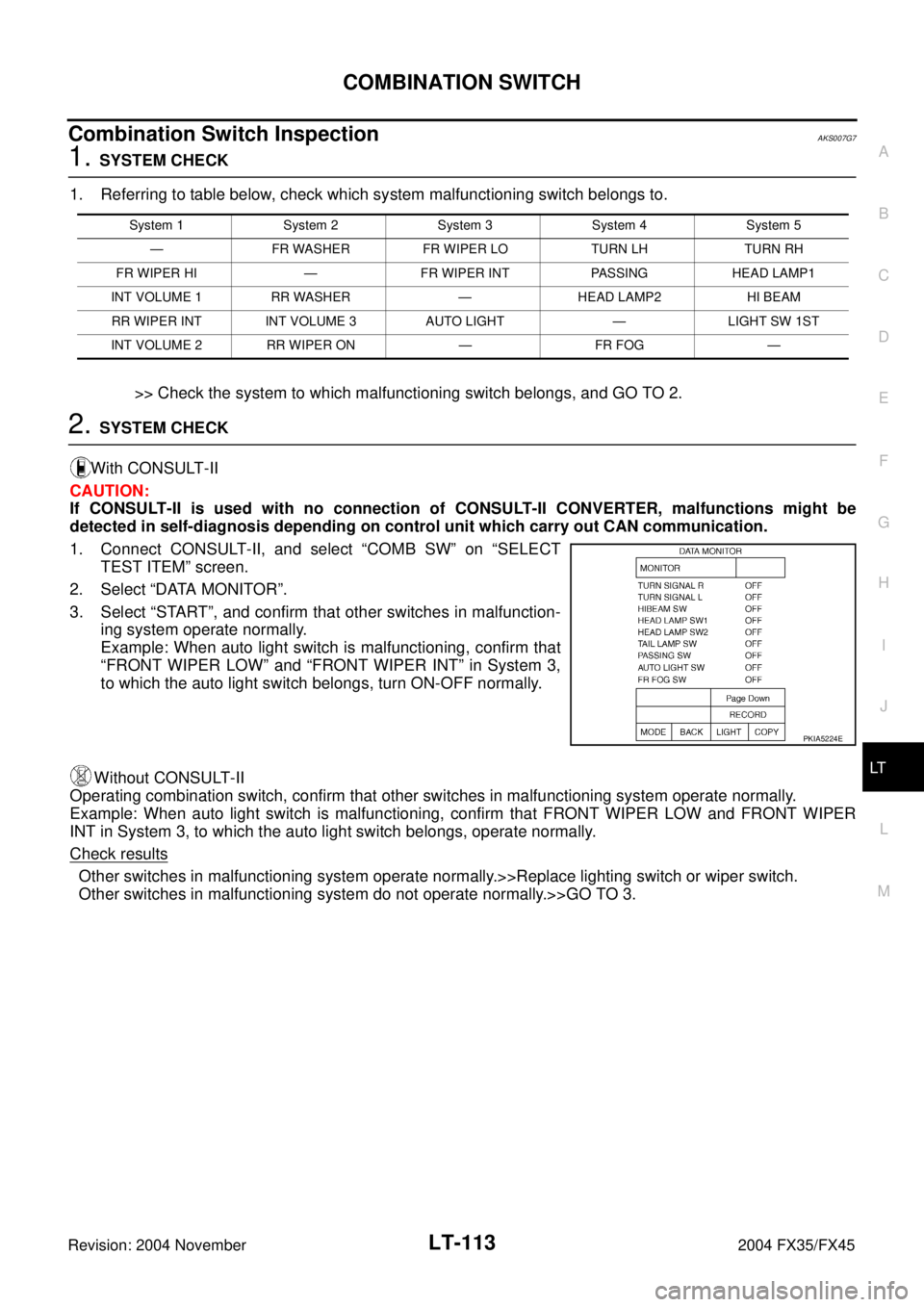

DATA MONITOR
Operation Procedure
1. Touch “COMB SW” on “SELECT TEST ITEM” screen.
2. Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.
3. Touch either “ALL SIGNALS” or “SELECTION FROM MENU” on “DATA MONITOR” screen.
4. Touch “START”.
5. When “SELECTION FROM MENU” is selected, touch items to be monitored. When “ALL SIGNALS” is
selected, all the signals will be monitored.
6. Touch “RECORD” while monitoring, then the status of the monitored item can be recorded. To stop
recording, touch “STOP”.
Display Item List
PKIA5223E
ALL SIGNALS Monitors all the signals.
SELECTION FROM MENU Selects and monitors individual signal.
Monitor item name
“OPERATION OR UNIT”Contents
TURN SIGNAL R “ON/OFF” Displays “Turn Right (ON)/Other (OFF)” status, determined from lighting switch signal.
TURN SIGNAL L “ON/OFF” Displays “Turn Left (ON)/Other (OFF)” status, determined from lighting switch signal.
HI BEAM SW “ON/OFF”Displays status (high beam switch: ON/Others: OFF) of high beam switch judged from lighting
switch signal.
HEAD LAMP SW 1 “ON/OFF” Displays “Headlamp switch 1 (ON)/Other (OFF)” status, determined from lighting switch signal.
HEAD LAMP SW 2 “ON/OFF”Displays status (headlamp switch 2: ON/Others: OFF) of headlamp switch 2 judged from lighting
switch signal.
TAIL LAMP SW “ON/OFF”Displays status (lighting switch 1st position: ON/Others: OFF) of lighting switch judged from light-
ing switch signal.
PASSING SW “ON/OFF”Displays status (flash-to-pass switch: ON/Others: OFF) of flash-to-pass switch judged from light-
ing switch signal.
AUTO LIGHT SW “ON/OFF” Displays “Auto light switch (ON)/Other (OFF)” status, determined from lighting switch signal.
FR FOG SW “ON/OFF” Displays “Front fog lamp switch (ON)/Other (OFF)” status, determined from lighting switch signal.
FR WIPER HI “ON/OFF” Displays “Front Wiper HI (ON)/Other (OFF)” status, determined from wiper switch signal.
FR WIPER LOW “ON/OFF” Displays “Front Wiper LOW (ON)/Other (OFF)” status, determined from wiper switch signal.
FR WIPER INT “ON/OFF” Displays “Front Wiper INT (ON)/Other (OFF)” status, determined from wiper switch signal.
FR WASHER SW “ON/OFF” Displays “Front Washer Switch (ON)/Other (OFF)” status, determined from wiper switch signal.
INT VOLUME [1 - 7] Displays intermittent operation knob setting (1 - 7), determined from wiper switch signal.
RR WIPER ON “ON/OFF” Displays “rear Wiper (ON)/Other (OFF)” status as judged from wiper switch signal.
RR WIPER INT “ON/OFF” Displays “rear Wiper INT (ON)/Other (OFF)” status as judged from wiper switch signal.
RR WASHER SW “ON/OFF” Displays “rear Washer Switch (ON)/Other (OFF)” status as judged from wiper switch signal.
Page 3668 of 4449

COMBINATION SWITCH
LT-113
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2004 November 2004 FX35/FX45
Combination Switch InspectionAKS007G7
1. SYSTEM CHECK
1. Referring to table below, check which system malfunctioning switch belongs to.
>> Check the system to which malfunctioning switch belongs, and GO TO 2.
2. SYSTEM CHECK
With CONSULT-II
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
1. Connect CONSULT-II, and select “COMB SW” on “SELECT
TEST ITEM” screen.
2. Select “DATA MONITOR”.
3. Select “START”, and confirm that other switches in malfunction-
ing system operate normally.
Example: When auto light switch is malfunctioning, confirm that
“FRONT WIPER LOW” and “FRONT WIPER INT” in System 3,
to which the auto light switch belongs, turn ON-OFF normally.
Without CONSULT-II
Operating combination switch, confirm that other switches in malfunctioning system operate normally.
Example: When auto light switch is malfunctioning, confirm that FRONT WIPER LOW and FRONT WIPER
INT in System 3, to which the auto light switch belongs, operate normally.
Check results
Other switches in malfunctioning system operate normally.>>Replace lighting switch or wiper switch.
Other switches in malfunctioning system do not operate normally.>>GO TO 3.
System 1 System 2 System 3 System 4 System 5
— FR WASHER FR WIPER LO TURN LH TURN RH
FR WIPER HI — FR WIPER INT PASSING HEAD LAMP1
INT VOLUME 1 RR WASHER — HEAD LAMP2 HI BEAM
RR WIPER INT INT VOLUME 3 AUTO LIGHT — LIGHT SW 1ST
INT VOLUME 2 RR WIPER ON — FR FOG —
PKIA5224E
Page 3669 of 4449

LT-114
COMBINATION SWITCH
Revision: 2004 November 2004 FX35/FX45
3. HARNESS INSPECTION
1. Turn ignition switch OFF.
2. Disconnect BCM and combination switch connectors.

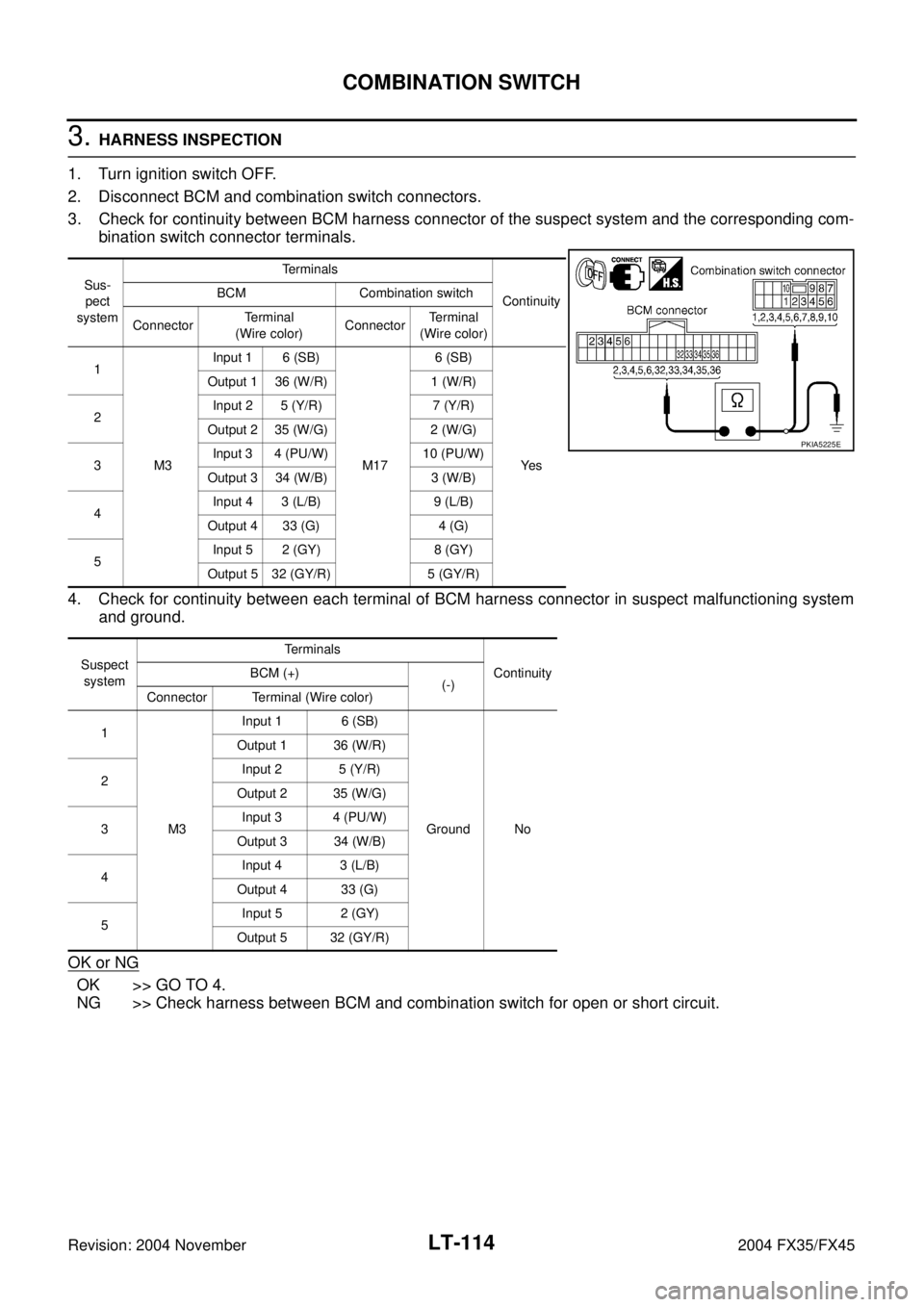

3. Check for continuity between BCM harness connector of the suspect system and the corresponding com-
bination switch connector terminals.
4. Check for continuity between each terminal of BCM harness connector in suspect malfunctioning system
and ground.
OK or NG
OK >> GO TO 4.
NG >> Check harness between BCM and combination switch for open or short circuit.
Sus-
pect
systemTerminals
Continuity BCM Combination switch
ConnectorTerminal
(Wire color)ConnectorTe r m i n a l
(Wire color)
1
M3Input 1 6 (SB)
M176 (SB)
Ye s Output 1 36 (W/R) 1 (W/R)
2Input 2 5 (Y/R) 7 (Y/R)
Output 2 35 (W/G) 2 (W/G)
3Input 3 4 (PU/W) 10 (PU/W)
Output 3 34 (W/B) 3 (W/B)
4Input 4 3 (L/B) 9 (L/B)
Output 4 33 (G) 4 (G)
5Input 5 2 (GY) 8 (GY)
Output 5 32 (GY/R) 5 (GY/R)
Suspect
systemTerminals
Continuity BCM (+)
(-)
Connector Terminal (Wire color)
1
M3Input 1 6 (SB)
Ground No Output 1 36 (W/R)
2Input 2 5 (Y/R)
Output 2 35 (W/G)
3Input 3 4 (PU/W)
Output 3 34 (W/B)
4Input 4 3 (L/B)
Output 4 33 (G)
5Input 5 2 (GY)
Output 5 32 (GY/R)
PKIA5225E
Page 3670 of 4449

COMBINATION SWITCH
LT-115
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2004 November 2004 FX35/FX45
4. BCM OUTPUT TERMINAL INSPECTION
1. Turn lighting switch and wiper switch into OFF.
2. Set wiper dial position 4.

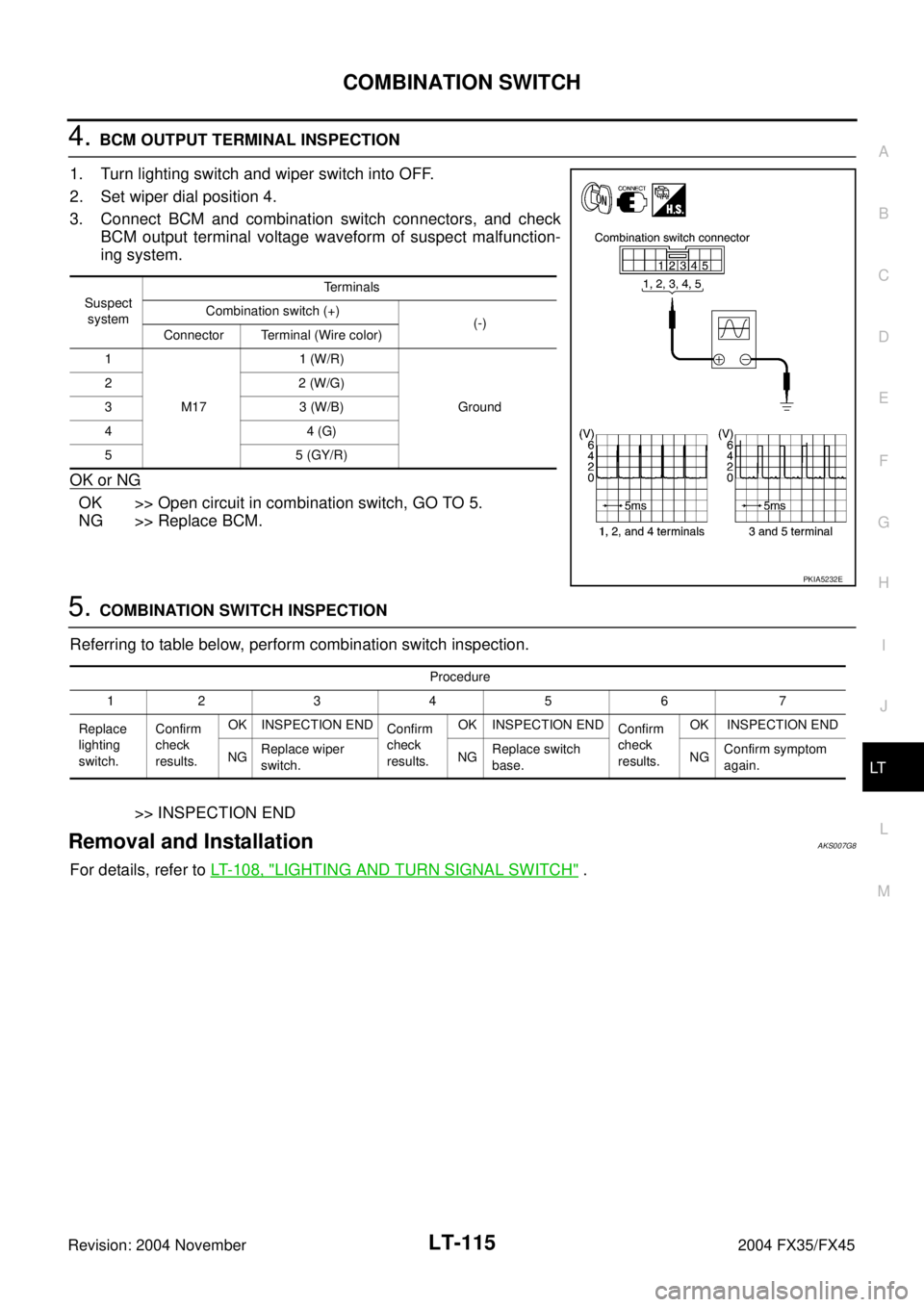

3. Connect BCM and combination switch connectors, and check
BCM output terminal voltage waveform of suspect malfunction-
ing system.
OK or NG
OK >> Open circuit in combination switch, GO TO 5.
NG >> Replace BCM.
5. COMBINATION SWITCH INSPECTION
Referring to table below, perform combination switch inspection.
>> INSPECTION END
Removal and InstallationAKS007G8
For details, refer to LT- 1 0 8 , "LIGHTING AND TURN SIGNAL SWITCH" .
Suspect
systemTerminals
Combination switch (+)
(-)
Connector Terminal (Wire color)
1
M171 (W/R)
Ground 22 (W/G)
33 (W/B)
44 (G)
55 (GY/R)
PKIA5232E
Procedure
123456 7
Replace
lighting
switch.Confirm
check
results.OK INSPECTION END
Confirm
check
results.OK INSPECTION END
Confirm
check
results.OK INSPECTION END
NGReplace wiper
switch.NGReplace switch
base.NGConfirm symptom
again.
Page 3671 of 4449
LT-116
STOP LAMP
Revision: 2004 November 2004 FX35/FX45
STOP LAMPPFP:26550

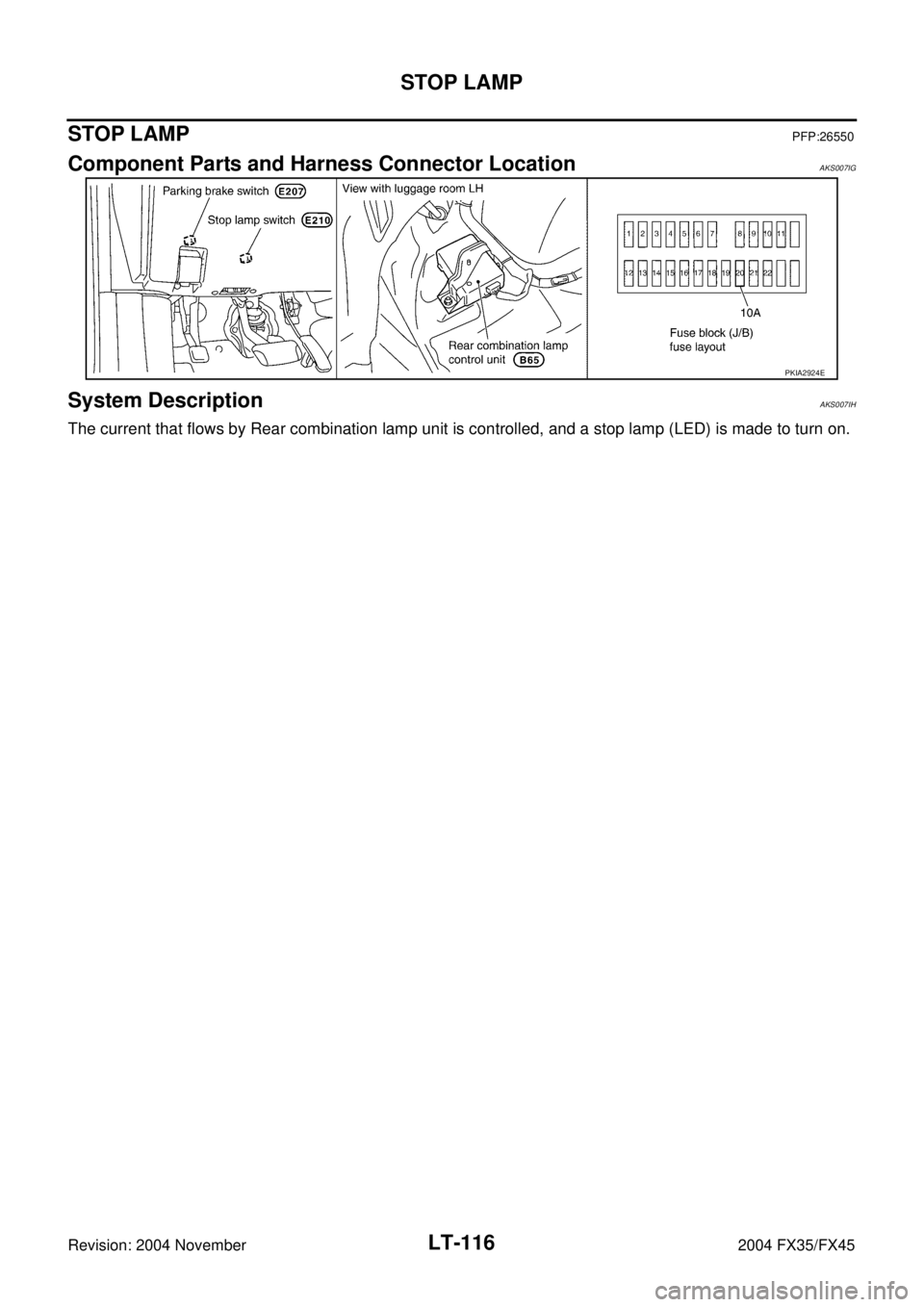

Component Parts and Harness Connector LocationAKS007IG
System DescriptionAKS007IH
The current that flows by Rear combination lamp unit is controlled, and a stop lamp (LED) is made to turn on.
PKIA2924E
Page 3672 of 4449
STOP LAMP
LT-117
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2004 November 2004 FX35/FX45

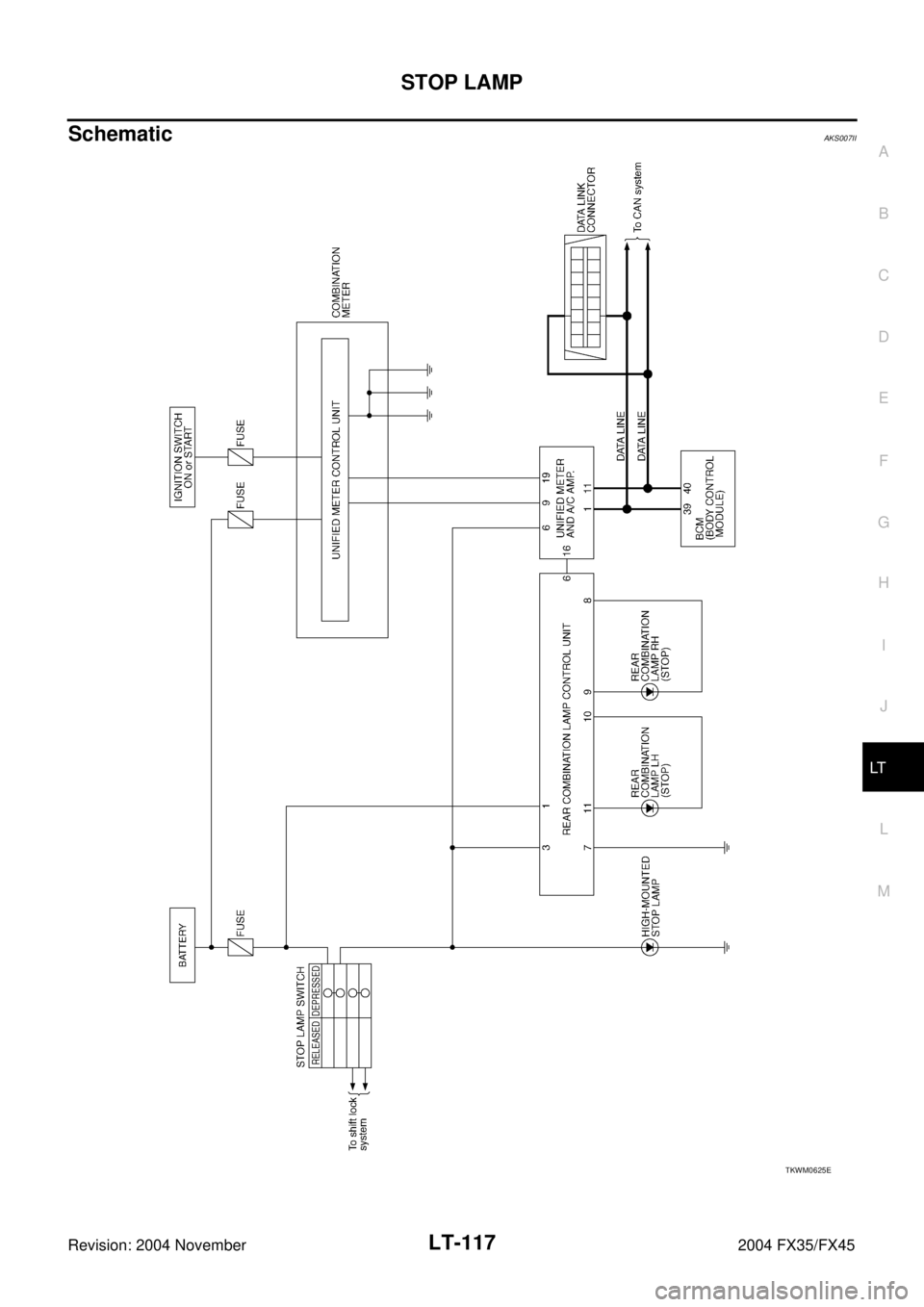

SchematicAKS007II
TKWM0625E
