Page 2513 of 4449
![INFINITI FX35 2004 Service Manual EC-1172
[VK45DE]
DTC P1446 EVAP CANISTER VENT CONTROL VALVE
Revision: 2004 November 2004 FX35/FX45
4. CHECK EVAP CANISTER
Weigh the EVAP canister with the EVAP canister vent control valve and EVAP con INFINITI FX35 2004 Service Manual EC-1172
[VK45DE]
DTC P1446 EVAP CANISTER VENT CONTROL VALVE
Revision: 2004 November 2004 FX35/FX45
4. CHECK EVAP CANISTER
Weigh the EVAP canister with the EVAP canister vent control valve and EVAP con](/manual-img/42/57021/w960_57021-2512.png)
EC-1172
[VK45DE]
DTC P1446 EVAP CANISTER VENT CONTROL VALVE
Revision: 2004 November 2004 FX35/FX45
4. CHECK EVAP CANISTER
Weigh the EVAP canister with the EVAP canister vent control valve and EVAP control system pressure sensor
attached.
The weight should be less than 2.1 kg (4.6 lb).
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5. DETECT MALFUNCTIONING PART
Check the following.
EVAP canister for damage
EVAP hose between EVAP canister and vehicle frame for clogging or poor connection
>> Repair hose or replace EVAP canister.
6. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR CONNECTOR
1. Disconnect EVAP control system pressure sensor harness connector.
2. Check connectors for water.
OK or NG
OK >> GO TO 7.
NG >> Replace EVAP control system pressure sensor.
7. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR
Refer to EC-1013, "
Component Inspection" .
OK or NG
OK >> GO TO 8.
NG >> Replace EVAP control system pressure sensor.
8. CHECK INTERMITTENT INCIDENT
Refer to EC-784, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionABS00CBQ
EVAP CANISTER VENT CONTROL VALVE
With CONSULT-II
1. Remove EVAP canister vent control valve from EVAP canister.
2. Check portion B of EVAP canister vent control valve for being
rusted.
If NG, replace EVAP canister vent control valve.
If OK, go to next step.
3. Reconnect harness connectors disconnected.
4. Turn ignition switch ON.Water should not exist.
PBIB1033E
Page 2514 of 4449
![INFINITI FX35 2004 Service Manual DTC P1446 EVAP CANISTER VENT CONTROL VALVE
EC-1173
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
5. Perform “VENT CONTROL/V” in “ACTIVE TEST” mode.
6. Check air pas INFINITI FX35 2004 Service Manual DTC P1446 EVAP CANISTER VENT CONTROL VALVE
EC-1173
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
5. Perform “VENT CONTROL/V” in “ACTIVE TEST” mode.
6. Check air pas](/manual-img/42/57021/w960_57021-2513.png)
DTC P1446 EVAP CANISTER VENT CONTROL VALVE
EC-1173
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45

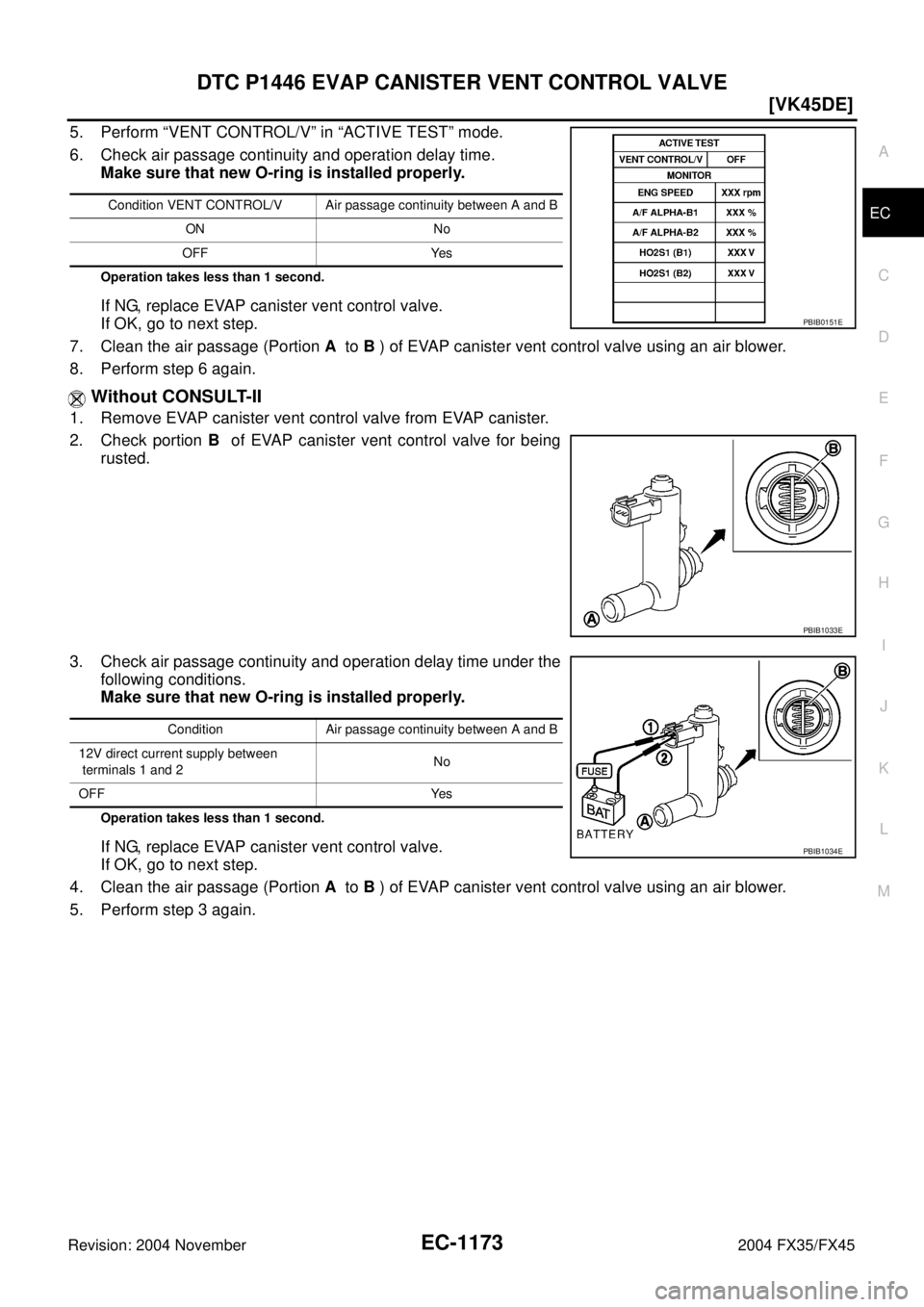

5. Perform “VENT CONTROL/V” in “ACTIVE TEST” mode.
6. Check air passage continuity and operation delay time.
Make sure that new O-ring is installed properly.
Operation takes less than 1 second.
If NG, replace EVAP canister vent control valve.
If OK, go to next step.
7. Clean the air passage (Portion A to B ) of EVAP canister vent control valve using an air blower.
8. Perform step 6 again.
Without CONSULT-II
1. Remove EVAP canister vent control valve from EVAP canister.
2. Check portion B of EVAP canister vent control valve for being
rusted.
3. Check air passage continuity and operation delay time under the
following conditions.
Make sure that new O-ring is installed properly.
Operation takes less than 1 second.
If NG, replace EVAP canister vent control valve.
If OK, go to next step.
4. Clean the air passage (Portion A to B ) of EVAP canister vent control valve using an air blower.
5. Perform step 3 again.
Condition VENT CONTROL/V Air passage continuity between A and B
ON No
OFF Yes
PBIB0151E
PBIB1033E
Condition Air passage continuity between A and B
12V direct current supply between
terminals 1 and 2No
OFF Yes
PBIB1034E
Page 2515 of 4449
![INFINITI FX35 2004 Service Manual EC-1174
[VK45DE]
DTC P1564 ICC STEERING SWITCH
Revision: 2004 November 2004 FX35/FX45
DTC P1564 ICC STEERING SWITCHPFP:25551
Component DescriptionABS00CBR
ICC steering switch has variant values of ele INFINITI FX35 2004 Service Manual EC-1174
[VK45DE]
DTC P1564 ICC STEERING SWITCH
Revision: 2004 November 2004 FX35/FX45
DTC P1564 ICC STEERING SWITCHPFP:25551
Component DescriptionABS00CBR
ICC steering switch has variant values of ele](/manual-img/42/57021/w960_57021-2514.png)
EC-1174
[VK45DE]
DTC P1564 ICC STEERING SWITCH
Revision: 2004 November 2004 FX35/FX45
DTC P1564 ICC STEERING SWITCHPFP:25551
Component DescriptionABS00CBR
ICC steering switch has variant values of electrical resistance for
each button. ECM reads voltage variation of switch, and determines
which button is operated.
Refer to ACS-6, "
DESCRIPTION" for the ICC function.
CONSULT-II Reference Value in Data Monitor ModeABS00CBS
Specification data are reference values.
On Board Diagnosis LogicABS00CBT
This self-diagnosis has the one trip detection logic.
The MIL will not light up for this diagnosis.
NOTE:
If DTC P1564 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605. Refer to
EC-1057
.
DTC Confirmation ProcedureABS00CBU
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
PBIB1540E
MONITOR ITEM CONDITION SPECIFICATION
MAIN SW
Ignition switch: ONON/OFF (MAIN) switch: Pressed ON
ON/OFF (MAIN) switch: Released OFF
CANCEL
Ignition switch: ONCANCEL switch: Pressed ON
CANCEL switch: Released OFF
RESUME/ACC SW
Ignition switch: ONACCEL/RESUME switch: Pressed ON
ACCEL/RESUME switch: Released OFF
SET SW
Ignition switch: ONCOAST/SET switch: Pressed ON
COAST/SET switch: Released OFF
DIST SW
Ignition switch: ONDISTANCE switch: Pressed ON
DISTANCE switch: Released OFF
DTC No.Trouble diagnosis
nameDTC detecting condition Possible cause
P1564
1564ICC steering switch
An excessively high voltage signal from the
ICC steering switch is sent to ECM.
ECM detects that input signal from the ICC
steering switch is out of the specified range.
ECM detects that the ICC steering switch is
stuck ON.
Harness or connectors
(The switch circuit is open or shorted.)
ICC steering switch
ECM
Page 2516 of 4449
DTC P1564 ICC STEERING SWITCH
EC-1175
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Wait at least 10 seconds.
4. Press ON/OFF (MAIN) switch for at least 10 seconds, then
release it and wait at least 10 seconds.
5. Press ACCEL/RESUME switch for at least 10 seconds, then
release it and wait at least 10 seconds.
6. Press COAST/SET switch for at least 10 seconds, then release
it and wait at least 10 seconds.
7. Press DISTANCE switch for at least 10 seconds, then release it
and wait at least 10 seconds.
8. Press CANCEL switch for at least 10 seconds, then release it
and wait at least 10 seconds.
9. If DTC is detected, go to EC-1177, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
SEF058Y
Page 2517 of 4449
EC-1176
[VK45DE]
DTC P1564 ICC STEERING SWITCH
Revision: 2004 November 2004 FX35/FX45

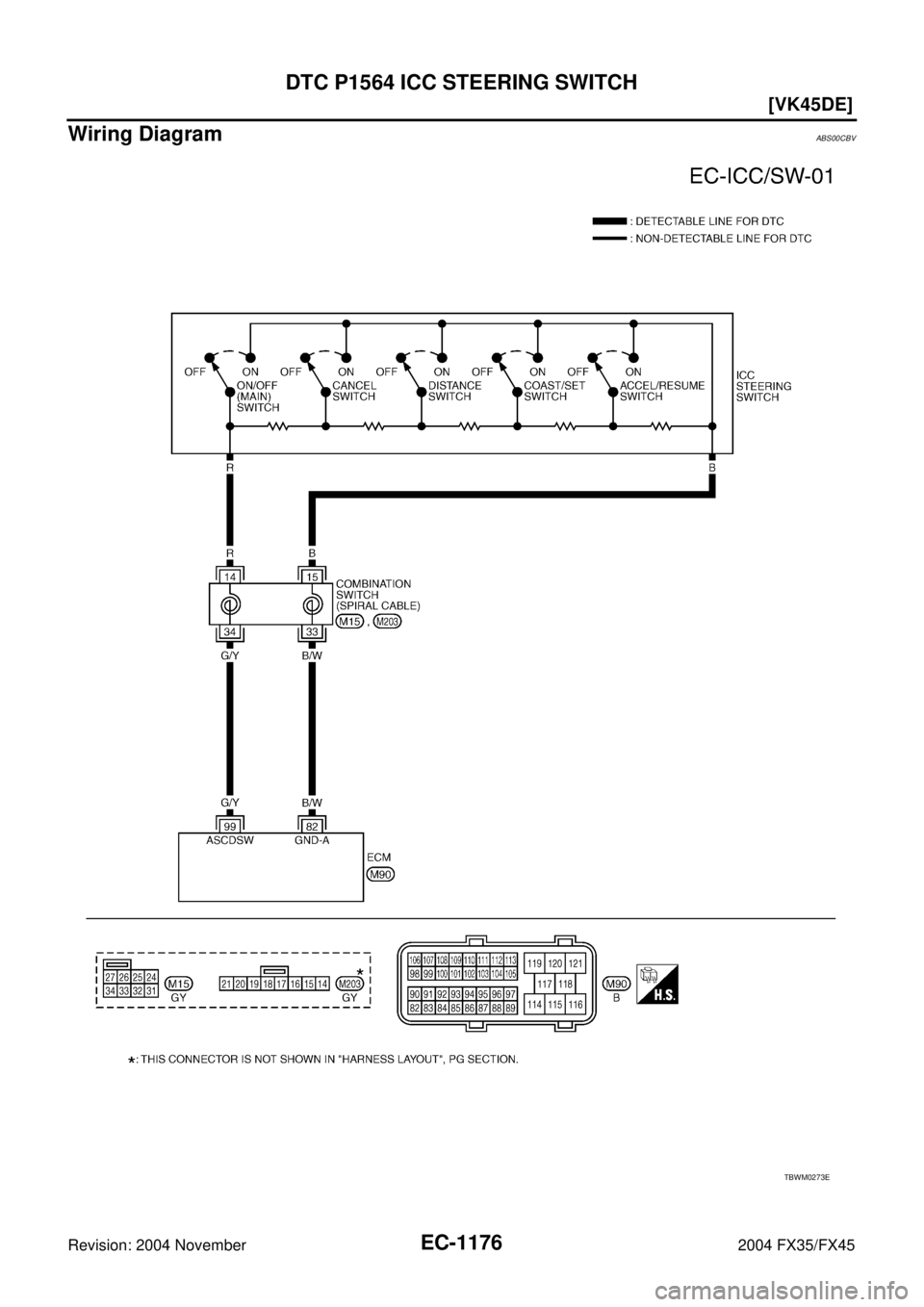

Wiring DiagramABS00CBV
TBWM0273E
Page 2518 of 4449
![INFINITI FX35 2004 Service Manual DTC P1564 ICC STEERING SWITCH
EC-1177
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
Specification data are reference values and are measured between each terminal and groun INFINITI FX35 2004 Service Manual DTC P1564 ICC STEERING SWITCH
EC-1177
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
Specification data are reference values and are measured between each terminal and groun](/manual-img/42/57021/w960_57021-2517.png)
DTC P1564 ICC STEERING SWITCH
EC-1177
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.

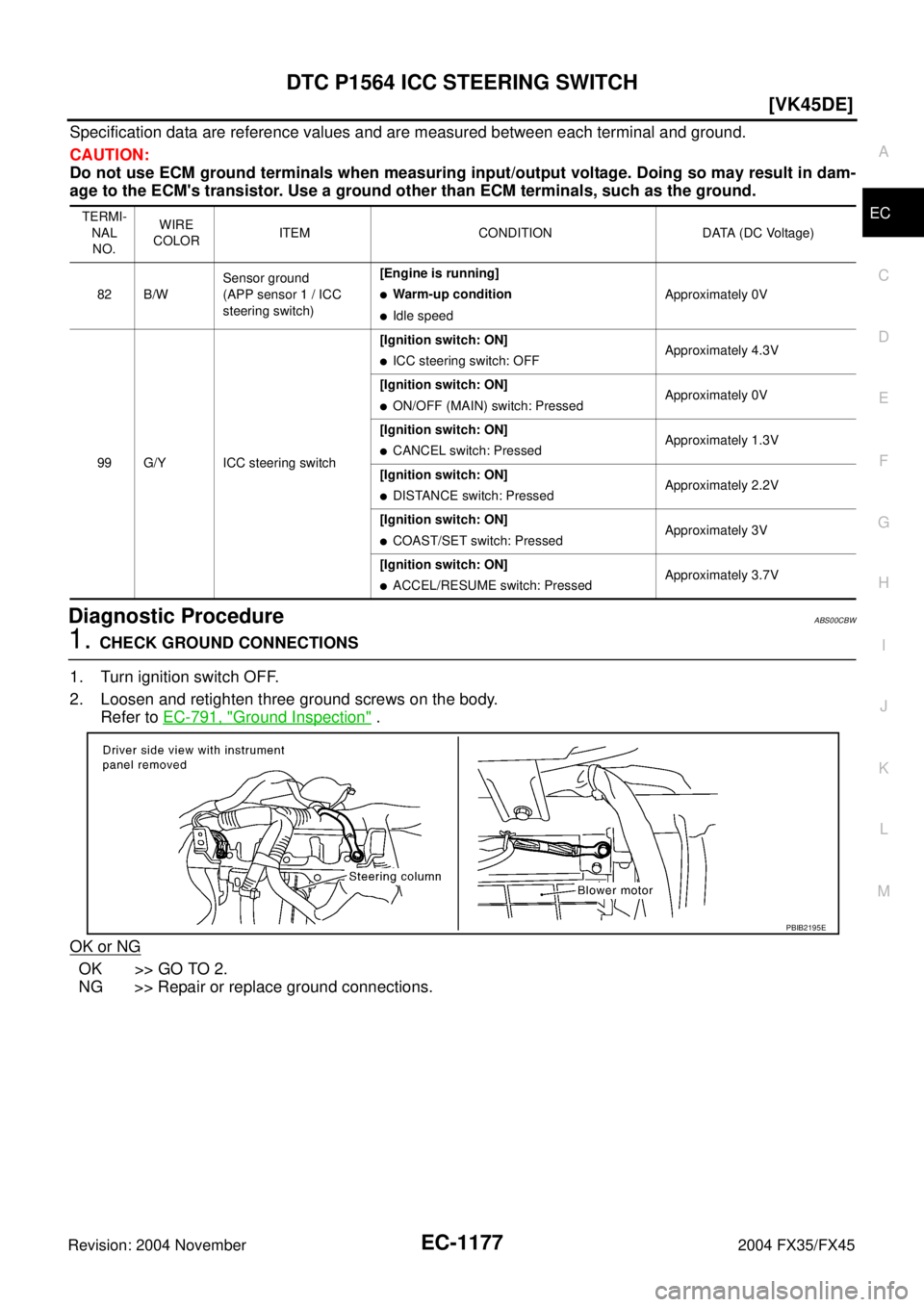

CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureABS00CBW
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body.
Refer to EC-791, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
82 B/WSensor ground
(APP sensor 1 / ICC
steering switch)[Engine is running]
Warm-up condition
Idle speedApproximately 0V
99 G/Y ICC steering switch[Ignition switch: ON]
ICC steering switch: OFFApproximately 4.3V
[Ignition switch: ON]
ON/OFF (MAIN) switch: PressedApproximately 0V
[Ignition switch: ON]
CANCEL switch: PressedApproximately 1.3V
[Ignition switch: ON]
DISTANCE switch: PressedApproximately 2.2V
[Ignition switch: ON]
COAST/SET switch: PressedApproximately 3V
[Ignition switch: ON]
ACCEL/RESUME switch: PressedApproximately 3.7V
PBIB2195E
Page 2519 of 4449
![INFINITI FX35 2004 Service Manual EC-1178
[VK45DE]
DTC P1564 ICC STEERING SWITCH
Revision: 2004 November 2004 FX35/FX45

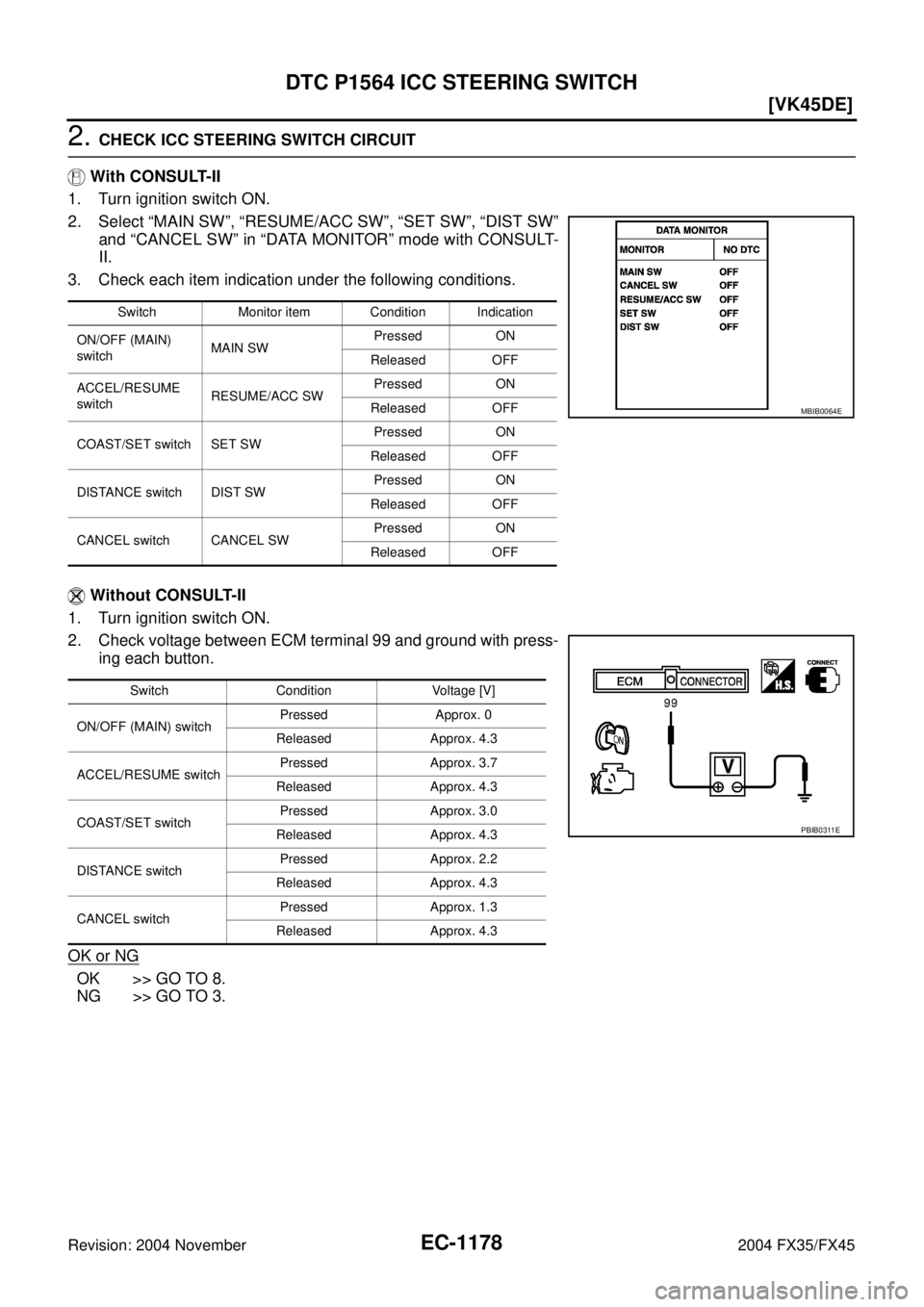

2. CHECK ICC STEERING SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch ON.
2. Select “MAIN SW”, “RESU INFINITI FX35 2004 Service Manual EC-1178
[VK45DE]
DTC P1564 ICC STEERING SWITCH
Revision: 2004 November 2004 FX35/FX45
2. CHECK ICC STEERING SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch ON.
2. Select “MAIN SW”, “RESU](/manual-img/42/57021/w960_57021-2518.png)
EC-1178
[VK45DE]
DTC P1564 ICC STEERING SWITCH
Revision: 2004 November 2004 FX35/FX45
2. CHECK ICC STEERING SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch ON.
2. Select “MAIN SW”, “RESUME/ACC SW”, “SET SW”, “DIST SW”
and “CANCEL SW” in “DATA MONITOR” mode with CONSULT-
II.
3. Check each item indication under the following conditions.
Without CONSULT-II
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 99 and ground with press-
ing each button.
OK or NG
OK >> GO TO 8.
NG >> GO TO 3.
Switch Monitor item Condition Indication
ON/OFF (MAIN)
switchMAIN SWPressed ON
Released OFF
ACCEL/RESUME
switchRESUME/ACC SWPressed ON
Released OFF
COAST/SET switch SET SWPressed ON
Released OFF
DISTANCE switch DIST SWPressed ON
Released OFF
CANCEL switch CANCEL SWPressed ON
Released OFF
MBIB0064E
Switch Condition Voltage [V]
ON/OFF (MAIN) switchPressed Approx. 0
Released Approx. 4.3
ACCEL/RESUME switchPressed Approx. 3.7
Released Approx. 4.3
COAST/SET switchPressed Approx. 3.0
Released Approx. 4.3
DISTANCE switchPressed Approx. 2.2
Released Approx. 4.3
CANCEL switchPressed Approx. 1.3
Released Approx. 4.3
PBIB0311E
Page 2520 of 4449
![INFINITI FX35 2004 Service Manual DTC P1564 ICC STEERING SWITCH
EC-1179
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45

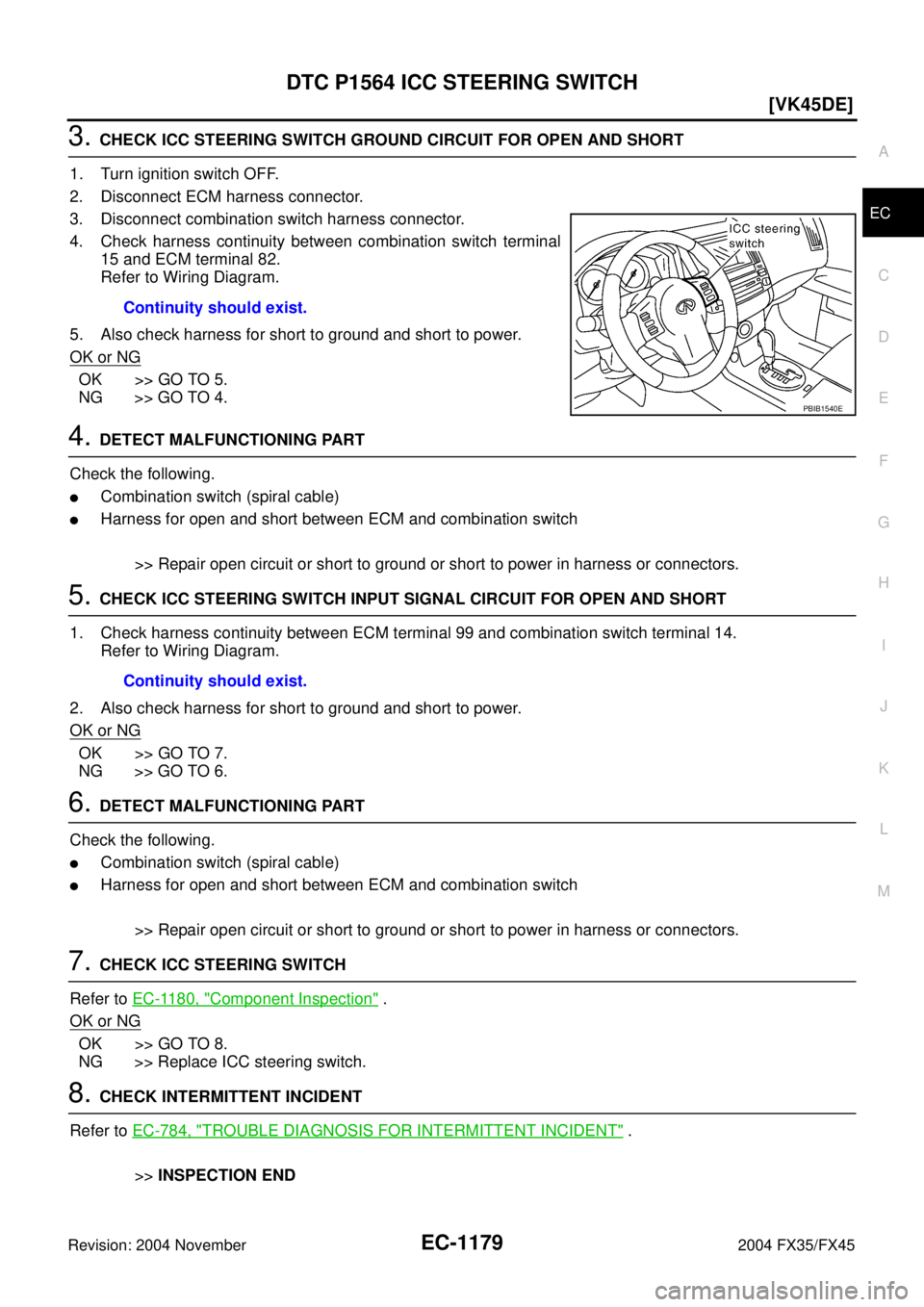

3. CHECK ICC STEERING SWITCH GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch O INFINITI FX35 2004 Service Manual DTC P1564 ICC STEERING SWITCH
EC-1179
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
3. CHECK ICC STEERING SWITCH GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch O](/manual-img/42/57021/w960_57021-2519.png)
DTC P1564 ICC STEERING SWITCH
EC-1179
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
3. CHECK ICC STEERING SWITCH GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Disconnect combination switch harness connector.
4. Check harness continuity between combination switch terminal
15 and ECM terminal 82.
Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the following.
Combination switch (spiral cable)
Harness for open and short between ECM and combination switch
>> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK ICC STEERING SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 99 and combination switch terminal 14.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. DETECT MALFUNCTIONING PART
Check the following.
Combination switch (spiral cable)
Harness for open and short between ECM and combination switch
>> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK ICC STEERING SWITCH
Refer to EC-1180, "
Component Inspection" .
OK or NG
OK >> GO TO 8.
NG >> Replace ICC steering switch.
8. CHECK INTERMITTENT INCIDENT
Refer to EC-784, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END Continuity should exist.
PBIB1540E
Continuity should exist.
