Page 1105 of 4449

INFINITI FX35 2004 Service Manual BR-12 BRAKE PIPING AND HOSE Revision: 2004 November 2004 FX35/FX45 Removal and Installation of Rear Brake Piping and Brake Hose AFS001N0 REMOVAL 1. Drain brake fluid. Refer to BR-9, "Drain and Refill"

Page 1106 of 4449

INFINITI FX35 2004 Service Manual BRAKE MASTER CYLINDER BR-13 C D E G H I J K L MA B BR Revision: 2004 November 2004 FX35/FX45 BRAKE MASTER CYLINDERPFP:46010 On-board InspectionAFS001N2 LEAK INSPECTION Check for leaking in master cyl

Page 1107 of 4449

INFINITI FX35 2004 Service Manual BR-14 BRAKE MASTER CYLINDER Revision: 2004 November 2004 FX35/FX45 Disassembly and AssemblyAFS001N5 DISASSEMBLY CAUTION: Master cylinder can not be disassembly. Remove reservoir tank only when absol

Page 1108 of 4449

INFINITI FX35 2004 Service Manual BRAKE BOOSTER BR-15 C D E G H I J K L MA B BR Revision: 2004 November 2004 FX35/FX45 BRAKE BOOSTERPFP:47200 On-Vehicle ServiceAFS001N6 OPERATING CHECK With engine stopped, change the vacuum to the atm

Page 1109 of 4449

INFINITI FX35 2004 Service Manual BR-16 BRAKE BOOSTER Revision: 2004 November 2004 FX35/FX45 Removal and InstallationAFS001N7 REMOVAL CAUTION: Be careful not to deform or bend brake piping while removing and installing brake booster

Page 1110 of 4449

INFINITI FX35 2004 Service Manual BRAKE BOOSTER BR-17 C D E G H I J K L MA B BR Revision: 2004 November 2004 FX35/FX45 INSTALLATION 1. Loosen lock nut to adjust input rod length so that the length B (in the figure) satisfies the speci

Page 1111 of 4449

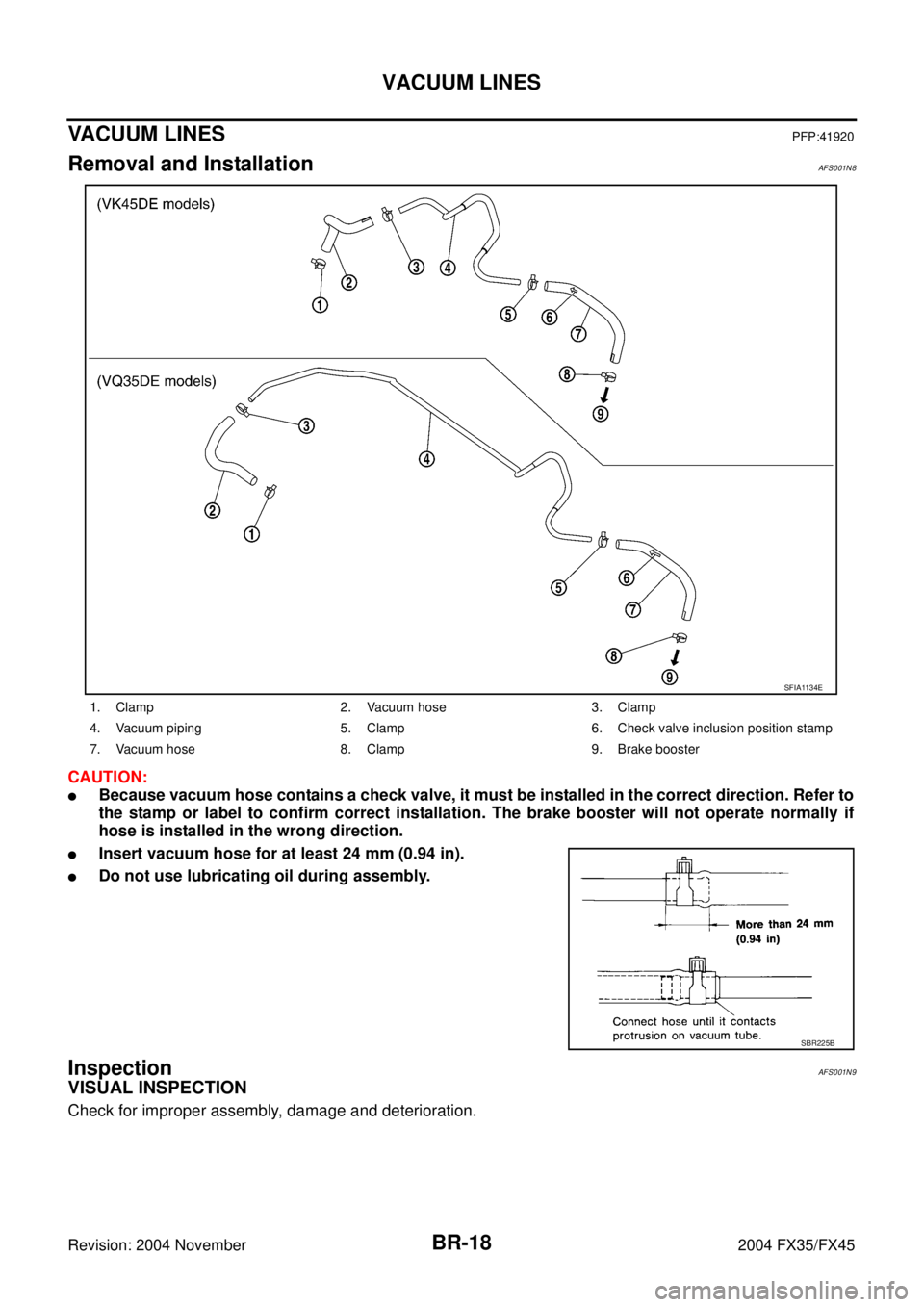

INFINITI FX35 2004 Service Manual BR-18 VACUUM LINES Revision: 2004 November 2004 FX35/FX45 VACUUM LINESPFP:41920 Removal and InstallationAFS001N8 CAUTION: Because vacuum hose contains a check valve, it must be installed in the corre

Page 1112 of 4449

INFINITI FX35 2004 Service Manual VACUUM LINES BR-19 C D E G H I J K L MA B BR Revision: 2004 November 2004 FX35/FX45 CHECK VALVE INSPECTION Airtightness Inspection Use a handy vacuum pump to check. When connected to booster side (1):
