Page 3409 of 4449

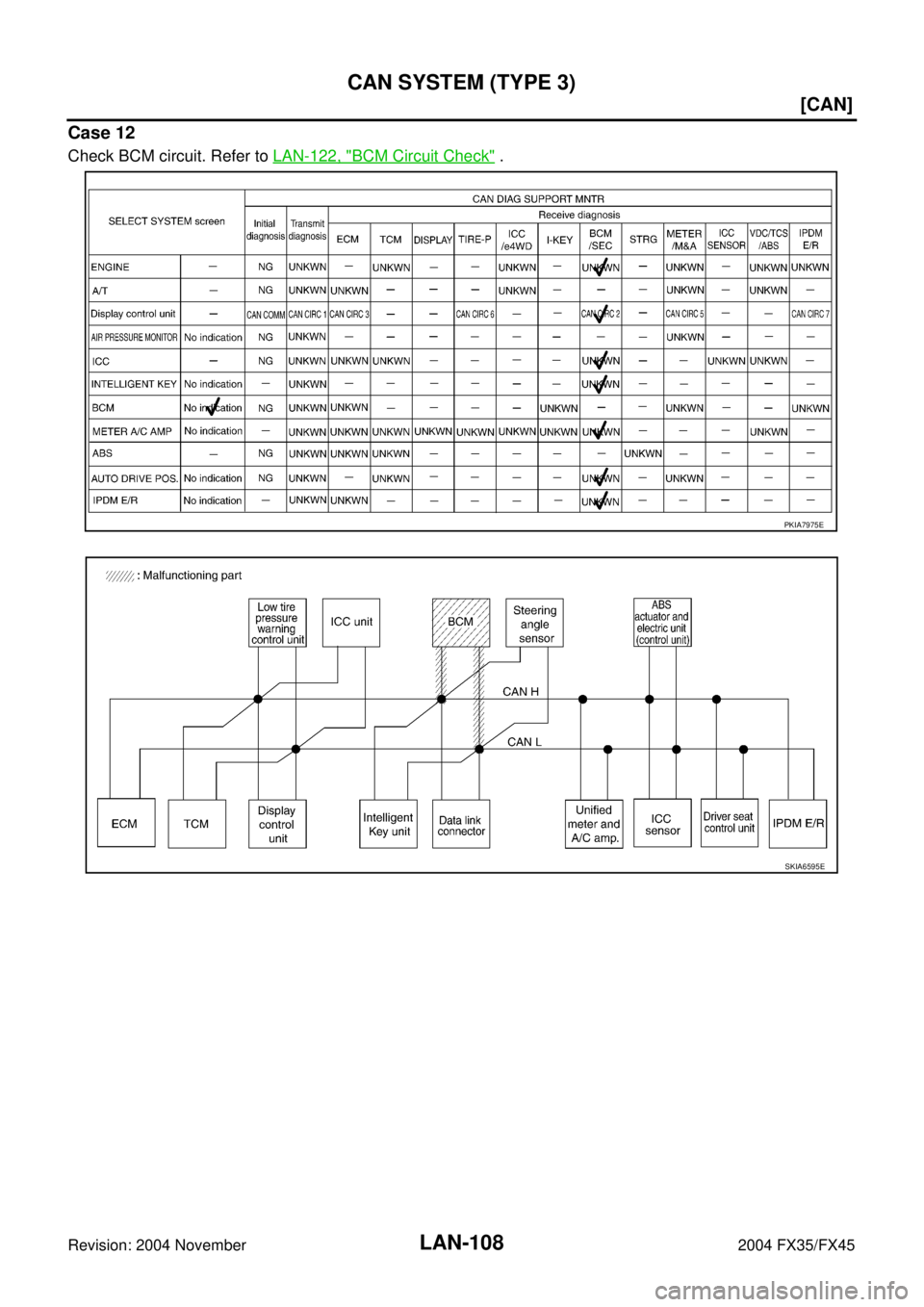

INFINITI FX35 2004 Service Manual LAN-108 [CAN] CAN SYSTEM (TYPE 3) Revision: 2004 November 2004 FX35/FX45 Case 12 Check BCM circuit. Refer to LAN-122, "BCM Circuit Check" . PKIA7975E SKIA6595E

Page 3410 of 4449

INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 3) LAN-109 [CAN] C D E F G H I J L MA B LAN Revision: 2004 November 2004 FX35/FX45 Case 13 Check steering angle sensor circuit. Refer to LAN-123, "Steering Angle Sensor Circuit Check"

Page 3411 of 4449

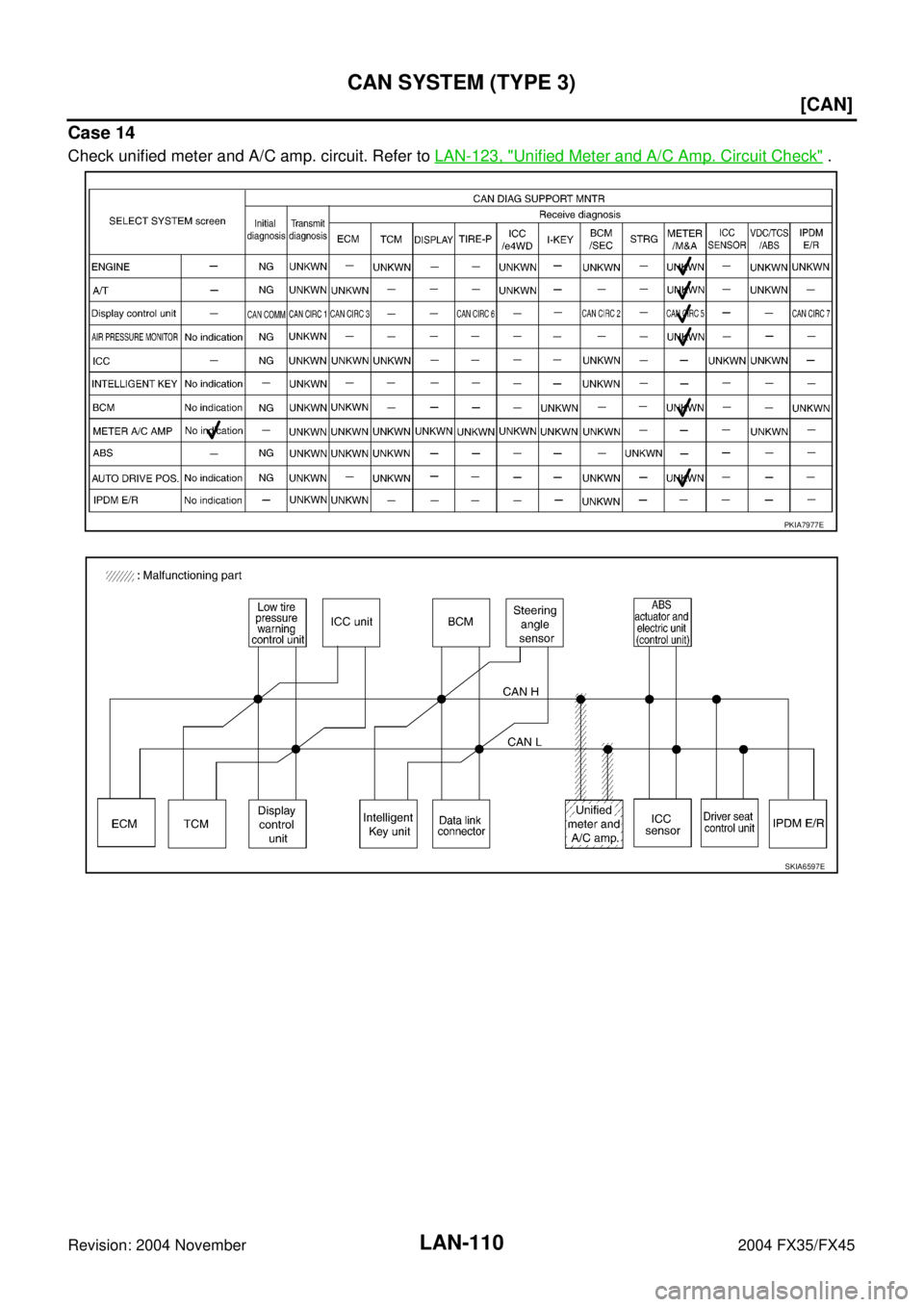

INFINITI FX35 2004 Service Manual LAN-110 [CAN] CAN SYSTEM (TYPE 3) Revision: 2004 November 2004 FX35/FX45 Case 14 Check unified meter and A/C amp. circuit. Refer to LAN-123, "Unified Meter and A/C Amp. Circuit Check" . PKIA7977E SKIA

Page 3412 of 4449

INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 3) LAN-111 [CAN] C D E F G H I J L MA B LAN Revision: 2004 November 2004 FX35/FX45 Case 15 Check ICC sensor circuit. Refer to LAN-124, "ICC Sensor Circuit Check" . PKIA7978E SKIA6598E

Page 3413 of 4449

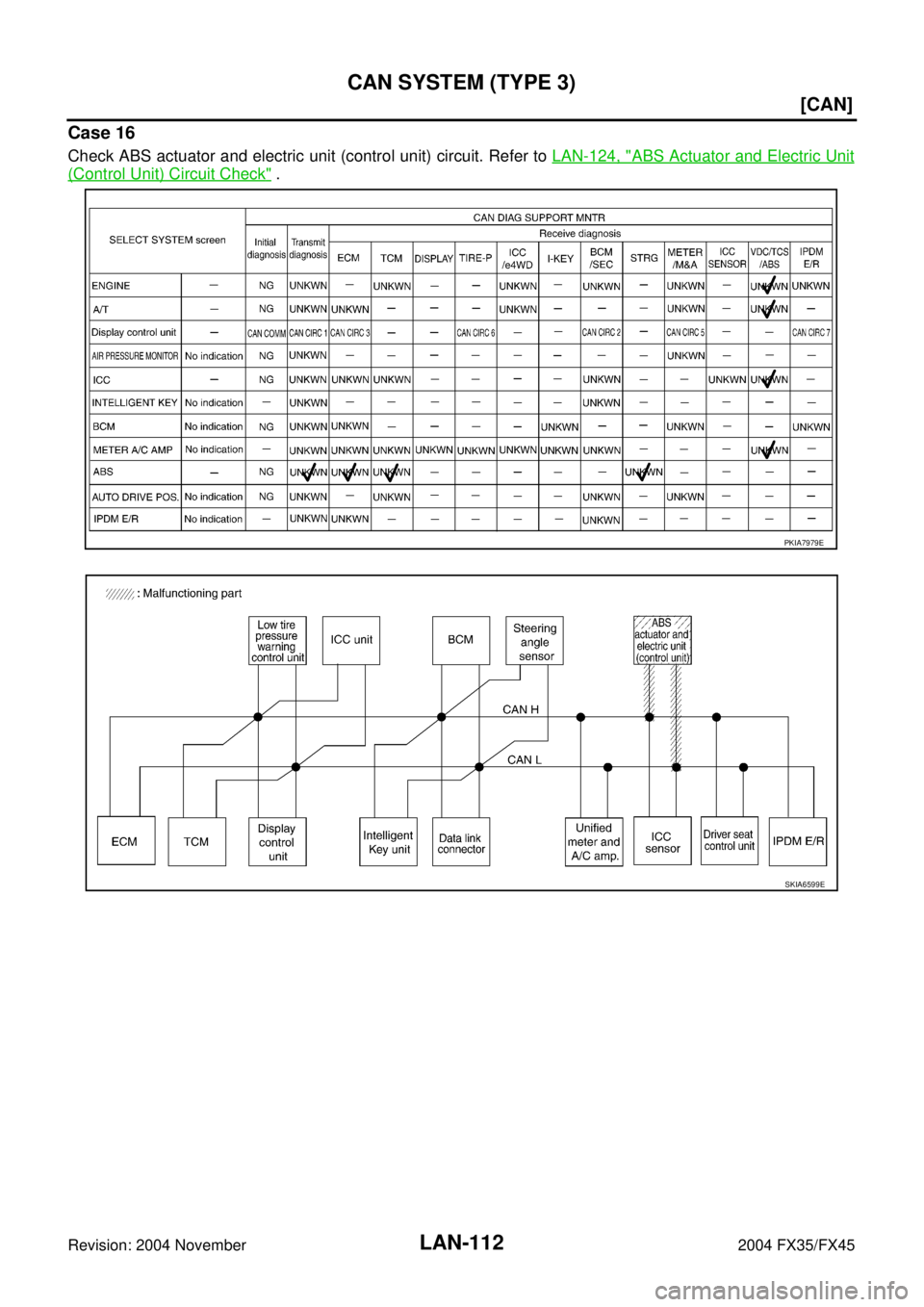

INFINITI FX35 2004 Service Manual LAN-112 [CAN] CAN SYSTEM (TYPE 3) Revision: 2004 November 2004 FX35/FX45 Case 16 Check ABS actuator and electric unit (control unit) circuit. Refer to LAN-124, "ABS Actuator and Electric Unit (Control

Page 3414 of 4449

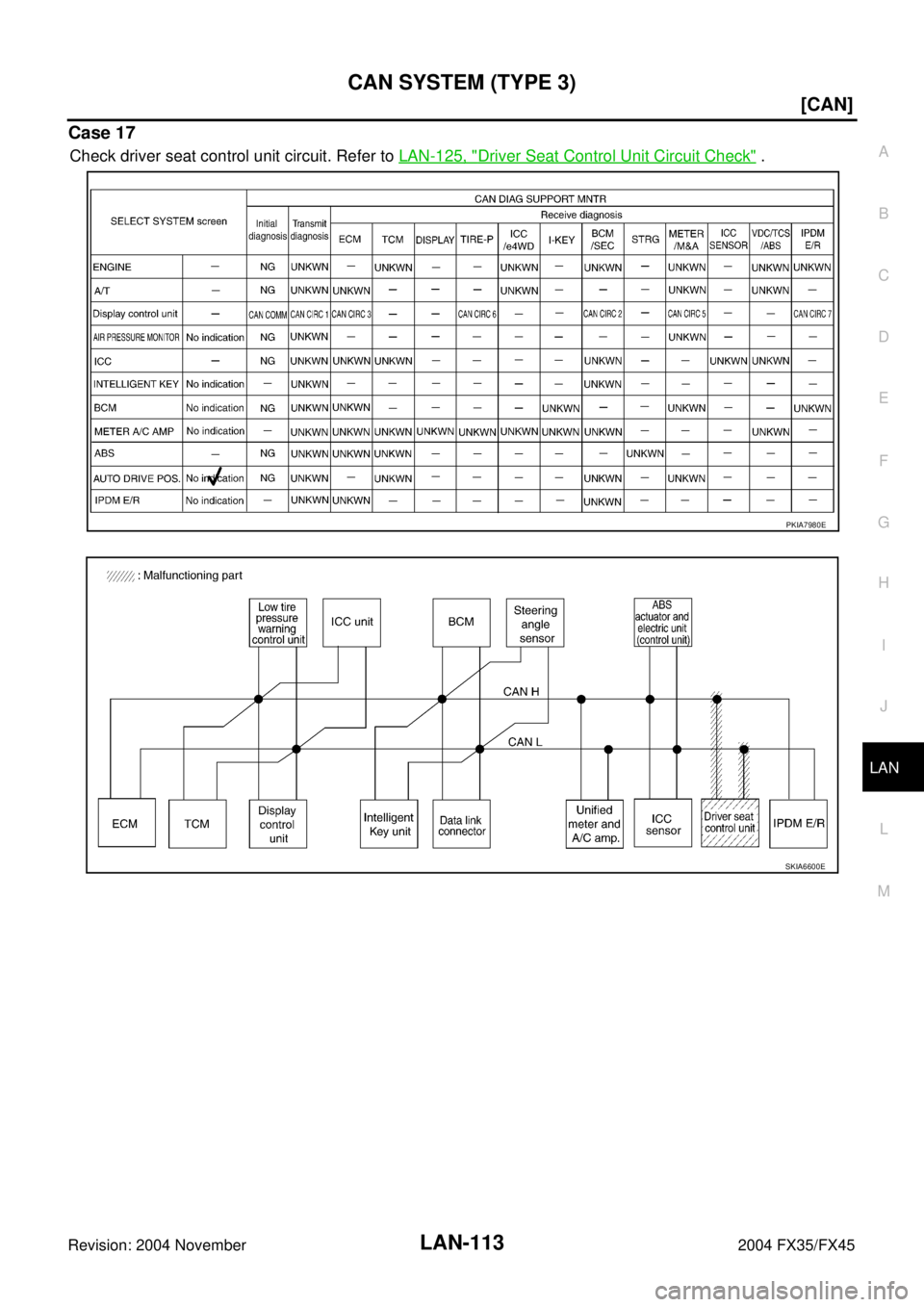

INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 3) LAN-113 [CAN] C D E F G H I J L MA B LAN Revision: 2004 November 2004 FX35/FX45 Case 17 Check driver seat control unit circuit. Refer to LAN-125, "Driver Seat Control Unit Circuit

Page 3415 of 4449

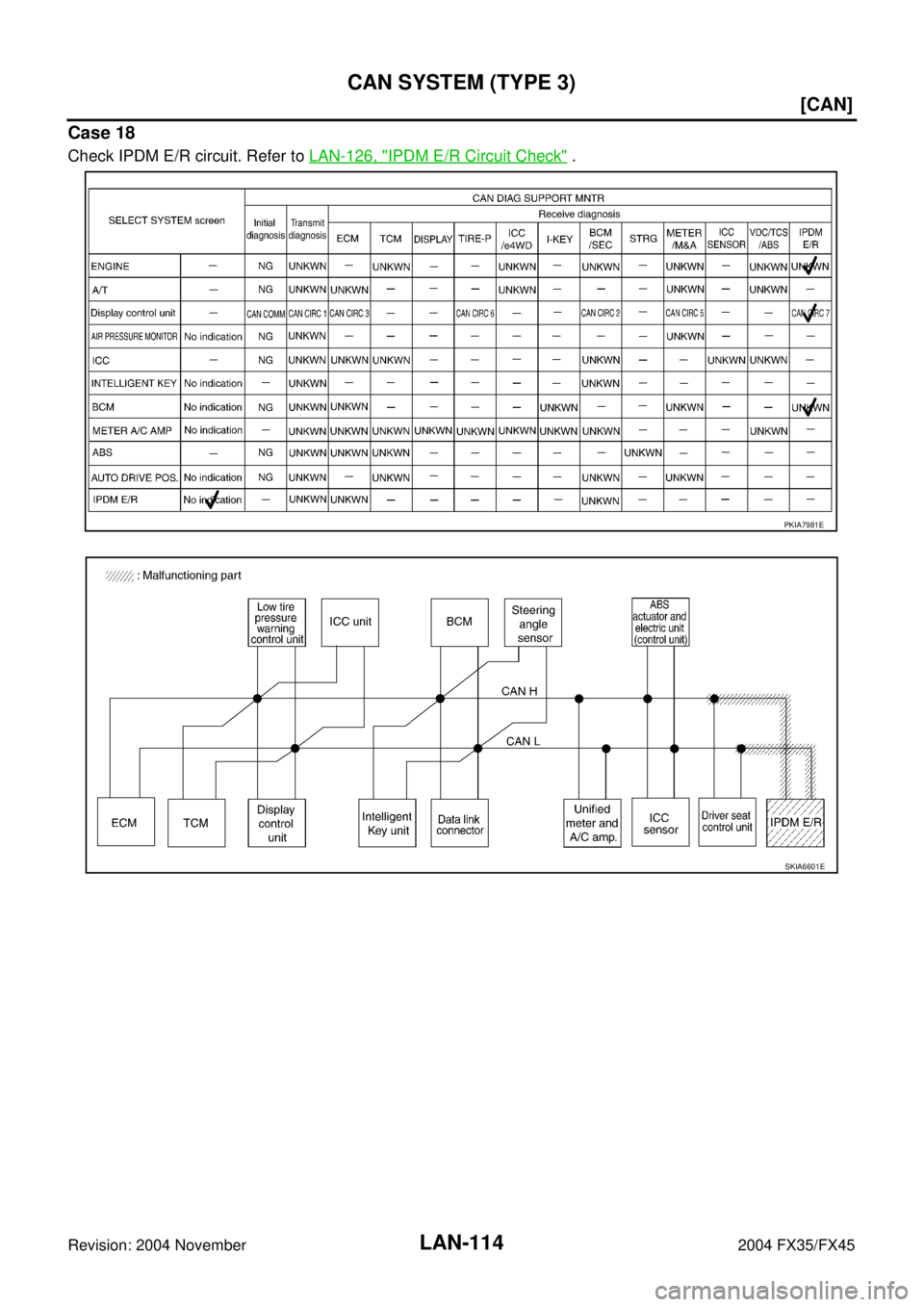

INFINITI FX35 2004 Service Manual LAN-114 [CAN] CAN SYSTEM (TYPE 3) Revision: 2004 November 2004 FX35/FX45 Case 18 Check IPDM E/R circuit. Refer to LAN-126, "IPDM E/R Circuit Check" . PKIA7981E SKIA6601E

Page 3416 of 4449

INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 3) LAN-115 [CAN] C D E F G H I J L MA B LAN Revision: 2004 November 2004 FX35/FX45 Case 19 Check CAN communication circuit. Refer to LAN-127, "CAN Communication Circuit Check" . Case
