EI-42
HEADLINING
Revision: 2004 November 2004 FX35/FX45
HEADLININGPFP:73910
Removal and InstallationAIS0037P
PIIA4332E
Page 2722 of 4449

HEADLINING
EI-43
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2004 November 2004 FX35/FX45
REMOVAL
1. Remove front pillar garnish. Refer to EI-37, "Removal and Installation" .
2. Remove kicking plate (front/rear). Refer to EI-37, "
Removal and Installation" .
3. Remove body side welt. Refer to EI-37, "
Removal and Installation" .
4. Remove seat belt shoulder anchor (front/rear). Refer to SB-4, "
Removal and Installation of Front Seat
Belt" and SB-6, "Removal and Installation of Rear Seat Belt" .
5. Remove center pillar garnish (lower/upper) and luggage side finisher assembly and rear pillar upper gar-
nish assembly. Refer to EI-37, "
Removal and Installation" and EI-44, "Removal and Installation" .
6. Remove assist grip caps and screw. Remove assist grip.
7. Remove sun-visor (drive and passenger), and disconnect harness connector with lamp model.
8. Remove sun-visor holder.
9. Remove DVD display rear. Refer to AV- 1 9 9 , "
Removal and Installation for DVD Display Unit" .
10. Remove map lamp (spot lamp). Refer to LT- 1 5 0 , "
Removal and Installation" .
11. Disconnect harness connector at front left side of headlining.
12. Put front seat to front most and recline seatback to backward.
13. Remove headlining, turn and take out from back door.
CAUTION:
Always remove or install in a pair.
Cover surroundings with waste to avoid scratches or damages.
Do not bend headlining too hard.
14. Remove following parts after removing headlining.
Room lamp
Personal lamp
INSTALLATION
Install in the reverse order of removal.

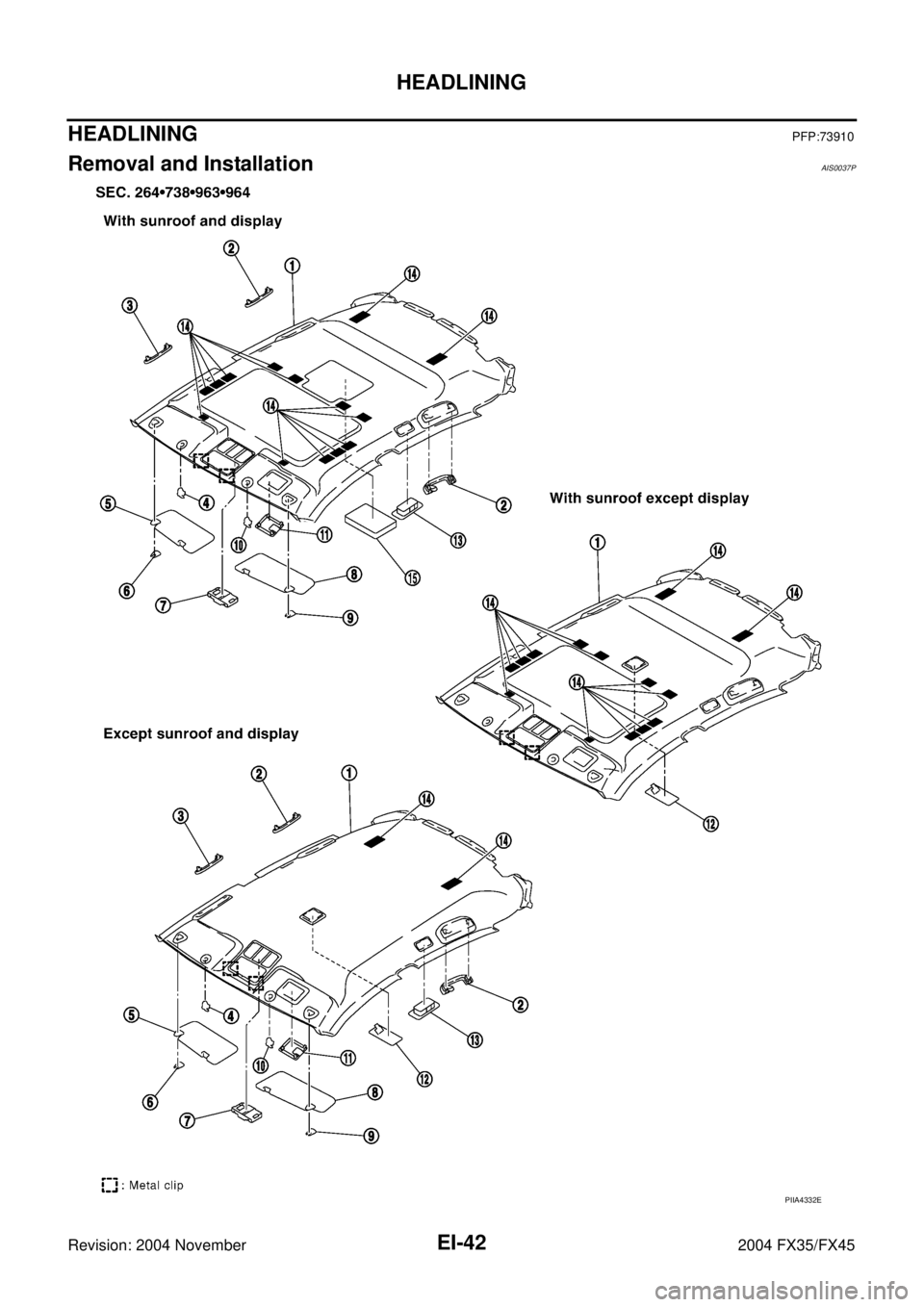

1. Headlining 2. Assist grip (rear) 3. Assist grip (front)
4. Sun-visor holder (right) 5. Sun-visor (right) 6. Sun-visor cover (right)
7. Map lamp (spot lamp) 8. Sun-visor (left) 9. Sun-visor cover (left)
10. Sun-visor holder (left) 11. Finisher 12. Room lamp
13. Personal lamp 14. Fastener 15. DVD display rear
PIIA4952E
Page 2723 of 4449
EI-44
LUGGAGE FLOOR TRIM
Revision: 2004 November 2004 FX35/FX45
LUGGAGE FLOOR TRIMPFP:84999
Removal and InstallationAIS0037Q
PIIA4958E

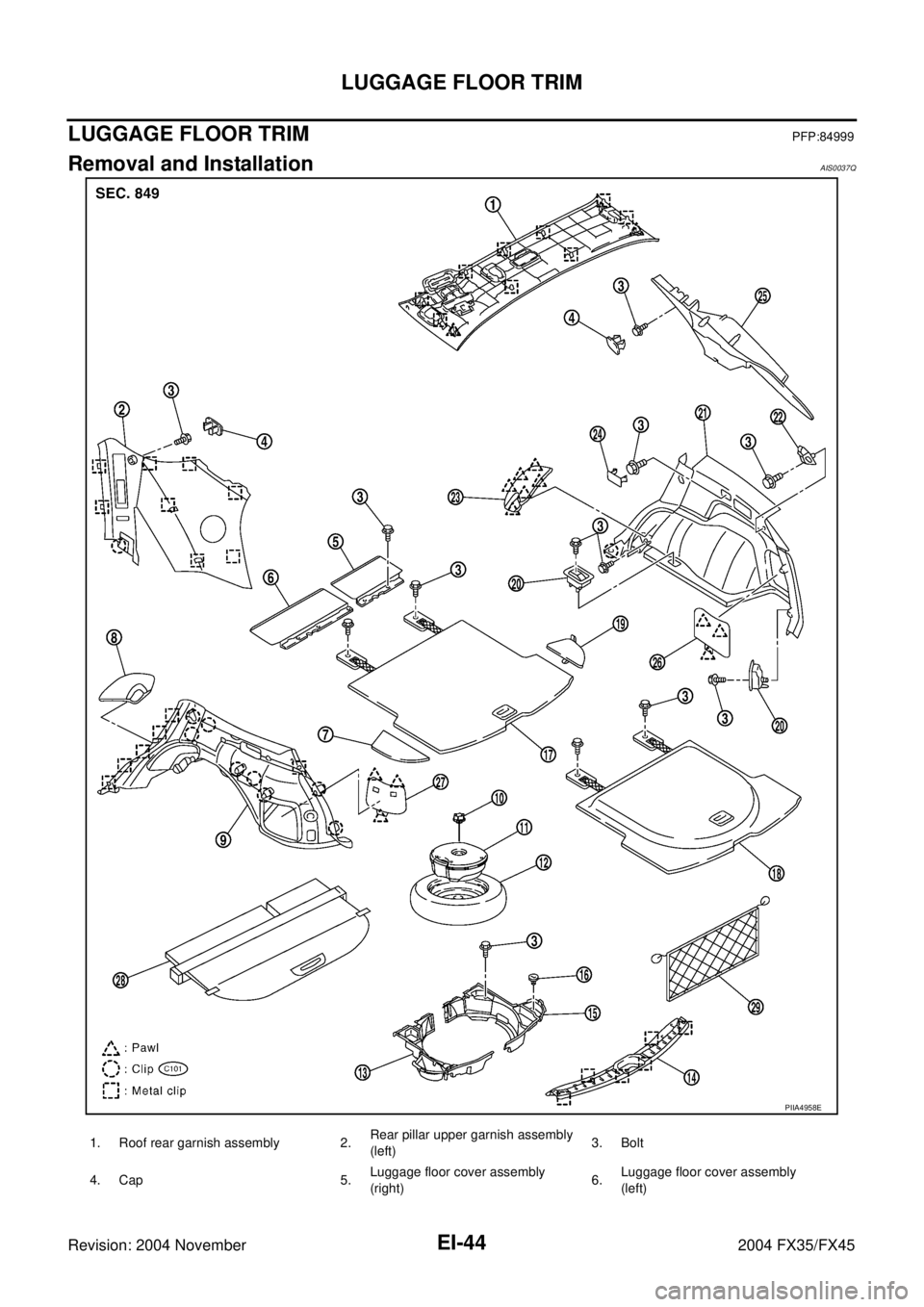

1. Roof rear garnish assembly 2.Rear pillar upper garnish assembly
(left)3. Bolt
4. Cap 5.Luggage floor cover assembly
(right)6.Luggage floor cover assembly
(left)
Page 2724 of 4449

LUGGAGE FLOOR TRIM
EI-45
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2004 November 2004 FX35/FX45
REMOVAL
1. Remove tonneau cover.
2. Remove luggage side hook and remove net hook (left/right).
3. Remove luggage floor board assembly. Remove bolt with power tool.
4. Remove luggage floor side board assembly (left/right).
5. Remove back door weather strip.
6. Remove rear plate assembly.
7. Remove roof rear garnish assembly.
8. Remove luggage floor cover assembly (left/right).
9. Remove rear door kicking plate (left/right).
10. Remove rear body side welt.
11. Remove rear wheel house finisher assembly (left/right).
12. Remove luggage side finisher assembly bolt and remove luggage side finisher assembly (left/right).
13. Remove rear seat belt anchor (left/right). Refer to SB-6, "
Removal and Installation of Rear Seat Belt" .
14. Remove rear pillar upper garnish assembly cap and bolt, then remove rear pillar upper garnish assembly
(left/right).
15. Remove spare tire clamp.
16. Remove sub-woofer box connector and remove sub-woofer box.
17. Remove spare tire.
18. Remove towing hook, wheel nut wrench, spanner, tire stopper, jack rod and jack complete.
19. Remove luggage side box bolt and luggage side box assembly (left/right).
INSTALLATION
Install in the reverse order of removal.
7.Luggage floor side board assembly
(left)8.Rear wheel house finisher assembly
(left)9.Luggage side finisher assembly
(left)
10. Clamp 11. Sub woofer box 12. Spare tire
13. Luggage side box (left) 14. Rear plate assembly 15. Luggage side box (right)
16. Cap 17. Luggage floor board assembly 18.Luggage floor board assembly
(option for Canada)
19.Luggage floor side board assembly
(right)20. Net hook 21.Luggage side finisher assembly
(right)
22. Luggage side hook 23.Rear wheel house finisher assembly
(right)24. Cap
25.Rear pillar upper garnish assembly
(right)26. Luggage finisher mask (right) 27. Luggage finisher mask (left)
28. Tonneau cover 29. Net
Page 2725 of 4449
EI-46
BACK DOOR TRIM
Revision: 2004 November 2004 FX35/FX45
BACK DOOR TRIMPFP:90900
Removal and InstallationAIS0037R
REMOVAL
1. Remove pull handle.
2. Remove back door finisher clips and back door finisher.
3. Remove back door finisher cap.
INSTALLATION
Install in the reverse order of removal.

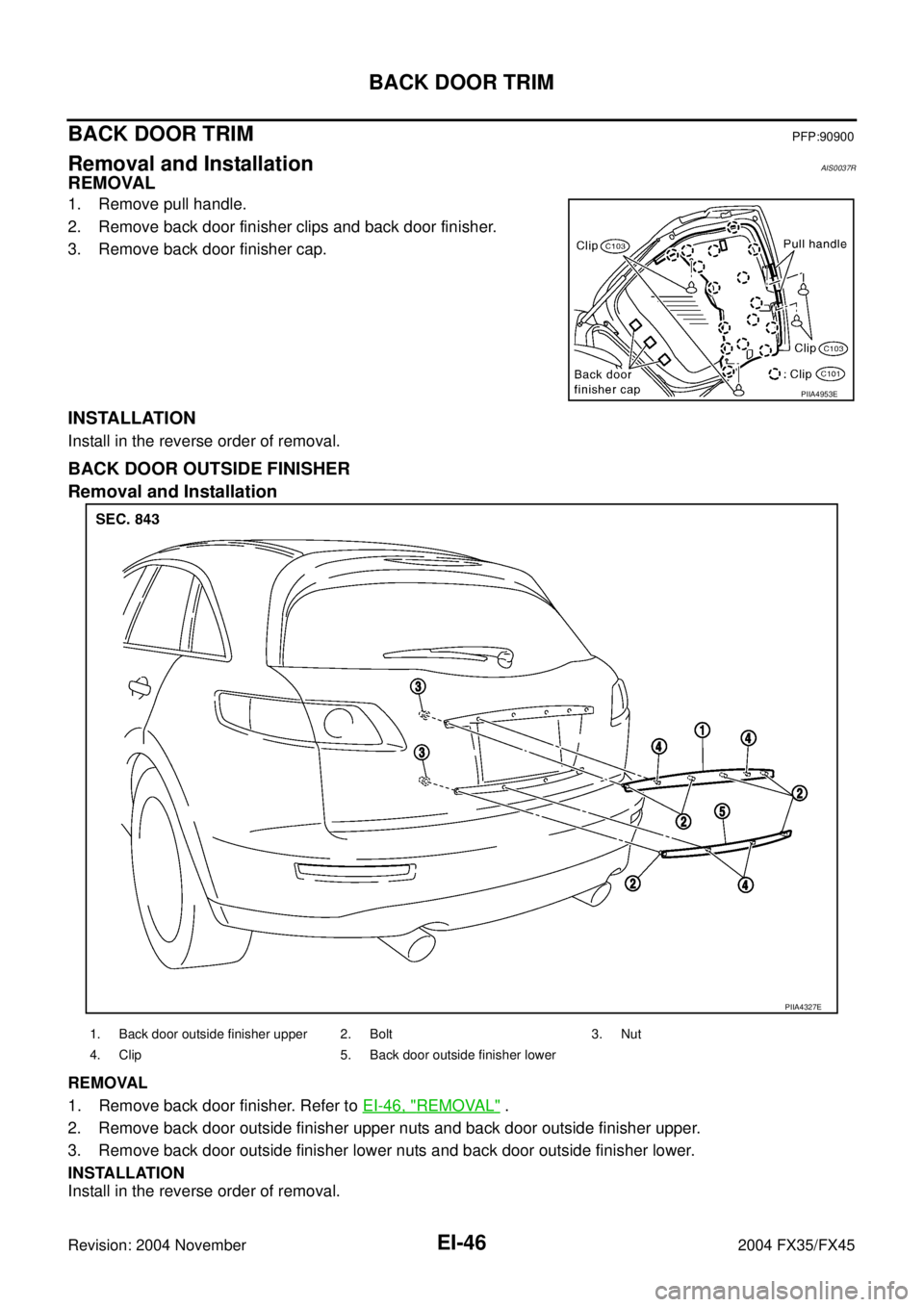

BACK DOOR OUTSIDE FINISHER
Removal and Installation
REMOVAL
1. Remove back door finisher. Refer to EI-46, "
REMOVAL" .
2. Remove back door outside finisher upper nuts and back door outside finisher upper.
3. Remove back door outside finisher lower nuts and back door outside finisher lower.
INSTALLATION
Install in the reverse order of removal.
PIIA4953E
PIIA4327E
1. Back door outside finisher upper 2. Bolt 3. Nut
4. Clip 5. Back door outside finisher lower
Page 2726 of 4449
