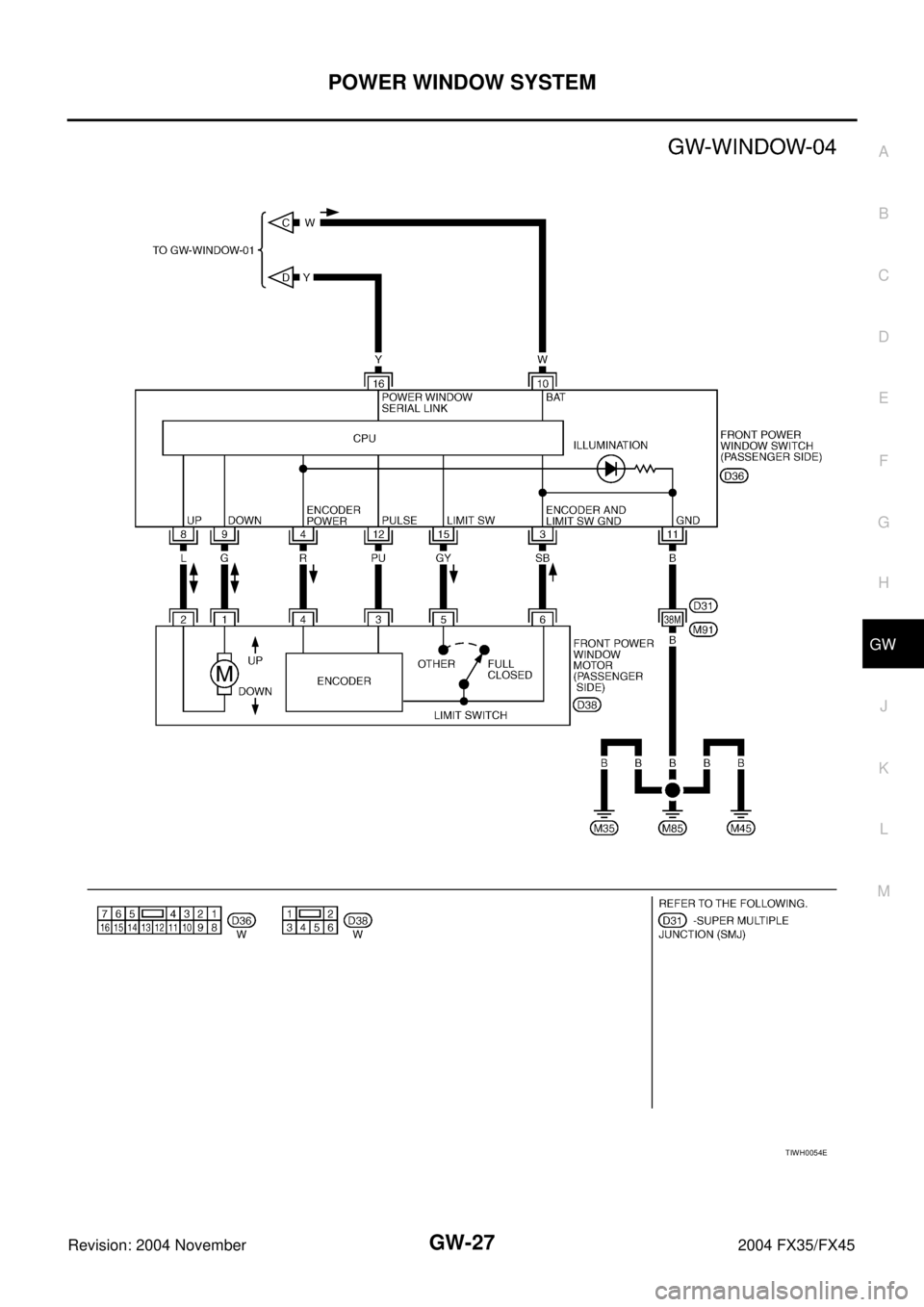

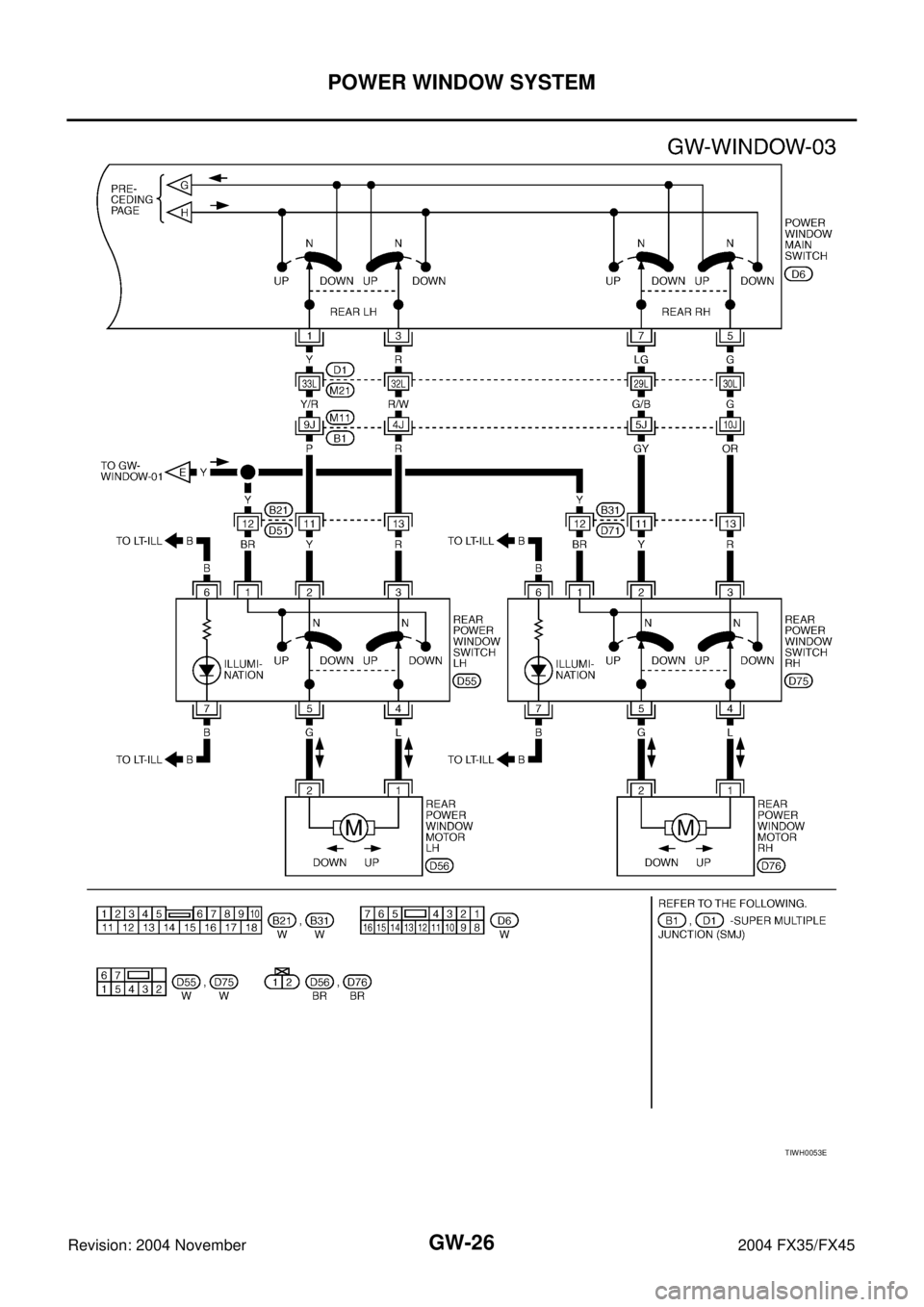

Page 3185 of 4449

INFINITI FX35 2004 Service Manual GW-26 POWER WINDOW SYSTEM Revision: 2004 November 2004 FX35/FX45 TIWH0053E

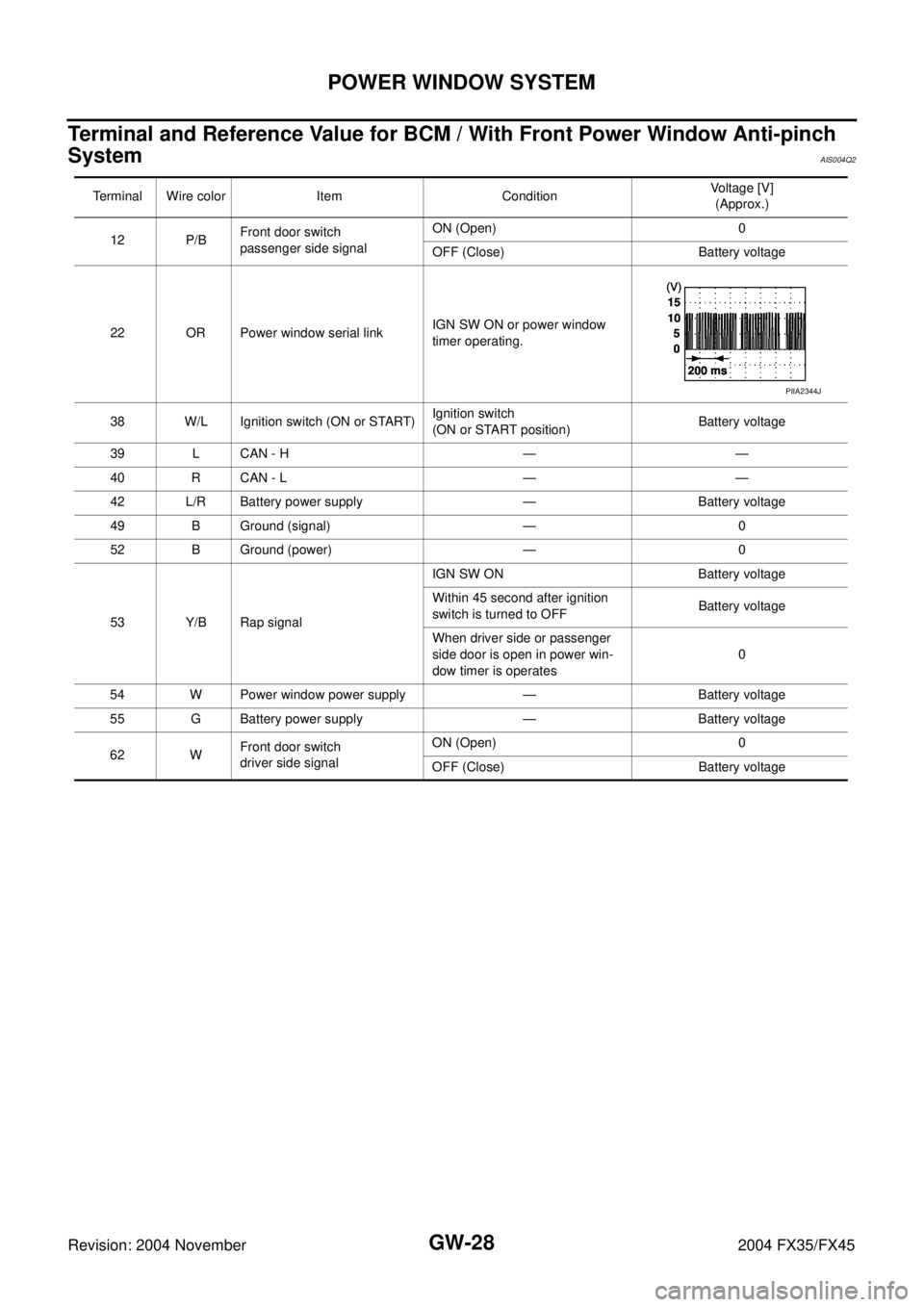

Page 3186 of 4449

INFINITI FX35 2004 Service Manual POWER WINDOW SYSTEM GW-27 C D E F G H J K L MA B GW Revision: 2004 November 2004 FX35/FX45 TIWH0054E

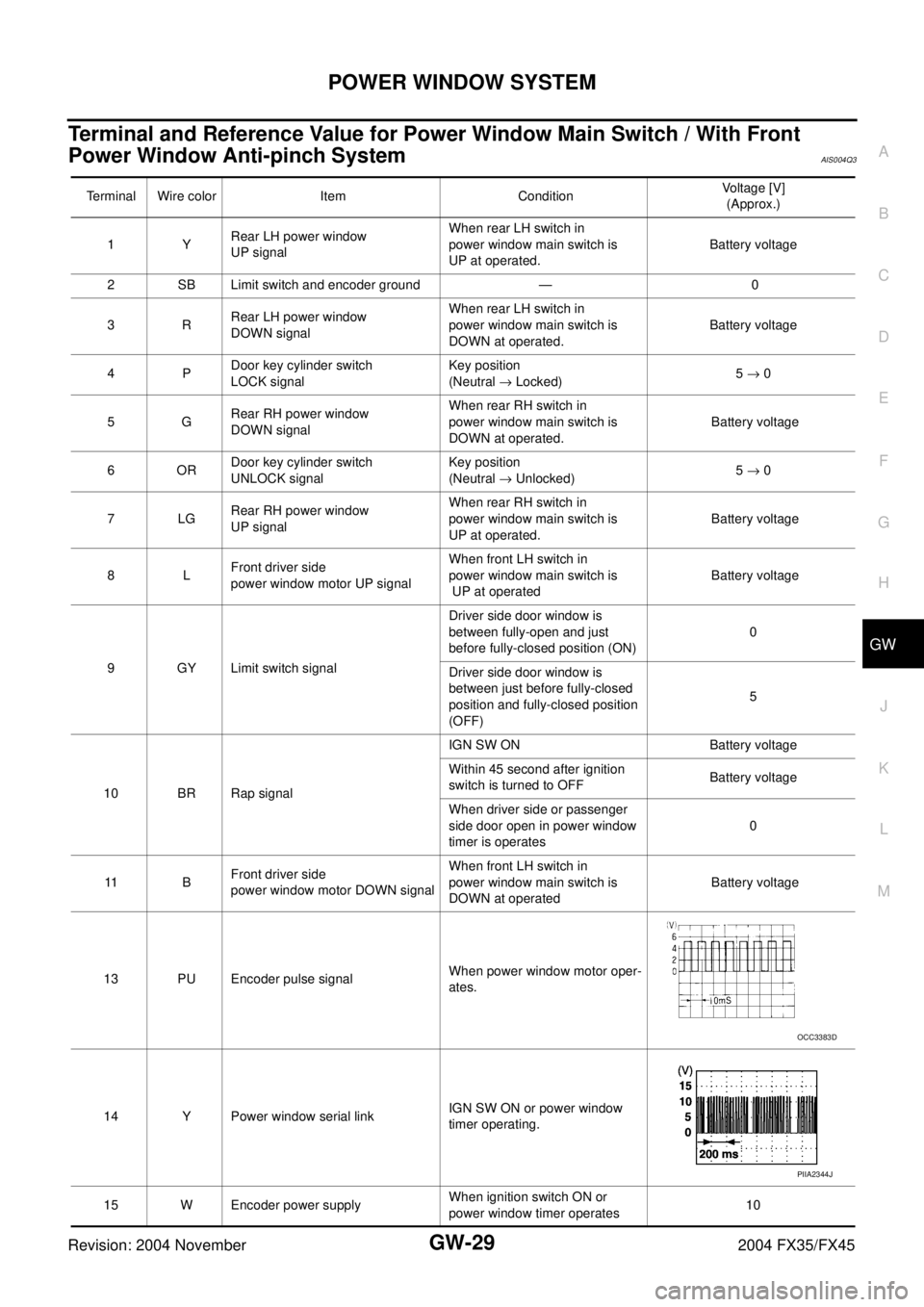

Page 3187 of 4449

INFINITI FX35 2004 Service Manual GW-28 POWER WINDOW SYSTEM Revision: 2004 November 2004 FX35/FX45 Terminal and Reference Value for BCM / With Front Power Window Anti-pinch System AIS004Q2 Terminal Wire color Item ConditionVoltage [V

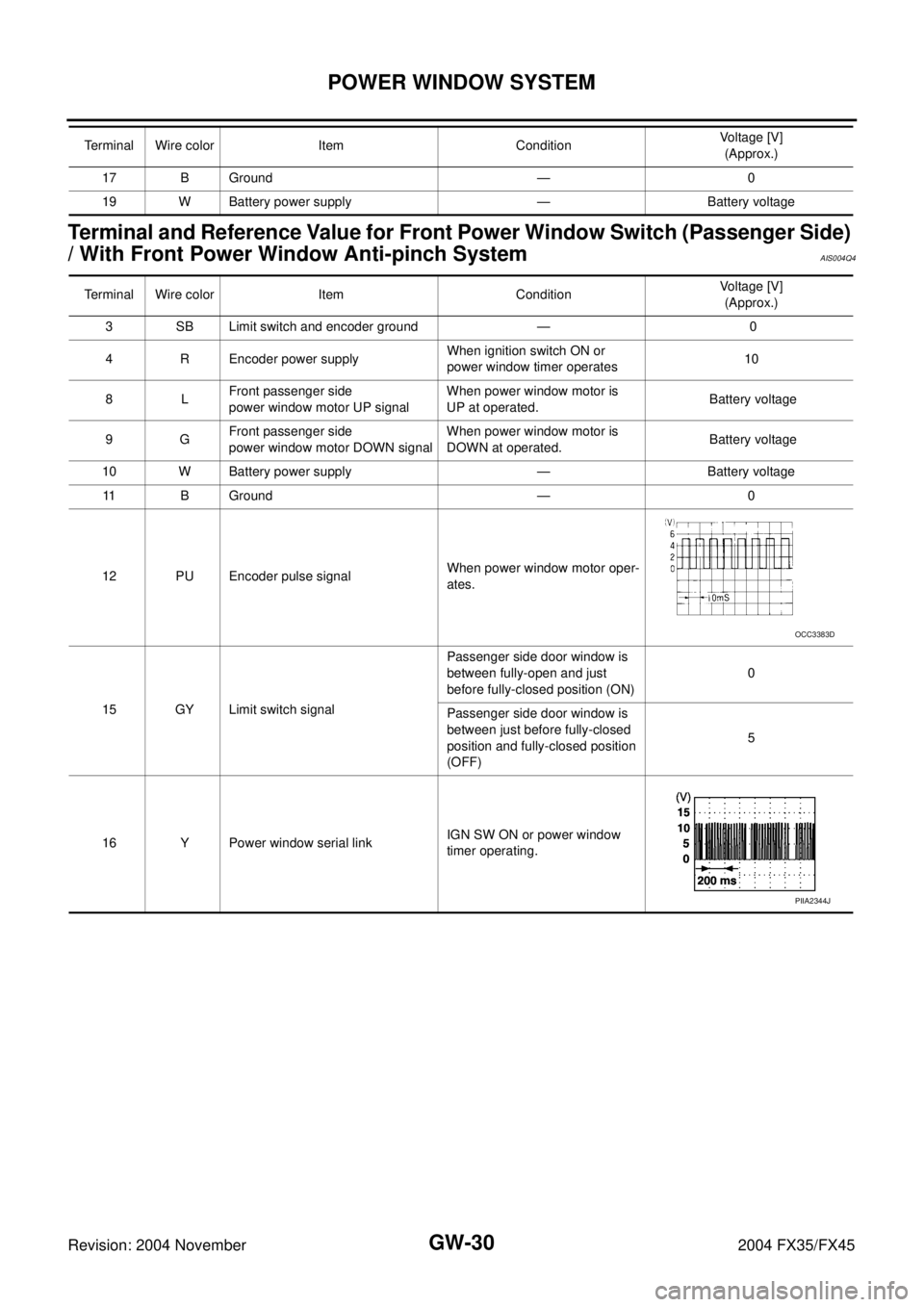

Page 3188 of 4449

INFINITI FX35 2004 Service Manual POWER WINDOW SYSTEM GW-29 C D E F G H J K L MA B GW Revision: 2004 November 2004 FX35/FX45 Terminal and Reference Value for Power Window Main Switch / With Front Power Window Anti-pinch System AIS00

Page 3189 of 4449

INFINITI FX35 2004 Service Manual GW-30 POWER WINDOW SYSTEM Revision: 2004 November 2004 FX35/FX45 Terminal and Reference Value for Front Power Window Switch (Passenger Side) / With Front Power Window Anti-pinch System AIS004Q4 17 B

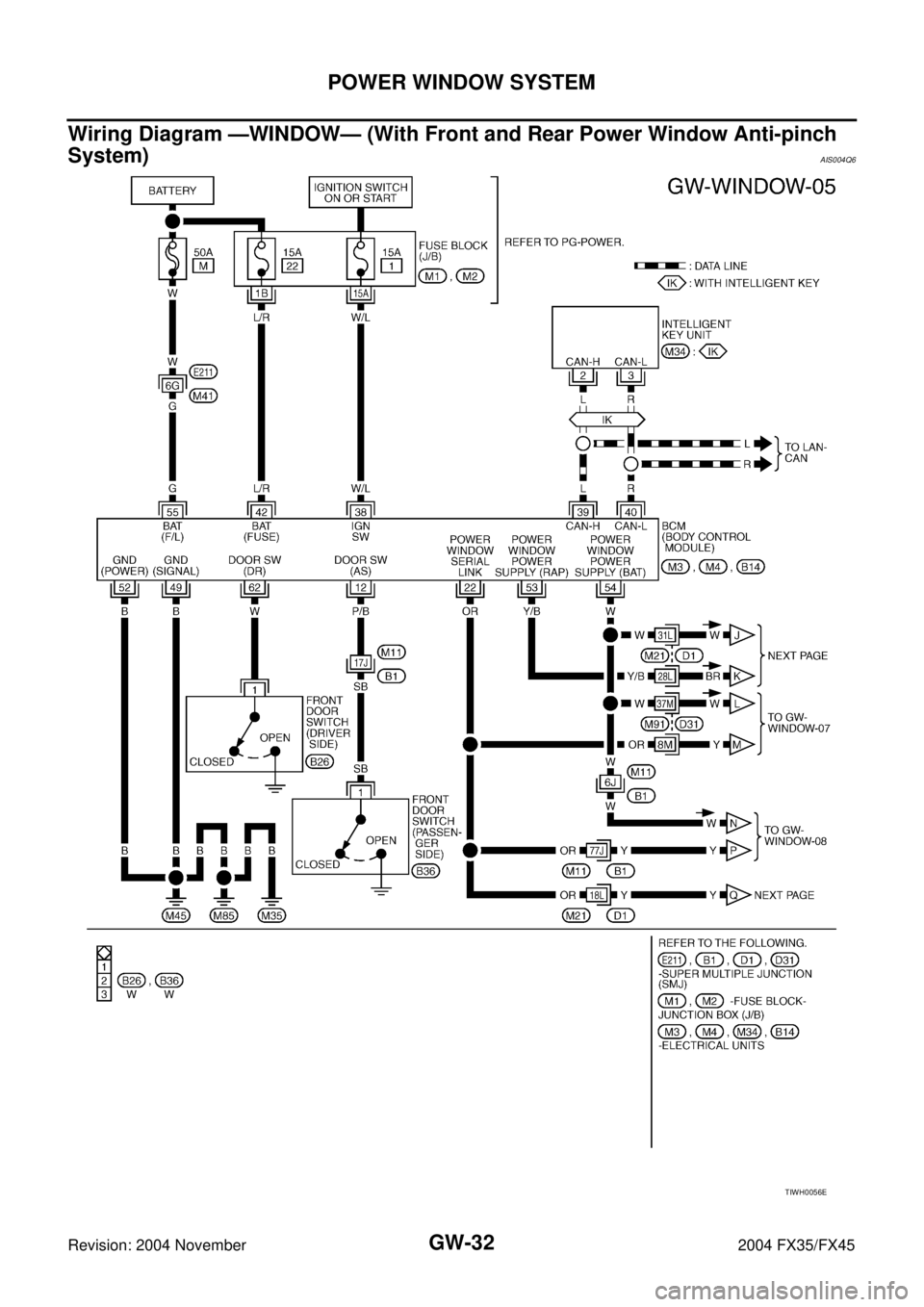

Page 3190 of 4449

INFINITI FX35 2004 Service Manual POWER WINDOW SYSTEM GW-31 C D E F G H J K L MA B GW Revision: 2004 November 2004 FX35/FX45 Schematic (With Front and Rear Power Window Anti-pinch System)AIS004Q5 TIWH0055E

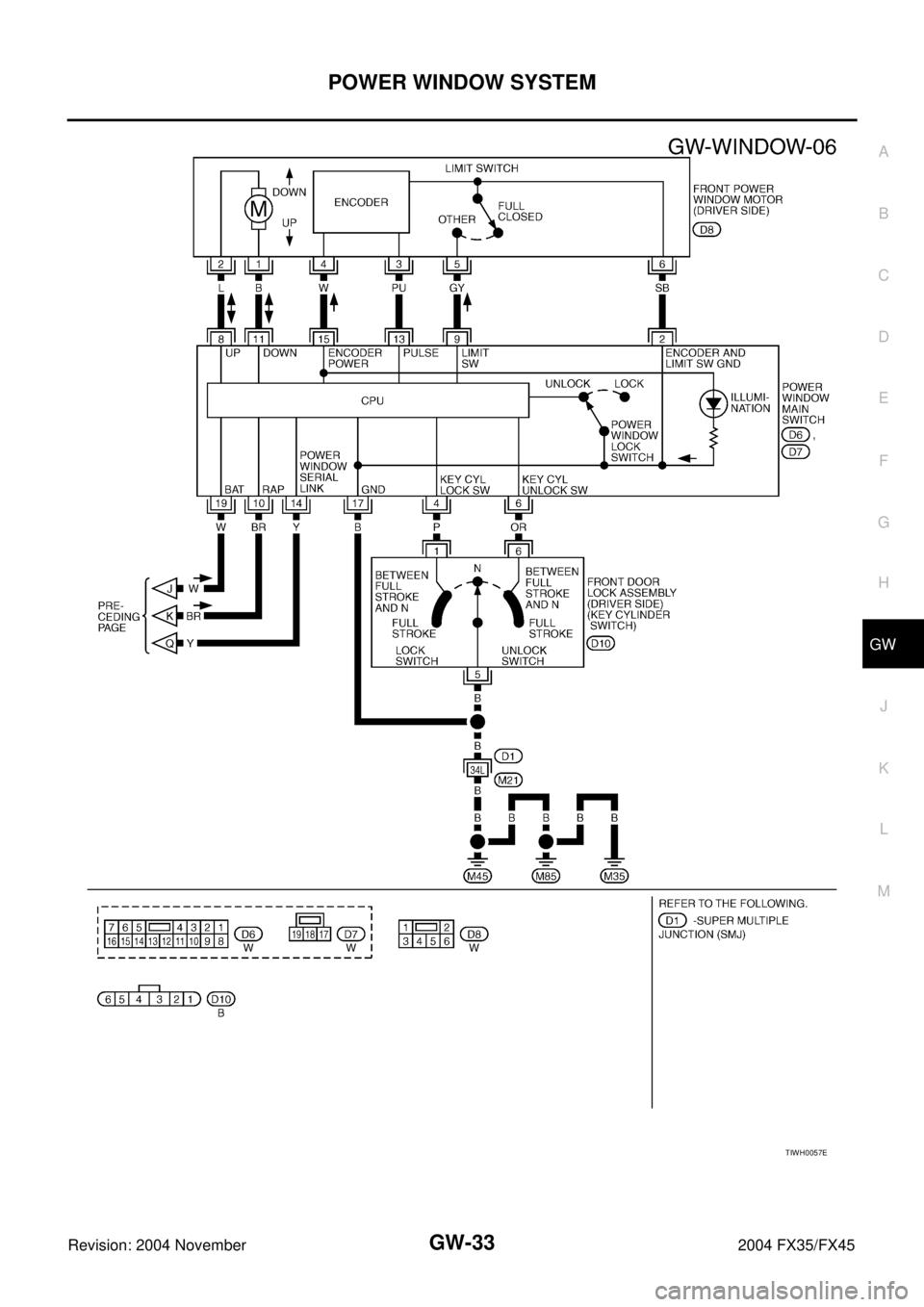

Page 3191 of 4449

INFINITI FX35 2004 Service Manual GW-32 POWER WINDOW SYSTEM Revision: 2004 November 2004 FX35/FX45 Wiring Diagram —WINDOW— (With Front and Rear Power Window Anti-pinch System) AIS004Q6 TIWH0056E

Page 3192 of 4449

INFINITI FX35 2004 Service Manual POWER WINDOW SYSTEM GW-33 C D E F G H J K L MA B GW Revision: 2004 November 2004 FX35/FX45 TIWH0057E
