Page 3905 of 4449

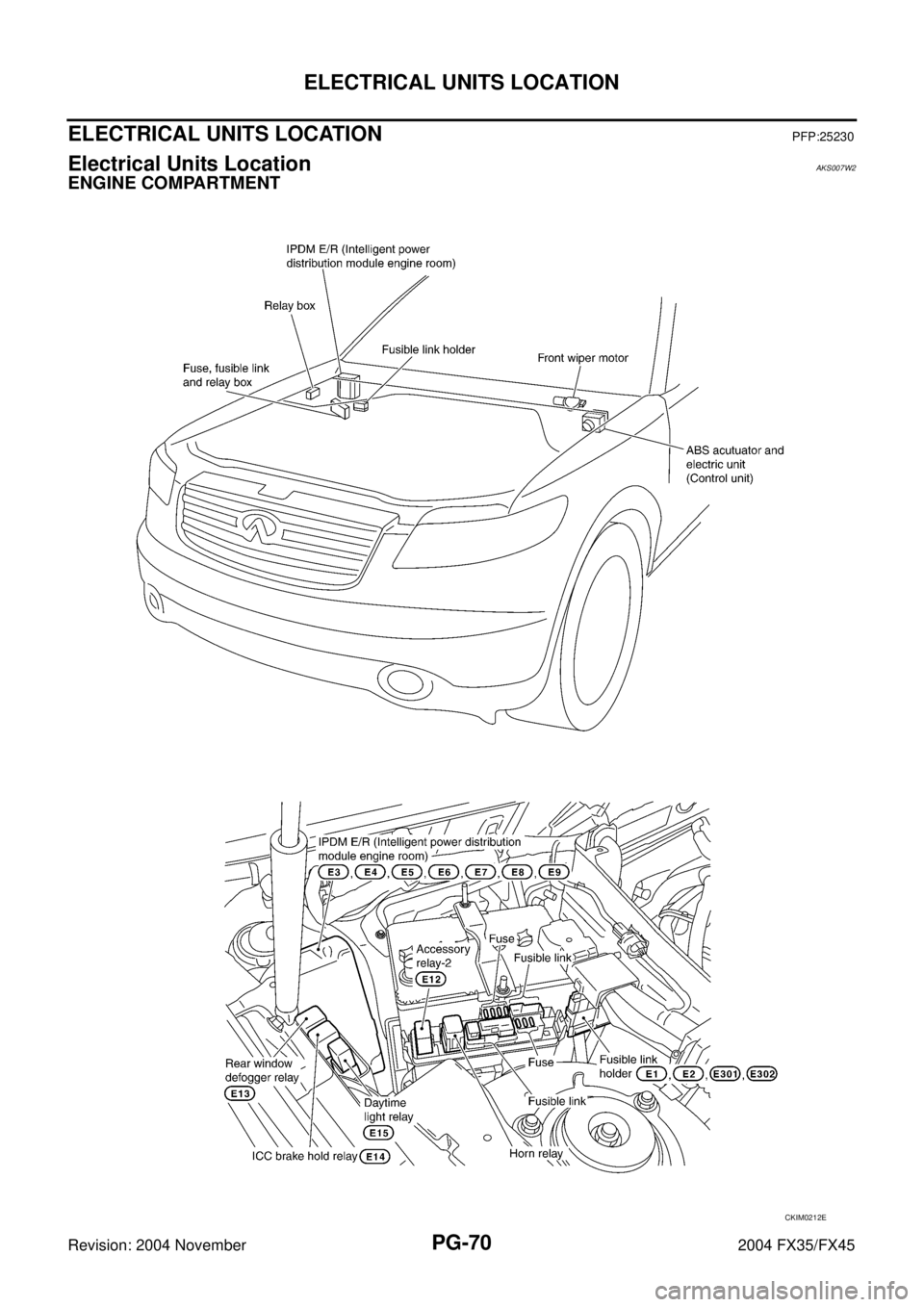

INFINITI FX35 2004 Service Manual PG-70 ELECTRICAL UNITS LOCATION Revision: 2004 November 2004 FX35/FX45 ELECTRICAL UNITS LOCATIONPFP:25230 Electrical Units Location AKS007W2 ENGINE COMPARTMENT CKIM0212E

Page 3906 of 4449

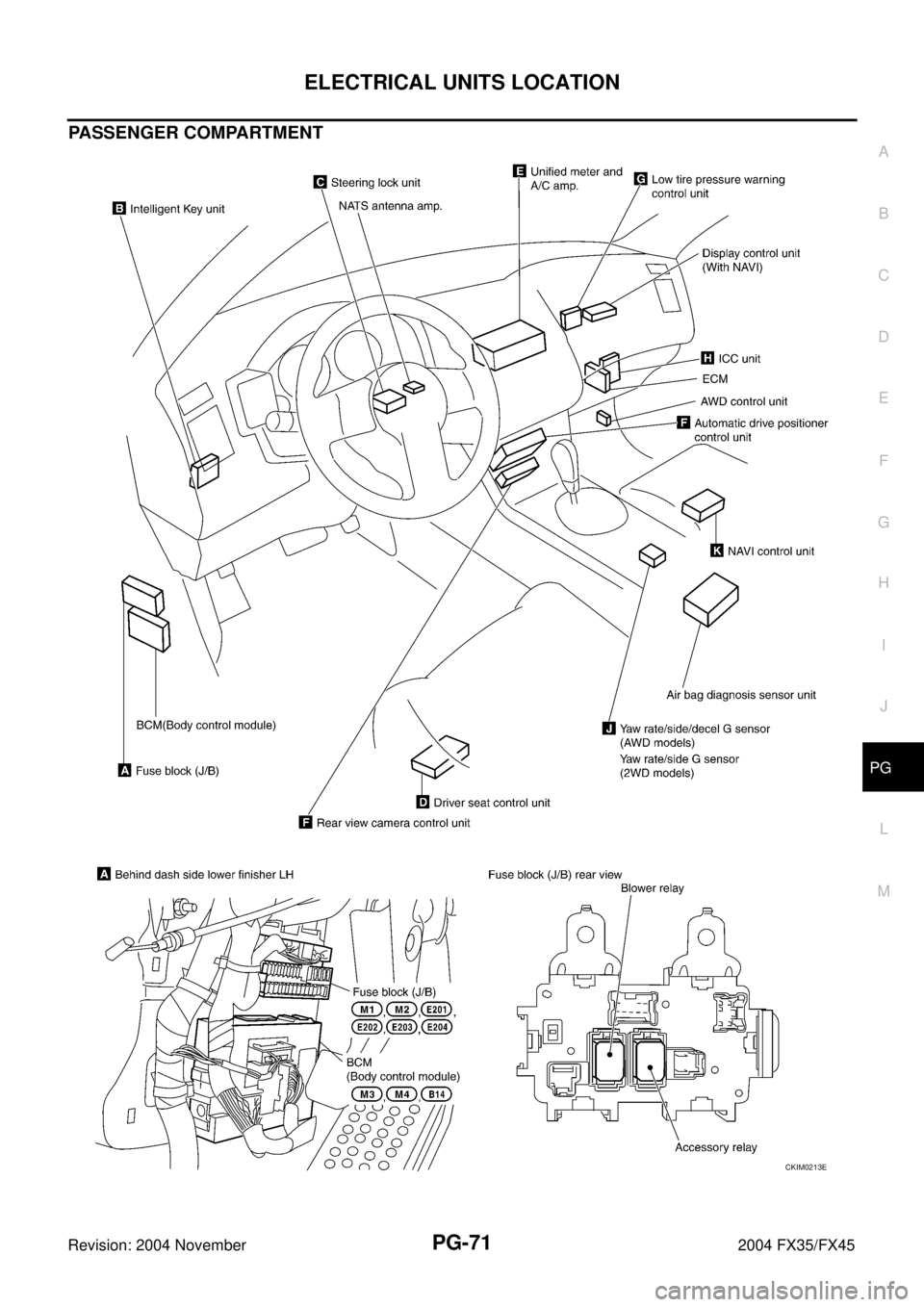

INFINITI FX35 2004 Service Manual ELECTRICAL UNITS LOCATION PG-71 C D E F G H I J L MA B PG Revision: 2004 November 2004 FX35/FX45 PASSENGER COMPARTMENT CKIM0213E

Page 3907 of 4449

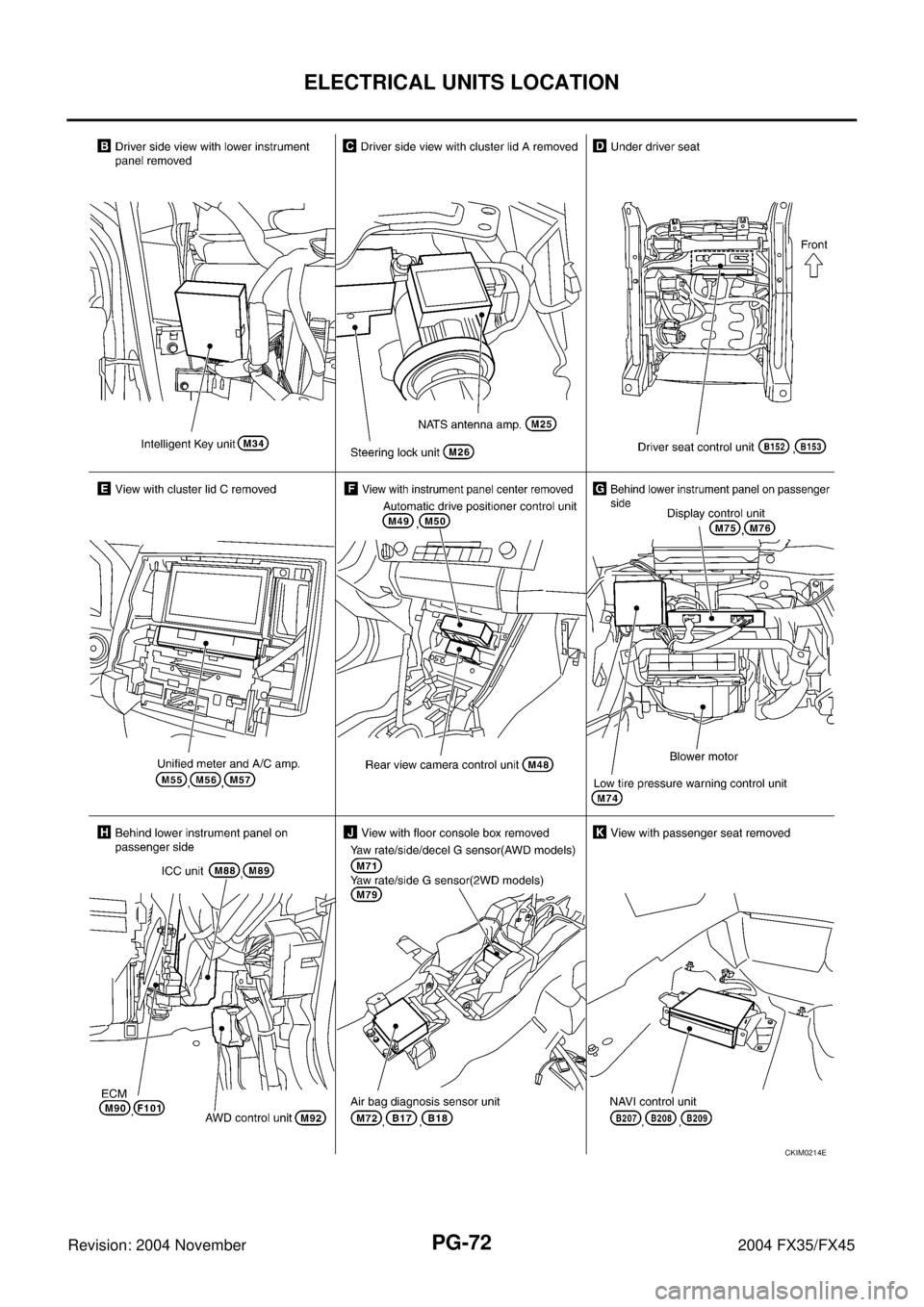

INFINITI FX35 2004 Service Manual PG-72 ELECTRICAL UNITS LOCATION Revision: 2004 November 2004 FX35/FX45 CKIM0214E

Page 3908 of 4449

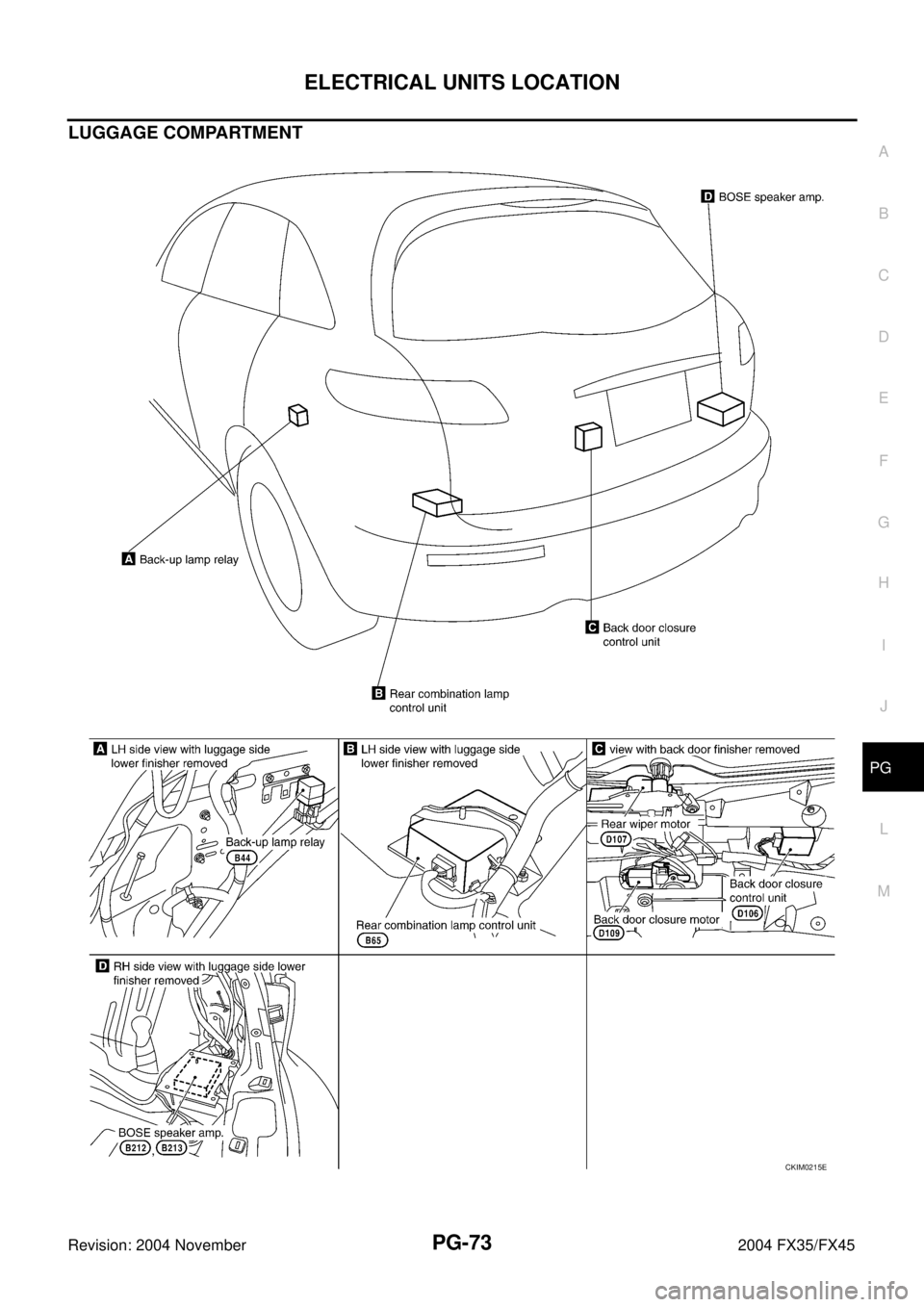

INFINITI FX35 2004 Service Manual ELECTRICAL UNITS LOCATION PG-73 C D E F G H I J L MA B PG Revision: 2004 November 2004 FX35/FX45 LUGGAGE COMPARTMENT CKIM0215E

Page 3909 of 4449

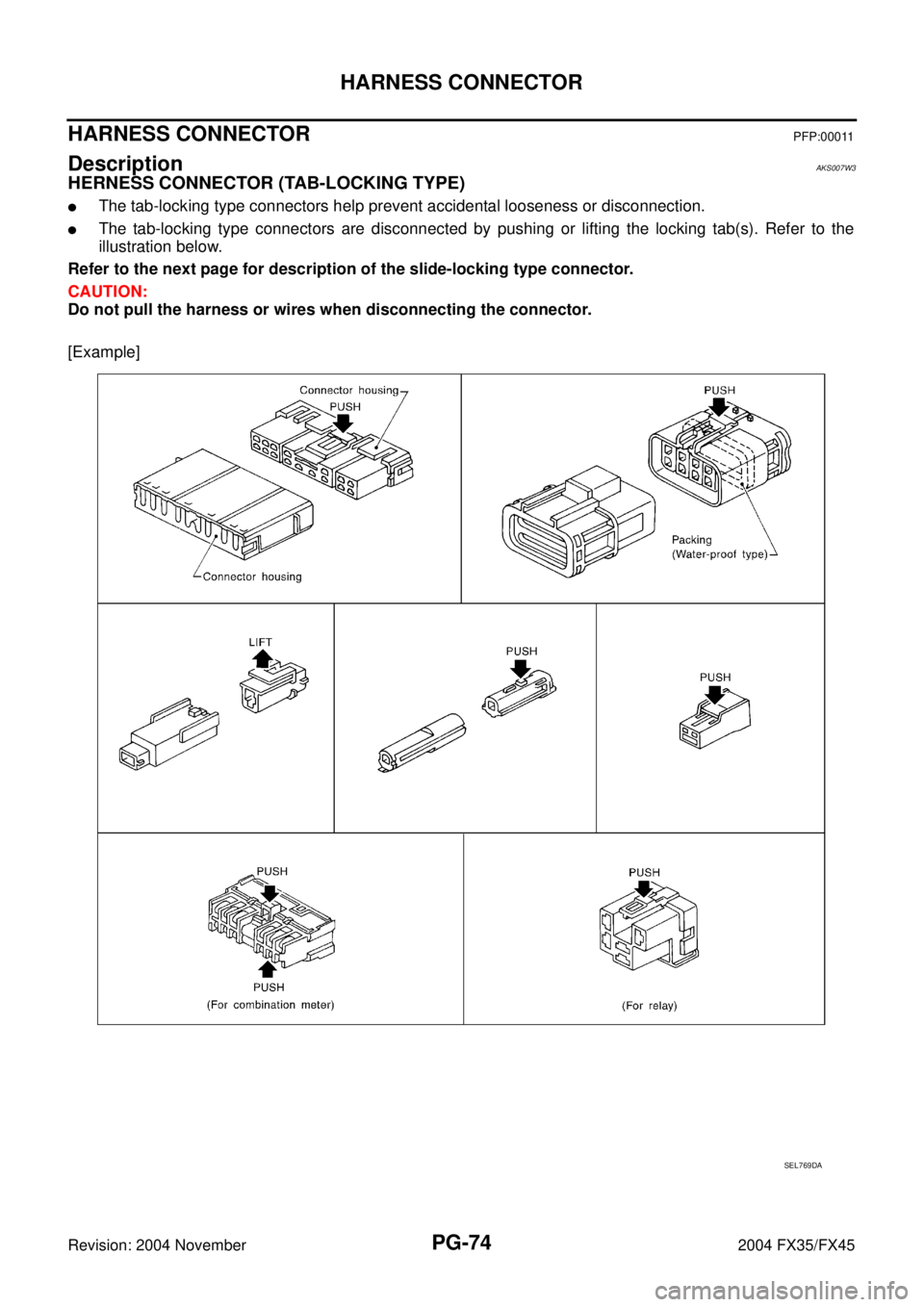

INFINITI FX35 2004 Service Manual PG-74 HARNESS CONNECTOR Revision: 2004 November 2004 FX35/FX45 HARNESS CONNECTOR PFP:00011 DescriptionAKS007W3 HERNESS CONNECTOR (TAB-LOCKING TYPE) The tab-locking type connectors help prevent accid

Page 3910 of 4449

INFINITI FX35 2004 Service Manual HARNESS CONNECTOR PG-75 C D E F G H I J L MA B PG Revision: 2004 November 2004 FX35/FX45 HARNESS CONNECTOR (SLIDE-LOCKING TYPE) A new style slide-locking type connector is used on certain systems and

Page 3911 of 4449

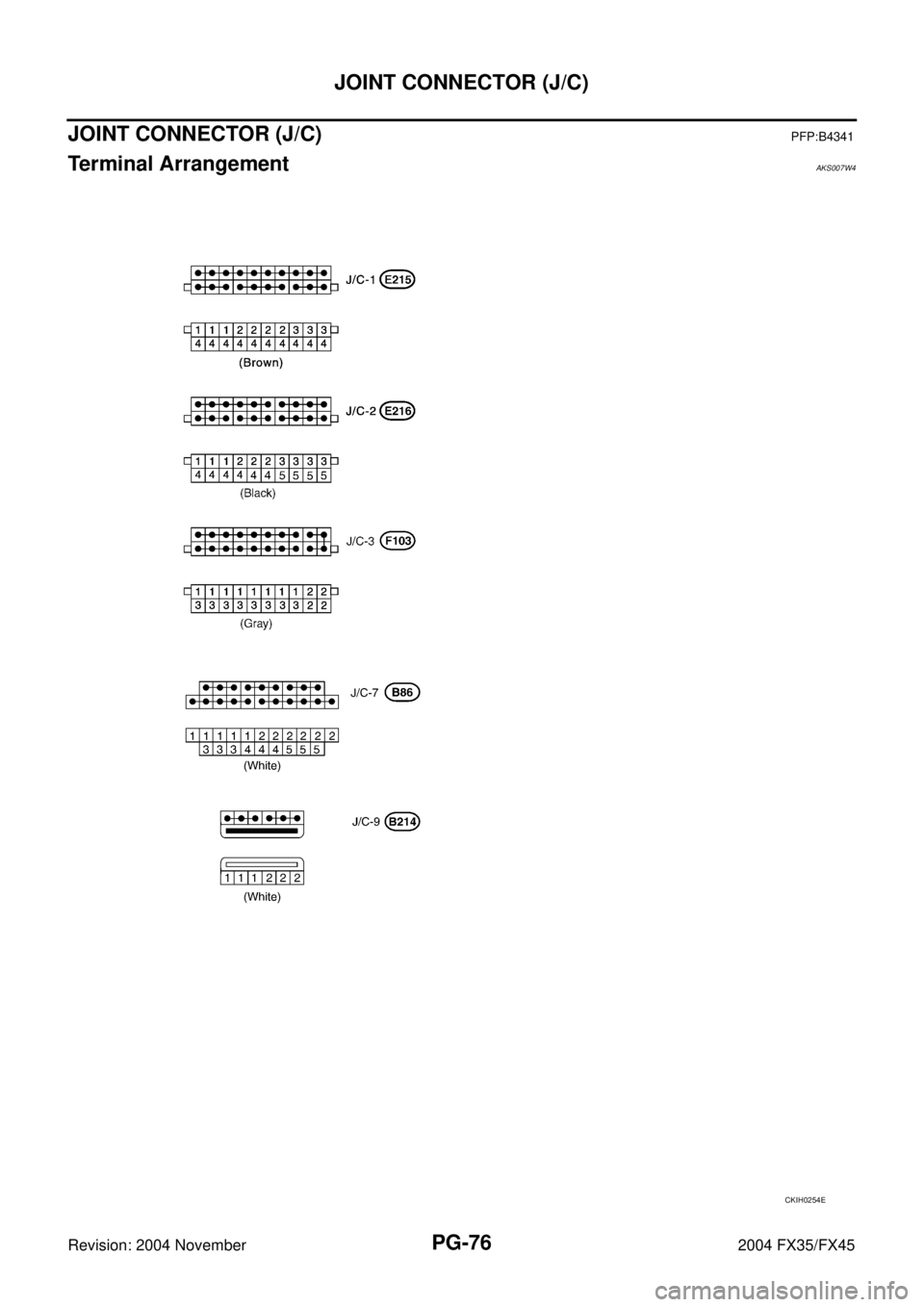

INFINITI FX35 2004 Service Manual PG-76 JOINT CONNECTOR (J/C) Revision: 2004 November 2004 FX35/FX45 JOINT CONNECTOR (J/C)PFP:B4341 Terminal ArrangementAKS007W4 CKIH0254E

Page 3912 of 4449

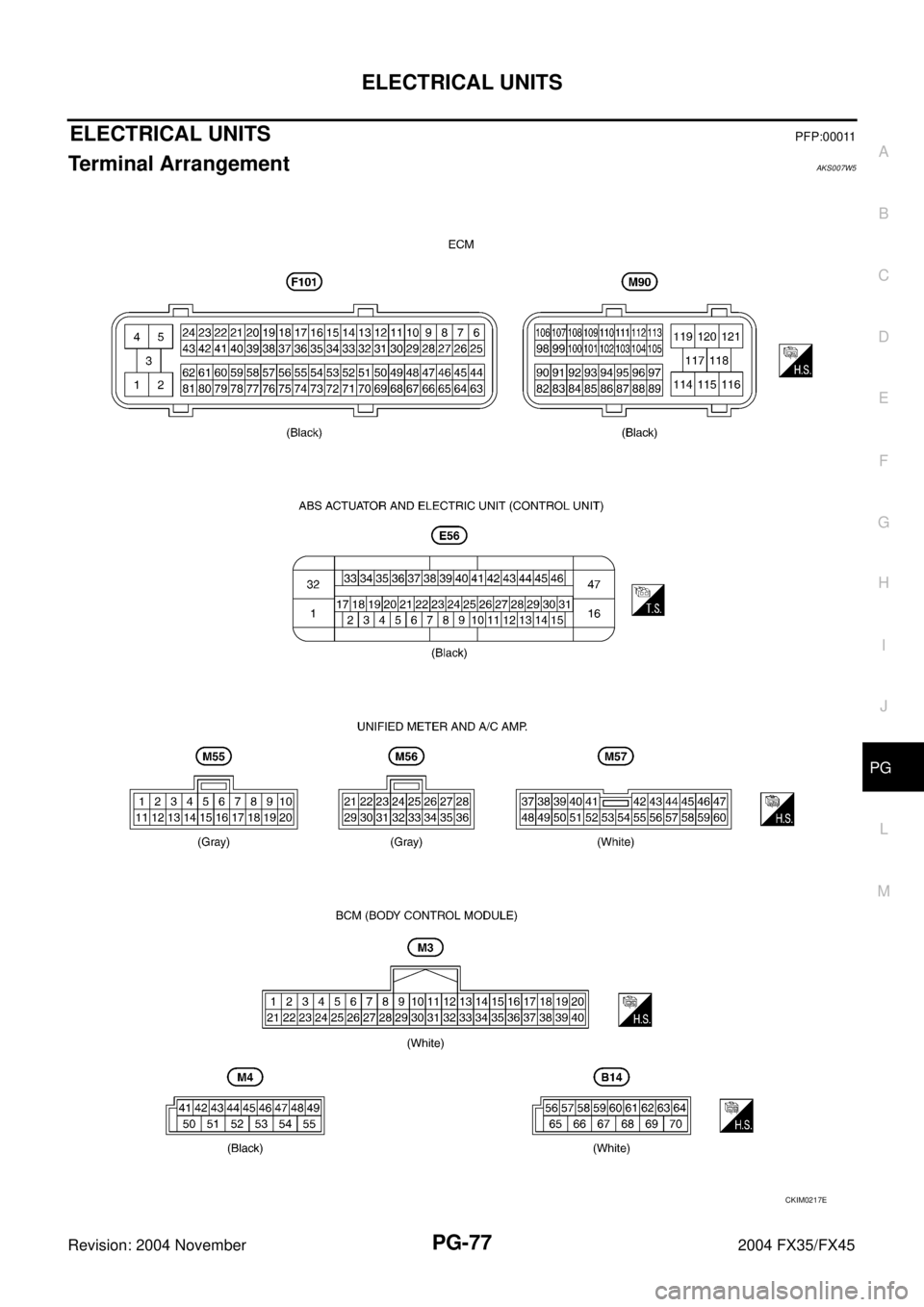

INFINITI FX35 2004 Service Manual ELECTRICAL UNITS PG-77 C D E F G H I J L MA B PG Revision: 2004 November 2004 FX35/FX45 ELECTRICAL UNITS PFP:00011 Terminal Arrangement AKS007W5 CKIM0217E
