CAN SYSTEM (TYPE 1)
Revision: 2004 November 2004 FX35/FX45
Case 9

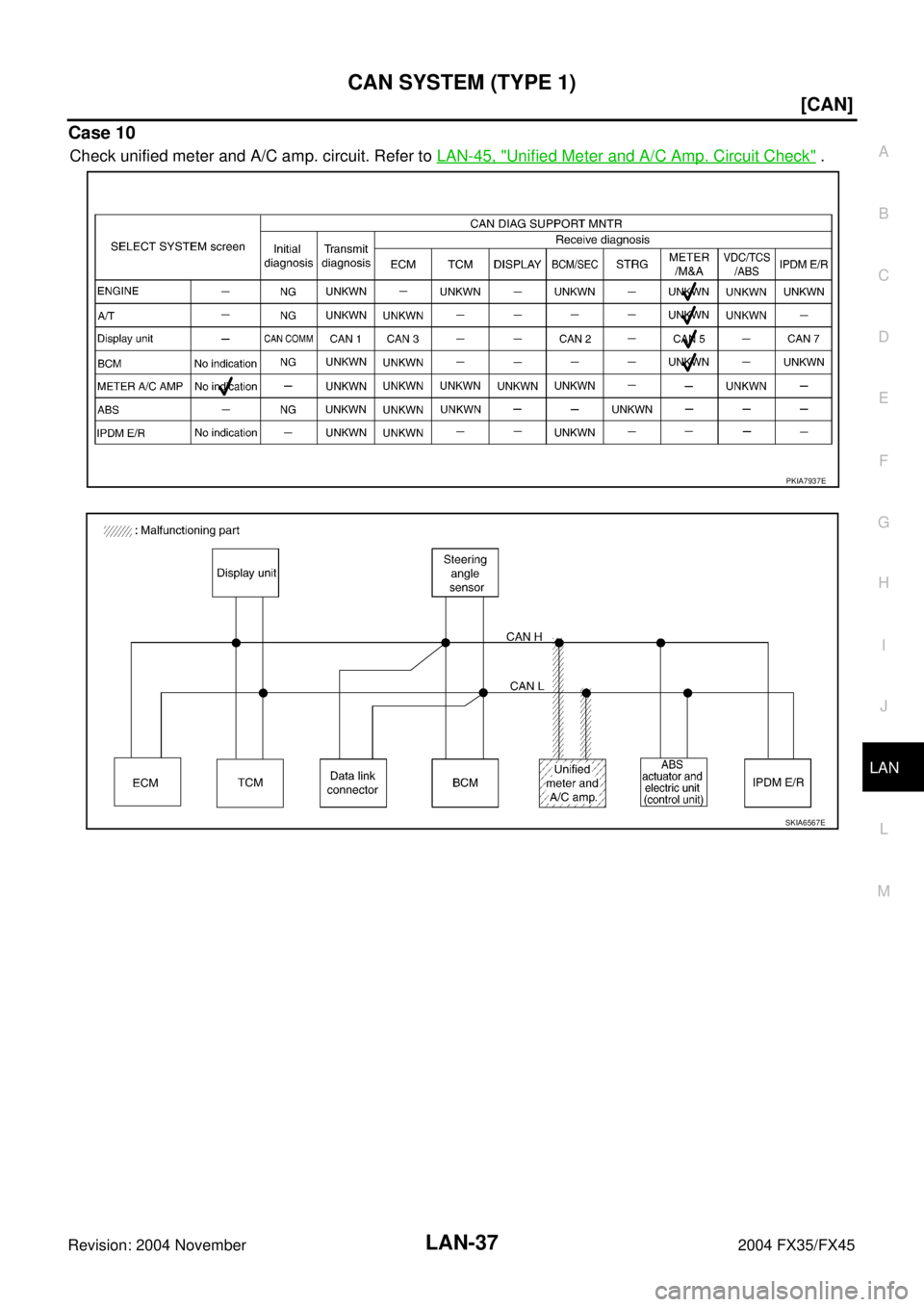

Check steering angle sensor circuit. Refer to LAN-45, "Steering Angle Sensor Circuit Check" .
PKIA7936E
SKIA6566E
Page 3338 of 4449
CAN SYSTEM (TYPE 1)
LAN-37
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
Case 10

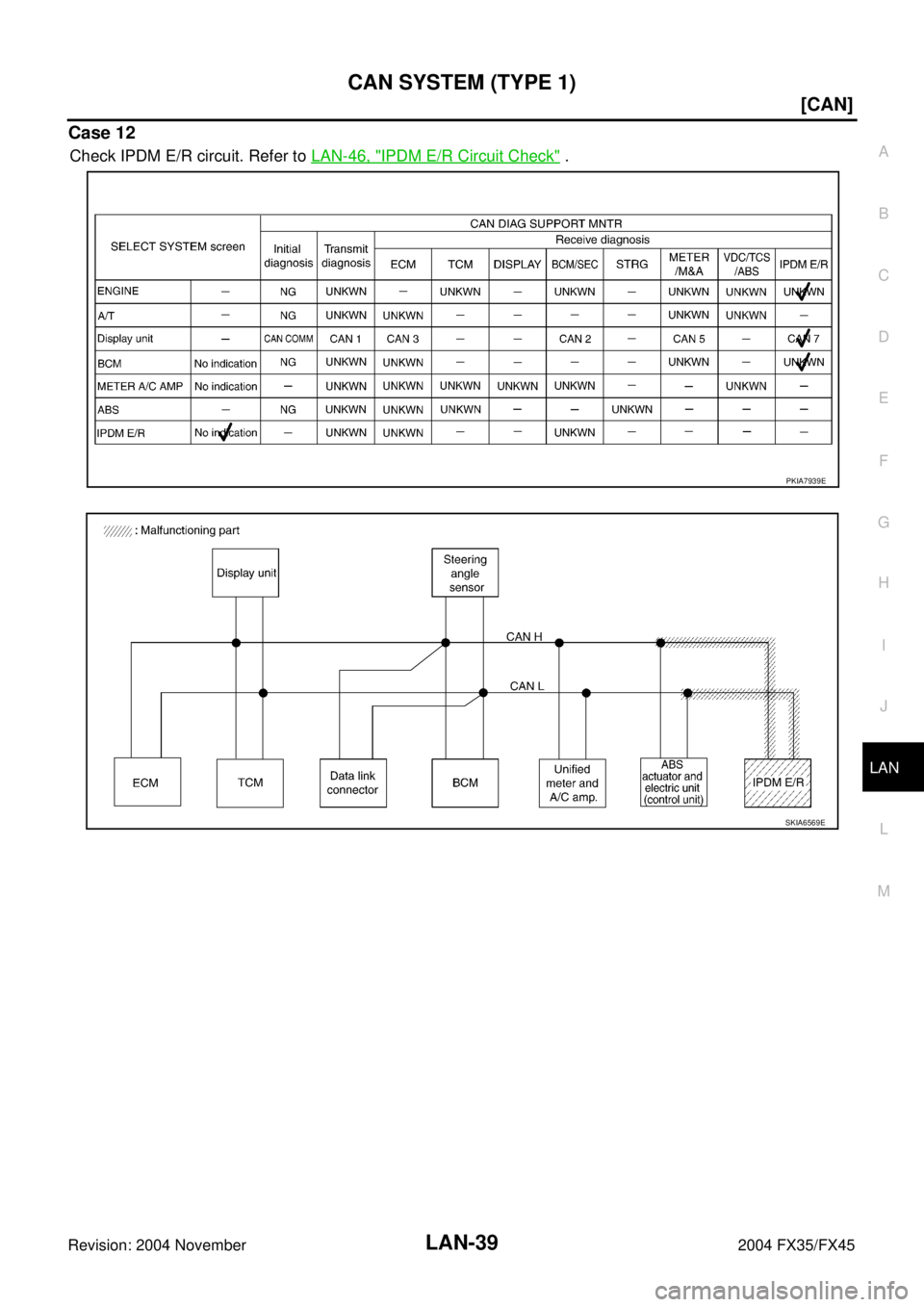

Check unified meter and A/C amp. circuit. Refer to LAN-45, "Unified Meter and A/C Amp. Circuit Check" .
PKIA7937E
SKIA6567E
Page 3339 of 4449
LAN-38
[CAN]
CAN SYSTEM (TYPE 1)
Revision: 2004 November 2004 FX35/FX45
Case 11

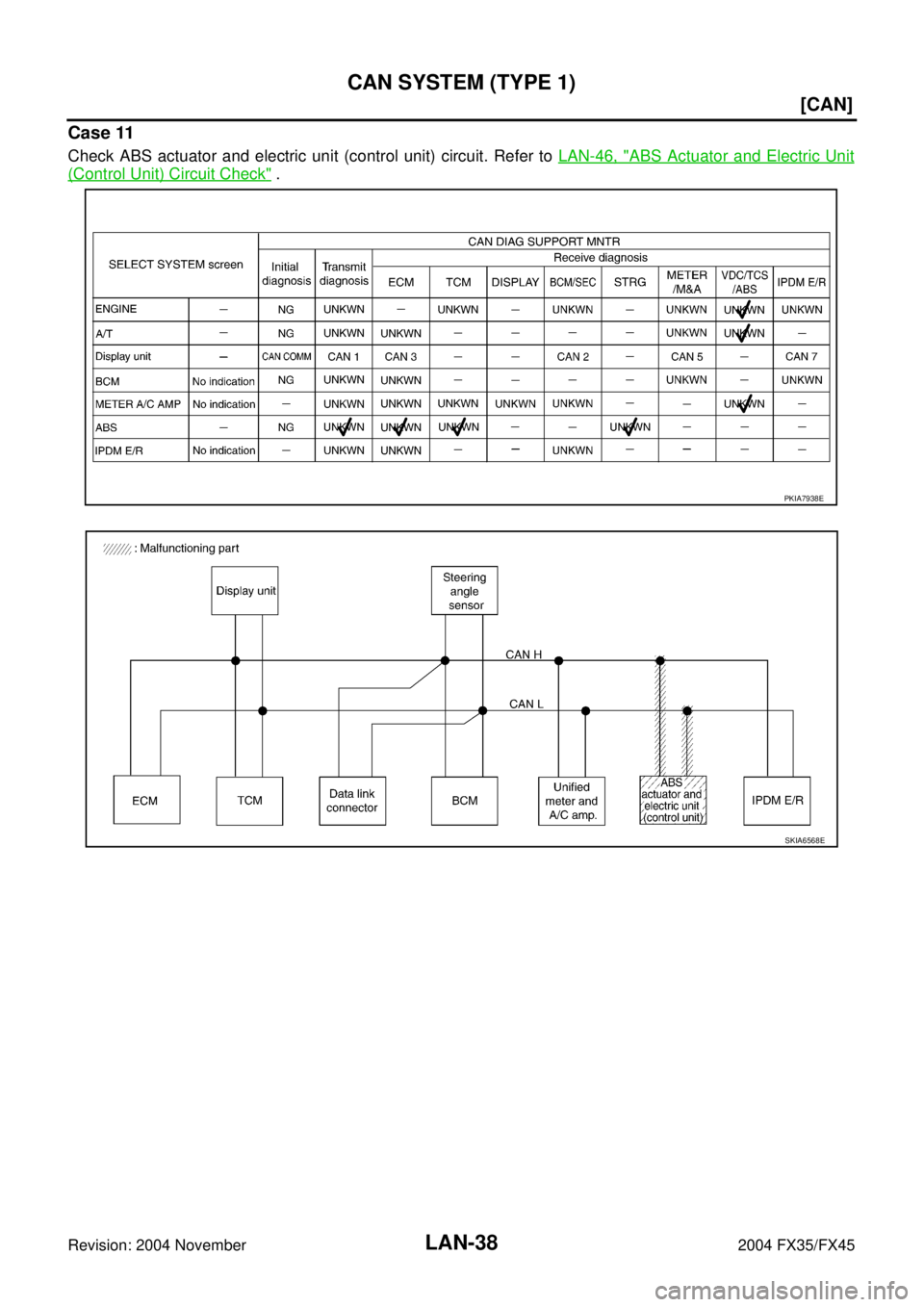

Check ABS actuator and electric unit (control unit) circuit. Refer to LAN-46, "ABS Actuator and Electric Unit
(Control Unit) Circuit Check" .
PKIA7938E
SKIA6568E
Page 3340 of 4449
CAN SYSTEM (TYPE 1)
LAN-39
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
Case 12
Check IPDM E/R circuit. Refer to LAN-46, "IPDM E/R Circuit Check" .
PKIA7939E
SKIA6569E
Page 3341 of 4449
LAN-40
[CAN]
CAN SYSTEM (TYPE 1)
Revision: 2004 November 2004 FX35/FX45
Case 13
Check CAN communication circuit. Refer to LAN-47, "CAN Communication Circuit Check" .
Case 14

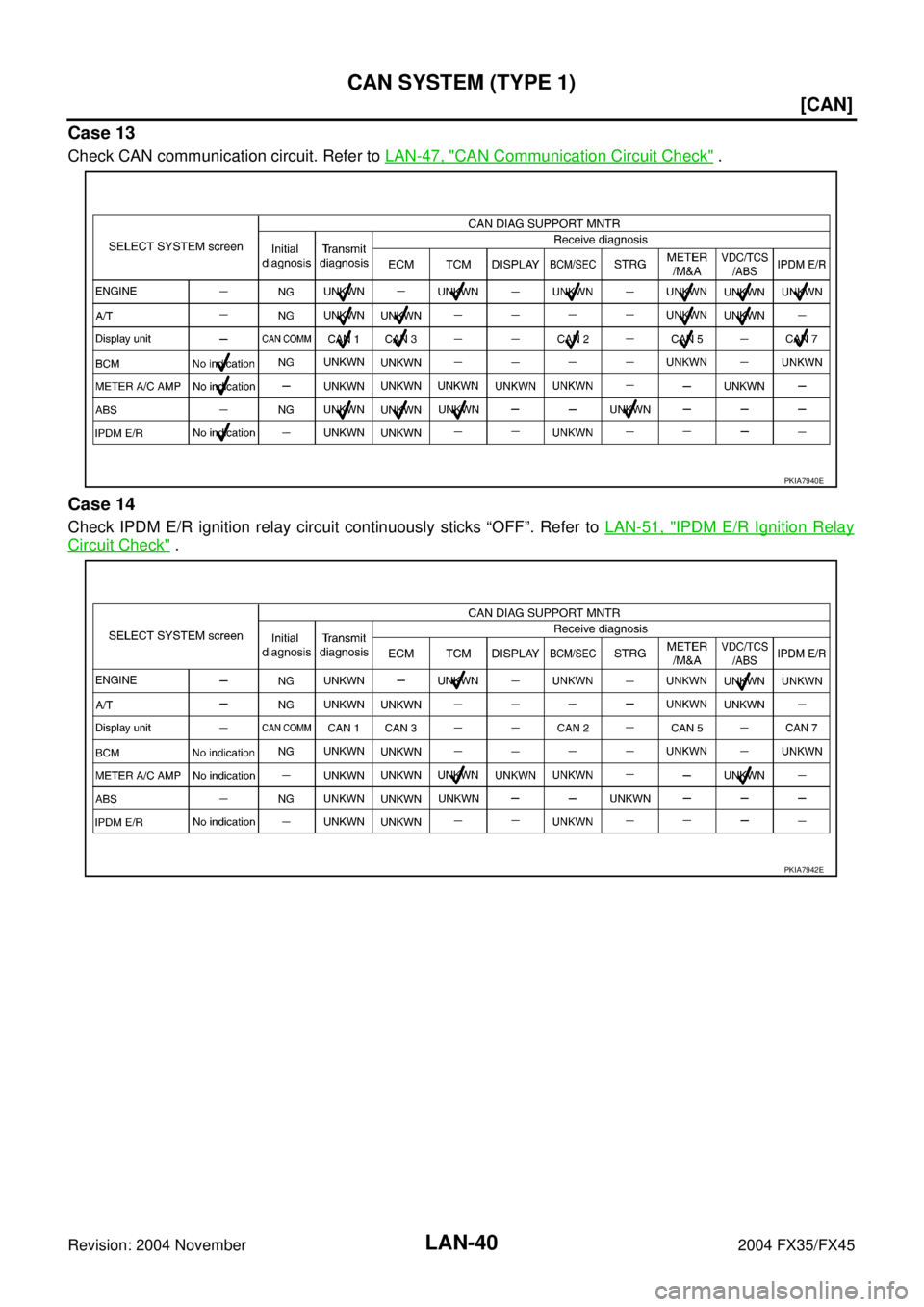

Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer to LAN-51, "IPDM E/R Ignition Relay
Circuit Check" .
PKIA7940E
PKIA7942E
Page 3342 of 4449
![INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 1)
LAN-41
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
Case 15
Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer to LAN-51, "IPDM E/ INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 1)
LAN-41
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
Case 15
Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer to LAN-51, "IPDM E/](/manual-img/42/57021/w960_57021-3341.png)
CAN SYSTEM (TYPE 1)
LAN-41
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
Case 15

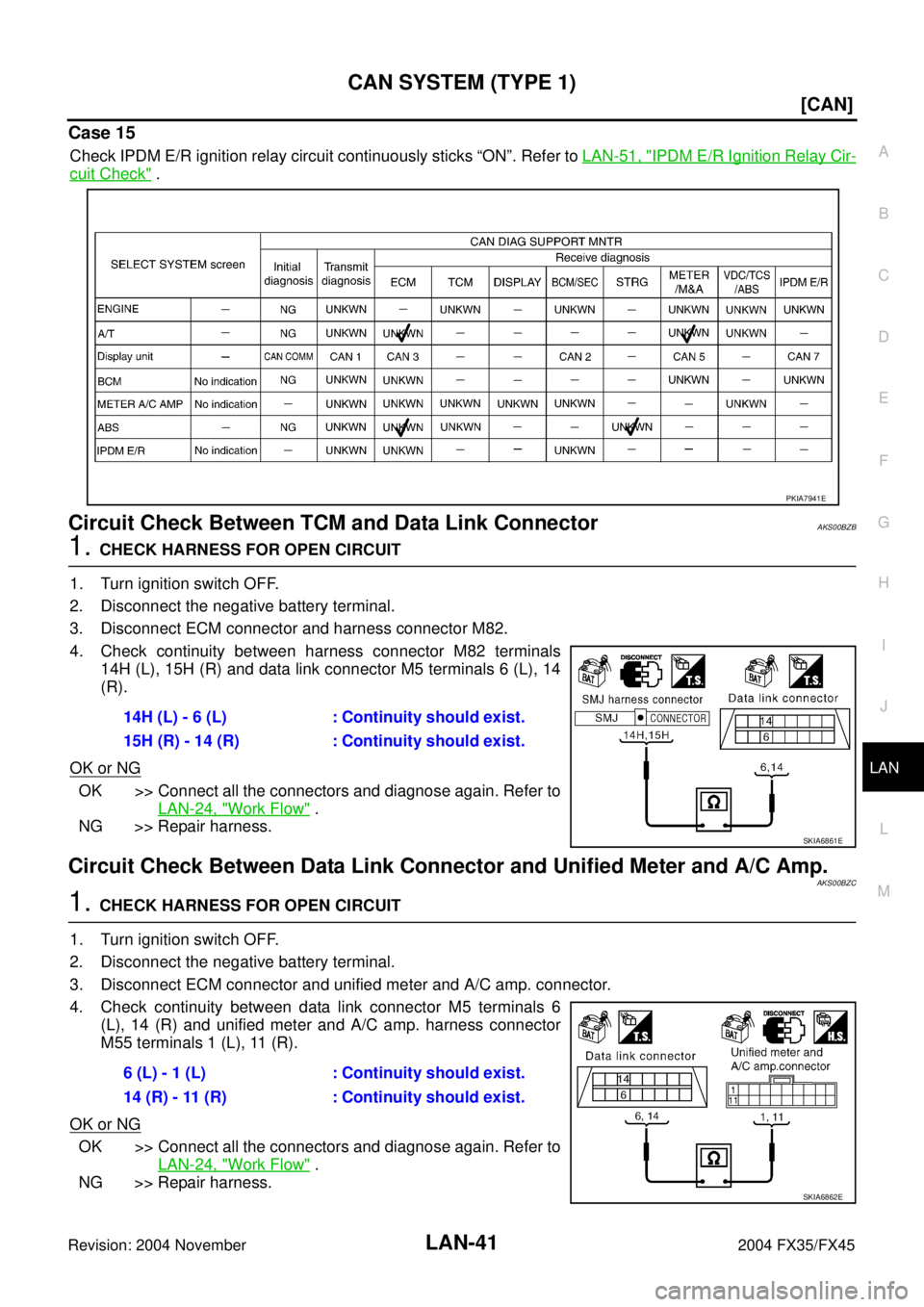

Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer to LAN-51, "IPDM E/R Ignition Relay Cir-
cuit Check" .
Circuit Check Between TCM and Data Link ConnectorAKS00BZB
1. CHECK HARNESS FOR OPEN CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Disconnect ECM connector and harness connector M82.
4. Check continuity between harness connector M82 terminals
14H (L), 15H (R) and data link connector M5 terminals 6 (L), 14
(R).
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to
LAN-24, "
Work Flow" .
NG >> Repair harness.
Circuit Check Between Data Link Connector and Unified Meter and A/C Amp.AKS00BZC
1. CHECK HARNESS FOR OPEN CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Disconnect ECM connector and unified meter and A/C amp. connector.
4. Check continuity between data link connector M5 terminals 6
(L), 14 (R) and unified meter and A/C amp. harness connector
M55 terminals 1 (L), 11 (R).
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to
LAN-24, "
Work Flow" .
NG >> Repair harness.
PKIA7941E

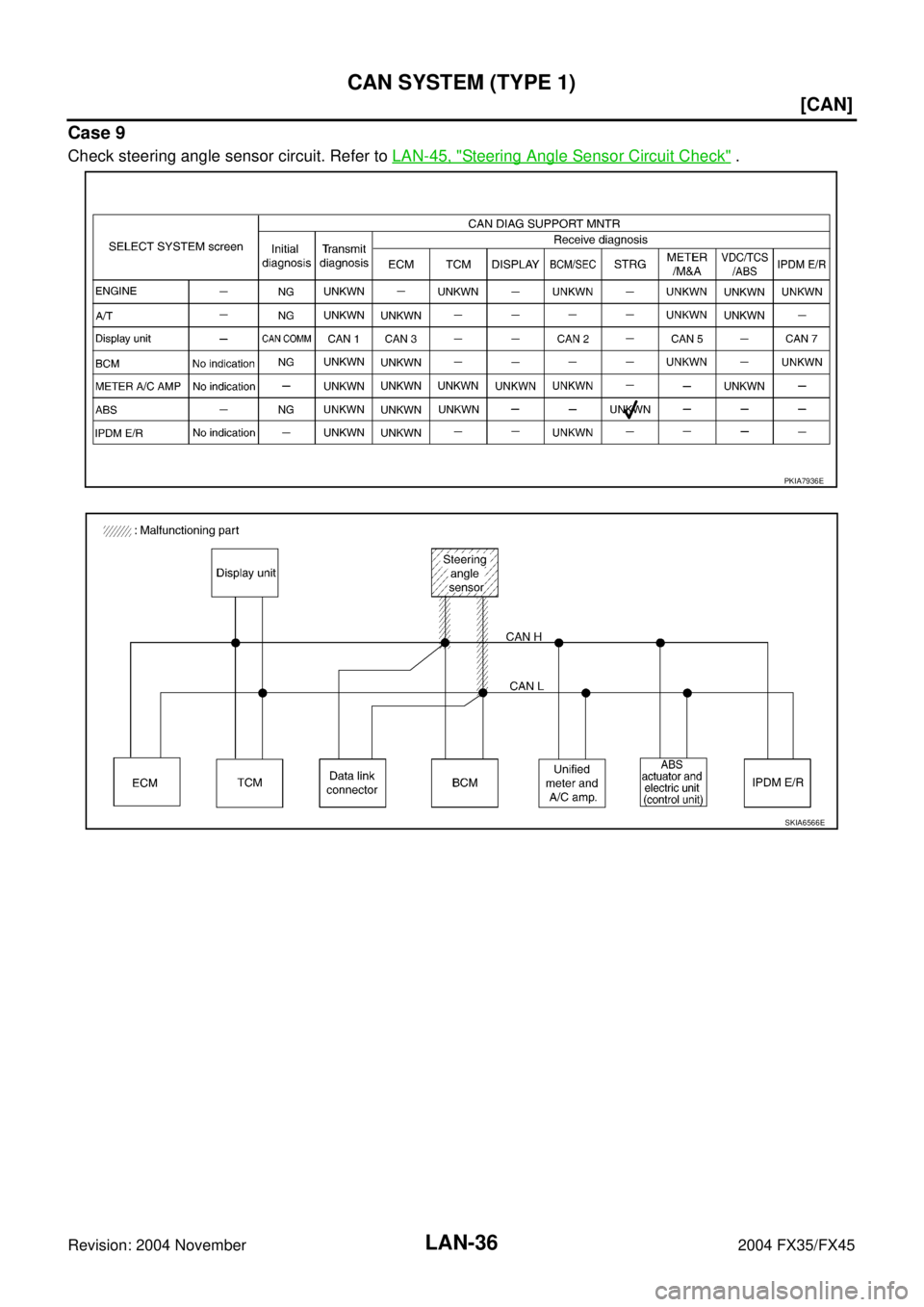

14H (L) - 6 (L) : Continuity should exist.
15H (R) - 14 (R) : Continuity should exist.
SKIA6861E
6 (L) - 1 (L) : Continuity should exist.
14 (R) - 11 (R) : Continuity should exist.
SKIA6862E
