INFINITI FX35 2004 Service Manual DI-78
WARNING CHIME
Revision: 2004 November 2004 FX35/FX45
5. CHECK SEAT BELT BUCKLE SWITCH CIRCUIT
1. Disconnect combination meter connector.
2. Check continuity between combination meter harness con

Page 1322 of 4449

INFINITI FX35 2004 Service Manual CLOCK
DI-79
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2004 November 2004 FX35/FX45
CLOCKPFP:25820

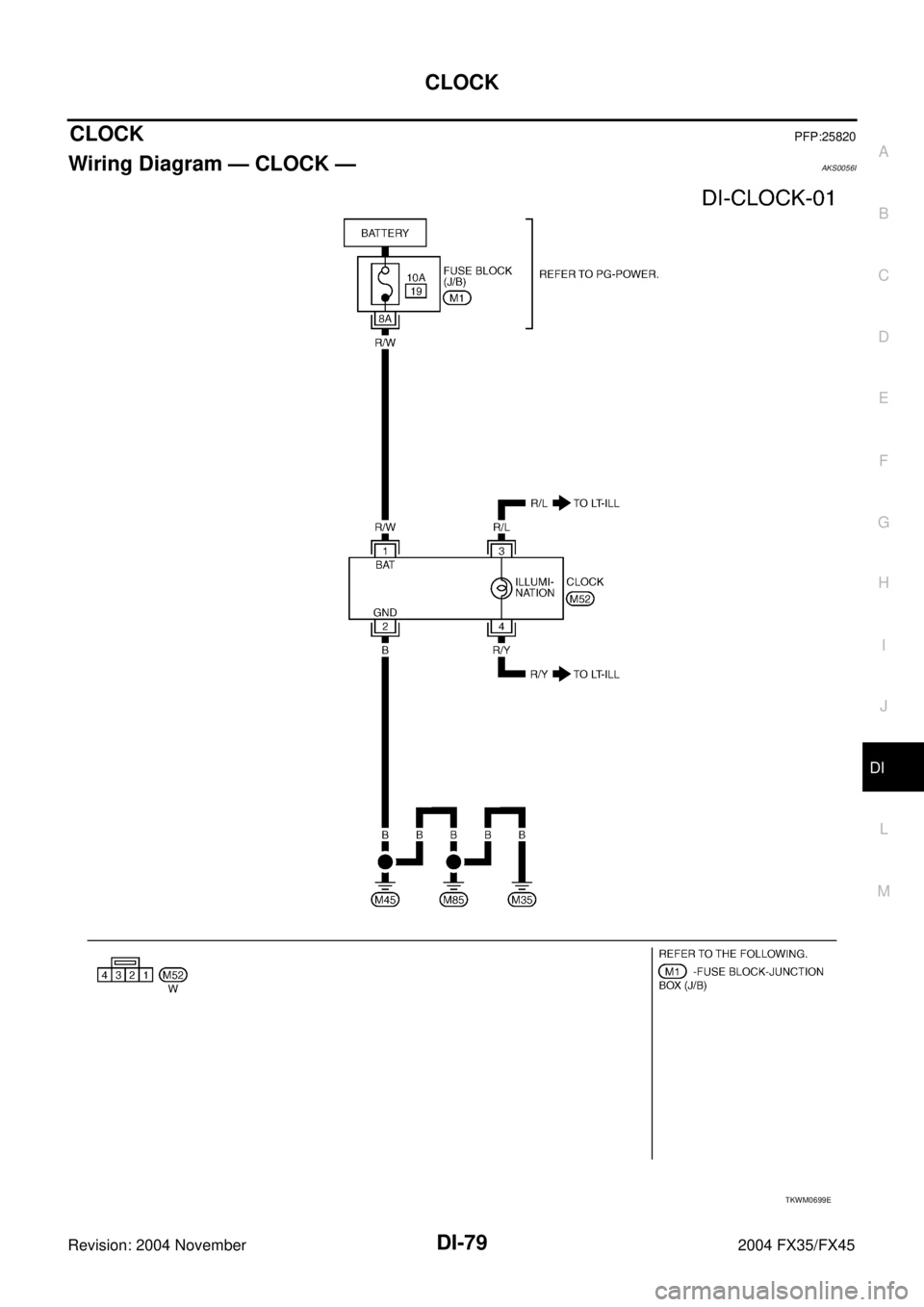

Wiring Diagram — CLOCK —AKS0056I
TKWM0699E

Page 1323 of 4449

INFINITI FX35 2004 Service Manual DI-80
CLOCK
Revision: 2004 November 2004 FX35/FX45
Removal and Installation of ClockAKS007G3
REMOVAL
1. Remove instrument clock finisher. Refer to IP-12, "(E) Instru-
ment Clock Finisher" .
2. Remove

Page 1324 of 4449

INFINITI FX35 2004 Service Manual REAR VIEW MONITOR
DI-81
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2004 November 2004 FX35/FX45
REAR VIEW MONITORPFP:28260

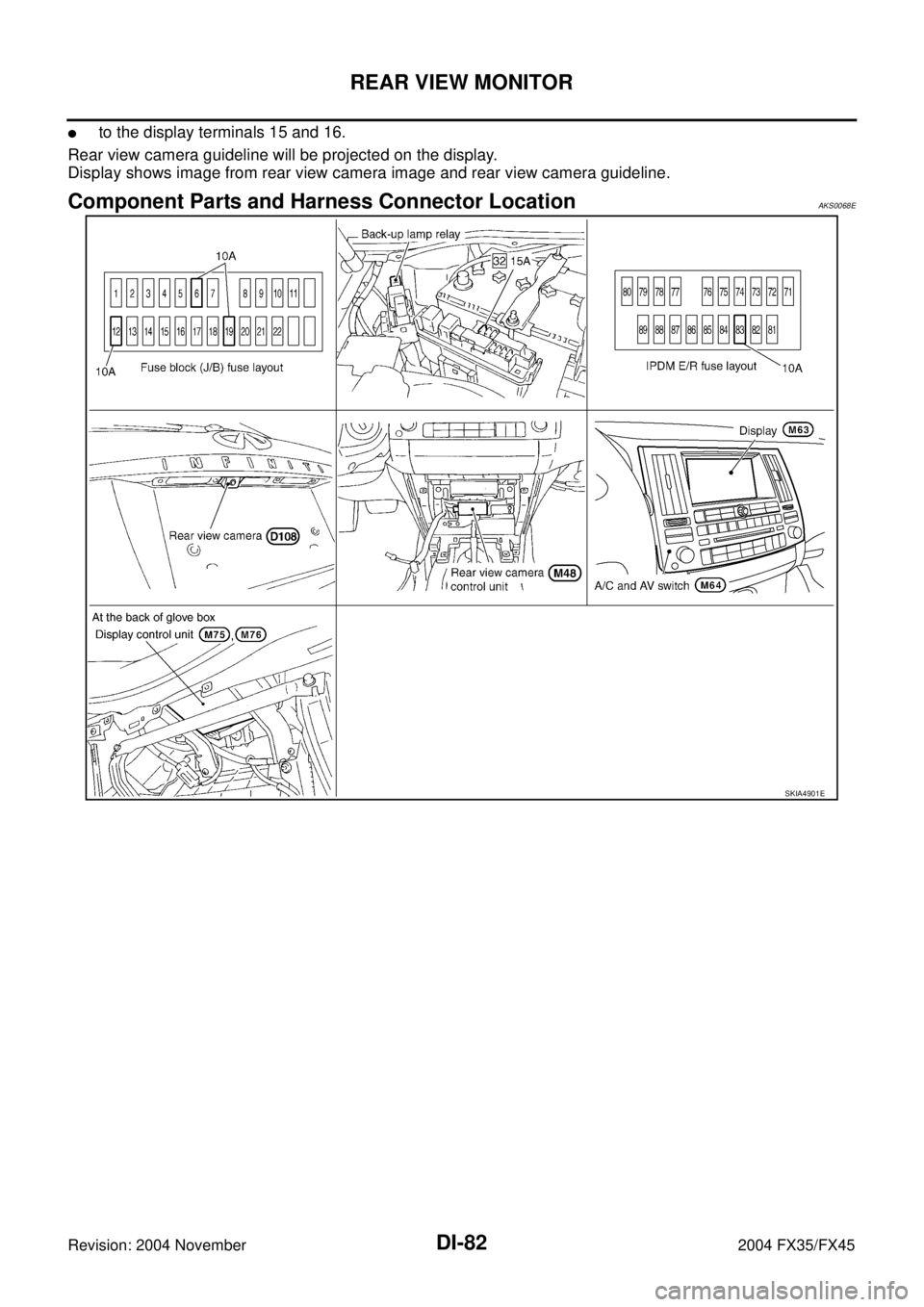

System DescriptionAKS0068D
The rear view monitor is equipped to check the rearward

REAR VIEW MONITOR
DI-81
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2004 November 2004 FX35/FX45
REAR VIEW MONITORPFP:28260
System DescriptionAKS0068D
The rear view monitor is equipped to check the rearward of the vehicle with display when A/T selector
lever is in reverse position.
The lines of vehicle sides and the distance from the rear end of the vehicle are provided on display as a
guide. It allows the driver to know the distance between the vehicle and a rearward object, and the width
of the vehicle much easier.
POWER SUPPLY AND GROUND
Power is supplied at all time
through 10A fuse [No. 19, located in fuse block (J/B)]
to rear view camera control unit terminal 1.
When ignition switch is in ACC or ON position, power is supplied
through 10A fuse [No. 6, located in fuse block (J/B)]
to rear view camera control unit terminal 2.
When ignition switch is in ON or START position, power is supplied
through 10A fuse (No. 83, located in IPDM E/R)
to back-up lamp relay terminals 2 and 3.
Ground is supplied
to rear view camera control unit terminal 3
through grounds M35, M45 and M85.
AV COMMUNICATION LINE
Rear view camera control unit is connected to the following units with AV communication line. Each unit trans-
mits/receives data with AV communication line.
NAVI control unit
Display
Display control unit
A/C and AV switch
REAR VIEW CAMERA OPERATION
When A/T selector lever is reverse position, power is supplied
through back-up lamp relay terminal 1
to TCM terminal 7.
Then back-up lamp relay is energized,
from back-up lamp relay terminal 5
to rear view camera control unit terminal 4.
Then, rear view camera control unit is sent camera ON signal
through rear view camera control unit terminal 8
to rear view camera terminal 1.
An image taken by rear view camera is sent
through rear view camera terminals 3 and 4
to rear view camera control unit terminals 10 and 9.
Then an image is sent
through rear view camera control unit terminals 12 and 14
to the display terminals 15 and 16.
An image of rear view will be projected on the display.
Side Distance Guideline
When A/T selector lever is in reverse position, rear view camera control unit is sent rear view camera guideline
through rear view camera control unit terminals 12 and 14

Page 1325 of 4449

INFINITI FX35 2004 Service Manual DI-82
REAR VIEW MONITOR
Revision: 2004 November 2004 FX35/FX45
to the display terminals 15 and 16.
Rear view camera guideline will be projected on the display.
Display shows image from rear view came

Page 1326 of 4449

INFINITI FX35 2004 Service Manual REAR VIEW MONITOR
DI-83
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2004 November 2004 FX35/FX45

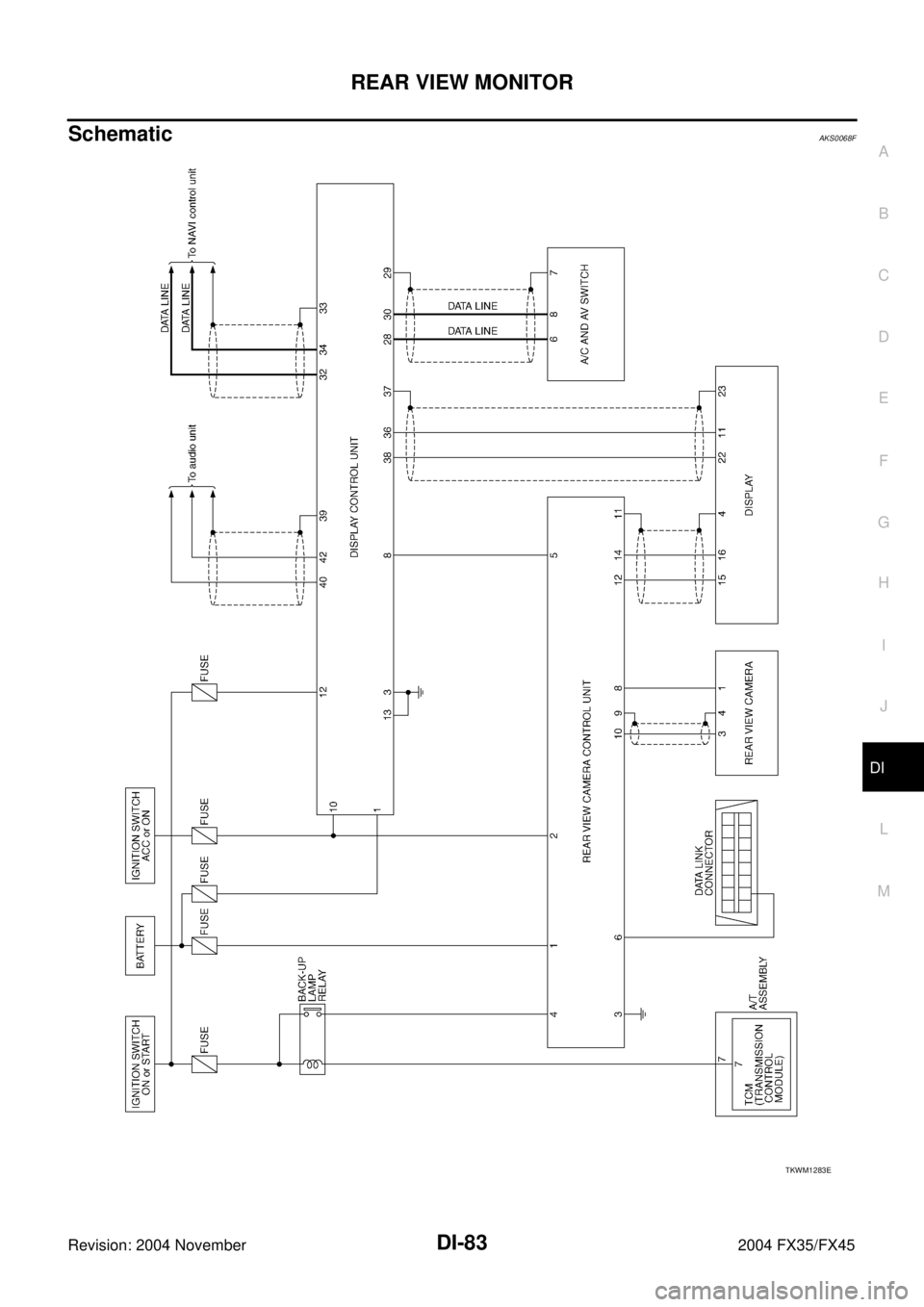

SchematicAKS0068F
TKWM1283E

Page 1327 of 4449

INFINITI FX35 2004 Service Manual DI-84
REAR VIEW MONITOR
Revision: 2004 November 2004 FX35/FX45

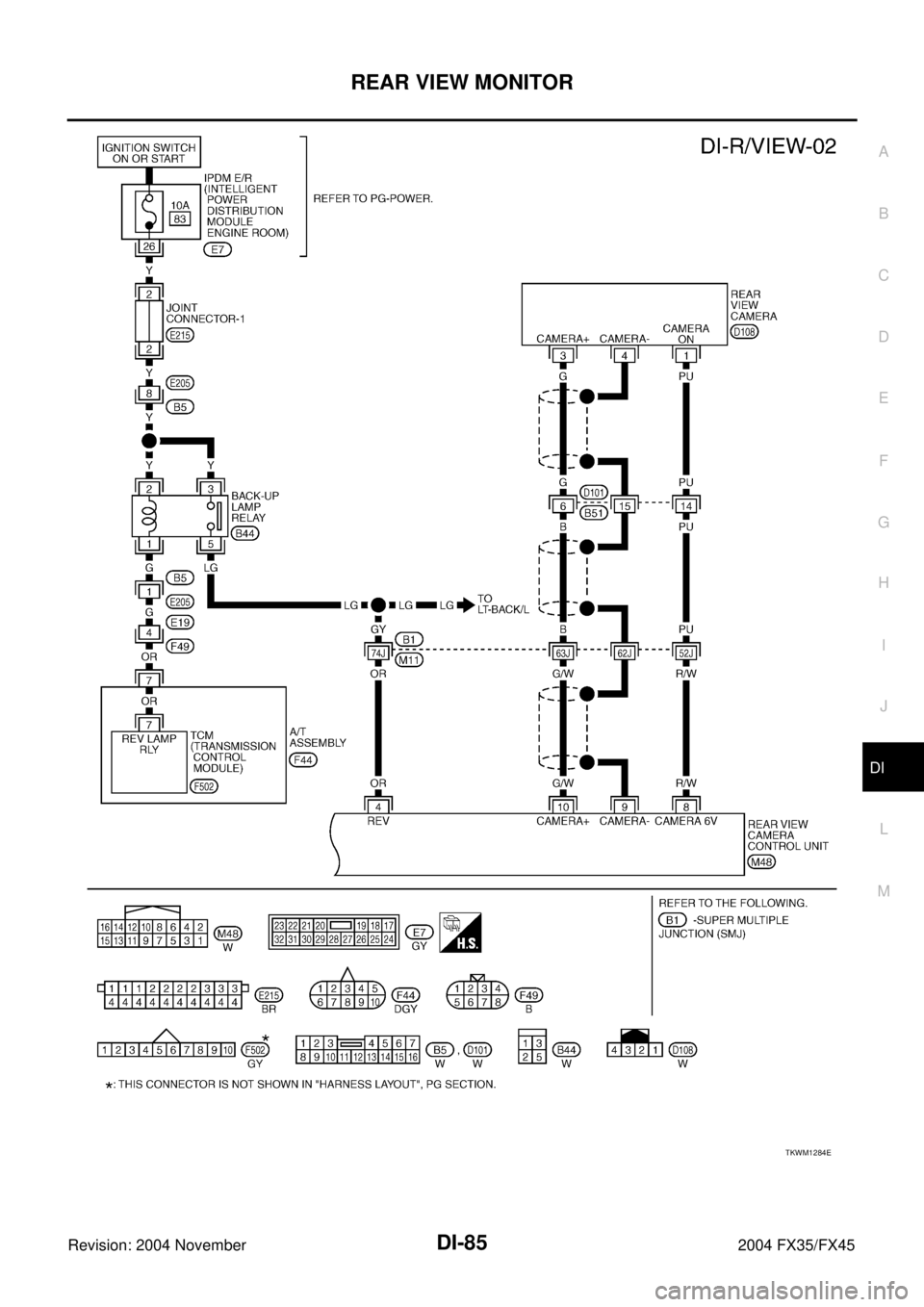

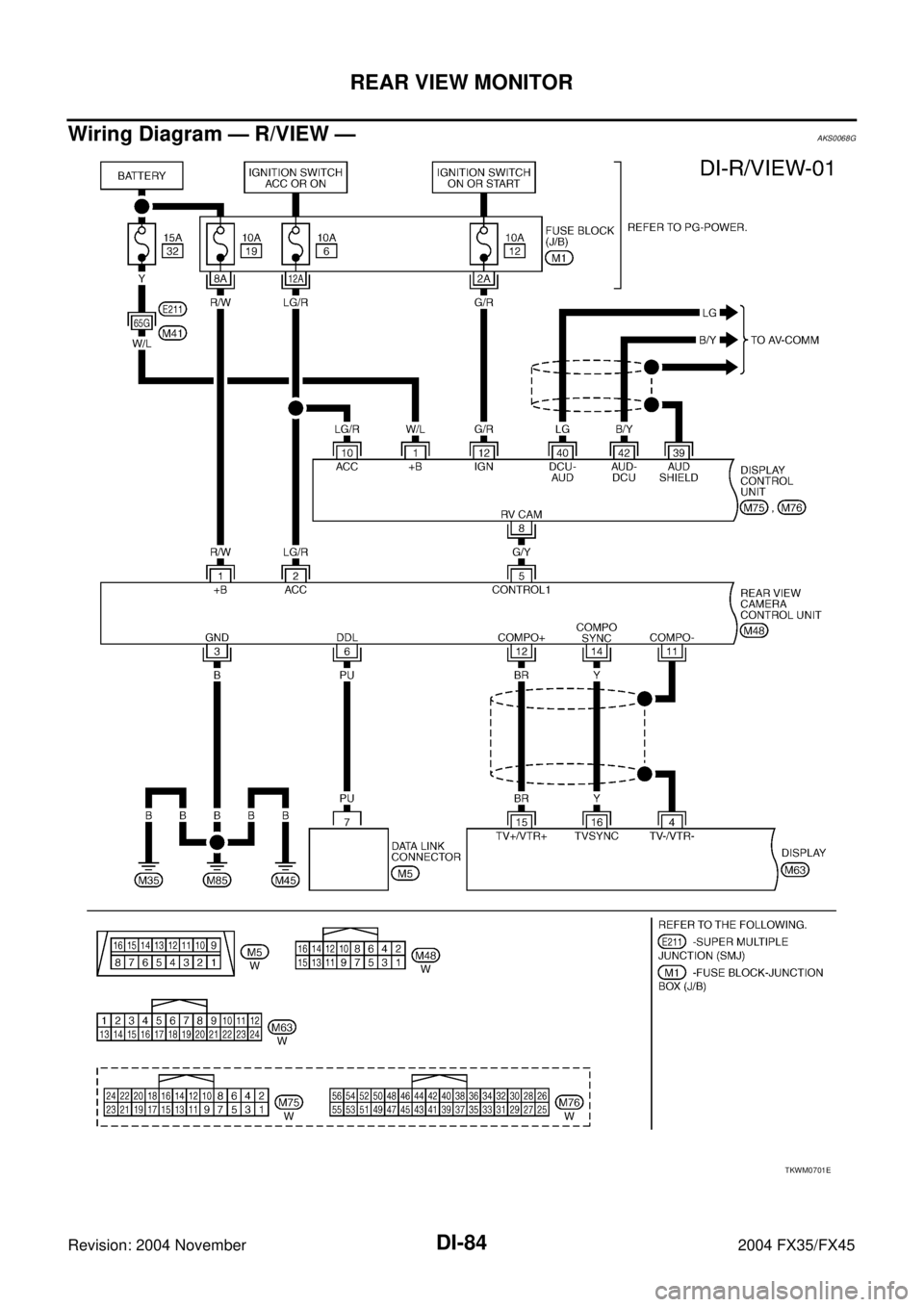

Wiring Diagram — R/VIEW —AKS0068G
TKWM0701E

Page 1328 of 4449

INFINITI FX35 2004 Service Manual REAR VIEW MONITOR
DI-85
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2004 November 2004 FX35/FX45
TKWM1284E
