Page 1481 of 4449
![INFINITI FX35 2004 Service Manual EC-140
[VQ35DE]
POWER SUPPLY AND GROUND CIRCUIT
Revision: 2004 November 2004 FX35/FX45
12. CHECK ECM POWER SUPPLY CIRCUIT-VI
1. Disconnect ECM harness connector.
2. Disconnect IPDM E/R harness connect INFINITI FX35 2004 Service Manual EC-140
[VQ35DE]
POWER SUPPLY AND GROUND CIRCUIT
Revision: 2004 November 2004 FX35/FX45
12. CHECK ECM POWER SUPPLY CIRCUIT-VI
1. Disconnect ECM harness connector.
2. Disconnect IPDM E/R harness connect](/manual-img/42/57021/w960_57021-1480.png)
EC-140
[VQ35DE]
POWER SUPPLY AND GROUND CIRCUIT
Revision: 2004 November 2004 FX35/FX45
12. CHECK ECM POWER SUPPLY CIRCUIT-VI
1. Disconnect ECM harness connector.
2. Disconnect IPDM E/R harness connector E9.
3. Check harness continuity between ECM terminal 111 and IPDM E/R terminal 46.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 14.
NG >> GO TO 13.
13. DETECT MALFUNCTIONING PART
Check the following.
Harness or connectors E211, M41
Harness for open or short between ECM and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness or connectors.
14. CHECK 20A FUSE
1. Disconnect 20 A fuse from IPDM E/R.
2. Check 20A fuse.
OK or NG
OK >> GO TO 17.
NG >> Replace 20A fuse.
15. CHECK GROUND CONNECTIONS
Loosen and retighten ground three screws on the body. Refer to EC-141, "
Ground Inspection" .
OK or NG
OK >> GO TO 16.
NG >> Repair or replace ground connections.
16. CHECK ECM GROUND CIRCUIT FOR OPEN AND SHORT-II
1. Check harness continuity between ECM terminals 1, 115, 116 and body ground.
Refer to Wiring Diagram.
2. Also check harness for short to power.
OK or NG
OK >> GO TO 17.
NG >> Repair open circuit or short to power in harness.Continuity should exist.
PBIB2195E
Continuity should exist.
Page 1482 of 4449
![INFINITI FX35 2004 Service Manual POWER SUPPLY AND GROUND CIRCUIT
EC-141
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
17. CHECK INTERMITTENT INCIDENT
Refer to EC-135, "
TROUBLE DIAGNOSIS FOR INTERMITTENT I INFINITI FX35 2004 Service Manual POWER SUPPLY AND GROUND CIRCUIT
EC-141
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
17. CHECK INTERMITTENT INCIDENT
Refer to EC-135, "
TROUBLE DIAGNOSIS FOR INTERMITTENT I](/manual-img/42/57021/w960_57021-1481.png)
POWER SUPPLY AND GROUND CIRCUIT
EC-141
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
17. CHECK INTERMITTENT INCIDENT
Refer to EC-135, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> Replace IPDM E/R.
NG >> Repair open circuit or short to power in harness or connectors.
Ground Inspection ABS00CGN
Ground connections are very important to the proper operation of electrical and electronic circuits. Ground
connections are often exposed to moisture, dirt and other corrosive elements. The corrosion (rust) can
become an unwanted resistance. This unwanted resistance can change the way a circuit works.
Electronically controlled circuits are very sensitive to proper grounding. A loose or corroded ground can drasti-
cally affect an electronically controlled circuit. A poor or corroded ground can easily affect the circuit. Even
when the ground connection looks clean, there can be a thin film of rust on the surface.
When inspecting a ground connection follow these rules:
Remove the ground bolt or screw.
Inspect all mating surfaces for tarnish, dirt, rust, etc.
Clean as required to assure good contact.
Reinstall bolt or screw securely.
Inspect for “add-on” accessories which may be interfering with the ground circuit.
If several wires are crimped into one ground eyelet terminal, check for proper crimps. Make sure all of the
wires are clean, securely fastened and providing a good ground path. If multiple wires are cased in one
eyelet make sure no ground wires have excess wire insulation.
For detailed ground distribution information, refer to PG-31, "
Ground Distribution" .
PBIB1870E
Page 1483 of 4449
![INFINITI FX35 2004 Service Manual EC-142
[VQ35DE]
DTC U1000, U1001 CAN COMMUNICATION LINE
Revision: 2004 November 2004 FX35/FX45
DTC U1000, U1001 CAN COMMUNICATION LINEPFP:23710
DescriptionABS006L9
CAN (Controller Area Network) is a s INFINITI FX35 2004 Service Manual EC-142
[VQ35DE]
DTC U1000, U1001 CAN COMMUNICATION LINE
Revision: 2004 November 2004 FX35/FX45
DTC U1000, U1001 CAN COMMUNICATION LINEPFP:23710
DescriptionABS006L9
CAN (Controller Area Network) is a s](/manual-img/42/57021/w960_57021-1482.png)
EC-142
[VQ35DE]
DTC U1000, U1001 CAN COMMUNICATION LINE
Revision: 2004 November 2004 FX35/FX45
DTC U1000, U1001 CAN COMMUNICATION LINEPFP:23710
DescriptionABS006L9
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
On Board Diagnosis LogicABS006LA
*1: This self-diagnosis has the one trip detection logic.
*2: The MIL will not light up for this diagnosis.
DTC Confirmation ProcedureABS006LB
1. Turn ignition switch ON and wait at least 3 seconds.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. If 1st trip DTC is detected, go to EC-144, "
Diagnostic Procedure" .
DTC No.Trouble diagnosis
nameDTC detecting condition Possible cause
U1000*
1
1000*1CAN communication
line
ECM cannot communicate to other control
units.
ECM cannot communicate for more than the
specified time.
Harness or connectors
(CAN communication line is open or
shorted) U1001*
2
1001*2
Page 1484 of 4449
DTC U1000, U1001 CAN COMMUNICATION LINE
EC-143
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45

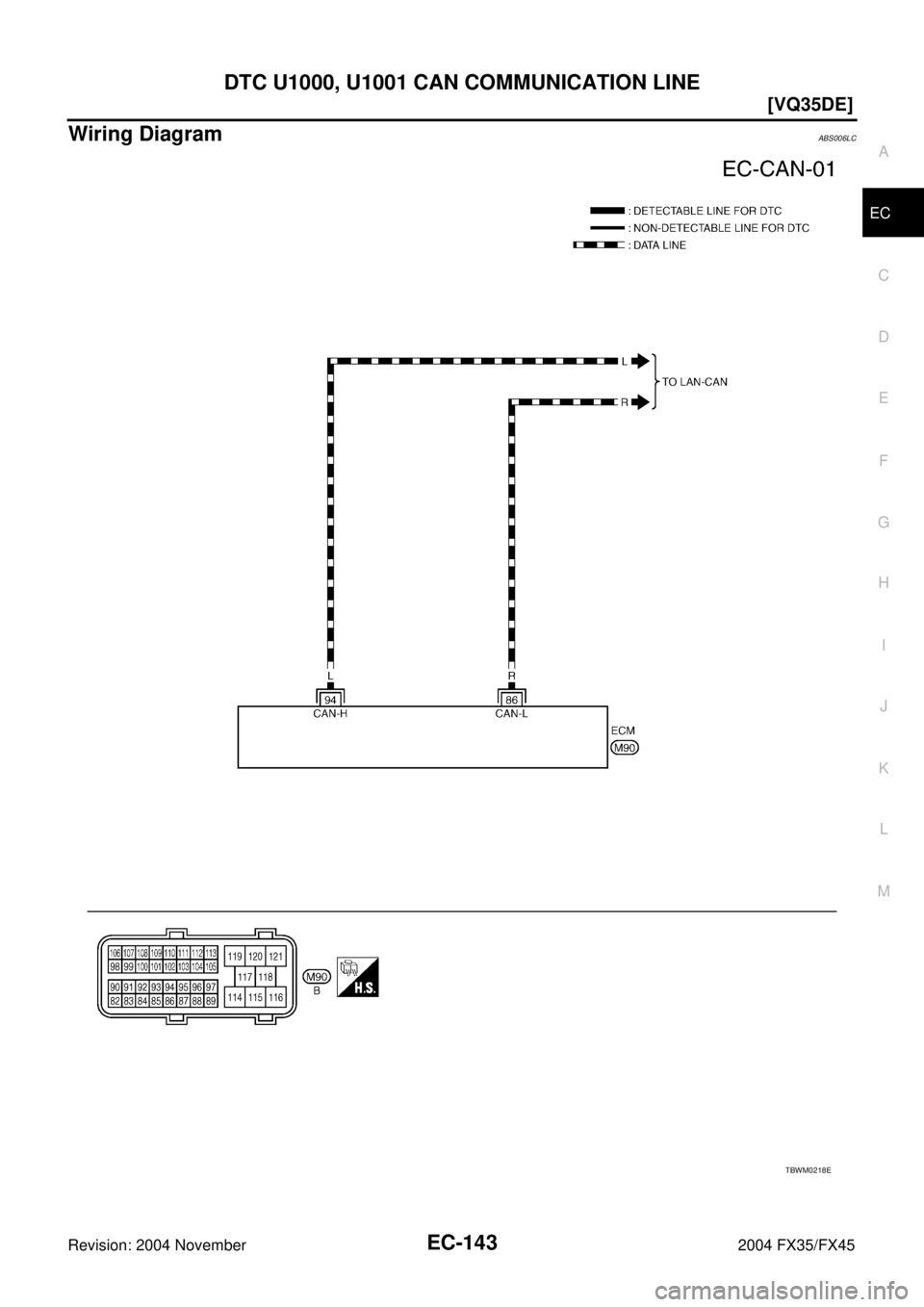

Wiring DiagramABS006LC
TBWM0218E
Page 1485 of 4449
EC-144
[VQ35DE]
DTC U1000, U1001 CAN COMMUNICATION LINE
Revision: 2004 November 2004 FX35/FX45
Diagnostic ProcedureABS006LD
Go to LAN-4, "Precautions When Using CONSULT-II" .
Page 1486 of 4449
![INFINITI FX35 2004 Service Manual DTC P0011, P0021 IVT CONTROL
EC-145
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
DTC P0011, P0021 IVT CONTROLPFP:23796
DescriptionABS006LE
SYSTEM DESCRIPTION
*: This signa INFINITI FX35 2004 Service Manual DTC P0011, P0021 IVT CONTROL
EC-145
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
DTC P0011, P0021 IVT CONTROLPFP:23796
DescriptionABS006LE
SYSTEM DESCRIPTION
*: This signa](/manual-img/42/57021/w960_57021-1485.png)
DTC P0011, P0021 IVT CONTROL
EC-145
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
DTC P0011, P0021 IVT CONTROLPFP:23796
DescriptionABS006LE

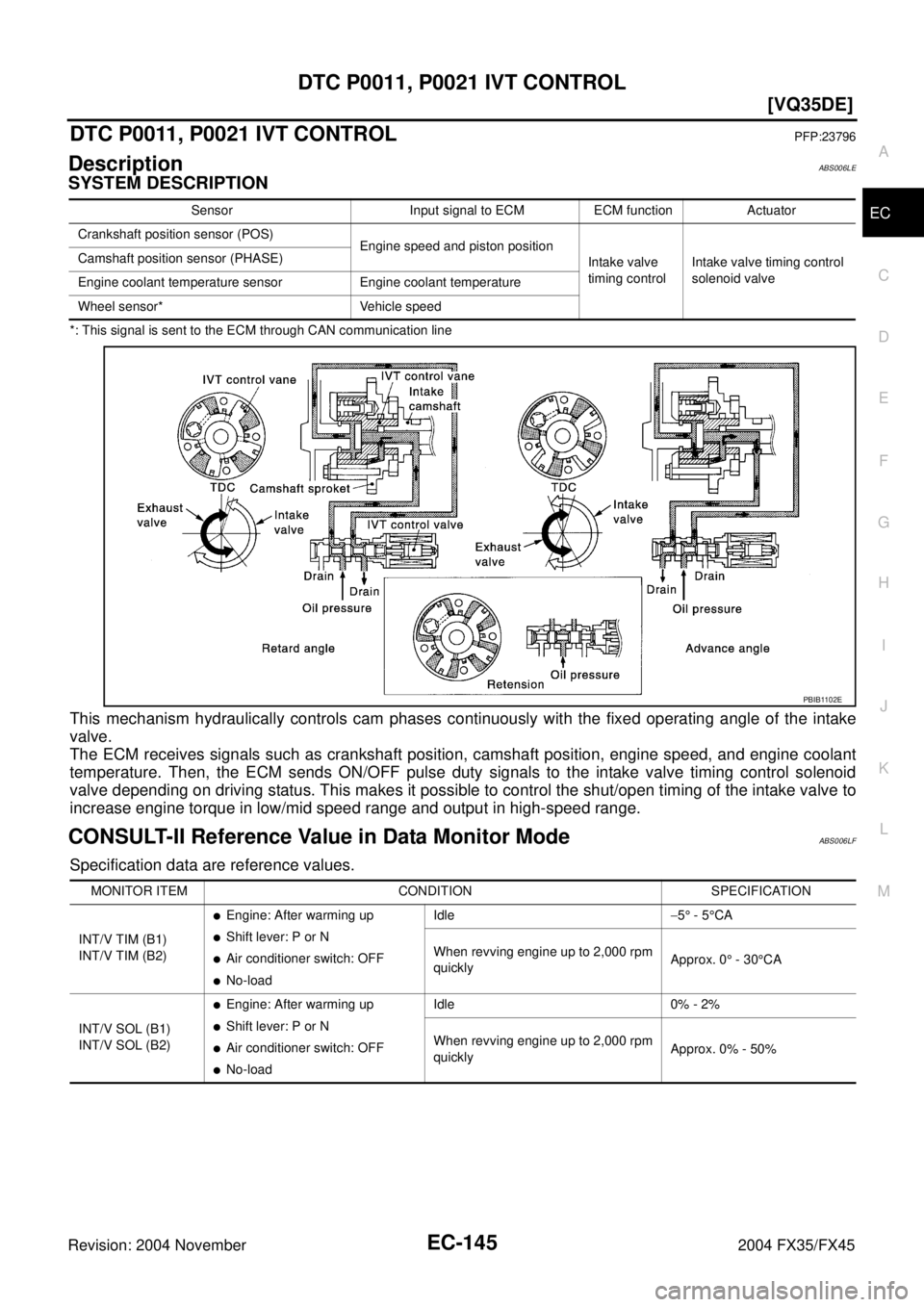

SYSTEM DESCRIPTION
*: This signal is sent to the ECM through CAN communication line
This mechanism hydraulically controls cam phases continuously with the fixed operating angle of the intake
valve.
The ECM receives signals such as crankshaft position, camshaft position, engine speed, and engine coolant
temperature. Then, the ECM sends ON/OFF pulse duty signals to the intake valve timing control solenoid
valve depending on driving status. This makes it possible to control the shut/open timing of the intake valve to
increase engine torque in low/mid speed range and output in high-speed range.
CONSULT-II Reference Value in Data Monitor ModeABS006LF
Specification data are reference values.
Sensor Input signal to ECM ECM function Actuator
Crankshaft position sensor (POS)
Engine speed and piston position
Intake valve
timing controlIntake valve timing control
solenoid valve Camshaft position sensor (PHASE)
Engine coolant temperature sensor Engine coolant temperature
Wheel sensor* Vehicle speed
PBIB1102E
MONITOR ITEM CONDITION SPECIFICATION
INT/V TIM (B1)
INT/V TIM (B2)
Engine: After warming up
Shift lever: P or N
Air conditioner switch: OFF
No-loadIdle−5° - 5°CA
When revving engine up to 2,000 rpm
quicklyApprox. 0° - 30°CA
INT/V SOL (B1)
INT/V SOL (B2)
Engine: After warming up
Shift lever: P or N
Air conditioner switch: OFF
No-loadIdle 0% - 2%
When revving engine up to 2,000 rpm
quicklyApprox. 0% - 50%
Page 1487 of 4449
![INFINITI FX35 2004 Service Manual EC-146
[VQ35DE]
DTC P0011, P0021 IVT CONTROL
Revision: 2004 November 2004 FX35/FX45
On Board Diagnosis LogicABS006LG
FAIL-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode.
DTC INFINITI FX35 2004 Service Manual EC-146
[VQ35DE]
DTC P0011, P0021 IVT CONTROL
Revision: 2004 November 2004 FX35/FX45
On Board Diagnosis LogicABS006LG
FAIL-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode.
DTC](/manual-img/42/57021/w960_57021-1486.png)
EC-146
[VQ35DE]
DTC P0011, P0021 IVT CONTROL
Revision: 2004 November 2004 FX35/FX45
On Board Diagnosis LogicABS006LG
FAIL-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode.
DTC Confirmation ProcedureABS006LH
CAUTION:
Always drive at a safe speed.
NOTE:
If D TC P 00 11 or P0 02 1 i s di spl ay ed w i t h D TC P1111 or P 11 36 , f ir s t pe r f or m t r o ubl e di agn os is f o r
D TC P1111 o r P113 6. R ef e r t o EC-408
.
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait
at least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is between 10V and 16V at
idle.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode with
CONSULT-II.
2. Start engine and warm it up to the normal operating tempera-
ture.
3. Maintain the following conditions for at least 6 consecutive sec-
onds. Hold the accelerator pedal as steady as possible.
4. Stop vehicle with engine running and let engine idle for 10 seconds.
5. If the 1st trip DTC is detected, go toEC-148, "
Diagnostic Procedure" .
If the 1st trip DTC is not detected, go to next step.
6. Maintain the following conditions for at least 20 consecutive seconds.
7. If the 1st trip DTC is detected, go to EC-148, "
Diagnostic Procedure" .
DTC No.Trouble diagnosis
nameDetecting condition Possible cause
P0011
0011
(Bank 1)
Intake valve timing
control performanceThere is a gap between angle of target and
phase-control angle degree.
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)
Accumulation of debris to the signal pick-up
portion of the camshaft P0021
0021
(Bank 2)
Detected items Engine operating condition in fail-safe mode
Intake valve timing control The signal is not energized to the solenoid valve and the valve control does not function.
VHCL SPEED SE 100 - 120 km/h (63 - 75 MPH)
ENG SPEED 2,000 - 4,000 rpm
COOLAN TEMP/S 60 - 120°C (140 - 248°F)
B/FUEL SCHDL More than 7.3 msec
Selector lever D position
ENG SPEED 1,700 - 3,175 rpm (A constant rotation is maintained.)
COOLAN TEMP/S 70 - 105°C (158 - 221°F)
Selector lever 1st or 2nd position
Driving location uphillDriving vehicle uphill
(Increased engine load will help maintain the driving
conditions required for this test.)
SEF353Z
Page 1488 of 4449
DTC P0011, P0021 IVT CONTROL
EC-147
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
WITH GST
Follow the procedure “WITH CONSULT-II” above.
