Page 1593 of 4449

INFINITI FX35 2004 Service Manual EC-252
[VQ35DE]
DTC P0139, P0159 HO2S2
Revision: 2004 November 2004 FX35/FX45
2. CLEAR THE SELF-LEARNING DATA
With CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Select

Page 1594 of 4449

INFINITI FX35 2004 Service Manual DTC P0139, P0159 HO2S2
EC-253
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
4. CHECK HO2S2 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM t

Page 1595 of 4449

INFINITI FX35 2004 Service Manual EC-254
[VQ35DE]
DTC P0139, P0159 HO2S2
Revision: 2004 November 2004 FX35/FX45
6. Select “FUEL INJECTION” in “ACTIVE TEST” mode, and select
“HO2S2 (B1)/(B2)” as the monitor item with CONSUL

EC-254
[VQ35DE]
DTC P0139, P0159 HO2S2
Revision: 2004 November 2004 FX35/FX45
6. Select “FUEL INJECTION” in “ACTIVE TEST” mode, and select
“HO2S2 (B1)/(B2)” as the monitor item with CONSULT-II.
7. Check “HO2S2 (B1)/(B2)” at idle speed when adjusting “FUEL INJECTION” to ±25%.
“HO2S2 (B1)/(B2)” should be above 0.63V at least once when the “FUEL INJECTION” is +25%.
“HO2S2 (B1)/(B2)” should be below 0.48V at least once when the “FUEL INJECTION” is −25%.
CAUTION:
Discard any heated oxygen sensor which has been dropped from a height of more than 0.5 m (19.7
in) onto a hard surface such as a concrete floor; use a new one.
Before installing new oxygen sensor, clean exhaust system threads using Oxygen Sensor Thread
Cleaner tool J-43897-18 or J-43897-12 and approved anti-seize lubricant.
Without CONSULT-II
1. Start engine and warm it up to the normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1 minute under no load.
4. Let engine idle for 1 minute.
5. Set voltmeter probes between ECM terminal 74 [HO2S2 (B1) signal] or 55 [HO2S2 (B2) signal] and
ground.
6. Check the voltage when revving up to 4,000 rpm under no load
at least 10 times.
(Depress and release accelerator pedal as soon as possible.)
The voltage should be above 0.63V at least once during this
procedure.
If the voltage is above 0.63V at step 6, step 7 is not neces-
sary.
7. Keep vehicle at idling for 10 minutes, then check voltage. Or
check the voltage when coasting from 80 km/h (50 MPH) in D
position with “OD” OFF.
The voltage should be below 0.48V at least once during this
procedure.
8. If NG, replace heated oxygen sensor 2.
CAUTION:
Discard any heated oxygen sensor which has been dropped from a height of more than 0.5 m (19.7
in) onto a hard surface such as a concrete floor; use a new one.
Before installing new oxygen sensor, clean exhaust system threads using Oxygen Sensor Thread
Cleaner tool J-43897-18 or J-43897-12 and approved anti-seize lubricant.
SEF662Y
PBIB0796E
PBIB1607E

Page 1596 of 4449

INFINITI FX35 2004 Service Manual DTC P0139, P0159 HO2S2
EC-255
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
Removal and InstallationABS006OX
HEATED OXYGEN SENSOR 2
Refer to EM-26, "EXHAUST MANIFOLD AND TH

Page 1597 of 4449

INFINITI FX35 2004 Service Manual EC-256
[VQ35DE]
DTC P0171, P0174 FUEL INJECTION SYSTEM FUNCTION
Revision: 2004 November 2004 FX35/FX45
DTC P0171, P0174 FUEL INJECTION SYSTEM FUNCTIONPFP:16600
On Board Diagnosis LogicABS006OY
With th

EC-256
[VQ35DE]
DTC P0171, P0174 FUEL INJECTION SYSTEM FUNCTION
Revision: 2004 November 2004 FX35/FX45
DTC P0171, P0174 FUEL INJECTION SYSTEM FUNCTIONPFP:16600
On Board Diagnosis LogicABS006OY
With the Air-Fuel Mixture Ratio Self-Learning Control, the actual mixture ratio can be brought closely to the
theoretical mixture ratio based on the mixture ratio feedback signal from the heated oxygen sensors 1. The
ECM calculates the necessary compensation to correct the offset between the actual and the theoretical
ratios.
In case the amount of the compensation value is extremely large (the actual mixture ratio is too lean.), the
ECM judges the condition as the fuel injection system malfunction and lights up the MIL (2 trip detection logic).
DTC Confirmation ProcedureABS006OZ
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Turn ignition switch ON and select “SELF-LEARNING CONT” in “WORK SUPPORT” mode with CON-
SULT-II.
4. Clear the self-learning control coefficient by touching “CLEAR”.
5. Select “DATA MONITOR” mode with CONSULT-II.
6. Start engine again and let it idle for at least 10 minutes.
The 1st trip DTC P0171 or P0174 should be detected at this
stage, if a malfunction exists. If so, go to Diagnostic Procedure,
EC-260
.
7. If it is difficult to start engine at step 6, the fuel injection system
has a malfunction, too.
8. Crank engine while depressing accelerator pedal. If engine
starts, go to EC-260, "
Diagnostic Procedure" . If engine does not
start, check exhaust and intake air leak visually.
Sensor Input signal to ECM ECM function Actuator
Heated oxygen sensor 1Density of oxygen in exhaust gas
(Mixture ratio feedback signal)Fuel injection
controlFuel injector
DTC No.Trouble diagnosis
nameDTC detecting condition Possible cause
P0171
0171
(Bank 1)
Fuel injection system
too lean
Fuel injection system does not operate properly.
The amount of mixture ratio compensation is too
large. (The mixture ratio is too lean.)
Intake air leaks
Heated oxygen sensor 1
Fuel Injector
Exhaust gas leaks
Incorrect fuel pressure
Lack of fuel
Mass air flow sensor
Incorrect PCV hose connection P0174
0174
(Bank 2)
SEF968Y

Page 1598 of 4449

INFINITI FX35 2004 Service Manual DTC P0171, P0174 FUEL INJECTION SYSTEM FUNCTION
EC-257
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
WITH GST
1. Start engine and warm it up to normal operating temperatur

Page 1599 of 4449

INFINITI FX35 2004 Service Manual EC-258
[VQ35DE]
DTC P0171, P0174 FUEL INJECTION SYSTEM FUNCTION
Revision: 2004 November 2004 FX35/FX45

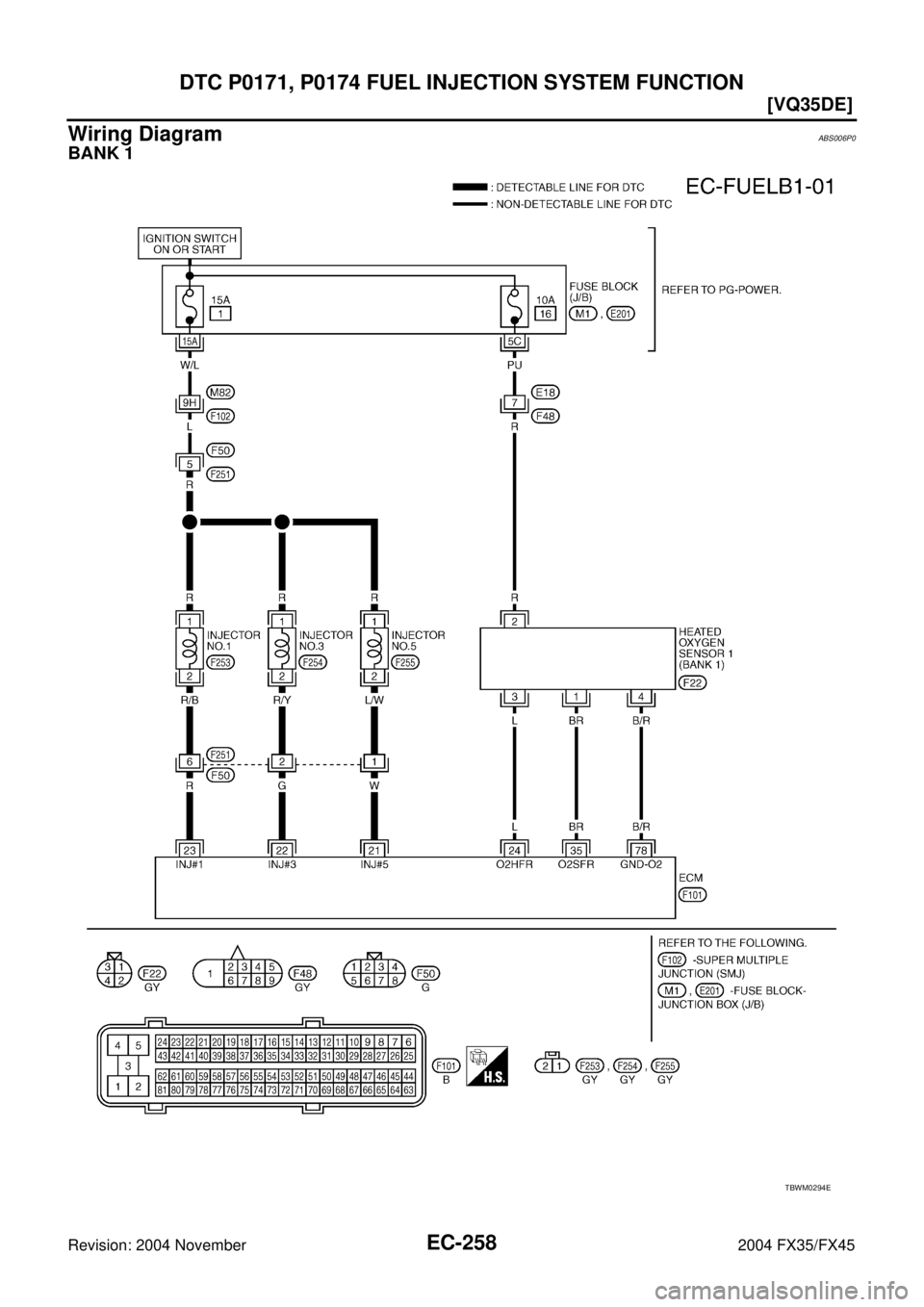

Wiring DiagramABS006P0
BANK 1
TBWM0294E

Page 1600 of 4449

INFINITI FX35 2004 Service Manual DTC P0171, P0174 FUEL INJECTION SYSTEM FUNCTION
EC-259
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45

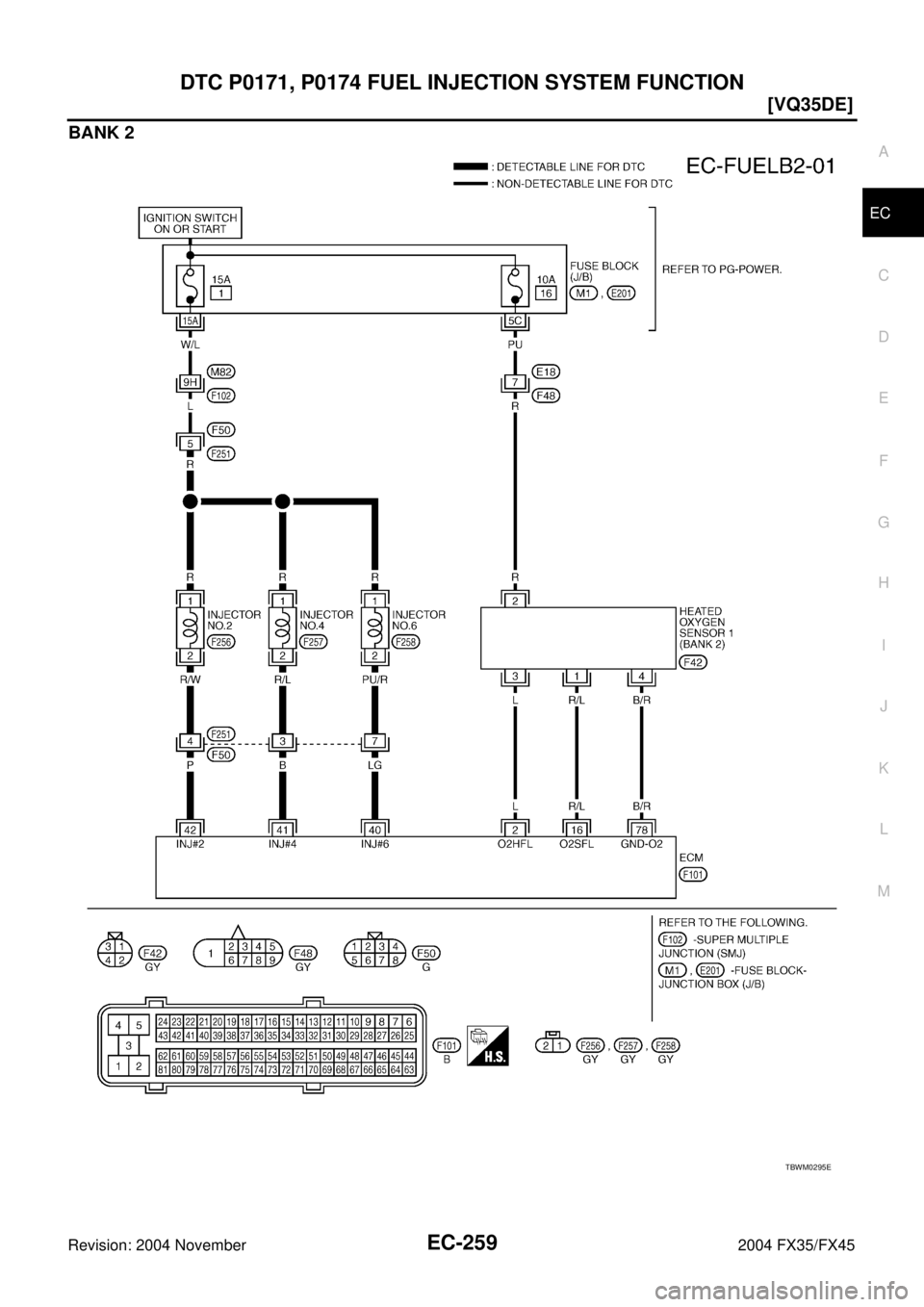

BANK 2
TBWM0295E
