Page 1881 of 4449
![INFINITI FX35 2004 Service Manual EC-540
[VQ35DE]
DTC P1572 ASCD BRAKE SWITCH
Revision: 2004 November 2004 FX35/FX45
Component InspectionABS007ZI
ASCD BRAKE SWITCH
1. Turn ignition switch OFF.
2. Disconnect ASCD brake switch harness c INFINITI FX35 2004 Service Manual EC-540
[VQ35DE]
DTC P1572 ASCD BRAKE SWITCH
Revision: 2004 November 2004 FX35/FX45
Component InspectionABS007ZI
ASCD BRAKE SWITCH
1. Turn ignition switch OFF.
2. Disconnect ASCD brake switch harness c](/manual-img/42/57021/w960_57021-1880.png)
EC-540
[VQ35DE]
DTC P1572 ASCD BRAKE SWITCH
Revision: 2004 November 2004 FX35/FX45
Component InspectionABS007ZI
ASCD BRAKE SWITCH
1. Turn ignition switch OFF.
2. Disconnect ASCD brake switch harness connector.
3. Check harness continuity between ASCD brake switch terminals
1 and 2 under the following conditions.
If NG, adjust ASCD brake switch installation, refer to BR-6,
"BRAKE PEDAL" , and perform step 3 again.
STOP LAMP SWITCH
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch harness connector.
3. Check harness continuity between stop lamp switch terminals 1
and 2 under the following conditions.
If NG, adjust stop lamp switch installation, refer to BR-6,
"BRAKE PEDAL" , and perform step 3 again.
Condition Continuity
When brake pedal is fully released. Should exist.
When brake pedal is slightly depressed. Should not exist.
SEC023D
Condition Continuity
When brake pedal is fully released. Should not exist.
When brake pedal is slightly depressed. Should exist.
PBIB1185E
Page 1882 of 4449
![INFINITI FX35 2004 Service Manual DTC P1574 ICC VEHICLE SPEED SENSOR
EC-541
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
DTC P1574 ICC VEHICLE SPEED SENSORPFP:31036
Component DescriptionABS007ZD
The ECM re INFINITI FX35 2004 Service Manual DTC P1574 ICC VEHICLE SPEED SENSOR
EC-541
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
DTC P1574 ICC VEHICLE SPEED SENSORPFP:31036
Component DescriptionABS007ZD
The ECM re](/manual-img/42/57021/w960_57021-1881.png)
DTC P1574 ICC VEHICLE SPEED SENSOR
EC-541
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
DTC P1574 ICC VEHICLE SPEED SENSORPFP:31036
Component DescriptionABS007ZD
The ECM receives two vehicle speed signals via CAN communication line. One is sent from “unified meter and
A/C amp.”, and the other is from TCM (Transmission control module). The ECM uses these signals for ICC
control. Refer to ACS-6, "
DESCRIPTION" for ICC functions.
On Board Diagnosis LogicABS007ZE
This self-diagnosis has the one trip detection logic.
The MIL will not light up for this self-diagnosis.
NOTE:
If DTC P1574 is displayed with DTC U1000, U1001, first perform the trouble diagnosis for DTC
U1000, U1001. Refer to EC-142
.
If DTC P1574 is displayed with DTC P0500, first perform the trouble diagnosis for DTC P0500.
Refer to EC-390
.
If DTC P1574 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605.
Refer to EC-401
.
DTC Confirmation ProcedureABS007ZF
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Step 3 may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a road test
is expected to be easier, it is unnecessary to lift the vehicle.
WITH CONSULT-II
1. Start engine.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Drive the vehicle at more than 40 km/h (25MPH).
4. If DTC is detected, go to EC-542, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
DTC No.Trouble Diagnosis
NameDTC Detecting Condition Possible Cause
P1574
1574ICC vehicle speed
sensorECM detects a difference between two vehicle
speed signals is out of the specified range.
Harness or connectors
(The CAN communication line is open or
shorted.)
Unified meter and A/C amp.
ABS actuator and electric unit (control unit)
Wheel sensor
TCM
ECM
SEF058Y
Page 1883 of 4449
EC-542
[VQ35DE]
DTC P1574 ICC VEHICLE SPEED SENSOR
Revision: 2004 November 2004 FX35/FX45
Diagnostic ProcedureABS007ZG
1. CHECK DTC WITH TCM
Check DTC with TCM. Refer to AT- 3 8 , "
ON BOARD DIAGNOSTIC (OBD) SYSTEM" .
OK or NG
OK >> GO TO 2.
NG >> Perform trouble shooting relevant to DTC indicated.
2. CHECK DTC WITH “ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)”
Refer to BRC-12, "
TROUBLE DIAGNOSIS" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace.
3. CHECK DTC WITH “UNIFIED METER AND A/C AMP.”
Refer to DI-4, "
COMBINATION METERS" .
>>INSPECTION END
Page 1884 of 4449
![INFINITI FX35 2004 Service Manual DTC P1574 ASCD VEHICLE SPEED SENSOR
EC-543
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
DTC P1574 ASCD VEHICLE SPEED SENSORPFP:31036
Component DescriptionABS006WQ
The ECM INFINITI FX35 2004 Service Manual DTC P1574 ASCD VEHICLE SPEED SENSOR
EC-543
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
DTC P1574 ASCD VEHICLE SPEED SENSORPFP:31036
Component DescriptionABS006WQ
The ECM](/manual-img/42/57021/w960_57021-1883.png)
DTC P1574 ASCD VEHICLE SPEED SENSOR
EC-543
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
DTC P1574 ASCD VEHICLE SPEED SENSORPFP:31036
Component DescriptionABS006WQ
The ECM receives two vehicle speed sensor signals via CAN communication line. One is sent from “unified
meter and A/C amp.”, and the other is from TCM (Transmission control module). The ECM uses these signals
for ASCD control. Refer to EC-657, "
AUTOMATIC SPEED CONTROL DEVICE (ASCD)" for ASCD functions.
On Board Diagnosis LogicABS006WR
This self-diagnosis has the one trip detection logic.
The MIL will not light up for this diagnosis.
NOTE:
If DTC P1574 is displayed with DTC U1000, U1001, first perform the trouble diagnosis for DTC
U1000, U1001. Refer to EC-142
.
If DTC P1574 is displayed with DTC P0500, first perform the trouble diagnosis for DTC P0500.
Refer to EC-390
If DTC P1574 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605.
Refer to EC-401
DTC Confirmation ProcedureABS006WS
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Step 3 may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a road test
is expected to be easier, it is unnecessary to lift the vehicle.
WITH CONSULT-II
1. Start engine.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Drive the vehicle at more than 40 km/h (25 MPH).
4. If DTC is detected, go to EC-544, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
DTC No.Trouble Diagnosis
NameDTC Detecting Condition Possible Cause
P1574
1574ASCD vehicle speed
sensorECM detects a difference between two vehicle
speed signals is out of the specified range.
Harness or connectors
(The CAN communication line is open or
shorted.)
Unified meter and A/C amp.
ABS actuator and electric unit (control unit)
Wheel sensor
TCM
ECM
SEF058Y
Page 1885 of 4449
EC-544
[VQ35DE]
DTC P1574 ASCD VEHICLE SPEED SENSOR
Revision: 2004 November 2004 FX35/FX45
Diagnostic ProcedureABS006WT
1. CHECK DTC WITH TCM
Check DTC with TCM. Refer to AT- 3 8 , "
ON BOARD DIAGNOSTIC (OBD) SYSTEM" .
OK or NG
OK >> GO TO 2.
NG >> Perform trouble shooting relevant to DTC indicated.
2. CHECK DTC WITH “ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)”
Refer to BRC-12, "
TROUBLE DIAGNOSIS" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace.
3. CHECK DTC WITH “UNIFIED METER AND A/C AMP.”
Refer to DI-4, "
COMBINATION METERS" .
>>INSPECTION END
Page 1886 of 4449
![INFINITI FX35 2004 Service Manual DTC P1706 PNP SWITCH
EC-545
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
DTC P1706 PNP SWITCHPFP:32006
Component DescriptionABS006WU
When the gear position is P or N, park INFINITI FX35 2004 Service Manual DTC P1706 PNP SWITCH
EC-545
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
DTC P1706 PNP SWITCHPFP:32006
Component DescriptionABS006WU
When the gear position is P or N, park](/manual-img/42/57021/w960_57021-1885.png)
DTC P1706 PNP SWITCH
EC-545
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
DTC P1706 PNP SWITCHPFP:32006
Component DescriptionABS006WU
When the gear position is P or N, park/neutral position (PNP) switch is ON.
ECM detects the position because the continuity of the line (the ON signal) exists.
CONSULT-II Reference Value in Data Monitor ModeABS006WV
Specification data are reference values.
On Board Diagnosis LogicABS006WW
DTC Confirmation ProcedureABS006WX
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “P/N POSI SW” in “DATA MONITOR” mode with CON-
SULT-II. Then check the “P/N POSI SW” signal under the follow-
ing conditions.
If NG, go to EC-548, "
Diagnostic Procedure" .
If OK, go to following step.
3. Select “DATA MONITOR” mode with CONSULT-II.
4. Start engine and warm it up to normal operating temperature.
5. Maintain the following conditions for at least 60 consecutive sec-
onds.
6. If 1st trip DTC is detected, go to EC-548, "
Diagnostic Procedure"
.
MONITOR ITEM CONDITION SPECIFICATION
P/N POSI SW
Ignition switch: ONShift lever: P or N ON
Shift lever: Except above OFF
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1706
1706Park/neutral position
switchThe signal of the park/neutral position (PNP)
switch is not changed in the process of engine
starting and driving.
Harness or connectors
[The park/neutral position (PNP) switch
circuit is open or shorted.]
Park/neutral position (PNP) switch
Unified meter and A/C amp.
TCM
Position (Selector lever) Known-good signal
P or N position ON
Except above position OFF
ENG SPEED 1,000 - 6,375 rpm
COOLAN TEMP/S More than 70°C (158°F)
B/FUEL SCHDL 2.0 - 31.8 msec
VHCL SPEED SE More than 64 km/h (40 MPH)
Selector lever Suitable position
SEF212Y
SEF213Y
Page 1887 of 4449
EC-546
[VQ35DE]
DTC P1706 PNP SWITCH
Revision: 2004 November 2004 FX35/FX45
Overall Function CheckABS006WY
Use this procedure to check the overall function of the park/neutral position (PNP) switch circuit. During this
check, a 1st trip DTC might not be confirmed.
WITH GST
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 102 (PNP switch signal)
and ground under the following conditions.
3. If NG, go to EC-548, "
Diagnostic Procedure" .
Condition (Gear position) Voltage V (Known-good data)
P or N position Approx. 0
Except above positionBATTERY VOLTAGE
(11 - 14V)
MBIB0043E
Page 1888 of 4449

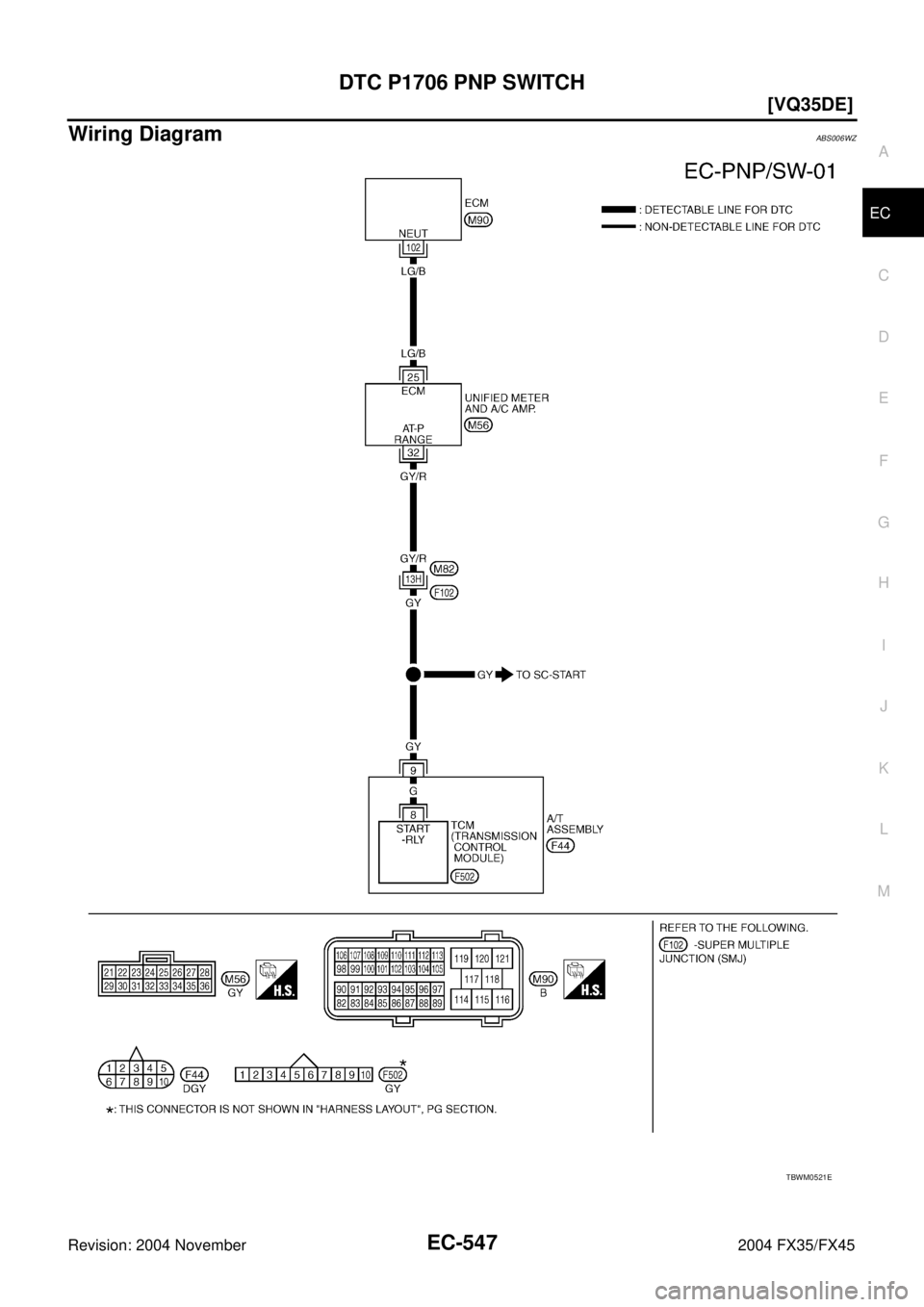

DTC P1706 PNP SWITCH
EC-547
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
Wiring DiagramABS006WZ
TBWM0521E
