Page 3297 of 4449
IP-16
INSTRUMENT PANEL ASSEMBLY
Revision: 2004 November 2004 FX35/FX45
(X) Side Ventilation (LH/RH)
1. Insert a remover into gaps between instrument panel and pad,
pull back to your side, and disconnect metal clips below.
2. Disconnect door mirror switch harness connectors, and remove
side ventilation (LH).
(Y) Instrument Panel and Pad
1. Remove bolts and screws.
2. Remove front passenger air bag module. Refer to SRS-40, "
Removal and Installation" .
3. Disconnect harness connectors, and remove instrument panel and pad from passenger door opening por-
tion.
PIIA5011E
Page 3298 of 4449
INSTRUMENT PANEL ASSEMBLY
IP-17
C
D
E
F
G
H
J
K
L
MA
B
IP
Revision: 2004 November 2004 FX35/FX45
INSTALLATION
Assemble the following three parts carefully.
Install in the reverse order of removal.
Disassembly and AssemblyAIS003EZ

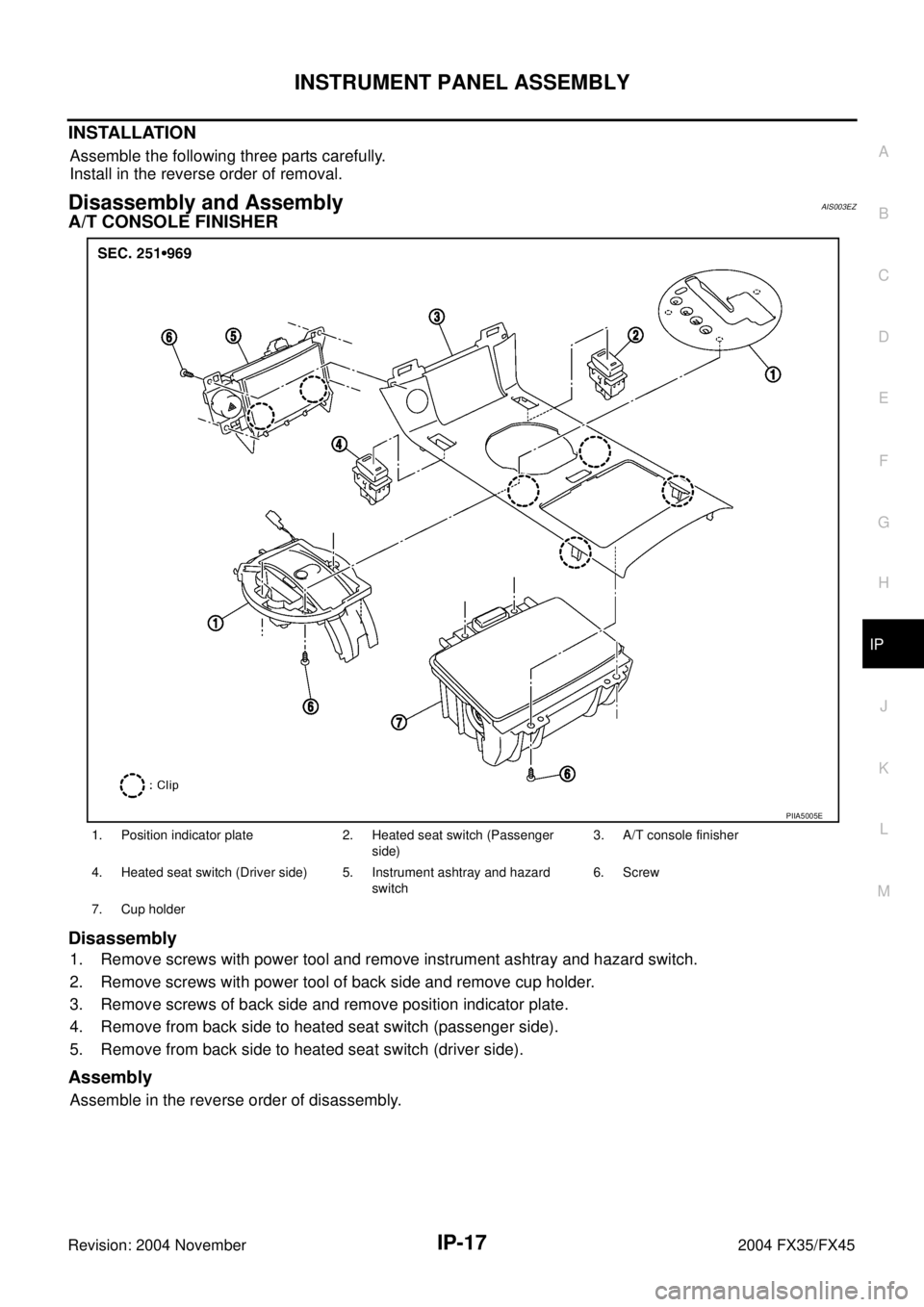

A/T CONSOLE FINISHER
Disassembly
1. Remove screws with power tool and remove instrument ashtray and hazard switch.
2. Remove screws with power tool of back side and remove cup holder.
3. Remove screws of back side and remove position indicator plate.
4. Remove from back side to heated seat switch (passenger side).
5. Remove from back side to heated seat switch (driver side).
Assembly
Assemble in the reverse order of disassembly.
1. Position indicator plate 2. Heated seat switch (Passenger
side)3. A/T console finisher
4. Heated seat switch (Driver side) 5. Instrument ashtray and hazard
switch6. Screw
7. Cup holder
PIIA5005E
Page 3299 of 4449
IP-18
INSTRUMENT PANEL ASSEMBLY
Revision: 2004 November 2004 FX35/FX45
CENTER CONSOLE
Disassembly
1. Insert a remover into side between gaps console rear finisher and pull back to your side, and disconnect
pawls below.
2. Disconnect harness connector and remove console rear finisher.
3. Insert a remover into side between gaps of console mask and pull back to your side.
4. Remove screws with power tool and remove console lid.
5. Remove screws fixing DVD player with power tool.
6. Disconnect harness connectors, and remove DVD player.
Assembly
Assemble in the reverse order of disassembly.
1. Console lid 2. Screw 3. Console mask
4. Console body 5. DVD player bracket 6. DVD player
7. Console rear finisher
PIIA5006E
Page 3300 of 4449
INSTRUMENT PANEL ASSEMBLY
IP-19
C
D
E
F
G
H
J
K
L
MA
B
IP
Revision: 2004 November 2004 FX35/FX45
INSTRUMENT PASSENGER LOWER PANEL
Disassembly
1. Detach the damper from glove box assembly right side.
2. Remove glove box pins and remove glove box assembly.
3. Remove screws with power tool and remove glove box striker.
Assembly
Assemble in the reverse order of disassembly.
1. Instrument passenger lower panel 2. Glove box 3. Glove box pin
4. Glove box striker 5. Screw
PIIA5012E
PIIA4999E
PIIA5000E
Page 3301 of 4449
IP-20
INSTRUMENT PANEL ASSEMBLY
Revision: 2004 November 2004 FX35/FX45
Page 3302 of 4449
LAN-1
LAN SYSTEM
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION LAN
A
B
LAN
Revision: 2004 November 2004 FX35/FX45
LAN SYSTEM
CAN
PRECAUTIONS .......................................................... 4
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 4
Precautions When Using CONSULT-II ..................... 4
CHECK POINTS FOR USING CONSULT-II ......... 4
Precautions For Trouble Diagnosis .......................... 4
CAN SYSTEM ....................................................... 4
Precautions For Harness Repair .............................. 5
CAN SYSTEM ....................................................... 5
CAN COMMUNICATION ............................................ 6
System Description .................................................. 6
CAN Communication Unit ........................................ 6
TYPE 1/TYPE2 ..................................................... 6
TYPE 3 .................................................................. 9
TYPE 4/TYPE5 ................................................... 13
TYPE 6 ................................................................ 16
CAN SYSTEM (TYPE 1) ........................................... 21
System Description ................................................ 21
Component Parts and Harness Connector Location ... 21
Wiring Diagram - CAN - ......................................... 22
Work Flow .............................................................. 24
CHECK SHEET ................................................... 26
CHECK SHEET RESULTS (EXAMPLE) ............. 28
Circuit Check Between TCM and Data Link Con-
nector ..................................................................... 41
Circuit Check Between Data Link Connector and
Unified Meter and A/C Amp. .................................. 41
Circuit Check Between Unified Meter and A/C Amp.
and ABS Actuator and Electric Unit (Control Unit) ... 42
ECM Circuit Check ................................................. 42
TCM Circuit Check ................................................. 43
Display Unit Circuit Check ...................................... 43
Data Link Connector Circuit Check ........................ 44
BCM Circuit Check ................................................. 44
Steering Angle Sensor Circuit Check ..................... 45
Unified Meter and A/C Amp. Circuit Check ............ 45
ABS Actuator and Electric Unit (Control Unit) Circuit
Check ..................................................................... 46IPDM E/R Circuit Check ......................................... 46
CAN Communication Circuit Check ........................ 47
IPDM E/R Ignition Relay Circuit Check .................. 51
Component Inspection ............................................ 51
ECM/IPDM E/R INTERNAL CIRCUIT INSPEC-
TION .................................................................... 51
CAN SYSTEM (TYPE 2) ........................................... 52
System Description ................................................. 52
Component Parts and Harness Connector Location ... 52
Wiring Diagram - CAN - .......................................... 53
Work Flow ............................................................... 55
CHECK SHEET ................................................... 57
CHECK SHEET RESULTS (EXAMPLE) ............. 59
Circuit Check Between TCM and Data Link Con-
nector ...................................................................... 74
Circuit Check Between Data Link Connector and
Unified Meter and A/C Amp. ................................... 74
Circuit Check Between Unified Meter and A/C Amp.
and ABS Actuator and Electric Unit (Control Unit) ... 75
Circuit Check Between ABS Actuator and Electric
Unit (Control Unit) and Driver Seat Control Unit ..... 76
ECM Circuit Check ................................................. 76
TCM Circuit Check ................................................. 77
Display Unit Circuit Check ...................................... 77
Data Link Connector Circuit Check ........................ 78
BCM Circuit Check ................................................. 78
Steering Angle Sensor Circuit Check ..................... 79
Unified Meter and A/C Amp. Circuit Check ............ 79
ABS Actuator and Electric Unit (Control Unit) Circuit
Check ..................................................................... 80
Driver Seat Control Unit Circuit Check ................... 80
IPDM E/R Circuit Check ......................................... 81
CAN Communication Circuit Check ........................ 82
IPDM E/R Ignition Relay Circuit Check .................. 86
Component Inspection ............................................ 86
ECM/IPDM E/R INTERNAL CIRCUIT INSPEC-
TION .................................................................... 86
CAN SYSTEM (TYPE 3) ........................................... 87
System Description ................................................. 87
Component Parts and Harness Connector Location ... 87
Page 3303 of 4449
LAN-2Revision: 2004 November 2004 FX35/FX45Schematic ............................................................... 88
Wiring Diagram - CAN - .......................................... 89
Work Flow ............................................................... 92
CHECK SHEET ................................................... 94
CHECK SHEET RESULTS (EXAMPLE) ............. 97
Circuit Check Between TCM and Data Link Con-
nector ....................................................................116
Circuit Check Between Data Link Connector and
Unified Meter and A/C Amp. .................................117
Circuit Check Between Unified Meter and A/C Amp.
and ABS Actuator and Electric Unit (Control Unit) .117
Circuit Check Between ABS Actuator and Electric
Unit (Control Unit) and Driver Seat Control Unit ...118
ECM Circuit Check ...............................................119
TCM Circuit Check ...............................................119
Display Control Unit Circuit Check ........................120
Low Tire Pressure Warning Control Unit Circuit
Check ...................................................................120
ICC Unit Circuit Check ..........................................121
Intelligent Key Unit Circuit Check .........................121
Data Link Connector Circuit Check .......................122
BCM Circuit Check ...............................................122
Steering Angle Sensor Circuit Check ...................123
Unified Meter and A/C Amp. Circuit Check ...........123
ICC Sensor Circuit Check .....................................124
ABS Actuator and Electric Unit (Control Unit) Circuit
Check ...................................................................124
Driver Seat Control Unit Circuit Check .................125
IPDM E/R Circuit Check .......................................126
CAN Communication Circuit Check ......................127
IPDM E/R Ignition Relay Circuit Check .................132
Component Inspection ..........................................132
ECM/IPDM E/R INTERNAL CIRCUIT INSPEC-
TION ..................................................................132
CAN SYSTEM (TYPE 4) .........................................133
System Description ...............................................133
Component Parts and Harness Connector Location .133
Schematic .............................................................134
Wiring Diagram - CAN - ........................................135
Work Flow .............................................................138
CHECK SHEET .................................................140
CHECK SHEET RESULTS (EXAMPLE) ...........142
Circuit Check Between TCM and Data Link Con-
nector ....................................................................156
Circuit Check Between Data Link Connector and
Unified Meter and A/C Amp. .................................156
Circuit Check Between Unified Meter and A/C Amp.
and ABS Actuator and Electric Unit (Control Unit) .157
ECM Circuit Check ...............................................157
TCM Circuit Check ...............................................158
Display Unit Circuit Check ....................................158
AWD Control Unit Circuit Check ...........................159
Data Link Connector Circuit Check .......................159
BCM Circuit Check ...............................................160
Steering Angle Sensor Circuit Check ...................160
Unified Meter and A/C Amp. Circuit Check ...........161
ABS Actuator and Electric Unit (Control Unit) Circuit
Check ...................................................................161
IPDM E/R Circuit Check .......................................162CAN Communication Circuit Check ......................163
IPDM E/R Ignition Relay Circuit Check .................166
Component Inspection ..........................................166
ECM/IPDM E/R INTERNAL CIRCUIT INSPEC-
TION ..................................................................166
CAN SYSTEM (TYPE 5) ..........................................167
System Description ...............................................167
Component Parts and Harness Connector Location .167
Schematic .............................................................168
Wiring Diagram - CAN - ........................................169
Work Flow .............................................................172
CHECK SHEET .................................................174
CHECK SHEET RESULTS (EXAMPLE) ............176
Circuit Check Between TCM and Data Link Con-
nector ....................................................................192
Circuit Check Between Data Link Connector and
Unified Meter and A/C Amp. .................................192
Circuit Check Between Unified Meter and A/C Amp.
and ABS Actuator and Electric Unit (Control Unit) .193
Circuit Check Between ABS Actuator and Electric
Unit (Control Unit) and Driver Seat Control Unit ...194
ECM Circuit Check ................................................194
TCM Circuit Check ................................................195
Display Unit Circuit Check ....................................195
AWD Control Unit Circuit Check ...........................196
Data Link Connector Circuit Check .......................196
BCM Circuit Check ................................................197
Steering Angle Sensor Circuit Check ....................197
Unified Meter and A/C Amp. Circuit Check ...........198
ABS Actuator and Electric Unit (Control Unit) Circuit
Check ....................................................................198
Driver Seat Control Unit Circuit Check ..................199
IPDM E/R Circuit Check ........................................200
CAN Communication Circuit Check ......................200
IPDM E/R Ignition Relay Circuit Check .................205
Component Inspection ..........................................205
ECM/IPDM E/R INTERNAL CIRCUIT INSPEC-
TION ..................................................................205
CAN SYSTEM (TYPE 6) ..........................................206
System Description ...............................................206
Component Parts and Harness Connector Location .206
Schematic .............................................................207
Wiring Diagram - CAN - ........................................208
Work Flow .............................................................211
CHECK SHEET .................................................213
CHECK SHEET RESULTS (EXAMPLE) ............216
Circuit Check Between TCM and Data Link Con-
nector ....................................................................237
Circuit Check Between Data Link Connector and
Unified Meter and A/C Amp. .................................238
Circuit Check Between Unified Meter and A/C Amp.
and ABS Actuator and Electric Unit (Control Unit) .238
Circuit Check Between ABS Actuator and Electric
Unit (Control Unit) and Driver Seat Control Unit ...239
ECM Circuit Check ................................................240
TCM Circuit Check ................................................240
Display Control Unit Circuit Check ........................241
Low Tire Pressure Warning Control Unit Circuit
Check ....................................................................241
Page 3304 of 4449
LAN-3
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45AWD Control Unit Circuit Check ........................... 242
ICC Unit Circuit Check ......................................... 242
Intelligent Key Unit Circuit Check ......................... 243
Data Link Connector Circuit Check ...................... 243
BCM Circuit Check ............................................... 244
Steering Angle Sensor Circuit Check ................... 244
Unified Meter and A/C Amp. Circuit Check .......... 245
ICC Sensor Circuit Check .................................... 245
ABS Actuator and Electric Unit (Control Unit) Circuit Check ...................................................................246
Driver Seat Control Unit Circuit Check .................246
IPDM E/R Circuit Check .......................................247
CAN Communication Circuit Check ......................248
IPDM E/R Ignition Relay Circuit Check ................253
Component Inspection ..........................................253
ECM/IPDM E/R INTERNAL CIRCUIT INSPEC-
TION ..................................................................253
