Page 1249 of 4449

DI-6
COMBINATION METERS
Revision: 2004 November 2004 FX35/FX45
WATER TEMPERATURE GAUGE
The water temperature gauge indicates the engine coolant temperature.
ECM provides a water temperature signal to unified meter and A/C amp. with CAN communication line. Uni-
fied meter and A/C amp. provides a water temperature signal to combination meter for water temperature
gauge with communication line between unified meter and A/C amp. and combination meter.
TACHOMETER
The tachometer indicates engine speed in revolutions per minute (rpm).
ECM provides an engine speed signal to unified meter and A/C amp. with CAN communication line. Unified
meter and A/C amp. provides an engine speed signal to combination meter for tachometer with communica-
tion line between unified meter and A/C amp. and combination meter.
FUEL GAUGE
The fuel gauge indicates the approximate fuel level in the fuel tank.
The fuel gauge is regulated by a variable ground signal supplied
from unified meter and A/C amp. terminal 36
through the fuel level sensor unit and fuel pump (main) terminals 5 and 2, and
through the fuel level sensor unit (sub) terminals 2 and 1
to unified meter and A/C amp. terminal 28 for the fuel gauge.
Unified meter and A/C amp. provides an fuel level signal to combination meter for fuel gauge with communica-
tion line between unified meter and A/C amp. and combination meter.
SPEEDOMETER
ABS actuator and electric unit (control unit) provides a vehicle speed signal to the unified meter and A/C amp.
with CAN communication line. After unified meter and A/C amp. received the vehicle speed signal, it changes
the signal to 8 pulse signal and provides the 8 pulse signal to the combination meter for the speedometer.

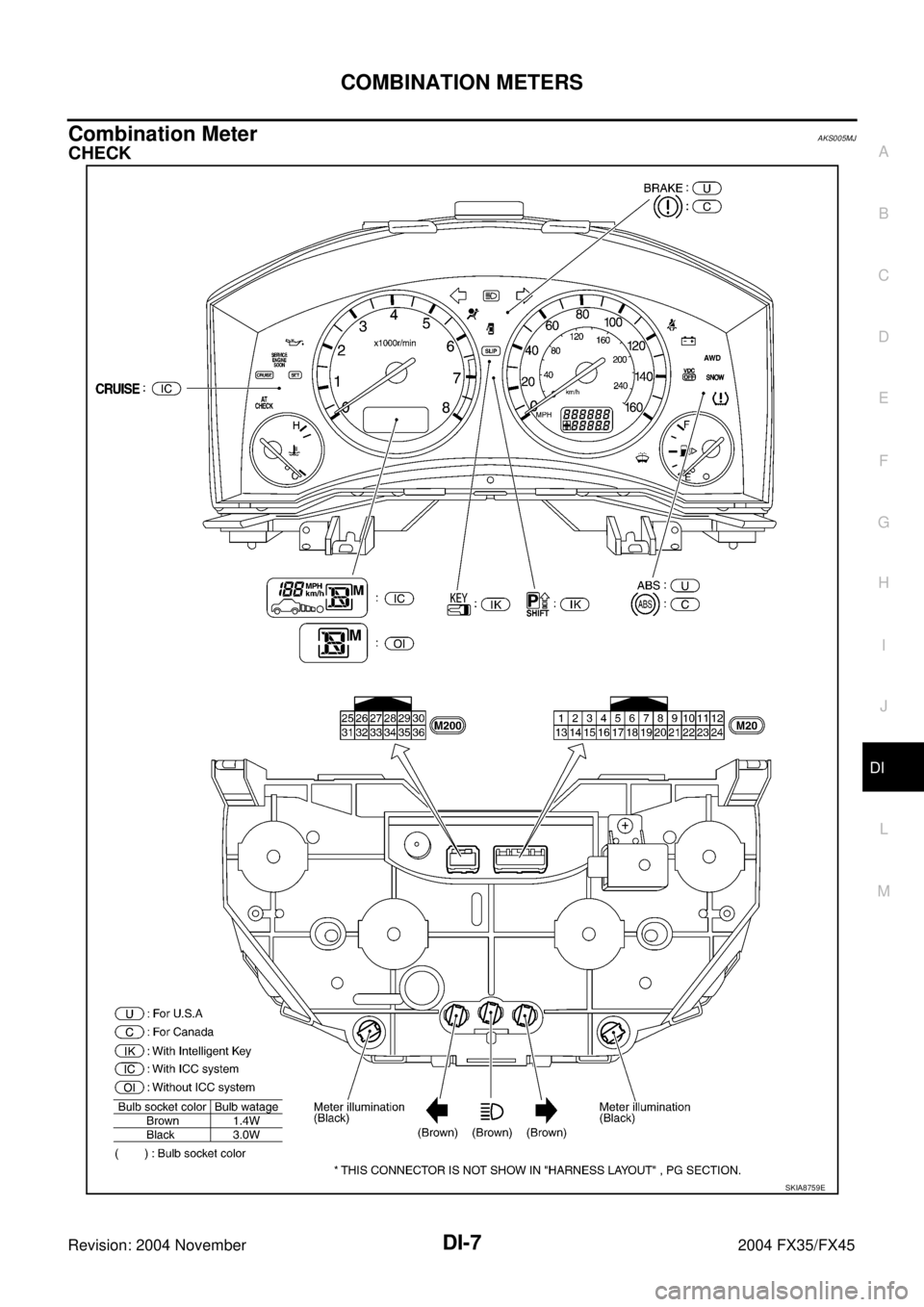

Component Parts and Harness Connector LocationAKS005MI
SKIA4796E
Page 1250 of 4449
COMBINATION METERS
DI-7
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2004 November 2004 FX35/FX45
Combination MeterAKS005MJ
CHECK
SKIA8759E
Page 1251 of 4449
DI-8
COMBINATION METERS
Revision: 2004 November 2004 FX35/FX45

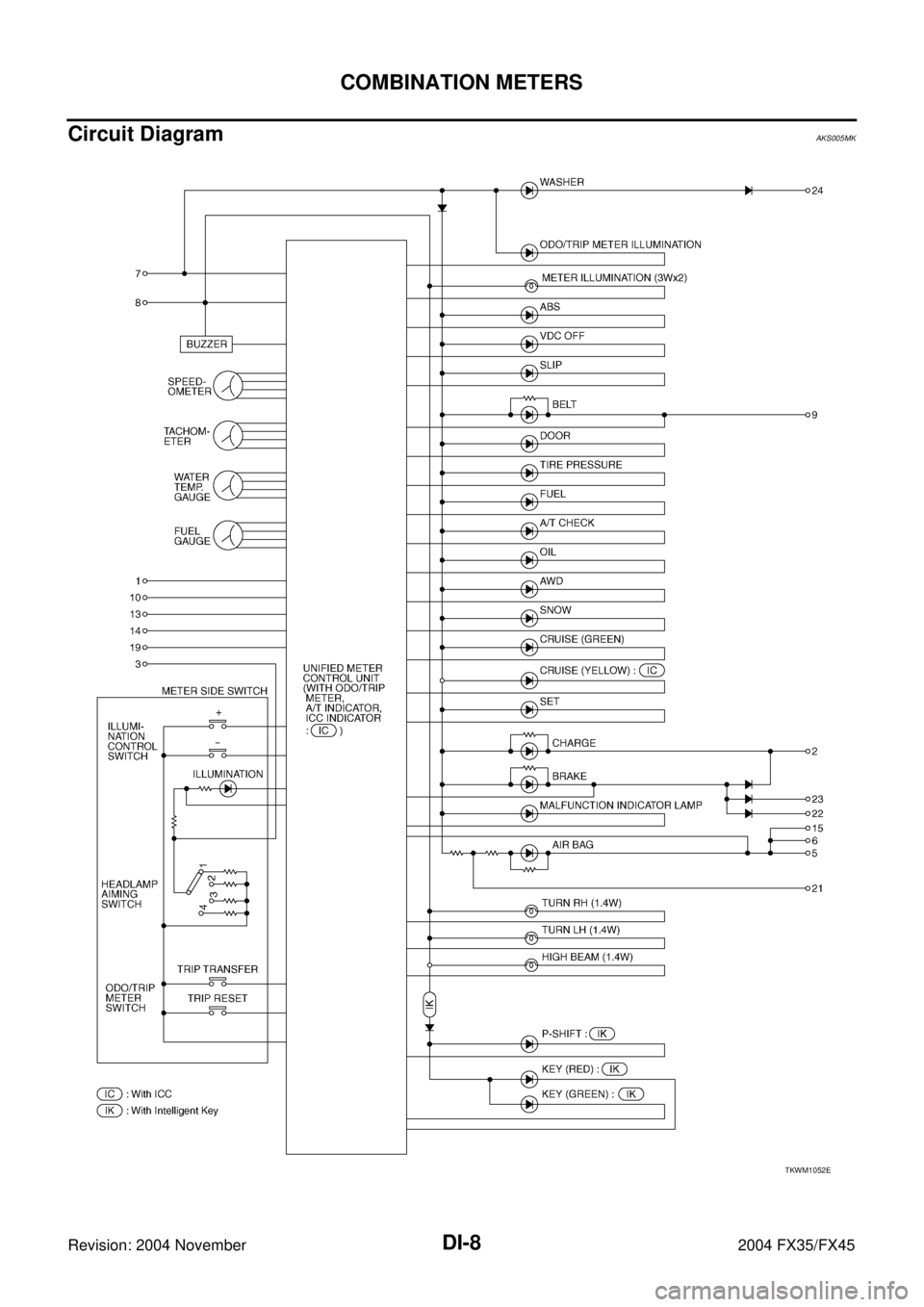

Circuit DiagramAKS005MK
TKWM1052E
Page 1252 of 4449
COMBINATION METERS
DI-9
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2004 November 2004 FX35/FX45

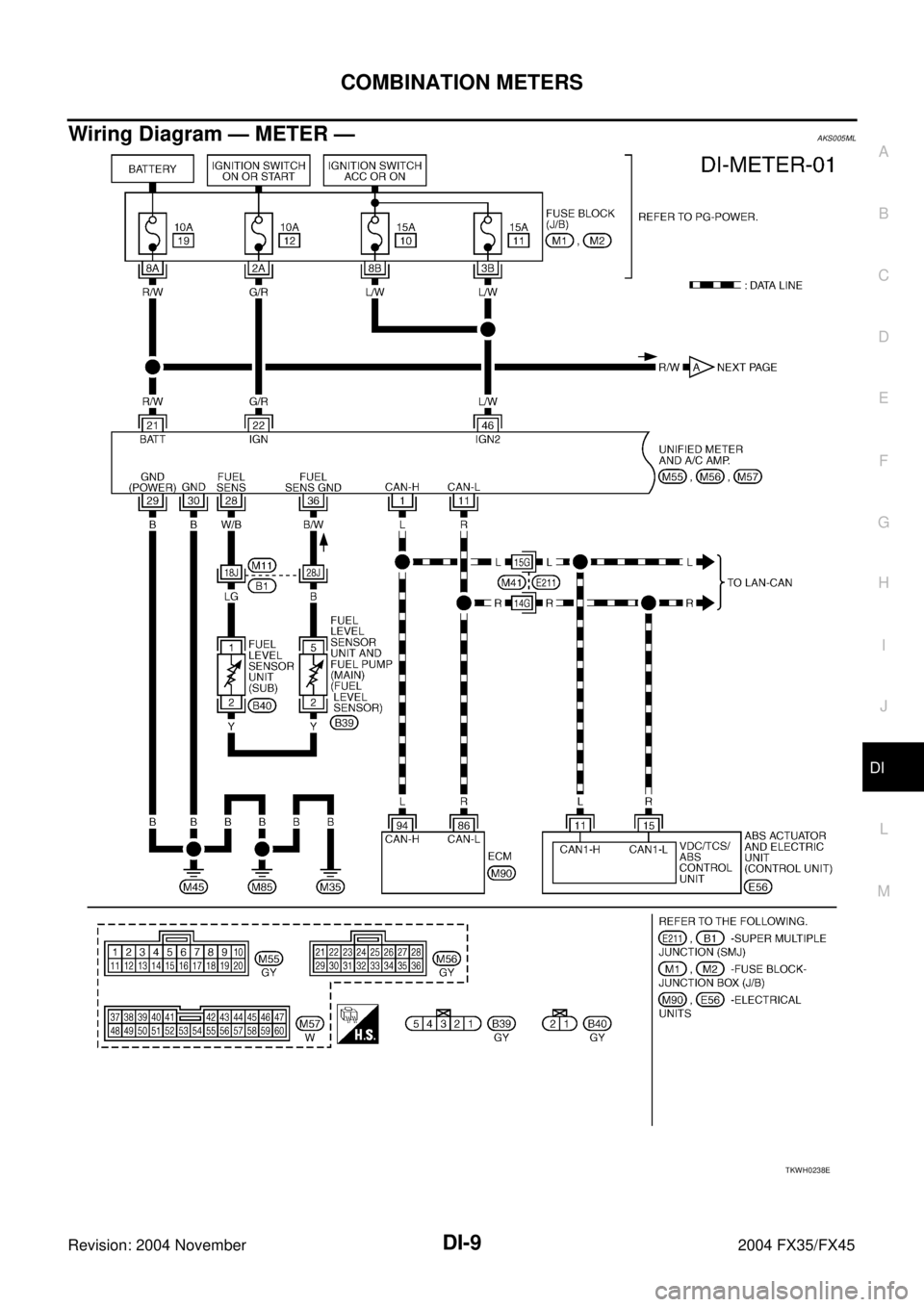

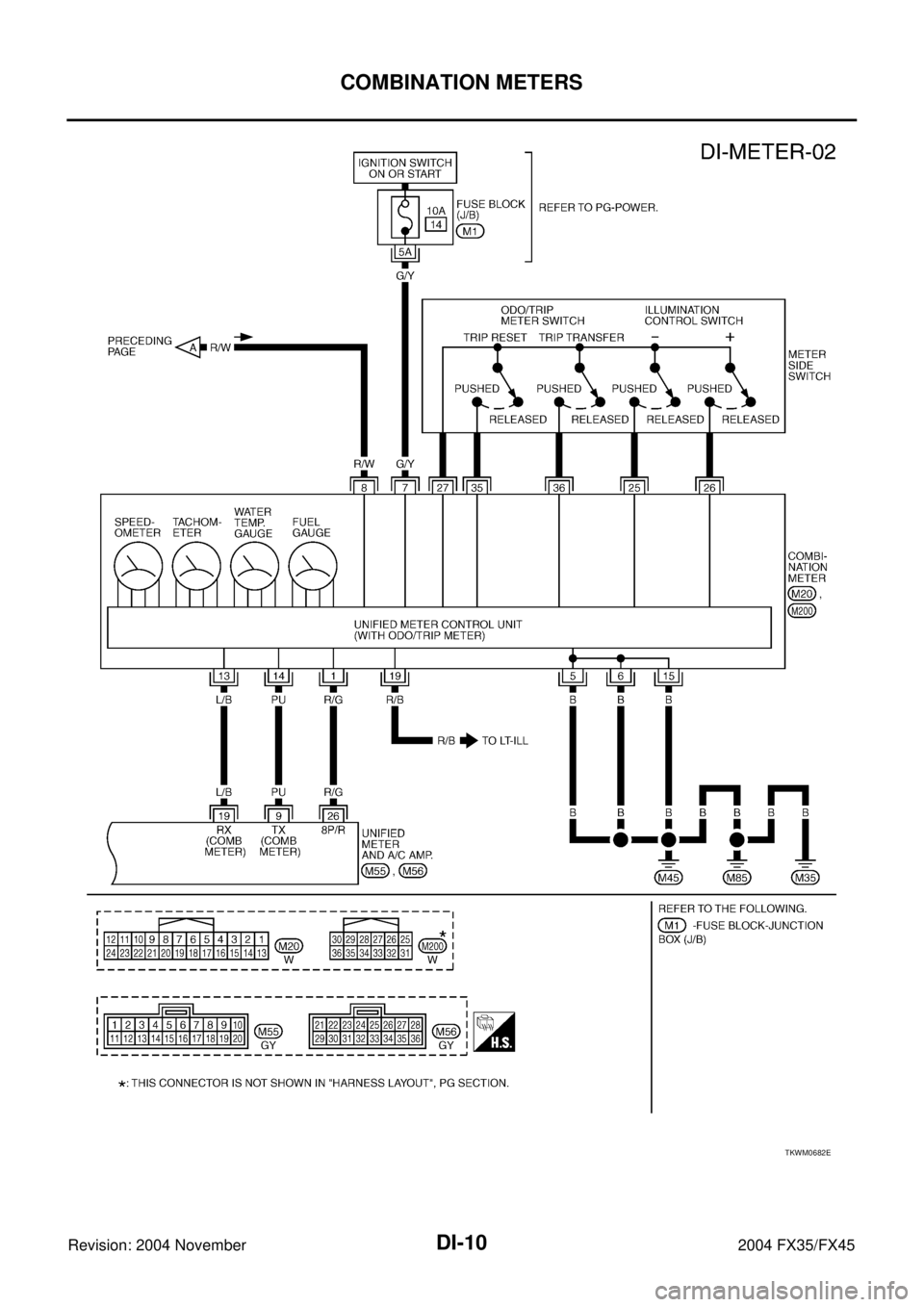

Wiring Diagram — METER —AKS005ML
TKWH0238E
Page 1253 of 4449
DI-10
COMBINATION METERS
Revision: 2004 November 2004 FX35/FX45
TKWM0682E
Page 1254 of 4449

COMBINATION METERS
DI-11
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2004 November 2004 FX35/FX45
Terminals and Reference Value for Combination MeterAKS005MM
Te r m i n a l
No.Wire
colorItemCondition
Reference value
Ignition
switchOperation or condition
1R/GVehicle speed signal
(8-pulse)ONSpeedometer operated
[When vehicle speed is
approx. 40 km/h (25 MPH)]
5 B Ground ON — Approx. 0V
6 B Ground ON — Approx. 0V
7 G/Y Ignition switch ON or START ON — Battery voltage
8 R/W Battery power supply OFF — Battery voltage
13 L/BTX communication line (To
unified meter and A/C amp.)ON —
14 PURX communication line (From
unified meter and A/C amp.)ON —
15 B Ground ON — Approx. 0V
19 R/B Illumination signal ONLighting switch ON, then oper-
ate the illumination control
switch. When brightness level is
midway.
Lighting switch OFF Approx. 0V
25 — Illumination control switch (-) OFFIllumination control switch (-) is
pushed.Approx. 0V
Illumination control switch (-) is
released.Approx. 5V
26 — Illumination control switch (+) OFFIllumination control switch (+)
is pushed.Approx. 0V
Illumination control switch (+)
is released.Approx. 5V
27 —Odo/trip meter and illumina-
tion control switch groundOFF — Approx. 0V
35 — Trip reset switch OFFTrip reset switch is pushed Approx. 0V
Trip reset switch is released Approx. 5V
PKIA1935E
SKIA3361E
SKIA3362E
SKIA8970E
Page 1255 of 4449

DI-12
COMBINATION METERS
Revision: 2004 November 2004 FX35/FX45
Terminals and Reference Value for Unified Meter and A/C Amp.AKS005MN
Meter/Gauge Operation and Odo/Trip MeterAKS005MO
SELF-DIAGNOSIS FUNCTION
Odo/trip meter segment, A/T indicator segment and ICC system display segment operation can be
checked in self-diagnosis mode.
Meters/gauges can be checked in self-diagnosis mode.
HOW TO ALTERNATE DIAGNOSIS MODE
1. Turn ignition switch ON, and switch the odo/trip meter to “trip A” or “trip B”.
NOTE:
If the diagnosis function is activated with the trip meter A displayed, the mileage on the trip meter A will
indicate 0000.0, but the actual trip mileage will be retained. (Trip B operates the same way.)
2. Turn ignition switch OFF.
36 — Trip transfer switch OFFTrip transfer switch is pushed Approx. 0V
Trip transfer switch is released Approx. 5V Terminal
No.Wire
colorItemCondition
Reference value
Ignition
switchOperation or condition
Terminal
No.Wire
colorItemCondition
Reference value
Ignition
switchOperation or condition
1 L CAN H — — —
9PUTX communication line (To
combination meter)ON —
11 R C A N L — — —
19 L/BRX communication line (From
combination meter)ON —
21 R/W Battery power supply OFF — Battery voltage
22 G/R Ignition switch ON or START ON — Battery voltage
26 R/GVehicle speed signal
(8-pulse)ONSpeedometer operated
[When vehicle speed is
approx. 40 km/h (25 MPH)]
28 W/B Fuel level sensor signal — —Refer to DI-25, "
CHECK FUEL
LEVEL SENSOR UNIT" .
29 B Ground (for power) ON — Approx. 0V
30 B Ground ON — Approx. 0V
36 B/W Fuel level sensor ground ON — Approx. 0V
46 L/W Ignition switch ACC or ON ACC — Battery voltage
SKIA3362E
SKIA3361E
PKIA1935E
Page 1256 of 4449

COMBINATION METERS
DI-13
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2004 November 2004 FX35/FX45
3. Turn ignition switch ON while pressing trip transfer switch and
trip reset switch at the same time.
4. After ignition switch is turned ON, release trip transfer switch
and trip reset switch. (With 7 seconds after the ignition switch is
turned ON.)
5. All the segments on the odo/trip meter, A/T indicator and ICC
system display illuminates, and simultaneously the low-fuel
warning lamp indicator illuminates. At this time, the unified meter
control unit is turned to diagnosis mode.
NOTE:
If any of the segments is not displayed, replace combination
meter.
6. Push the odo/trip meter switch. Each meter/gauge should indi-
cate as shown in the figure while pushing odo/trip meter switch.
(At this time, the low-fuel warning lamp goes off.)
CONSULT-II FunctionAKS005MP
Refer to DI-31, "CONSULT-II Function" in “UNIFIED METER AND A/C AMP”.
How to Proceed With Trouble DiagnosisAKS005MQ
1. Confirm the symptom or customer complaint.
2. Perform diagnosis according to diagnosis flow. Refer to DI-13, "
Diagnosis Flow" .
3. According to the symptom chart, repair or replace the cause of the symptom.
4. Does the meter operate normally? If so, go to 5. If not, go to 2.
5. INSPECTION END
Diagnosis FlowAKS005MR
1. CHECK SELF-DIAGNOSTIC RESULTS OF UNIFIED METER AND A/C AMP.
1. Start engine.
2. Select “METER A/C AMP” on CONSULT-II, and perform self-diagnosis of unified meter and A/C amp.
Refer to DI-31, "
CONSULT-II Function" .
3. After erasing the self-diagnostic results, perform self-diagnosis again.
Self-diagnostic results content
No malfunction detected>>GO TO 2.
Malfunction detected>> Go to DI-16, "
Symptom Chart 2" .
SKIA4817E
SKIA6170E
SKIA4831E
