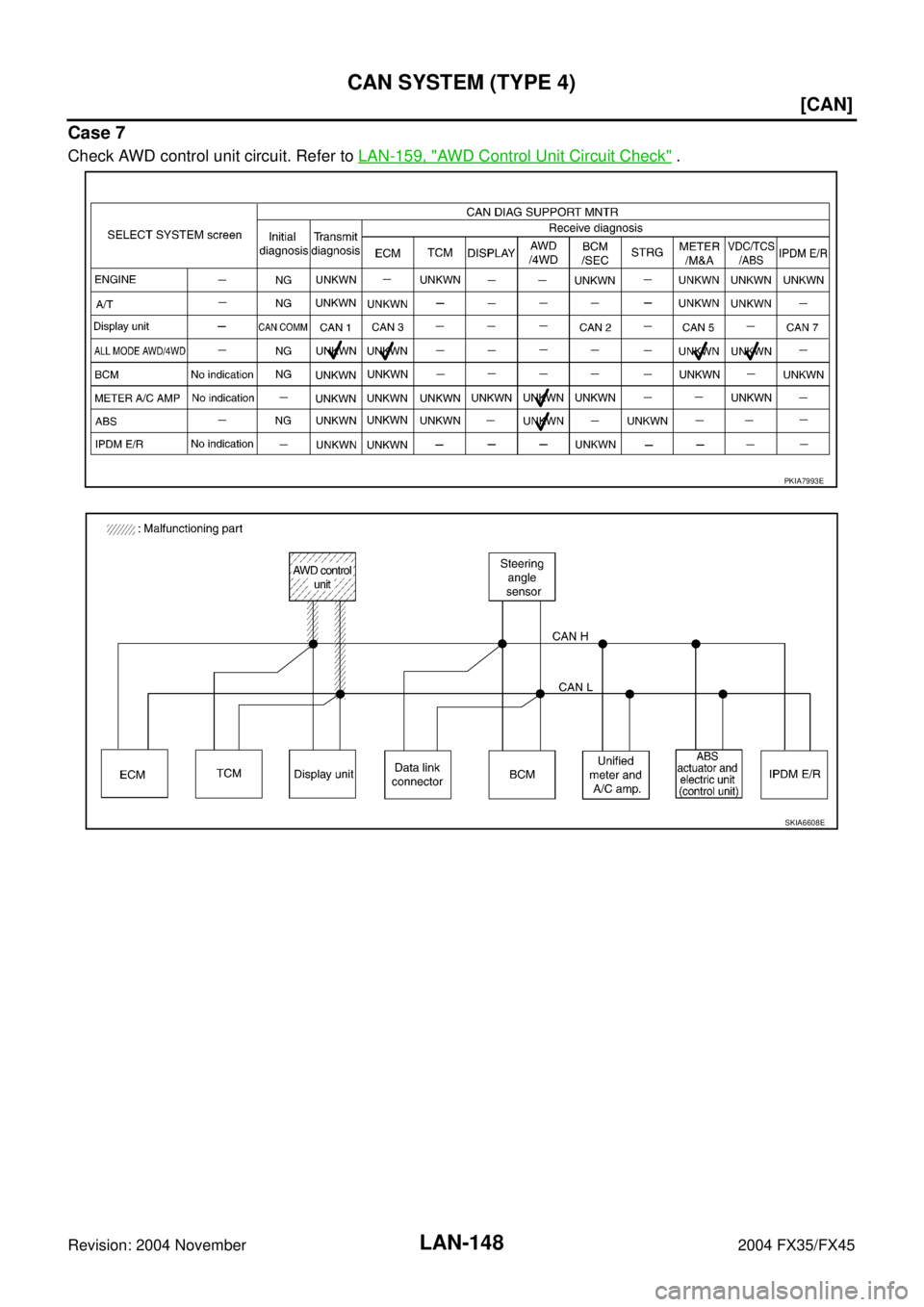

INFINITI FX35 2004 Service Manual LAN-148 [CAN] CAN SYSTEM (TYPE 4) Revision: 2004 November 2004 FX35/FX45 Case 7 Check AWD control unit circuit. Refer to LAN-159, "AWD Control Unit Circuit Check" . PKIA7993E SKIA6608E

Page 3450 of 4449

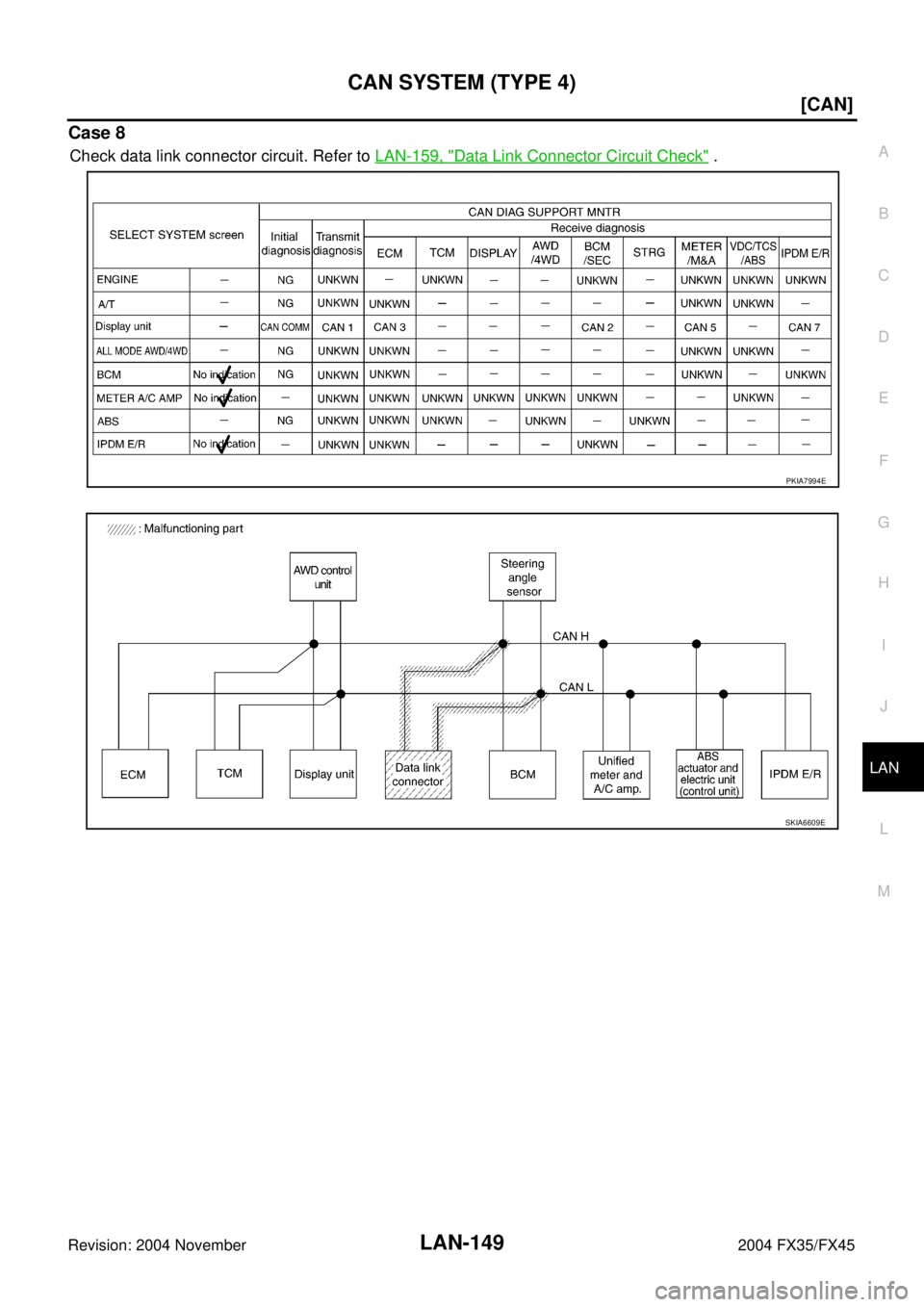

INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 4) LAN-149 [CAN] C D E F G H I J L MA B LAN Revision: 2004 November 2004 FX35/FX45 Case 8 Check data link connector circuit. Refer to LAN-159, "Data Link Connector Circuit Check" . PK

Page 3451 of 4449

INFINITI FX35 2004 Service Manual LAN-150 [CAN] CAN SYSTEM (TYPE 4) Revision: 2004 November 2004 FX35/FX45 Case 9 Check BCM circuit. Refer to LAN-160, "BCM Circuit Check" . PKIA7995E SKIA6610E

Page 3452 of 4449

INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 4) LAN-151 [CAN] C D E F G H I J L MA B LAN Revision: 2004 November 2004 FX35/FX45 Case 10 Check steering angle sensor circuit. Refer to LAN-160, "Steering Angle Sensor Circuit Check"

Page 3453 of 4449

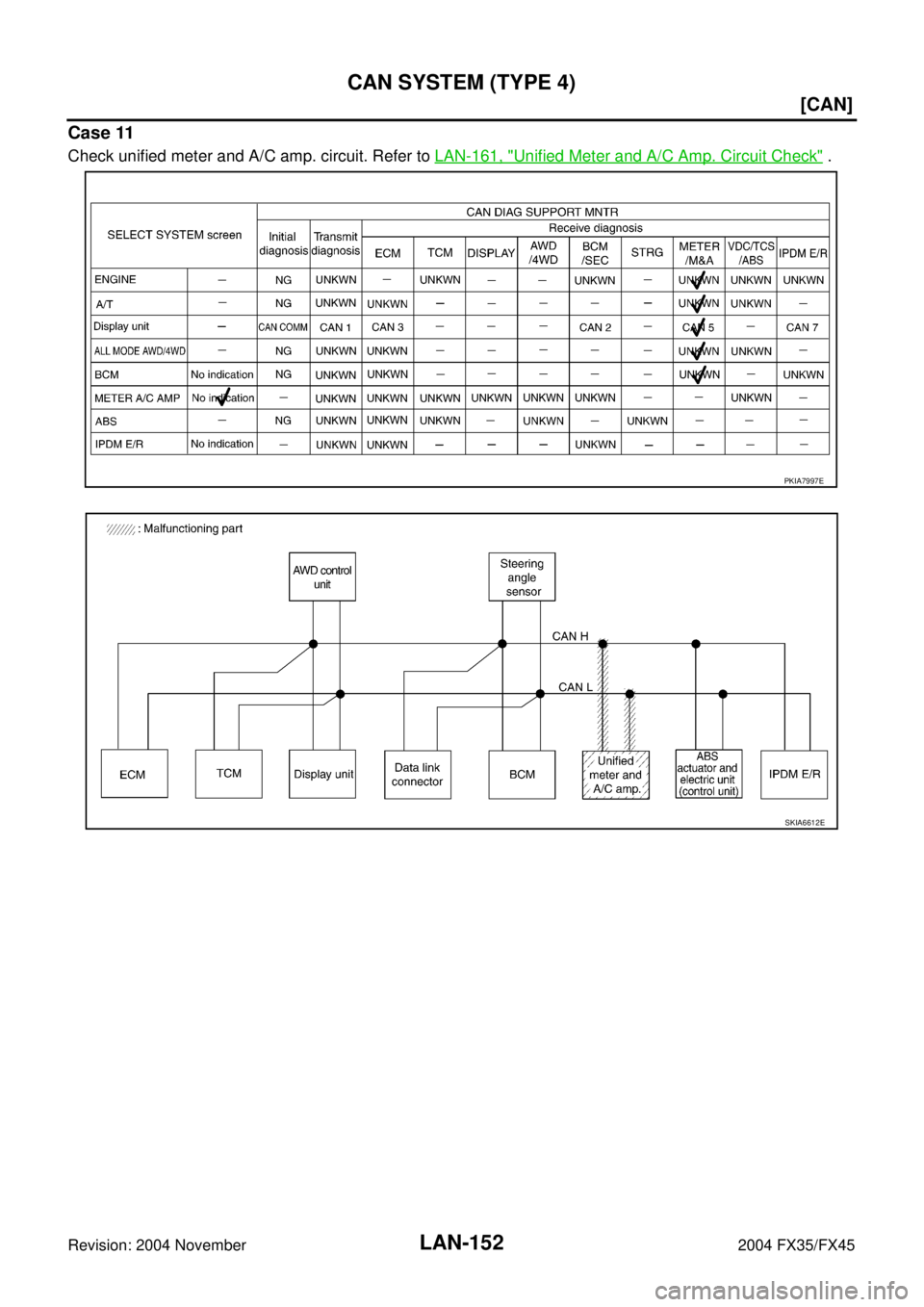

INFINITI FX35 2004 Service Manual LAN-152 [CAN] CAN SYSTEM (TYPE 4) Revision: 2004 November 2004 FX35/FX45 Case 11 Check unified meter and A/C amp. circuit. Refer to LAN-161, "Unified Meter and A/C Amp. Circuit Check" . PKIA7997E SKIA

Page 3454 of 4449

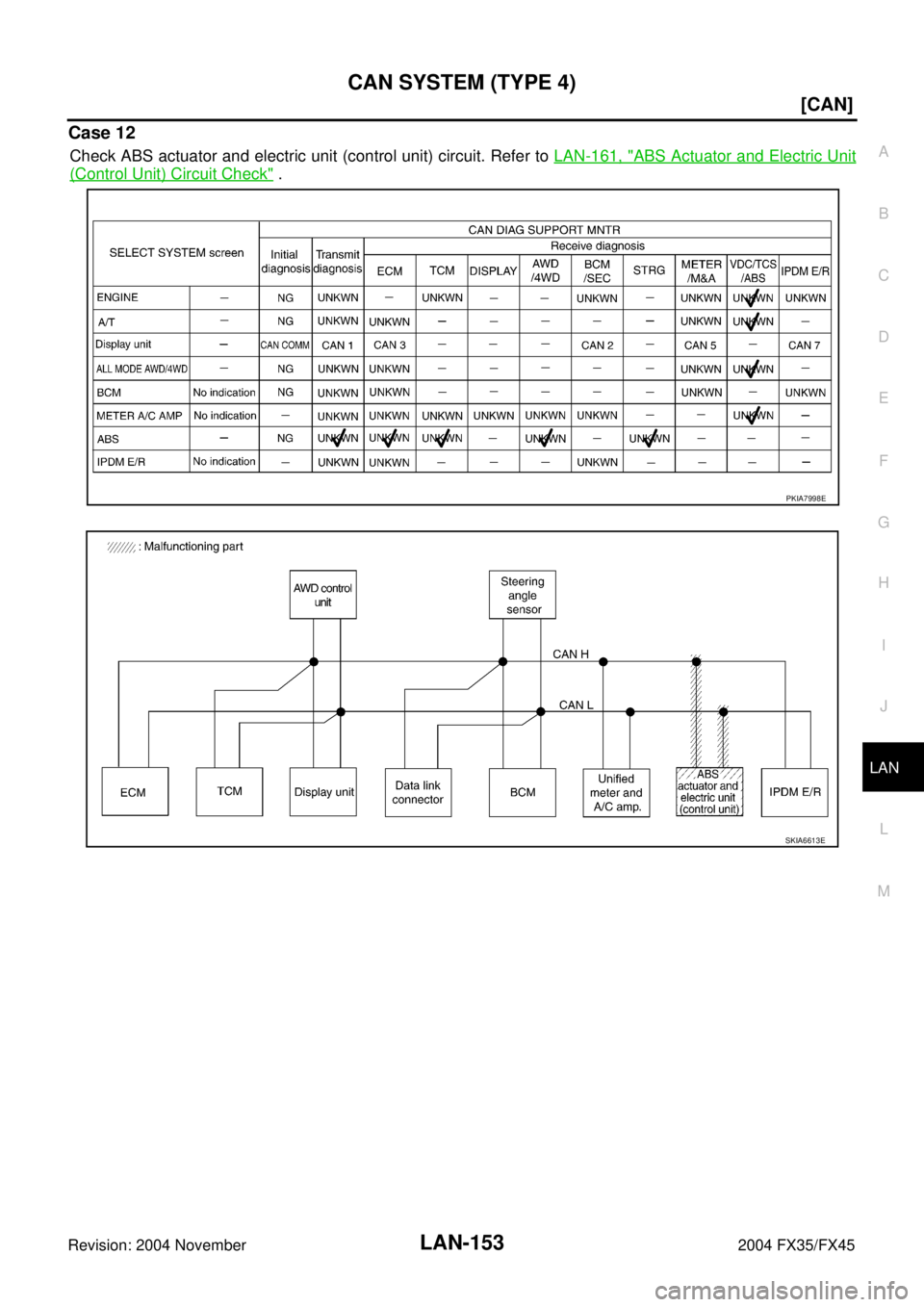

INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 4) LAN-153 [CAN] C D E F G H I J L MA B LAN Revision: 2004 November 2004 FX35/FX45 Case 12 Check ABS actuator and electric unit (control unit) circuit. Refer to LAN-161, "ABS Actuator

Page 3455 of 4449

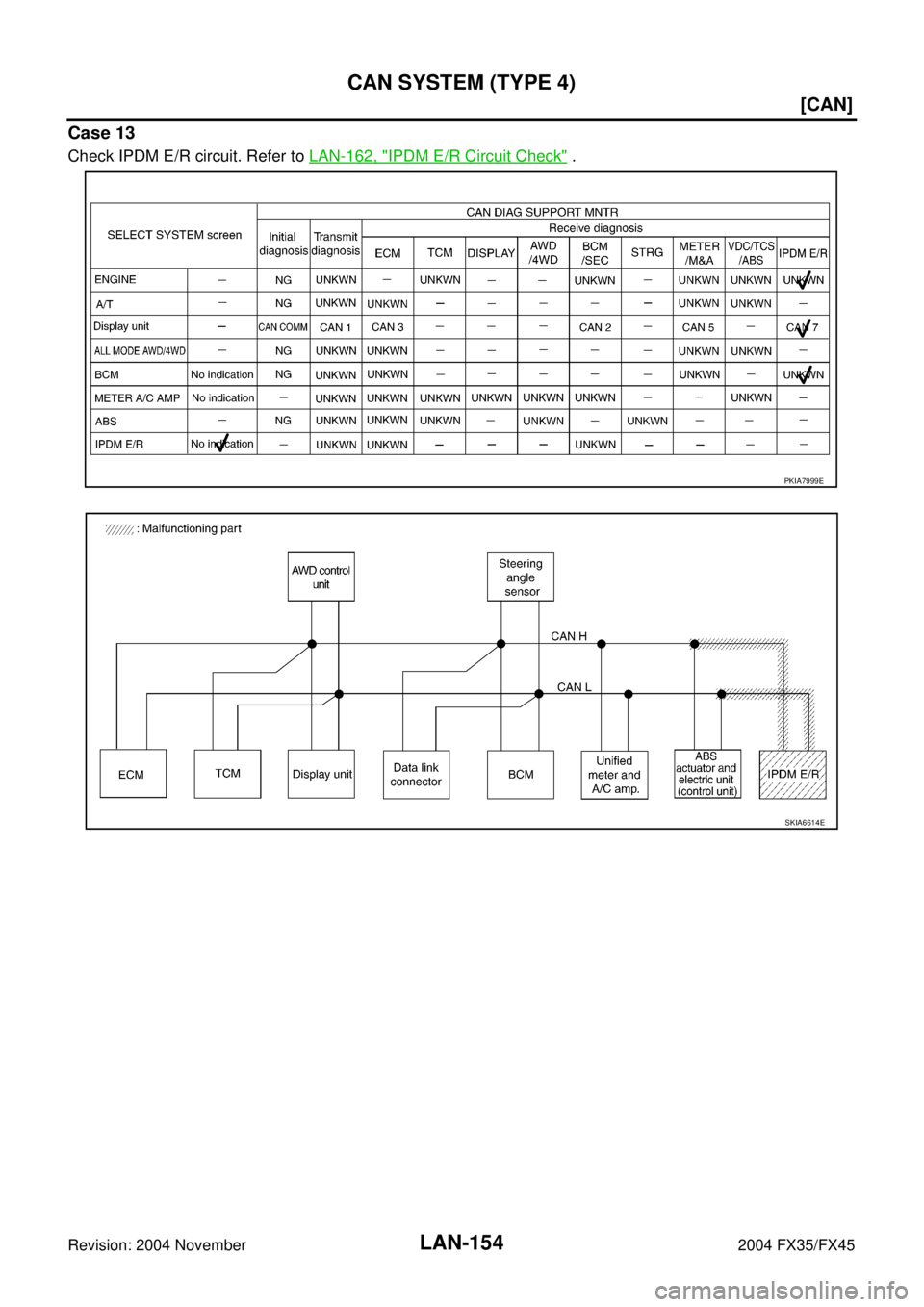

INFINITI FX35 2004 Service Manual LAN-154 [CAN] CAN SYSTEM (TYPE 4) Revision: 2004 November 2004 FX35/FX45 Case 13 Check IPDM E/R circuit. Refer to LAN-162, "IPDM E/R Circuit Check" . PKIA7999E SKIA6614E

Page 3456 of 4449

INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 4) LAN-155 [CAN] C D E F G H I J L MA B LAN Revision: 2004 November 2004 FX35/FX45 Case 14 Check CAN communication circuit. Refer to LAN-163, "CAN Communication Circuit Check" . Case
