Page 4385 of 4449

WT-28
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: 2004 November 2004 FX35/FX45
Inspection 3: Warning Lamp Blinks When Ignition Switch Is Turned On.AES000O7
NOTE:
If warning lamp blink below, the system is normal.
Blink Mode A
This mode shows transmitter status is OFF-mode.
Carry out transmitter wake up operation. Refer to WT-16,
"Transmitter Wake Up Operation" .
DIAGNOSTIC PROCEDURE
1. CHECK CONNECTOR
1. Disconnect low tire pressure warning control unit connectors M74 and R102.
2. Check terminals for damage or loose connections.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace damaged parts.
2. CHECK TIRE PRESSURE WARNING CHECK CONNECTOR CIRCUIT
1. Disconnect low tire pressure warning control unit connector M74.
2. Check continuity between low tire pressure warning control unit harness connector M74 terminal 8 (G)
and ground.
OK or NG
OK >> Replace low tire pressure warning control unit.
NG >> Repair or replace harness connector.
SEIA0347E
Te r m i n a l s
Continuity
(+) (–)
ConnectorTe r m i n a l
(Wire color)
Ground No
M74 8 (G)
SEIA0344E
Page 4386 of 4449
TROUBLE DIAGNOSIS FOR SYMPTOMS
WT-29
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: 2004 November 2004 FX35/FX45
Inspection 4: Hazard Warning Lamp Blinks When Ignition Switch Is Turned On.AES000O8
DIAGNOSTIC PROCEDURE
1. CHECK GROUND CIRCUIT
1. Disconnect low tire pressure waning control unit connector M74.
2. Check continuity between low tire pressure warning control unit harness connector M74 terminal 20 (B)
and ground.
OK or NG
OK >> Replace low tire pressure warning control unit.
NG >> Repair or replace low tire pressure warning control unit
ground circuit.Te r m i n a l s
Continuity
(+) (–)
ConnectorTe r m i n a l
(Wire color)
Ground Yes
M74 20 (B)
SEIA0343E
Page 4387 of 4449

WT-30
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: 2004 November 2004 FX35/FX45
Inspection 5: “TIRE PRESSURE” Information In Display Unit Does Not Exist.AES000O9
DIAGNOSTIC PROCEDURE
1. SELF-DIAGNOSTIC RESULT CHECK
1. Connect CONSULT-II and CONSULT-II CONVERTER to data link connector.
NOTE:
If “AIR PRESSURE MONITOR” is not indicated, go to GI-40, "
CONSULT-II Data Link Connector (DLC)
Circuit" .
2. Select “AIR PRESSURE MONITOR” on “SELECT SYSTEM” screen.
3. Select “SELF-DIAG RESULTS” on “SELECT DIAG MODE” screen.
4. Check display contents in self-diagnostic results.
Is
“CAN COMM CIRCUIT” displayed in the self-diagnosis display items?
YES >> Malfunction in CAN communication system. GO TO LAN-4, "Precautions When Using CONSULT-
II" .
NO >> GO TO 2.
2. CHECK DISPLAY CONTROL UNIT
Perform display control unit self-diagnosis. Refer to AV- 1 3 1 , "Self-Diagnosis Mode (DCU)" .
OK or NG
OK >> Replace low tire pressure warning control unit.
NG >> Repair or replace malfunctioning parts.
Inspection 6: ID Registration Cannot Be Completed.AES000OA
DIAGNOSTIC PROCEDURE
1. ID REGISTRATION (ALL)
Carry out ID registration of all transmitters.
Can ID registration of all transmitters be completed?
YES or NO
YES >> INSPECTION END.
NO >> GO TO WT-22, "
Inspection 1: Transmitter or Low Tire Pressure Warning Control Unit" .
Page 4388 of 4449
REMOVAL AND INSTALLATION
WT-31
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: 2004 November 2004 FX35/FX45

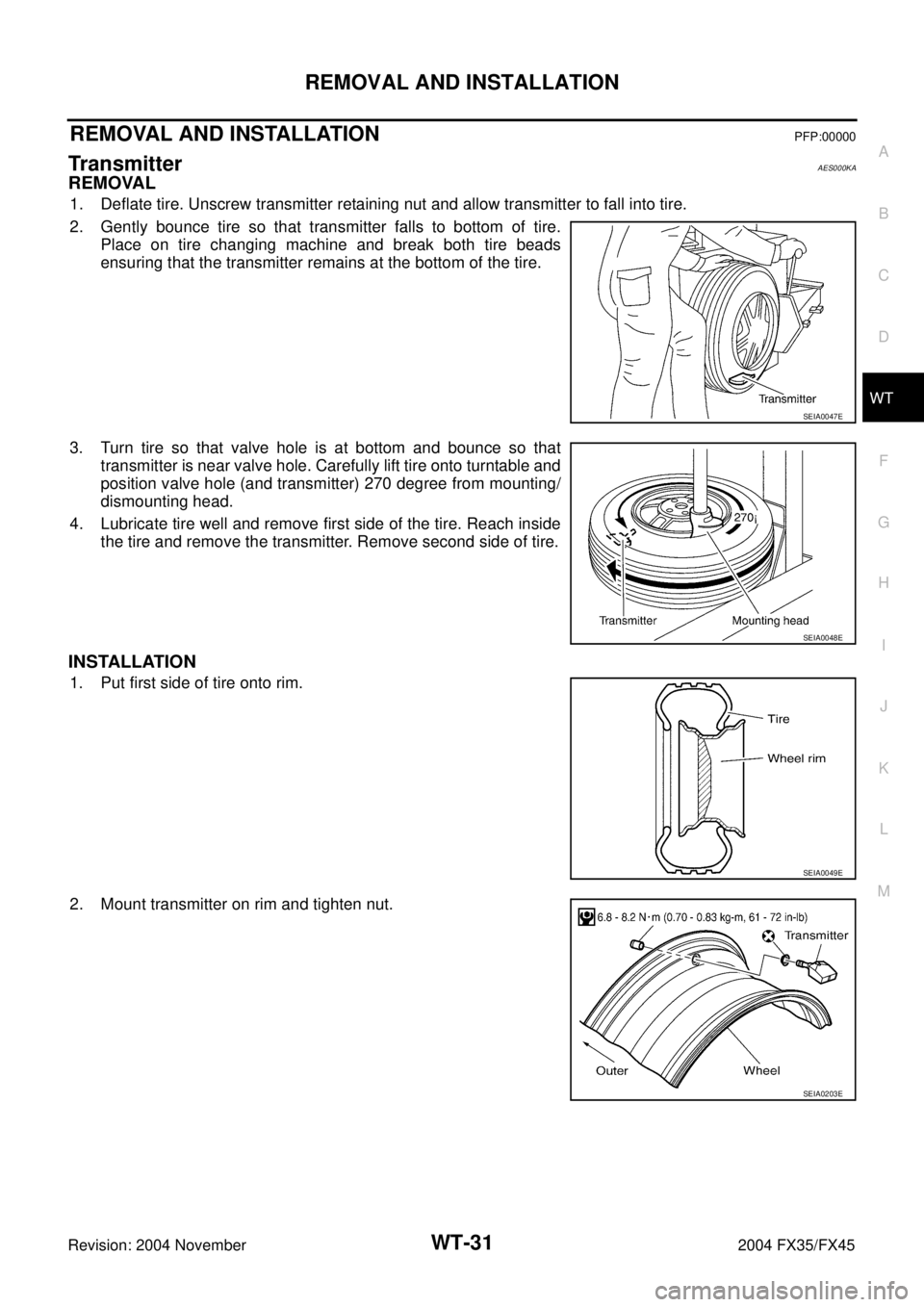

REMOVAL AND INSTALLATIONPFP:00000
TransmitterAES000KA
REMOVAL
1. Deflate tire. Unscrew transmitter retaining nut and allow transmitter to fall into tire.
2. Gently bounce tire so that transmitter falls to bottom of tire.
Place on tire changing machine and break both tire beads
ensuring that the transmitter remains at the bottom of the tire.
3. Turn tire so that valve hole is at bottom and bounce so that
transmitter is near valve hole. Carefully lift tire onto turntable and
position valve hole (and transmitter) 270 degree from mounting/
dismounting head.
4. Lubricate tire well and remove first side of the tire. Reach inside
the tire and remove the transmitter. Remove second side of tire.
INSTALLATION
1. Put first side of tire onto rim.
2. Mount transmitter on rim and tighten nut.
SEIA0047E
SEIA0048E
SEIA0049E
SEIA0203E
Page 4389 of 4449
WT-32
REMOVAL AND INSTALLATION
Revision: 2004 November 2004 FX35/FX45
3. Place wheel on turntable of tire machine. Ensure that transmitter
is 270 degree from mounting head when second side of tire is
fitted.
NOTE:
Do not touch transmitter at mounting head.
4. Lubricate tire well and fit second side of tire as normal. Ensure that tire does not rotate relative to rim.
5. Inflate tire and fit to appropriate wheel position.
SEIA0048E
Page 4390 of 4449
SERVICE DATA
WT-33
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: 2004 November 2004 FX35/FX45
SERVICE DATAPFP:00030
Road WheelAES000KB
TireAES000KC
Unit: kPa (kg/cm2 , psi)
Tightening TorqueAES000KD
Kind of wheel Aluminum Steel (for emergency
use)
Deflection limitLateral deflection Less than 0.3 mm
(0.012 in)Less than 1.0 mm
(0.039 in)
Vertical deflection Less than 0.3 mm
(0.012 in)Less than 1.2 mm
(0.047 in)
Allowable quantity of
residual unbalanceDynamic
(At rim flange)Less than 7.5 g (0.26 oz)
(per side)—
Static (At rim flange) Less than 20 g (0.70 oz) —
Tire sizeAir pressure
Front wheel Rear wheel
P265/60R18 109V 220 (2.2, 32) 220 (2.2, 32)
P265/50R20 106V 220 (2.2, 32) 220 (2.2, 32)
T175/90D18 110M 420 (4.2, 60) 420 (4.2, 60)
Wheel nut 108 N·m (11 kg-m, 80 ft-lb)
Page 4391 of 4449
WT-34
SERVICE DATA
Revision: 2004 November 2004 FX35/FX45
Page 4392 of 4449

WW-1
WIPER, WASHER & HORN
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION WW
A
B
WW
Revision: 2004 November 2004 FX35/FX45
WIPER, WASHER & HORN
PRECAUTION ............................................................ 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 3
Wiring Diagrams and Trouble Diagnosis .................. 3
FRONT WIPER AND WASHER SYSTEM .................. 4
Components Parts and Harness Connector Loca-
tion ........................................................................... 4
System Description .................................................. 4
LOW SPEED WIPER OPERATION ...................... 5
HI SPEED WIPER OPERATION ........................... 5
INTERMITTENT OPERATION .............................. 5
AUTO STOP OPERATION .................................... 6
WASHER OPERATION ......................................... 6
MIST OPERATION ................................................ 6
FAIL-SAFE FUNCTION ......................................... 7
COMBINATION SWITCH READING FUNCTION ..... 7
CAN Communication System Description ................ 9
CAN Communication Unit ........................................ 9
Schematic .............................................................. 10
Wiring Diagram — WIPER — ................................. 11
Terminals and Reference Values for BCM ............. 14
Terminals and Reference Values for IPDM E/R ..... 15
How to Proceed With Trouble Diagnosis ................ 15
Preliminary Check .................................................. 16
CHECK POWER SUPPLY AND GROUND CIR-
CUIT .................................................................... 16
CONSULT-II Functions (BCM) ............................... 17
CONSULT-II OPERATION .................................. 17
DATA MONITOR ................................................. 18
ACTIVE TEST ..................................................... 19
CONSULT-II Functions (IPDM E/R) ....................... 19
CONSULT-II OPERATION .................................. 19
SELF-DIAGNOSTIC RESULTS .......................... 20
DATA MONITOR ................................................. 20
ACTIVE TEST ..................................................... 21
Front Wiper Does Not Operate .............................. 21
Front Wiper Does Not Return to Stop Position ....... 24
Only Front Wiper LO Does Not Operate ................ 24Only Front Wiper HI Does Not Operate .................. 25
Only Front Wiper INT Does Not Operate ................ 25
Front Wiper Interval Time Is Not Controlled by Vehi-
cle Speed ................................................................ 26
Front Wiper Intermittent Operation Switch Position
Cannot Be Adjusted ................................................ 26
Wipers Do Not Wipe When Front Washer Operates ... 26
After Front Wipers Operate for 10 Seconds, They
Stop for 20 Seconds, and after repeating the oper-
ations five times, they become inoperative ............. 27
Front Wipers Do Not Stop ....................................... 28
Removal and Installation of Front Wiper Arms,
Adjustment of Wiper Arms Stop Location ............... 28
REMOVAL ........................................................... 28
INSTALLATION ................................................... 28
ADJUSTMENT .................................................... 29
Removal and Installation of Front Wiper Motor and
Linkage ................................................................... 29
REMOVAL ........................................................... 29
INSTALLATION ................................................... 29
Disassembly and Assembly of Front Wiper Motor
and Linkage ............................................................ 30
DISASSEMBLY ................................................... 30
ASSEMBLY ......................................................... 30
Washer Nozzle Adjustment .................................... 30
Washer Tube Layout .............................................. 32
Removal and Installation of Front Washer Nozzle ... 32
Removal and Installation of Front Washer Tube
Joint ........................................................................ 32
REMOVAL ........................................................... 32
INSTALLATION ................................................... 32
Check Valve Inspection .......................................... 32
Removal and Installation of Front Wiper and Washer
Switch ..................................................................... 33
REMOVAL ........................................................... 33
INSTALLATION ................................................... 33
Removal and Installation of Washer Tank .............. 33
REMOVAL ........................................................... 33
