LU-16
[VQ35DE]
OIL COOLER
Revision: 2004 November 2004 FX35/FX45
INSTALLATION
Note to the following, and install in the reverse order of removal.
2WD Model
Align cutout on oil cooler with protrusion on oil pan (upper).
AW D M od e l
Align cutout on oil cooler with protrusion on oil filter bracket.
INSPECTION AFTER INSTALLATION
1. Check the engine oil level and the engine coolant level and add engine oil and engine coolant. Refer to
LU-7, "
ENGINE OIL" and Refer to CO-11, "ENGINE COOLANT" .
2. Start engine, and check there is no leaks of engine oil or engine coolant.
3. Stop engine and wait for 10 minutes.
4. Check the engine oil level and the engine coolant level again. Refer to LU-7, "
ENGINE OIL" and Refer to
CO-11, "
ENGINE COOLANT" .
SBIA0459E
SBIA0460E
Page 3770 of 4449
![INFINITI FX35 2004 Service Manual OIL PUMP
LU-17
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: 2004 November 2004 FX35/FX45
OIL PUMPPFP:15010
Removal and InstallationABS004SY
CAUTION:
Before installation, apply new engine oil to the pa INFINITI FX35 2004 Service Manual OIL PUMP
LU-17
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: 2004 November 2004 FX35/FX45
OIL PUMPPFP:15010
Removal and InstallationABS004SY
CAUTION:
Before installation, apply new engine oil to the pa](/manual-img/42/57021/w960_57021-3769.png)
OIL PUMP
LU-17
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: 2004 November 2004 FX35/FX45
OIL PUMPPFP:15010
Removal and InstallationABS004SY
CAUTION:
Before installation, apply new engine oil to the parts as instructed in the figure.
REMOVAL
1. Remove oil pan (lower and upper) and oil strainer. Refer to EM-30, "OIL PAN AND OIL STRAINER" .
2. Remove front timing chain case and timing chain (primary). Refer to EM-63, "
TIMING CHAIN" .
3. Remove oil pump assembly.
INSTALLATION
Note to the following, and install in the reverse order of removal.
When installing, align crankshaft flat faces with oil pump inner rotor flat faces.
INSPECTION AFTER INSTALLATION
1. After warming up engine, check for engine oil leakage.
2. Check the engine oil level and add engine oil. Refer to LU-7, "
ENGINE OIL" .
Disassembly and AssemblyABS004SZ
DISASSEMBLY
1. Remove oil pump cover.
2. Remove oil pump inner rotor and oil pump outer rotor from oil pump body.
3. After removing regulator valve plug, remove regulator valve spring and regulator valve.
1. Oil pump body 2. Oil pump outer rotor 3. Oil pump inner rotor
4. Oil pump cover 5. Regulator valve plug 6. Regulator valve spring
7. Regulator valve
SBIA0481E
Page 3771 of 4449
![INFINITI FX35 2004 Service Manual LU-18
[VQ35DE]
OIL PUMP
Revision: 2004 November 2004 FX35/FX45
INSPECTION AFTER DISASSEMBLY
Oil Pump Clearance
Measure clearance with feeler gauge.
Clearance between oil pump outer rotor and oil pump INFINITI FX35 2004 Service Manual LU-18
[VQ35DE]
OIL PUMP
Revision: 2004 November 2004 FX35/FX45
INSPECTION AFTER DISASSEMBLY
Oil Pump Clearance
Measure clearance with feeler gauge.
Clearance between oil pump outer rotor and oil pump](/manual-img/42/57021/w960_57021-3770.png)
LU-18
[VQ35DE]
OIL PUMP
Revision: 2004 November 2004 FX35/FX45
INSPECTION AFTER DISASSEMBLY
Oil Pump Clearance
Measure clearance with feeler gauge.
Clearance between oil pump outer rotor and oil pump body
(position “1”)
Tip clearance between oil pump inner rotor and oil pump outer
rotor (position “2”)
Measure clearance with feeler gauge and straightedge.
Side clearance between oil pump inner rotor and oil pump body
(position “3”)
Side clearance between oil pump outer rotor and oil pump body
(position “4”)
Calculate the clearance between oil pump inner rotor and oil pump
body as follows.
Measure the inner diameter of oil pump body with inside
micrometer (Position “5”)
Measure the outer diameter of protruded portion of oil pump
inner rotor (Position “6”)
(Clearance) = (Inner diameter of oil pump body) – (Outer diame-
ter of oil pump inner rotor)
Regulator Valve Clearance
(Clearance) = (Regulator valve hole diameter) – (Outer diameter of
regulator valve)
CAUTION:
Coat regulator valve with new engine oil.
Make sure it falls smoothly into the regulator valve hole by
its own weight.Standard : 0.114 - 0.260 mm (0.0045 - 0.0102 in)
Standard : Below 0.180 mm (0.0071in)
SLC932A
Standard : 0.030 - 0.070 mm (0.0012 - 0.0028 in)
Standard : 0.050 - 0.110 mm (0.0020 - 0.0043 in)
SLC933A
Standard : 0.045 - 0.091 mm (0.0018 - 0.0036 in)
SBIA0461E
Standard : 0.040 - 0.097 mm (0.0016 - 0.0038 in)
PBIC0822E
Page 3772 of 4449
OIL PUMP
LU-19
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: 2004 November 2004 FX35/FX45
ASSEMBLY
Note to the following, and install in the reverse order of removal.
Install oil pump inner rotor with the groove faced to the oil pump
cover side.
PBIC0832E
Page 3773 of 4449
![INFINITI FX35 2004 Service Manual LU-20
[VQ35DE]
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2004 November 2004 FX35/FX45
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Standard and LimitABS004T0
ENGINE OIL PRESSURE
OIL PUMP
Unit: INFINITI FX35 2004 Service Manual LU-20
[VQ35DE]
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2004 November 2004 FX35/FX45
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Standard and LimitABS004T0
ENGINE OIL PRESSURE
OIL PUMP
Unit:](/manual-img/42/57021/w960_57021-3772.png)
LU-20
[VQ35DE]
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2004 November 2004 FX35/FX45
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Standard and LimitABS004T0
ENGINE OIL PRESSURE
OIL PUMP
Unit: mm (in)
REGULATOR VALVE
Unit: mm (in)
ENGINE OIL CAPACITY (APPROXIMATE)
Unit: (US qt, lmp qt) Engine speed (rpm)
Approximate discharge pressure [kPa (kg/cm
2 , psi)]
Idle speed More than 98 (1.0, 14)
2,000 More than 294 (3.0, 43)
Oil pump body to oil pump outer rotor radial clearance 0.114 - 0.260 (0.0045 - 0.0102)
Oil pump inner rotor to oil pump outer rotor tip clearance Below 0.180 (0.0071)
Oil pump body to oil pump inner rotor axial clearance 0.030 - 0.070 (0.0012 - 0.0028)
Oil pump body to oil pump outer rotor axial clearance 0.050 - 0.110 (0.0020 - 0.0043)
Oil pump inner rotor to brazed portion of housing clearance 0.045 - 0.091 (0.0018 - 0.0036)
Regulator valve to oil pump cover clearance 0.040 - 0.097 (0.0016 - 0.0038)
Drain and refill With oil filter change 4.7 (5, 4-1/8)
Without oil filter change 4.4 (4-5/8, 3-7/8)
Dry engine (Overhaul)5.4 (5-3/4, 4-3/4)
Page 3774 of 4449
![INFINITI FX35 2004 Service Manual PRECAUTIONS
LU-21
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: 2004 November 2004 FX35/FX45
[VK45DE]PRECAUTIONSPFP:00001
Precautions for Liquid GasketABS006IZ
LIQUID GASKET APPLICATION PROCEDURE
1. Re INFINITI FX35 2004 Service Manual PRECAUTIONS
LU-21
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: 2004 November 2004 FX35/FX45
[VK45DE]PRECAUTIONSPFP:00001
Precautions for Liquid GasketABS006IZ
LIQUID GASKET APPLICATION PROCEDURE
1. Re](/manual-img/42/57021/w960_57021-3773.png)
PRECAUTIONS
LU-21
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: 2004 November 2004 FX35/FX45
[VK45DE]PRECAUTIONSPFP:00001
Precautions for Liquid GasketABS006IZ
LIQUID GASKET APPLICATION PROCEDURE
1. Remove old liquid gasket adhering to the liquid gasket application surface and the mating surface.
Remove liquid gasket completely from the liquid gasket application surface, mounting bolts, and bolt
holes.
2. Wipe the liquid gasket application surface and the mating surface with white gasoline (lighting and heating
use) to remove adhering moisture, grease and foreign materials.
3. Attach liquid gasket tube to tube presser [SST: WS39930000
(—)].
Use Genuine RTV Silicone Sealant or equivalent. Refer to
GI-48, "
RECOMMENDED CHEMICAL PRODUCTS AND
SEALANTS" .
Within five minutes of liquid gasket application, install the mat-
ing component.
If liquid gasket protrudes, wipe it off immediately.
Do not retighten mounting bolts or nuts after the installation.
After 30 minutes or more have passed from the installation, fill
engine oil and engine coolant.EMA0622D
Page 3775 of 4449
LU-22
[VK45DE]
PREPARATION
Revision: 2004 November 2004 FX35/FX45
PREPARATIONPFP:00002
Special Service ToolsABS006J0
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
Commercial Service ToolsABS006J1
Tool number
(Kent-Moore No.)
Tool nameDescription
ST25051001
(J25695-1)
Oil pressure gaugeMeasuring oil pressure
Maximum measuring range:
2,452 kPa (25 kg/cm
2 , 356 psi)
ST25052000
(J25695-2)
HoseAdapting oil pressure gauge to cylinder block
KV10115801
(J38956)
Oil filter wrenchRemoving and installing oil filter
a: 64.3 (2.531 in)
WS39930000
(—)
Tube presserPressing the tube of liquid gasket
S-NT050
S-NT559
S-NT375
S-NT052
Tool nameDescription
Power toolLoosening bolts and nuts
Deep socketRemoving and installing oil pressure switch
a: 24 mm (0.94 in)
PBIC0190E
PBIC2072E
Page 3776 of 4449
LUBRICATION SYSTEM
LU-23
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: 2004 November 2004 FX35/FX45
LUBRICATION SYSTEMPFP:15010

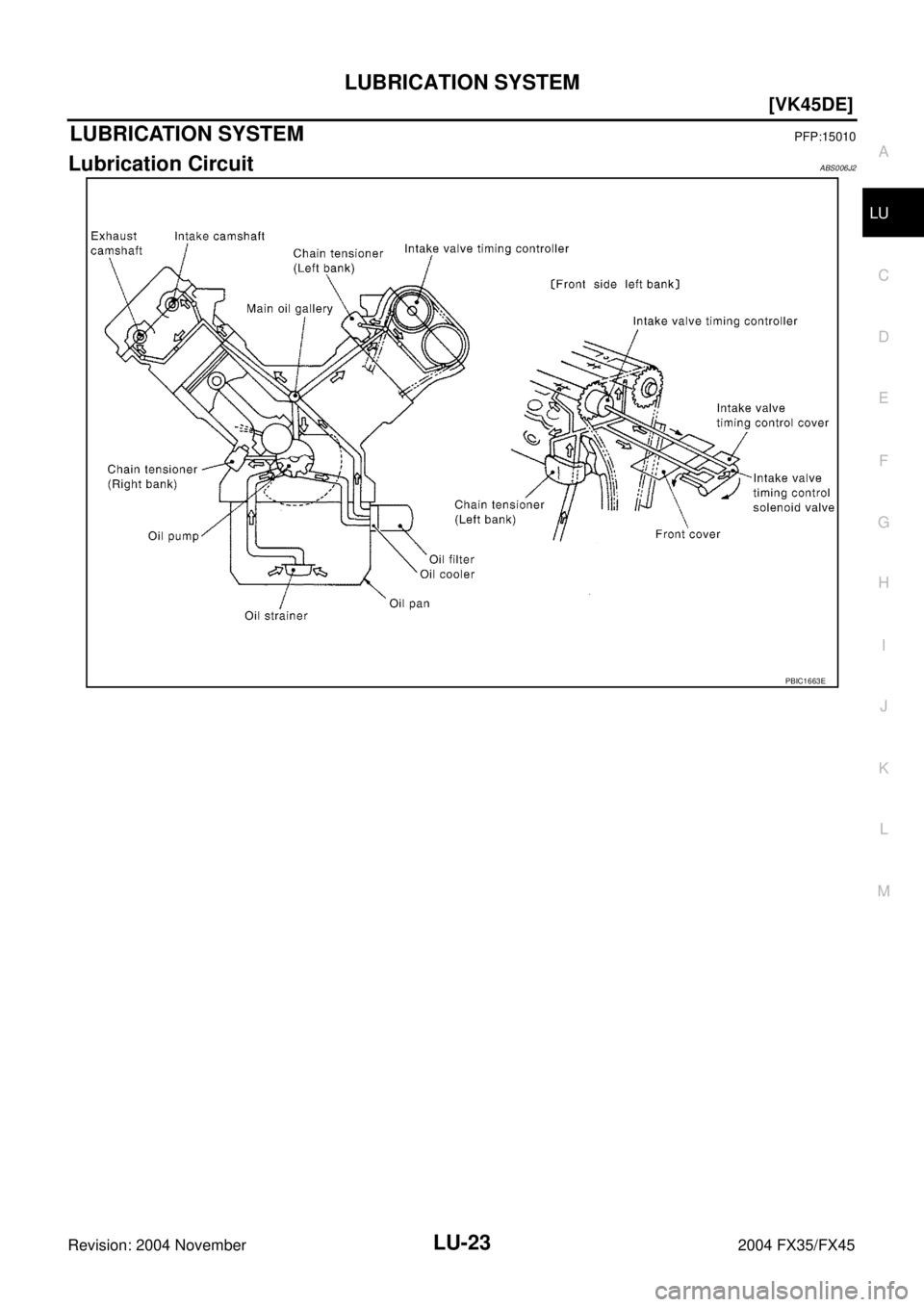

Lubrication CircuitABS006J2
